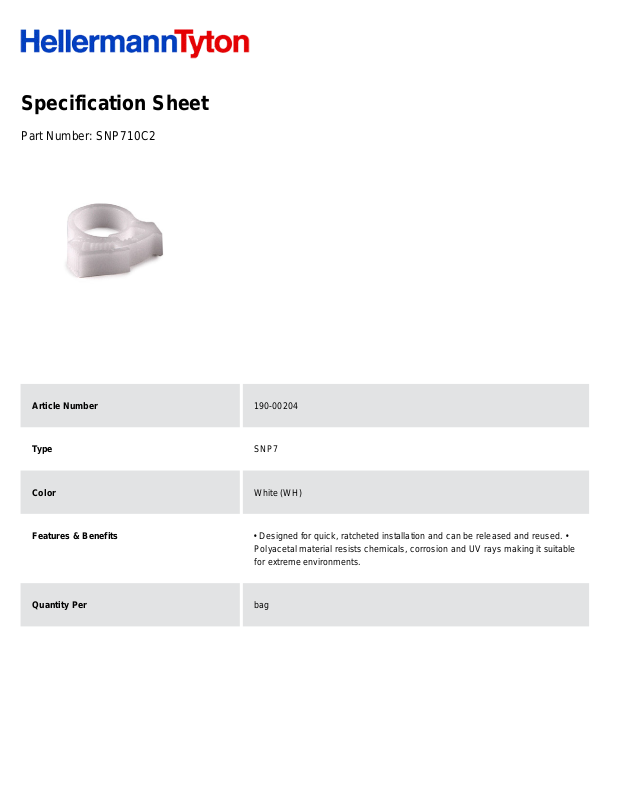

Specification Sheet
Part Number:
SNP710C2
Article Number
190-00204
Type
SNP7
Color
White (WH)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Polyacetal material resists chemicals, corrosion and UV rays making it suitable
for extreme environments.
Quantity Per
bag
Product Description
Snapper Hose Clamps are lightweight and corrosion-resistant. Manufactured
from high-performance thermoplastic materials selected to work well in a
variety of diverse environments. A quick ratchet closure provides for reduced
assembly line time and allows for application after connection of the hose.
Release is achieved by initiating opposed lateral movement of the ratchet
ends. Heat stabilized materials are available for high-temperature, motor, and
under-hood applications. Snappers are also stable in a wide variety of
chemicals including salts, bases, alcohols, ethers, detergents, gasoline,
lubricating oils, and greases. The Snapper is available in 32 standard sizes
ranging from 1/4" to 4-1/2" ID. Snappers are manufactured in white polyacetal
and black polyamide 6.6 glass filled impact modified heat stabilized material.
Custom designed and different colored or shaped Snappers are available
based upon applications and volume requirements.
Short Description
Snapper Hose Clamp, .46"–.56" Bundle Diameter, POM, White, 100/pkg
Global Part Name
SNP7-POM-WH
Fixation Method
Plug-in mounting
Variant
Closed
Wall Thickness WT (Imperial)
.069
Wall Thickness WT (Metric)
1.8
Material
Polyacetal (POM)
Material Shortcut
POM
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
