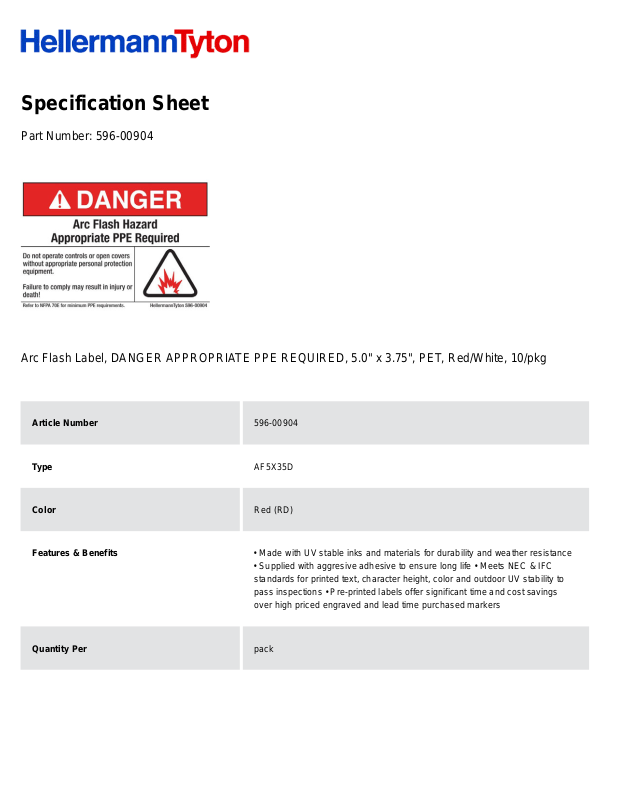

HellermannTyton 596-00904 Specification Sheet

Specification Sheet
Part Number:
596-00904
Arc Flash Label, DANGER APPROPRIATE PPE REQUIRED, 5.0" x 3.75", PET, Red/White, 10/pkg
596-00904
Type
AF5X35D
Color
Red (RD)
Features & Benefits
• Made with UV stable inks and materials for durability and weather resistance
• Supplied with aggresive adhesive to ensure long life • Meets NEC & IFC
standards for printed text, character height, color and outdoor UV stability to
pass inspections • Pre-printed labels offer significant time and cost savings
over high priced engraved and lead time purchased markers
Quantity Per
pack
Product Description
HellermannTyton pre-printed Solar Installation labels are designed to meet the
requirements of the 2014 National Electrical Code (NEC 2011) and the 2012
International Fire Code (IFC 2012) as well as being acceptable to the Authority
Having Jurisdiction (AHJ). Labels are made with durable UV stable materials
and adhesives that are designed to stick to both baked enamel and powder
coat surfaces. Where applicable, labels are made using reflective materials for
first responder safety. Some pre-printed labels are printable using a thermal
transfer printer when variable voltage or series data must be printed and
displayed.
Short Description
Arc Flash Label, DANGER APPROPRIATE PPE REQUIRED, 5.0" x 3.75",
PET, Red/White, 10/pkg
Global Part Name
AF5X35D-840/926-RD
Technical Description
Arc Flash Label, Danger- Appropriate PPE required, 5.0" X 3.75", Red/White
Width W (Imperial)
5.00
Width W (Metric)
127
Thickness T (Metric)
64.0
Height H (Imperial)
3.75
Height H (Metric)
95.25
Material
Type 840/926, Polyester (PET), UV stable, clear Polyester laminate
Material Shortcut
840/926
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +302°F (-40°C to +150°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Warranty (US)
Yes
UL Recognized (US)
Yes
Package Quantity(Imperial)
10
Package Quantity (Metric)
10
Labels per Column
1
Labels per Row
1
0.521
Weight (Imperial)
3.2
