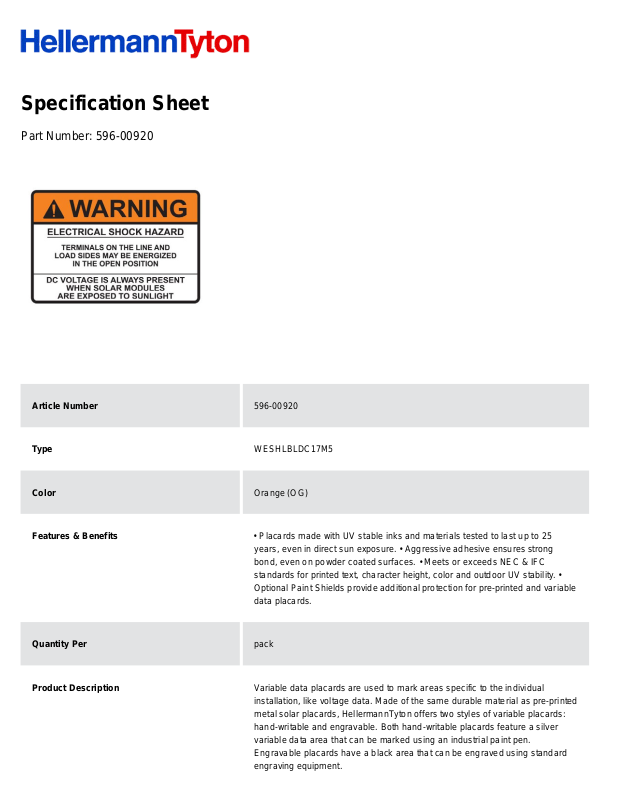

Specification Sheet
Part Number: 596-00920
Article Number |
|
596-00920 |
|
|
|
Type |
|
WESHLBLDC17M5 |
|
|
|
Color |
|
Orange (OG) |
|
|
|
Features & Benefits |
|
• Placards made with UV stable inks and materials tested to last up to 25 |
|
|
years, even in direct sun exposure. • Aggressive adhesive ensures strong |
|
|
bond, even on powder coated surfaces. • Meets or exceeds NEC & IFC |
|
|
standards for printed text, character height, color and outdoor UV stability. • |
|
|
Optional Paint Shields provide additional protection for pre-printed and variable |
|
|
data placards. |
|
|
|
Quantity Per |
|
pack |
|
|
|
Product Description |
|
Variable data placards are used to mark areas specific to the individual |
|
|
installation, like voltage data. Made of the same durable material as pre-printed |
|
|
metal solar placards, HellermannTyton offers two styles of variable placards: |
|
|
hand-writable and engravable. Both hand-writable placards feature a silver |
|
|
variable data area that can be marked using an industrial paint pen. |
|
|
Engravable placards have a black area that can be engraved using standard |
|
|
engraving equipment. |
Short Description |
|
Metal Solar Placard, 2017 Code, WARNING ELECTRICAL…DC VOLTAGE, |
|
|
3.75" x 2.5", AL,Orange/Silver,5/pkg |
|
|
|
Global Part Name |
|
|
|
WESHLBLDC17M5-AA-OG |
|
|
|
|
Technical Description |
|
3.75" X 2.5" Black text on an Orange/Silver Aluminum background that reads |
|
|
as: "WARNING ELECTRICAL SHOCK HAZARD. TERMINALS ON BOTH LINE |
|
|
AND LOAD SIDE MAY BE ENERGIZED IN THE OPEN POSITION. DC |
|
|
|
|
|
VOLTAGE IS ALWAYS PRESENT WHEN SOLAR MODULES ARE EXPOSED |
|
|
TO SUNLIGHT" - 5 per pack |
|
|
|
Length L (Imperial) |
|
2.5 |
|
|
|
Length L (Metric) |
63.5 |
|
|
|
|
Width W (Imperial) |
|
3.75 |
|
|
|
Width W (Metric) |
95.25 |
|
|
|
|
Thickness T (Metric) |
|
64.0 |
|
|
|
Height H (Imperial) |
2.50 |
|
|
|
|
Height H (Metric) |
|
63.50 |
|
|
|
Material |
|
Anodized Aluminum (AA) |
|
|
|
Material Shortcut |
|
AA |
|
|
|
Adhesive |
|
Ultra High Bond Permanent Acrylic Adhesive |
|
|
|
