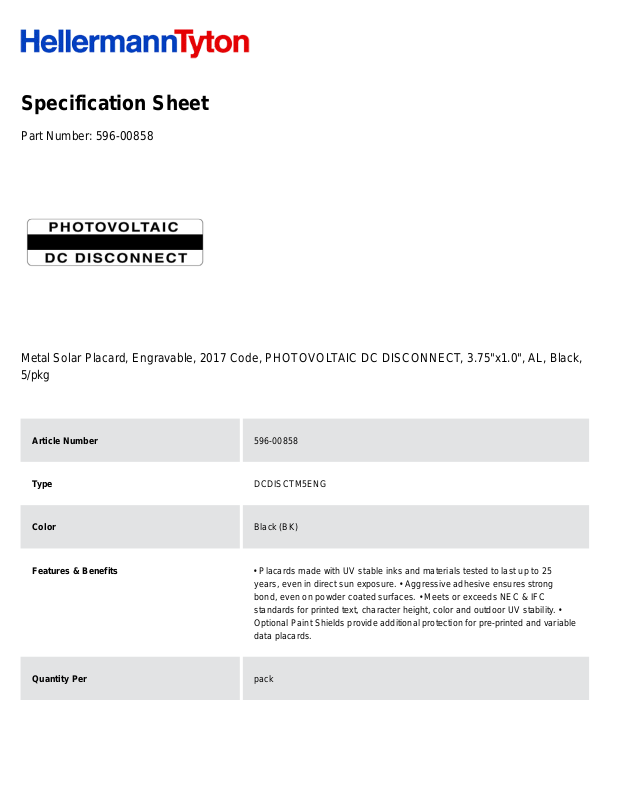

Specification Sheet
Part Number:
596-00858
Metal Solar Placard, Engravable, 2017 Code, PHOTOVOLTAIC DC DISCONNECT, 3.75"x1.0", AL, Black,
5/pkg
Article Number
596-00858
Type
DCDISCTM5ENG
Color
Black (BK)
Features & Benefits
• Placards made with UV stable inks and materials tested to last up to 25
years, even in direct sun exposure. • Aggressive adhesive ensures strong
bond, even on powder coated surfaces. • Meets or exceeds NEC & IFC
standards for printed text, character height, color and outdoor UV stability. •
Optional Paint Shields provide additional protection for pre-printed and variable
data placards.
Quantity Per
pack
Product Description
Variable data placards are used to mark areas specific to the individual
installation, like voltage data. Made of the same durable material as pre-printed
metal solar placards, HellermannTyton offers two styles of variable placards:
hand-writable and engravable. Both hand-writable placards feature a silver
variable data area that can be marked using an industrial paint pen.
Engravable placards have a black area that can be engraved using standard
engraving equipment.
Short Description
Metal Solar Placard, Engravable, 2017 Code, PHOTOVOLTAIC DC
DISCONNECT, 3.75"x1.0", AL, Black, 5/pkg
Global Part Name
DCDISCTM5ENG-AA-BK
Technical Description
3.75" X 1" Black text on aluminum background that reads as:
"PHOTOVOLTAIC DC DISCONNECT." - 10 per pack. Nameplate can be used
with standard engraving equipment to add variable data.
Local Order Number 2
Cross Reference = Paint Shield: 596-00796
Length L (Imperial)
3.75
Length L (Metric)
95.25
Width W (Imperial)
3.75
Width W (Metric)
92.25
Height H (Imperial)
1.0
Height H (Metric)
25.40
Material
Anodized Aluminum (AA)
Material Shortcut
AA
Adhesive
Ultra High Bond Permanent Acrylic Adhesive
Halogen free
No
Adhesive Operating Temperature
from +50°F (from +10°C)
Operating Temperature (Metric)
-40°F to +203°F (-40°C to +95°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
NEC2017 NEC2014
Warranty (US)
Yes
Package Quantity(Imperial)
5
Package Quantity (Metric)
5
Customs Number
7616995195
Labels per Column
1
Labels per Row
1
Weight (Metric)
.104
Weight (Imperial)
0.23
