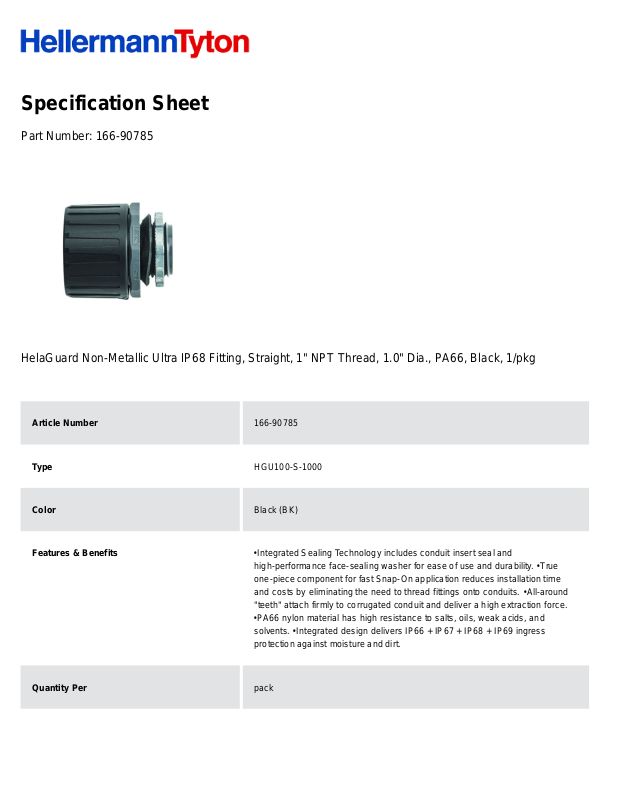

Specification Sheet
Part Number:
166-90785
HelaGuard Non-Metallic Ultra IP68 Fitting, Straight, 1" NPT Thread, 1.0" Dia., PA66, Black, 1/pkg
Article Number
166-90785
Type
HGU100-S-1000
Color
Black (BK)
Features & Benefits
•
Integrated Sealing Technology includes conduit insert seal and
high-performance face-sealing washer for ease of use and durability. •
True
one-piece component for fast Snap-On application reduces installation time
and costs by eliminating the need to thread fittings onto conduits. •
All-around
"teeth" attach firmly to corrugated conduit and deliver a high extraction force.
•
PA66 nylon material has high resistance to salts, oils, weak acids, and
solvents. •
Integrated design delivers IP66 + IP67 + IP68 + IP69 ingress
protection against moisture and dirt.
Quantity Per
pack
Product Description
Straight Snap-On style Metric or NPT threaded nylon fittings provide a true
one-piece component solution; seals and locknuts are included. Durable nylon
materials deliver high chemical resistance against salts, oils, weak acids, and
solvents. Designed for easy removal with a small screwdriver. UL-Listed fittings
deliver IP66 + IP67 + IP68 + IP69 ingress protection.
Short Description
HelaGuard Non-Metallic Ultra IP68 Fitting, Straight, 1" NPT Thread, 1.0" Dia.,
PA66, Black, 1/pkg
Global Part Name
HGU100-S-1000-PA66-BK
Length L (Imperial)
2.09
Length L (Metric)
53.0
Variant
Straight
Outside Diameter OD(Imperial)
2.01
Outside Diameter OD(metric)
51.0
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
34
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
Self-Extinguishing
