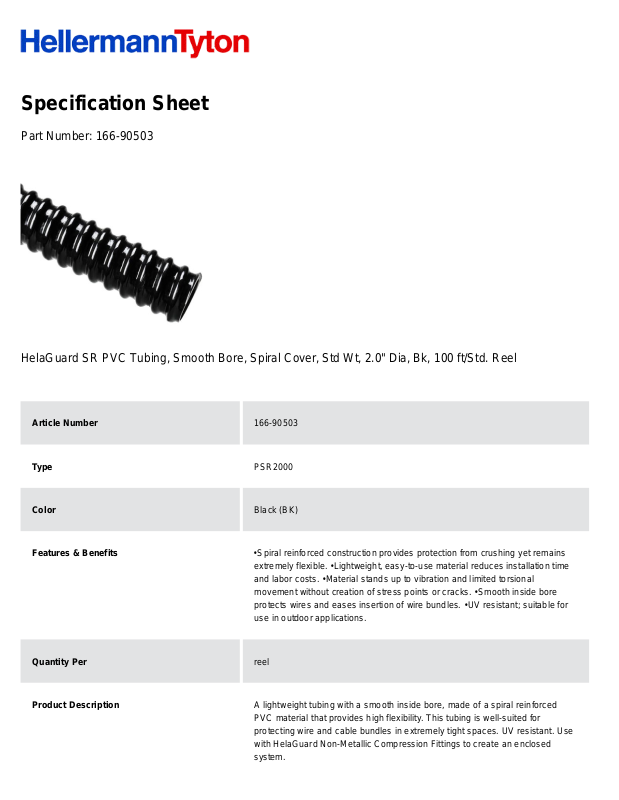

Specification Sheet
Part Number:
166-90503
HelaGuard SR PVC Tubing, Smooth Bore, Spiral Cover, Std Wt, 2.0" Dia, Bk, 100 ft/Std. Reel
Article Number
166-90503
Type
PSR2000
Color
Black (BK)
Features & Benefits
•
Spiral reinforced construction provides protection from crushing yet remains
extremely flexible. •
Lightweight, easy-to-use material reduces installation time
and labor costs. •
Material stands up to vibration and limited torsional
movement without creation of stress points or cracks. •
Smooth inside bore
protects wires and eases insertion of wire bundles. •
UV resistant; suitable for
use in outdoor applications.
Quantity Per
reel
Product Description
A lightweight tubing with a smooth inside bore, made of a spiral reinforced
PVC material that provides high flexibility. This tubing is well-suited for
protecting wire and cable bundles in extremely tight spaces. UV resistant. Use
with HelaGuard Non-Metallic Compression Fittings to create an enclosed
system.
Short Description
HelaGuard SR PVC Tubing, Smooth Bore, Spiral Cover, Std Wt, 2.0" Dia, Bk,
100 ft/Std. Reel
Global Part Name
PSR2000-PVC-BK
Length L (Imperial)
100.0
Length L (Metric)
30.5
Inner Diameter D (Imperial)
1.97
Inner Diameter D (Metric)
50.0
Outside Diameter OD(Imperial)
2.24
Outside Diameter OD(metric)
57.0
Nominal Diameter (Imperial)
2-1/2
Nominal Diameter (Metric)
63
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing according to EN IEC 61386
Halogen free
No
Operating Temperature (Metric)
-4°F to +158°F (-20°C to +70°C)
