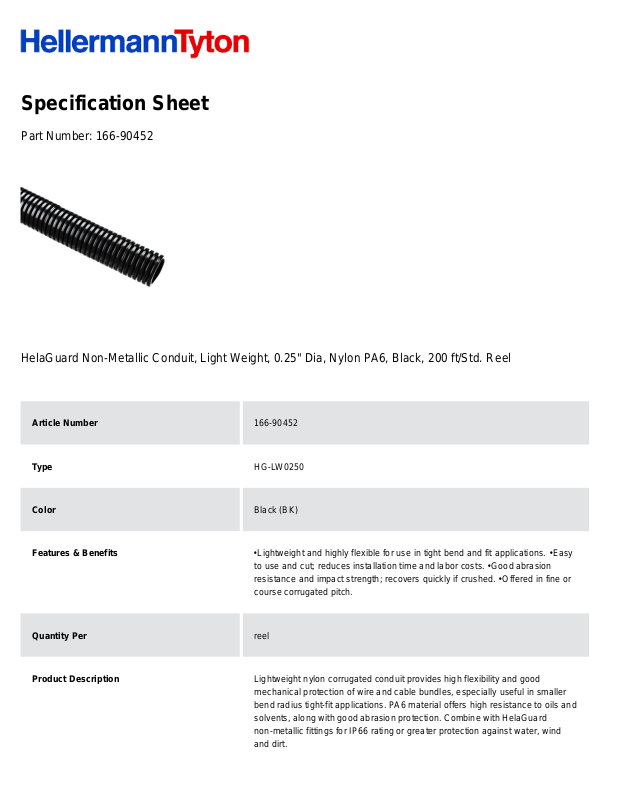

Specification Sheet
Part Number:
166-90452
HelaGuard Non-Metallic Conduit, Light Weight, 0.25" Dia, Nylon PA6, Black, 200 ft/Std. Reel
Article Number
166-90452
Type
HG-LW0250
Color
Black (BK)
Features & Benefits
•
Lightweight and highly flexible for use in tight bend and fit applications. •
Easy
to use and cut; reduces installation time and labor costs. •
Good abrasion
resistance and impact strength; recovers quickly if crushed. •
Offered in fine or
course corrugated pitch.
Quantity Per
reel
Product Description
Lightweight nylon corrugated conduit provides high flexibility and good
mechanical protection of wire and cable bundles, especially useful in smaller
bend radius tight-fit applications. PA6 material offers high resistance to oils and
solvents, along with good abrasion protection. Combine with HelaGuard
non-metallic fittings for IP66 rating or greater protection against water, wind
and dirt.
Short Description
HelaGuard Non-Metallic Conduit, Light Weight, 0.25" Dia, Nylon PA6, Black,
200 ft/Std. Reel
Global Part Name
HG-LW0250-PA6-BK
Length L (Imperial)
200.0
Length L (Metric)
61.0
Outside Diameter OD(Imperial)
0.39
Outside Diameter OD(metric)
10.0
Nominal Diameter (Imperial)
1/4
Nominal Diameter (Metric)
10
Material
Polyamide 6 (PA6)
Material Shortcut
PA6
Flammability
Self-Extinguishing according to EN IEC 61386
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +248°F (-40°C to +120°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
