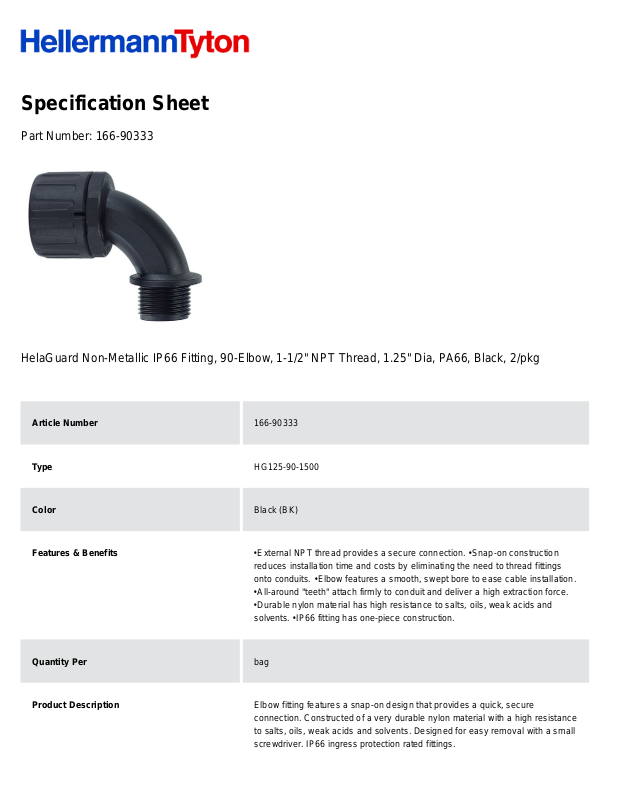

Specification Sheet
Part Number:
166-90333
HelaGuard Non-Metallic IP66 Fitting, 90-Elbow, 1-1/2" NPT Thread, 1.25" Dia, PA66, Black, 2/pkg
Article Number
166-90333
Type
HG125-90-1500
Color
Black (BK)
Features & Benefits
•
External NPT thread provides a secure connection. •
Snap-on construction
reduces installation time and costs by eliminating the need to thread fittings
onto conduits. •
Elbow features a smooth, swept bore to ease cable installation.
•
All-around "teeth" attach firmly to conduit and deliver a high extraction force.
•
Durable nylon material has high resistance to salts, oils, weak acids and
solvents. •
IP66 fitting has one-piece construction.
Quantity Per
bag
Product Description
Elbow fitting features a snap-on design that provides a quick, secure
connection. Constructed of a very durable nylon material with a high resistance
to salts, oils, weak acids and solvents. Designed for easy removal with a small
screwdriver. IP66 ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP66 Fitting, 90-Elbow, 1-1/2" NPT Thread, 1.25" Dia,
PA66, Black, 2/pkg
Global Part Name
HG125-90-1500-PA66-BK
Length L (Imperial)
3.90
Length L (Metric)
99.06
Variant
90° Elbow
Outside Diameter OD(Imperial)
2.48
Outside Diameter OD(metric)
63
Nominal Diameter (Imperial)
1-1/4
Nominal Diameter (Metric)
42
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
