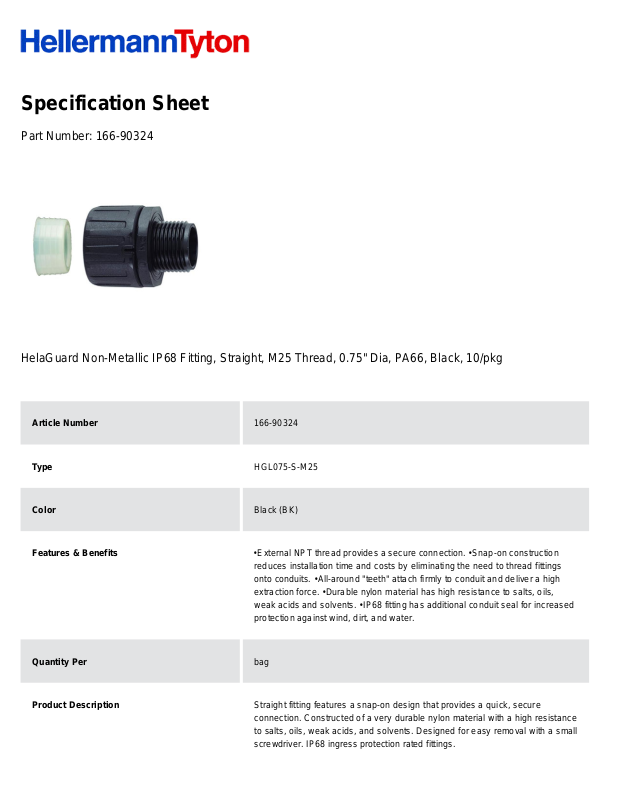

Specification Sheet
Part Number:
166-90324
HelaGuard Non-Metallic IP68 Fitting, Straight, M25 Thread, 0.75" Dia, PA66, Black, 10/pkg
Article Number
166-90324
Type
HGL075-S-M25
Color
Black (BK)
Features & Benefits
•
External NPT thread provides a secure connection. •
Snap-on construction
reduces installation time and costs by eliminating the need to thread fittings
onto conduits. •
All-around "teeth" attach firmly to conduit and deliver a high
extraction force. •
Durable nylon material has high resistance to salts, oils,
weak acids and solvents. •
IP68 fitting has additional conduit seal for increased
protection against wind, dirt, and water.
Quantity Per
bag
Product Description
Straight fitting features a snap-on design that provides a quick, secure
connection. Constructed of a very durable nylon material with a high resistance
to salts, oils, weak acids, and solvents. Designed for easy removal with a small
screwdriver. IP68 ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP68 Fitting, Straight, M25 Thread, 0.75" Dia, PA66,
Black, 10/pkg
Global Part Name
HGL075-S-M25-PA66-BK
Length L (Imperial)
1.97
Length L (Metric)
50
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
10
Package Quantity (Metric)
10
Customs Number
3926909988
