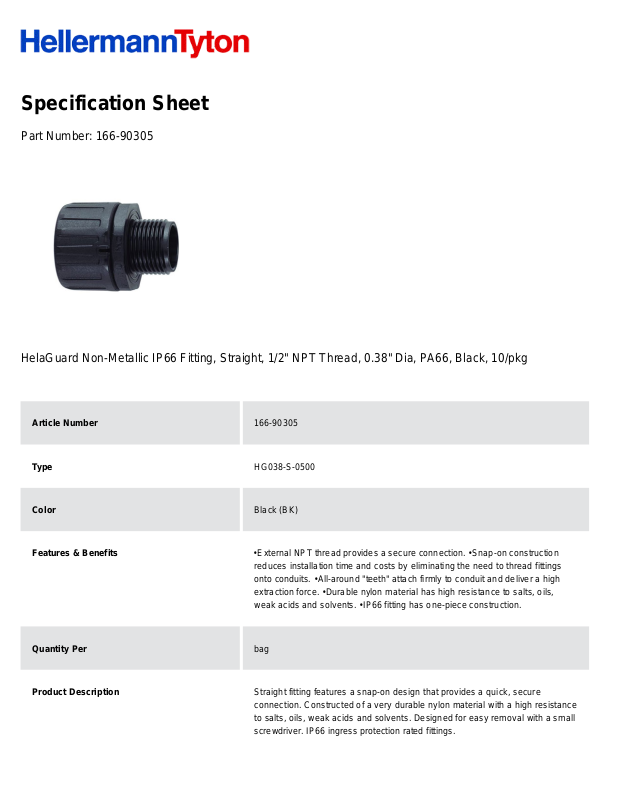

Specification Sheet
Part Number:
166-90305
HelaGuard Non-Metallic IP66 Fitting, Straight, 1/2" NPT Thread, 0.38" Dia, PA66, Black, 10/pkg
Article Number
166-90305
Type
HG038-S-0500
Color
Black (BK)
Features & Benefits
•
External NPT thread provides a secure connection. •
Snap-on construction
reduces installation time and costs by eliminating the need to thread fittings
onto conduits. •
All-around "teeth" attach firmly to conduit and deliver a high
extraction force. •
Durable nylon material has high resistance to salts, oils,
weak acids and solvents. •
IP66 fitting has one-piece construction.
Quantity Per
bag
Product Description
Straight fitting features a snap-on design that provides a quick, secure
connection. Constructed of a very durable nylon material with a high resistance
to salts, oils, weak acids and solvents. Designed for easy removal with a small
screwdriver. IP66 ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP66 Fitting, Straight, 1/2" NPT Thread, 0.38" Dia,
PA66, Black, 10/pkg
Global Part Name
HG038-S-0500-PA66-BK
Length L (Imperial)
1.73
Length L (Metric)
44
Variant
Straight
Outside Diameter OD(Imperial)
1.14
Outside Diameter OD(metric)
29
Nominal Diameter (Imperial)
3/8
Nominal Diameter (Metric)
16
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
