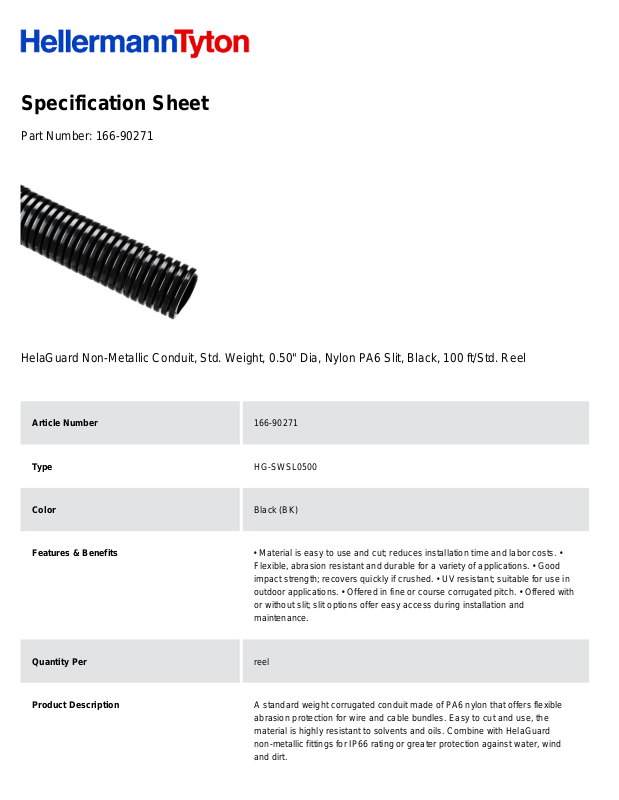

Specification Sheet
Part Number:
166-90271
HelaGuard Non-Metallic Conduit, Std. Weight, 0.50" Dia, Nylon PA6 Slit, Black, 100 ft/Std. Reel
Article Number
166-90271
Type
HG-SWSL0500
Color
Black (BK)
Features & Benefits
• Material is easy to use and cut; reduces installation time and labor costs. •
Flexible, abrasion resistant and durable for a variety of applications. • Good
impact strength; recovers quickly if crushed. • UV resistant; suitable for use in
outdoor applications. • Offered in fine or course corrugated pitch. • Offered with
or without slit; slit options offer easy access during installation and
maintenance.
Quantity Per
reel
Product Description
A standard weight corrugated conduit made of PA6 nylon that offers flexible
abrasion protection for wire and cable bundles. Easy to cut and use, the
material is highly resistant to solvents and oils. Combine with HelaGuard
non-metallic fittings for IP66 rating or greater protection against water, wind
and dirt.
Short Description
HelaGuard Non-Metallic Conduit, Std. Weight, 0.50" Dia, Nylon PA6 Slit, Black,
100 ft/Std. Reel
Global Part Name
HG-SWSL0500-PA6-BK
Length L (Imperial)
100.0
Length L (Metric)
30.5
Inner Diameter D (Imperial)
0.66
Inner Diameter D (Metric)
16.7
Outside Diameter OD(Imperial)
0.84
Outside Diameter OD(metric)
21.2
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
21
Material
Polyamide 6 (PA6)
Material Shortcut
PA6
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +248°F (-40°C to +120°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
30.5
Customs Number
3926909988
