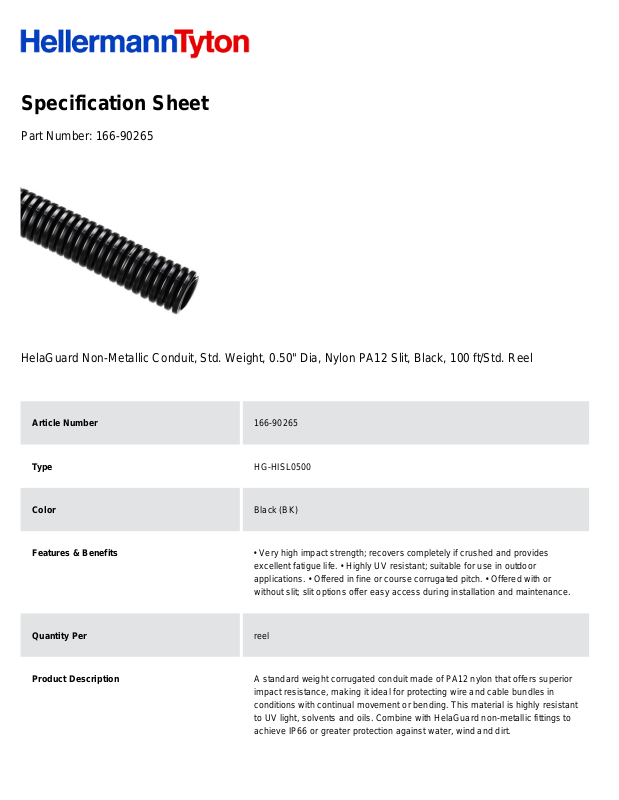

Specification Sheet
Part Number:
166-90265
HelaGuard Non-Metallic Conduit, Std. Weight, 0.50" Dia, Nylon PA12 Slit, Black, 100 ft/Std. Reel
Article Number
166-90265
Type
HG-HISL0500
Color
Black (BK)
Features & Benefits
• Very high impact strength; recovers completely if crushed and provides
excellent fatigue life. • Highly UV resistant; suitable for use in outdoor
applications. • Offered in fine or course corrugated pitch. • Offered with or
without slit; slit options offer easy access during installation and maintenance.
Quantity Per
reel
Product Description
A standard weight corrugated conduit made of PA12 nylon that offers superior
impact resistance, making it ideal for protecting wire and cable bundles in
conditions with continual movement or bending. This material is highly resistant
to UV light, solvents and oils. Combine with HelaGuard non-metallic fittings to
achieve IP66 or greater protection against water, wind and dirt.
Short Description
HelaGuard Non-Metallic Conduit, Std. Weight, 0.50" Dia, Nylon PA12 Slit,
Black, 100 ft/Std. Reel
Global Part Name
HG-HISL0500-PA12-BK
Length L (Imperial)
100.0
Length L (Metric)
30.5
Inner Diameter D (Imperial)
0.66
Inner Diameter D (Metric)
16.7
Outside Diameter OD(Imperial)
0.84
Outside Diameter OD(metric)
21.2
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
21
Material
Polyamide 12 (PA12)
Material Shortcut
PA12
Flammability
Self-Extinguishing according to EN IEC 61386
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +230°F (-50°C to +110°C)
