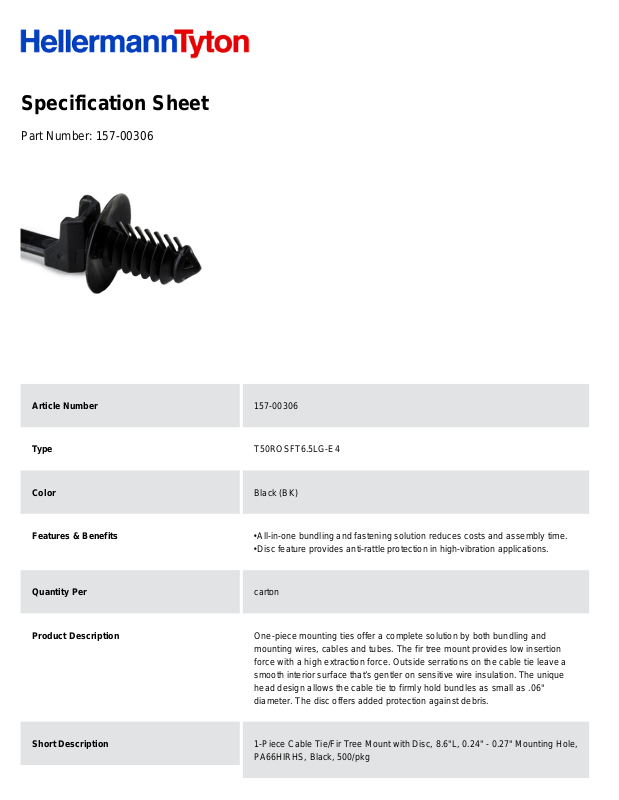

Specification Sheet
Part Number:
157-00306
Article Number
157-00306
Type
T50ROSFT6.5LG-E4
Color
Black (BK)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
Disc feature provides anti-rattle protection in high-vibration applications.
Quantity Per
carton
Product Description
One-piece mounting ties offer a complete solution by both bundling and
mounting wires, cables and tubes. The fir tree mount provides low insertion
force with a high extraction force. Outside serrations on the cable tie leave a
smooth interior surface that’s gentler on sensitive wire insulation. The unique
head design allows the cable tie to firmly hold bundles as small as .06"
diameter. The disc offers added protection against debris.
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 8.6"L, 0.24" - 0.27" Mounting Hole,
PA66HIRHS, Black, 500/pkg
Global Part Name
T50ROSFT6.5LG-E4-PA66HIRHS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.6
Length L (Metric)
218.44
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.04
Bundle Diameter Min (Metric)
1.0
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.3
Panel Thickness Min(Imperial)
0.024
Panel Thickness Max(Imperial)
0.32
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
8.25
Mounting Hole Diameter D (Imperial)
0.24 - 0.27
Mounting Hole Diameter D (Metric)
6.1 - 6.9 mm
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.27
Mounting Hole Diameter D Max (Metric)
6.9
Disc Diameter(Metric)
16.0
Disc Diameter (Imperial)
0.63
Material
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Shortcut
PA66HIRHS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
