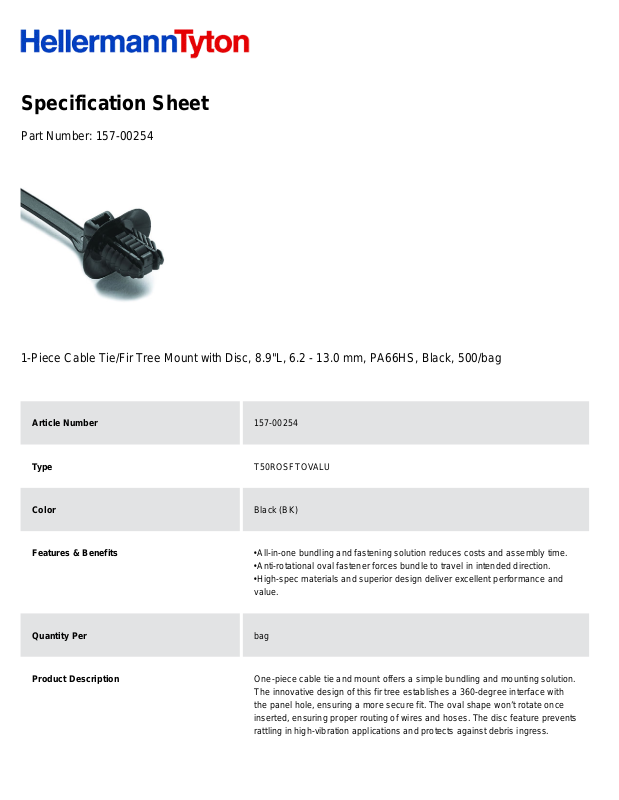

Page 1
Specification Sheet
Part Number:
157-00254
1-Piece Cable Tie/Fir Tree Mount with Disc, 8.9"L, 6.2 - 13.0 mm, PA66HS, Black, 500/bag
Article Number
157-00254
Type
T50ROSFTOVALU
Color
Black (BK)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
Anti-rotational oval fastener forces bundle to travel in intended direction.
•
High-spec materials and superior design deliver excellent performance and
value.
Quantity Per
bag
Product Description
One-piece cable tie and mount offers a simple bundling and mounting solution.
The innovative design of this fir tree establishes a 360-degree interface with
the panel hole, ensuring a more secure fit. The oval shape won’t rotate once
inserted, ensuring proper routing of wires and hoses. The disc feature prevents
rattling in high-vibration applications and protects against debris ingress.
Page 2
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 8.9"L, 6.2 - 13.0 mm, PA66HS,
Black, 500/bag
Global Part Name
T50ROSFTOVALU-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
222
Length L (Imperial)
8.9
Length L (Metric)
225.0
Fixation Method
Fir Tree for oval holes
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.20
Width W (Metric)
5.1
Bundle Diameter Min (Imperial)
0.07
Bundle Diameter Min (Metric)
1.8
Bundle Diameter Max (Imperial)
1.97
Page 3
Bundle Diameter Max (Metric)
50.0
Panel Thickness Min(Imperial)
0.023
Panel Thickness Max(Imperial)
0.24
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
6.0
Mounting Hole Diameter D (Imperial)
0.24 x 0.48 ";0.25 x 0.50 ";0.25 x 0.51 ";0.27 x 0.47
Mounting Hole Diameter D (Metric)
6.5 x 12.5 mm 7.0 x 12.0 mm 6.5 x 13.0 mm 6.2 x 12.2 mm
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.48
Mounting Hole Diameter D Max (Metric)
12.2
Disc Diameter(Metric)
16.0 x 21.0
Disc Diameter (Imperial)
0.63 x 0.83
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Material Cable Tie
Polyamide 6.6 heat stabilized (PA66HS)
Flammability
UL 94 V2
Page 4
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
