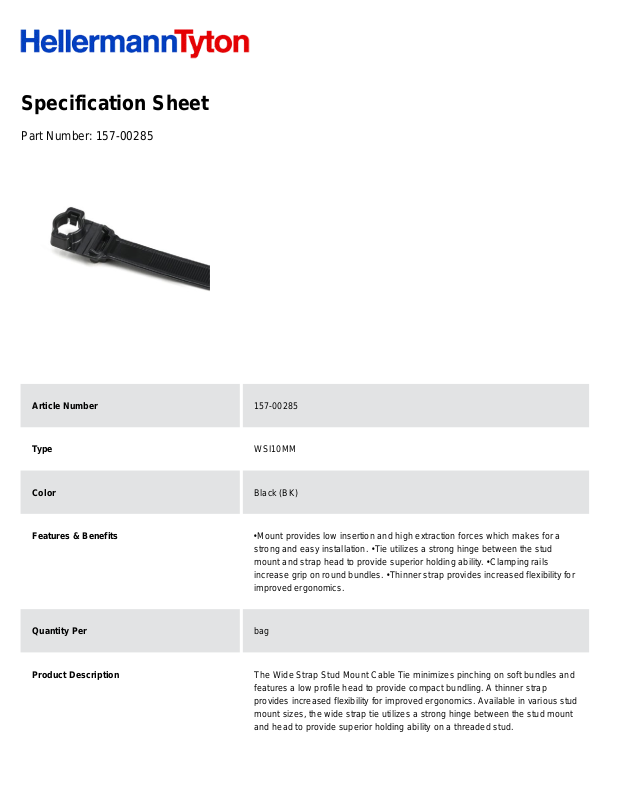

Specification Sheet
Part Number:
157-00285
Article Number
157-00285
Type
WSI10MM
Color
Black (BK)
Features & Benefits
•
Mount provides low insertion and high extraction forces which makes for a
strong and easy installation. •
Tie utilizes a strong hinge between the stud
mount and strap head to provide superior holding ability. •
Clamping rails
increase grip on round bundles. •
Thinner strap provides increased flexibility for
improved ergonomics.
Quantity Per
bag
Product Description
The Wide Strap Stud Mount Cable Tie minimizes pinching on soft bundles and
features a low profile head to provide compact bundling. A thinner strap
provides increased flexibility for improved ergonomics. Available in various stud
mount sizes, the wide strap tie utilizes a strong hinge between the stud mount
and head to provide superior holding ability on a threaded stud.
Short Description
Wide Strap Cable Tie with 10mm Stud Mount, 12.7" Long, .5" Wide,
PA66HIRHSUV, Black, 300/Bag
Global Part Name
WSI10MM-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
120
Minimum Tensile Strength (Metric)
534
Length L (Imperial)
12.7
Length L (Metric)
322.6
Fixation Method
Weld Stud Fixing
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.5
Width W (Metric)
12.7
Bundle Diameter Min (Imperial)
0.38
Bundle Diameter Min (Metric)
9.5
Bundle Diameter Max (Imperial)
3.2
