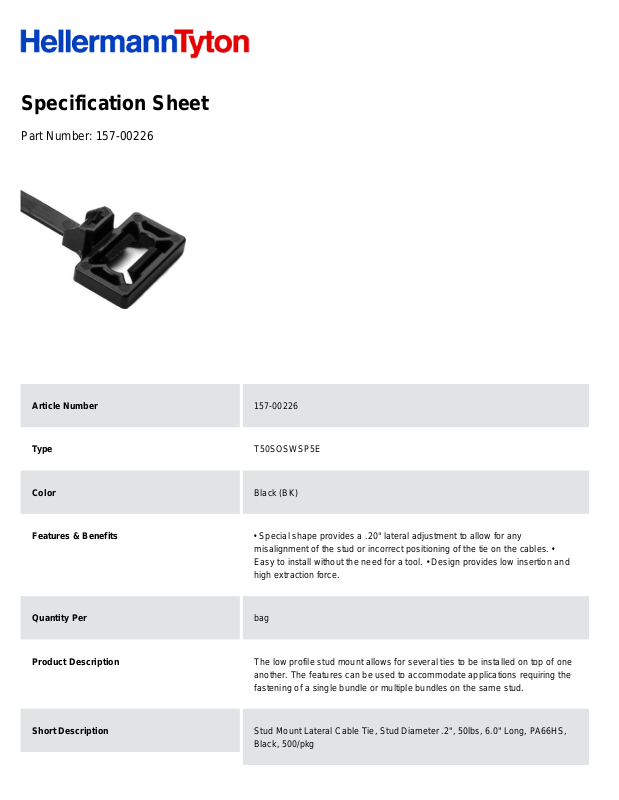

Specification Sheet
Part Number:
157-00226
Article Number
157-00226
Type
T50SOSWSP5E
Color
Black (BK)
Features & Benefits
• Special shape provides a .20" lateral adjustment to allow for any
misalignment of the stud or incorrect positioning of the tie on the cables. •
Easy to install without the need for a tool. • Design provides low insertion and
high extraction force.
Quantity Per
bag
Product Description
The low profile stud mount allows for several ties to be installed on top of one
another. The features can be used to accommodate applications requiring the
fastening of a single bundle or multiple bundles on the same stud.
Short Description
Stud Mount Lateral Cable Tie, Stud Diameter .2", 50lbs, 6.0" Long, PA66HS,
Black, 500/pkg
Global Part Name
T50SOSWSP5E-PA66HS-BK
Minimum Tensile Strength (Imperial)
44.96
Minimum Tensile Strength (Metric)
200
Length L (Imperial)
6.42
Length L (Metric)
163
Fixation Method
Weld Stud Fixing
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.181
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.04
Bundle Diameter Min (Metric)
1.0
Bundle Diameter Max (Imperial)
1.38
Bundle Diameter Max (Metric)
35.0
Thickness T (Metric)
1.35
Stud Diameter (Metric)
5.0 mm
Stud Diamater (Imperial)
0.197
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
