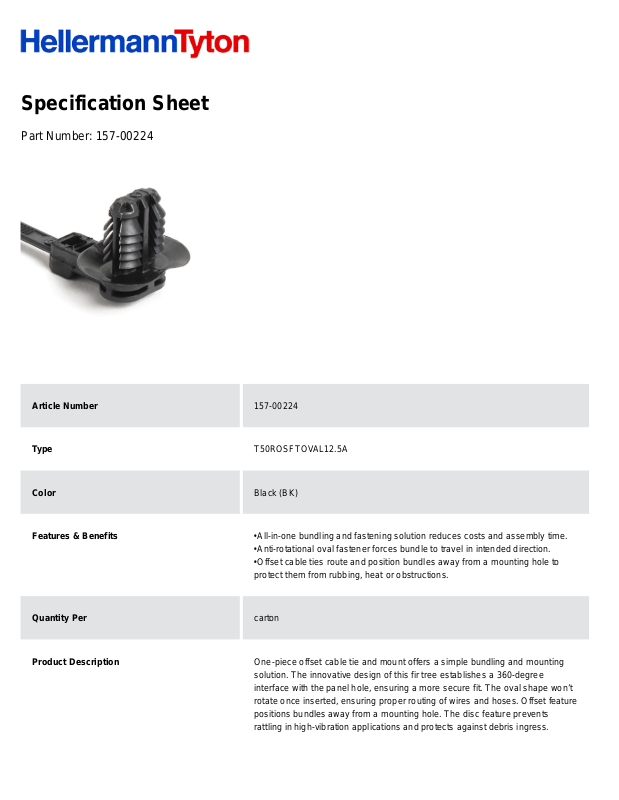

Specification Sheet
Part Number:
157-00224
Article Number
157-00224
Type
T50ROSFTOVAL12.5A
Color
Black (BK)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
Anti-rotational oval fastener forces bundle to travel in intended direction.
•
Offset cable ties route and position bundles away from a mounting hole to
protect them from rubbing, heat or obstructions.
Quantity Per
carton
Product Description
One-piece offset cable tie and mount offers a simple bundling and mounting
solution. The innovative design of this fir tree establishes a 360-degree
interface with the panel hole, ensuring a more secure fit. The oval shape won’t
rotate once inserted, ensuring proper routing of wires and hoses. Offset feature
positions bundles away from a mounting hole. The disc feature prevents
rattling in high-vibration applications and protects against debris ingress.
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 8.5"L, 6.2 - 13.0 mm, PA66HIRHS,
Black, 500/bag
Global Part Name
T50ROSFTOVAL12.5A-PA66HIRHS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.5
Length L (Metric)
215.9
Offset Length(Imperial)
0.49
Offset Length(Metric)
12.5
Fixation Method
Fir Tree for oval holes
Identification Plate Position
none
Releasable Closure
No
Variant
Outside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.70
Bundle Diameter Min (Imperial)
0.08
Bundle Diameter Min (Metric)
2.0
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.35
Height H (Imperial)
0.52
Height H (Metric)
13.15
Panel Thickness Min(Imperial)
0.023
Panel Thickness Max(Imperial)
0.27
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
6.75
Mounting Hole Diameter D (Imperial)
0.24 x 0.48 ";0.25 x 0.50 ";0.25 x 0.51 ";0.27 x 0.47
Mounting Hole Diameter D (Metric)
6.5 x 12.5 mm 6.5 x 13.0 mm 6.2 x 12.2 mm 7.0 x 12.0 mm
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.51
Mounting Hole Diameter D Max (Metric)
13.0
Disc Diameter(Metric)
17.63 x 23.63
Disc Diameter (Imperial)
0.69 x 0.93
Material
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Shortcut
PA66HIRHS
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
