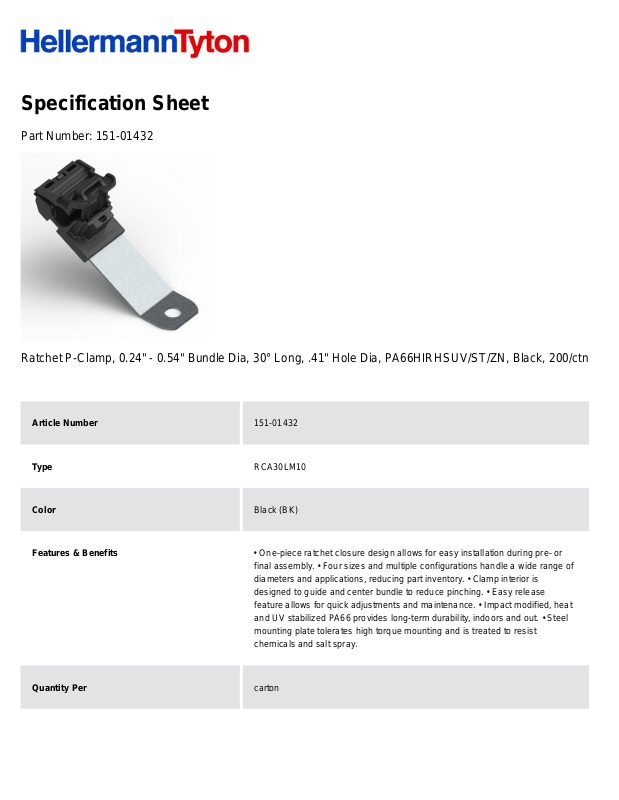

Specification Sheet
Part Number:
151-01432
Ratchet P-Clamp, 0.24" - 0.54" Bundle Dia, 30° Long, .41" Hole Dia, PA66HIRHSUV/ST/ZN, Black, 200/ctn
Article Number
151-01432
Type
RCA30LM10
Color
Black (BK)
Features & Benefits
• One-piece ratchet closure design allows for easy installation during pre- or
final assembly. • Four sizes and multiple configurations handle a wide range of
diameters and applications, reducing part inventory. • Clamp interior is
designed to guide and center bundle to reduce pinching. • Easy release
feature allows for quick adjustments and maintenance. • Impact modified, heat
and UV stabilized PA66 provides long-term durability, indoors and out. • Steel
mounting plate tolerates high torque mounting and is treated to resist
chemicals and salt spray.
Quantity Per
carton
Product Description
The Ratchet P-Clamp family offers versatility when managing wires, cables
and hoses. The robust design and durable materials make it ideal for heavy
duty applications, both indoors and out. The one-piece adjustable clamp can
be closed by hand to the desired diameter. The release feature provides easy
and nondestructive removal of cables simply by using a flat-head screwdriver.
This nondestructive release allows the clamp to be reused without removing or
replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes
and multiple mounting configurations.
Short Description
Ratchet P-Clamp, 0.24" - 0.54" Bundle Dia, 30° Long, .41" Hole Dia,
PA66HIRHSUV/ST/ZN, Black, 200/ctn
Global Part Name
RCA30LM10-PA66HIRHSUV/ST/ZN-BK
Minimum Tensile Strength (Imperial)
100.0
Minimum Tensile Strength (Metric)
445.0
Length L (Imperial)
5.93
Length L (Metric)
150.5
Fixation Method
Screw Mounting
Variant
Long
Width W (Imperial)
1.37
Width W (Metric)
34.9
Bundle Diameter Min (Imperial)
0.24
Bundle Diameter Min (Metric)
6.2
Bundle Diameter Max (Imperial)
0.54
Bundle Diameter Max (Metric)
13.7
Cable Tie Width Max (Imperial)
0.52
Cable Tie Width Max (Metric)
13.2
Mounting Hole Diameter D (Imperial)
0.405
Mounting Hole Diameter D (Metric)
10.29 mm
Mounting Hole Diameter D Max (Metric)
10.29
Stud Diameter (Metric)
M10
Mounting Hole Centers (Imperial)
2.85
Material
Steel (ST) Zinc plated (ZN) Polyamide 6.6 high impact modified, heat and UV
stabilized (PA66HIRHSUV)
Material Shortcut
ST ZN PA66HIRHSUV
Flammability
UL 94 HB
UV Resistant (Yes/No)
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
200
Package Quantity (Metric)
200
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
