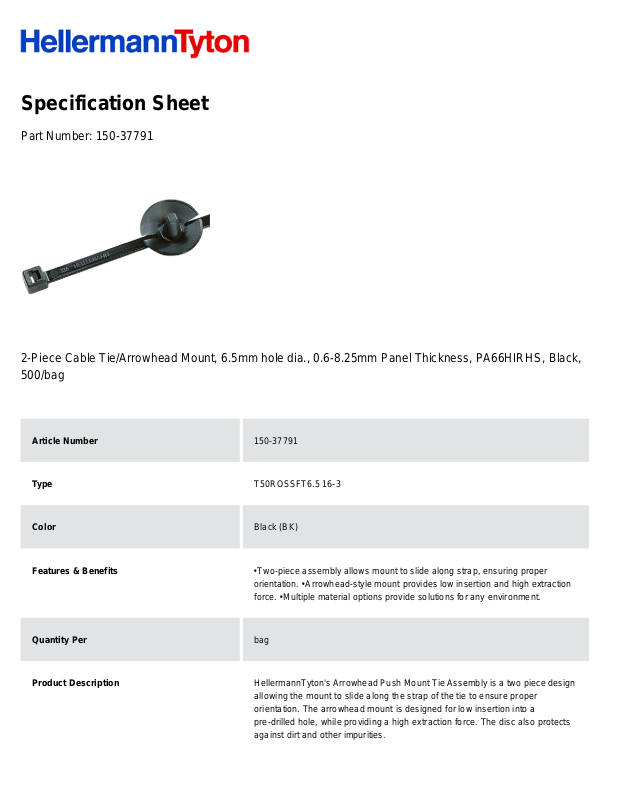

Page 1
Specification Sheet
Part Number:
150-37791
2-Piece Cable Tie/Arrowhead Mount, 6.5mm hole dia., 0.6-8.25mm Panel Thickness, PA66HIRHS, Black,
500/bag
Article Number
150-37791
Type
T50ROSSFT6.5 16-3
Color
Black (BK)
Features & Benefits
•
Two-piece assembly allows mount to slide along strap, ensuring proper
orientation. •
Arrowhead-style mount provides low insertion and high extraction
force. •
Multiple material options provide solutions for any environment.
Quantity Per
bag
Product Description
HellermannTyton's Arrowhead Push Mount Tie Assembly is a two piece design
allowing the mount to slide along the strap of the tie to ensure proper
orientation. The arrowhead mount is designed for low insertion into a
pre-drilled hole, while providing a high extraction force. The disc also protects
against dirt and other impurities.
Page 2
Short Description
2-Piece Cable Tie/Arrowhead Mount, 6.5mm hole dia., 0.6-8.25mm Panel
Thickness, PA66HIRHS, Black, 500/bag
Global Part Name
T50ROSSFT6.5 16-3-PA66HS/PA66HIRHS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
7.87
Length L (Metric)
200
Fixation Method
Arrowhead
Identification Plate Position
none
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.181
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.197
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
1.77
Bundle Diameter Max (Metric)
45.0
Page 3
Height H (Imperial)
0.051
Height H (Metric)
1.3
Panel Thickness Min(Imperial)
0.098
Panel Thickness Max(Imperial)
0.138
Panel Thickness Min (Metric)
2.5
Panel Thickness Max (Metric)
3.5
Mounting Hole Diameter D (Imperial)
0.248 - 0.264
Mounting Hole Diameter D (Metric)
6.3 - 6.7 mm
Mounting Hole Diameter D Min (Imperial)
0.248
Mounting Hole Diameter D Max (Imperial)
0.26
Mounting Hole Diameter D Max (Metric)
6.7
Disc Diameter(Metric)
16.0
Disc Diameter (Imperial)
0.63
Material
Polyamide 6.6 heat stabilized (PA66HS) Polyamide 6.6, high impact modified,
heat stabilized (PA66HIRHS)
Material Shortcut
PA66HS PA66HIRHS
Page 4
Material Cable Tie
Polyamide 6.6 heat stabilized (PA66HS)
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.9
