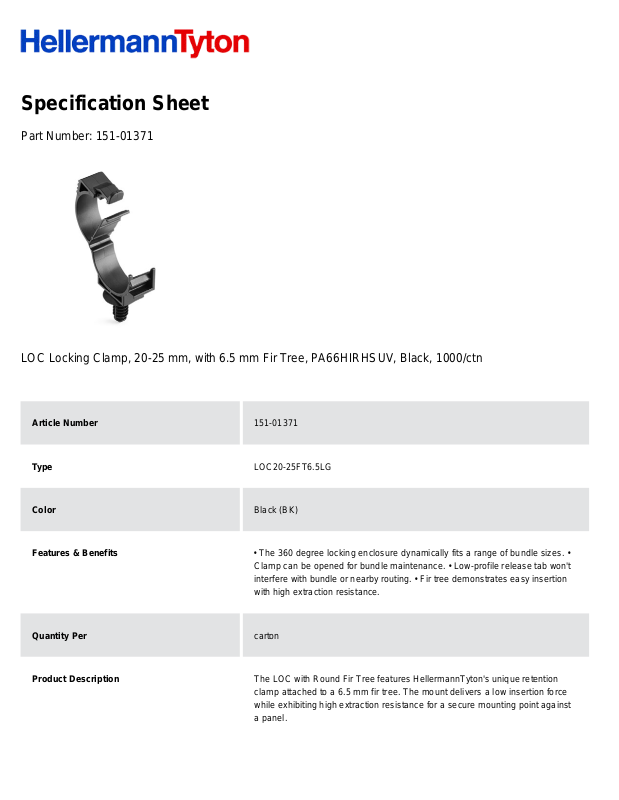

HellermannTyton 151-01371 Specification Sheet

Specification Sheet
Part Number:
151-01371
LOC Locking Clamp, 20-25 mm, with 6.5 mm Fir Tree, PA66HIRHSUV, Black, 1000/ctn
151-01371
Type
LOC20-25FT6.5LG
Color
Black (BK)
Features & Benefits
• The 360 degree locking enclosure dynamically fits a range of bundle sizes. •
Clamp can be opened for bundle maintenance. • Low-profile release tab won't
interfere with bundle or nearby routing. • Fir tree demonstrates easy insertion
with high extraction resistance.
Quantity Per
carton
Product Description
The LOC with Round Fir Tree features HellermannTyton's unique retention
clamp attached to a 6.5 mm fir tree. The mount delivers a low insertion force
while exhibiting high extraction resistance for a secure mounting point against
a panel.
Short Description
LOC Locking Clamp, 20-25 mm, with 6.5 mm Fir Tree, PA66HIRHSUV, Black,
1000/ctn
Global Part Name
LOC20-25FT6.5LG-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
25
Minimum Tensile Strength (Metric)
110
Length L (Imperial)
1.46
Length L (Metric)
37.2
Fixation Method
Fir Tree
Width W (Imperial)
0.47
Width W (Metric)
12.0
Bundle Diameter Min (Imperial)
0.79
Bundle Diameter Min (Metric)
20.0
Bundle Diameter Max (Imperial)
0.98
Bundle Diameter Max (Metric)
25.0
Height H (Imperial)
2.11
Height H (Metric)
53.6
Depth D (imperial)
0.47
Depth D (metric)
12.0
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.32
Panel Thickness Min (Metric)
0.60
Panel Thickness Max (Metric)
8.25
Mounting Hole Diameter D (Imperial)
0.25 " HEX; 0.26
Mounting Hole Diameter D (Metric)
6.35 mm (hexagonal) 6.1 - 6.9 mm
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.27
Mounting Hole Diameter D Max (Metric)
6.9
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
3.92
Weight (Imperial)
0.14
