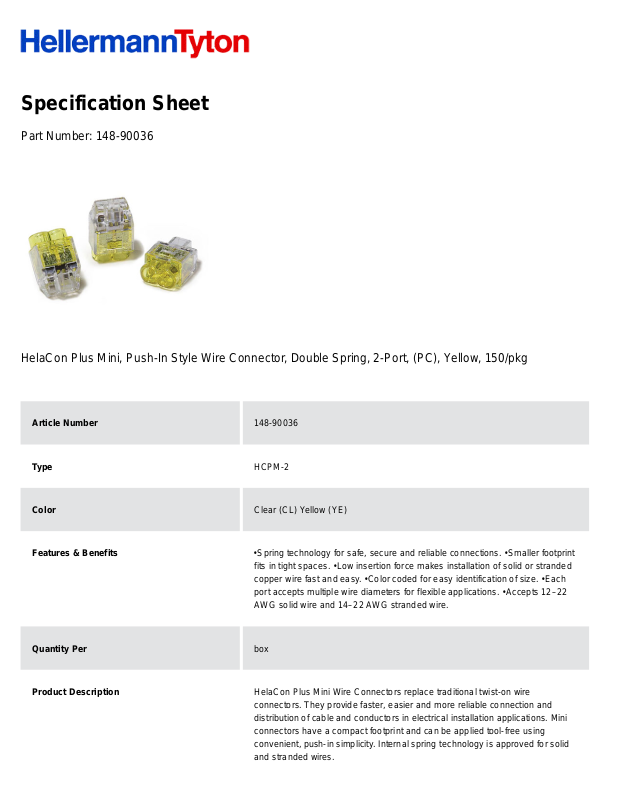

Specification Sheet
Part Number:
148-90036
HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 2-Port, (PC), Yellow, 150/pkg
Article Number
148-90036
Type
HCPM-2
Color
Clear (CL) Yellow (YE)
Features & Benefits
•
Spring technology for safe, secure and reliable connections. •
Smaller footprint
fits in tight spaces. •
Low insertion force makes installation of solid or stranded
copper wire fast and easy. •
Color coded for easy identification of size. •
Each
port accepts multiple wire diameters for flexible applications. •
Accepts 12–22
AWG solid wire and 14–22 AWG stranded wire.
Quantity Per
box
Product Description
HelaCon Plus Mini Wire Connectors replace traditional twist-on wire
connectors. They provide faster, easier and more reliable connection and
distribution of cable and conductors in electrical installation applications. Mini
connectors have a compact footprint and can be applied tool-free using
convenient, push-in simplicity. Internal spring technology is approved for solid
and stranded wires.
Short Description
HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 2-Port, (PC),
Yellow, 150/pkg
Global Part Name
HCPM-2-PC-CL/YE
Length L (Imperial)
0.65
Length L (Metric)
16.5
Width W (Imperial)
0.42
Width W (Metric)
10.8
Height H (Imperial)
0.30
Height H (Metric)
7.70
Depth D (imperial)
0.65
Depth D (metric)
16.5
Material
Polycarbonate (PC)
Material Shortcut
PC
Flammability
UL 94 V0
Halogen free
Yes
Operating Temperature (Metric)
-22°F to +185°F (-30°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 486-A SGS Fimko Ltd | EN 60998-2-2:2004 cULus CE |
2006/65/EC UL | ANSI/UL 486-B NEMKO AS | EN 60998-2-2:2004 Intertek
Semko | EN 60998-2-2:2004 UL | ANSI/UL 486-C ENEC SGS Fimko Ltd | EN
60998-2-2:201
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
150
Package Quantity (Metric)
150
Customs Number
8536695050
Content Unit(BMEcat)
pcs.
