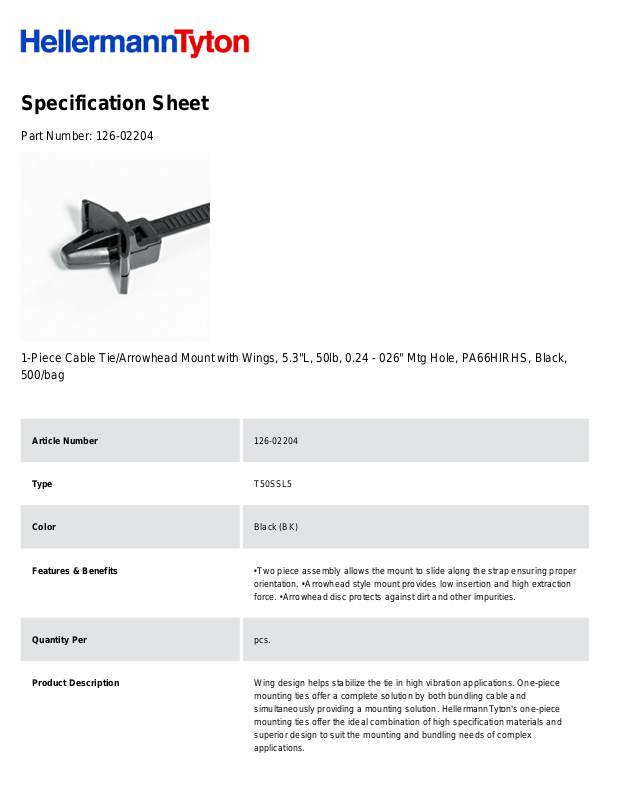

HellermannTyton 126-02204 Specification Sheet

Specification Sheet
Part Number:
126-02204
1-Piece Cable Tie/Arrowhead Mount with Wings, 5.3"L, 50lb, 0.24 - 026" Mtg Hole, PA66HIRHS, Black,
Article Number
126-02204
Type
T50SSL5
Color
Black (BK)
Features & Benefits
Two piece assembly allows the mount to slide along the strap ensuring proper
orientation. •
Arrowhead style mount provides low insertion and high extraction
force. •
Arrowhead disc protects against dirt and other impurities.
Quantity Per
pcs.
Product Description
Wing design helps stabilize the tie in high vibration applications. One-piece
mounting ties offer a complete solution by both bundling cable and
simultaneously providing a mounting solution. HellermannTyton's one-piece
mounting ties offer the ideal combination of high specification materials and
superior design to suit the mounting and bundling needs of complex
applications.
Short Description
1-Piece Cable Tie/Arrowhead Mount with Wings, 5.3"L, 50lb, 0.24 - 026" Mtg
Hole, PA66HIRHS, Black, 500/bag
Global Part Name
T50SSL5-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
200
Length L (Imperial)
5.3
Length L (Metric)
135
Fixation Method
Arrowhead
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.0
Bundle Diameter Max (Metric)
27.0
Height H (Imperial)
0.4
Height H (Metric)
10
Panel Thickness Min(Imperial)
0.019
Panel Thickness Max(Imperial)
0.11
Panel Thickness Min (Metric)
0.5
Panel Thickness Max (Metric)
2.7
Mounting Hole Diameter D (Imperial)
0.24 - 0.26
Mounting Hole Diameter D (Metric)
6.1 - 6.5 mm
Mounting Hole Diameter D Max (Metric)
6.5
Disc Diameter (Imperial)
0.64
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
1.2
