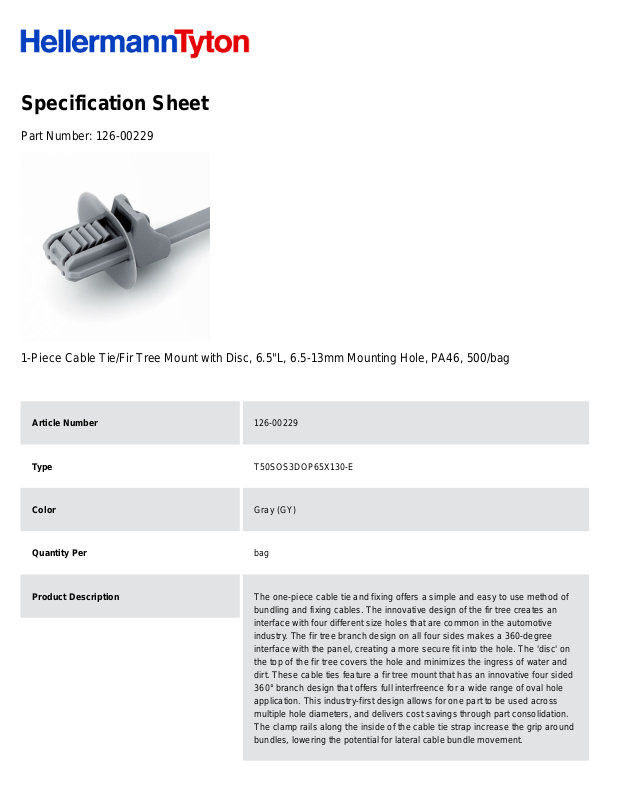

HellermannTyton 126-00229 Specification Sheet

Specification Sheet
Part Number:
126-00229
1-Piece Cable Tie/Fir Tree Mount with Disc, 6.5"L, 6.5-13mm Mounting Hole, PA46, 500/bag
126-00229
Type
T50SOS3DOP65X130-E
Color
Gray (GY)
Quantity Per
bag
Product Description
The one-piece cable tie and fixing offers a simple and easy to use method of
bundling and fixing cables. The innovative design of the fir tree creates an
interface with four different size holes that are common in the automotive
industry. The fir tree branch design on all four sides makes a 360-degree
interface with the panel, creating a more secure fit into the hole. The 'disc' on
the top of the fir tree covers the hole and minimizes the ingress of water and
dirt. These cable ties feature a fir tree mount that has an innovative four sided
360° branch design that offers full interfreence for a wide range of oval hole
application. This industry-first design allows for one part to be used across
multiple hole diameters, and delivers cost savings through part consolidation.
The clamp rails along the inside of the cable tie strap increase the grip around
bundles, lowering the potential for lateral cable bundle movement.
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 6.5"L, 6.5-13mm Mounting Hole,
PA46, 500/bag
Global Part Name
T50SOS3DOP65X130-E-PA46-GY
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
180
Length L (Imperial)
6.5
Length L (Metric)
165.0
Fixation Method
Fir Tree for oval holes
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.38
Bundle Diameter Max (Metric)
35.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.3
Height H (Imperial)
0.44
Height H (Metric)
11.3
Panel Thickness Min(Imperial)
0.028
Panel Thickness Max(Imperial)
0.20
Panel Thickness Min (Metric)
0.7
Panel Thickness Max (Metric)
5.0
Mounting Hole Diameter D (Imperial)
0.26 x 0.51
Mounting Hole Diameter D (Metric)
6.5 x 13.0 mm
Mounting Hole Diameter D Min (Imperial)
0.26
Mounting Hole Diameter D Max (Imperial)
0.51
Mounting Hole Diameter D Max (Metric)
13.0
Disc Diameter(Metric)
16.0 x 21.0
Disc Diameter (Imperial)
0.63 x 0.83
Material
Polyamide 4.6 (PA46)
Material Shortcut
PA46
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +275°F (-40°C to +135°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1500
Package Quantity (Metric)
500
