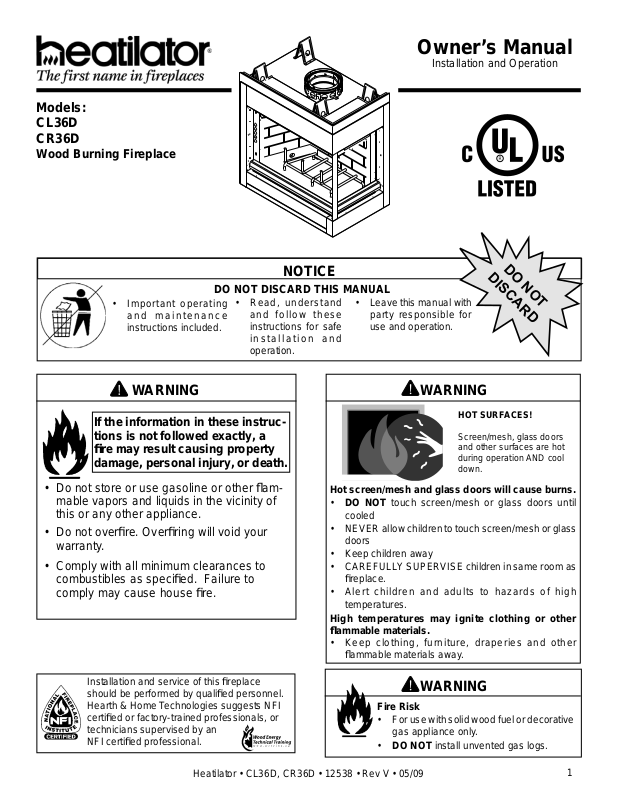

Heatiator CR36D, CL36D User Manual 2

Models:
CL36D
CR36D

Wood Burning Fireplace

Owner’s Manual

Installation and Operation

DO NOT DISCARD THIS MANUAL

• Important operating
and maintenance
instructions included.

• Read, understand
and follow these
instructions for safe
installation and
operation.

WARNING

If the information in these instruc­tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.

• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.

• Do not overfi re. Overfi ring will void your
warranty.

• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.

NOTICE

DO NOT

DISCARD

• Leave this manual with
party responsible for
use and operation.

WARNING

HOT SURFACES!

Screen/mesh, glass doors
and other surfaces are hot
during operation AND cool
down.

Hot screen/mesh and glass doors will cause burns.

• DO NOT touch screen/mesh or glass doors until
cooled

• NEVER allow children to touch screen/mesh or glass
doors

• Keep children away

• CAREFULLY SUPER VISE children in same room as
fi replace.

• Alert children and adults to hazards of high
temperatures.

High temperatures may ignite clothing or other
fl ammable materials.

• Keep clothing, furniture, draperies and other
fl ammable materials away.

Installation and service of this fi replace
should be performed by qualifi ed personnel.
Hearth & Home Technologies suggests NFI
certifi ed or factory-trained professionals, or
technicians supervised by an
NFI certifi ed professional.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

WARNING

Fire Risk

• For use with solid wood fuel or decorative
gas appliance only.

• DO NOT install unvented gas logs.

1

Read this manual before installing or operating this fi replace.

Please retain this owner’s manual for future reference.

Congratulations!

Congratulations on selecting a Heatilator wood burning
fi replace. The Heatilator fi replace you have selected is
designed to provide the utmost in safety and reliability.

As the owner of a new fi replace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.

This owner’s manual should be retained for future refer­ence. We suggest you keep it with your other important
documents and product manuals.

Your new Heatilator wood burning fi replace will give you
years of durable use and trouble-free enjoyment. Wel­come to the Heatilator family of fi replace products!

Homeowner Reference Information

We recommend that you record the following pertinent
information about your fi replace:

Model Name: Date purchased/installed:
Serial Number: Location on fi replace:
Dealership purchased from: Dealer phone:
Notes:

Listing Label Information/Location

The model information regarding your specifi c fi replace can be found on the rating plate located on the smoke shield of
the fi replace.

Serial

Number

Grate

Fireplace

Model

FIREPLACE NO.

FIRECHAMBER INTENDED FOR USE WITH HEARTH & HOME TECHNOLOGIES INC. LISTED FIREPLACE PARTS. SEE INSTALLATION AND
OPERATING INSTRUCTIONS FOR THIS MODEL. ONLY HEARTH & HOME TECHNOLOGIES INC. GLASS DOOR KITS CAN BE INSTALLED ON THIS UNIT.

FIREPLACE ALSO FOR USE
IN MANUFACTURED HOMES

FAN KIT
MODEL NO.

DO NOT OVERFIRE. USE ONLY: SOLID WOOD FUEL OR
LISTED DECORATIVE GAS APPLIANCE. DO NOT USE A
FIREPLACE INSERT OR OTHER PRODUCTS NOT
SPECIFIED FOR USE WITH THIS PRODUCT. IF DOORS
ARE USED OPERATE FIREPLACE WITH DOORS FULLY
OPEN OR CLOSED ONLY. WHEN BURNING A
DECORATIVE GAS APPLIANCE IN THE FIREPLACE,
ADJUST DAMPER TO THE FULLY OPEN POSITION.

Note: An arrow ( ) found in the text signifi es change in content.

2

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

WARNING: RISK OF
FIRE DAMAGE. REPLACE
GRATE WITH HEARTH & HOME
TECHNOLOGIES INC.

YES

NO

Î

&

MODEL NO.

CLEARANCE TO
COMBUSTIBLES:

WARNING! THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED
GAS LOG SET. TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT
INSTALL AN UNVENTED GAS LOG SET INTO FIREPLACE.

WARNING! THIS APPLIANCE IS NOT FOR USE AS COOKING EQUIPMENT.
IF INSTALLATION OR OPERATING INSTRUCTIONS ARE MISSING

CONTACT: HEARTH & HOME TECHNOLOGIES INC.,
1915 W. SAUNDERS ST., MT. PLEASANT, IA 52641.

CHIMNEY
2 IN. MIN.

RATED AT
115 VOLTS, 50/60 Hz.,

MODEL NO.

FIREBOX

MFG. DATE

AMP.

IN.
MIN.

Safety Alert Key:

!

• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.

• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.

• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

• NOTICE: Indicates practices which may cause damage to the fi replace or to property.

Table of Contents

Congratulations! 2
Limited Warranty 4

1 Listing and Code Approvals 6

A. Appliance Certifi cation 6
B. Non-Combustible Materials 6
C. Combustible Materials 6

User Guide

2 Operating Instructions 7

A. Your Fireplace 7
B. Seasoned Wood 8
C. Starting a Fire 8
D. Grate 8
E. Firescreen 8
F. Flue Damper 8
G. Refractory 8
H. Glass Doors 9
I. Outside Air (optional) 9
J. Vented Gas Log Sets & Gas Log Lighters 9
K. Optional Components 9
L. Clear Space 9
M. Wood Fuel 10

3 Maintenance and Service 11

A. Disposal of Ashes 11
B. Chimney Inspection/Cleaning 11
C. Check Firebox Refractory 12
D. Inspect Grate 12
E. Glass Cleaning 12

4 Troubleshooting Guide 13

Installer Guide

5 Getting Started 14

A. Typical Fireplace System 14
B. Design and Installation Considerations 15
C. Draft 15
D. Negative Pressure 15
E. Locating Fireplace & Chimney 16
F. Tools and Supplies Needed 17
G. Fireplace System Requirements 17
H. Inspect Fireplace and Components 17

6 Framing & Clearances 18

A. Select Fireplace Location 18
B. Clearances 19
C. Sidewalls/Surrounds 20
D. Frame the Fireplace 21

7 Installation of Fireplace 22

A. Things to Consider 22
B. Position the Fireplace 22
C. Place Protective Metal Hearth Strips 22
D. Level Fireplace 22
E. Install Outside Air Kit 24

8 Chimney Assembly 25

A. Chimney Requirements 26

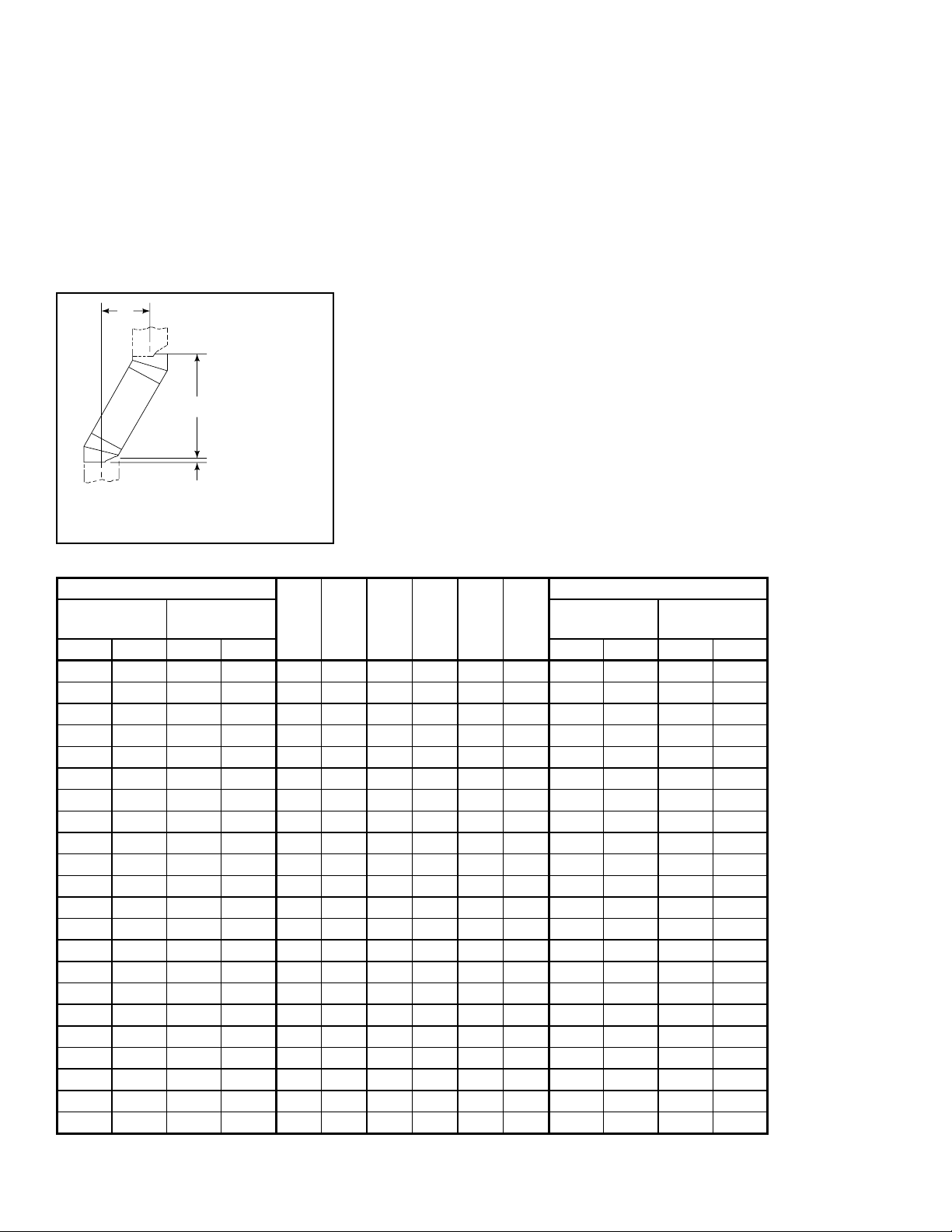

B. Using Offsets/Returns 27
C. Assemble Chimney Sections 28
D. Install Chimney Air Kit 28

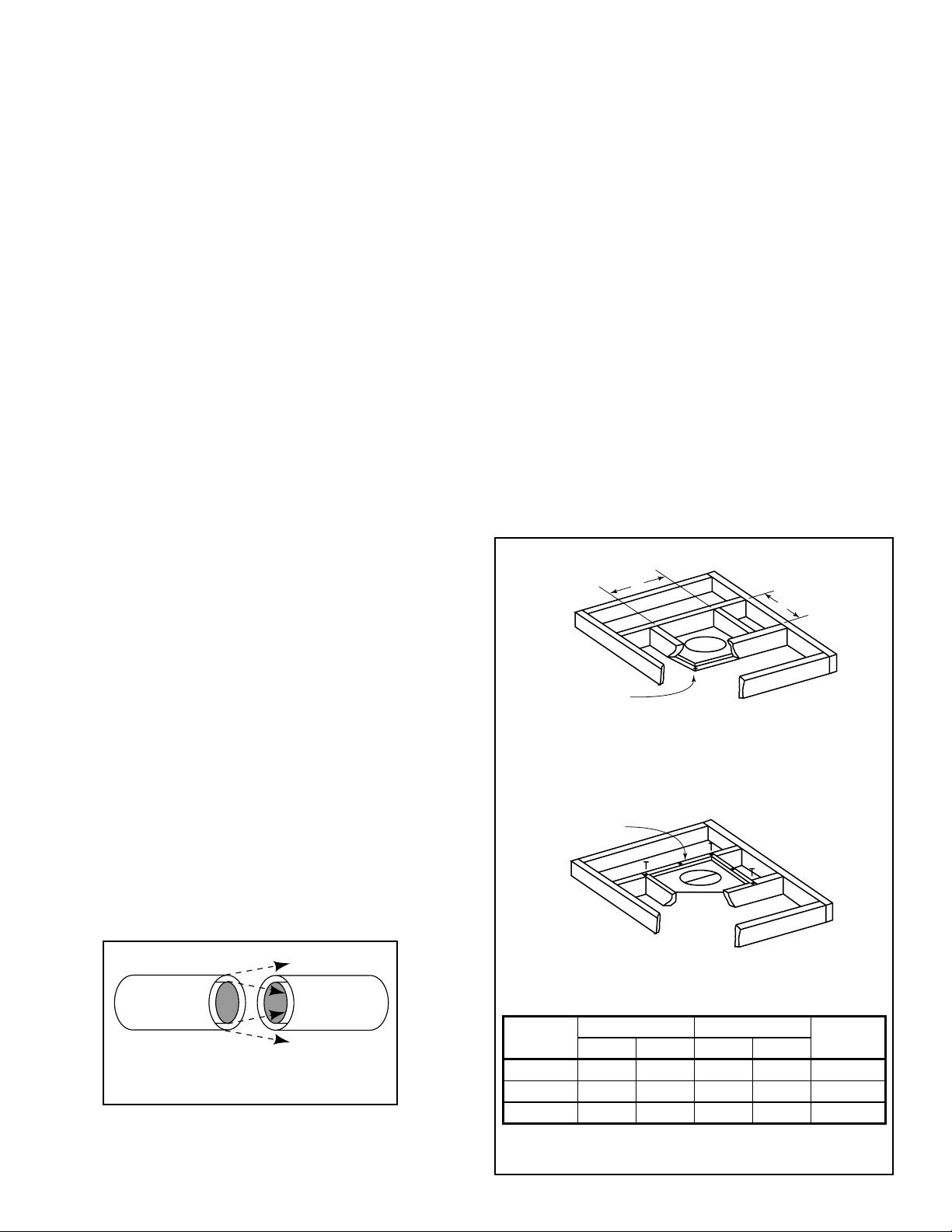

E. Install Ceiling Firestops 28
F. Install Attic Insulation Shield 29
G. Cut out Hole in Roof 30
H. Complete Installation 30
I. Install Flashing 30
J. Chimney Termination Requirements 31

9 Chase Installations 32

A. Construct the Chase 32
B. Install Fireplace & Chimney 33

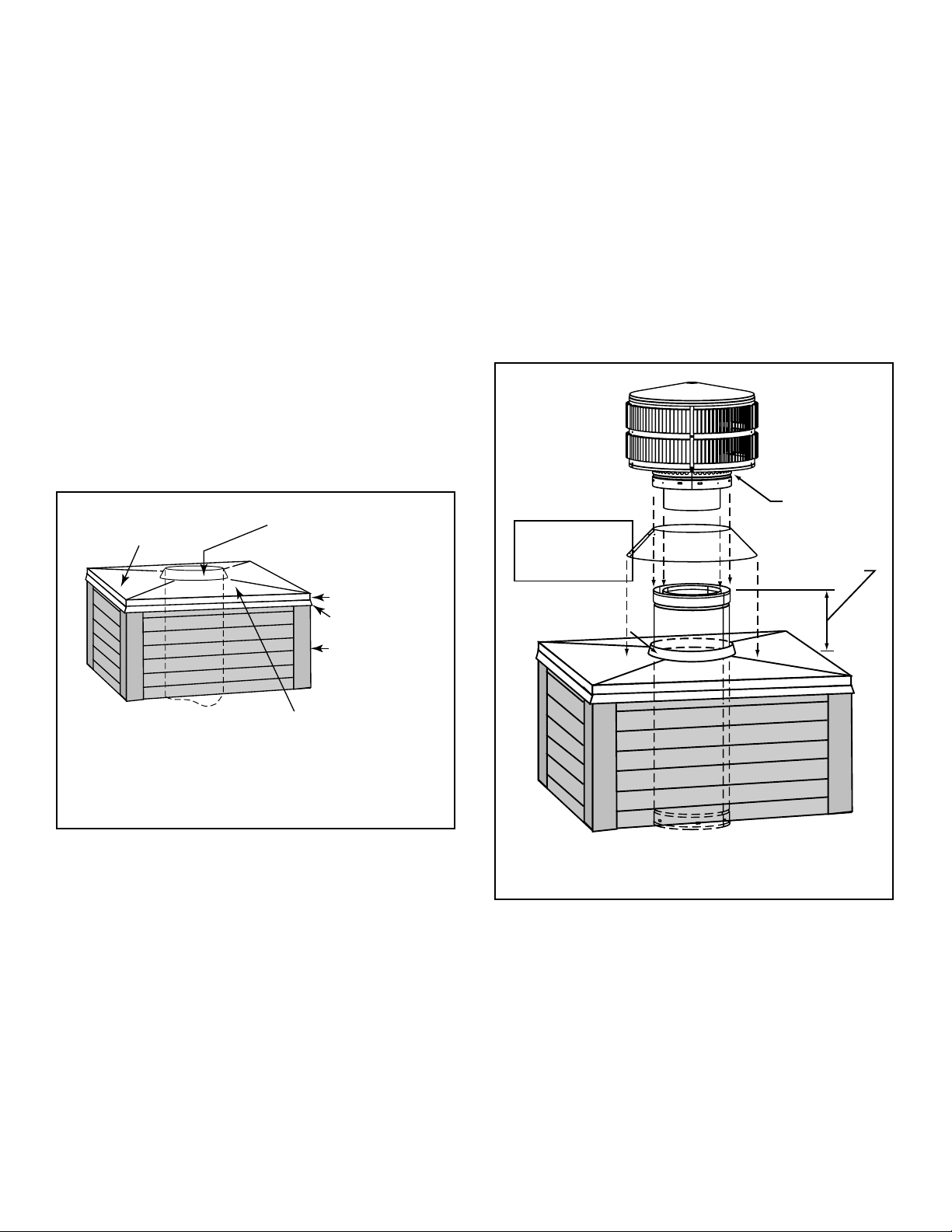

C. Install Chase Top 33

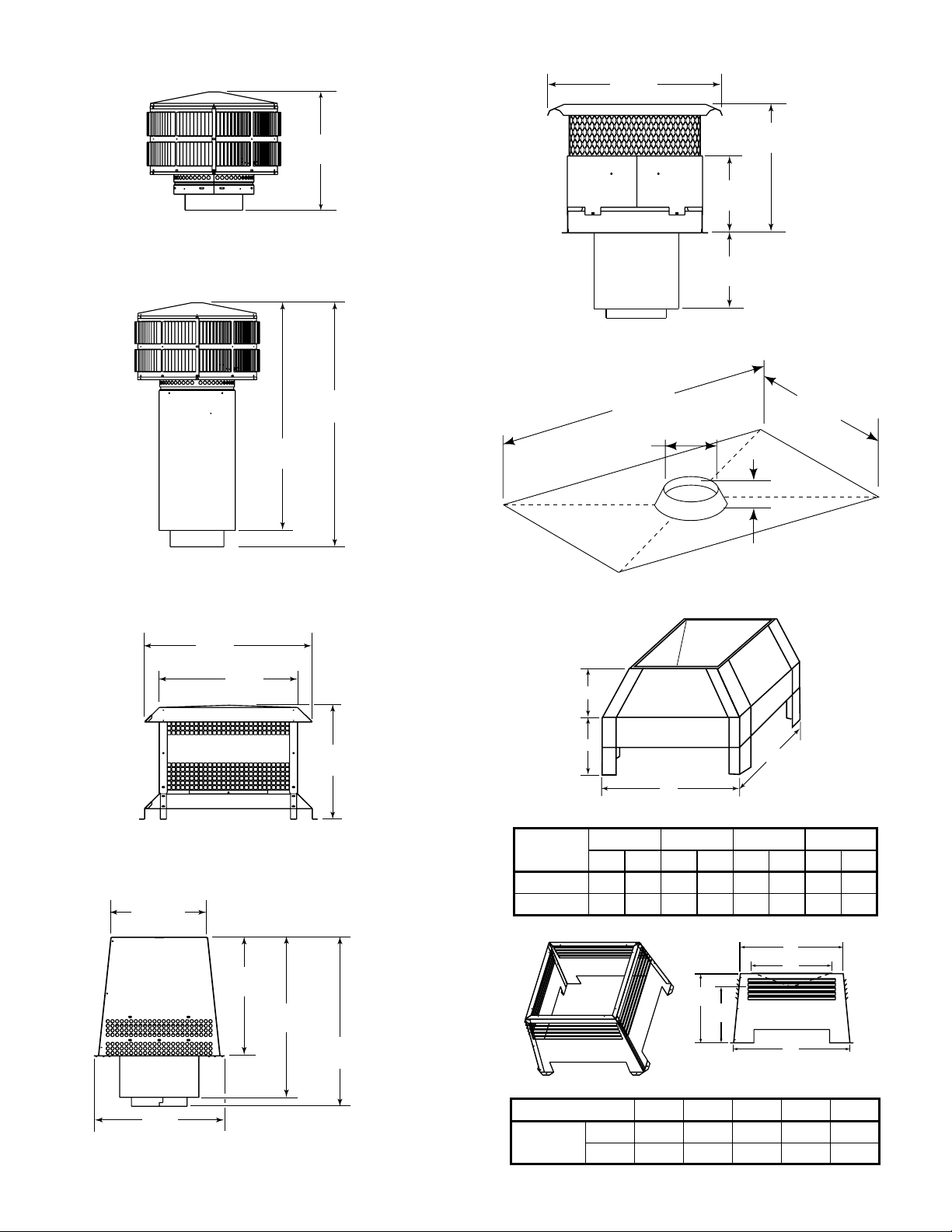

D. Install Termination Cap 33

10 Shrouds 35

A. Radiation Shield 35
B. Field Constructed Shrouds 35

11 Finishing 37

A. Non-combustible Materials 37
B. Combustible Materials 37
C. Hearth Extension 37
D. Finishing Material 38
E. Combustible Mantel 39
F. Sidewalls/Surrounds 40

12 Accessories 41

A. Gas Log/Lighter Provision 41
B. Wood Burning Inserts 41

13 Reference Materials 42

A. Fireplace Dimensions 42
B. Optional Components 42

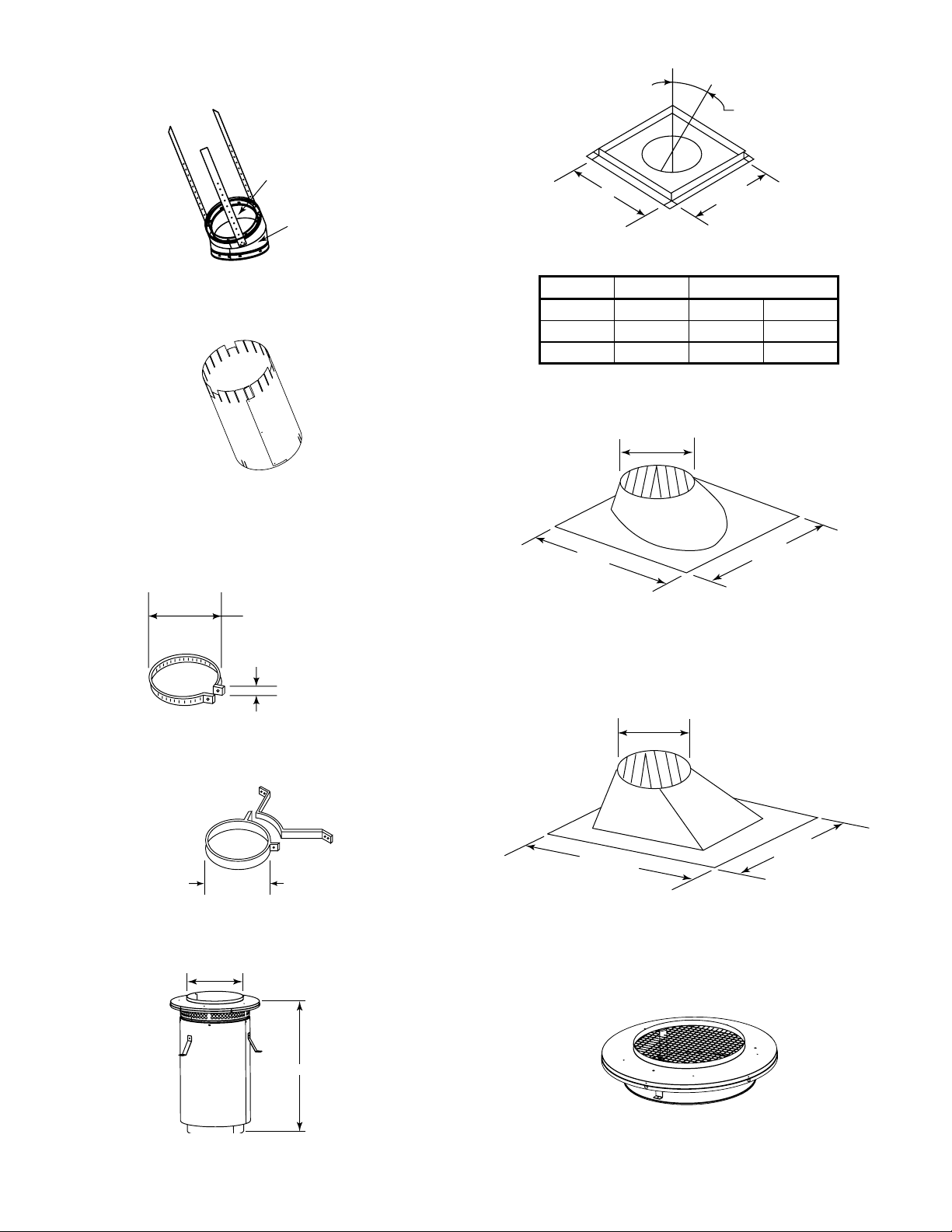

C. Chimney Components 43
D. Service Parts 46
E. Contact Information 48

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

3

Limited Warranty

Î

4

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

5

1

Listing and Code Approvals

1

A. Appliance Certifi cation

This fi replace system has been tested and listed in accor-
dance with UL 127 and ULC-S610 standards by Under­writers Laboratories Inc. for installation and operation in
the United States and Canada.

This fi replace may be installed in sleeping rooms EX-
CEPT in manufactured homes. If installed with a gas log
set, provisions for the National Fuel Gas Code must be
met.

This fi replace has been tested and listed for use with the
optional components specifi ed in this manual. These op-
tional components may be purchased separately and in­stalled at a later date. Installation of an outside air kit will
require signifi cant reconstruction and is best if installed at
the time of fi replace installation.

Heatilator is a registered trademark of Hearth & Home
Technologies Inc.

WARNING! Risk of Fire! Hearth & Home Technologies
disclaims any responsibility for, and the warranty and
agency listing will be voided by the following actions.

DO NOT:

• install or operate damaged fi replace

• modify fi replace

• install other than as instructed by Hearth & Home
Technologies

• operate the fi replace without fully assembling all
components

• overfi re

• install an unvented gas log set

• install any component not approved by Hearth & Home
Technologies

• install parts or components not Listed or approved

Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualifi ed
installer, service agency or your dealer.

B. Non-Combustible Materials

• Materials which will not ignite and burn, composed of
any combination of the following:

- Steel - Iron

- Brick - Tile

- Concrete - Slate

- Glass - Plasters

• Materials reported as passing ASTM E 136, Standard

T est Method for Behavior of Metals, in a Vertical T ube
Furnace at 750° C

C. Combustible Materials

• Materials made of or surfaced with any of the following
materials:

- Wood - Compressed paper

- Plant fi bers - Plastic

• Any material that can ignite and burn; fl ame proofed or
not, plastered or un-plastered

NOTICE: This fireplace is tested and approved as a
decorative fi replace. It should not be factored as a primary
heat source in residential heating calculations.

6

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

2

User Guide

Operating Instructions

2

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND cool down.

Hot glass will cause burns.

• DO NOT touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as fi replace.

• Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other fl ammable materials.

• Keep clothing, furniture, draperies and other fl ammable materials away.

If you expect that children may come into contact with this fi replace, we recommend a barrier such as a decorative
screen. See your dealer for suggestions.

A. Y our Fireplace

WARNING! DO NOT operate fi replace before reading and understanding operating instructions. Failure to operate fi replace
according to operating instructions could cause fi re or injury.

Flue Damper

Section 2.F.

Down Closed

Up Open

Refractory

Section 2.G.

Grate

Section 2.D.

Outside Air

Control Handle

Section 2.I.

IN - closed

OUT - open

Chimney

Air Kit Control

(not shown,

required in Canada)

Section 8.D.

Gas Log Set

Gas Log Lighters

(not shown)

Section 2.K.

Firescreen

(not shown)

Section 2.E.

Glass Doors

(not shown)
Section 2.H.

Wood Fuel

Section 2.M.

Figure 2.1 General Operating Parts

Hearth

Clear Space

Section 2.L.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

7

B. Seasoned Wood

Properly seasoned wood is important for successful
operation of your fi replace. Most woodburning fi replace
problems are caused by burning wet, unseasoned wood.

Seasoned fi rewood is wood that is cut to size, split and air
dried to a moisture content of around 20%.

Imagine a wooden bucket that weighs about eight
pounds. Fill it with a gallon of water, put it in the fi replace
and try to burn it. This sounds ridiculous but that is exactly
what you are doing if you burn unseasoned wood.

A tree cut down a year ago and not split is likely to have
almost as high a moisture content now as it did when it
was cut.

Please refer to Section 2.M. for more detail.

C. Starting a Fire

NOTICE: You must establish a good draft to prevent smoke
spillage into the room.

WARNING! Risk of Fire! Keep combustible materials,
gasoline and other fl ammable vapors and liquids clear of
the fi replace.

DO NOT:

• store fl ammable materials close to the fi replace

• use gasoline, lantern fuel, kerosene, charcoal lighter

fl uid or similar liquids to start or “freshen up” a fi re in this
fi replace.

Keep all fl ammable liquids well away from the fi replace while
it is in use. Combustible materials may ignite.

D. Grate

This fi replace is designed to be used with the grate sup-
plied with this unit or one approved by HHT. The grate will
break down over time and will need occasional replace­ment.

WARNING! Risk of Fire!

integral grate.

• Keeps logs in place.

• Allows proper air circulation around the fi re.

Use only the factory-supplied

E. Firescreen

The fi rescreen is provided to control sparks. Keep it
closed when the fi replace is in use.

WARNING! Risk of Fire or Burns!

• Screen will not prevent burning materials from falling
out.

• Screen pulls or handles may be hot.

F. Flue Damper

• Refer to Figure 2.1 for location of control.

• Must be in fully open position (handle up toward the top
of the fi replace) during operation of the fi replace.

• Before lighting the fi replace, verify fully open position by
looking up from the inside of the fi replace.

WARNING! Risk of Fire and Asphyxiation! Open

damper prior to operating fi replace. A closed damper
overfi res the fi replace and spills smoke and fl ames
into the room.

• The fi rst three or four fi res should be of moderate size to
allow the oils and binders to be burned from the fi replace
and the refractory and paint to cure. You may notice
an industrial odor the fi rst few fi res. This is considered
normal.

• Use well-seasoned wood.

• Open the fl ue damper to a fully open position.

• Place crumpled or twisted paper under the fi replace
grate.

• Loosely arrange kindling or small pieces of wood to form
a ‘tent’ on the fi replace grate.

• Pre-warm the fl ue to establish a draft to help reduce
smoke spillage during start-up. Hold a rolled up piece
of burning newspaper under the fl ue damper for a few
moments.

• Light the crumpled paper to ignite the kindling.

• Add small pieces of wood until a hot bed of embers has
been established.

• Add a minimum of three average size pieces of split
fi rewood, placed to allow combustion air and fl ames
between them.

CAUTION! Odors and vapors released during initial

operation may be irritating to sensitive individuals.

Open windows for air circulation.

G. Refractory

• The refractory is supplied to contain heat and provide
an attractive interior.

• It will break down over time and will need occasional
replacement. Small hairline cracks and discoloration are
normal and do not affect its safety.

• (See refractory maintenance Section 3.C.)

WARNING! Risk of Fire! DO NOT burn fi replace with-

out refractory . Use only refractory supplied by Hearth &
Home Technologies, Inc.

8

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

H. Glass Doors

• Glass doors are optional.

• Refer to Figure 2.2 for how to properly use them.

WARNING! Risk of Fire! Install ONLY doors ap-

proved by Hearth & Home Technologies, Inc.

WARNING! Risk of Fire and Smoke! Fireplaces

equipped with doors should be operated only with
doors fully open or doors fully closed. If doors are left
partly open, gas and fl ame may be drawn out of the
fi replace opening.

CORRECT

CORRECT

INCORRECT

J. Vented Gas Log Sets & Gas Log Lighters

• Optional

• Vented gas logs or gas log lighters can be installed in
this fi replace. Follow the instructions provided with the
accessory for operation.

WARNING! Risk of Fire or Asphyxiation!

• DO NOT install unvented gas logs.

• Damper must be locked open.

• Gas fl ame may generate fumes.

K. Optional Components

• Other options may be available

• Consult your dealer/distributor

WARNING! Risk of Fire! DO NOT install and or use

any component not approved by Hearth & Home Tech­nologies Inc.

L. Clear Space

• Do not place combustible objects within areas indicated
in Figure 2.3.

Figure 2.2 Operating Positions of Bi-fold Doors

I. Outside Air (optional)

The outside air kit supplies some combustion air for your
fi replace. It may help reduce the effects of negative air
pressure. (See Section 5.D.)

• Refer to Figure 2.1 for location of control

• Close the inlet to prevent cold drafts when the fi replace
is not being used.

CAUTION! Risk of Burns! The outside air control

handle is HOT when fi replace is in operation. Adjust
BEFORE lighting fi re.

WARNING! DO NOT place combustible objects in front
of the fi replace. High temperatures may ignite clothing,
furniture or draperies.

• Mantel - avoid placing candles and other heat-sensitive
objects on mantel or hearth. Heat may damage these
objects.

18 in. (45.7 cm)

Clear Space

from

Opening of

Fireplace

48 in. (121.9 cm)

Clear Space

Front of Fireplace

Figure 2.3 Clear Space

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

9

M. Wood Fuel

Hardwood vs Softwood

Your fi replace performance depends on the quality of the
fi rewood you use.

• Seasoned wood contains about 8,000 BTUs per pound
.

• Hard woods are more dense than soft woods.

• Hard woods contain 60% more BTUs than soft woods.

• Hard woods require more time to season, burn slower
and are harder to ignite.

• Soft woods require less time to dry, burn faster and are
easier to ignite.

• Start the fi re with soft wood to bring the fi replace up to
operating temperature and to establish draft.

• Add hard wood for slow, even heat and longer burn
time.

Soft woods Hard woods

• Douglas Fir • Oak

• Pine • Maple

• Spruce • Apple

• Cedar • Birch

• Poplar

• Aspen

• Alder

Moisture

WARNING! Risk of Fire!

• DO NOT burn wet or green wood.

• Wet, unseasoned wood can cause accumulation of
creosote.

The majority of the problems fi replace owners experience
are caused by trying to burn wet, unseasoned wood.

• Wet, unseasoned wood requires energy to evaporate
the water instead of heating your home, and

• Evaporating moisture cools your chimney, accelerating
formation of creosote.

Seasoned Wood

• Cut logs to size

• Split to 6 in. (152 mm) or less

• Air dry to a moisture content of around 20%

- Soft wood - about nine months

- Hard wood - about eighteen months

NOTICE: Seasoning time may vary depending on drying

conditions.

Storing Wood

Steps to ensure properly seasoned wood:

• Stack wood to allow air to circulate freely around and
through woodpile.

• Elevate wood pile off ground to allow air circulation
underneath.

• Smaller pieces of wood dry faster. Any piece over 6 in.
(152 mm) in diameter should be split.

• Wood (whole or split) should be stacked so both ends
of each peice are exposed to air. More drying occurs
through the cut ends than the sides.

• Store wood under cover to prevent water absorbtion
from rain or snow. Avoid covering the sides and ends
completely.

WARNING! Fire Risk! DO NOT store wood:

• In front of the fi replace.

• In space required for loading or ash removal.

Processed Solid Fuel Firelogs

Manufactured fi relogs may be used with this fi replace.
Hearth & Home Technologies Inc. recommends the use of
UL Classifi ed processed fuel fi relogs. Follow the manufac-
turer’s lighting and safety instructions.

Using fi relogs may require more frequent chimney inspec-
tion and cleaning.

Do not poke or stir the logs while they are burning. Use
only fi relogs that have been evaluated for the application
in manufactured fi replaces and refer to fi relog warnings
and caution markings on packaging prior to use.

10

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

3

Maintenance and Service

3

A. Disposal of Ashes

Frequency: When they reach bottom of grate
By: Homeowner

WARNING! Risk of Fire! Ashes could contain hot em­bers.

• Place ashes in a metal container with a tight-fi tting lid.

• The closed container should be placed on a non­combustible fl oor or on the ground, well away from all
combustible materials, pending fi nal disposal.

• If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.

B. Chimney Inspection/Cleaning

Frequency: At least twice a year during heating season

or as recommended by a certifi ed chimney sweep
By: Certifi ed chimney sweep

WARNING! Risk of Fire! Ignited creosote is extremely
HOT. Prevent creosote buildup.

Refer to Figure 3.1 to remove/reinstall termination caps.

Creosote - Formation and Need for Removal

When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled moisture to
form creosote. The creosote vapors condense in the rela­tively cool chimney fl ue of a slow-burning fi re. As a result,
creosote residue accumulates on the fl ue lining. When
ignited this creosote makes an extremely hot fi re.

WARNING! Risk of Fire! A chimney fi re can permanently
damage your chimney system and nearby structures.

In the event of a chimney fi re, Hearth & Home Technolo-
gies Inc. recommends

• replacement of the chimney, and

• inspection of the adjacent structure to the provisions of
NFPA Level III inspection criteria.

The chimney shall be inspected at least twice a year
during the heating season to determine when a creosote
buildup has occurred.

When creosote has accumulated it shall be removed to
reduce the risk of a chimney fi re.

Remove screws,
lift top cover.

Top Cover

Cap

Chimney

TR344/TR342

Round

Termination Cap

Figure 3.1 Chimney & Termination Cap Cleaning

Cap

Slip
Section

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

Remove 4 screws
and lift top pan off.

ST375

Square

Termination Cap

1. Remove the 4 screws.

2. Remove the screen.

3. Remove the baffle.

Cap

Chase

TS345/TS345P

Square

Termination Caps

Remove 2 screws from
the front and back and
lift the top off.

TCT375

Terra Cotta

Termination Cap

11

C. Check Firebox Refractory

Frequency: After each ash removal
By: Homeowner

WARNING! Risk of Fire!

Crumbling, deteriorated refractory can allow overheating
of surrounding materials.

Expansion and contraction will cause minor cracking of
the refractory. This is normal. The refractory will require
periodic replacement depending on use.

The panels should be replaced if

• Cracks exceed ¼ inch (6 mm) in width,

• Metal is exposed behind the refractory,

• Large pieces of refractory fall out.

Inspect fi replace refractory.

D. Inspect Grate

Frequency: After each ash removal
By: Homeowner

Inspect grate for:

• Warping or sagging 1-1/2 in. (38 mm) or more

• Broken welds

• Burn-through of grate bars
For safe operation, replace only with an approved grate

from Hearth & Homes Technologies Inc.

E. Glass Cleaning

Frequency: As desired
By: Homeowner

CAUTION! Handle glass assembly with care. Glass is
breakable.

• Avoid striking, scratching or slamming glass

• Avoid abrasive cleaners

• DO NOT clean glass while it is hot

Clean glass with a non-abrasive commercially available
cleaner or ashes:

• Light deposits

- Use household glass cleaner

• Heavy deposits

- Use wood ash on damp cloth or,

- Use commercial fi replace glass cleaner (consult with
your dealer)

12

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

4

Troubleshooting Guide

4

Start Fire Problems Possible Cause Solution

Can’t get fi re started
Excessive smoke or spillage
Burns too slowly
Smolders, sizzles

Not enough kindling/paper or no
kindling/paper

Damper closed/not fully open Open damper.
Not enough air for fi re to ignite Check for restricted cap/shroud.

Wood condition is too wet, too
large

Use dry kindling, more paper. Arrange kindling &
wood for air movement.

Open air kit (if installed).
Check for fl ue blockage.
Pre-warm fl ue before starting fi re (refer to starting

fi re section).
Check for adequate vent height (refer to chimney

assembly section).
Open window below the fi replace towards the

wind.
Use dry, seasoned wood (refer to wood fuel

section).

Bed of coals not established
before adding wood

Flue blockage such as birds’
nests or leaves in termination
cap

Down draft or negative pressure
Competition with exhaust
devices

Fire burns too fast Extremely dry or soft wood Mix in hardwood.

No glass doors Add glass doors to slow down air fl ow.
Overdrafting Check for correct vent height; too much vertical

Start with paper & kindling to establish bed of
coals (refer to starting fi re section).

Have chimney inspected for creosote and cleaned
by a certifi ed chimney sweep.

Do not use exhaust fans during start-up (refer to
negative pressure section).

Open window below the fi replace towards the
wind.

Mix in less seasoned wood after fi re is established
(refer to wood fuel section).

height creates overdrafting.
Check location of vent termination (refer to

chimney assembly section).

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

13

5

Installer Guide

Getting Started

5

A. Typical Fireplace System

Additional lateral
support for chimney
above roof (or enclosed
in chase) if needed
(Section 8)

Non-combustible
roof flashing maintains
minimum clearance
around chimney

Support straps
on rafter support
chimney (not shown)

Ceiling firestop
on floor of attic
(Section 8)

Chimney system
(Section 8)

Combustible framing/header
on top of V-shaped standoffs
(Section 6)

Chimney Air Kit
(Section 8)
Required in
Canada. Outlet
must be no
less than 6 ft.
(1.83m) off
ground level.

Outside
combustion air
(Section 7)

Protective metal
hearth strip(s)
(Section 7)

NOTICE:

• Illustrations and photos reflect typical installations
and are for design purposes only.

• Illustrations/diagrams are not drawn to scale.

• Actual product may vary from pictures in manual.

Termination cap
(Section 8 & 9)

Storm Collar
(Section 8)

Chimney penetrates roof
preferably without affecting
roof rafters (Section 9)

Offset & Return (with hanger straps)
(Section 8)

Attic insulation shield (not shown)
must be used here to keep
insulation away from chimney
if attic is insulated (Section 8)

Framing headed off
in ceiling joists
(Section 8)

Enclosed space above
and around fireplace

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

(Section 6)

Mantel and surround
(Section 11)

Decorative facing
and trim
(Section 11)

Hearth extension
(Section 11)

Factory-built fireplace

Figure 5.1 Typical Fireplace System

14

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

D. Negative PressureB. Design and Installation Considerations

NOTICE: Check building codes prior to installation.

• Installation MUST comply with local, regional, state and
national codes and regulations.

• Consult insurance carrier, local building inspector, fi re
offi cials or authorities having jurisdiction over restrictions,
installation inspection and permits.

Before installing, determine the following:

• Where the fi replace is to be installed

• The vent system confi guration to be used

• Gas supply piping

• Electrical wiring

• Framing and fi nishing details

• Whether optional accessories—devices such as a fan,
wall switch or remote control —are desired

NOTICE: Junction box should be installed during initial

setup to avoid major reconstruction.

C. Draft

Draft is the pressure difference needed to vent fi replaces
successfully. When a fi replace is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.

Considerations for successful draft include:

• Preventing negative pressure

• Location of fi replace and chimney

NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the fi replace
system caused by:

• Inadequate draft due to environmental conditions

• Downdrafts

• Tight sealing construction of the structure

• Mechanical exhausting devices

• Improper location of the chimney

WARNING! Risk of Asphyxiation! Negative pressure
can cause spillage of combustion fumes and soot. Fire
must draft properly for safe operation.

Negative pressure results from the imbalance of air avail­able for the fi replace to operate properly. It can be stron-
gest in lower levels of the house.

Causes include:

• Exhaust fans (kitchen, bath, etc.)

• Range hoods

• Combustion air requirements for furnaces, water heaters
and other combustion appliances

• Clothes dryers

• Location of return-air vents to furnace or air
conditioning

• Imbalances of the HVAC air handling system

• Upper level air leaks such as:

- Recessed lighting

- Attic hatch

- Duct leaks

To minimize the effects of negative air pressure:

• Install the outside air kit with the intake facing prevailing
winds during the heating season

• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment

• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the fi replace

• Avoid installing the fi replace near doors, walkways or
small isolated spaces

• Recessed lighting should be a “sealed can” design

• Attic hatches weather stripped or sealed

• Attic mounted duct work and air handler joints and seams
taped or sealed

• Basement installations should be avoided

NOTICE: Hearth & Home T echnologies Inc. recommends

the use of direct vent fi replaces in basements.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

15

E. Locating Fireplace & Chimney

Location of the fi replace and chimney will affect perfor-
mance.

• Install within the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the fi re.

• Penetrate the highest part of the roof. This minimizes
the effects of wind loading.

• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.

• Minimize the use of chimney offsets.

• Consider the fi replace location relative to fl oor and ceiling
and attic joists.

• Take into consideration the termination requirements in
Section 8 and Section 9.

NOTICE: Locating the fi replace in a basement or in a location
of considerable air movement can cause intermittent smoke
spillage from fi replace. Do not locate fi replace near

• frequently open doors

• central heat outlets or returns

Location NOT recommended:

• Not the highest point of the roof

• Wind loading possible

Windward

Recommended Location:

• Above peak

Marginal Location:

• Below peak

Recommended:

• Insulated exterior chase
in cooler climates

Recommended Location:

• Above peak

• Inside heated space

Marginal Location:

• Wind loading possible

Location NOT recommended:

• Too close to tree

• Below adjacent structure

• Lower roof line

• Avoid outside wall

Leeward

Multi-level Roofs

Figure 5.2 Recommended Chimney Locations

16

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

F. Tools and Supplies Needed H. Inspect Fireplace and Components

Before beginning the installation be sure the following
tools and building supplies are available:

Reciprocating saw Framing material
Pliers Non-combustible sealant
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
1/2-3/4 in. length, #6 or #8 self-drilling screws
Misc. screws and nails

G. Fireplace System Requirements

This fi replace system requires:

• Fireplace

• Hearth Refractory

• Grate Assembly

• Hearth Extension (required, sold separately)

• Chimney Air Kit (required in Canada)

• Chimney System (required, sold separately)

• Termination Cap (required, sold separately)

WARNING! Risk of Fire and/or Explosion! Damaged
parts could impair safe operation. DO NOT install dam­aged, incomplete or substitute components. Keep fi re-
place dry.

• Remove fi replace and components from packaging and
inspect for damage.

• Vent system components and doors are shipped in
separate packages.

• Report to your dealer any parts damaged in shipment.

• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefi t.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

17

6

Framing & Clearances

6

A. Select Fireplace Location

45 in.

48 in. Min.

23 in.

45 in.

As room divider

18 in. minimum from

front opening to sidewall

23 in.

Note: 18 in. minimum from

front opening to sidewall.

Note:

1/2 in. min. distance from
fireplace to combustible
materials.

In addition to these

Note:

framing dimensions,
also reference the
following sections:

• Clearances (Section

6.B.)

• Mantel Projections
(Section 11.E.)

• Fireplace Dimensions
(Section 13.A.)

Figure 6.1 Fireplace Locations (Framing dimensions shown)

48 in. Min.

18

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

B. Clearances

WARNING! Risk of Fire! You must comply with all minimum air space clearances to combustibles as specifi ed in Fig-
ure 6.2. DO NOT pack required air spaces with insulation or other materials.

Storm Collar

(roof)

Roof Flashing

Shaded areas

represent

2 in. (51 mm) min.

air space clearance

required around pipe

(insulation)

2 in. (51 mm) min.

Ceiling Firestop

(attic)

Attic

Insulation

Shield

(ceiling)

Offset/Return (secured

with hanger straps)

(ceiling)

Must have 2 in. (51 mm)

minimum clearance

to header

Chimney air kit

attached here (not shown)

0 in. to level

of standoffs

1/2 in. (13 mm) to back &

side of appliance

0 in.

to floor

Figure 6.2 Clearances to Combustible Materials

Note: Chimney air kit is not shown, but is required in Canada.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

19

C. Sidewalls/Surrounds

• Adjacent combustible sidewalls must be located a minimum of 18 in. (305 mm) from the front fi replace opening.

• Combustible and non-combustible mantel legs, surrounds and stub walls may be constructed within the gridded area,
Figure 6.3.

BRICK

FRONT

48 in. Min.

48 in. Min.

4 in.

16 3/4 in.

Minimum

36-5/8 in.

20 in.

16 3/4 in.

Minimum

20 in.

50 deg

50 deg

18 in. Min.

34 in.

14-1/2 in.

39 deg

18 in. Min.

14-1/2 in.

39 deg

Figure 6.3 Mantel Leg or Wall Projections

20

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

D. Frame the Fireplace

Figure 6.4 shows typical framing using combustible materials (2x4 lumber shown).

• Observe all required air space clearances to combustible materials as shown in Figure 6.1 & 6.2.

• Framing across the top of fi replace must be above top standoffs.

54 5/8 in. (1387 mm) *

22 1/2 in.

(572 mm) *

* If the interior of the chase will

be drywalled, add the thick­ness to this measurement.

1/2 in. (13 mm)

Clearance

Figure 6.4 Framing the Fireplace

18 in. (457 mm)

minimum distance

from wall to

fireplace opening.

1/2 in.

Drywall

2 in. (51 mm) minimum air space

42-1/2 in.

(1080 mm)

22 1/2 in.

(572 mm) *

REQUIRED!

clearance around chimney

1/2 in. (13 mm)

Clearance

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

21

7

Installation of Fireplace

7

CAUTION! Risk of Cuts/Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.

A. Things to Consider

• Location of chimney air kit (see Figure 7.4)

• Location of outside air kit

• Electrical connections and/or wall switch

• Gas line piping

B. Position the Fireplace

• Place the fi replace on a continuous fl at surface.

• Follow framing instructions in Section 6.

WARNING! Risk of Fire! Prevent contact with sag-

ging, loose insulation.

• DO NOT install against vapor barriers or exposed

insulation.

• Secure insulation and vapor barriers.

• Provide minimum air space clearances at the sides

and back of the fi replace assembly as outlined in
Section 6.

C. Place Protective Metal Hearth Strips

WARNING! Risk of Fire! Protective metal hearth strips
MUST be installed. DO NOT cover metal strips with com­bustible materials. Sparks or embers may ignite fl ooring.

• Refer to Figures 7.1 and 7.2.

• Locate the two protective metal hearth strips measuring
approximately 26 in. x 4 in. (660 mm x 102 mm) included
with this fi replace.

• Slide each metal strip 2 in. (51 mm) under front edge of
fi replace.

• Overlap strips in the middle of the front fi replace opening
by 1 in. (25 mm) minimum.

• Metal strips must extend beyond the front and sides of
the fi replace opening by at least 2 in. (51 mm).

• Protect the front of a platform elevated above the hearth
extension with metal strips (not included with fi replace)
per Figure 7.2. See Section 11 for hearth extension
instructions.

1" OVERLAP

Metal strip 2 in. (51 mm) under edge
of fireplace openings and hearth
extension.

Figure 7.1 Position the Protective Metal Hearth Strips

Top piece must overlap

bottom piece

Raised Platform

2 in.

(51 mm)

Floor

2 in.

(51 mm)

Figure 7.2 Protect the Front of an Elevated Platform

1 in. (25 mm) min.

overlap

D. Level Fireplace

• Level fi replace side-to-side and front-to-back.

• Shim with non-combustible material as necessary.

• Secure fi replace to framing with nailing fl anges with a
minimum of two fasteners per nailing fl ange.

• Check fi replace opening for square to ensure proper fi t
of glass doors. Measure diagonals of fi replace opening
to make sure they are equal.

22

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

3 ft min. from
top of uppermost
chimney section
to air inlet.

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

))

)

)

))))

)

)

))
)))

))))))))))

)

)))))

))
))))))))))

)))))))
)))

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

)

Note: Chimney air kit not
shown, but required in
Canada.

Figure 7.3 Possible Outside Air Inlet Locations

NO

NO

Outlet blocked by

snow, leaves, etc.

Garage or

combustible

liquids storage

YES

Clear area

outside

house or in

ventilated

crawl space

Use only duct materials specified by manufacturer (preferably
with short run or mainly straight duct, except small dip for cold
air trap which will help prevent flow of cold air).

Figure 7.4 Outside Combustion Air Placement

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

NO

Attic space

NO

Outlet placed

higher than 3 ft

below the

termination cap

Factory-built

fireplace

23

E. Install Outside Air Kit

• Keep duct runs short and straight to minimize restriction.
A small dip is acceptable for a cold air trap.

• The outside air kit must be installed on the left hand side
of the fi replace.

• Locate the outside air hood in a clear area, preferably
into prevailing wind during the heating season. Refer to
Figure 5.2.

• Install as shown in Figures 7.3, 7.4 and 7.5.

• The air duct may be run vertically.

• The outside air hood must be at least 3 ft (.91 m) below
the top of the uppermost chimney section.

CAUTION! Risk of Fire or Asphyxiation! DO NOT

draw outside combustion air from wall, fl oor or ceiling
cavity, or enclosed spaces such as an attic or garage.

• DO NOT place outside air hood close to exhaust

vents or chimneys. Fumes or odor could be drawn
into the room through the fi replace.

• Locate outside air inlet to prevent blockage from

leaves, snow/ice, or other debris. Blockages could
cause combustion air starvation.

Flexible Duct

(not supplied)

Outside Air

Hood

Figure 7.5 Outside Air Installation

2 Wire Ties

Outside Air

Plate

Assembly

24

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

8

Chimney Assembly

8

NOTICE: Chimney performance may vary.

• Trees, buildings, roof lines and wind conditions affect
performance.

• Chimney height may need adjustment if smoking or
overdraft occurs.

Chimney must extend
beyond combustible
roof structure

Maintain minimum
height of chimney
above roof

Install roof flashing
according to minimum
requirements

Offsets/returns
may not exceed
30° from vertical

Lock chimney
sections together
firmly to resist
movement

Termination Cap

Additional
support for
tall chimneys

Storm Collar

Maintain minimum
clearances to
combustibles as
specified

Support straps for returns
must be secured to
adequate framing

Offsets and returns must
be secured with the screws
provided (outer pipe only)

Ceiling firestops
are required where
chimney passes
through ceiling or
floor

Figure 8.1 Typical Chimney System - Guidelines for Chimney System Installation

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

25

A. Chimney Requirements

Measure vertical distances from the base of the fi replace
as shown in Figure 8.2.

• Minimum overall straight height 14 ft (4.27 m)

• Minimum height with offset/return 14.5 ft (4.42 m)

• Maximum height 50 ft (15.24 m)

• Maximum chimney length between an offset
and return

• Maximum distance between chimney
stabilizers

• Double offset/return minimum height 20 ft (6.1 m)

• Maximum unsupported chimney length
between the offset and return

• Maximum unsupported chimney height above
the fi replace

• Maximum unsupported chimney above roof 6 ft (1.83 m)

20 ft (6.1 m)

35 ft (10.67 m)

6 ft (1.83 m)

35 ft (10.67 m)

WARNING! Risk of Fire! You must maintain 2 in. (51
mm) air space clearance to insulation and other combus­tible materials around the chimney system. Failure to do
so may cause overheating and fi re.

Table 8.1

Determine the chimney components needed to complete
your particular installation:

• Measure the total vertical height of the fireplace
installation from the base of the fi replace assembly to
the approximate location of the bottom of the termination
cap.

• Subtract the effective height of the fi replace assembly
(see Figure 8.2) from the total vertical height to determine
the overall height of the chimney installation.

• Create a schematic for your application similar to Figure

8.2 showing components required (referring to Table

8.1). Figure 8.1 identifi es those components and where
used.

• Install a ceiling fi restop whenever the chimney penetrates
a fl oor/ceiling.

NOTICE: A maximum of two pairs of offsets and returns

may be used.

CAUTION! Risk of Fire and/or Asphyxiation! DO

NOT connect this fi replace to a chimney fl ue servicing

another appliance. DO NOT connect to any air distribu­tion duct or system. These actions could cause over­heating/fi re in the chimney fl ue, or release of exhaust
fumes into the living areas.

HEIGHT OF CHIMNEY COMPONENTS in. mm
Chimney Stabilizer

SL3 4-3/4 121

Ceiling Firestops

FS338 0 0
FS339 0 0
FS340 0 0

Offsets/Returns

SL315 13-3/8 340
SL330 15-1/2 394

Roof Flashing

RF370 0 0
RF371 0 0

Chimney Sections*

SL306 4-3/4 121
SL312 10-3/4 273
SL318 16-3/4 425
SL324 22-3/4 578
SL336 34-3/4 883
SL348 46-3/4 1187

* Dimensions refl ect effective height.

6 ft (1.83 m) max.
unsupported chimney
above roof

20 ft (6.10 m) max.
pipe between an
offset & return

35 ft (10.7 m)

Ceiling firestop

38 1/2 in. (978 mm)

Effective Height

Figure 8.2 Chimney Requirements

max. straight

unsupported

chimney height

14 ft (4.27 m) min. height

(no offset-return)

50 ft (15.24 m) max. height

26

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

B. Using Offsets/Returns

• Use an offset/return to bypass overhead obstructions.

• An offset and return can be used as a single entity or separated by chimney section(s).

WARNING! Risk of Fire! DO NOT use offset/returns greater than 30°. Chimney draft will be restricted and could cause

overheating and fi re.

• Measure the shift needed to avoid the overhead obstruction. Refer to dimension A in Figure 8.3.

• Find the appropriate A dimension listed in Table 8.2.

• The B dimension coinciding with the A dimension measurement in Table 8.2 represents the required vertical clearance
needed to complete the offset/return.

• Read across the chart to fi nd the number of chimney sections/model numbers needed between the offset and return.

A

Example:
Your “A” dimension from Figure 8.3 is 14 1/2 in. (368

mm). Using Table 8.2 the dimension closest to, but
not less than 14 1/2 in. (368 mm) is 14 1/2 in. (368
mm) using a 30° offset/return.

B

You determine from the table that you need 34 1/8 in.
(867 mm) (Dimension “B”) between the offset and
return.

1-1/4 in. (32 mm)

OVERLAP

Figure 8.3 Chimney Offset/Return

The chimney component that best fi ts your applica-
tion is one SL324.

Table 8.2

15-degree

A

Offset

in. mm in. mm in. mm in. mm

1-5/8 41 13-3/8 340 - -----3-5/8 92 15-1/2 394
2-7/8 73 17-3/4 451 1 -----5-1/2 140 18-5/8 473
4-1/8 102 22-3/8 568 2 -----7-1/4 184 21-3/4 552
4-1/2 114 23-5/8 600 - 1 - - - - 8-1/2 216 23-3/4 603
5-3/4 146 28-1/4 718 1 1 - - - - 10-1/4 260 27 686

6 152 29-3/8 746 - - 1 - - - 11-1/2 292 29 737
7-1/4 184 34 864 - 2 - - - - 13-1/4 337 32-1/8 816
7-3/4 197 36-1/8 918 - - - 1 - - 14-1/2 368 34-1/8 867
8-3/4 222 39-3/4 1010 1 - - 1 - - 16-1/4 413 37-3/8 949

10-3/8 264 45-5/8 1159 - - 2 - - - 19-1/4 489 42-1/2 1080
10-5/8 270 46-3/4 1187 - - - - 1 - 20-1/2 521 44-5/8 1133

11-7/8 302 51-3/8 1305 1 - - - 1 - 22-1/4 565 47-3/4 1213
13-1/2 243 57-1/4 1454 - - - 2 - - 25-1/4 641 52-7/8 1343
13-3/4 349 58-3/8 1483 - ----126-1/2 673 55 1397

15 381 63 1600 1 ----128-1/4 718 58-1/8 1476

16-1/2 419 68-3/4 1746 - 1 - - - 1 31-1/4 794 63-1/4 1607

18 457 74-5/8 1895 - - 1 - - 1 34-1/4 870 68-1/2 1740
19-5/8 498 80-3/8 2042 - - - 1 - 1 37-1/4 946 73-3/4 1873
20-5/8 524 84-1/8 2137 1 - - 1 - 1 39-1/8 994 76-7/8 1953
22-3/4 578 91-7/8 2334 - - - - 1 1 43-1/4 1099 84-1/8 2137

24 610 96-1/2 2451 1 - - - 1 1 45-1/8 1146 87-1/4 2216
25-7/8 657 103-1/2 2629 - ----249-1/4 1251 94-1/2 2400

Proper assembly of air-cooled chimney parts result in an overlap at chimney joints of 1-1/4 in. (32 mm). Effective length is built
into this chart.

B

Height

SL306 SL312 SL318 SL324 SL336 SL348

A

Offset

30-degree

B

Height

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

27

C. Assemble Chimney Sections

WARNING! Risk of Fire! DO NOT install substitute or
damaged chimney components.

• Use only those components described in this manual.
Substitute or damaged chimney components could impair

safe operation and cause overheating and fi re.

• Support the pipe during construction and check to be
sure inadvertent loading has not dislodged the chimney
section from the fi replace or at any chimney joint.

• Attach a straight chimney section or an offset to the top
of the fi replace.

• Place inner fl ue to the inside of the chimney section below
it. Place the outer casing outside the outer casing of the
chimney section below it. Refer to Figure 8.4.

NOTICE: Chimney sections cannot be disassembled

once locked together. Plan ahead!

• Lock chimney sections and/or offsets/returns together by
pushing downward until the top section meets the stop
bead on the lower section.

• Pull on the top section to make sure it is fully engaged
and will not separate.

• You may use #6 or #8 sheet metal screws no longer than
1/2 in. (13 mm) to fasten chimney sections together. Do
NOT penetrate inner fl ue.

WARNING! Risk of Fire! You MUST use screws (pro-

vided) to fasten offset/returns to chimney sections to
keep the chimney parts from twisting. Failure to do so
could cause fi re.

E. Install Ceiling Firestops

CAUTION! Risk of Fire! Ceiling fi restops must be used
whenever the chimney penetrates a ceiling/fl oor.

• Chase construction requires ceiling fi restops at each
fl oor or every 10 ft (3.05 m) of clear space.

• The ceiling fi restop slows spread of fi re and reduces cold
air infi ltration.

• Install a ceiling fi restop whenever chimney penetrates
ceiling/fl oor.

• Mark and cut an opening in ceiling as shown in
Figure 8.5.

• Frame the opening with the same size lumber used in
the ceiling joists.

• Nail the ceiling fi restop to the bottom of the ceiling joists
when there is a room above.

• Use an attic insulation shield if the ceiling is insulated.
The ceiling fi restop may then be attached above or below
the joists.

WARNING! Risk of Fire! DO NOT seal area between

fi restop opening and chimney pipe except where they
enter the attic or leave the warm air envelope of the
home (use 600° F sealant).

ROOM ABOVE (non-insulated ceiling)

B

A

• Fasten offset/returns to chimney sections. Insert the
screws (provided) through the predrilled holes. Do NOT
penetrate inner fl ue.

• Secure chimney returns with hanger straps provided;
fasten to studs or joists.

• Vertical straight runs of chimney must be supported every
35 ft (10.7 m).

D. Install Chimney Air Kit

• Required in Canada.

• Follow instructions provided with this accessory.

Figure 8.4 Assembling Chimney Sections

Ceilng firestop from

bottom

ATTIC ABOVE (insulated ceiling)

Ceiling firestop from

top

Note:

Use same dimensional lumber for framing

ceiling firestop and joists.

AB

Catalog #

FS338 14-1/2 368 14-1/2 368 0°
FS339 14-1/2 368 18-3/8 467 15°
FS340 14-1/2 368 23 584 30°

Anglein. mm in. mm

28

Figure 8.5 Installing the Ceiling Firestop

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

F. Install Attic Insulation Shield

WARNING! Risk of Fire! You MUST install an attic insu­lation shield when there is any possibility of insulation or
other combustible material coming into contact with the
chimney.

• DO NOT pack insulation between the chimney and the
attic insulation shield.

• Failure to keep insulation and other materials away from
chimney pipe could cause fi re.

• DO NOT offset chimney inside insulation shield.

Installation of a ceiling fi restop is required

• Refer to Figures 8.6 - 8.8.

• Roll the shield (around the chimney if already installed)
until you have a 3 in. (76 mm) overlap and the three
holes on each side match up (large holes on top).

• Insert three screws into the matching holes to form a
tube.

• Bend three tabs on the bottom of the tube inward to 90°
to maintain chimney air space (refer to Figure 8.6).

• Rest the insulation shield on the ceiling fi restop below.

• Bend the three short tabs at the top of the shield inward
to 90° to maintain the 2 in. (51 mm) air space from the
chimney.

• Bend the remaining top tabs to just meet the pipe.

Bend remaining tabs
to rest against pipe to

Bend inward

90°

prevent insulation
from falling in.

Insert three

3 in. (76 mm)

overlap

Figure 8.6 Prepare Attic Insulation Shield

Pipe

6 Tabs bent

in 90°

rest against pipe

screws

Tabs bent in to

Attic Insulation Shield

14-1/2 in. (368 mm)

diameter

Ceiling Firestop

If you wish to make a custom shield or barrier, follow
these guidelines:

• Metal is preferred, although any material stiff enough to
hold back the insulation can be used.

WARNING! Risk of Fire! Use of cardboard or other

materials that can defl ect under humidity or other envi-
ronmental conditions is not recommended.

• The shield or barrier must be tall enough to extend
above the insulation and prevent blown-in insulation
from spilling into the cavity.

• Maintain specifi ed air spaces around chimney.

• Check instructions and local codes for further details.

Insulation

10-1/2 in.
(267 mm)

Figure 8.7 Install Attic Insulation Shield (fi restop above ceiling)

10-1/2 in.
(267 mm)

Pipe

Pipe

6 Tabs bent

in 90°

Pipe

Insulation

Tabs bent in to

rest against pipe

Attic Insulation Shield

14-1/2 in. (368 mm)

diameter

InsulationInsulation

Ceiling Firestop

Figure 8.8 Install Attic Insulation Shield (fi restop below ceiling)

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

29

G. Cut out Hole in Roof

• Refer to Figure 8.9.

• Plumb from roof to center of chimney.

• Drive a nail up through roof to mark center of pipe.

• Measure to either side of nail and mark the 14-1/2 in. x
14-1/2 in. (368 mm x 368 mm) opening required.

• Measure opening on the horizontal; actual length may
be larger depending on roof pitch.

• Cut out and frame opening.

• Refer to Chapter 25 of the Uniform Building Code for
roof framing details.

H. Complete Installation

WARNING! Risk of Fire! You MUST maintain 2 in.
(51 mm) air space to insulation and other combustible
materials around the chimney system. Failure to do so
could cause overheating and fi re.

• Keep chimney sections from separating or twisting.

• You may secure straight chimney sections at the joints
with screws no longer than 1/2 in. (13 mm).

The following steps should be skipped if using a

chase.

• Install roof fl ashing appropriate to roof pitch.

• Install round termination cap and storm collar.

I. Install Flashing

• Assemble chimney so it passes through the framed
opening.

• Slip the fl ashing over the chimney.

NOTICE: Roofi ng shingles must be below the fl ashing

plate on the lower side of a sloped roof and over the
fl ashing plate on the sides and top.

• Nail the fl ashing to the roof. Keep gaps between the
fl ashing plate and the roof to a minimum.

• Caulk the fl ashing plate and roof junction as well as the
vertical seam on the fl ashing. All nail heads must be
caulked with a roofi ng sealant.

Figure 8.9 Ceiling/Attic Construction

30

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

J. Chimney Termination Requirements

• Install a cap approved and listed for this fi replace system.

• Locate cap where it will not become plugged by snow or other materials.

• Locate cap away from trees or other structures.

• The bottom of the termination cap must be at least 3 ft (.91 m) above the roof AND at least 2 ft (.61 m) above any portion
of roof within 10 ft (3.05 m) as shown in Figure 8.10.

• The distance required between caps is shown in Figure 8.10.

Slanted Roofs

Chimney must extend 2 ft (.6 m)

Chimney must
extend 3 ft (.9 m)
above the roof

above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney

Flat Roofs

Chimney must
extend 3 ft (.9 m)
above the roof

Multiple Chimney Locations

AB

6in.(minimum)upto20in.

152 mm/508 mm

20 in. and over 0 in. minimum

18 in. minimum

457 mm

Gas

Termination

Cap **

Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney

Gas, Wood or Fuel Oil

Termination Cap

B

A *

Wood

Minimum

(See

illustration

above)

Perpendicular Wall

Figure 8.10 Multiple Chimney Locations

Ifusingdecorativecapcover(s),thisdistancemayneedtobe

*

increased. Refer to the installation instructions supplied with the
decorativecap cover.

In a staggered installation with both gas and wood terminations, the

**

wood termination cap must be higher than the gas termination cap.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

31

9

Chase Installations

9

A. Construct the Chase

A chase is a vertical boxlike structure built to enclose the
fi replace and/or its vent system. Vertical chimneys that
run on the outside of a building must be installed inside a
chase.

Construction of the chase may vary with the type of build­ing. These instructions are not substitutes for the require­ments of local building codes. Local building codes MUST
be checked.

A chase should be constructed in the manner of all
outside walls of the home to prevent cold air drafting
problems. The chase should not break the outside build­ing envelope in any manner. All outer walls need to be
insulated.

Building codes require false ceiling and ceiling fi restops
at each fl oor of the chase or every 10 ft (3.05 m) of clear
space to control spread of fi re.

Walls, ceiling, base plate and cantilever fl oor at the fi rst
level of the chase should be insulated. See Figure 9.1.
Vapor and air infi ltration barriers should be installed in the
chase as per regional codes for the rest of the home. Ad­ditionally, Hearth & Home Technologies recommends that
the inside surfaces be sheet rocked and taped (or the use
of an equivalent method) for maximum air tightness.

Gas line holes and other openings should be caulked with
high temperature caulk or stuffed with unfaced fi berglass
insulation. If the fi replace is being installed on a cement
slab, we recommend that in cold climates, a sheet of
plywood or other raised platform be placed underneath to
prevent conducting cold up into the room.

Three examples of chase applications are shown in Fig­ure 9.2.

1. Fireplace and chimney enclosed in an exterior chase.

2. Chimney offset through exterior wall and enclosed in chase.

3. Chase constructed on roof.
Note: In cooler climates, all chase walls should be insulated.

1 2 3

Round Termination Cap

Metal Chase Top

Firestop

False Ceiling

Tabs

Insulation

False Ceiling

Ceiling

Attic

Insulation

Shield

Ceiling

Firestop

Insulation

False Ceiling

Chimney

Insulation in the

outside walls

of the chase

Figure 9.2 Chase Constructions

WARNING! You must install false ceilings and ceiling

fi restops at each fl oor of the chase or every 10 ft (3.05 m)
to control spread of fi re.

WARNING! Risk of Fire! DO NOT seal area between fi re
stop opening and chimney pipe. Restricting air fl ow around
chimney may cause fi re.

WARNING! Risk of Fire! You must maintain a minimum
2 in. (51 mm) air space clearance to insulation and other
materials surrounding the chimney system.

• Insulation and other materials must be fi rmly secured to
prevent accidental contact with chimney system.

• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fi replace or chimney.

• Failure to prevent contact between insulation or other
materials and chimney system may cause overheating
and fi re.

Figure 9.1 Chase Assembly

32

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

B. Install Fireplace & Chimney

Install as per Sections 7 and 8.

C. Install Chase Top

• Y ou MUST use a chase top in a chase installation. Chase
tops are available from your Heatilator dealer or may be
fi eld constructed.

• Include a turndown and drip edge to prevent water from
seeping into the chase.

• Include a 2 in. (51 mm) soldered, welded or spun collar
around pipe opening to keep water out.

• Provide a 1/8 in. (3 mm) gap around the fl ue pipe.

• Slope the chase top downward away from the
opening.

WARNING! Risk of Fire! DO NOT caulk the pipe to the

chase top collar.

• Caulk all seams to prevent leaks.

• Refer to Figure 9.3.

Slope Downward
(1/4 in. per foot
minimum)

2 in. (51 mm) Collar
on Chase Top

Turn-down
Drip Edge

Chase

D. Install Termination Cap

Install the chimney sections up through the chase enclo­sure.

• Refer to termination cap instructions.

WARNING! Risk of Fire! The minimum overlap of cap

to pipe (as shown in the following illustrations) MUST
be met or chimney may separate from cap. Separation
allows sparks, heat and embers to escape.

NOTICE: Paint the termination cap with a rust-resistant

paint to protect against the effects of corrosion on those
parts exposed to the weather.

• TR344 Round Termination Cap

Termination

Cap

Slip

storm collar

around chimney pipe

before termination

cap pipe is snapped

into the chimney

pipe.

Caulk gaps between

storm collar & pipe,

and storm collar

& chase top.

Collar

2 in. (51 mm)

Minimum Height

Chase Top

Storm
Collar

Chimney

Pipe

Do NOT

block air holes

6 in. (153 mm)

Minimum top of

chase to top of

chimney pipe

Figure 9.3 Chase Top Construction

.018 (26 ga) min.
Galvanized
Chase Top

Chase

Termination cap pipe and chimney section must be snapped
together to maintain an overlap of 1-1/2 in. (38 mm).

Figure 9.4 Installing a TR344 Round Termination Cap

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

33

• TR342 Round Telescoping T ermination Cap

• TS345/TS345P Square Termination Cap

Assemble

storm collar

around extended

termination cap

pipe

once cap is

installed.

Caulk gaps between

storm collar & pipe,

and storm collar

& chase top.

Collar

2 in. (51 mm)

Minimum Height

Chase Top

Termination

Cap

Storm

Collar

Chimney

Pipe

Do NOT

block air

holes

3 clip brackets.

Slip over chase collar

and attach with screws

provided.

14 1/2 in. (368 mm)

Maximum

Chase

Place waterproof sealer under
each flange of the termination
cap and on top of each screw
to help prevent leaks.

Termination Cap

The last section of pipe must
stop between 2 in. (51 mm)
above the top of the chase and

Collar

2 in. (51 mm)

Minimum Height

Chase T op

Chimney

Pipe

Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm).

4 3/4 in. (121 mm) below the
top of the chase.

2 in. (51 mm)

maximum

4 3/4 in. (121 mm)

maximum

Chase

Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)

Figure 9.5 Installing a TR342 Round Telescoping Termination
Cap

• ST375 Square Termination Cap

Place waterproof
caulk or sealer under
each flange of the
termination cap and
on top of each screw

Flange

Termination Cap

Collar

2 in. (51 mm)

Minimum Height

Chase T op

Chimney

Pipe

to help prevent leaks.

The last section of pipe
must stop between 2 in. (51
mm) above the top of the
chase and 4 3/4 in. (121
mm) below the top of the
chase.

2 in. (51 mm)

maximum

4 3/4 in. (121 mm)

maximum

Chase

Figure 9.7 Installing a TS345/TS345P Square Termination Cap

Î

• TCT375 Terra Cotta Cap

Place waterproof sealer

Remove 2 screws

from front & back

to lift the top off

Termination Cap

Collar

2 in. (51 mm)

Minimum Height

Chase Top

Chimney

Pipe

under each flange of the
termination cap and on
top of each screw to
help prevent leaks.

The last section of pipe
must stop between 2 in.
(51 mm) above top of
chase and 7 in. (178 mm)
below top of chase

2 in. (51 mm)

7 in. (178 mm)

Chase

Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)

Figure 9.6 Installing an ST375 Square Termination Cap

Î

34

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

Termination cap pipe and chimney section must overlap

1-1/2 in. (38 mm)

Figure 9.8 Installing a TCT375 Terra Cotta Cap

Î

10

10

Shrouds

A. Radiation Shield

• Some shrouds require a radiation shield. Use where
specifi ed.

• Radiation shield must be constructed of minimum 26 ga
sheet metal.

B. Field Constructed Shrouds

WARNING! Risk of Fire! Shrouds must be constructed
as specifi ed. Improper construction may overheat chase
top.

• Chase top shrouds may be fi eld constructed where
permitted by regional building codes.

NOTICE: Some regional codes require an agency-Listed

shroud. Consult your local building offi cials.

• Hearth & Home Technologies Inc. supplies UL listed
shrouds. See your dealer for details.

• The following fi eld constructed shroud designs have
been tested for Hearth Technologies fi replace systems
and termination caps.

• The shrouds must be constructed from a minimum .018
in. (26 ga) thick aluminized steel.

Ø 17 1/2 in. (444.5 mm) Round Hole to fit over cap

3 in. (76 mm) tall legs

Length x Width to fit inside shroud

Figure 10.1 Radiation Shield

• The wire mesh is optional but recommended and must
be .018 in. thick minimum, 1/2 in. mesh.

Open Top Shroud (TR342 caps require radiation shield)

Min.

Top Dim.

Min.

Top Dim.

Min. Opening

Width

3 in (76 mm)
minimum

Min. Opening

Width

Min.

Base Dim.

Figure 10.2 Open Top Shroud Dimensions

Min.

Base Dim.

TS345 TR342 TR342/344TV

Min. Base Dims.

in 23 x 23 28 x 28 26 x 26

mm 584 x 584 711 x 711 660 x 660

Radiation Shield

Required

Min. Top Dims.

in 20 x 20 25 x 25 23 x 23

mm 508 x 508 635 x 635 584 x 584

Min. Opening Width

in 17 x 17 22 x 22 20 x 20

mm 432 x 432 559 x 559 508 x 508

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

35

Mailbox Style Shroud (radiation shield required)

3 in. (76 mm)

Min. Opening Height

Min. Height

above radiation

shield

Min. Base Dim

Min.

Base Dim

3 in. (76 mm) Min.

Radiation Shield Height

from top of Chase

Figure 10.3 Mailbox Style Shroud Dimensions

Min. Opening Width

TS345 TR342 TR342/344TV

Min. Base Dims.

in N/A 26-1/2 x 28 28 x 30

mm N/A 673 x 711 711 x 762

Min. Height Above Radiation Shield

in N/A 21-1/4 20-1/2

mm N/A 540 521

Min. Opening Width

in N/A 20-1/2 x 22 22 x 24

mm N/A 521 x 559 559 x 610

Roofed Style Shroud (radiation shield required)

Minimum

Height above

Radiation Shield

Termination

3 in. (76 mm)

Radiation

Shield Height

Min

. Base Dimension

Figure 10.4 Roofed Style Shroud Dimensions

Cap

Radiation Shield

Chase Top

Min. Opening Width

Minimum
Opening

Height

Minimum

Base Dimension

TS345/445

in N/A 27 x 27 27 x 27

mm N/A 686 x 686 686 x 686

Min. Height Above Radiation Shield

in N/A 16 16

mm N/A 406 406

in N/A 21 21

mm N/A 533 533

Min. Opening Height

in N/A 12 12

mm N/A 305 305

TR342/344
TR442/444 TR342/344TV

Min. Base Dims.

Min. Opening Width

36

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

11

11

Finishing

A. Non-combustible Materials

• Materials which will not ignite and burn, composed of
any combination of the following:

- Steel - Iron

- Brick - Tile

- Concrete - Slate

- Glass - Plasters

• Materials reported as passing ASTM E 136, Standard

T est Method for Behavior of Metals, in a Vertical T ube
Furnace at 750° C

B. Combustible Materials

• Materials made of or surfaced with any of the following
materials:

- Wood - Compressed paper

- Plant fi bers - Plastic

• Any material that can ignite and burn; fl ame proofed or
not, plastered or un-plastered

C. Hearth Extension

WARNING! Risk of fi re! High temperatures, sparks,
embers or other burning material falling from the fi replace
may ignite fl ooring or concealed combustible surfaces.

• Protective metal hearth strips MUST be installed.

• Hearth extensions MUST be installed exactly as
specifi ed.

• You MUST use a hearth extension with this fi replace.

• This fi replace has been tested and approved for use with
a hearth extension insulated to a minimum R value of

1.03.

• The hearth extension material MUST be covered with
tile, stone or other non-combustible material.

• Manufactured hearth materials will usually have a
published R value (resistance to heat) or k value
(conductivity of heat). Refer to the formula in Table 11.1
to convert a k value to an R value,

• Refer to Table 11.2 for hearth extension insulation
alternatives.

16 in.

406 mm

8 in.

203 mm

Figure 11.1 Hearth Extension Dimensions

Table 11.1

R = 1/k x inches of thickness

Hearth Extension Insulation Alternatives-Total minimum R Value must equal 1.03

Material

Hearth & Home HX3, HX4 (Micore 300™) 0.49 2.06 1/2 in.
USG Micore 160™ 0.39 2.54 1/2 in.
USG Durock™ Cement Board 1.92 0.52 2 in.
Cement Mortor 5.0 0.20 5-1/8 in.
Common Brick 5.0 0.20 5-1/8 in.
Ceramic Tile 12.50 0.08 12-1/4 in.
Armstrong™ Privacy Guard Plus 0.46 2.18 1/2 in.

Marble 14.3-20.0 0.07-0.05 14-5/8 in. - 20-3/8 in.

k per inch

thick

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

r per inch

thick

Minimum

thickness

required

37

D. Finishing Material

Refer to Sections 11.A. and Sections 11.B. for combus­tible/non-combustible materials. Refer to Figure 11.2 for
non-combustible zone.

WARNING! Risk of Fire!

You must maintain clearances.

• Use only non-combustible framing material below
standoffs.

• Sheetrock, wood or other combustibles must NOT be
used as sheathing or facing in the non-combustible
zone.

• DO NOT cover metal fi replace front with combustible
materials.

• Install combustible materials only to specifi ed clearances
on top front and side edges.

WARNING! Risk of Fire!

• DO NOT obstruct air inlets or outlets.

• DO NOT modify grilles. Modifying or covering grilles
could cause temperature rise and fi re hazard.

• Finishing materials must not interfere with: air fl ow
through grilles or louvers; operation of louvers or doors;
access for service.

• Complete framing and apply facing material (drywall)
over framing.

• A bead of 300-deg F minimum non-combustible sealant
must be used to close off any gaps at the top and sides
between the fi replace and facing to prevent cold air
leaks.

• Large gaps can be bridged with fiberglass rope
gasket.

• Only non-combustible materials may be used to cover
the metal fi replace front.

Shaded surfaces may be covered
with non-combustible materials.

Figure 11.2 Non-combustible Facing

Finished combustible wall

Combustible material

Non-combustible
decorative facing
(up to full brick depth)

Continuous,
non-combustible sealant

Tile, stone or other
non-combustible material

1/2 in. Micore
or equivilent
insulation

Figure 11.3 Decorative Facing

Flat 2 x 4 stud wall

2 x 4 header, flush with
front of stand-offs

Hearth
Refractory

Metal strips are placed 2 in. (51 mm)
under the front of the fireplace and must
extend beyond the front and sides of
fireplace opening by 2 in. (51 mm)

Floor constructed of wood or
other combustible material

38

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

E. Combustible Mantel

• Refer to the shaded areas of Figure 11.4 for locations and dimensions of a combustible mantel.

Î
Î

• A combustible mantel may be positioned no lower than 12 5/8 in. (321 mm) above the top of the fi replace opening.

• A combustible mantel may have a maximum depth of 10 in. (254 mm).

Î

• Combustible trim and materials cannot be placed within 6 in. (152 mm) of the fi replace opening (top or sides).

Î
Î

• Combustible materials projecting more than 1 1/2 in. (38 mm) shall not be placed within 12 in. (305 mm) above the top
of the fi replace opening.

• Combustible trim must not cover the metal surfaces of the fi replace.

• Mantel clearance is in accordance with Section 7-3.3.3 of ANSI/NFPA21 1.

7 ft (2134 mm)

minimum

Combustible wall

Combustible
decorative facing

Grid represents
1 in. squares.

base of fireplace

to ceiling

2 x 4 stud wall
Standoffs

1 1/2 in./38 mm

maximum

Non-combustible
decorative facing
such as steel, iron,
brick, tile, concrete,
slate, glass, plasters

Seal joint with
non-combustible
sealant

Figure 11.4 Clearances to Mantels or other Combustibles above Fireplace

Î

10 in./254 mm

Mantel

6 in./152 mm

minimum

Measured from top of fireplace opening

12 5/8 in./321 mm

minimum

12 in./305 mm

minimum

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

39

F. Sidewalls/Surrounds

• Adjacent combustible sidewalls must be located
a minimum of 18 in. (457 mm) from the fireplace
opening.

48 in. Min.

• Combustible or non-combustible mantel legs, surrounds
and stub walls may be constructed per Figure 11.5.

BRICK

FRONT

48 in. Min.

4 in.

16 3/4 in.

Minimum

36-5/8 in.

20 in.

16 3/4 in.

Minimum

20 in.

50 deg

50 deg

18 in. Min.

34 in.

14-1/2 in.

39 deg

18 in. Min.

14-1/2 in.

39 deg

Figure 11.5 Mantel Leg or Wall Projections (acceptable on both sides of opening)

40

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

12

12

Accessories

A. Gas Log/Lighter Provision

WARNING! Fire and/or Asphyxiation Risk! Use with
solid wood fuel or decorative gas appliance only. Gas fi re
generates fumes.

• DO NOT install unvented gas logs

• Damper must be locked fully open when gas logs are
installed

A certifi ed gas log lighter or decorative gas log set can be
installed in this fi replace.

• Maximum input is 100,000 BTU/hr.

• Decorative gas appliance must be certifi ed to ANSI
Z21.60 “Standard for Decorative Gas Appliances for
Installation in Vented Fireplaces”.

• Must be installed in accordance with the National Fuel

Gas Code, ANSI Z223.1.

• A gas log set must incorporate a gas shutoff.

• Gas Log set requires the damper to be locked fully
open.

• A listed automatic damper system with safety interlock
may be used in this fi replace with only compatible,
listed gas log sets. See damper system manufacturer’s
insturctions.

• Knockouts are provided on both sides of the fi replace
and in refractories for 1/2 in. (13 mm) iron pipe.

• Seal refractory around pipe with fi replace mortar or a
non-combustible sealant.

B. Wood Burning Inserts

WARNING! Risk of Fire! Improper installation of wood in­serts may cause fi replace or chimney system to overheat.

If a wood burning insert is being installed in this fi replace,
Hearth & Home Technologies recommends full reline of
the chimney.

• Cooling air openings at the top of the chimney must not
be obstructed in any manner.

• Hearth & Home T echnologies recommends securing the
reline at the top of the fl ue and using the cap certifi ed for
use with this fi replace system.

Outer shell

Firebox

Refractory

Seal with
fireplace mortar
or non-combust­ible sealant

Gas line

Repack
insulation
knockout

Figure 12.1 Gas Line Installation

of fireplace

Gas line

4 in.

(102 mm)

Maintain air clearance
to combustibles.

Combustible
materials

1 1/2 in. (38 mm)
air space around
pipe

Combustible materials
may be located at zero
clearance to gas line
beyond 4 in. (102 mm)
from fireplace side.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

41

13

13

Reference Materials

A. Fireplace Dimensions

4-3/4 in. x 6-5/8 in.O.A.

KNOCKOUT

17-1/4 in.

-1/2 in.

36-5/8 in.

B. Optional Components

52 in.

(1321 mm)

42-1/4 in.

9 in.

22-1/2 in.

5-7/8 in.

16 in.

(406 mm)

34 in. opening

38-1/2 in.

effective

height

6-3/4 in.

5-1/4 in.

1/2 in.

13-3/4 in.

66 in.

(1676 mm)

3-1/2 in.

8 in.

1-1/2 in. SQ.

GAS

OPENING

8-1/2 in.

1-1/2 in. DIA.

ELECTRICAL

KNOCKOUT

20 in.

(508 mm)

1/2 in.

(13 mm)

42

HX4 Hearth Extension

with End Panel
DM1436 Series

Inlet

Assembly

HX3 Hearth Extension

Fastener Pack

2 Wire Ties

AK14

Outside Air Kit

1/2 in.

(13 mm)

Tube

Assembly

Bi-fold Glass Doors

See your Heatilator dealer for a complete listing of optional components.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

C. Chimney Components

i

i

The following pictures show only those chimney components which may be safely used with this fi replace.

CAK4A Chimney Air Kit

ID4 Insulated Duct/Outside Air

UD4 Uninsulated Duct/Outside Air
SL306 Chimney Section - 6 in. (152 mm) long
SL312 Chimney Section - 12 in. (305 mm) long
SL318 Chimney Section - 18 in. (457 mm) long
SL324 Chimney Section - 24 in. (610 mm) long
SL336 Chimney Section - 36 in. (914 mm) long
SL348 Chimney Section - 48 in. (1219 mm) long

SL3 Chimney Stabilizer
SL315 Chimney Offset/Return - 15 deg
SL330 Chimney Offset/Return - 30 deg
FS338 Ceiling Firestop - Straight
FS339 Ceiling Firestop - 15 deg
FS340 Ceiling Firestop - 30 deg

AS8 SL300 Straight Attic Insulation Shield, 24 in. (610 mm)
JB877 Chimney Joint Band

CB876 Chimney Bracket
RF370 Roof Flashing - Flat to 6/12 Pitch
RF371 Roof Flashing - 6/12 to 12/12 Pitch
TR344 Round T ermination Cap
TR342 Round T elescoping Termination Cap

ST375 Square Termination Cap
TS345 Square Termination Cap

TS345P Square Termination Cap - Painted
TCT375 Terra Cotta Termination Cap

CT35 Chase Top
LDS33 Decorative Shroud - 3 ft x 3 ft (.91 m x .91 m)
LDS46 Decorative Shroud - 4 ft x 6 ft (1.22 m x 1.83 m)

LDS-BV Decorative Shroud - 26 in. x 26 in. (660 mm x 660 mm)

Field Constructed Shrouds (See “Woodburning
Termination Cap”)

CT-3A Adapter - May be used with the following copper caps

CT-King

CT-Queen

CT-Bishop-I

CT-Bishop-II

CT-Knight-I

CT-Pawn

12 in.

(305 mm)

5-1/4 in.

(133 mm)

12 in.

(305 mm)

4 in. (102 mm)

10-1/2 in.
(287 mm)

8 in.

(203 mm)

Catalog #

A = Actual Length
B = Effective Length (length of

ID4 Insulated Duct

4 in. (102 mm)

42 in.

(1067 mm)

UD4 Uninsulated Duct

4 in. (102 mm)

42 in.

A

B

Chimney Sections

AB

in mm in mm

SL306 6 152 4-3/4 121
SL312 12 305 10-3/4 273
SL318 18 457 16-3/4 425
SL324 24 610 22-3/4 578
SL336 36 914 34-3/4 883
SL348 48 1219 46-3/4 1187

chimney part after it has
been snapped to another)

Diameter

20-3/4 in.
(527 mm)

4-3/4 in. (121 mm)

Effective Height

(203 mm)

Diameter

10-1/2 in.

(267 mm)

10-1/2 in.
(267 mm)

Inside

8 in.

Outside

CAK4A Chimney Air Kit

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

SL3 Vent Stabilizer

43

Effective

Height

4-3/4 in.

(121 mm)

SL315/SL330 Offset/Return

Assembled

Diameter: 14 1/2 in./368 mm

Height: 24 in./610 mm

Inside

Diameter

8 in. (203 mm)

Outside
Diameter
10-1/2 in.

(267 mm)

A

B

14-1/2 in.
(368 mm)

Ceiling Firestop

Catalog # A B

FS338 0-deg. 14-1/2 in. 368 mm
FS339 15-deg. 18-3/8 in. 467 mm
FS340 30-deg. 23 in. 584 mm

12 in.

(305 mm)

AS8 Straight Attic Insulation Shield

10-1/2 in.

(267 mm)

2 in. (51 mm)

JB877 Chimney Joint Band

10-1/2 in.

(267 mm)

CB876 Chimney Joint Band

7 3/4 in.

27-3/8 in.

(695 mm)

31 in.

(787 mm)

24-5/8 in.
(625 mm)

RF370 Roof Flashing

12 in.

(305 mm)

24-5/8 in.
(625 mm)

RF371 Roof Flashing

44

CT-3A

26 in.

TR-TVK

TR Top Vent Kit

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

20 in.

(508 mm)

15-3/4 in.

(400 mm)

TR344 Round Termination Cap

34-3/4 in.

(883 mm)

32-1/2 in.

(826 mm)

TR342 Round Telescoping Termination Cap

TCT375 Terra Cotta Cap

72 in.

(1829 mm)

10-7/8 in.
(276 mm)

CT35 Chase Top

17 in.

(432 mm)

9-3/8 in.

(238 mm)

9-1/4 in.

(235 mm)

36 in.

(914 mm)

2 in. (51 mm)

23 in.

(584 mm)

19 in.

(483 mm)

15-5/8 in.
(397 mm)

ST375 Square Termination Cap

13 1/4 in.
(337 mm)

16 1/4 in.

(413 mm)

26 1/2 in.

(673 mm)

28 5/8 in.

(727 mm)

18 in.

(457 mm)

TS345/TS345P Square Termination Cap

Î

C

D

A

LDS33/LDS46 Decorative Shroud

B

ABCD

Catalog #

LDS33 36 914 36 914 8.5 216 11 279
LDS46 48 1219 72 1829 8.5 216 11 279

in. mm in. mm in. mm in. mm

E
D

C

B

A

LDS-BV Decorative Shroud

Catalog # A B C E E

LDS-BV

in. 26 12.5 15.5 22 23

mm 660 318 394 533 584

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

45

D. Service Parts

CL36D

Ending Manufacturing Date: Active

Beginning Manufacturing Date: Aug. 1997

Service Parts

36 in. Corner Left Woodburning Fireplaces

Service Parts List

Stocked

at Depot

Pre 8/91 12589A

Post 8/91 16814B

Y

23912

Pre 8/91 11821A

Post 8/91 16757

Pre Serial #AK583441

Y

Firescreen Assembly Qty. 3 req. 12624

Screen Handle 4021-150

Firescreen Rod Qty. 3 req. 12332A Y

Grate Clips Qty. 2 req. 28062

Nailing Flanges Qty. 4 req. 31190

Refractory - Hearth 12590A

Refractory Retainer Qty. 2 req. 11847

Standoffs - Top Qty. 4 req. 11864i

Strip Protector Qty. 3 req. 18320

Touch-up Paint 71479

03/09

Installation Instructions & Owner's Manual 12538

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement

CL36D

Ending Manufacturing Date: Active

Beginning Manufacturing Date: Aug. 1997

36 in. Corner Left Woodburning Fireplaces

Service Parts

Service Parts Diagram

1 Starter Section Assembly 22069BY2 Damper Repair Kit 4010-001

ITEM DESCRIPTION COMMENTS PART NUMBER

parts for your appliance please provide model number and serial number. All parts listed

in this manual may be ordered from an authorized dealer.

1

3 Side Smoke Shield 17900

4 Refractory - Back

5 Side Ashlip 12593A

6 Front Ashlip 12592A

7Grate GR3L

8 Lower Front Face

2 - Damper Kit

9 Side Refractory

10 Smoke Shield 17902

03/09

10

9

8

7

6

3

4

5

46

Part numbers on following page.

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

D. Service Parts (continued)

CR36D

Ending Manufacturing Date: Active

Beginning Manufacturing Date: Aug. 1997

Service Parts

36 in. Corner Right Woodburning Fireplaces

Service Parts List

Stocked

at Depot

Pre 8/91 11821A

Post 8/91 16757

Y

23912

Pre 8/91 12589A

Pre Serial #AK583441

Post 8/91 16814B

Y

Firescreen Assembly Qty. 3 req. 12624

Screen Handle 4021-150

Firescreen Rod Qty. 3 req. 12332AYGrate Clips Qty. 2 req. 28062

Nailing Flanges Qty. 4 req. 31190

Refractory - Hearth 12591A

Refractory Retainer Qty. 2 req. 11847

Standoffs - Top Qty. 4 req. 11864i

Strip Protector Qty. 3 req. 18320

Touch-up Paint 71479

03/09

Installation Instructions & Owner's Manual 12538

CR36D

Ending Manufacturing Date: Active

Beginning Manufacturing Date: Aug. 1997

36 in. Corner Right Woodburning Fireplaces

Service Parts

Service Parts List

1 Starter Section Assembly 22069BY2 Damper Repair Kit 4010-001

3 Smoke Shield 17903

4 Side Refractory

5 Front Ashlip 12592A

6 Lower Front Face

7Grate GR3R

ITEM DESCRIPTION COMMENTS PART NUMBER

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement

parts for your appliance please provide model number and serial number. All parts listed

in this manual may be ordered from an authorized dealer.

8 Side Ashlip 12593A

1

2 - Damper Kit

9 Refractory - Back

10 Side Smoke Shield 17901

10

03/09

8

9

7

6

3

4

5

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

Part numbers on following page.

47

E. Contact Information

Please contact your Heatilator dealer with any questions or concerns.

For the number of your nearest Heatilator dealer, please visit www.heatilator.com.

Hearth & Home Technologies Inc.

1915 W. Saunders Street

Mt. Pleasant, Iowa 52641

www.heatilator.com

– NOTES –

CAUTION

DO NOT

DISCARD

DO NOT DISCARD THIS MANUAL

• Important operating
and maintenance
instructions included.

This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876,
4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983,
5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237,
5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079,
6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940,
6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039,
6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403,
1418504 or other U.S. and foreign patents pending.

48

Heatilator • CL36D, CR36D • 12538 • Rev V • 05/09

• Read, understand
and follow these
instructions for safe
installation and
operation.

• Leave this manual with
party responsible for
use and operation.
