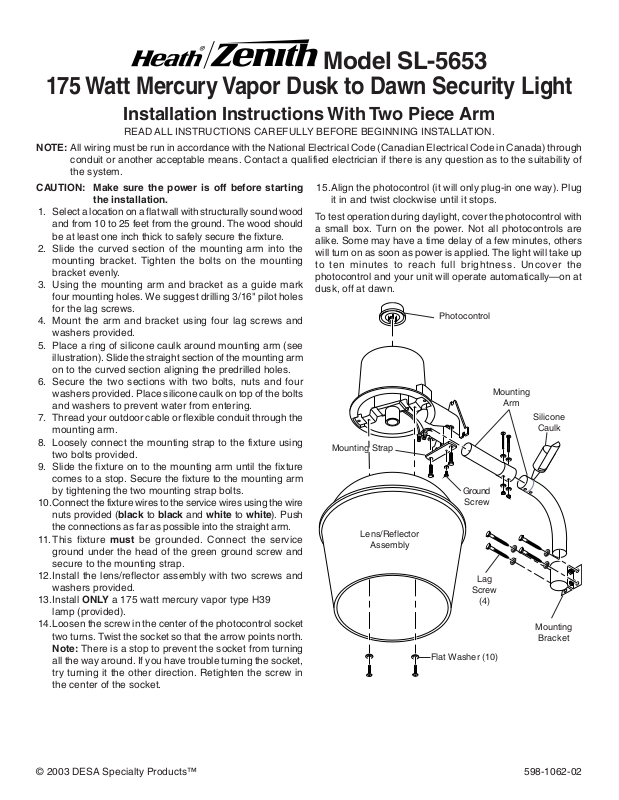

Heath Zenith SL-5653 User Manual
Model SL-5653
175 Watt Mercury Vapor Dusk to Dawn Security Light
Installation Instructions With Two Piece Arm
READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through
conduit or another acceptable means. Contact a qualified electrician if there is any question as to the suitability of
the system.
CAUTION: Make sure the power is off before starting
the installation.
1. Select a location on a flat wall with structurally sound wood
and from 10 to 25 feet from the ground. The wood should
be at least one inch thick to safely secure the fixture.
2. Slide the curved section of the mounting arm into the
mounting bracket. Tighten the bolts on the mounting
bracket evenly.
3. Using the mounting arm and bracket as a guide mark
four mounting holes. We suggest drilling 3/16" pilot holes
for the lag screws.
4. Mount the arm and bracket using four lag screws and
washers provided.
5. Place a ring of silicone caulk around mounting arm (see
illustration). Slide the straight section of the mounting arm
on to the curved section aligning the predrilled holes.
6. Secure the two sections with two bolts, nuts and four
washers provided. Place silicone caulk on top of the bolts
and washers to prevent water from entering.
7. Thread your outdoor cable or flexible conduit through the
mounting arm.
8. Loosely connect the mounting strap to the fixture using
two bolts provided.
9. Slide the fixture on to the mounting arm until the fixture
comes to a stop. Secure the fixture to the mounting arm
by tightening the two mounting strap bolts.
10.Connect the fixture wires to the service wires using the wire
nuts provided (black to black and white to white). Push
the connections as far as possible into the straight arm.
11. This fixture must be grounded. Connect the service
ground under the head of the green ground screw and
secure to the mounting strap.
12.Install the lens/reflector assembly with two screws and
washers provided.
13.Install ONLY a 175 watt mercury vapor type H39
lamp (provided).
14.Loosen the screw in the center of the photocontrol socket
two turns. Twist the socket so that the arrow points north.
Note: There is a stop to prevent the socket from turning
all the way around. If you have trouble turning the socket,
try turning it the other direction. Retighten the screw in
the center of the socket.
15.Align the photocontrol (it will only plug-in one way). Plug
it in and twist clockwise until it stops.
To test operation during daylight, cover the photocontrol with
a small box. Turn on the power. Not all photocontrols are
alike. Some may have a time delay of a few minutes, others
will turn on as soon as power is applied. The light will take up
to ten minutes to reach full brightness. Uncover the
photocontrol and your unit will operate automatically—on at
dusk, off at dawn.
Photocontrol
Mounting
Arm
Silicone
Caulk
Mounting Strap
Ground
Screw
Lens/Reflector
Assembly
Lag
Screw
(4)
Mounting
Bracket
Flat Washer (10)
© 2003 DESA Specialty Products™ 598-1062-02
Installation Instructions Without Two Piece Arm
READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through
conduit or another acceptable means. Contact a qualified electrician if there is any question as to the suitability of
the system.
CAUTION: Make sure the power is off before starting the installation.
1. Select a location on a flat wall with structurally sound wood and from
10 to 25 feet from the ground. The wood should be at least one inch
thick to safely secure the fixture.
2. The fixture can be mounted with three lag screws and washers
which are provided.
3. Using the mounting template as a guide, mark three mounting
holes. We suggest drilling 3/16" pilot holes for the lag screws.
4. Install the bottom two lag screws first. Screw in the lag screws so
that there is about 3/8" of space under the head.
5. Place the fixture on these two lag screws and install the top lag screw.
Tighten the top lag screw first, then tighten the remaining lag screws
6. Secure your outdoor cable or flexible conduit to the cover plate
with a fitting in accordance with the National Electrical Code
(Canadian Electrical Code in Canada).
7. Thread the black and white fixture wires through the hole in the
cover plate as shown.
8. Connect the fixture wires to the service wires using the wire nuts
provided (black to black and white to white).
9. This fixture must be grounded. Connect the service ground under
the head of the green ground screw and secure to the fixture.
10.Install the cover plate. Secure with the two screws, two nuts and four
washers provided.
11. Install the lens/reflector assembly with two screws and
washers provided.
12.Install ONLY a 175 watt mercury vapor type H39
lamp (provided).
13.Loosen the screw in the center of the photocontrol socket two turns.
Twist the socket so that the arrow points north. Note: There is a
stop to prevent the socket from turning all the way around. If you
have trouble turning the socket, try turning it the other direction.
Retighten the screw in the center of the socket.
14.Align the photocontrol (it will only plug-in one way). Plug it in and
twist clockwise until it stops.
To test operation during daylight, cover the photocontrol with a small
box. Turn on the power. Not all photocontrols are alike. Some may
have a time delay of a few minutes, others will turn on as soon as
power is applied. The light will take up to ten minutes to reach full
brightness. Uncover the photocontrol and your unit will operate automatically—on at dusk, off at dawn.
Photocontrol
Lag Screw (3)
Mounting
Plate
Ground
Screw
Cover
Plate
Lens/Reflector
Assembly
Flat Washer (9)
This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from state to state or province to province.
ONE YEAR LIMITED WARRANTY
For a period of one year from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge
to you. Light bulbs are not covered. To obtain a refund or a replacement, return the product to the place of purchase.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs and other expendable items are not covered by
this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does
not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service.
This warranty covers only DESA Specialty Products™ assembled products and is not extended to other equipment and components that a customer
uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND
SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF DESA
SPECIALTY PRODUCTS™ FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO
ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. Retain receipt for warranty claims.
2
598-1062-02
Modelo SL-5653
Luz de Seguridad del Atardecer al Amanecer de 175 Vatios
de Vapor a Mercurio
Instrucciones para instalación con brazo de dos piezas
ANTES DE EMPEZAR LA INSTALACIÓN LEA CUIDADOSAMENTE TODAS LAS INSTRUCCIONES
NOTA: Todo el cableado debe realizarse de acuerdo con el Código Nacional Eléctrico (Código Eléctrico Canadiense en
Canadá) usando tubería u otro medio aceptable. Contáctese con un electricista calificado si tiene alguna pregunta
respecto a la adaptabilidad del sistema.
PRECAUCIÓN: Asegúrese que la energía esté
desconectada antes de empezar
la instalación.
1. Seleccione una ubicación en una pared plana con una
madera estructuralmente firme y entre 10 a 25 pies del
suelo. La madera debería ser de al menos 1 pulgada de
grueso para que pueda fijar el artefacto con firmeza.
2. Deslice la sección curva del brazo de montaje dentro de
la abrazadera de montaje. Ajuste por igual los pernos
de la abrazadera de montaje.
3. Usando el brazo de montaje y la abrazadera como guías,
marque cuatro orificios de montaje. Sugerimos taladrar
unos orificios guías de 3/16” para los tirafondos.
4. Monte el brazo y la abrazadera usando los cuatro
tirafondos y las arandelas con las que viene
5. Coloque un anillo de siliconea alrededor del brazo de
montaje (vea la ilustración). Deslice la sección recta del
brazo de montaje en la sección curva alineando los
agujeros pretaladrados.
6. Asegure las dos secciones con los dos pernos, tuercas
y cuatro arandelas que se proveen. Ponga calafateo de
siliconea sobre los pernos y arandelas para evitar que
entre el agua.
7. Pase el cable exterior o la tubería flexible a través del
brazo de montaje.
8. Conecte en forma floja la lámina de montaje al aparato
usando los dos pernos provistos.
9. Deslice el aparato dentro del brazo de montaje hasta que
el aparato se pare. Asegure el aparato al brazo de montaje
ajustando los dos pernos de la lámina de montaje.
10. Conecte los conductores del artefacto a los conductores
de alimentación usando los conectores de alambre
provistos (negro con negro y blanco con blanco).
Empuje las conexiones tan adentro del brazo recto como
sea posible.
11. Este artefacto debe estar puesto a tierra. Conecte el
servicio de a tierra debajo de la cabeza del tornillo verde
de a tierra y asegure la lámina de montaje.
12. Instale el conjunto de la pantalla translúcida/reflector con
los dos tornillos y arandelas provistos.
13. Instale SOLAMENTE una bombilla de vapor de mercurio
de 175 vatios tip H39 (provista).
14. Afloje por dos vueltas el tornillo que está en el centro del
enchufe del foto-control. Gire el enchufe de manera que la
flecha apunte hacia el norte. Nota: Existe un paro para
evitar que el enchufe gire por completo. Si tiene dificulta
cuando trata de girar el enchufe, trate de girarlo en la otra
dirección. Ajuste de nuevo el tornillo del centro del enchufe.
15. Alinee el foto-control (se enchufará tan solo de una forma).
Enchúfelo y gírelo en sentido horario hasta que se pare.
Para probar el funcionamiento en las horas diurnas, cubra
el foto-control con una pequeña caja. Conecte la energía.
No todos los foto-controles son iguales. Algunos pueden
tener un retardo de tiempo de unos pocos minutos y otros
se prenderán tan pronto como se aplique la energía. La luz
tardará hasta 10 minutos en alcanzar su brillo máximo.
Descubra el foto-control y su unidad trabajará
automáticamente encendiéndose en el crepúsculo y
apagándose al amanecer.
Fotocontrol
Brazo de
montaje
Lámina de
montaje
Tornillo
de a
tierra
Conjunto de la pantalla
traslúcida/reflector
Tirafondo
(4)
Rodela plana (10)
Calafateo
de
siliconea
Abrazadera
de montaje
598-1062-02
© 2003 DESA Specialty Products™ 598-1062-02 S
