Heath Zenith ac-29 User Manual
MODEL: AC-29
Installation Instructions and Drill Template.
Read and Save these Instructions.
• The non-electric chime mounts directly
through the door and will accommodate
door thicknesses of 3/4" to 2".
• The chime is equipped with a viewer.
LOCATING THE DOOR CHIME
1. Mount the chime in the center of the door
approximately 4 1/2 feet to 5 feet above
the floor. Note: Be sure there are no
obstructions on the inside of the door
to interfere with the chime’s baseplate.
2. Using the template provided, mark the
location of the mounting holes parallel
to the edge of the door (see Figure 1).
Note: It is important that the holes are
parallel to the edge of the door for proper
operation of the chime.
3. Drill two 1" holes parallel to edge of
door.
4. Drill three pilot holes using a 1/16" drill
bit.
Non-Electric Door
Two-Note
Chime – With Viewer
PUSH BUTTON ASSEMBLY
See Figure 1 for push button assembly.
Note: If push button assembly is located
in an area that is exposed to rain, caulk
around the 1” holes before attaching push
button to door.
ATTACHING PUSH BUTTON
1. Remove metal trim screw, metal trim,
2. Insert viewer and push button shaft into
3. Print or type name and address on name
4. Place metal trim over push button as-
ASSEMBLY
name card holder, and name card from
push button assembly to locate mounting
holes (see Figure 1).
predrilled until push button assembly is
flush against door face. Attach using the
three mounting screws provided (see
Figure 1).
card (provided). Place card in holder
with printing visible through front of card
holder.
sembly and name card holder. Secure
trim with trim screw (see Figure 1).
1" Viewer Hole
1" Shaft Hole
1/16" Pilot Hole
Push Button Shaft
Name Card
Name Card Holder
Metal Trim
Trim Screw

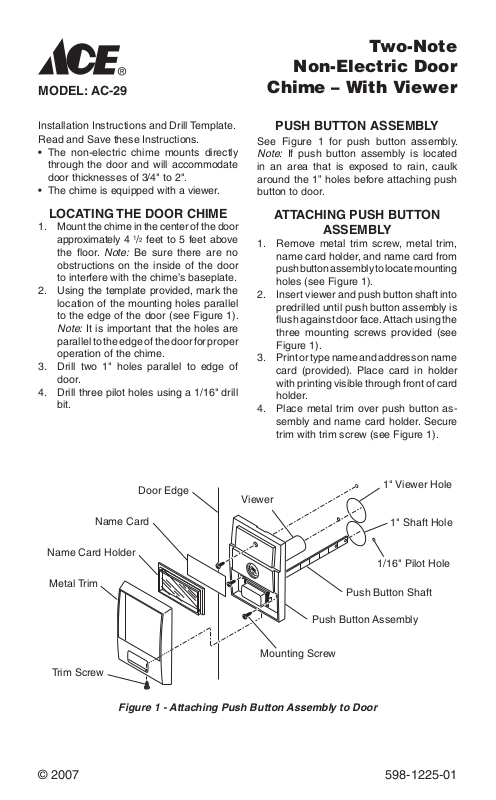

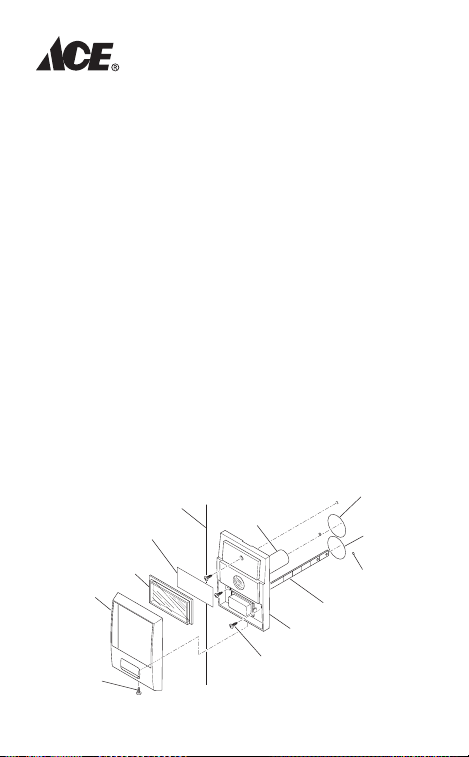

Figure 1 - Attaching Push Button Assembly to Door
Door Edge
Viewer
Push Button Assembly
Mounting Screw
© 2007 598-1225-01
MOUNTING CHIME ASSEMBLY
1. Position chime assembly over push
button shaft and viewer (see Figure 2).
2. Verify chime assembly is parallel to edge
of door.
3. Attach the top and bottom of chime as-
sembly securely using mounting screws
provided (see Figure 2).
OPERATION
1. Verify door chime operation by pressing
push button. The chime will sound two
(2) notes.
2. If door chime does not operate prop-
erly, check push but ton and chime
assemblies. Both assemblies must be
parallel to the door edge for proper chime
operation.
3. If necessary, adjust one or both as-
semblies.
Push Button As-
sembly (Shown on
Outside of Door)
Cover Mounting Tab
Break Off Excess
Push Button Shaft
ATTACHING CHIME COVER
1. To insure proper clearance when the
cover is attached, break off the excess
push button shaft. IMPORTANT: To avoid
breaking plastic chime assembly parts,
use needle-nosed pliers to hold shaft
securely while bending shaft back and
forth to remove (see Figure 2, View A).
2. Place slot in chime cover over tab on top
of chime assembly.
3. Press botto m of chime cover onto
chime assembly until cover “snaps” into
place.
Needle-Nosed Pliers
Cover
Mounting
Slot
Chime Cover
Chime Assembly
Mounting Screws
Figure 2 - Mounting Chime Assembly and Attaching Chime Cover
2 598-1225-01
View A
Please call 1-800-858-8501 (English speaking only) for assistance
If you experience a problem, follow this guide. You may also want to visit our Web site at:
www.hzsupport.com. If the problem persists, call* for assistance at 1-800-858-8501, 7:30
AM to 4:30 PM CST (M-F). You may also write* to:
HeathCo LLC
P.O. Box 90004, Bowling Green, KY 42102-9004
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model
Number, Date of Purchase, and Place of Purchase.
before returning product to store.
No Service Parts Available for this Product
TECHNICAL SERVICE
This is a "Limited Warranty" which gives you specific legal rights. You may also have
other rights which vary from state to state or province to province.
For a period of one year from the date of purchase, any malfunction caused by factory
defective parts or workmanship will be corrected at no charge to you. To obtain a refund
or a replacement, return the product to the place of purchase.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or
negligence, light bulbs and other expendable items are not covered by this warranty.
Unauthorized ser vice or modification of the product or of any furnished component
will void this warranty in its entirety. This warranty does not include reimbursement for
inconvenience, installation, setup time, loss of use, or unauthorized service.
This warranty covers only ACE® assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF
MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR
PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER
AND THERE SHALL BE NO LIABILITY ON THE PART OF ACE® FOR ANY SPECIAL,
INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT
LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. Please
keep your dated sales receipt, it is required for all warranty requests.
ACE® reserves the right to discontinue products and to change specifications at any time
without incurring any obligation to incorporate new features in products previously sold.
ONE YEAR LIMITED WARRANTY
3598-1225-01
1/16" PILOT HOLES
(3 LOCATIONS)
3
/16"
PUSH BUTTON
SHAFT HOLE
1" DIA.
MOUNT
4 1/2 - 5 ft.
ABOVE BOTTOM
OF DOOR
(TOP)
MODEL 29

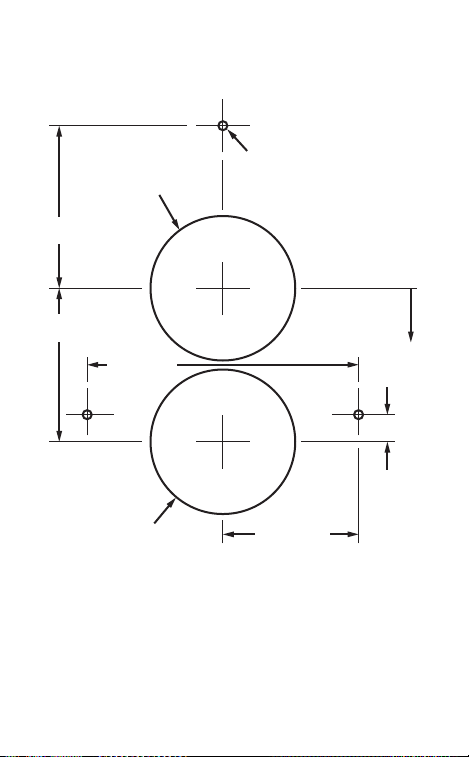

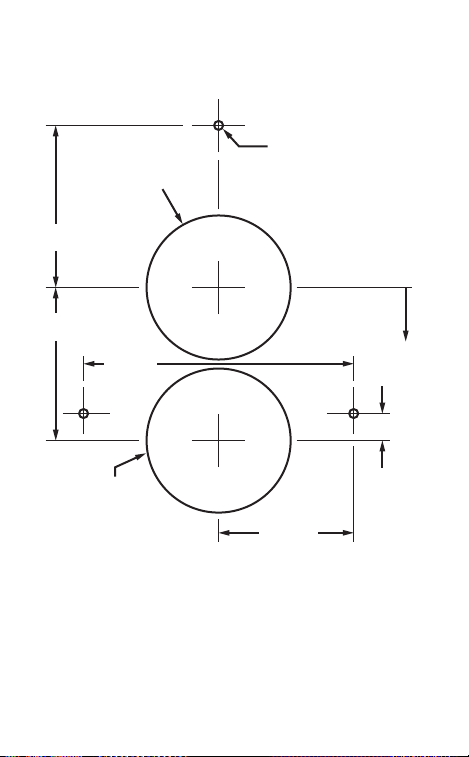

MOUNTING TEMPLATE
VIEWER HOLE
1" DIA.
1 7/8"
1 1/16"
1 1/8"
15
/16"
4 598-1225-01
