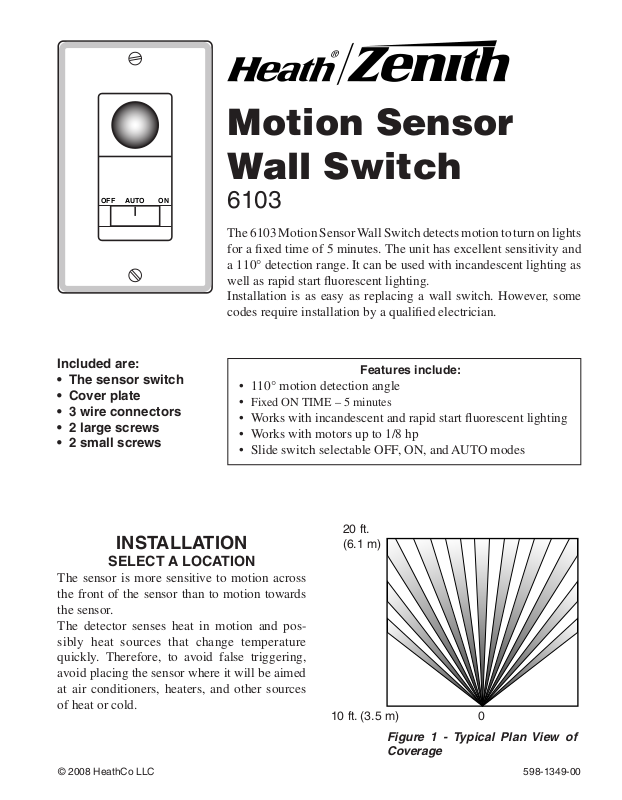

Heath Zenith 6103 User Manual

AUTO

OFF ON

Motion Sensor
Wall Switch

6103

The 6103 Motion Sensor Wall Switch detects motion to turn on lights
for a fixed time of 5 minutes. The unit has excellent sensitivity and
a 110° detection range. It can be used with incandescent lighting as
well as rapid start fluorescent lighting.
Installation is as easy as replacing a wall switch. However, some
codes require installation by a qualified electrician.

Included are:

• The sensor switch

• Cover plate

• 3 wire connectors

• 2 large screws

• 2 small screws

• 110° motion detection angle

• Fixed ON TIME – 5 minutes

• Works with incandescent and rapid start fluorescent lighting

• Works with motors up to 1/8 hp

• Slide switch selectable OFF, ON, and AUTO modes

INSTALLATION

SELECT A LOCATION

The sensor is more sensitive to motion across
the front of the sensor than to motion towards
the sensor.
The detector senses heat in motion and pos­sibly heat sources that change tempe rature
quickly. Therefore, to avoid false triggering,
avoid placing the sensor where it will be aimed
at air conditioners, heaters, and other sources
of heat or cold.

© 2008 HeathCo LLC 598-1349-00

Features include:

20 ft.
(6.1 m)

10 ft. (3.5 m) 0

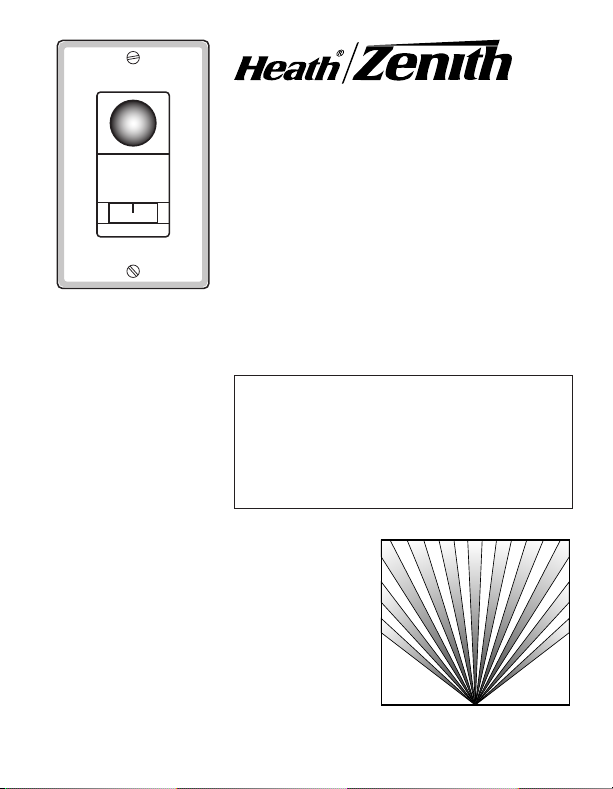

Figure 1 - Typical Plan View of
Coverage

N

O

AUTO

OF

F

AUTO

OFF ON

WARNING: Turn power off at the

circuit breaker before wiring.

INSTALLING SENSOR

Removing Control Panel Cover

1. Remove the decorative cover plate (secured
by two small screws).

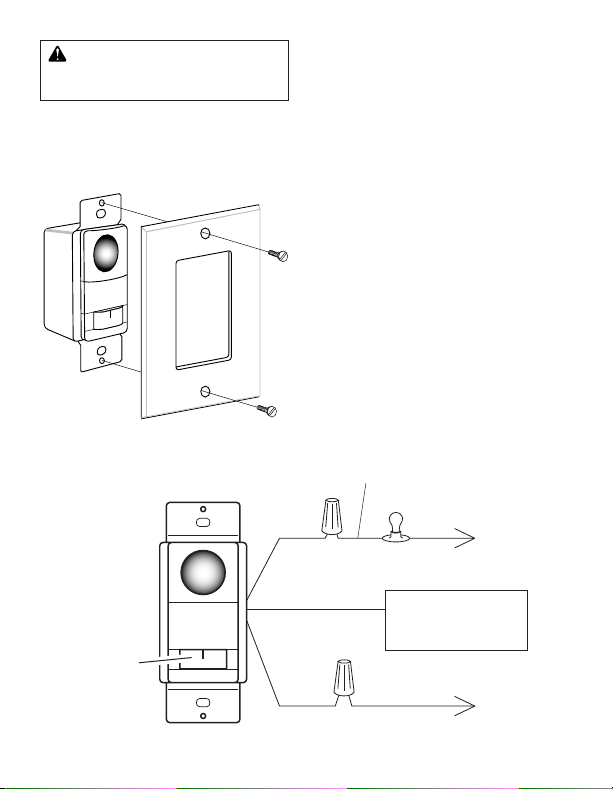

Figure 2 - Removing Control Panel Cover

1. Remove existing wall switch from junction

2. Connect electrical leads of sensor as shown in

3. Mount sensor into junction box using two large

4. Turn the power back on at the circuit breaker.

5. Set mode selection switch to the AUTO posi

Typical Installation

box.

Figure 3. Before installing sensor into junction
box, make sure there is no wire exposed at

each connection.

mounting screws provided.

tion. When unit stabilizes (about 1 minute),
the sensor is ready to detect motion. If sensor
detects motion, the lights will turn on. The
lights will turn off 5 minutes after motion is
no longer detected.

To Lighting Load

-

Mode
Selection
Switch

Black

Lighting Load

Green ground wire to
junction box screw or
grounding wire.

Black Line

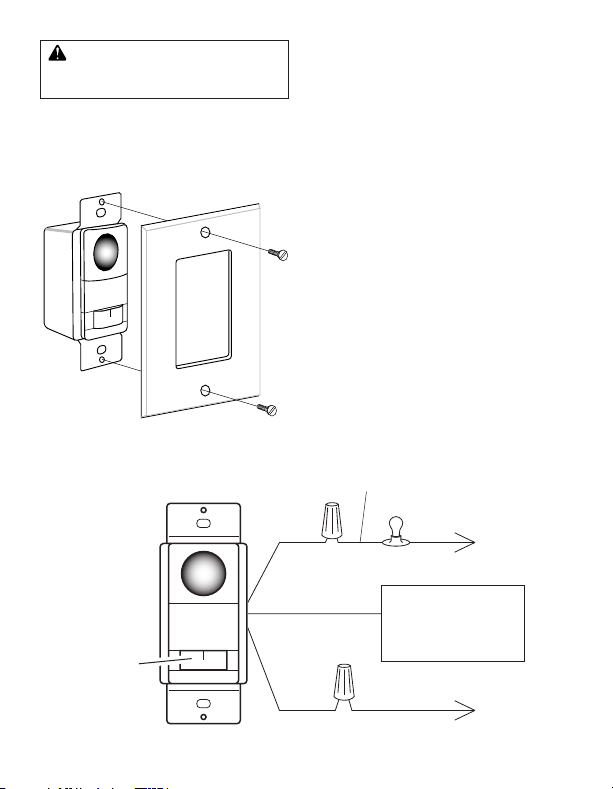

Figure 3 - Connecting Electrical Leads of Sensor

2

Neutral
Return

“Hot”

598-1349-00

COMPLETING INSTALLATION

1. Replace the decorative wall plate. In installa-

tions where the Heath®/Zenith motion sensor
switch is combined with other switches or
outlets on an expanded box, you will need to
purchase a combination wall plate. Various
combination wall plates are available at home
centers and electrical supply stores.

2. Slide the mode selection switch a couple times

to make sure it moves freely.

USING MOTION SENSOR

WALL SWITCH

MODE SELECTION SWITCH

This switch allows you to select one of three modes
of operation: OFF, AUTO, or ON.

OFF: Lights stay off.
AUTO: Lights automatically come on when mo-

tion is detected. The lights will turn off 5 minutes
after motion is no longer detected.
ON: Lights stay on continuously.

Electrical Input ................................................................................................................120V, 60 Hz.

Fluorescent Load ...................................30 Watts minimum, Up to 400 Watts Maximum Rapid Start

Motor Load ...................................................................................................Up to 1/8 HP Maximum

Incandescent ...........................................................................Up to 500 Watts Maximum at 120VAC

On-Time ..................................................................................................................Fixed – 5 Minutes

Coverage ................................up to 10 ft. (3.5 m) at 110°, up to 20 ft. (6.1 m) in front of the sensor

HeathCo LLC reserves the right to discontinue products and to change specifications at any time
without incurring any obligation to incorporate new features in products previously sold.

598-1349-00

SPECIFICATIONS

3

TROUBLESHOOTING

SYMPTOM
Light does

not come
on.

Lights do
not stay on
in the AUTO
mode.

Please call 1-800-858-8501 (English speaking only) for assistance before returning product

If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.
com. If the problem persists, call* for assistance at 1-800-858-8501 (English speaking only), 7:30 AM to

4:30 PM CST (M-F). You may also write* to:
HeathCo LLC, P.O. Box 90045, Bowling Green, KY 42102-9045
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model Number, Date of
Purchase, and Place of Purchase.

This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from state to
state or province to province.

For a period of two years from the date of purchase, any malfunction caused by factory defective parts or workmanship
will be corrected at no charge to you.

Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs, batteries, and
other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any
furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience,
installation, setup time, loss of use, unauthorized service, or return shipping charges.

This warranty covers only HeathCo LLC assembled products and is not extended to other equipment and components that
a customer uses in conjunction with our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR
ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY
ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some
states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you. Please keep your dated sales receipt, it is required for all warranty requests.

POSSIBLE CAUSE

1. Circuit br eaker or f use is
turned off.

2. If the lamp being controlled
has another switch, it may be
turned off.

3. Bulb is defective.

4. LIGHT control is set too far
toward the dark position.

5. Mode switch is set to OFF
instead of AUTO.

6. Poor connection.

1. Motion has stopped in the
room.

SYMPTOM
Light does

not turn off.

Light comes
on for no
reason in
the AUTO
mode.

TECHNICAL SERVICE

to store.

No Service Parts Available for this Product

TWO YEAR LIMITED WARRANTY

4

POSSIBLE CAUSE

1. Incorrect wiring.

2. Mode switch is set to ON
instead of AUTO.

3. Motion is still present.

4. Fixed time (5 minutes) has
not yet expired.

1.

Heating or cooling objects
(such as air vents, appliances,
or drafts through the wall box)
are causing false triggering.

2.

Switch on the sensor has been
turned off and back on.

3.

There was a momentary pow­er interruption. The light will
turn off automatically when
the “on” time expires.
