Heath Zenith 5797 User Manual
DualBrite® Motion
Sensor Light Control
Model 5797
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
Meets the ENERGY STAR® guidelines
when DualBrite® function is off and
ON-TIME is 1 or 5 minutes.
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
•
Three lamp modes available: Normal, Soft, or Flash.
• DualBrite® Timer.
• Photocell keeps the lighting off during daylight
hours.
• LED indicates motion was sensed (day or night).

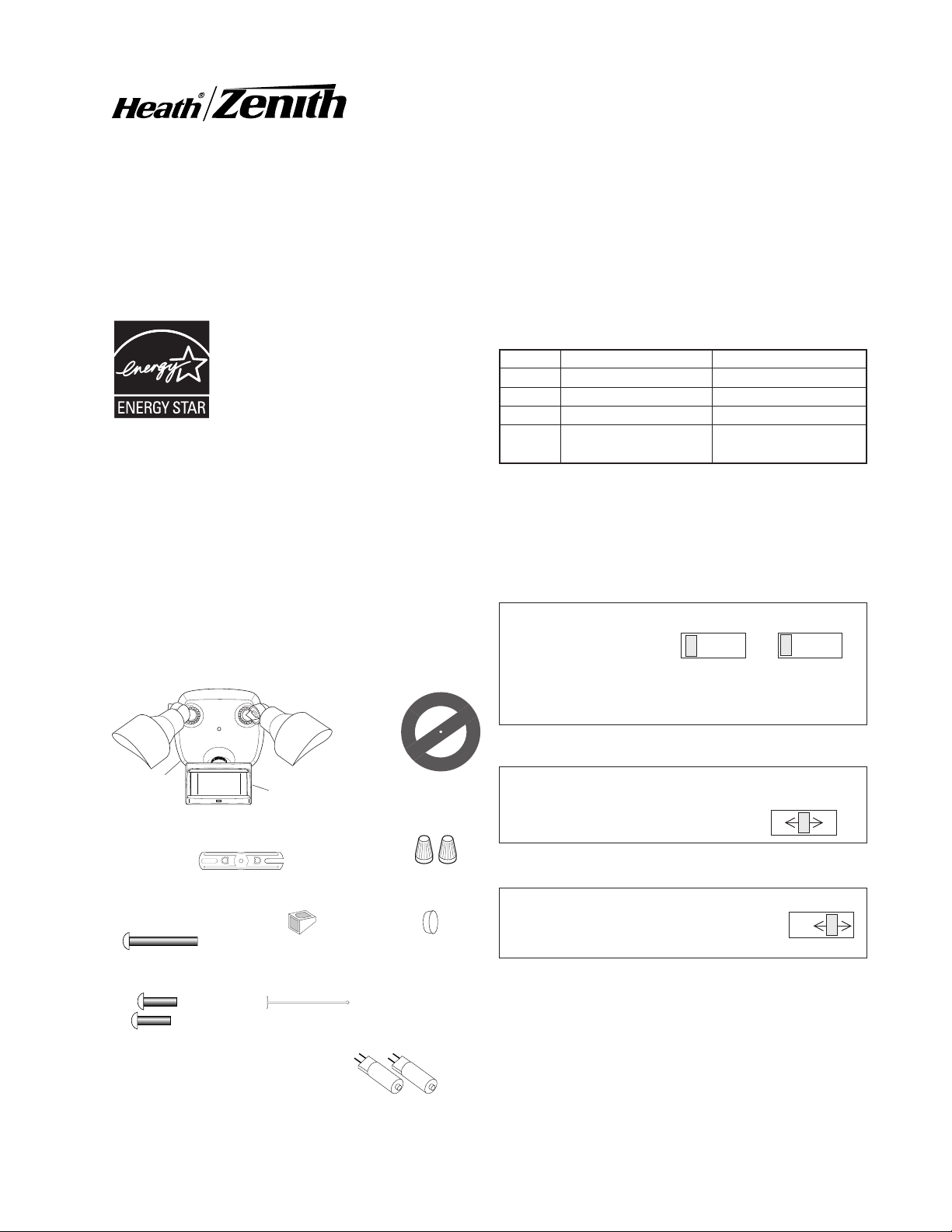

This package includes:
Rubber Plug
Plastic Hanger
6 Mounting
Screws (3 sizes)
OPERATION
Mode: On-Time: Works: Day Night
Test
Normal
Manual
Accent
Note: When first turned on wait about 1 1/2 minutes for
the circuitry to calibrate.
Put ON-TIME switch
on the sensor bottom
to TEST and the Dual-
Brite® switch OFF.
Put the LAMP MODE switch
in the Normal, Soft, or Flash
position.
5 Sec x x
1, 5, 20 min. x
Until Dawn* x
3, 6 Hr. to Dawn
* resets to Auto Mode at dawn.
TEST
ON-TIME
TEST 1 5 20
LAMP MODE
DualBrite
Off 3 6 Dusk to
Dawn
LAMP MODE
NORMAL SOFT FLASH
x
®
2 Wire
Cover Plate
Light Control
Mounting Bolt
2 Halogen Bulbs
(Installed)
© 2007 HeathCo LLC 598-1315-02
Sensor
Mounting Strap
Light Shield
Connectors
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Gasket
AUTO
ON-TIME
TEST 1 5 20
MANUAL MODE
MANUAL MODE
AUTO
TEST
ON-TIME
RANGE
DU
AL BRIT
E™
MIN
M
A
X
TE
ST 1
5
20
MI
N
UTE
S
OFF 3
6
DUS
K
TO
HOUR
DA
WN
LA
M
P
M
OD
E
NO
RMAL SOFT FL
A
SH
INSTALLATION
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.

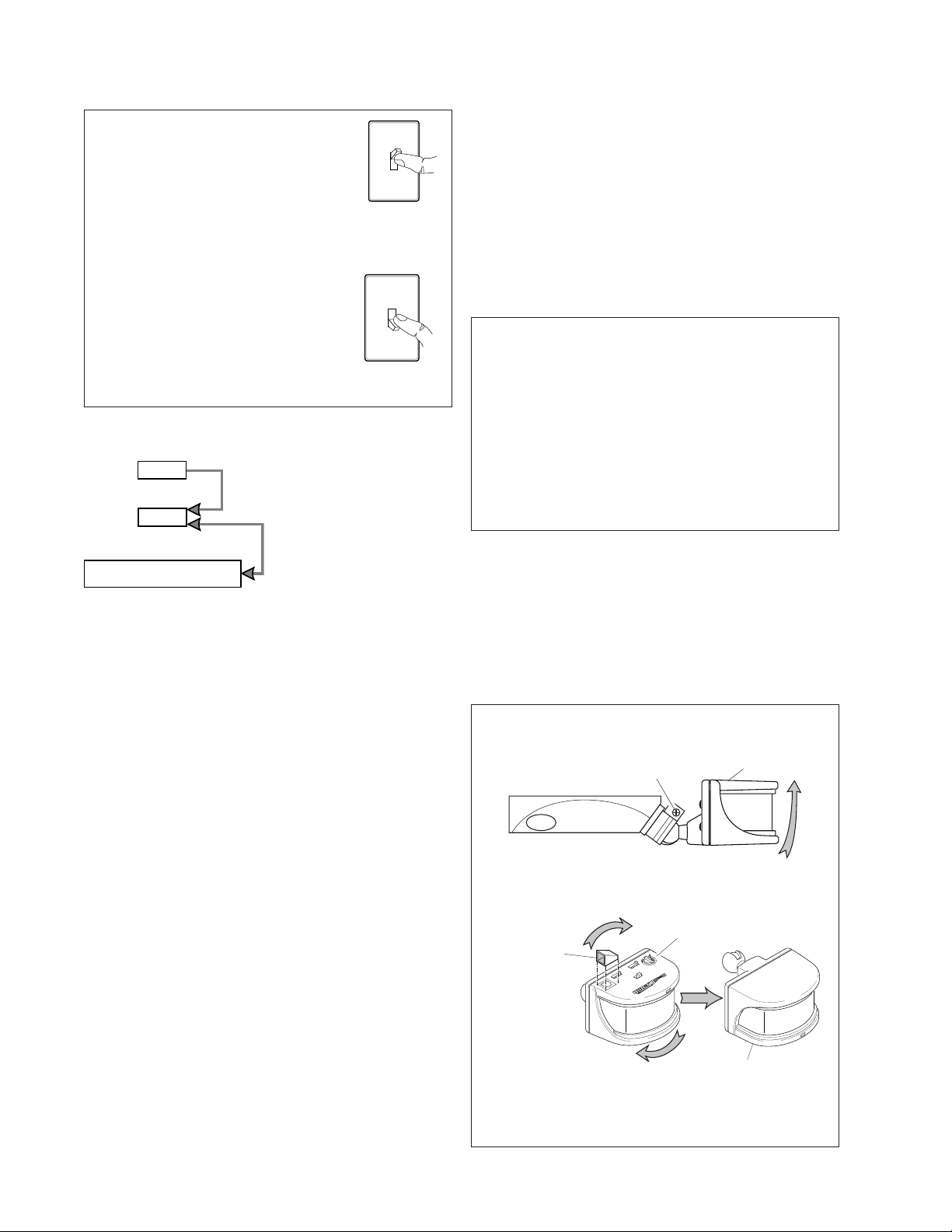

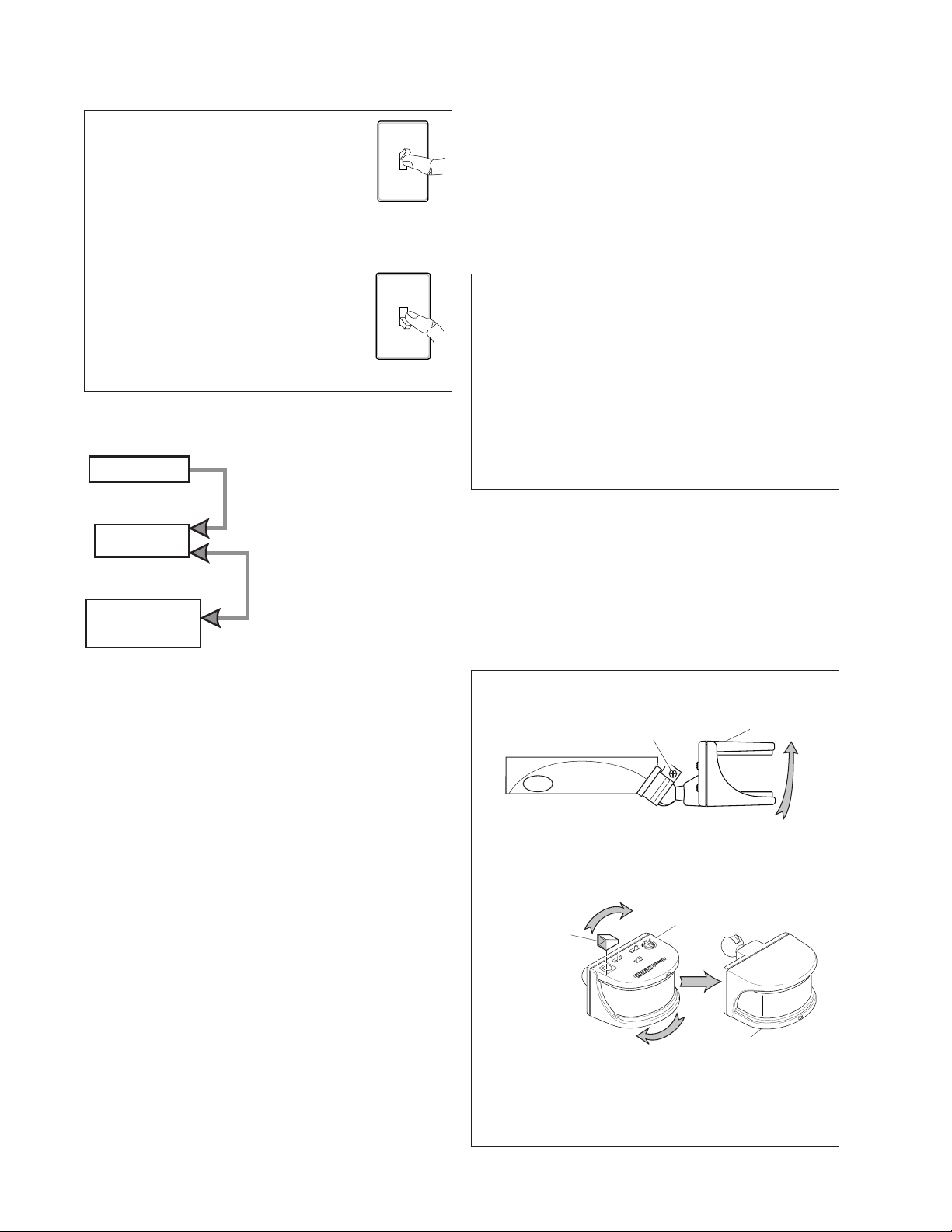

Mode Switching Summary
Move ON-TIME Switch to
1, 5, or 20 minutes
Flip light switch
off for one second
1 Second OFF
then...
... back on.
then back on*
For easy installation, select an existing light operated
by a wall switch for replacement.
For best performance, mount the fixture about 8 ft. (2.4
m) above the ground.
NOTE:
If fixture is mounted higher
than 8 ft. (2.4 m), aiming the sensor down will reduce
coverage distance.
CAUTION: Keep the sensor at least 2" (51 mm)
away from the lamps.
CAUTION: To Avoid Fire Or Burn Hazards:
• Allow fixture to cool before touching. The bulb and the
fixture operate at high temperatures.
• Keep fixture at least 2" (51 mm) from combustible materials. Do not aim at objects closer than 3 feet. (1 m).
• Use only T4, 100W (max.) G8 bi-pin tungsten halogen
120 VAC lamps.
For under eave installation, the sensor head must
be rotated as shown in the next two steps for proper
operation and to avoid the risk of electrical shock.
Also for proper under eave operation, remove the
protective backing from the light shield and stick on as
shown below.
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the calibration time the control will be in the AUTO mode.
DualBrite® Timer
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). Selecting OFF disables
this feature. The motion sensing features will continue
to work as described in this manual. If motion is sensed,
the light turns on full bright for the ON-TIME (1, 5, or
20 minutes) then returns to dim mode.
Lamp Modes
There are three lamp modes (light turn-on effects) available when motion is detected:
• NORMAL - Light instantly comes on.
• SOFT - Light starts dim and gradually increases to
full brightness. Light gradually dims to half-bright,
pauses, and then continues dimming to off when
motion is no longer detected and after selected ONTIME.
• FLASH - Light flashes on then off twice before turn-
ing on full brightness.
For eave mount only:
❒ Swing the sensor head towards the clamp screw
joint.
Clamp Screw
Controls
❒ Then rotate the sensor head clockwise 180° so the
controls face down.
Light Shield
Controls
Opening
Controls
If the sensor pops out of the ball joint, loosen the
clamp screw and push the sensor back into the ball
joint. Tighten the clamp screw when done.
2
598-1315-02
Bulb Installation
NOTE: When re-lamping, turn power off and let the
fixture cool.
❒ To remove lamp shade, loosen set screw 2 full
turns with a small flat-head screwdriver. Turn shade
counterclockwise and remove.
❒ To remove bulb, pull straight out of fixture.
❒ To replace bulb, firmly push bulb pins into lamp
socket until completely seated.
❒ To reinstall lamp shade, place shade on fixture and
align notches on shade with tabs on fixture. Turn
clockwise. Tighten set screw firmly.

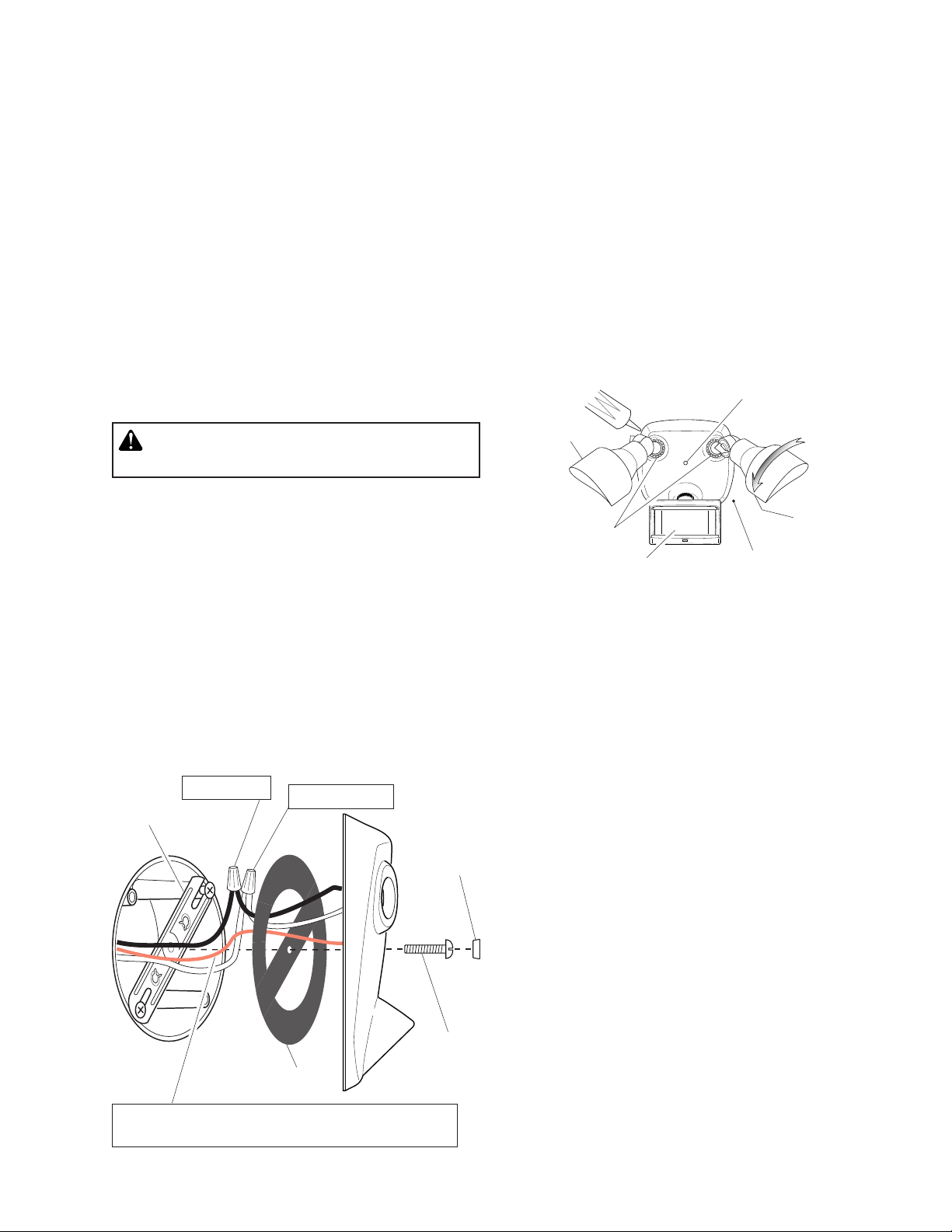

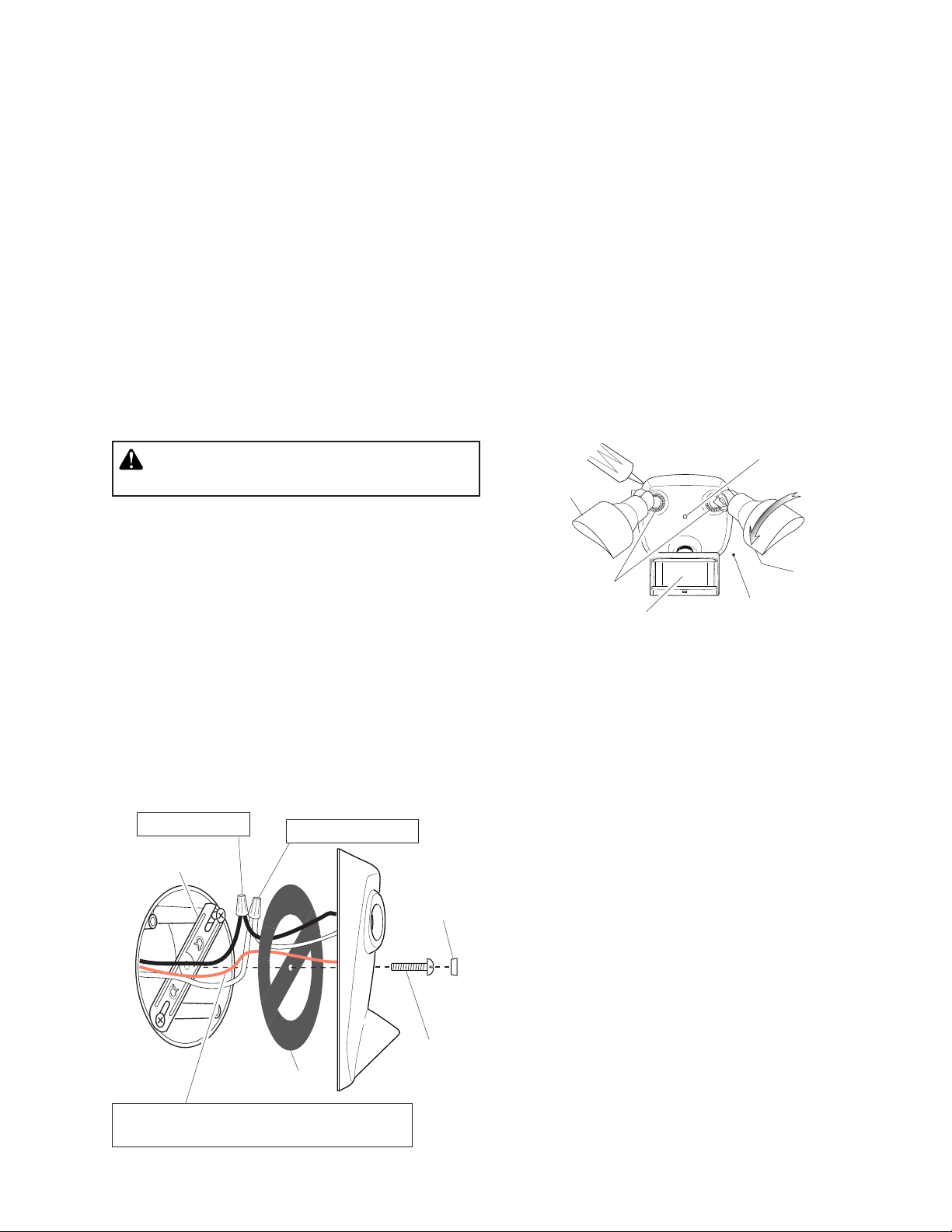

Wire the Light Control
Mount the Light Control
❒ Place the mounting bolt through the front of the
junction box cover. Push the small gasket hole over
the mounting screw.
❒ Make sure the wire connectors and wires are inside
the junction box. Align the mounting screw with the
center hole in the mounting strap. Secure the fixture
to the mounting strap.
❒ Push the rubber plug firmly into place.
❒ If not installed on a weatherproof box, caulk the
wall plate and mounting surface with silicone.
Push the Rubber Plug
over the Mounting Screw.
WARNING: Turn power off at circuit breaker
or fuse.
❒ Remove the existing light fixture.
❒ Install mounting strap to junction box using screws
appropriate for your junction box.
❒ The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger
can be threaded through the hole in the center of
the cover plate. The small end then goes into one
of the slots on the mounting strap.
❒ Thread all fixture wires through the large holes in
the gasket as shown.
❒ Connect the junction box wires to the light fixture
wires as shown. Twist together and secure with
wire connectors.
Black to Black
Mounting Strap
White to White
Rubber
Plug
Lamp Shade
Lock Nuts
Lens
❒ Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180°
from the factory setting.
❒ Adjust lamp shades by loosening the set screws
several turns, turn shades counterclockwise and
remove. Reinstall the shades in the desired position
and tighten set screws.
Keep lamps at
least 2" (51 mm)
from the sensor.
Set Screw
Gasket
Junction box ground wire to
green ground screw on fixture.
598-1315-02
Mounting
Bolt
3
LAMP MODE
NORMAL SOFT FLASH
ON-TIME DUAL BRITE™
TEST 1 5 20
MINUTES
OFF 3 6 DUSK TO
HOUR DAWN
MAXMIN
RAN GE

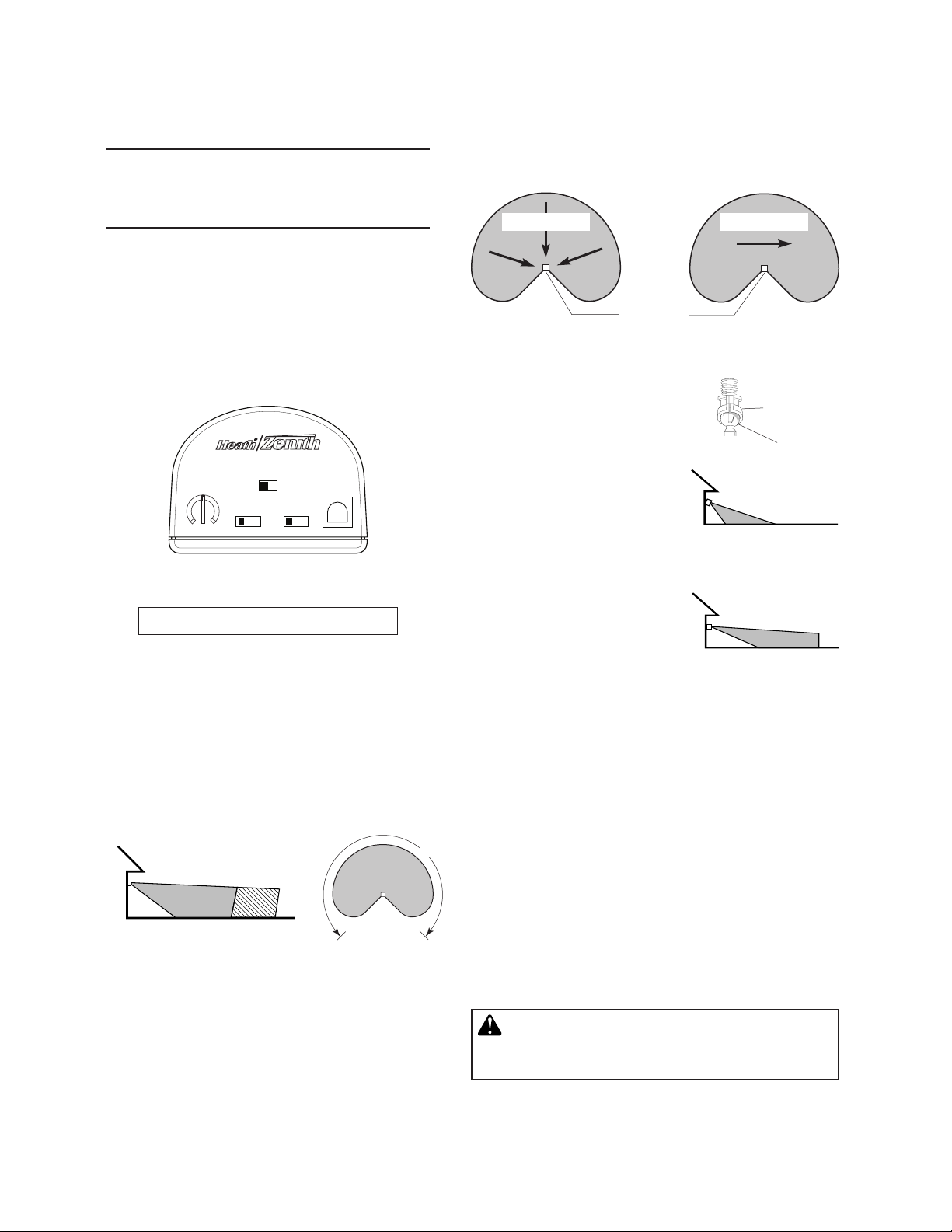

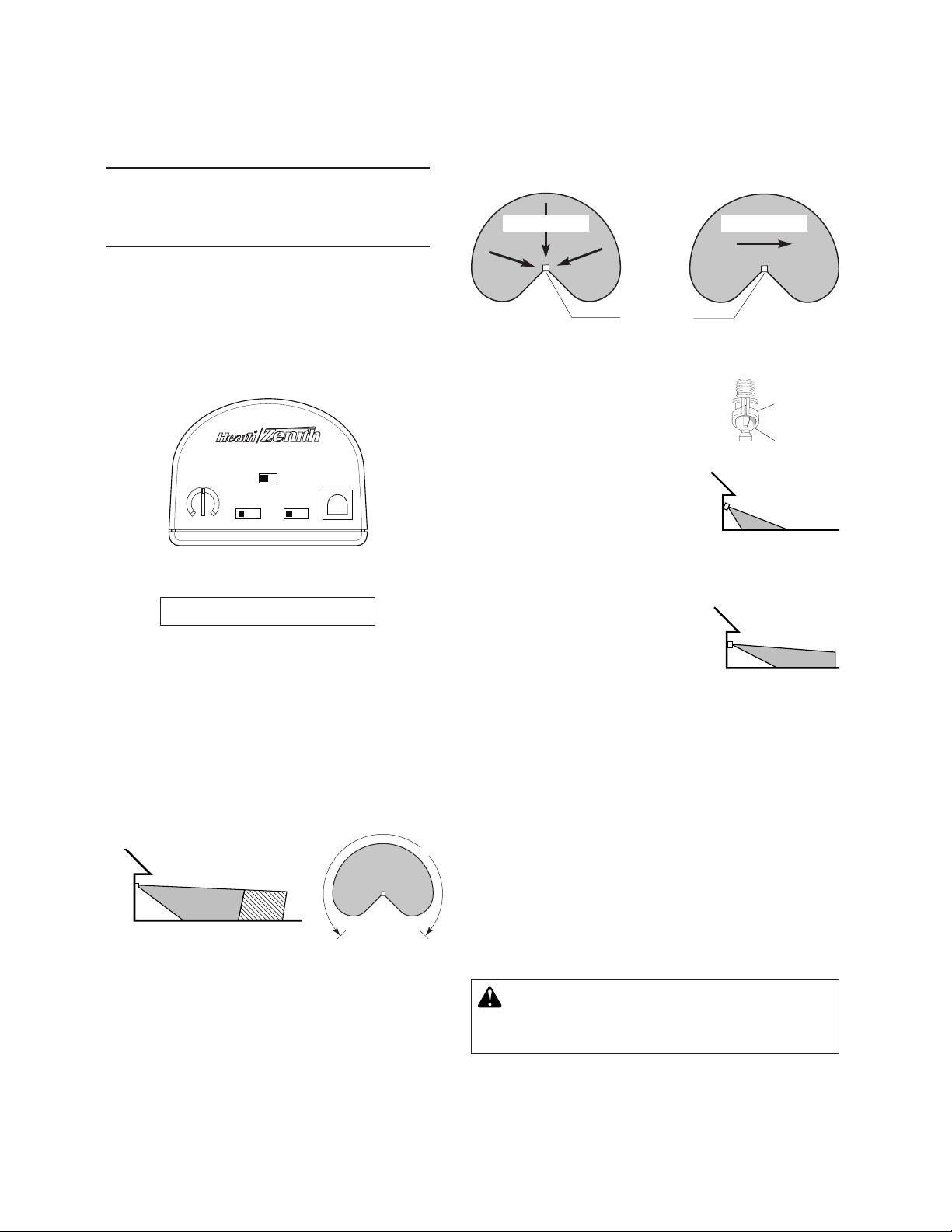

TEST AND ADJUSTMENT
❒ Turn on the circuit breaker and light switch.
NOTE: Sensor has a 1 1/2 minute warm up period
before it will detect motion. When first turned
on, wait 1 1/2 minutes.
NOTE: Meets the ENERGY STAR® guidelines when
DualBrite® function is off and ON-TIME is 1 or 5 mi-
nutes.
❒ Turn the RANGE control to the medium position
(halfway between MIN and MAX), DualBrite® to OFF,
and the ON-TIME control to the TEST position.
Bottom of Sensor
Avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or unwanted traffic may trigger
the control.
• Nearby large, light-colored objects reflecting light
may trigger the shut-off feature. Do not point other
lights at the sensor.
270°
8 ft.
(2.4 m)
NOTE:
If fixture is mounted higher than 8 ft. (2.4 m), aiming
the sensor down will reduce coverage distance.
The detector is less sensitive to motion directly towards it.
Motion
Motion
Sensor
Least Sensitive Most Sensitive
❒ Loosen the clamp screw in the
sensor ball joint and gently
rotate the sensor.
❒ Walk through the coverage
area noting where you are
when the lights turn on (also,
the LED will flash several times
when motion is detected). Move
the sensor head up, down, or
sideways to change the coverage area. Keep the sensor at
Down for Short
least 2" (51 mm) away from
the lamps.
❒ Adjust the RANGE as needed.
RANGE set too high may
increase false triggering.
❒ Secure the sensor head by
Higher for Long
tightening the clamp screw.
Do not overtighten the screw.
❒ Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5, or 20 minutes).
❒ Set the DualBrite® switch to the amount of time
after dusk you want the lights on at low level (Off,
3, 6 Hrs., Dusk-to-Dawn).
❒ Set the LAMP MODE switch to the desired light
turn-on effect (Normal, Soft, Flash).
Clamp
Screw
Ball
Joint
Aim Sensor
Coverage
Aim Sensor
Coverage
70 ft.
(21 m)
100 ft.
(30.5 m)
Boosted
Maximum Range Maximum
Coverage Angle
WARNING - Risk of fire. Do not aim the bulbs
at a combustible surface within 3 ft. (1 m).
4
598-1315-02
SPECIFICATIONS
Range . . . . . . . . . . . . Up to 70 ft. (21 m); 100 ft.
(30.5 m) with Range Boost.
[vari es w ith surr ound ing
temperature]
Sensing Angle . . . . . . Up to 270°
Electrical Load . . . . . . Up to 200 Watt Maximum Incan-
descent [Up to 100 Maximum
each lamp holder].
Power Requirements . 120 VAC, 60 Hz
Operating Modes . . . . TEST, AUTO and MANUAL
MODE
Lamp Modes . . . . . . . Normal, Soft, Flash
Time Delay . . . . . . . . 1, 5, 20 minutes
Replacement lamp . . . T4, 100W maximum G8 halogen
bi-pin 120 VAC
DualBrite® Timer . . . . Off, 3, 6 hours, Dusk-to-Dawn
HeathCo LLC reserves the right to discontinue products and to change specifications at any time without
incurring any obligation to incorporate new features in
products previously sold.
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE
Lights will not come on.
Lights come on in daylight.
Lights come on for no apparent reason.
Lights turn off too late in
Dusk-to-Dawn setting
Lights stay on
continuously.
Lights flash on and off.
Lights flash once, then stay
off in Manual Mode.
1. Light switch is turned off.
2. Light is loose or burned out.
3. Fuse is blown or circuit breaker is turned off.
4. Daylight turn-off is in effect
5. Incorrect circuit wiring, if this is a new installation.
6. Re-aim the sensor to cover desired area.
1. Light control may be installed in a relatively dark location.
2. Light control is in Test.
1. Light control may be sensing small animals or automobile traffic
2. Range is set too high.
3. D
ualBrite
1. Sensor is in a relatively dark location.
1. A lamp is positioned too close to the sensor or pointed at nearby objects that cause heat
to trigger the sensor. (Reposition the lamp away from the sensor or nearby objects).
2. Light control is pointed toward a heat source like an air vent, dryer vent, or brightly-painted
heat-reflective surface. (Reposition sensor. Reduce Range).
3. Light control is in Manual Mode.
1. Heat or light from the lamps may be turning the light control on and off.
the lamps away from the sensor).
2. Heat being reflected from other objects may be affecting the sensor.
sor).
3. Light control is in the Test mode and warming up.
conditions. Turn Boost off.)
4. Light control is in Flash mode. (An initial start-up flashing is normal in this mode. Select
Normal or Soft mode to turn flash mode off).
1. Sensor is detecting its own lights.
relatively dark.)
®
Timer is on.
(recheck after dark).
(Set control switch to an ON-TIME position).
(re-aim sensor).
(Reduce Range).
(Relocate sensor, or use 3 hr or 6 hr setting.)
(Switch to Auto.)
(Reposition
(Reposition sen-
(Flashing is normal under these
(Reposition lamps to keep area below the sensor
598-1315-02
5
TECHNICAL SERVICE
Please call 1-800-858-8501 (English speaking only) for assistance before returning
product to store.
If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.com.
If the problem persists, call* for assistance at 1-800-858-8501 (English speaking only), 7:30 AM to 4:30 PM CST
(M-F). You may also write* to:
HeathCo LLC
P.O. Box 90004, Bowling Green, KY 42102-9004
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.
No Service Parts Available for this Product
TEN YEAR LIMITED WARRANTY
This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from
state to state or province to province.
For a period of ten years from the date of purchase, any malfunction caused by factory defective parts or
workmanship will be corrected at no charge to you.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs,
batteries, and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does
not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or
return shipping charges.
This warranty covers only HeathCo LLC assembled products and is not extended to other equipment and
components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT
THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF
ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL
BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Please
keep your dated sales receipt, it is required for all warranty requests.
6
598-1315-02
Loading...
