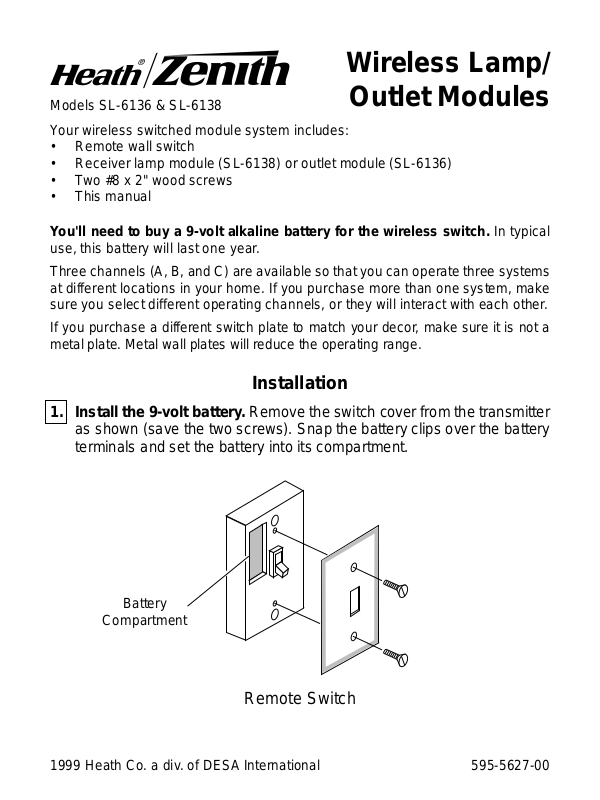

HeathCo 61WRC33ATX Users Guide
Wireless Lamp/
Models SL-6136 & SL-6138
Your wireless switched module system includes:
• Remote wall switch
• Receiver lamp module (SL-6138) or outlet module (SL-6136)
• Two #8 x 2" wood screws
• This manual
You'll need to buy a 9-volt alkaline battery for the wireless switch. In typical
use, this battery will last one year.
Three channels (A, B, and C) are available so that you can operate three systems
at different locations in your home. If you purchase more than one system, make
sure you select different operating channels, or they will interact with each other.
If you purchase a different switch plate to match your decor, make sure it is not a
metal plate. Metal wall plates will reduce the operating range.
Outlet Modules
Installation

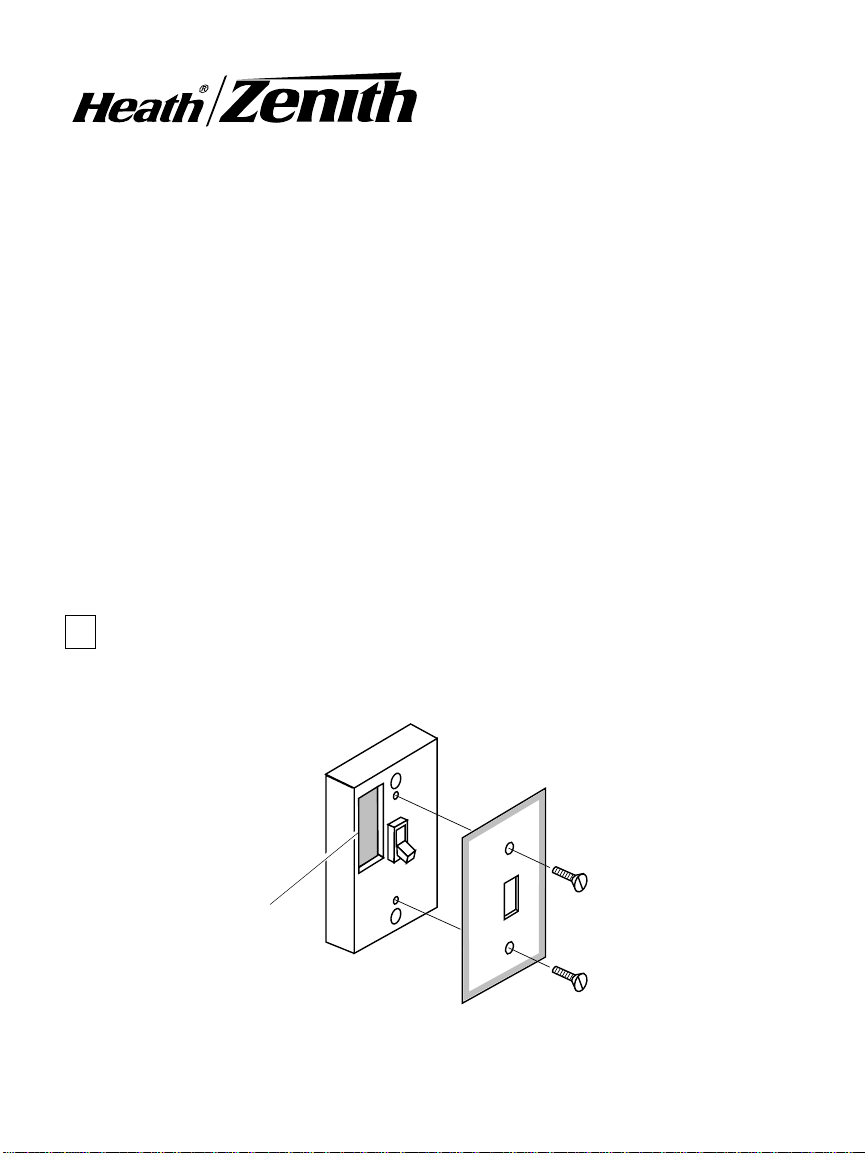

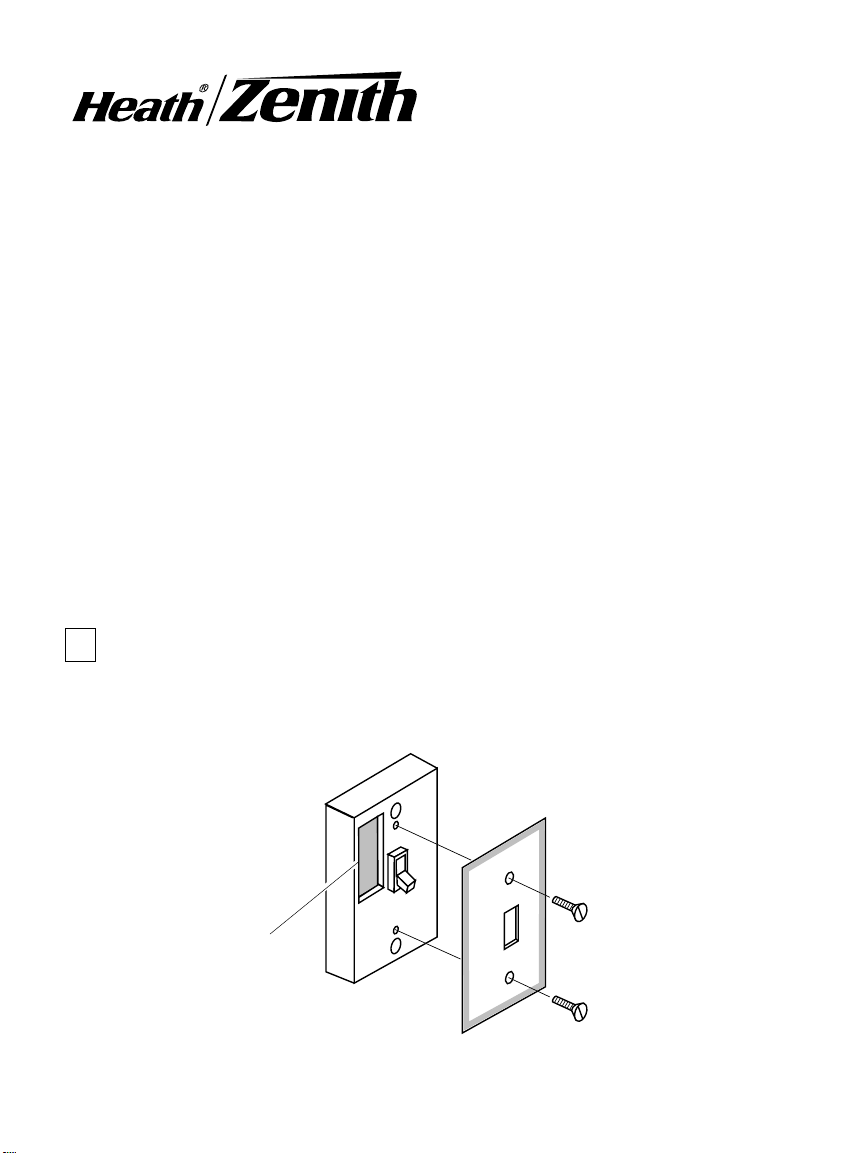

1. Install the 9-volt battery. Remove the switch cover from the transmitter
as shown (save the two screws). Snap the battery clips over the battery
terminals and set the battery into its compartment.
Battery
Compartment
Remote Switch
1999 Heath Co. a div. of DESA International 595-5627-00
SL-6136
2. T urn off the po wer to the outlet or lamp to be con-
trolled. Install the switched outlet or lamp module
as shown.

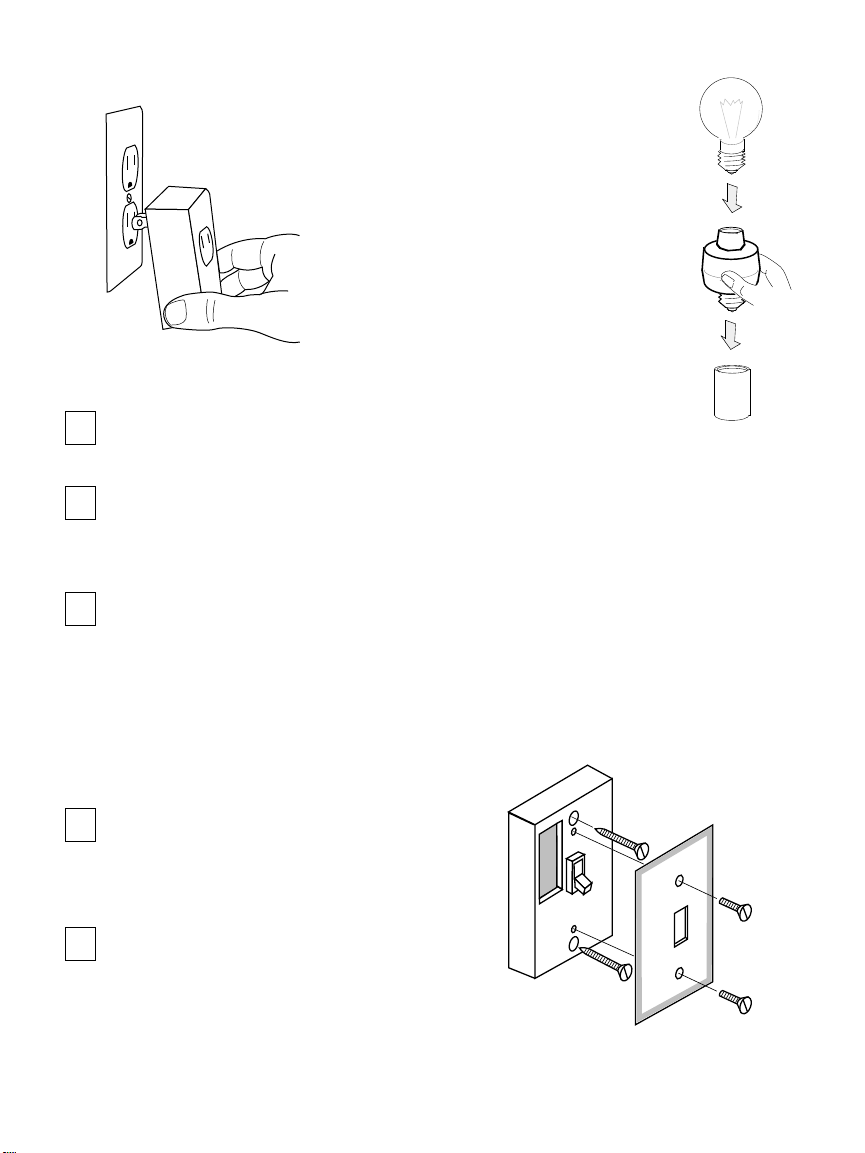

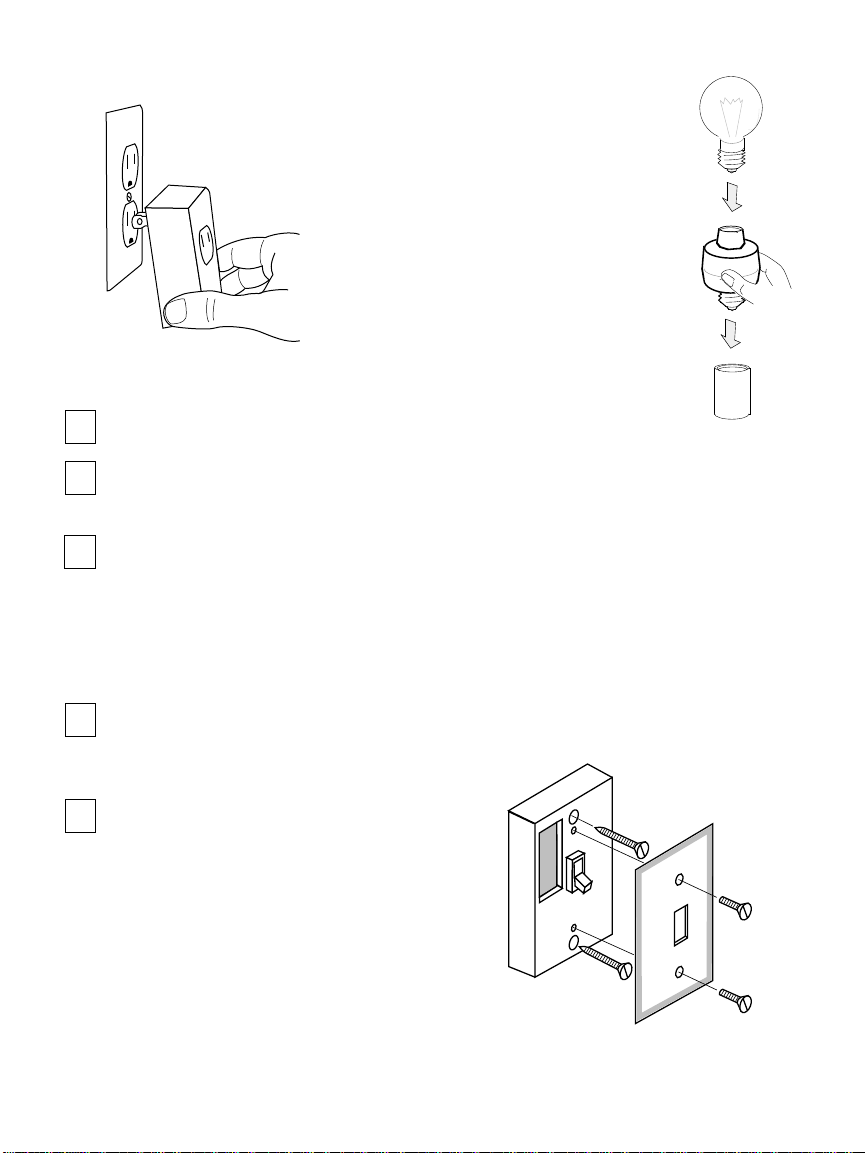

3. For the SL-6136, plug in the device(s) you wish to control. Screw
the light bulb into the SL-6138. Caution: do not exceed the specifications listed on the next page. Turn the power back on.
4. To check the operation, hold the remote switch at the desired location and
switch it on. The appliance should turn on immediately . Important: Wait at least
3 seconds after you switch the remote switch on or off before you switch it again
to allow the transmission to be completed. Turn the appliance off and back on
several times. If the switch appears unreliable, move the remote switch until the
appliance switches reliably.
5. Mount the remote switch at the desired
location with the two wood screws pro-
vided. Note: Y our particular installation may
require different mounting hardware.
6. Install the switch plate on the remote
switch with the screws provided.
SL-6138
-2-
TROUBLESHOOTING GUIDE
If you experience a problem, follow this guide.
SYMPTOM
Appliance does
not come on.
Appliance does not turn
off.
Appliance comes
on randomly.
POSSIBLE CAUSE
1. Circuit breaker or fuse is turned off.
2. Switch on appliance is turned off.
3. Lamp or appliance is defective.
4. Signals from remote switch are being blocked, or
remote switch is out of range. Check for metal objects that could block the signal, or reposition the
remote switch.
5. Weak battery in the remote switch.
1. Switching too fast. Wait 3 seconds before switching
the remote switch.
2. Same as 4 & 5 above.
1. Short term power line failure.
2. Another remote switch on the same channel.
Regulatory Information
The user is cautioned that changes or modifications not expressly approved by the
party responsible for regulatory compliance could void the user's authority to operate
the equipment.
This device complies with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
SPECIFICATIONS
Range..............................................................Up to 100 feet (30.5 m)
Rated Voltage .................................................120 VAC, 60 Hz
Maximum Load SL-6136 ................................. 500 Watts
incandescent
400 Watts TV
300 Watts fluorescent
1/3 H.P. motor
Maximum Load SL-6138 ................................ 150 Watts
incandescent
Battery.............................................................9-volt alkaline
The Heath Company reserves the right to discontinue products and to change
specifications at any time without incurring any obligation to incorporate new
features in products previously sold.
-3-
YOUR HEATH ZENITH FIVE YEAR LIMITED WARRANTY
This is a “Limited Warranty” as defined in the U.S. Consumer Product Warranty
and Federal Trade Commission Improvement Act. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
For a period of five years from the date of purchase, any malfunction caused by
factory defective parts or workmanship will be corrected at no charge to you.
Batteries are not covered. To obtain a refund or a replacement, return the product to the place of purchase.
Not Covered — Repair service, adjustment and calibration due to misuse, abuse or
negligence, light bulbs, batteries and other expendable items are not covered by this
warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service.
This warranty covers only Heath Zenith assembled products and is not extended to
other equipment and components that a customer uses in conjunction with our products.
SUCH REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF HEATH FOR ANY
SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING
BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT
FORESEEABLE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
YOUR HEATH/ZENITH CANADIAN FIVE YEAR LIMITED WARRANTY
This is a “LIMITED WARRANTY” which gives you specific legal rights. You may also
have other rights which vary from province to province.
For a period of five years from the date of purchase, any malfunction caused by defects
in material or workmanship will be corrected at no charge to you. Return the product at
your expense to the place of purchase where the product will be replaced at no charge.
Heath Company reserves the right to repair or replace the product, at its option.
Warranty begins on the date of first consumer purchase. You must supply a copy of
your proof of purchase when you request warranty service.
REP AIR OR REPLACEMENT, AS DESCRIBED ABOVE, SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF
HEATH FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED T O ANY LOSS OF BUSINESS OR PROFITS,
WHETHER OR NOT FORESEEABLE. SOME JURISDICTIONS MAY NOT ALLOW
THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
If you are not satisfied with our warranty service or our products or if you have difficulty
with receiving warranty service from your dealer, write directly to Heath Company;
P.O. Box 90004; Bowling Green KY 42102-9004, USA. Your problems will receive
immediate, personal attention.
