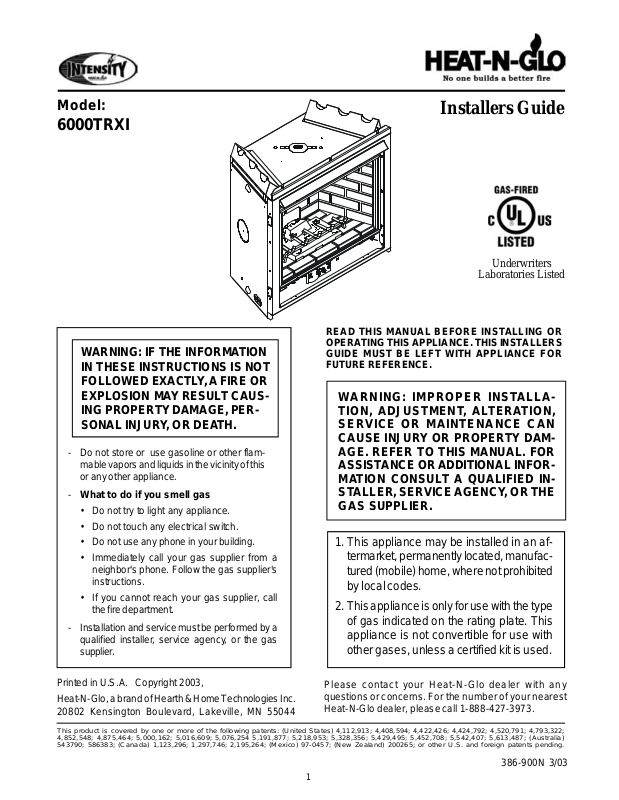

Heat & Glo 6000TRXI Installers Guide

Model:

6000TRXI

WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS­ING PROPERTY DAMAGE, PER­SONAL INJURY, OR DEATH.

- Do not store or use gasoline or other flam­mable vapors and liquids in the vicinity of this
or any other appliance.

- What to do if you smell gas

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's
instructions.

• If you cannot reach your gas supplier, call

the fire department.

- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.

Installers Guide

Underwriters

Laboratories Listed

READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.

WARNING: IMPROPER INSTALLA­TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM­AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR­MATION CONSULT A QUALIFIED IN­STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.

1. This appliance may be installed in an af­termarket, permanently located, manufac­tured (mobile) home, where not prohibited
by local codes.

2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.

Printed in U.S.A. Copyright 2003,
Heat-N-Glo, a brand of Hearth & Home Technologies Inc.

20802 Kensington Boulevard, Lakeville, MN 55044

This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.

386-900N 3/03

1

SAFETY AND WARNING INFORMATION

READ and UNDERSTAND all instructions carefully

!

before starting the installation. FAILURE TO
FOLLOW these installation instructions may result

in a possible fire hazard and will void the warranty.

Prior to the first firing of the fireplace, READ the

!

Using Your Fireplace section of the Owners Guide.

DO NOT USE this appliance if any part has been

!

under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.

THIS UNIT IS NOT FOR USE WITH SOLID FUEL.

!

Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting

!

system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.

These units MUST use one of the vent systems
described in the Installing the Fireplace section of

!

the Installers Guide. NO OTHER vent systems or
components MAY BE USED.

This gas fireplace and vent assembly MUST be

!

vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are

PROHIBITED.

INSPECT the external vent cap on a regular basis to

!

make sure that no debris is interfering with the air
flow.

The glass door assembly MUST be in place and

!

sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.

DO NOT OPERATE this appliance with the glass

!

door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.

Always KEEP the appliance clear and free from

!

combustible materials, gasoline, and other
flammable vapors and liquids.

NEVER OBSTRUCT the flow of combustion and

!

ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.

Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from

!

furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.

Children and adults should be ALERTED to the

!

hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.

The glass door assembly SHALL ONLY be

!

replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.

DO NOT USE abrasive cleaners on the glass door

!

assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.

Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician

!

perform an appliance check-up at the beginning of
each heating season.

Any safety screen or guard removed for servicing

!

must be replaced before operating this appliance.

DO NOT place furniture or any other combustible

!

household objects within 36 inches of the fireplace
front.

2

TABLE OF CONTENTS

Safety and Warning Information ............................................... 2

u

Service Parts Lists .................................................................... 4

Section 1: Approvals and Codes .............................................. 6

Appliance Certification ................................................................. 6

Installation Codes ........................................................................ 6

High Altitude Installations.............................................................. 6

Section 2: Getting Started ........................................................ 7

Introducing the Heat-N-Glo Gas Fireplaces..................................7

Pre-installation Preparation.......................................................... 7

Section 3: Installing the Fireplace ........................................... 9

Constructing the Fireplace Chase................................................ 9

Step 1 Locating the Fireplace .................................................. 9

u

Step 2 Framing the Fireplace................................................. 10

Step 3 Installing the Vent System........................................... 12

A. Vent System Approvals.......................................... 12

B. Installing Vent Components ................................... 19

C. Vent Termination.................................................... 23

Step 4 Positioning, Leveling, and

Securing the Fireplace................................................ 25

Step 5 Install the Optional Heat-Zone Kit ................................ 26

u

Step 6 The Gas Control Systems .......................................... 26

Step 7 The Gas Supply Line .................................................. 27

Step 8 Gas Pressure Requirements...................................... 27

Step 9 Wiring the Fireplace.................................................... 28

Step 10 Finishing ..................................................................... 29

Step 11 Installing Trim, Logs and Ember Material .................... 30

Installing the Trim........................................................ 30

Positioning the Logs ................................................... 30

Shutter Settings ........................................................... 30

Placing the Ember Material ......................................... 30

Glass Specifications ................................................... 30

Step 12 Before Lighting the Fireplace ...................................... 31

Step 13 Lighting the Fireplace.................................................. 31

Step 14 Climate Control........................................................... 31

After the Installation.................................................................... 31

Section 4: Maintaining and Servicing Your Fireplace......... 32

u = Contains updated information.

3

Service Parts

6000TRXI

(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces

19

17

18

Beginning Manufacturing Date: 4-01

Ending Manufacturing Date: _______

u

14

20

1

2

4

15

16

5

3

6 Log set assembly

13

12

8
9

11

10

7

Part number list on following page.

*

La liste des numéros de pièce se

*
trouve à la page suivante.

4

Service Parts List / Liste des pièces de rechange

6000TRXI

IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When order-

ing, supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure
n'est valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents.
Lors d'une commande, veuillez fournir les numéros de série et de modèles pour un remplacement adéquat des pièces.

ITEM /
PIÈCE

ON/OFF Rocker Switch / Interrupteur à bascule marche/arrêt 060-511
Piezo Ignitor / Allumage Piézo 418-513
Burner Tube / Tube de brûleur 477-301A
Burner Orifice NG (#39C) / Orifice de brûleur GN (#39C) 582-839
Left and Right Log Burner Orifice NG (#55C) /

Orifice de brûleur de bûche gauche et droite GN (#55C)
Burner Orifice LP (#54C) / Orifice de brûleur PL (#54C) 582-854
Right Burner Orifice LP (#66) / Droite orifice de brûleur PL (#66) 582-866
Left Burner Orifice LP (#68) / Gauche orifice de brûleur PL (#68) 582-868

1 Surround / Entourent 385-130
2 Hood / Hotte SRV60-143-BK
3 Glass Door Assembly / Porte en verre GLA-6TRXI
4 Burner NG, LP / Brûleur GN, PL 386-339A
5 Log Grate / Grille de Bûche 385-360A
6 6TRXI NG Log Set Assembly / Jeu de Bûches GN LOGS-6TRXI
6 6TRXI LP Log Set Assembly / Jeu de Bûches PL LOGS-6TRXILP
7 Log 1 NG / Bûche 1 GN SRV386-711A
7 Log 1 LP / Bûche 1 PL SRV386-721A
8 Log 2 NG / Bûche 2 GN SRV386-710A
8 Log 2 LP / Bûche 2 PL SRV386-720A
9 Log 3 / Bûche 3 SRV386-714

10 Log 4 / Bûche 4 SRV386-713

11 Log 5 / Bûche 5 SRV386-716
12 Log 6 / Bûche 6 SRV386-715
13 Log 7 / Bûche 7 SRV386-712
14 Insulation Board / Conseil d'Isolation 385-401

Flue Restrictor / Restricteur de conduite de cheminée 385-128
19 Manifold Assembly, Solenoid 386-301A
20 Blower Motor with Magnets / Moteur de Ventilateur(Téléphone) avec Aimants 107-500A

Manifold Gasket /Joint Diversifié(Varié) 385-410

Rheostat Knob - Black / Bouton de Rhéostat - Noir 100-512

Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A

Rheostat Assembly / Assemblée de Rhéostat 100-510A

Switch Assembly, Solenoid / Changer l'Assemblée, le Solénoïde 385-520A

Pilot Control Knob / Piloter le Bouton de Contrôle 571-530

Flame Control Knob / Flamber le Bouton de Contrôle 571-531

STANDING PILOT IGNITION ONLY / ALLUMAGE UNE VEILLEUSE SEULEMENT

15 Junction Box / Boîtier de raccordement 100-250A

Valve NG / Valve GN 060-522

Valve LP / Valve PL 060-523

Pilot Assembly NG / Module de veilleuse GN 485-510A

Pilot Assembly LP / Module de veilleuse PL 485-511A

ACCESSORIES / ACCESSOIRES

Fan Kit / Module de ventilateur GFK-160A

Wall Switch Kit, Off-white / Interrupteur mural, blanc crème WSK-21

Wall Switch Kit, White / Interrupteur mural, blanc WSK-21-W

Trim Door Mesh / Écran porte de garniture MESH-6000

NG Conversion NGK-6TRXI

LP Conversion LPK-6TRXI

Wall Refractory Kit BRICK-6000
16 Wall Refractory Kit - Right Wall SRV386-372
17 Wall Refractory Kit - Left Wall SRV386-371

18 Wall Refractory Kit - Back Wall SRV386-370

STANDING PILOT AND DSI IGNITION COMMON PARTS

/ UNE VEILLEUSE ET ALLUMAGE DSI PIÉCES COMMUNES

SERIAL # /

N° DE SÉRIE

PART NUMBER

/ N° DE PIÈCE

582-855

u

u

5

Approvals and
Codes

Appliance Certification

The Heat-N-Glo fireplace models discussed in this Installers
Guide have been tested to certification standards and listed

by the applicable laboratories.

Certification

MODELS: 6000TRXI
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD:

ANSI Z21.88-2000•CSA2.33-M98•UL307B

Installation Codes

The fireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.

In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States), or to the CSA C22.1 Canadian Electric
Code (in Canada).

High Altitude Installations

U.L. Listed gas appliances are tested and approved with­out requiring changes for elevations from 0 to 2,000 feet in
the U. S. A. and in Canada.

When installing this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.

If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.

Heat-N-Glo Quality
Systems registered
by SGS ICS

6

Getting Started

Introducing the Heat-N-Glo Gas Fireplaces

Heat-N-Glo direct vent gas fireplaces are designed to oper­ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.

The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.

Pre-install Preparation

This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any

unit with damaged, incomplete, or substitute parts.

The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.

Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.

The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:

• Installation of any damaged fireplace or vent system
component.

• Modification of the fireplace or direct vent system.

• Installation other than as instructed by Heat-N-Glo.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not manu­factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.

ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.

When planning a fireplace installation, it’s necessary to
determine:

• Where the unit is to be installed.

• The vent system configuration to be used.

• Gas supply piping.

• Electrical wiring.

• Framing and finishing details.

• Whether optional accessories—devices such as a fan,

wall switch, or remote control—are desired.

If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

7

14 1/4

[362mm]

28 1/2 [724mm]

21 1/2 [548mm]

GAS LINE

2 1/8

[55mm]

6 7/8 [174mm]

ACCESS

8 5/8 [219mm]

VENT COLLARS

38

[965mm]

41 1/8

[1044mm]

TOP STANDOFFS

11 5/8 [297mm]

25 1/4

[642mm]

36 1/8

[916mm]

ELECTRICAL

ACCESS

34 5/8

[879mm]

3 1/2

[90mm]

TOP VENT COLLARS

12 3/4

[323mm]

8 5/8

[219mm]

VENT

COLLARS

26 7/8

[682mm]

RATING PLATE

GAS
LINE

ACCESS

AND LABELS

GAS

CONTROLS

Figure 1. Diagram of the 6000TRXI

REAR VENT COLLARS

HOOD

TRIM

DOOR

ELECTRICAL

ACCESS

8

Installing the Fireplace

1/2” MIN. (13mm)

1” MIN. (25mm)

Constructing the Fireplace Chase

A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.

CAUTION: TREA TMENT OF FIRESTOP SP ACERS AND
CONSTRUCTION OF THE CHASE MA Y VARY WITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD­ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.

Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.

This means that the walls, ceiling, base plate and cantile­ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home. Additionally, Heat­N-Glo recommends that the inside surfaces be sheetrocked
and taped for maximum air tightness.

To further prevent drafts, the firestops should be caulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in­stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburning units if they are required.

THE CHASE SHOULD BE CONSTRUCTED SO THA T ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.

Step 1. Locating the Fireplace

The following diagram shows space and clearance require­ments for locating a fireplace within a room.

Clearance Requirements

The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.

B

A

E

C

A B C D E

42” 22” 36” 51” 72”

Figure 2. Fireplace Dimensions, Locations,
and Space Requirements

Minimum Clearances

from the Fireplace to Combustible Materials

Inches mm

Glass Front ........................36 ..................... 914

Floor ....................................0........................ 0

Rear ................................... 1/2 ..................... 13

Sides ................................. 1/2 ..................... 13

Surround Sides* ..................0........................ 0

Top ....................................3 1/2.................... 89

Ceiling**..............................31 ..................... 787

* See Figure 3.
**The clearance to the ceiling is measured from the top

of the unit, excluding the standoffs (see Figure 40).

The distance from the unit to combustible construction
is to be measured from the unit outer wrap surface to
the combustible construction, NOT from the screw heads
that secure the unit together.

Minimum Clearances

from the Vent Pipe to Combustible Materials

Inches mm

Vertical Sections...............1................. 25

Horizontal Sections

Top ......................................3................. 75

Bottom................................ 1................. 25

Sides .................................. 1................. 25

At Wall Firestops

Top ...................................2 1/2.............63.7

Bottom.............................. 1/2 ............... 13

Sides .................................. 1................. 25

D

For minimum clearances, see the direct vent termination
clearance diagrams on pages 23 and 24 in this manual.

9

Step 2. Framing the Fireplace

ABC

u

Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo­date wall coverings and fireplace facing material. The dia­gram below shows framing reference dimensions.

Shows center of 12” x 12” vent framing
holes for top and rear venting. The center
of the hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.

CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.

E D

A. ............. 42”*

B. .........38 1/2”

C. ............... 22”

D. ............... 42”

E. .........27 7/8”

Framing should be
constructed of 2 X 4
lumber or heavier.

Figure 3. Framing Dimensions

1/2” CLEARANCE

FROM BOTH SIDES

TO COMBUSTIBLE

OF FIREPLACE

FRAMING
MEMBER

1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE

0” CLEARANCE

0” CLEARANCE TO
FRAMING MEMBER

10
