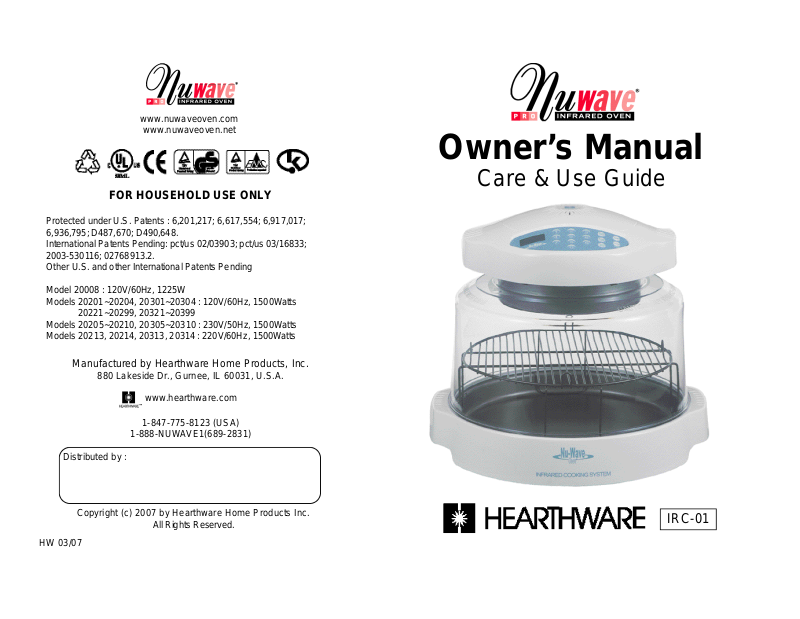

Hearthware IRC-01 User Manual
www.nuwaveoven.com
www.nuwaveoven.net
FOR HOUSEHOLD USE ONLY
Protected under U.S. Patents : 6,201,217; 6,617,554; 6,917,017;
6,936,795; D487,670; D490,648.
International Patents Pending: pct/us 02/03903; pct/us 03/16833;
2 0 0 3 - 5 3 0 116; 02768913.2.
Other U.S. and other International Patents Pending
Model 20008 : 120V/60Hz, 1225W
Models 20201~20204, 20301~20304 : 120V/60Hz, 1500Wa t t s
20221~20299, 20321~20399
Models 20205~20210, 20305~20310 : 230V/50Hz, 1500Wa t t s
Models 20213, 20214, 20313, 20314 : 220V/60Hz, 1500W a t t s
Manufactured by Hearthware Home Products, Inc.
880 Lakeside Dr., Gurnee, IL 60031, U.S.A.
www.hearthware.com
Owner’s Manual
Care & Use Guide
Distributed by :
HW 03/07
1-847-775-8123 (USA)
1-888-NUWAVE1(689-2831)
Copyright (c) 2007 by Hearthware Home Products Inc.
All Rights Reserved.
IRC-01
IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present, basic
safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER – To reduce the risk of electrocution:
1. Read all instructions, safeguards, and warnings before using the appliance.
2. Do not place appliance where it can fall or be pulled into water or other
liquids.
3. Do not reach for an appliance that has fallen into water. Unplug immediately!
4. Do not immerse cord, plug, or power head in water or other liquids.
WARNING – To reduce the risk of burns, electrocution,
fire, or injury :
1. This appliance should not be used by children. Close supervision is
necessary when this product is used near children.
2. Use this appliance for its intended purpose as described in this
brochure. Do not use any other accessories or attachments not recommended by the manufacturer. They may result in fire, electrical
shock, or personal injury.
3. Never operate this appliance if it has a damaged cord or plug; not
working properly; has been dropped or damaged; or dropped into
water. Return the appliance to an authorized customer service center
for inspection, repair, or adjustment.
4. Keep the cord away from heated surfaces.
5. Always unplug power cord by pulling on the plug. DO NOT unplug by
pulling on cord.
6. Never force the plug into an outlet.
7. Do not operate outdoors or operate where aerosol (spray) products are
being used or where oxygen is being administered.
8. Do not let the cord hang over the edge of the table or counter.
9. Do not place on or near a hot gas or electric burner or in a heated oven.
10. Do not move the appliance while it contains hot food. Use extreme
caution when removing hot liner pan or cooking rack.
11. Before removing plug from wall, turn the unit off first.
12. Do not use this appliance for anything other than it is intended.
13. Check all electrical wiring. Beware of damaged cord or plug.
14. This appliance is for household use only; it is designed to process
normal household quantities. It is not suitable for continuous or commercial operation.
15. Do not disassemble the product. There are no user serviceable parts.
16. Do not leave the appliance unattended while in use.
17. Use the handles when lifting the dome from the base.
18. Do not touch hot surfaces. Use the handles provided or use oven mitts.
19. Stop or pause cooking before removing the dome to check or turn food.
The dome and power head should be placed on the dome holder.
20. Always remove the dome away from you so the escaping steam is
channeled away from your face.
21. If the power cord is damaged, it should be replaced by a special cord
or assembly from the manufacturer or its service agent.
22. Use caution when disposing of hot grease.
23. Keep this manual handy for easy future reference.
SAVE THESE INSTRUCTIONS
Electrical Information
The cord length of this appliance was selected to reduce Safety
Hazards that may occur with a long cord. Extension cords are available
and may be used if care is exercised in their use. If an extension cord is
used: (1) the marked electrical rating of the extension cord should be at
least as great as the electrical rating of the appliance, and (2) the longer
cord should be arranged so that it does not drape over the counter or
table top where it could be accidentally pulled off the counter or table or
tripped over.
Certain models of the appliance may have a polarized plug (one
blade is wider than the other). This plug is intended to fit into a polarized
outlet only one way. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit properly, contact a qualified electrician. Do not
attempt to modify the plug in any way.
WA R N I N G
Electric shock hazard. Use with adequate electrical system. Do not use if cord or plug is damaged.
WARNING: All metal items in the oven, such as the liner
pan and cooking rack can get very hot during cooking.
Please be careful when removing these items from a hot
oven. Always wear oven mitts or use pot holders. Allow
liner pan and cooking rack to cool completely before
cleaning. The dome opening may expand slightly when
hot. In rare instances, the power head could detach itself
from the dome completely thereby causing hot air to
escape from between the dome and the power head.
1
2
PARTS/ASSEMBLY DIAGRAM
Digital Control Panel
N u - Wave Deluxe / Digital
Manual Control Dials
Nu-Wave Oven
Before Using
• Before using, wash dome, liner
pan, base, and cooking rack in
warm soapy water or clean in
the dishwasher.
• IMPORTANT : DO NOT WASH
OR IMMERSE POWER HEAD
IN WATER OR IN DISHWASHER. THE OUTER SURFACE CAN BE CLEANED BY
WIPING CAREFULLY WITH A DAMP DISHCLOTH OR
SPONGE.
Handles
Transparent
Dome
Cooking Rack
(1” or 4”
Height)
Liner Pan
Base
Power Head
Dome
Holder
Assembly
• Place base on a firm stable surface.
• Place liner pan inside base. When
placing liner pan inside the base,
make sure the handles are positioned
at the dropped down position. If the
handles are not fully dropped down,
the dome may not fit over the base
properly. (see illustration on pg.6).
• Place dual level cooking rack on the
liner pan according to cooking
requirements.
• Place food on the cooking rack.
• Place dome over food and on to base.
The dome should fit on to the base
evenly.
• Place power head into the rim of the
dome and lock it into place by rotating the power head clockwise until
the locking lugs are engaged.
• Set cook time and power level
according to cooking requirements.
