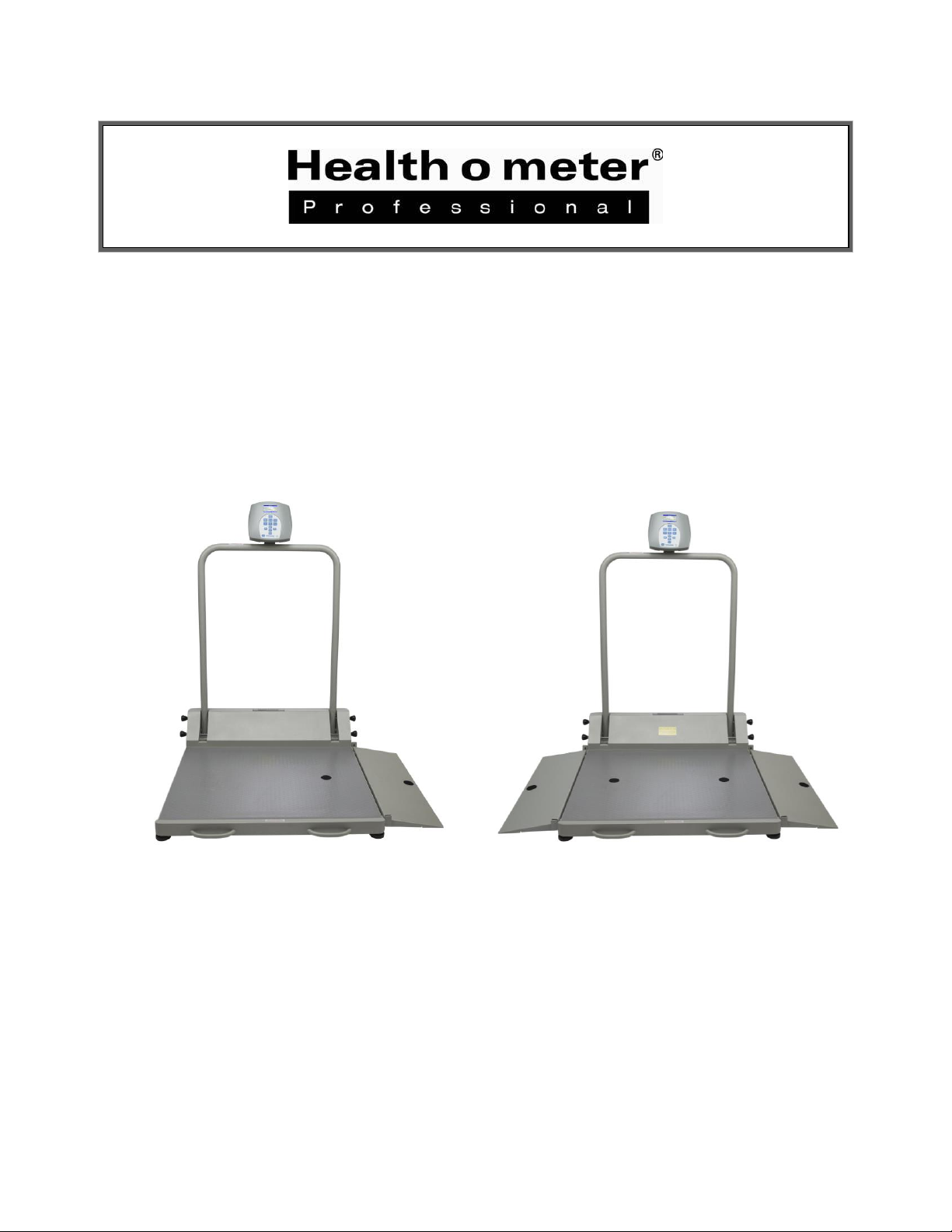

Page 1
Model 2600KL / 2610KL
Digital Wheelchair Scales
User Instructions
P/N UM2600KL / 2610KL E Rev 20171108
Page 2
Model 2600KL / 2610KL
Thank you for your purchase of this Health o meter® Professional product. Please read this
manual carefully, and keep it for easy reference or training.
TABLE OF CONTENTS
Caution and Warning................................................................................................. 3
Specifications ............................................................................................................ 4
Certifications / Connectivity / Disposal ...................................................................... 5
Assembly Instructions .............................................................................................. 6
Set-Up Instructions ................................................................................................... 10
Operating Instructions ............................................................................................... 13
Maintenance .............................................................................................................. 19
Calibration ................................................................................................................. 20
Troubleshooting ........................................................................................................ 22
Warranty .................................................................................................................... 23
Note: This scale has been factory calibrated, and does not
require calibration prior to use.
Please register your scale for warranty coverage at:
www.homscales.com
For User Instructions updates and revisions, please go to:
www.homscales.com
2
Page 3
CAUTION AND WARNING
INTENDED USE
This Health o meter® Professional wheelchair scale is intended to be used in a professional medical
environment by trained medical staff. This product was designed to weigh patients who are safely seated in a
wheelchair or standing on the platform. Do not modify the product or use it for anything other than its intended
purpose.
To prevent patient/caregiver injury or damage to your scale, please follow the instructions in this
user manual very carefully.
Do not exceed the weight capacity specified for this scale.
For accurate weighing, this scale must be placed on a flat, stable surface.
For accurate weighing, verify before each use the proper operation according to the procedure
described in this manual.
Do not use in the presence of flammable or explosive materials.
If the scale becomes damaged, it should not be operated until properly serviced.
Do not transport the scale with a patient or object on the scale.
To prevent injury and damage to your scale, do not drop or mishandle scale, during use or transport.
Ensure that the AC adapter and scale do not come in contact with liquids, excessive temperature, or
excessive humidity.
Patient/caregiver safety
This scale is designed for static weighing of patients only. No scale should be used for patient transfer.
To prevent patient injury, the patient must be attended throughout the entire weighing event. Exercise
caution when rolling the wheelchair onto and off of the scale.
When operating the scale with the AC adapter:
Operate this scale exclusively with the AC adapter that is provided (ADPT30). Use of an unspecified
adapter will void the warranty, and can pose a serious safety hazard.
Prior to using this scale, inspect the AC adapter cord for cracking / fraying, or for broken / bent plug
prongs.
Prior to using this scale, ensure that the AC adapter is plugged into an outlet with the rated voltage
appropriate for operation.
Ensure that the AC adapter outlet is wired to a circuit breaker or other protected power source.
Unplug the AC adapter, and carefully store both the adapter and adapter cord before moving the scale.
Operating this scale at voltages and frequencies other than specified can damage the equipment and
will void the warranty.
When operating the scale with batteries:
If the scale’s battery icon indicates that the batteries are low replace the batteries or switch to the AC
adapter as soon as possible.
When replacing / inserting batteries, be sure to use all new batteries.
This equipment has been tested and found to comply with the EMC limits for the Medical Device Directive
93/42/EEC (EN 55011 Class A and EN 60601-1-2). These limits are designed to provide reasonable
protection against harmful interference in a typical medical installation. The equipment generates, uses
and may radiate radio frequency energy and, if not installed and used in accordance with these
instructions, may cause harmful interference to other devices in the vicinity. There is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference with
other devices, which can be determined by turning the equipment off and on, the user is encouraged to try
to eliminate the interference by one or more of the following measures:
Reorient or relocate the receiving device.
Increase the separation between the equipment.
Connect the equipment into an outlet on a circuit different from that to which the other device(s) is
connected.
Consult Customer Service or a field service technician for help.
In no event shall Pelstar, LLC be liable for damages or injuries whatsoever arising out of or connected with the assembly, use, or
misuse of its products.
3
Page 4
SPECIFICATIONS
Capacity and Resolution
1000 lb x 0.2 lb (454 kg x 0.1 kg)
Power Requirements
100V-240V AC, 50-60Hz-9V DC adapter (ADPT30) or 6 D batteries
Environmental
Operating temperatures: 50°F to 95°F (10°C to 35°C)
Storage temperatures: 30°F to 125°F (0°C to 50°C)
Maximum Humidity: 85% RH
Physical Dimensions
Platform-2600KL
Length: 32-1/4” (819 mm)
Width: 36” (914 mm)
Height: 2-1/2” (64 mm)
Assembled Size and Weight
Length: 43-7/8” (1114 mm)
Width: 48-1/8” (1224 mm)
Height: 49-7/16” (1255 mm)
Weight: 93 lb (42 kg)
Physical Dimensions
Platform-2610KL
Length: 32-1/4” (819 mm)
Width: 36” (914 mm)
Height: 2-1/2” (64 mm)
Assembled Size and Weight
Length: 43-7/8 ” (1114 mm)
Width: 56-3/4” (1441 mm)
Height: 49-7/16” (1255 mm)
Weight: 98 lb (42 kg)
Help
General
This scale uses highly sophisticated microprocessor technology. Each precision scale is designed to
provide accurate, reliable, and repeatable weight measurements. In addition, each scale is
designed to provide the user with features that make the weighing process simple, fast, and
convenient.
This scale uses motion-sensing weighing technology in order to determine the actual weight of a
moving patient.
Weight can be displayed in pounds (lb) or in kilograms (kg). This scale features a pivoting display
head for privacy and for easy operator reading. For easy mobility, the scale has 4 built-in wheels
(including 2 casters). Each scale can be powered using an AC adapter (ADPT30 included), or
by 6 D batteries (not included).
Specifications
Scale information can also be found by pressing and selecting “Scale Info” in the submenu.
This screen provides model number, capacity, calibration weight, the most recent field calibration date,
number of field calibrations, and software version.
4
Page 5
CERTIFICATIONS / CONNECTIVITY / DISPOSAL
Pelstar, LLC has been officially certified as the manufacturer
of Health o meter® Professional medical devices. The Pelstar,
LLC quality assurance system covers the development,
production, sales and service of medical scales and
measuring systems.
Certification Descriptions
Scale Connectivity Information
To enable reliable transmission of weight, height, and Body Mass Index (BMI) data, this scale is
designed to connect to a computer, monitor, or other electronic device via a built-in USB port or
Bluetooth wireless technology. This connectivity helps minimize a source of potential medical
errors caused by incorrectly copying and then recording patient data. For more information
regarding how to connect the scale to other electronic devices, please contact Health o meter®
Professional Scales Technical Support, available during normal business hours at 1-800-638-
3722.
Scale Disposal
Health o meter® Professional scales must be disposed of properly as electronic waste. Follow
the national, regional or local regulations which apply to you for disposal of electronic waste or
batteries. Do not dispose of this device in the domestic waste stream.
5
Page 6
ASSEMBLY INSTRUCTIONS
Before Assembly
Each 2600KL/2610KL scale is shipped disassembled in a single carton. Carefully inspect the
carton for shipping damage before unpacking. If damage is found, contact your shipper or a
Health o meter® Professional representative immediately at 1-800-815-6615. Claims must be
filed with the shipper as soon as possible after receipt of the package. The following information
details what you will find inside the main carton as you unpack the parts for assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the
protective inner packaging.
Parts List
(1) Scale platform
(1) Box containing the AC adapter
(4) Feet
(1) User information
(1) Display assembly
(1) Plastic bag containing hardware for assembly
(1) AC adapter holder
(2) Pivot bracket screw covers
Tools Required
Phillips head screwdriver (not included).
6
Page 7

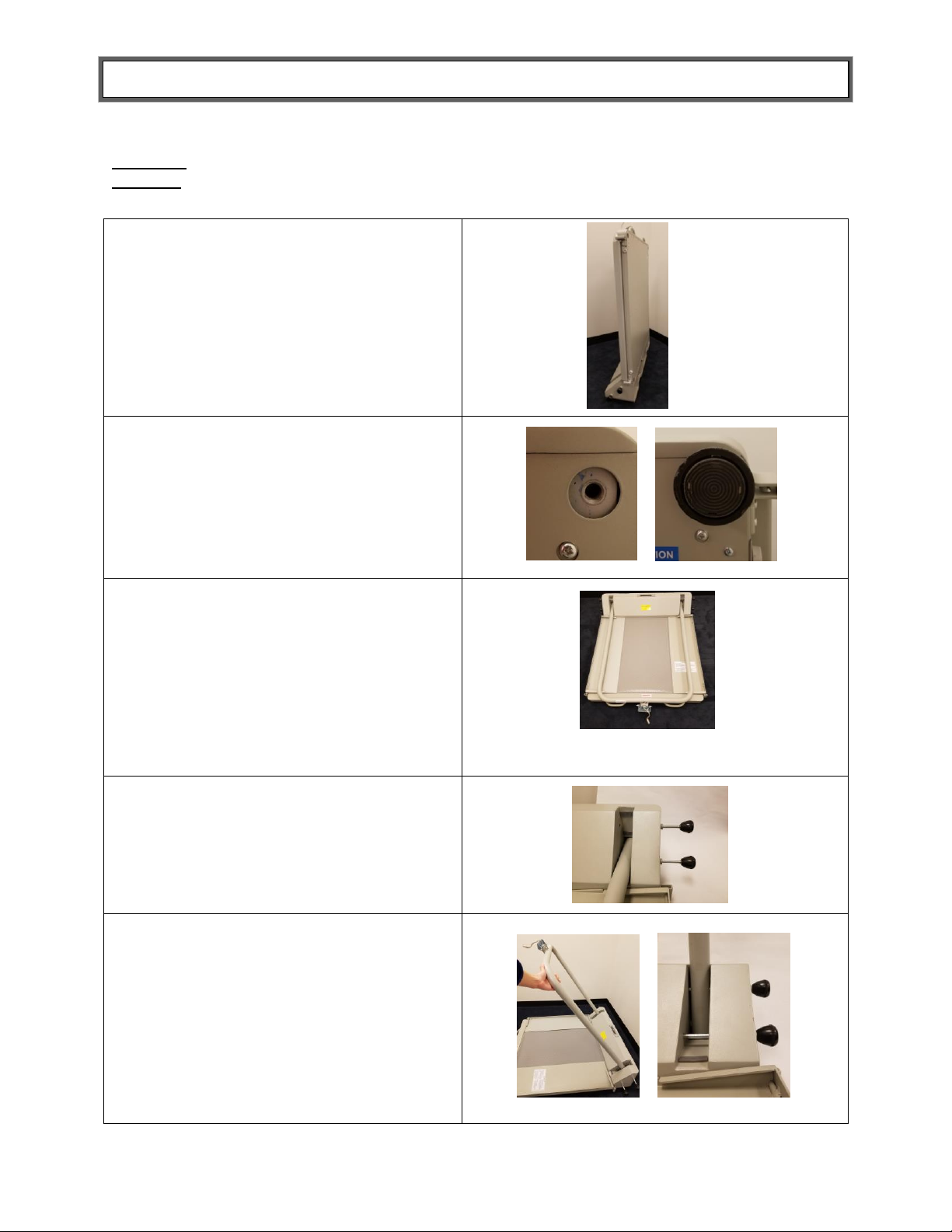

ASSEMBLY INSTRUCTIONS (CONT.)
1. Stand the scale in its vertical position
with the platform closed, as shown.
2. Screw the (4) feet into the underside of
the platform. Completely hand tighten
the feet, then turn them back 1-½ full
turns. This allows for proper load cell
operation. Be certain that the feet are
not completely tightened into the
platform.
3. Using the handles on the end of the
platform, lower the scale so it lies flat,
with the feet on the floor. Warning: Do
not drop scale, as this can
permanently damage the load cells.
Adjust the feet to level the scale. Each
foot should be completely hand tightened
then back the feet out 1-½ full turns. Be
certain that the feet are not completely
tightened into the platform.
4. Open the scale to its operational position
by loosening the two black knobs on
each side of the scale. Loosen the knobs
by turning them to the left until the rod
pops out completely as shown.
5. Lift the handrail to its veritical position.
Lock the handrail in place by pushing the
knob back in and tightening completely
by turning the knobs to the right.
Health o meter® Professional Scales recommends that assembly is performed by two
people.
Warning: Do not drop scale, as this can permanently damage the load cells.
Caution: Do not insert the batteries into the display head until it is mounted onto the scale.
7
Page 8

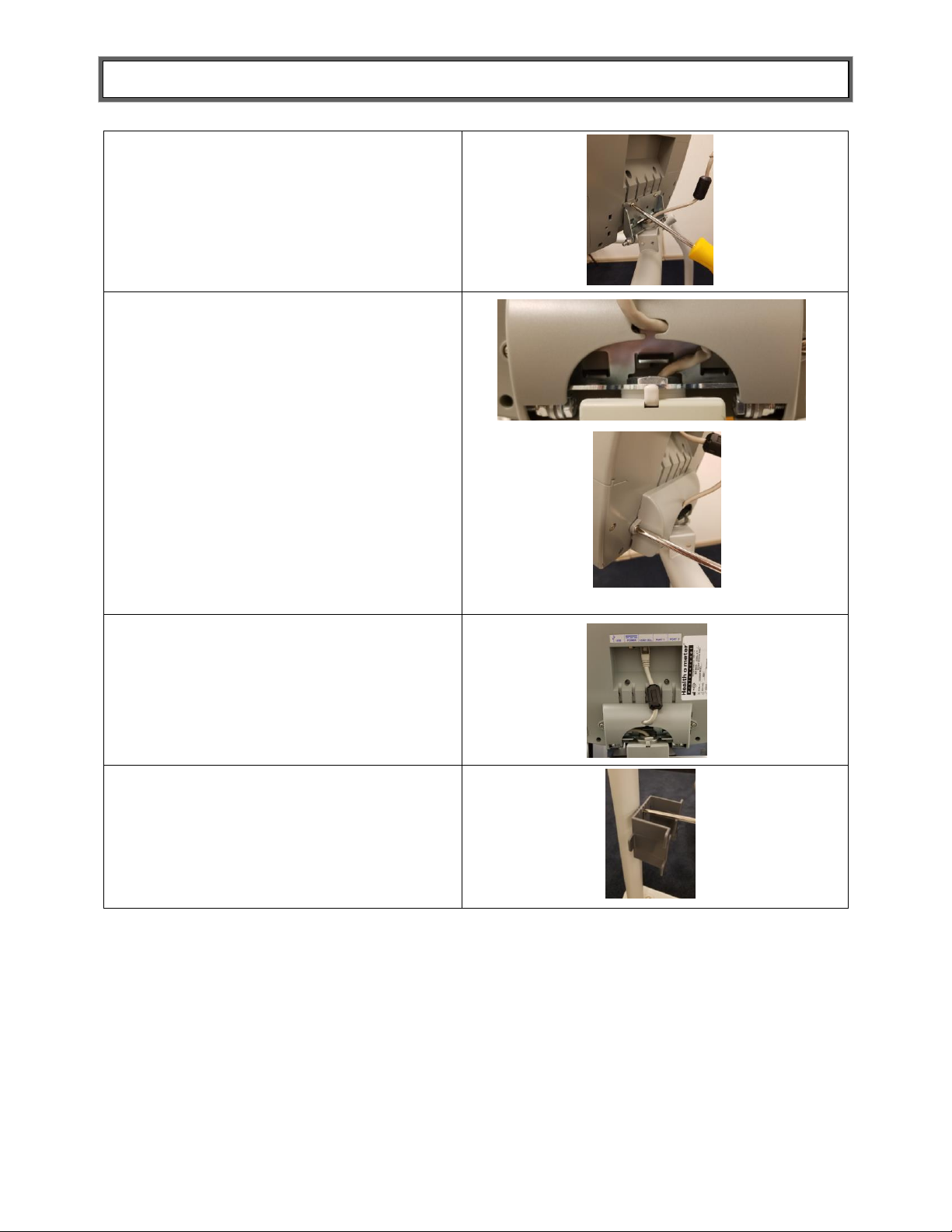

ASSEMBLY INSTRUCTIONS (CONT.)
6. Obtain the display head and align the
four holes on the back of the display
head with the four mounting holes on the
silver display support. Using the (4)
included M4 x 0.7 x 10mm screws,
fasten the display head onto the display
support using a Phillips head screwdriver
to tighten the screws.
7. Manuever the load cell cable to the side
and then between the washer and the
silver lip in the bracket. Obtain the plastic
bracket cover and clip the load cell cable
into the divot in the middle of the cover.
Obtain the two remaining M4 x 0.7 x
10mm machine screws and using a
Phillips screwdriver, attach the bracket
cover over the silver display bracket.
8. Plug the load cell cable into the load cell
port on the rear of the display head.
Note: Do not attach the AC adapter
power cord into the back of the display
assembly at this point.
9. Attach the adapter holder to the handrail
using the (2) included sheet metal
screws. Use a Phillips head screwdriver
to tighten the screws. The scale is now

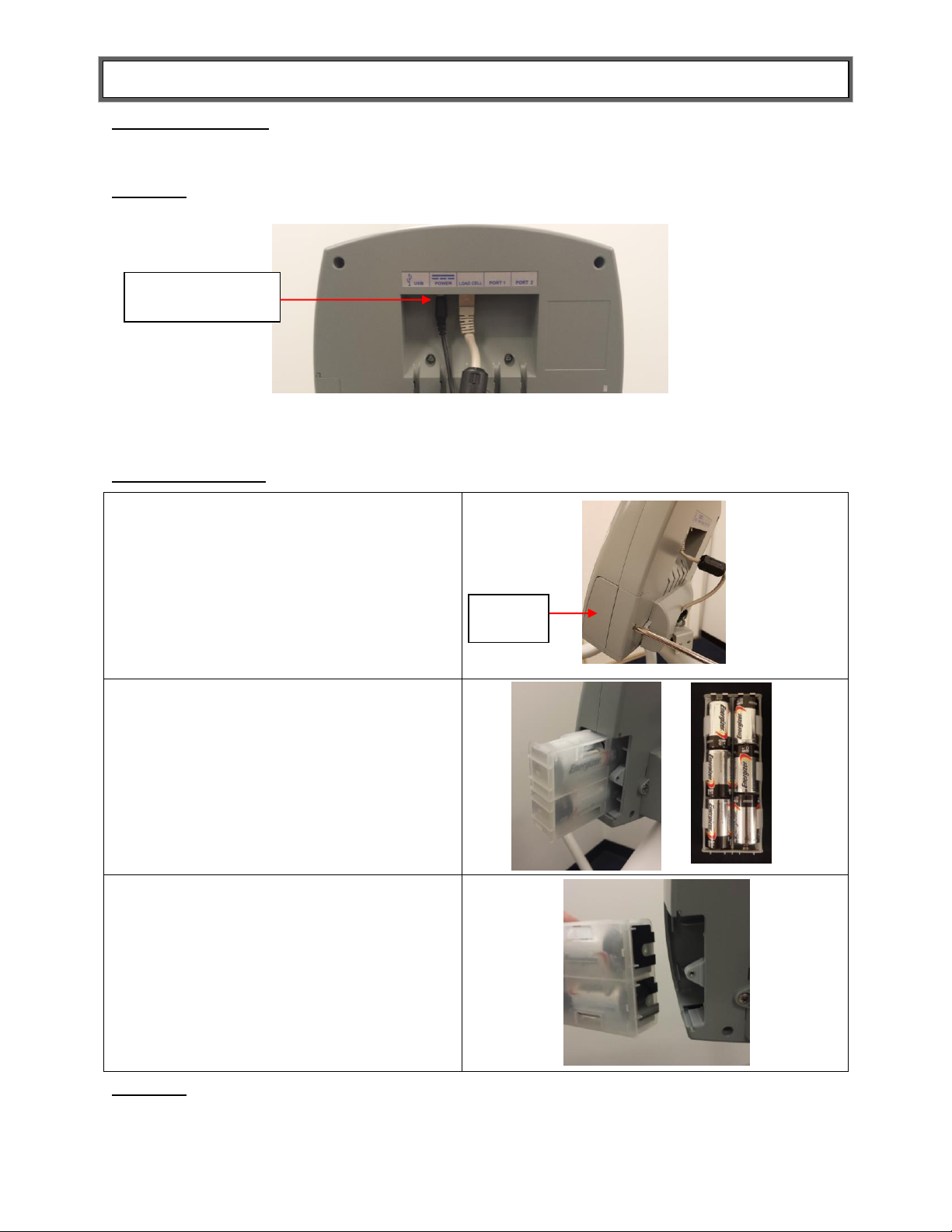

assembled. See Powering the Scale on
page 10 for battery/AC adapter
instructions.
8
Page 9

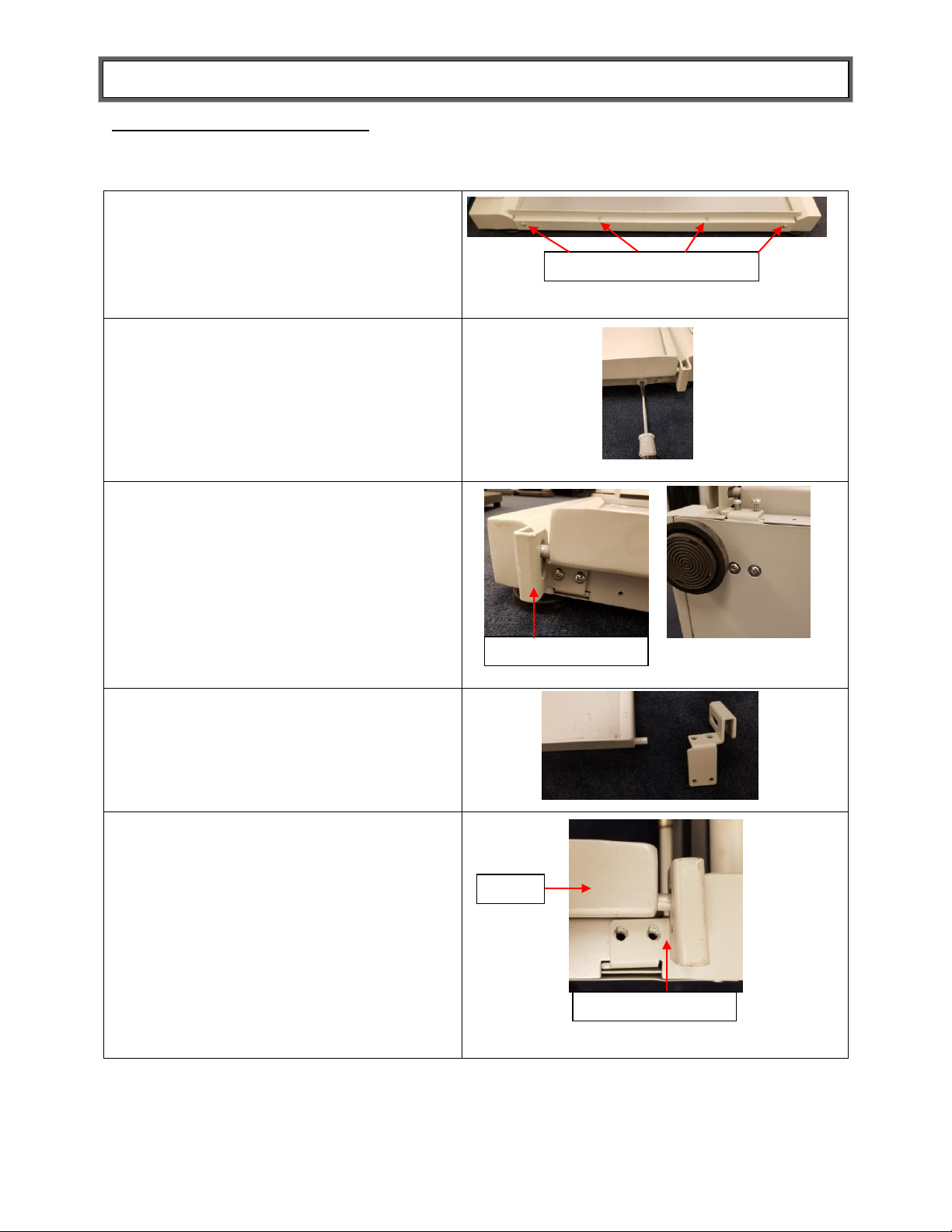

ASSEMBLY INSTRUCTIONS (CONT.)
1. On the side of the platform opposite to
the ramp, remove the guardrail mounted
to the end of the platform by unscrewing
and then removing the four guardrail
assembly screws. If adding a second
ramp, skip to step 5.
2. Fold the ramp onto the platform surface.
Remove the screws attaching the two
rubber bumpers, located on the side of
the platform. Remove the bumpers, and
re-install them on the opposite side of the
platform using the appropriate mounting
holes.
3. Loosen the screws holding each ramp
holder to the platform. There are four
screws on each side of the ramp. To
obtain access to the screws on the
underside of the platform, remove the
two black feet. After removing the screws
and the ramp holder, replace the feet.
Completely hand tighten the feet, then
turn them back 1-1/2 full turns.
4. Remove the ramp holders by pulling
them out of the platform. Separate the
ramp from the ramp holders.
5. On the side of the platform without a
ramp, remove the two feet on the
underside of the platform. Insert the
ramp holders but do not insert the
screws at this point. Insert the ramp
between the ramp holders, then insert
and tighten the assembly screws.
Replace the feet by completely hand
tightening, then turn back 1-1/2 full turns.
If utilizing just one ramp, re-install the
guardrail on the side of the platform
where the ramp was located.
Guardrail Assembly Screws
Ramp Holder
Ramp Holder
Ramp
Ramp Assembly Instructions
Follow these instructions for moving the ramp to the opposite side of the scale, or for adding
a second ramp to the scale (2610KL or B2600RAMP option):
9
Page 10
SETUP INSTRUCTIONS
1. If connected, unplug the AC adapter from
the power source. Use a Phillips head
screwdriver to remove the battery cover
on the side of the display head by
unscrewing the battery cover screw.
2. Remove the battery pack from the
display head. Replace or install fresh
batteries, making sure to install them in
the proper direction. Health o meter®
Professional recommends using an
alkaline battery rated for 130°F (54°C)
operation. Do not use Zinc-Carbon
batteries.
3. Re-insert the battery pack into the
display head, ensuring the end with the
silver contacts is inserted facing the
inside of the display. Re-attach the
battery cover to the display head by
replacing the battery cover screw.
Power Adapter
Jack
Battery
Cover
Powering the Scale
Plug the AC adapter into the power adapter jack (the jack is located on the rear of the display
head), then plug the scale’s AC adapter into the power source.
Warning: To avoid a safety hazard, do not use an unspecified AC adapter. Only use the
Health o meter® Professional AC adapter model ADPT30 designed for this scale.
For battery operation, see Battery Installation below.
Battery Installation
Warning: If the scale will not be used for some time, remove the batteries to avoid a safety
hazard. Disposal of batteries must be performed in accordance with the prevailing national,
regional or local regulations that apply to you.
10
Page 11

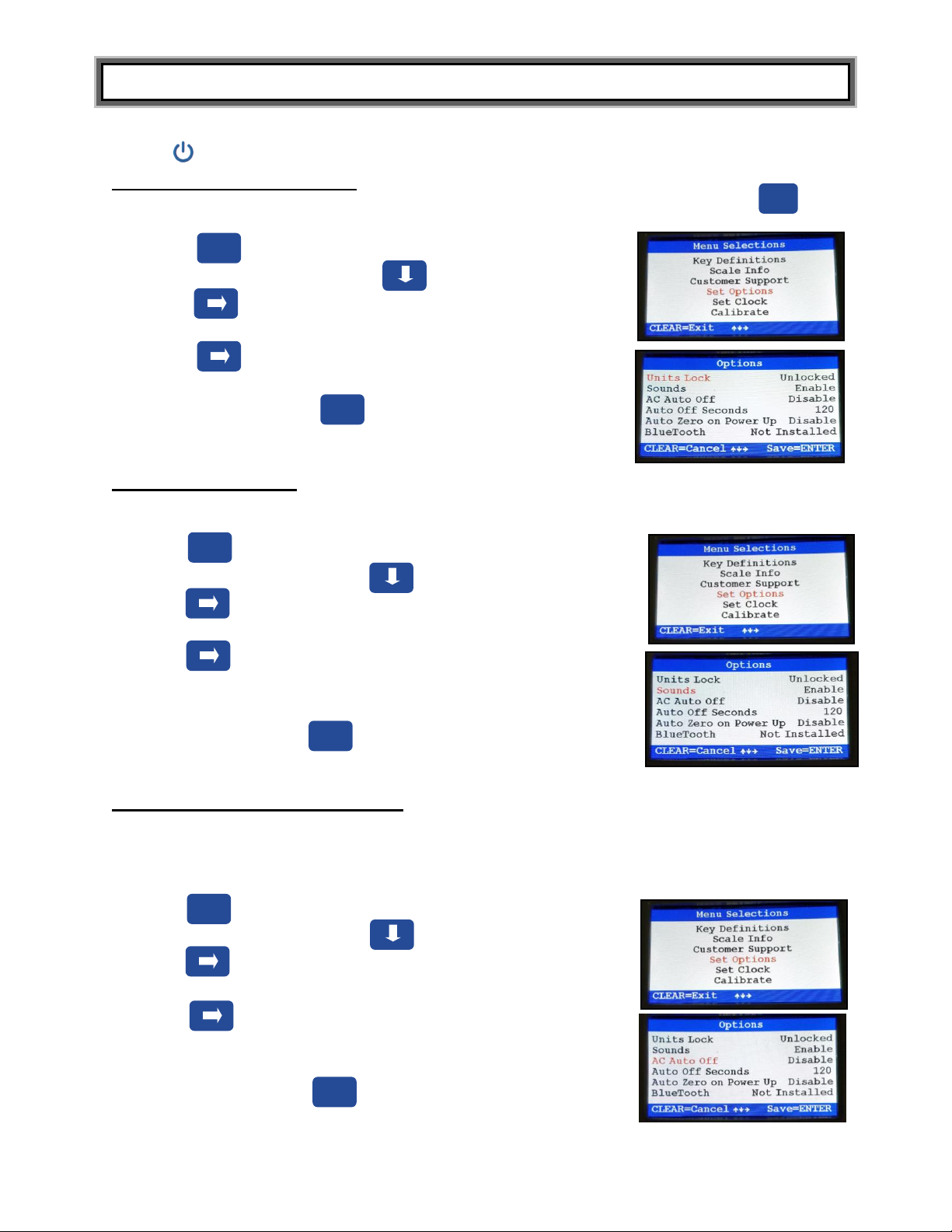

SET-UP INSTRUCTIONS (CONT)
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Set Options”.
Press to advance to the next menu.
3. While in the “Set Options” sub-menu, select “Units Lock”.
4. Press to change the “Units Lock” option. Choose
“Unlocked”, “LBS Locked”, or “KG Locked”.
Note: You must press to save your selection.
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Set Options”.
Press to advance to the next menu.
3. While in the “Set Options” sub-menu, select “Sounds”.
4. Press to change the “Sounds” option. Choose “Disable”
for the display to stay silent while operating the scale. Choose
“Enable” for the display to beep while operating the scale.
Note: You must press to save your selection.
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Set Options”.
Press to advance to the next menu.
3. While in the “Set Options” sub-menu, select “AC Auto Off”.
4. Press to change the “AC Auto Off” option. Choose
“Enable” for the display to turn off after a period of inactivity.
Choose “Disable” for the display to always remain on.
Note: You must press to save your selection.
Help
Enter
Help
Enter
Help
Unit
Enter
The scale must be powered on before performing any of the following operations.
Press to turn on the scale.
Unit of Measure Configuration
The weight measuring unit (pounds/LB or kilograms/KG) can be changed by pressing .
To lock the weight measuring unit, follow this procedure.
Setting Sound Options
The display can be set to stay silent or beep while operating the scale. Follow this procedure to
set the preferred option.
Activating/Deactivating AC Auto Off
When powering the scale via the AC adapter, the display can be set to power off after a period
of inactivity. Follow this procedure to set the preferred option. Note: When powering the scale
via batteries, the scale will automatically power off after a period of inactivity. See the next
section to set the preferred time of inactivity before power off.
11
Page 12
SET-UP INSTRUCTIONS (CONT)
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Set Options”.
Press to advance to the next menu.
3. While in the “Set Options” sub-menu, select “Auto Off
Seconds”.
4. Press to change the “Auto Off Seconds” option.
Choose from 60, 90, 120, 150 or 180 seconds.
Note: You must press to save your selection.
Setting Date and Time
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Set Clock”.
Press to advance to the next menu.
3. Use and to set the time and date.
Note: You must press to save the information.
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Set Options”.
Press to advance to the next menu.
3. While in the “Set Options” sub-menu, select “Auto Zero on
Power Up”.
4. Press to change the “Auto Zero on Power Up” option.
Choose from Enable or Disable.
Note: You must press to save your selection.
Enter
Help
Enter
Help
Help
Enter
Zero
(Clear)
Setting Auto Off Timer
When powering the scale via batteries or if Auto Off is Enabled for the AC adapter, the period of
inactivity before the scale powers off can be set to a specific amount of time. Follow this procedure
to set the amount of seconds of inactivity before power off.
Setting Auto Zero Option
When a scale is set to zero, it creates a reference point for weights that are placed on it. There are
two approaches to how this can take place. This option allows the user to select whether the scale
will re-set itself to ZERO each time it is powered up or whether it will use the zero reading from the
last time it was zeroed.
“Enable” means the scale will zero itself when it is powered on and this may take a few seconds.
After each use, the scale will clear the weight of the patient and set itself back to the initial ZERO
level it found on start-up. Health o meter® Professional recommends keeping this setting as
Enable. Note: Hitting a key to wake the scale from sleep mode will not prompt the scale to zero.
“Disable” means the scale does not attempt to find a zero when powered on, rather it will use the
last zero setting it had from its most recent use. There will be no delay in using the scale if the
Auto Zero is disabled. Health o meter® Professional recommends that if the Disable option is
selected, users should manually zero the scale before each weight measurement by
pressing . Users will see dashes appear on the screen as the scale is finding zero.
12
Page 13

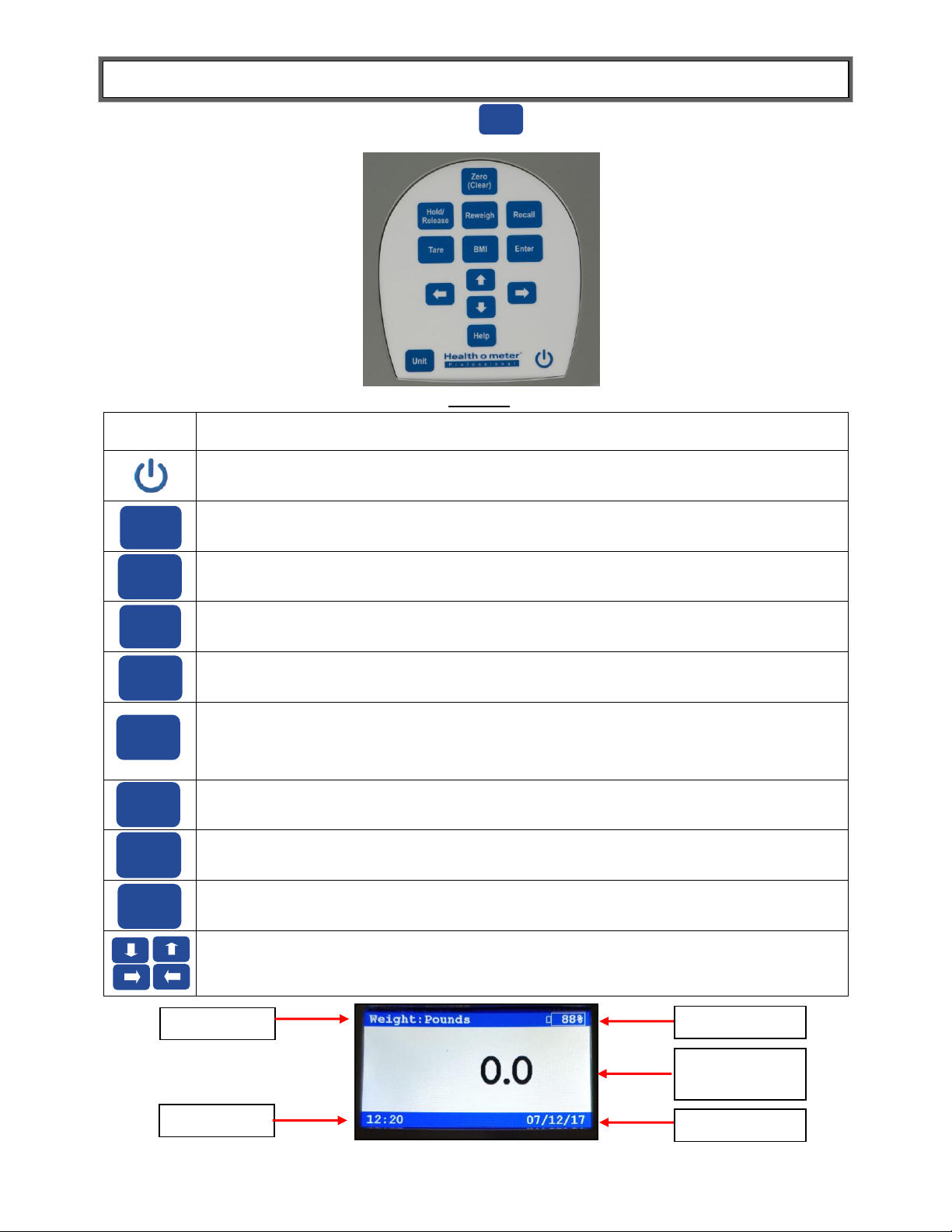

OPERATING INSTRUCTIONS
Function
Description
Powers scale on and off.
Zeroes the scale prior to a weighing. Also used as a screen navigation key to exit a
display menu.
Holds the weight value on the display until the button is pressed again to clear the
value.
Prompts entry of height data to calculate patient’s Body Mass Index (BMI).
Recalls the previous weight.
TARE-Deducts the weight of an object on the platform.
PRETARE-When held for 3 seconds, prompts entry of a weight value to be
deducted from the weight on the platform. Also releases tare weight (returns display
to zero).
Toggles between pounds and kilograms.
Allows repeated weighing of the patient without stepping off the scale.
Used to accept height value in BMI mode, and tare value in PRETARE mode.
Also used to save selections in Set Options menu.
Display navigation keys.
Help
Zero/
(Clear)
Hold/
Release
BMI
Recall
Tare
Unit
Reweigh
Enter
Weight Unit
Time
Battery Power
Date
Weight
Measurement
Key definitions can also be found by pressing and selecting “Key Definitions” in the
submenu.
Keypad
13
Page 14
OPERATING INSTRUCTIONS
1. Wait until “0.0” appears on the display.
2. Place the object to be tared on the scale. The display will
show the object’s weight. The minimum weight that can be
tared is 5 lb / 2.27 kg. Note: The scale must lock onto a weight
before it can be tared.
3. With the object remaining on the scale, press . The scale
will zero, and the word “TARE” will appear at the bottom
center of the display along with the tared weight. Remove the
object from the scale.
4. Place the patient and the object back on the scale. The scale
will automatically deduct the tared weight of the object from
the gross weight of the patient and object together. The
display will show the patient’s weight.
5. With no weight on the scale, the display will show the tare
value as a negative amount. The tare value will remain on the
display until changed, cleared, or until the scale is powered
off.
6. The weight may be held on the display by pressing .
The scale will continue to display the patient’s weight after
they step off the scale and will remain on the display until
released or the scale is powered off. To release, press .
7. To reweigh the patient without removing them from the scale,
press .
8. To see the patient’s weight in another unit of measurement,
press and hold down . If the scale is in LB mode, it will
convert the weight to KG. If the scale is in KG mode, it will
convert the weight to LB. This function is available whether the
unit of measurement is locked or unlocked.
9. To remove the Tare, press . The word “TARE” will
disappear from the bottom of the display, and the tare value
will be cleared from the display. The scale will resume normal
operation.
Tare
Tare
Hold/
Release
Hold/
Release
Reweigh
Unit
Tare Function
When using this scale, the weight of an object, such as a wheelchair, can be subtracted from
the total weight in order to determine the weight of the patient alone. The Tare Function
automatically performs this subtraction. The scale allows a tared weight to be entered manually
by using the keypad, or automatically, as outlined in this section.

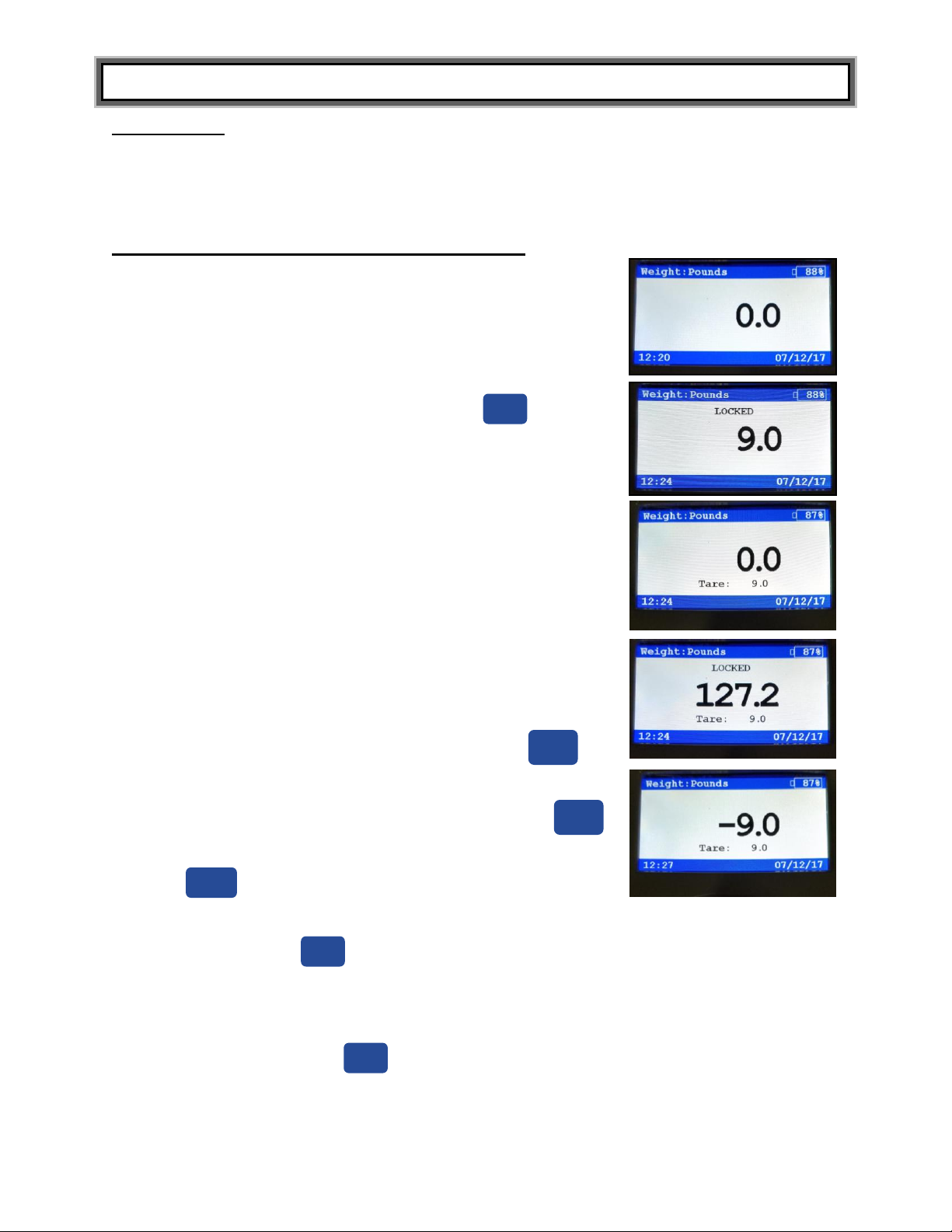

Weighing a Patient and Taring an Unknown Weight
14
Page 15

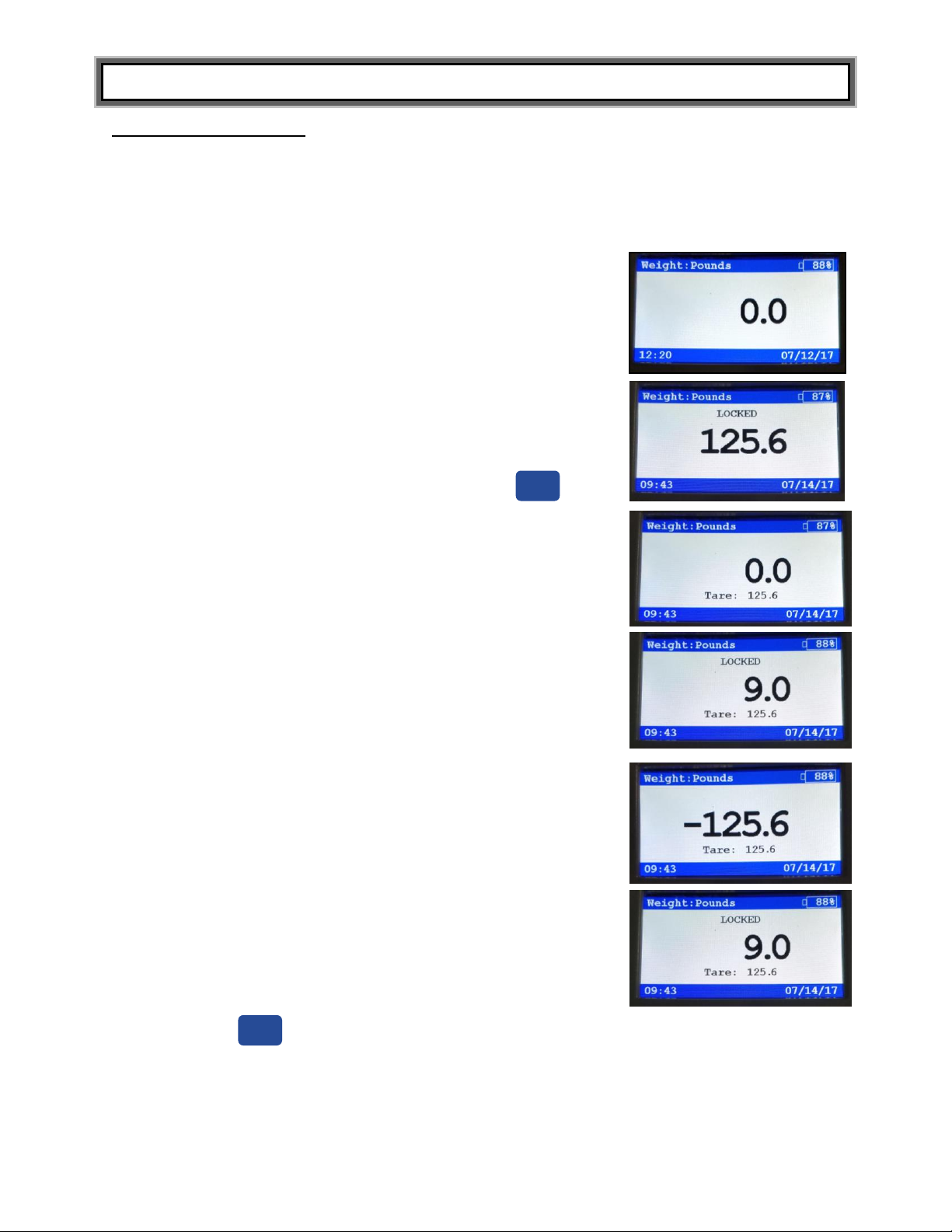

OPERATING INSTRUCTIONS (CONT)
1. Wait until “0.0” appears on the display.
2. Press and hold for approximately 3 seconds. The display
will change and prompt entry of the weight value to be tared.
Use the arrow keys to enter the weight to be tared. Press
to save the tare value.
3. The scale will zero and the tare value will show as a negative
weight on the display. The word “TARE” will also appear at the
bottom center of the display along with the tare value.
4. Place the patient on the scale. The scale will automatically
deduct the tare value from the weight of the patient. The
display will show the patient’s weight.
5. The weight may be held on the display by pressing .
The scale will continue to display the patient’s weight after
they step off the scale and will remain on the display until
released or the scale is powered off. To release, press .
6. To reweigh the patient without removing them from the scale,
press .
7. To see the patient’s weight in another unit of measurement,
press and hold down . . If the scale is in LB mode, it will
convert the weight to KG. If the scale is in KG mode, it will
convert the weight to LB. This function is available whether the
unit of measurement is locked or unlocked.
8. To remove the Tare, press . The word “TARE” will
disappear from the bottom of the display, and the tare value
will be cleared from the display. The scale will resume normal
operation.
Tare
Enter
Tare
Hold/
Release
Hold/
Release
Reweigh
Unit

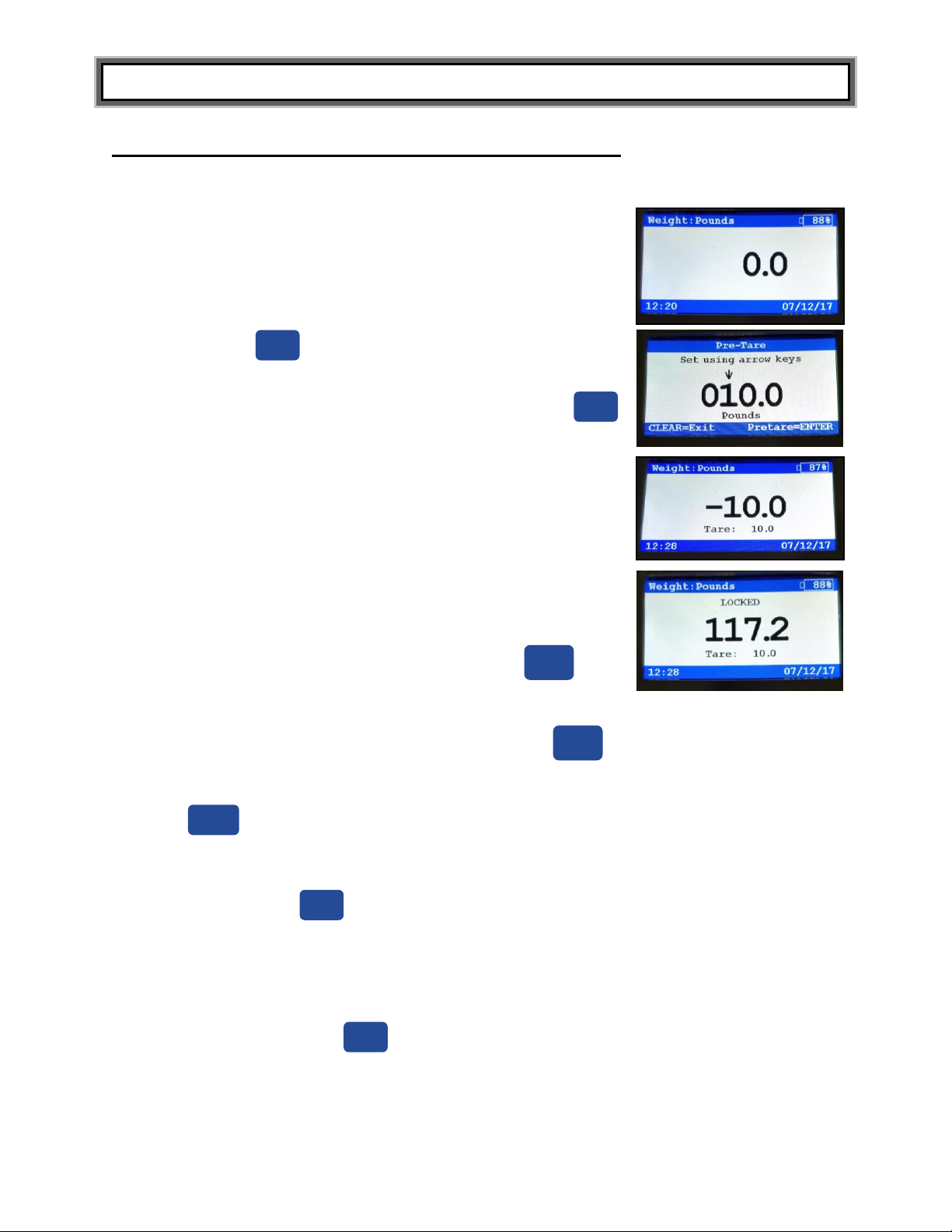

Weighing a Patient and Taring a Known Weight / Pre-Tare
Pre-Tare can be performed within the following weight limits: 0.2 lb - 200 lb / 0.1 kg – 91 kg)
15
Page 16

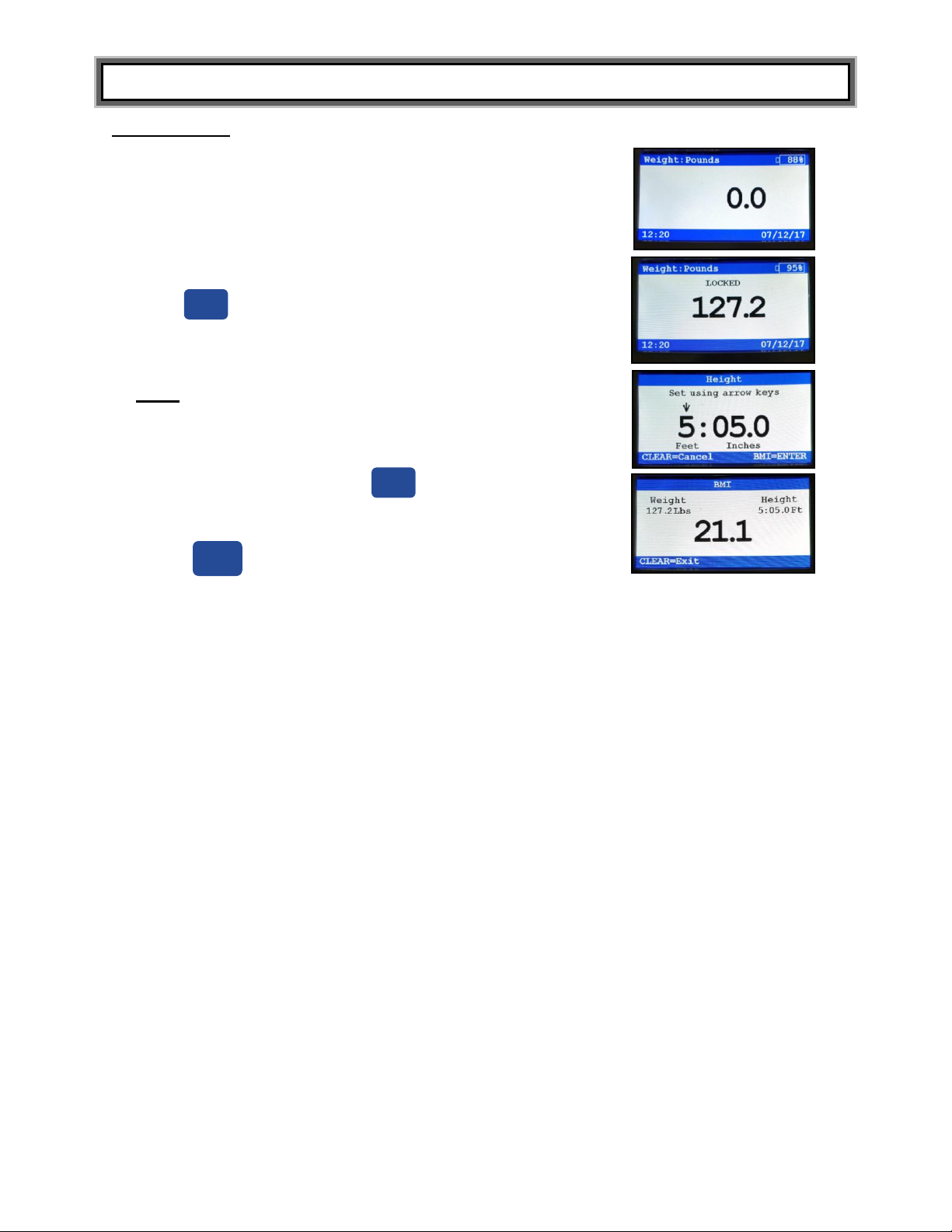

OPERATING INSTRUCTIONS (CONT)

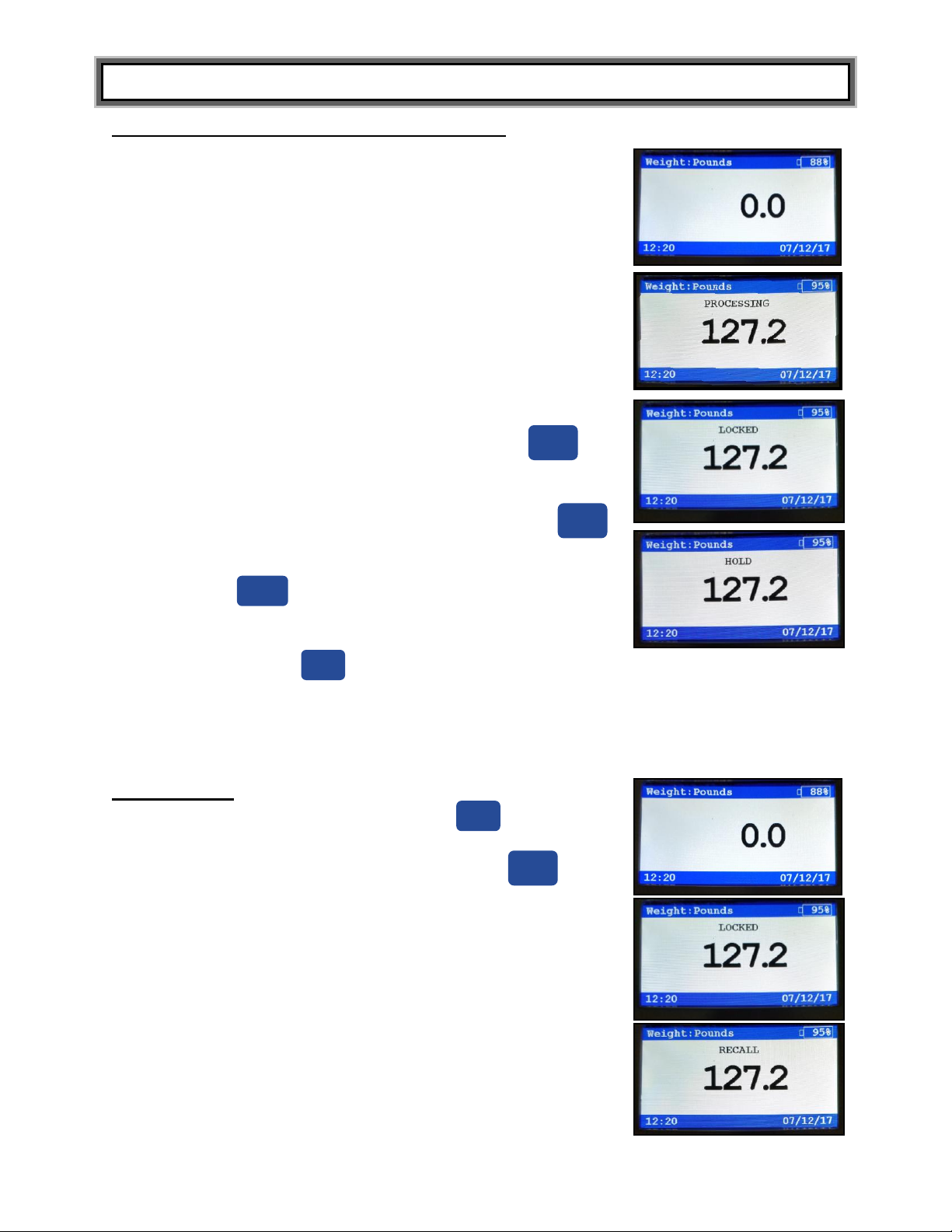

1. Make sure there is nothing on the weighing platform and the
display shows “0.0”.
2. Ask the patient to step on the scale. The scale will begin to
display the patient’s weight and the word “PROCESSING”.
Depending on the movement of the patient on the scale, it
may take several seconds for the scale to lock onto the
weight. The display will show the patient’s weight and the
word “LOCKED” when measuring is completed. Note: The
scale will not lock on a weight less than 5 lb / 2.27 kg.
3. The weight may be held on the display by pressing .
The scale will continue to display the patient’s weight after
they step off the scale and will remain on the display until
released or the scale is powered off. To release, press .
4. To reweigh the patient without having them step off of the
scale, press .
5. To see the patient’s weight in another unit of measurement,
press and hold down . If the scale is in LB mode, it will
convert the weight to KG. If the scale is in KG mode, it will
convert the weight to LB. This function is available whether the
unit of measurement is locked or unlocked.
Weight Recall
1. To recall the last weight measured, press .
2. To clear the display of the recalled weight, press .
Hold/
Release
Hold/
Release
Reweigh
Unit
Recall
Zero
(Clear)
Weighing a Patient Standing on the Platform
16
Page 17
OPERATING INSTRUCTIONS (CONT)
1. Make sure there is nothing on the weighing platform and the
display shows “0.0”.
2. Follow weight measuring procedure. After obtaining the
patient’s weight, and with the patient remaining on the scale,
press .
3. The scale will prompt entry of the patient’s height. Use
the arrow keys to enter the patient’s height.
Note: When weighing in pounds, the height is displayed in
inches. When weighing in kilograms, the height is displayed in
centimeters.
4. Once height is keyed in, press .
5. The display will show the patient’s BMI.
6. Press to return to the normal weighing mode.
BMI
Enter
Zero
(Clear)
BMI Function
17
Page 18
OPERATING INSTRUCTIONS (CONT)
1. Wait until “0.0” appears on the display.
2. Ask the parent to step onto the scale without the child.
The display will show a value for the parent’s weight.
3. With the parent remaining on the scale press . The
scale will zero, and the word “TARE” will appear at the
bottom center of the display along with the parent’s tared
weight.
4. Carefully place the child into the parent’s arms. The scale
will automatically deduct the weight of the parent and
only display the child’s weight.
Note: For an alternate method, after taring the parent’s
weight in step 3, have the parent step off of the scale.
With no weight on the scale, the display will show the
tare value as a negative amount. Have the parent to step
back onto the scale while holding the child. The scale will
automatically deduct the weight of the parent and only
display the child’s weight.
5. The tare value will remain on the display until changed,
cleared, or until the scale is powered off. To remove the
Tare, press . The word “TARE” will disappear from
the bottom of the display, and the tare value will be
cleared from the display. The scale will resume normal
operation.
Tare
Tare
Parent/Child Function
The Parent/Child function on Health o meter® Professional scales provides the
convenience of weighing a small child or infant while being held by a parent. Follow
these simple steps to subtract the parent’s weight from the total so only the child’s
weight is displayed.
18
Page 19
MAINTENANCE
Maintenance
The following pages provide instructions for maintenance, cleaning, calibration, and
troubleshooting for your scale. Maintenance operations other than those described in
this manual should be performed by qualified service personnel.
Caution: Before first use, or after long periods of non-use, check the scale for
proper operation and function. If the scale does not operate correctly, refer to
qualified service personnel.
1. Check the overall appearance of the scale for obvious damage, wear, and tear.
2. Inspect the AC adapter for cord cracking, fraying, and for broken/bent prongs.
Cleaning
Proper care and cleaning is essential to ensure a long life of accurate and effective
weighing.
Caution: Disconnect the scale from the AC adapter power source prior to
cleaning the unit.
1. Clean all external surfaces with a clean damp cloth. Dry with a clean soft cloth.
2. Do not immerse the scale into cleaning or other liquid solutions.
3. Do not use Isopropyl Alcohol or other solutions to clean the display surface.
4. Do not use abrasive cleaners.
19
Page 20

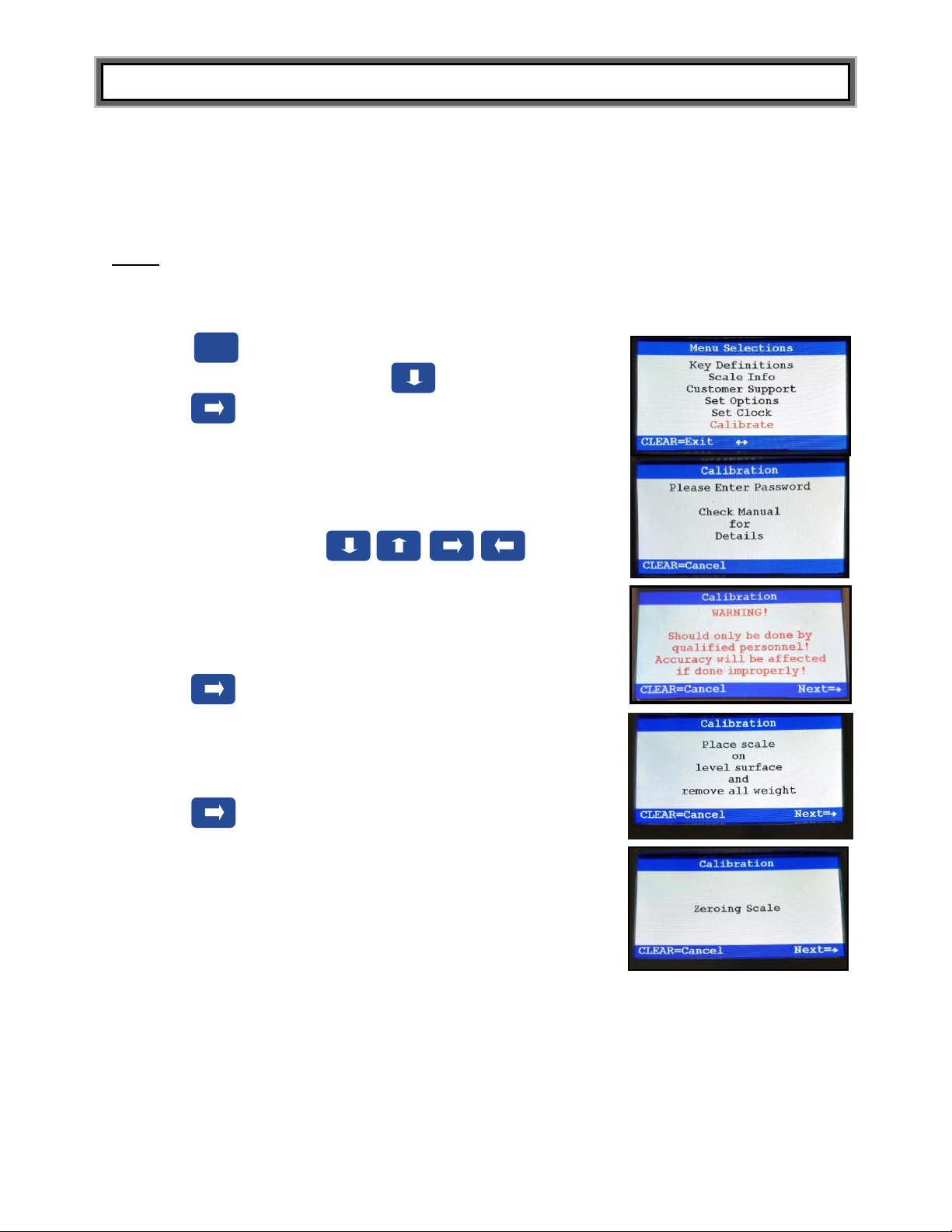

CALIBRATION
1. Press to access the Help menu options.
2. While in the Help menu, press to select “Calibrate”.
Press to advance to the next step.
3. The display will prompt for entry of the password. Press
the following keys in this sequence to proceed with the
calibration procedure.
4. The display will show a warning. If prepared and
qualified to perform the calibration procedure,
press to advance to the next step.
5. Follow the screen prompt and ensure the scale is on a
level surface with no weight on the platform.
Press to advance to the next step.
6. The display will show “Zeroing Scale” as it calculates the
zero value. Do not touch the scale during the zeroing
process.
Help
This scale has been factory calibrated, and does not require calibration prior to use.
Calibration of your scale can be performed using calibrated kilogram (kg) or pound (lb)
weight standards. Minimum calibration is 200 lb / 100 kg. Maximum calibration weight is
1000 lb / 454 kg. The required calibration standard will be the Unit of Measure (UOM)
for which the scale is configured.
Note: Only weights certified and traceable to national standards should be used for
calibration.
Warning: Always ensure that the scale is returned to the correct UOM after scale
calibration.
20
Page 21
CALIBRATION (CONT)
7. When the zeroing process is complete the display will
prompt for entry of the calibration weight. Minimum
calibration is 200 lb / 100 kg. Maximum calibration
weight is 1000 lb / 454 kg. Calibration weight can be
adjusted in 10 lb increments. Press when the
calibration weight is set.
8. The display will prompt for the calibration weights to be
placed on the platform. Press after calibration
weights are placed on the platform.
9. The display will show “Calibrating” during the calibration
process.
10. If calibration is successful, the display will show
“Calibration Complete” with a 4 digit calibration count.
11. If calibration is unsuccessful, the display will show an
error message that the entered calibration weight and
the certified weights do not match. The display will then
revert back to the set calibration weight screen for entry
of calibration weight.
Enter
Enter
21
Page 22
TROUBLESHOOTING
Symptom
Possible Cause
Corrective Action
Scale does not power on
1. Dead battery
2. Faulty electrical outlet
3. Bad power supply
1. Replace batteries
2. Use a different outlet
3. Replace AC adapter
Questionable weight or
the scale does not zero
1. External object interfering
with the scale
1. Remove interfering object
from the scale
2. The display did not show
“0.0” before weighing
2. Remove the patient from the
scale, press to zero the
scale and begin weighing
process again
3. Scale is not placed on a
level floor or feet are not
properly balanced
3. Place the scale on a level
floor. Ensure all 4 feet are
properly balanced. Completely
hand tighten the feet, then turn
them back 1-½ full turns.
4. Scale is out of calibration
4. Check weight with known
weight value
Weighing is performed but
the weighing process takes
too long and the weight
does not lock on the display
The patient is not sitting or
standing still
Ask the patient to stand or sit
still
The battery icon on the
display indicates that the
batteries are low
The batteries are depleted
Replace batteries according to
instructions on page 10
Scale is displaying “Load
Cell Cable Not Detected”
The load cell cable is not
completely plugged into the
ports
Inspect the load cell cable to
ensure it is completely plugged
into the ports on the back of the
display head and the back of
the platform. If cable was
plugged in, unplug and plug in
again until it clicks into place.
In the Help menu, display is
not advancing to the next
screen for the menu
selection and saying “invalid
key”
Correct key is not being
pressed
To make a selection in the Help
Menu and advance the screen,
press
Zero
(Clear)
Troubleshooting
Before contacting service personnel, refer to the following instructions to check and to
correct any failures. For further assistance, contact Health o meter® Professional Scales
Technical Support at 1-800-638-3722.
22
Page 23
WARRANTY
Limited Warranty
What does the Warranty Cover?
These Health o meter® Professional scales are warranted from date of purchase against defects of materials or in
workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and
properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions). If the manufacturer
determines that a defect of material or in workmanship exists, the customer’s sole remedy will be replacement of the
scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is
no longer available, replacement may be made with a similar product of equal or greater value. All replaced parts are
covered only for the original warranty period.
Who is Covered?
The original purchaser of the product must have proof of purchase to receive warranty service. Please save your
invoice or receipt. Pelstar dealers or retail stores selling Pelstar products do not have the right to alter, or modify or
any way change the terms and conditions of this warranty.
What is Excluded?
Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent
use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse
including tampering, damage in transit, or unauthorized repair or alternations. Further, the warranty does not cover
natural disasters, such as fire, flood, hurricanes and tornadoes. This warranty gives you specific legal rights, and you
may also have other rights that vary from country to country, state to state, province to province or jurisdiction to
jurisdiction.
To get Warranty Service make sure you keep your sales receipt or document showing proof of purchase. Call
(+1) 800-638-3722 or (+1) 708-377-0600 to receive a return authorization (RA) number, which must be included on
the return label. Attach your proof of purchase to your defective product along with your name, address, daytime
telephone number and description of the problem. Carefully package the product and send with shipping and
insurance prepaid to:
Pelstar, LLC
Attention R/A#_____________
Return Department
9500 West 55th Street
McCook, IL 60525
Extended Warranty Available
This scale is eligible for Health o meter® Professional ScaleSurance Extended Warranty Program. ScaleSurance
extends the warranty period for an additional two years. This extension to the standard Limited Warranty can be
purchased with new scales or for a facility’s existing scale before its current warranty has expired. To learn more, visit
www.homscales.com/scalesurance/ or contact your medical supply distributor.
PELSTAR, LLC
9500 West 55th Street • McCook, IL 60525 • USA
1-800-638-3722 or 1-708-377-0600
PLEASE REGISTER YOUR SCALE FOR WARRANTY COVERAGE AT: www.homscales.com
Health o meter® is a registered trademark of Sunbeam Products, Inc. used under license.
Health o meter® Professional products are manufactured, designed, and owned by Pelstar, LLC.
We reserve the right to improve, enhance, or modify Health o meter® Professional product features or specifications
without notice.
© Pelstar, LLC 2017
P/N UM2600KL / 2610KL E Rev 20171108
23
Loading...
