(English Version)
FROM SERIAL NO:
415A001001 HANDBOOK: 415021 (Rev.1.)
Issue : 10.05.04
OWNER'S HANDBOOK
Ranger 41 Push
CODE
415A
1.2
Code 415A
Engine Briggs & Stratton Quantum XTS 50
Engine type 12F802-1325-01
Engine/Cutterbar speed 3000 rpm
Fuel type Unleaded petrol
Fuel capacity 1.5 litres
Oil type SAE 30 engine oil
Oil sump capacity 0.6 litres
Cutting width 410mm
Cutting height 18 - 68mm
Overall dimensions 1050 x 446 x 1375mm
Dry Weight 34 Kg
1 Air Cleaner
2 Fuel Filler Cap
3 Oil Filler Cap and Dipstick
4 Handlebar Securing Knob
5 Engine Start-Grip
6 Throttle Control.
7 Engine Stop lever.
8 Handlebar
9 Grassbag Assembly
10 Height of Cut Adjuster
11 Serial No. Label
12 Exhaust Guard
13 Rear Deflector
14 Spark Plug Lead
Specifications
Main Features
MAIN FEATURES /SPECIFICATIONS
1
8
7
6
5
4
11
2
14
3
H
A
R
R
41
I
E
BRIGGS & STRA
R
TT
ON
12
13
9
10
1C415A05
1ST Year (12 months)
We certify that this service has been
carried out by an Authorised Hayter
Service Dealer
Date:
1ST Year (12 months)
Owner’s Name:
Serial Number:
Date:
2nd Year (24 months)
We certify that this service has been
carried out by an Authorised Hayter
Service Dealer
Date:
Owner’s Name:
Serial Number:
Date:
Note for dealer: Please retain this voucher for your records.
Note for dealer: Please retain this voucher for your records.
2nd Year (24 months)
1.20 Maintenance Schedule
1.21 - 1.27 Mower Maintenance
1.21 - Engine
1.21 - Throttle Cable Adjustment
1.21 - Carburettor Adjustments
1.22 - Oil Service

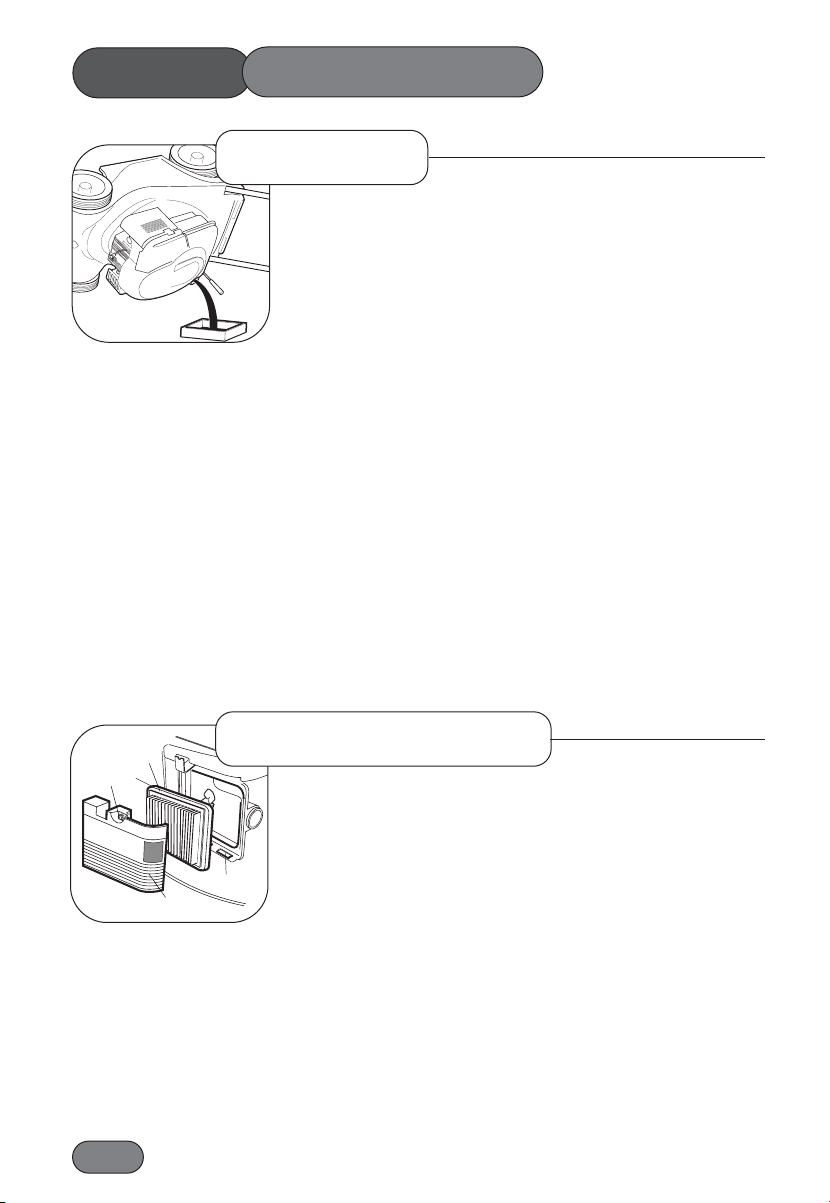

1.22 - Air Cleaner Service
1.23 - Spark Plug Service
1.23 - Keeping Engine Clean
1.23 - Grassbag
1.24 - Deck Housing
1.24 - Securing Nuts and Bolts
1.25 - Lubrication
1.25 - Cutterblade Removal
1.26 - Cutterblade Assembly
1.26 - Cutterblade Sharpening
1.27 - Storage
1.28 - 1.29 Trouble Shooting
1.30 Declaration of Conformity
1.31 - 1.32 Parts List

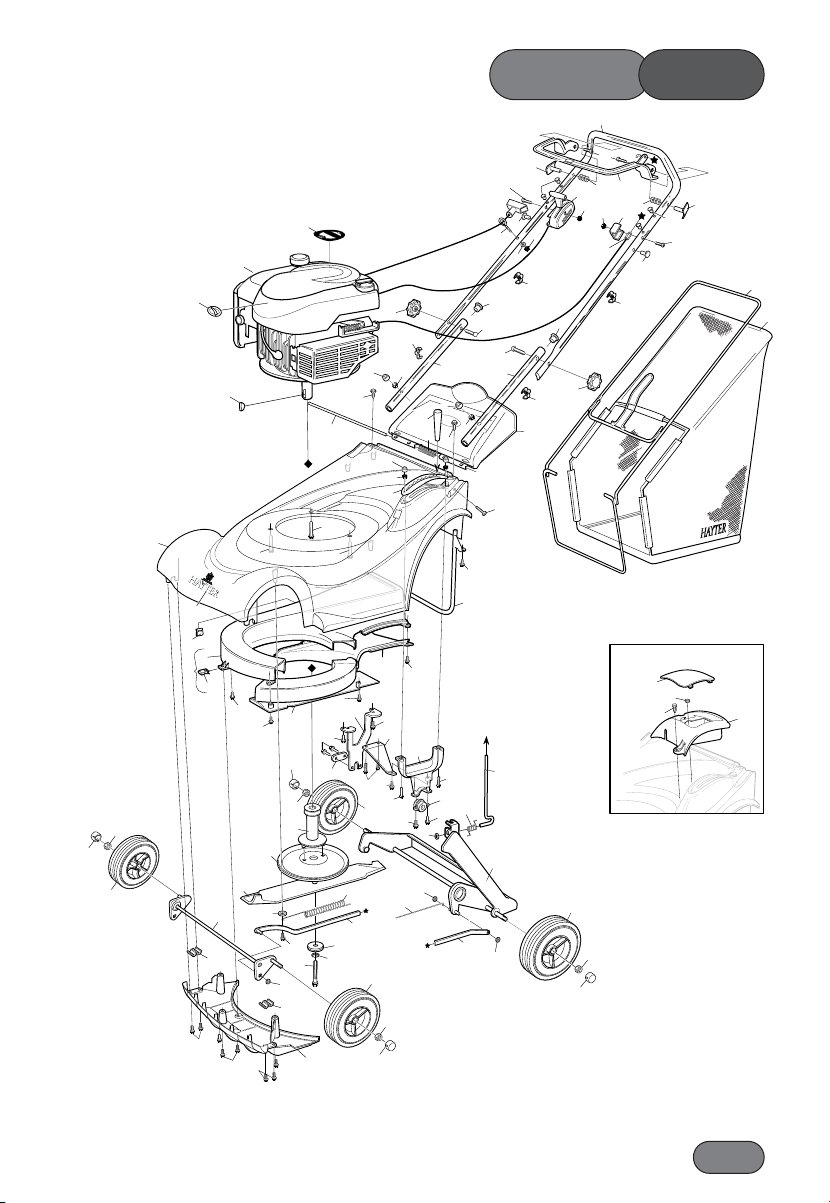

1.33 Parts list Diagram
1.34 - 1.35 Notes
1.36 Customer Info
1.2 Main Features/Specifications
1.5 Contents
1.6 Introduction
1.7 Warranty
1.8 - 1.11 Safety Precautions
1.11 Safety Symbols
1.11 Decal Symbols
1.12 Assembling the Mower
1.12 - Delivery Checklist
1.12 - Handlebar
1.12 - Grassbag Attachment
1.13 Before Starting the Engine
1.13 - Prevent Engine Damage
1.13 - Oil Type
1.13 - Check Oil Level
1.13 - Fuel Type
1.14 - 1.17 Operating The Mower
1.14 - Controls
1.14 - Starting Step 1
1.14 - Step 2
1.14 - Step 3
1.15 - Turning
1.15 - Stopping
1.15 - Slopes
1.15 - Height of Cut
1.16 - Before Mowing
1.16 - Grassbag
1.16 - Without Grass Collection
1.16 - Heavy Growth
1.17 - Friction Disc
1.17 - Non-Grassed Areas
1.18 - 1.19 - Lawn Care Calendar - Guide Only
CONTENTS
1.5
INTRODUCTION
1.6
Thank you for purchasing a Hayter mower. The following pages are designed to help you gain
safe and efficient service from your mower.
IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives
essential information regarding mower safety, operation, maintenance and specifications. Read
and understand this handbook prior to operating your mower for the first time. Make sure you
are familiar with all the controls and points of regular maintenance. If you have any doubts,
consult your local Hayter authorised dealer who will be pleased to give you assistance.
IMPORTANT: This mower is designed solely for use in a domestic grass cutting
environment. Use in any other way is considered as contrary to the intended use. Compliance
with and strict adherence to the conditions of operation, service and repair as specified in this
handbook also constitute essential elements of the intended use.
This mower should be operated, serviced and repaired only by persons who are familiar with
its particular characteristics and who are acquainted with the relevant safety procedures.
The safety precautions listed in this handbook and all other generally recognised regulations on
safety must be observed at all times.
Any arbitrary modifications carried out to this machine may relieve Hayter Limited of
liability for any resulting damage or injury.
Hayter mowers are robustly constructed and designed for efficient economical
performance under normal mowing conditions. Correct operation and maintenance will ensure
a long and satisfactory service life. Prior to despatch from our factory every effort is made to
ensure that your mower is delivered in perfect condition.
Throughout this handbook all references to left and right are as viewed from behind the handlebar, in the direction of forward travel.
This handbook is based on information available at the time of publication.
HAYTER LIMITED reserve the right to amend product specifications without prior notification.
WARRANTY
1.7
LIMITED WARRANTY
Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects
in material and workmanship under normal use and service for a period of three years from the
date of purchase. The manufacturer of major proprietry components ie. engines, gearbox /
transaxle (where applicable) furnish their own warranty and services are provided through their
authorised network. To qualify for the full benefit of the warranty, the warranty registration card
must be returned within 14 days of purchase. Subject to the conditions and exclusions noted in
this limited warranty, we shall at our option, repair or replace any warranted part during the
applicable period. If you are in doubt or experience any difficulty, please consult a Hayter
Authorised Service Dealer for clarification.
To qualify for the extended warranty (second and third year) of the three year limited warranty
the machine must have annual services carried out by an Authorised Hayter Service Dealer.
These chargeable services should be carried out within 12 and 24 months of the date of purchase.
Excluded from the extended warranty period are those items which are subject to normal wear
and tear e.g. tyres, wheels, cutterblades, belts, cables, grassbags, brush/bristles, batteries and
other consumable wearing parts.
All consumer machines which are fitted with a genuine Hayter friction disc as original
equipment before use, are covered by a Lifetime Warranty against the engine crankshaft
bending. Note: friction washers, blade brake clutch (B.B.C) units and other such devices are not
applicable. Only machines fitted with a genuine Hayter friction disc, which are used in
accordance with the recommended operating and maintenance procedures, are covered.
This warranty does not apply to any unit that has been tampered with, altered, misused, abused or
used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does
not cover minor mechanical adjustments unless they are due to defective material or
workmanship. Consult the Owner's Handbook or a Hayter Authorised Service Dealer for
assistance when making these adjustments.
A warranty period of 90 days applies to machines used for commercial purposes.
To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of
purchase stating the machine serial number and date of purchase. The service receipt(s) or this
Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as
proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in
this limited warranty, the authorised dealer will, at our option, repair or replace any warranted
part within the duration of the warranty period.
This limited warranty gives you specific legal rights and is in addition to any statutory rights to
which you may be entitled and your statutory rights are not affected by this warranty. If you need
additional information concerning this written warranty, or assistance in obtaining services,
please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop's Stortford,
Hertfordshire CM23 4BU
UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages and
the Hayter website www.hayter.co.uk or contact contact:- Freephone 0800 616298.
Issue: 12.08.03
SAFETY PRECAUTIONS
1.8
This safety alert symbol indicates important safety messages. When
you see this symbol be alert to the possibility of injury. Carefully read
the following and inform others.
Your mower is perfectly safe if used correctly. Failure to observe the
following precautions may result in serious injury.
Before using the mower read the owners handbook carefully. Pay particular attention to the safety precautions. Ensure that you are familiar
with the controls and the proper use of the equipment. Learn how to
stop the mower quickly in an emergency.
Never allow children or people unfamiliar with these instructions to
use the mower.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the user is responsible for accidents or hazards
occurring to other people or their property.
While mowing, always wear substantial footwear and long trousers.
Do not operate the equipment when barefoot or wearing sandals.
Thoroughly inspect the area where the mower is to be used and remove
all objects which may be thrown by the machine.
WARNING: Petrol is highly flammable.
- Store fuel in containers specifically designed for this purpose.
- Add fuel before starting the engine. Never remove the cap from the
fuel tank or add petrol while the engine is running or when the engine
is hot. Allow the engine to cool for at least two minutes before refuelling.
- Do not attempt to start the engine if petrol is spilled or a smell of
petrol is present. Move the mower away from the area of spillage
and avoid creating any source of ignition until petrol vapours have
dissipated.
Safety Alert Symbol
Preparation
Training
PRECAUTIONSSAFETY
1.9
- Always use fresh fuel. Stale fuel can block the carburettor and cause
leakage.
- Replace fuel tank and oil tank caps securely.
A damaged cutterblade or loose fixing bolt are major hazards. Before
use, always visually inspect the cutting mechanism to ensure that it is
in good condition. A damaged cutterblade must be replaced immediately with a genuine Hayter replacement part
Do not operate the engine in a confined space where exhaust fumes
(carbon monoxide) can collect. Refuel outdoors only and do not smoke
while refuelling.
Always pull the starter cord slowly until resistance is felt. Then pull
the cord rapidly to avoid kickback and prevent hand or arm injury.
Mow only in daylight or good artificial light.
Avoid using the mower on wet grass, where feasible.
Always be sure of your footing on slopes.
Walk, never run.
Mow across the face of slopes, never up and down.
Exercise extreme caution when changing direction on slopes.
Do not mow excessively steep slopes of more than 20 degrees.
Use extreme caution when reversing or pulling the mower towards you.
Stop the engine before moving the mower across areas other than grass.
Never operate the mower unless the guards are securely in position and
in good condition.
Do not change the engine governor settings or overspeed the engine.
Start the engine carefully, with feet well away from the cutterblade.
Operation
Preparation
Do not tilt the mower when starting the engine.
Do not put hands or feet near or under rotating parts.
Never pick up or carry the mower while the engine is running.
Never lift the rear deflector while the engine is running.
Never touch the exhaust/exhaust guard or cooling fins when the engine
is hot.
Stop the engine and disconnect the spark plug lead:
- Before clearing blockages or unclogging the discharge chute.
- Before cleaning/checking or working on the mower.
- After striking a foreign object. Inspect the mower for damage and
ensure necessary repairs are made before re-starting.
- If the mower starts to vibrate abnormally (check immediately).
Stop the engine:
- Whenever you leave the mower.
- Before refuelling.
- Reduce throttle control setting during engine shutdown.
Keep all nuts, bolts and screws tight to ensure that the equipment is in
safe operating condition.
Frequently check fuel lines and fittings for cracks or leaks and replace
if necessary.
Never check for a spark when the spark plug is removed. (Use approved
tester)
Inspect the exhaust periodically and replace if worn or leaking.
Never crank the engine with the spark plug removed.
Never start the engine with the air-cleaner or air-cleaner cover
removed.
Never store the mower with petrol in the tank within an enclosed area
where fumes may reach an open flame or spark.
SAFETY PRECAUTIONS
1.10
Operation
Maintenance & Storage
SAFETY PRECAUTIONS
1.11
Allow the engine to cool before storing in any enclosure. To reduce the
fire hazard, keep the engine and the surrounding deck area free of
grass, leaves, or excessive grease.
Check the rear deflector and grassbag frequently for wear or deterioration.
Replace worn or damaged parts for safety.
If the fuel tank has to be drained, this should be done outdoors and
when the engine is cool.
Wear strong work gloves when removing and reassembling the cutterblade.
Always replace worn or faulty parts with genuine Hayter parts.
Maintenance & Storage
Safety Symbols
Safety Alert - Be aware to the
possibility of injury.
Danger of severing toes or fingers in cutting mechanism.
Carefully read the Owners
Handbook before using the
machine.
Danger of being hit by thrown
objects.
Stop engine and remove spark
plug lead before working on
the mower.
Keep bystanders at a safe distance from the mower.
Engine Stop
(Symbol)
Height of Cut Adjustment
(Symbol)
Throttle Control
(Symbols)
Control Symbols
STOP
305113
CS198
Slow Fast
Choke
ASSEMBLING THE MOWER
1.12
Remove the mower from the packaging and check that the following
items have been supplied correctly. If any items are missing contact,
your local Hayter dealer.
1. Engine Handbook.
To prevent accidents cut off the long ribbon attached to the grassbag and discard.
Unscrew the handlebar securing knobs sufficiently to allow the handlebar to pivot. Hold the engine stop lever in towards the handlebar and
unfold the handlebar to the operating position, before releasing. Tighten
both handlebar knobs to secure in position.
Take care to ensure that the control cables do not become snagged at
the pivot point.
Raise the rear deflector, lower the grassbag through the handlebar and
hook in position. Lower the deflector to rest on the grassbag
BR
IGG
S &
ST
R
ATT
ON
H
A
R
R
I
E
R
41
1C415A01
Handlebar
Delivery Checklist
Grassbag Attachment
MOWERTHESTARTING
1.13
To prevent engine damage the engine is shipped without oil or
petrol. The engine must be filled with the correct grade of oil and
petrol before starting the engine.
Always use high quality detergent oil classified SAE 30 oil. Never use
additives with recommended oil.
To prolong the life of your engine it is important that the oil is changed
after the first 5 hours of use - refer to ‘Maintenance Schedule’.
Clean around the oil filler cap before removing. With the mower on a
level surface, unscrew and remove the oil filler - dipstick. Wipe oil
from it with a clean cloth. Screw the oil filler - dipstick back in place,
then unscrew and remove it to check the oil level.
The oil level is correct when it is at the full mark on the dipstick.
DO NOT OVERFILL.
Always use clean, fresh unleaded petrol. Purchase fuel in quantities
that can be used within 30 days. Never mix oil with petrol. For added
engine protection Briggs & Stratton recommend the use of their fuel
additive which is available from an authorised Briggs & Stratton service dealer.
Fill to base of neck to allow for fuel expansion. Do not overfill the
fuel tank.
Prevent Engine Damage
O
I
L
ADD
FULL
0.15
Litres
Oil Type
Check Oil Level
Fuel Type
BEFORE
Controls
Check that the engine stop lever returns freely to its rest position when
released.
Whilst operating the engine throttle mechanism slight resistance
should be felt when moving the lever to the ‘choke’ position.
Move the throttle control lever to the ‘choke’ position before starting
a cold engine. Move the throttle control lever to the ‘fast’ position
before starting a warm engine.
Stand behind the mower and hold the handlebar together with the
engine stop lever with your left hand. With your right hand hold the
engine start - grip and pull slowly until resistance is felt, then pull
rapidly to crank the engine. carefully return the start grip to the storage
position when the engine starts.
If the engine does not start after 5 attempts - refer to “Trouble
Shooting”.
The engine stop lever must be held firmly against the handlebar to
start and keep the engine running. If the engine stop lever is
released the engine will stop.
Allow the engine to warm up and move the throttle lever to the ‘fast’
position after starting a cold engine.
To prevent damage never pull the engine start grip when the
engine is running.
Starting - Step 1
OPERATING THE MOWER
1.14
Step 2
Step 3
MOWERTHEOPERATING
1.15
To turn steer the mower with the handlebar in the direction required.
To make a tight turn, apply downward pressure on the handlebar to
raise the front wheels just above ground level and steer in the required
direction.
To prevent accidents do not raise the front of the mower excessively when making a turn. Never raise the rear of the mower
when the engine is running.
Release the engine stop lever.
Emergency stop: If the engine fails to stop, move the throttle lever
to the ‘slow’ position and disconnect the spark plug lead.
To prevent engine damage do not use the mower on slopes greater
than 20 degrees.
Move the height of cut lever sideways to disengage it from the locking
notch, then push forwards to lower or pull backwards to raise the height
of cut. Release the lever in the required position and ensure that it locks
firmly into one of the seven notch settings.
Always select a height of cut to suit operating conditions. Prevent
engine overloading and blockages by avoiding low cuts in long grass
conditions. Be prepared to make two cuts when the grass is long.
Turning
Stopping
STOP
Height of Cut
305113
Slopes
1.16
To prevent accidents thoroughly inspect the area and remove all
objects which when contacted by the mower cutterblade could
become dangerous projectiles. Inspect the area for hidden obstructions which when contacted by the cutterblade could risk health
and safety. Remember the location of these obstructions and
ensure that you mow around them.
Raise the rear deflector and lift the grassbag through the handlebar and
lower the rear deflector to rest against the rear of the mower.
To empty the grassbag, pour out the grass clippings and shake the
grassbag vigorously to clean the airways. Good grass collection
depends on good air flow through the grassbag. When collecting grass
clippings it is important that the grassbag is emptied regularly to prevent blockages and engine overloading.
Remove the grassbag and operate the mower with the rear deflector in
the closed position.
Areas of heavy growth should be mown without collecting the clippings. If collection is required, first mow the area without the grassbag at the maximum height of cut setting. Allow the grass clippings to
dry out and then mow the area at the maximum height of cut setting
with the grassbag fitted. Reduce the height of cut and mow the area
again as necessary until the required finish is obtained.
To prevent grass damage do not remove more than one third of grass
height in one cut.
Before Mowing
Grassbag
OPERATING THE MOWER
Heavy Growth
305113
Without Grass Collection
1.17

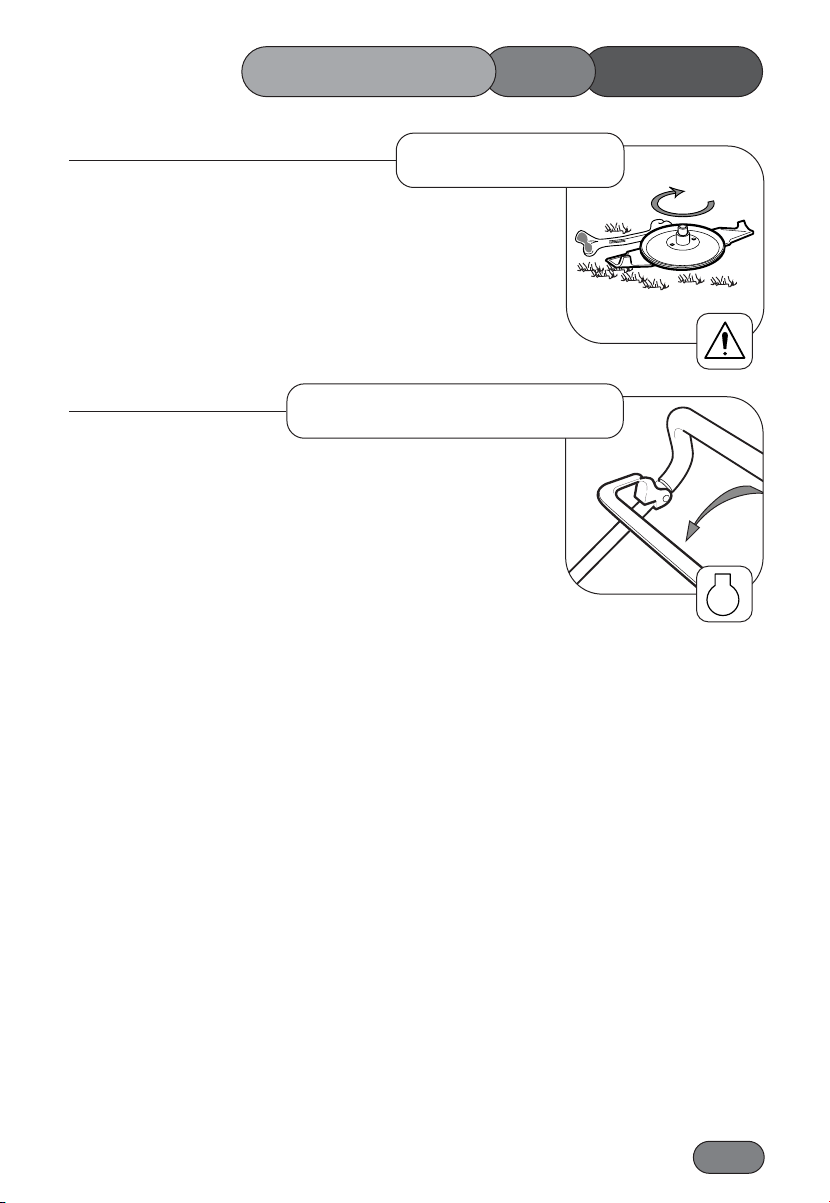

The cutterblade is driven by the engine via a friction disc to help prevent damage occurring to the engine crankshaft and cutting mechanism when a hidden obstruction or overload is encountered.
Always stop the engine when a hidden obstruction or excessive vibration is encountered. Disconnect the spark plug lead and examine the
cutting mechanism. ALWAYS replace a damaged cutterblade - refer to
“Maintenance”.
When moving the mower across non-grassed areas, stop the engine
and set the mower to the maximum height of cut to protect the cutting
mechanism.
Friction Disc
Non-Grassed Areas
STOP
MOWERTHEOPERATING
1.18
There is very little work to do this month apart from brushing away
leaves. Keep off the grass if frozen or waterlogged.
Rake the grass thoroughly. Spike the lawn to aerate and stimulate soil
organisms and root growth and apply lawn sand if necessary.
The yearly lawn work programme really starts this month. As soon as
the ground conditions are suitable, the first cut can be made. The first
cut should merely “top” the grass as close cutting at this stage could
result in severe yellowing or browning. Two cuts are generally sufficient this month.
Mow often enough to stop grass growing away. Dig out patches of
coarse grass or resistant weed. Re-seed bare patches.
Keep mowing increasing the frequency as required. Treat with selective weed killers or combined weed/feed preparations if you did not
feed the lawn in April.
Summer mowing should now be under way. It should be necessary to
mow the lawn twice a week. Raking before mowing is important this
month as the combined action keeps runners of clover under control.
Water the grass if necessary, and remember to soak thoroughly.
Treat the grass with the second application of fertiliser or weed
killer/fertiliser. Water when necessary and rake occasionally. As a general rule the grass clippings should be removed each time you mow. If
weather conditions are dry and hot and the grass is weed free, leave the
clippings on the lawn to help maintain ground moisture.
January
LAWN CARE CALENDAR
February
March
April
May
June
July
To be used as a guide only.
1.19
Keep mowing regularly and watering as necessary. Fill any cracks
caused by drought with a mixture of sharp sand and soil. In dry weather conditions leave the grass longer to help retain ground moisture.
Raise the height of cut to allow the grass to thicken and protect the
roots from the winter frost and snow.
Rake out the thatch from the turf and spike the lawn to assist in
drainage. Brush in peat and sharp sand.
Use a stiff broom to disperse worm casts before mowing. Keep turf
free from leaves.
Apart from brushing away leaves, December is a slack end of a busy
year. Keep off the lawn if it is very wet or frozen.
To prevent grass damage do not remove more than one third of the
grass height in one cut.
CALENDAR
August
LAWN CARE
September
October
November
December
1.20
To prevent accidents stop the engine disconnect the spark plug
lead before attempting to carry out maintenance procedures on
the mower.
After the very first five hours change the engine oil.
Follow the hourly or calendar intervals, whichever occurs first. More
frequent service will be required if working for prolonged periods
under dusty, dry conditions, or when airborne debris is present or after
extensive operation cutting tall, dry grass.
Check the oil level
Remove grass debris from around the engine, exhaust/exhaust guard and
air ways in the top cowl and underside of the deck housing.
Remove grass debris from the grassbag and check for signs of damage.
Check the condition of guards and safety devices.
Check condition of cutterblade.
Change the engine oil if continuously operating under heavy load or
high ambient temperature.
Service the air cleaner.
Lubricate wheels, pivot points and linkages and grease the inner control cables at point of entry and exit from their outer casing.
Sharpen the cutterblade.
Change the engine oil.
.
MAINTENANCE SCHEDULE
25Hrs or Every Season
Daily
50Hrs or Every Season
2
1
Throttle Cable Adjustment
1.21
Clean the engine cooling system. Clean more often under dusty conditions or when airborne debris is present or after prolonged operation
whilst cutting tall, dry grass.
Replace the spark plug
1. Air Filter
2. Fuel Cap
3. Start Grip
4. Oil Cap/ Dipstick
5. Exhaust Guard
6. Spark Plug / Lead
Loosen casing clamp screw (1) and move the governor lever (2)
in the direction of screw (1) as far as posible. Move the throttle
control to the choke position. Tighten casing clamp screw.
Should only be made by an authorised Briggs & Stratton dealer. Under
no circumstances should the engine be adjusted to run at a speed in
excess of that shown on the Declaration of Conformity.
MOWER
1
2
3
BRIG
G
S & S
T
RAT
TON
H
A
R
R
I
E
R
41
6
5
4
Engine
Carburettor Adjustments
MAINTENANCE
100Hrs or Every Season
1.22
Check the oil level daily before starting the engine and ensure that the
correct oil level is maintained. Refer to-‘Before Starting the Mower’
for oil checking and filling instructions.
Change the engine oil after the first 5 hours of operation and thereafter
according to the ‘Maintenance Schedule’:-
1. Drain fuel by running the engine until the fuel tank is empty.
2. Remove the spark plug lead.
3. Allow the engine to cool.
4. Drain the oil while the engine is warm.(Not hot)
5. Tip the mower over on to its left hand side thus ensuring that
the air cleaner is kept uppermost to prevent engine damage.
6. Remove the oil filler dipstick and drain the oil into a suitable
container.
7. Refill with new oil of the recommended SAE viscosity grade.
(Refer to-‘Before Starting the Mower’)
To service the air cleaner, loosen screw (1) and remove cover (2).
Remove cartridge (3) and clean by tapping gently on a flat surface. If
very dirty, replace.
- Do not use petroleum solvents.
- Do not use pressurised air.
- Do not oil the cartridge.
After servicing, install the cartridge into the cover. Insert the tabs on
the bottom of the cover into the slots in the bottom of the base (4). Tilt
the cover upwards and securely tighten the screw to the base.
MOWER
1
2
3
4
Oil Service
Air Cleaner Service
MAINTENANCE
1.23
BRIGGS & STRA
TT
O
N
H
A
R
R
I
E
R
41
Use only Briggs & Stratton spark tester (1) to check for a spark as
shown in the diagram.
Replace the spark plug every 100 hours or every season, whichever
occurs first. A spark plug wrench is available from any authorised
Briggs & Stratton service dealer.
Check the spark plug gap with a feeler gauge and set at 0.76mm.
Remove all grass and debris from the engine including the
exhaust/exhaust guard, the air ways in the top cowl and the surrounding deck areas on a daily basis after use. Never spray the engine with
water during cleaning. Water can contaminate the fuel. Always clean
with a brush or compressed air.
Grass and debris may clog the engine’s air cooling system especially
after prolonged operation while cutting tall, dry grass. The internal cooling fins and surfaces may require cleaning to prevent overheating and
engine damage. We recommended that this service be carried out by an
authorised Briggs and Stratton dealer.
Remove grass debris from the grassbag immediately after use and
check its condition for signs of damage.
To prevent accidents replace a damaged grassbag immediately.
1
Spark Plug Service
Keeping Engine Clean
Grassbag
MOWER MAINTENANCE
1.24
Remove grass debris from the top and underside of the deck housing
immediately after use.
Fertilisers and top dressings are particularly corrosive.
Thoroughly clean the mower deck immediately after use on treated grass and store well away from corrosive materials.
Regularly check that all securing nuts and bolts are tight. Replace
missing or damaged items immediately.
Lubricate the wheels, pivot points and linkages with engine oil every 25
operating hours.
Apply a good quality medium grease to the inner control cables at the
point of entry and exit from their outer casing.
1CG480V36B
Securing Nuts & Bolts
Deck Housing
MOWER
MAINTENANCE
Lubrication
1.25
Drain the fuel by running the engine until the fuel tank is empty and
the engine stops. Remove the spark plug lead and allow the engine
to cool. Turn the mower on its left hand side and ensure that the air
cleaner side of the engine is uppermost.
Firmly grip the end of the cutterblade with the gloved hand and
remove the bolt, spring washer and distance piece securing the cutterblade with a 9/16” A/F spanner.
To prevent accidents never work on the cutterblade unless the
spark plug lead has been removed. The cutterblade has sharp
edges. ALWAYS wear strong gloves to protect your hands when
working on the cutterblade. DO NOT rotate tools towards the cutting edges to avoid the risk of injury should the tool slip. ALWAYS
use genuine Hayter replacement parts.
The condition of the cutterblade and its mounting arrangement should
be checked regularly for signs of wear or damage. Ensure that the cutterblade is not bent or cracked.
A damaged cutterblade that is out of balance will vibrate excessively
and may break. DO NOT use an unbalanced cutterblade.
Regularly check that the bolt securing the cutterblade is tightened to
the specified torque of 54Nm.
Replace the cutterblade every 2 years of sooner if excessively worn or
damaged.
To prevent injury it is wise to seek assistance when turning the mower
on its side.
1CG4
Cutterblade Removal
MOWER MAINTENANCE
1.26
Assemble the cutterblade with the turned up edges facing towards the
engine. Secure the cutterblade using the bolt (1), spring washer (2), and
distance piece (3) and tighten to a torque of 54Nm
A slightly worn cutterblade may be re-sharpened. Both blade edges
must be sharpened equally to ensure balance. Sharpen the cutterblade
every 25 mowing hours or more frequently if conditions require.
Remove the cutterblade from the mower and clean using a brush and
water. Inspect the cutterblade for signs of damage.
Sharpen both cutting edges with a flat file to restore performance.
Ensure that the cutterblade is balanced. Use a screw driver with a
round shaft to support the cutterblade through its centre hole. Hold the
cutterblade horizontal and then release. A balanced cutterblade will
remain horizontal.
If the cutterblade is not balanced the heavy end will rotate downwards.
Sharpen the heavy end until the cutterblade is correctly balanced.
MOWER
MAINTENANCE
30°-45°
Cutterblade Sharpening
1
2
3
Cutterblade Assembly
1.27
B
RI
GGS
& STR
AT
TON
H
A
R
R
I
E
R
4
1
Storage
To store the handlebar unscrew the 2 small securing knobs sufficiently to allow it to be pivoted forwards to rest against the mower. Take
care to ensure that the control cables do not become snagged at the
pivot point and depress the engine stop lever to prevent it being damaged through contact with the engine spark plug.
Engines stored in excess of 30 days need to be protected with Briggs &
Stratton fuel additive or drained of fuel to prevent gum from forming in
the fuel system or on essential carburettor parts. To ensure your mower
is maintained in good working order it is important that the following
procedure is adopted. Refer to the Maintenance section as necessary.
Drain fuel from the engine by operating the engine until it stops.
Disconnect the spark plug lead.
Change the engine oil.
Remove the engine spark plug and pour 15ml of engine oil into the
engine cylinder and replace the spark plug. Do not exceed the stated
volume of oil as engine damage may occur on re-starting. Do not
replace the spark plug lead. Slowly pull the engine start - grip once
to crank the engine. This will distribute the oil and help prevent engine
corrosion.
Clean grass and debris from the engine cylinder, cylinder head cooling
fins, under top cowl, and around and behind exhaust/exhaust guard.
Clean all other areas of the mower and ensure that the grassbag is clean.
Lubricate the mower.
Treat metal parts with a water repellent anti-corrosion product.
Cover the mower with a protective sheet and store it in a dry, ventilated area.
MOWER MAINTENANCE
PROBLEM POSSIBLE FAULT REMEDY
Engine will not turn over Engine stop lever released. Operate engine stop lever.
Incorrect oil level. Check oil level.
Obstruction under deck. Remove obstruction.
Engine smokes Excess oil level. Check oil level.
Air cleaner cartridge oil Service air cleaner.
soaked or blocked.
Engine runs then stops Fuel starvation. Fill fuel tank.
Fuel cap vent blocked. Clean fuel cap vent.
Engine will not start Engine under load. Raise height of cut.
Fuel starvation. Fill fuel tank.
Engine cold. Set throttle to ‘choke’ position.
Incorrect/contaminated fuel. Drain fuel tank and fill with
correct fuel.
Spark plug lead disconnected. Connect spark plug lead.
Throttle setting incorrect. Set throttle to ‘fast’ position.
Engine brake not released. Operate engine brake lever.
Faulty spark plug. Clean and adjust gap or replace.
Engine runs rough Spark plug lead becoming Connect spark plug lead.
disconnected in use.
Faulty spark plug. Clean and adjust gap or replace.
Air cleaner blocked. Service air cleaner.
Incorrect/contaminated fuel. Drain tank and fill with correct fuel.
1.28
TROUBLE SHOOTING
PROBLEM POSSIBLE FAULT REMEDY
Engine vibrates excessively Mounting bolts loose. Tighten bolts
Cutterblade bolt loose. Tighten bolt
Cutterblade out of balance. Balance cutterblade
Bent crankshaft. Consult your dealer
Uneven cut Undulating ground conditions Change direction of travel
Cutterblade worn Sharpen the cutterblade
Cutterblade out of balance Balance the cutterblade
Wheels / roller damaged Inspect and replace as necessary
Discharge chute blocks Grass is wet Mow dry grass
Cut height too low Increase cut height
Grassbag full Empty grassbag
Airflow through the Clean the grassbag
grassbag is restricted
Engine speed too slow Set throttle to fast position
Mower is hard to push Cut height too low Increase cut height
Wheels / roller damaged Inspect and replace as necessary
Poor grass collection Airflow through the Clean the grassbag
grassbag is restricted
Discharge chute blocked Remove blockage
Wet grass Mow dry grass
Grassbag full Empty grassbag
Engine speed too slow Set throttle to fast position
1.29
TROUBLE SHOOTING
DECLARATION
OF
CONFORMITY
1.30
VIBRATION INFORMATION
Hand/arm vibration level measured to the procedure in European Standard EN 836 Code 415A = 7.0ms
-2.
.
EC DECLARATION OF CONFORMITY
HAYTER LIMITED,
Spellbrook, Bishop’s Stortford, Herts CM23 4BU ENGLAND
declare that the lawnmowers:
Models: Ranger
Machine Type No. CODE 415A
Category: Push
Type: Pedestrian Rotary
Engine - Manufacturer: Briggs & Stratton
- Speed of rotation: 3000 rpm
Width of cutting device: 410mm
Speed of rotation of the cutting device: 3000 rpm
Complies with the provisions of Directive: 98/37/EC Essential Health & Safety Requirements Relating to the
Design & Construction of Machinery and Safety Components, as amended and the regulations transposed into
national law.
Also Directive 89/336/EEC Electromagnetic Compatibility, as amended and the regulations transposed into
national law.
Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors, and the regulations transposed into national law procedure applied for the conformity assessment: ANNEX VI, procedure 1.
Notified Body: Sound Research Laboratories Ltd. Holbrook House, Little Waldingfield,
Sudbury, Suffolk, ENGLAND
Notified body identification No: 1088
Measured sound power level: 94 dB(A)
Guaranteed sound power level: 96 dB(A)
Standards Used: EN292, EN836 and ENISO14982.
Authorised Signatory:
Signed Date: 13.03.02
Declaration done and Technical Documentation kept at:
HAYTER LIMITED,
M.A. Wright Spellbrook, Bishop’s Stortford,
(Technical Director) Herts CM23 4BU ENGLAND
PARTS
1 Mainframe 410010V 1
2 Guard Foot 415016W 1
3 Screw - Taptite M6x16 09365 25
4 Rod - Deflector 305103 1
5 Key - Woodruff 1662 1
6 Decal - Grass Blade 410064 1
7 Engine - B&S Quantum XTS50 410007 1
8 Decal - Engine 398013 1
9 Cover - Nut M8 234051 2
10 Nut - Nyloc M8 09441 2
11 Knob - HOC 480134 1
12 Spring - Deflector 410030 1
13 Wheel - Rear 005095 2
14 Handlebar - Lower 410034W 2
15 Bolt - Handlebar 226024 2
16 Knob - Handlebar 480088 2
17 Plug - Handlebar 300160 2
18 Guide - Rope 305093 1
19 Washer - Plain 09472 1
20 Nut - Nyloc M6 P Type 09544 3
21 Fastner - Panel Edge 410082 1
22 Bolt - M6 x 40 MU780129 1
23 Screw - M6 x 55 09780 1
24 Nut - Nyloc M6 T Type 09438 3
25 Control - Throttle 410035 1
26 Handlebar Fitting 411035 1
27 Plug - Drive Large 341033 2
28 Pin - Pivot 340182 2
29 Cover - Nut M6 343025 2
30 Washer - Nylon 09688 6
31 Handlebar - Upper 305145W 1
32 Lid - Battery Box 410081 1
33 Screw - M6 x 20 09687 2
34 Lever - Engine Stop 340179 1
35 Fins 410055 1
36 Guide - Cable 410037 4
37 Cable Engine Brake - AD 410036 1
38 Frame - Grassbag 410038W 1
39 Fabric - Grassbag 410039 1
40 Deflector - Rear 410028 1
41 Bolt - Coach M8x40 09379 2
LIST
1.31
ITEM NO. DESCRIPTION PART NO. QTY. ITEM NOTE
42 Plug - Drive Small 300144 4
43 Ratchet - HOC 415014 1
44 Decal - HOC 320006 1
45 Screw - Self Tap Engine 09349 3
46 Underdeck - Assy 410015 1 Inc. 21,47,48,50
47 Chute 410058 1
48 Nutsert 410076 1
49 Cover - Underdeck 410060 1
50 Throwplate 410059 1
51 Axle - Front W/A 410051 1
52 Bearing - Front Axle 410069 2
53 Hub - Cap 219143 4
54 Nut - Nyloc 1/2" UNF 4486 4
55 Wheel 5218 2
56 Bolt - Cutterblade 09788 1
57 Washer - Spring 09273 1
58 Distance Piece - Cutterblade 4014 1
59 Carrier - Blade Boss 410073 1
60 Friction Disc 410057W 1
61 Cutter Blade 201026 1
62 Washer - Plain 09262 1
63 Rod - Connecting 410049 1
64 Spring - Counter Balance 410050 1
65 Push fix 0201086 3
66 Frame - Push 415001W 1
67 Screw - Taptite M6 x 35 09786 2
68 Spring - HOC 480132 1
69 Lever - HOC 480128 1
70 Housing - Bearing Support 410048 1
71 Bracket - Roller Support LH 410002 1
72 Grip Fix - 5/16” L.D. 04020 1
73 Plate - Securing 219037 1
74 Box Battery 410080 1
75 Decal - Hayter 410087 1
76 Bracket - Roller Support RH 415010 1
77 Plate Axle Tie 415015 1
78
1.32
PARTS LIST
ITEM NO. DESCRIPTION PART NO. QTY. ITEM NOTE
PARTS LIST
1.33
31
28
42
23
H
8
A
R
41
R
BRIGGS & STRATTON
IE
R
7
6
5
1
21
46
54
53
55
45
75
47
48
3
3
60
61
62
51
52
3
3
3
45
49
3
53
54
59
3
56
65
52
35
16
36
9
3
4
29
44
45
50
3
76
3
73
33
13
64
63
58
57
55
53
14
10
9
11
12
3
20
43
3
3
77
71
3
67
54
67
70
3
3
72
65
64
27
20
18
19
36
17
15
15
14
36
10
2
68
63
40
41
3
69
66
65
33
34
30
25
30
24
26
24
37
36
17
16
13
106
54
53
28
27
22
27
32
24
3
38
39
74
1C415A06B
1.34
NOTES
Notes:-
1.35
NOTES
Notes:-
1.36
INFORMATION
Serial No:
Engine Type:-12F802-1325-01 Engine:-Briggs & Stratton Quantum XTS 50
Date of Sale:-
Your Local Dealer:-
CUSTOMER
Loading...
