LIMITED WARRANTY
Hayter Limited warrants to the original user / purchaser that this unit shall be free from defects in material and
workmanship under normal use and service for a period of three years from the date of purchase. The manufacturers of the engine and battery pack system (where applicable) furnish their own warranty and services are provided through their authorised network (Refer to “Engine/Battery Pack Warranty Statement”). To qualify for the
full benefit of the warranty, the warranty registration card must be returned within 60 days of purchase. Subject to
the conditions and exclusions noted in this limited warranty, we shall at our option, repair or replace any warranted part during the applicable period. If you are in doubt or experience any difficulty, please consult a Hayter
Authorised Service Dealer for clarification..
To qualify for the extended warranty (second and third year) of the three year limited warranty, the machine must
have annual services carried out by an Authorised Hayter Service Dealer. These chargeable services should be
carried out within 12 and 24 months of the date of purchase.
Excluded from the extended warranty period are those items which are subject to normal wear and tear e.g. tyres,
wheels, cutterbars, cables, batteries and other consumable wearing parts.
All consumer machines which are fitted with a genuine Hayter friction disc as original equipment, before use, are
covered by a Lifetime Warranty against the engine crankshaft bending. Note: friction washers, blade brake
units and other such devices are not applicable. Only machines fitted with a genuine Hayter friction disc, which
are used in accordance with the recommended operating and maintenance procedures, are covered.
This warranty does not apply to any unit that has been tampered with, altered, misused, abused or used for hire,
and will become invalid if non genuine Hayter parts are fitted. This warranty does not cover minor mechanical
adjustments unless they are due to defective materials or workmanship. Consult the Owner’s Handbook or a
Hayter Authorised Service Dealer for assistance when making these adjustments.
A warranty period of 90 days applies to machines used for commercial purposes.
To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of purchase stating the
machine serial number and date of purchase. The service receipt(s) or this Owner’s Handbook with the 1st/2nd
year service boxes fully completed, must be produced as proof of entitlement to the extended warranty period.
Subject to the conditions and exclusions in this limited warranty, the authorised dealer will, at our option, repair or
replace any warranted part within the duration of the warranty period.
This limited warranty gives you specific legal rights and is in addition to any statutory rights to which you may be
entitled and your statutory rights are not affected by this warranty. If you need additional information concerning
this written warranty, or assistance in obtaining services, please write to:
HAYTER LIMITED, Service Department, Spellbrook, Bishop’s Stortford, Hertfordshire. CM23 4BU.
GB
F-040730L
UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages or contact: Freephone 0800 616298.
1st
Year
Service
Record
Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Signed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2nd
Year
Service
Record
Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Signed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
CONTENTS
LIMITED WARRANTY 10
INTERNATIONAL PICTORIALS 11
OWNER’S INFORMATION 12
SAFE OPERATION PRACTICES 12
ASSEMBLY 13
OPERATION 14
MAINTENANCE 15
TROUBLE SHOOTING CHART 19
GB
INTERNATIONAL PICTORIALS
IMPORTANT: The following pictorials are located on your unit or on literature supplied
with the product. Before you operate the
unit, learn and understand the purpose for
each pictorial.
NOTE: Illustrations and pictorials begin
on page 2.
Safety Warning Pictorials (Figure 35)
1 WARNING
2 IMPORTANT: Read Owner’s Manual
Before Operating This Machine.
3 WARNING: Thrown Objects. Keep
Bystanders Away. Read User Instructions
Before Operating This Machine.
4 WARNING: Do Not Use This Machine On
Slopes Greater Than 10 Degrees.
5 DANGER: Keep People, Especially
Children, Away From Unit.
6 DANGER: No Step.
7 DANGER: Keep Feet And Hands Away
From Rotating Blade.
8 Declared airborne sound power level of 100
dB(A) is in accordance with Directive
2000/14/EC.
9 DANGER: Disconnect Spark Plug Wire
Before Servicing Unit.
10 WARNING: Hot Surface.
11 WARNING: Use Caution When Connecting
Or Disconnecting Accessories.
12 WARNING: Crushed Fingers.
13 IMPORTANT: Follow Instructions In
Owner’s Manual To Level The Deck.
14 WARNING: Stay Clear Of Mower Blade As
Long As Engine Is Running.
Control And Operating Pictorials
(Figure 36)
1 Engine Start
2 Lights
3 Engine Run
4 Engine Stop
5 Engine Run
6 Brake
7 Parking Brake
8 Clutch
9 Slow
10 Fast
11 Choke
12 Oil
13 Blade Rotation Control
14 Raise
15 Fuel
F-040730L
Declared vibration emission values in accordance with Directive 98/37/EC.
Vibration Emission according to BS EN 1032: Seat 1,3
Right Running Board 0,73 m/s
Vibration Emission according to BS EN 1033: Steering Wheel 1,82
Values determined with operator in operating position when the machine was
operated stationary on a concrete surface at 2600 min-1.
Declared airborne noise emissions in accordance with Directive 2000/14/EC,
Annex VIII.
Sound Pressure Level at operator position 85
Values determined at ear according to the specifications of EN ISO 11201.
2
, Left Running Board 1,04 m/s2
m/s2,
m/s
dB.
11
2
OWNER’S INFORMATION
Know your product: If you understand the unit
and how the unit operates, you will get the best
performance. As you read this manual, compare
the illustrations to the unit. Learn the location
and the function of the controls. To help prevent
an accident, follow the operating instructions
and the safety rules. Keep this manual for future
reference.
WARNING: Look for this symbol to indicate
important safety precautions. This symbol
indicates: “Attention! Become Alert! Your
Safety Is At Risk.”
Responsibility Of The Owner
WARNING: This cutting machine is
capable of amputating hands and
feet and throwing objects. Failure
to observe the following safety instructions
could result in serious injury or death to
the operator or bystanders.
The responsibility of the owner is to
follow the instructions below.
SAFE OPERATION PRACTICES
For Ride-On (Riding)
Rotary Mower Machines
Training
1. Read the instructions carefully. Be familiar
with the controls and the proper use of the
equipment.
2. Never allow children or people unfamiliar
with these instructions to use the mower.
Local regulations may restrict the age of
the operator.
3. Never mow while people, especially
children, or pets are nearby.
4. Keep in mind that the operator or user is
responsible for accidents or hazards occurring to other people or their property.
5. Do not carry passengers.
6. All drivers should seek and obtain professional and practical instruction. Such
instruction should emphasize:
a. the need for care and concentration
when working with ride-on machines;
b. control of a ride-on machine sliding
on a slope will not be regained by the
application of the brake. The main
reasons for loss of control are:
l insufficient wheel grip;
l being driven too fast;
l inadequate braking
l the type of machine is unsuitable
for its task;
l lack of awareness of the effect of
ground conditions, especially
slopes;
l incorrect hitching and load dis-
tribution.
Preparation
1. While mowing, always wear substantial
footwear and long trousers. Do not operate
the equipment when barefoot or wearing
open sandals.
F-040730L
2. Thoroughly inspect the area where the
equipment is to be used and remove all objects which may be thrown by the machine.
3. WARNING - Petrol is highly flammable.
a. Store fuel in containers specifically de-
signed for this purpose.
b. Refuel outdoors only and do not
smoke while refuelling.
c. Add fuel before starting the engine.
Never remove the cap of the fuel tank
or add petrol while the engine is running or when the engine is hot.
d. If petrol is spilled, do not attempt to
start the engine but move the machine
away from the area of spillage and
avoid creating any source of ignition
until petrol vapours have dissipated.
e. Replace all fuel tanks and container
caps securely.
4. Replace faulty silencers.
5. Before using, always visually inspect to see
that the blades, blade bolts and cutter assembly are not worn or damaged. Replace
worn or damaged blades and bolts in sets
to preserve balance.
6. On multi-blade machines, take care as rotating one blade can cause other blades to
rotate.
Operation
1. Do not operate the engine in a confined
space where dangerous carbon monoxide
fumes can collect.
2. Mow only in daylight or in good artificial
light.
3. Before attempting to start the engine, disengage all blade attachment clutches and
shift into neutral.
4. Do not use on slopes of more than 10 degrees.
5. Remember there is no such thing as a
“safe” slope. Travel on grass slopes requires particular care. To guard against
overturning:
a. do not stop or start suddenly when
going up or downhill;
b. engage clutch slowly, always keep
machine in gear, especially when travelling downhill;
c. machine speeds should be kept low
on slopes and during tight turns;
d. stay alert for humps and hollows and
other hidden hazards;
e. never mow across the face of the
slope, unless the mower is designed
for this purpose.
6. Use care when pulling loads or using heavy
equipment.
a. Use only approved drawbar hitch
points.
b. Limit loads to those you can safely
control.
c. Do not turn sharply. Use care when
reversing.
d. Use counterweight(s) or wheel
weights when suggested in the Instruction Book.
7. Watch out for traffic when crossing or near
roadways.
8. Stop the blades rotating before crossing
surfaces other than grass.
9. When using any attachments, never direct
discharge of material toward bystanders
12
GB
nor allow anyone near the machine while in
operation.
10. Never operate the mower with defective
guards or shields, or without safety protective devices in place.
11. Do not change the engine governor settings or overspeed the engine. Operating
an engine at excessive speed may increase the hazard of personal injury.
12. Before leaving the operator’s position
a. disengage the power take-off and
lower the attachments;
b. change into neutral and set the park-
ing brake;
c. stop the engine and remove the key.
13. Disengage drive to attachments, stop the
engine, and disconnect the spark plug
wire(s) or remove the ignition key
a. before cleaning blockages or unclog-
ging chute;
b. before checking, cleaning or working
on the mower;
c. after striking a foreign object. Inspect
the mower for damage and make repairs before restarting and operating
the equipment;
d. if the machine starts to vibrate abnor-
mally (check immediately).
14. Disengage drive to attachments when
transporting or not in use.
15. Stop the engine and disengage drive to attachment
a. before refuelling;
b. before removing the grass catcher;
c. before making height adjustment un-
less adjustment can be made from the
operator’s position.
16. Reduce the throttle setting during engine
run-out and, if the engine is provided with a
shut-off valve, turn the fuel off at the conclusion of mowing.
17. Before and when backing, look behind and
down for small children.
18. Use extra care when approaching blind
corners, shrubs, trees or other objects that
may obscure vision.
Maintenance and Storage
1. On multi-blade machines, take care as rotating one blade can cause other blades to
rotate.
2. When machine is to be parked, stored or
left unattended, lower the cutting means
unless a positive mechanical lock is used.
3. Keep all nuts, bolts, and screws tight to be
sure the equipment is in safe working
condition.
4. Never store the equipment with petrol in the
tank inside a building where fumes may
reach an open flame or spark.
5. Allow the engine to cool before storing in
any enclosure.
6. To reduce the fire hazard, keep the engine,
silencer, battery compartment and petrol
storage area free of grass, leaves, or excessive grease.
7. Check the grass catcher frequently for
wear or deterioration.
8. Replace worn or damaged parts for safety.
9. If the fuel tank has to be drained, this
should be done outdoors.
ASSEMBLY
f
All fasteners are in the parts bag. Do not discard any parts or material until the unit is assembled.
WARNING: Before doing any assembly or maintenance to the
mower, remove the wire from the
spark plug.
NOTE: In this instruction book, left and right
describe the location of a part with the operator on the seat.
NOTE: Illustrations and pictorials begin on
page 2.
NOTE: To assemble the following loose
parts, use the fasteners shown at full size in
Figure 37.
How To Install The Front Wheels
(Figure 1)
NOTE: Use a piece of wood about 4 feet (1.25
meters) long to raise the front of the tractor.
If a piece of wood cannot be found, get
another person to help lift the tractor. Be
careful, do not let the tractor fall.
1. Raise the front of the tractor. Set a support
(block of wood) under the tractor.
2. Make sure the valve stem (2) is to the out-
side of the tractor. Slide the front wheel (1)
on the spindle (3).
3. Fasten each front wheel (1) with washer
(4), washer (7), and cotter pin (5). Bend the
ends of the cotter pin (5) appart to keep the
front wheel (1) on the spindle (3).
4. After the front wheels (1) are installed, lift
the tractor from the support. Roll the tractor
off of the container.
5. If your tractor has hub caps (6), install the
hub caps (6). Make sure the washers (4)
hold the hub caps (6) in place.
3. Check the operating position of the seat (1).
If the seat (1) needs to be adjusted, loosen
the two wing bolts (5). Slide the seat (1) forward or backward along the seat adjusting
holes (3). Tighten the wing bolts (5).
How To Assemble The Steering Wheel
(Figure 3)
1. Make sure the front wheels point forward.
2. Slide the cover (3) over the steering post
(2). Make sure the collar of the cover (3) is
on top.
3. Slide the steering wheel (1) onto the steer-
ing post (2).
4. Attach the steering wheel (1) to the steer-
ing post (2) with screw (4) and washer (6).
5. Some models have an optional insert (7) in
the parts bag. Attach the insert (7) to the
center of the steering wheel (1).
How To Assemble The Grass Bag
1. (Figure 5) Slide the top tube (1) onto the
wire frame (2). Make sure the handles (3)
on the top tube (1) and the wire frame (2)
are on top.
2. Attach the struts (4) to the INSIDE of the
mounting tabs (5) with bolt (6) and nut (7).
Make sure the head of bolt (6) is on the outside and nut (7) is locked against the strut
(4).
3. (Figure 6) Slide the frame assembly (8) into
the grass bag (9). Make sure the Velcro
flap (10) is on top.
4. (Figure 7) Open the Velcro flap (10). Slide
the handle (3) through the opening and secure the Velcro flap (10) under the handle
(3).
5. Attach the clips (11) to the frame assembly
(8).
GB
3. If the battery (1) is put into service after the
battery date, the battery (1) must be
charged. See “How To Charge The Maintenance Free Battery”.
How To Charge The Battery (Figure 4)
WARNING: When you charge the
battery, do not smoke. Keep the bat-
tery away from any sparks. The
fumes from the battery acid can cause an
explosion.
1. Remove the battery (1) and battery tray (3).
2. Remove the protective caps from the battery
terminals.
3. Use a 12 volt battery charger to charge the
battery (1). Charge at a rate of 6 amperes
for one hour. If you do not have a battery
charger, have an authorized service centre
charge the battery.
4. Install the battery (1) and battery tray (3).
Make sure the positive (+) terminal (4) is on
the left side.
How To Install The Battery Cables
(Figure 4)
WARNING: To prevent sparks, fasten
the red cable to the positive (+) terminal before you connect the black
cable.
1. Remove the protective caps from the battery
terminals.
2. Slide the terminal cover (2) onto the red
cable (5). Fasten the red cable (5) to the
positive (+) terminal (4) with the fasteners
(6) and (7).
3. Fasten the black cable 8 to the negative (-)
terminal with the fasteners (6) and (7).
Check The Tyres
Check the air pressure in the tyres. Tyres
with too much air pressure will cause the unit
to ride rough. Also, the wrong air pressure
will keep the mower housing from cutting level. The correct air pressure is: Front Tyres
0,97 BAR (14 PSI), Rear Tyres 0,69 BAR (10
PSI)
. The tyres were over inflated for ship-
ment.
Check The Level Of The Mower
Housing
Make sure the level of cut is still correct. After
you mow a short distance, look at the area
that was cut. If the mower housing does not
cut level, see the instructions on “How To
Level The Mower Housing” in the Maintenance section of this instruction book.
How To Install The Seat (Figure 2)
1. Carefully remove the plastic bag from the
seat (1).
2. Align the holes in the seat hinge (2) to the
holes in the seat (1). Fasten the seat (1) to
the seat hinge (2) with the fasteners (4) and
(5).
F-040730L
How To Mount The Grass Bag
1. (Figure 8) To lift the grass bag assembly,
use the grass bag handles (3).
2. (Figure 9) Mount the top of the grass bag
assembly (12) onto the rear plate hinges
(13).
3. (Figure 8) When mounting the top of the
grass bag (9), hold the bottom of the grass
bag (9) slightly away from the rear plate
(14).
4. (Figure 10) Then, lower the grass bag (9)
until the bottom is against the rear plate.
5. (Figure 9) Push down on the rear handle. A
locking spring (15) on the rear plate will secure the bottom of the grass bag assembly
(12).
Maintenance Free Battery (Figure 4)
IMPORTANT: Before you attach the battery
cables to the battery, check the battery date.
The battery date tells if the battery must be
charged.
1. Check the top of the battery (1) for the loca-
tion of the battery date.
2. If the battery (1) is put into service before
the battery date, the battery cables can be
attached without charging the battery (1).
See “How To Install The Battery Cables”.
13
How To Prepare The Engine
NOTE: The engine was shipped from the factory filled with oil. Check the level of the oil.
Add oil as needed.
See the engine manufacturer’s instructions
for the type of petrol and oil to use. Before
you use the unit, read the information on
safety, operation, maintenance, and storage.
WARNING: Follow the engine manufacturer’s instructions for the type o
petrol and oil to use. Always use a
safety petrol container. Do not smoke when
adding petrol to the engine. When inside an
enclosure, do not fill with petrol. Before you
add petrol, stop the engine. Let the engine
cool for several minutes.
Important! Before You Start Mowing
r Check the engine oil.
r Fill the fuel tank with petrol.
r Check the level of the mower hous-
ing.
r Check the air pressure of the tyres.
r Attach the battery cables.
OPERATION
NOTE: Illustrations and pictorials begin on
page 2.
Location Of Controls (Figure 13)
Blade Rotation Control (1): Use the blade
rotation control to start and stop the rotation of
the blade.
Clutch / Brake Pedal (2): The pedal has two
functions. The first function is a clutch. The
second function is a brake.
Headlight Switch (3): The headlight switch is
the first part of the ignition switch. To use the
lights with the engine running, turn the key to the
position for the lights.
Ignition Switch (3): Use the ignition switch to
start and stop the engine.
Shift Lever (4): Use the shift lever to change
the speed of the unit.
Lift Lever (5): Use the lift lever to change the
height of cut.
Parking Brake Lever (6): Use the parking brake
lever to engage the brake when you leave the
unit.
Throttle Control Lever (7): Use the throttle
control lever to increase or decrease the speed
of the engine.
How To Use The Throttle Control
(Figure 13)
Use the throttle control (7) to increase or
decrease the speed of the engine.
1. The FAST position is marked with a detent.
For normal operation and when using a
grass bagger, move the throttle control to the
FAST position. For maximum charging of the
battery and for a cooler running engine, operate the engine in the FAST position.
2. The engine governor is set at the factory for
maximum performance. Do not adjust the
governor to increase the speed of the engine.
How To Use The Blade Rotation Control
(Figure 13)
Use the blade rotation control (1) to engage
the blade(s).
1. Before you start the engine, make sure the
blade rotation control (1) is in the DISENGAGE position.
2. Move the blade rotation control (1) to the
ENGAGE position to rotate the blade(s).
NOTE: If the engine stops when you engage the blade(s), the seat switch or the
grass bag switch is not activated.
3. Move the blade rotation control (1) to the
DISENGAGE position to stop the blade(s).
Before you leave the operator’s position,
make sure the blade(s) has stopped rotating.
4. Before you ride the unit across a sidewalk or
a road, move the blade rotation control (1)
to the DISENGAGE position.
F-040730L
WARNING: Always keep your
hands and feet away from the
blade, deflector opening, and the
mower housing when the engine runs.
How To Use The Shift Lever (Figure 13)
To change the forward speed or the direction of
the unit, follow the steps below.
CAUTION: Before you move the shift lever,
completely push the clutch/brake pedal forward to stop the unit. If the unit is not
stopped, the gearbox can be damaged.
1. Completely push the clutch/brake pedal (2)
forward to stop the unit. Keep your foot on
the pedal.
2. Move the throttle control lever (7) to the
SLOW position.
3. To go forward, move the shift lever (4) to a
forward speed setting. To go backward,
move the shift lever (4) to reverse.
4. Slowly release the clutch/brake pedal (2).
Do not keep your foot on the pedal.
5. Move the throttle control (7) to the FAST
position.
How To Use The Parking Brake
(Figure 13)
1. Completely push the clutch/brake pedal (2)
forward.
2. Lift the parking brake lever (6).
3. Remove your foot from the clutch/brake
pedal (2) and then release the parking
brake lever (6). Make sure the parking brake
will hold the unit.
4. To release the parking brake (6), completely
push the clutch/brake pedal (2) forward.
The parking brake will automatically release.
WARNING: Before you leave the
operator’s position, move the shift
lever to the neutral (N) position. Set
the parking brake. Move the blade rotation
control to the DISENGAGE position. Stop
the engine and remove the ignition key.
How To Change The Cutting Height
(Figure 13)
To change the cutting height, raise or lower the
lift lever (5) as follows.
1. Move the lift lever (5) forward to lower the
mower housing and back to raise the mower
housing.
2. When you ride on a sidewalk or road, move
the lift lever (5) to the highest position and
move the blade rotation control to the DISENGAGE position.
How To Stop The Unit (Figure 13)
1. Completely push the clutch/brake pedal (2)
forward to stop the unit. Keep your foot on
the pedal.
2. Move the blade rotation control (1) to the
DISENGAGE position.
3. Move the shift lever (4) to the NEUTRAL
position.
4. Set the parking brake (6).
14
GB
WARNING: Make sure the parking
brake will hold the unit.
5. Move the throttle control (7) to the SLOW
position.
6. To stop the engine, turn the ignition key (3)
to the OFF position. Remove the key.
How To Transport The Unit
To transport the unit, follow the steps below.
1. Move the blade rotation control to the DISENGAGE position.
2. Raise the lift lever to the highest position.
3. Move the throttle control to a position between SLOW and FAST.
4. To go faster, move the shift lever to a faster
speed.
How To Operate With The Mower
Housing
IMPORTANT: When you operate with the
mower housing, always operate with the
throttle control in the FAST position.
1. Start the engine.
2. Move the lift lever to a height of cut position.
In high or thick grass, cut the grass in the
highest position first and then lower the
mower housing to a lower position.
3. Move the throttle control to the SLOW position.
4. Slowly move the blade rotation control to the
ENGAGE position.
5. Push the clutch/brake pedal completely forward.
6. Move the shift lever to one of the speed settings.
NOTE: When you mow in heavy grass or
mow with a bagger, put the shift lever in
the slowest speed.
7. Slowly release the clutch/brake pedal.
8. Move the throttle control to the FAST position. If you need to go faster or slower, stop
the unit and move the shift lever to another
speed setting.
9. Make sure the level of cut is still correct.
After you mow a short distance, look at the
area that was cut. If the mower housing does
not cut level, see the instructions on “How To
Level The Mower Housing” in the Maintenance section.
WARNING: For better control of the
unit, select a safe speed.
How To Operate On Hills
WARNING: Do not ride up or down
slopes that are too steep to back
straight up. Never ride the unit
across a slope.
1. Before you ride up or down a hill, move the
shift lever to the slowest speed.
2. Do not stop or change speed settings on a
hill. If you must stop, quickly push the clutch/
brake pedal forward and set the parking
brake.
3. To start again, make sure the shift lever is in
the slowest speed. Move the throttle control
to the SLOW position. Slowly release the
pedal.
4. If you must stop or start on a hill, always
have enough space for the unit to roll when
you release the brake and engage the clutch.
5. Be very careful when you change directions
on a hill. When on a slope or in a turn on a
hill, move the throttle control to the SLOW
position to help prevent an accident.
How To Use The Grass Bagger
WARNING: Do not ride up or down
slopes that are too steep to back
straight up. Never ride the unit
across a slope.
Operation
To operate with the grass bagger, follow the
steps below.
1. Start the engine.
2. Move the throttle control to FAST position.
3. Move the shift lever to FIRST (1) position. To
fill the grass bag, always operate at the
slowest speed.
4. If the height of the grass is more than 3
inches (9cm), cut the grass with the mower
housing in the highest position. Then, lower
the mower housing and cut the grass again.
You can also cut at
width of the mower housing.
1
/2 to 2/3 of the full cutting
1
/2
How To Clear The Connector Tube And
The Extension Tube
If the connector tube or the extension tube
becomes filled with grass, clear as follows.
1. Move the
ENGAGE position.
2. Move the shift lever to the neutral (N) position.
3. Engage the parking brake.
4. Stop the engine.
5. (Figure 8) Remove the grass bagger (9).
6. (Figure 11) Use a long stick (1) to push any
grass and debris from the connector tube
(2) or the extension tube.
7. If the connector must be removed, see “How
To Remove The Connector Tube” in the
maintenance section.
blade rotation control to the DIS-
How To Empty The Grass Bagger
1. Move the blade rotation control to the DISENGAGE position.
2. Move the shift lever to the neutral (N) position.
3. Engage the parking brake.
4. (Figure 12) Raise the rear of the grass bag
(9).
Before Starting The Engine
Check the oil
NOTE: The engine was shipped from the factory filled with oil. Check the level of the oil.
Add oil as needed. See the engine manufacturer’s instructions for the type of petrol and
oil to use.
1. Make sure the unit is level.
NOTE: Do not check the level of the oil
while the engine runs.
F-040730L
2. Check the oil. Follow the procedure in the
engine manufacturer’s instructions.
3. If necessary, add oil until the oil reaches the
FULL mark on the dipstick. The quantity of oil
needed from ADD to FULL is shown on the
dipstick. Do not add too much oil.
Add Petrol
WARNING: Always use a safety
petrol container. Do not smoke
when adding petrol to the fuel tank.
Do not add petrol when you are inside an
enclosure. Before you add petrol, stop the
engine and let the engine cool for several
minutes.
(Figure 14) Fill the fuel tank (1) to the FULL (2)
position with regular unleaded petrol. Do not use
premium unleaded petrol. Make sure the petrol
is fresh and clean. Leaded petrol will increase
deposits and shorten the life of the valves.
How To Start The Engine
WARNING: The electrical system
has an operator presence system
that includes a sensor switch for
the seat. These components tell the
electrical system if the operator is sitting
on the seat. This system will stop the
engine when the operator leaves the seat if
the blade rotation control is engaged or if
the transmission is engaged. For your
protection, always make sure this system
operates correctly.
NOTE: The engine will not start unless you
depress the clutch/brake pedal or engage the
parking brake and move the blade rotation
control to the DISENGAGE position.
1. Push the clutch/brake pedal completely forward. Keep your foot on the pedal.
2. Move the shift lever to the neutral (N) position.
3. Make sure the blade rotation control is in the
DISENGAGE position.
4. Move the throttle control completely forward
to the CHOKE or FAST position. Some models have a separate choke knob. Pull the
choke knob to the full CHOKE position.
5. Turn the ignition key to the START position.
NOTE: If the engine does not start after
four or five tries, move the throttle control
to the FAST position. Again try to start the
engine. If the engine will not start, see the
TROUBLE SHOOTING CHART.
6. Slowly move the throttle control to the SLOW
position.
7. To start a hot engine, move the throttle control to a position between FAST and SLOW.
Mowing And Bagging Tips
1. For a lawn to look better, check the cutting
level of the mower housing. See “How To
Level The Mower Housing” in the Maintenance section.
2. For the mower housing to cut level, make
sure the tyres have the correct amount of air
pressure.
15
GB
3. Every time you use the unit, check the blade.
If the blade is bent or damaged, immediately
replace the blade. Also, make sure the nut
for the blade is tight.
4. Keep the blade(s) sharpened. Worn blades
will cause the ends of the grass to turn
brown.
5. If the grass is very high, cut two times to decrease the load on the engine. First cut with
the mower housing in the highest position
and then lower the mower housing for the
second cut.
6. Operate the engine with the throttle in FAST
position and the shift lever in first or second
gear.
7. For better cutting performance and a quality
cut, mow with the shift lever in one of the
slower speeds.
8. After each use, clean the bottom and top of
the mower housing for better performance.
Also, a clean mower housing will help prevent a fire.
MAINTENANCE
NOTE: Illustrations and pictorials begin on
page 2.
General Recommendations
1. The owner’s responsibility is to maintain this
product. This will extend the life of the product and is also necessary to maintain warranty coverage.
2. Check the spark plug, drive brake, lubricate
the unit, and clean the air filter once a year.
3. Check the fasteners. Make sure all fasteners
are tight.
4. Follow the Maintenance section to keep the
unit in good operating condition.
WARNING: Before you make an inspection, adjustment, or repair to
the unit, disconnect the wire to the
spark plug. Remove the wire from the
spark plug to prevent the engine from
starting by accident.
NOTE: Torque is measured in metric N-m
(foot pounds). This measurement describes
how tight a nut or bolt must be. The torque is
measured with a torque wrench.
How To Remove The Connector Tube
For good bagging performance, the connector
tube must be clean and free from grass and
debris. Remove and clean the connector tube
as follows.
T o Remove
1. Move the blade rotation control to the DISENGAGE position.
2. Move the shift lever to the neutral (N) position.
3. Engage the parking brake.
4. Stop the engine.
5. Move the lift lever to the middle cutting position.
6. (Figure 15 and Figure 16) Disconnect the
rubber strap (1) from the latch pin (2) on
the connector tube (3).
7. (Figure 17) Hold the handles (4). Remove
the grass bag (5).
8. (Figure 18) Pull the connector tube (3)
through hole in rear plate (6).
9. Clean the connector tube (3) with soap and
water.
T o Install
1. (Figure 16 and Figure 18) Slide the flange
(7) end of the connector tube (3) through
hole in rear plate (6).
2. (Figure 16) Slide the flange (7) end of the
connector tube (3) over the extension tube
(8).
3. (Figure 15 and Figure 16) Attach the
rubber strap (1) to the latch pin (2) on the
connector tube (3).
4. Install the grass bag.
Inspect Blade (Figure 19)
WARNING: Before you inspect or
remove the blade, disconnect the
wire to the spark plug. If the blade
hits an object, stop the engine. Check the
unit for damage. The blade has sharp
edges. When you hold the blade, use
gloves or cloth material to protect your
hands.
If you keep the blade (1) sharp and inspect the
blade for damage, the blade will cut better and
be more safe to operate. Frequently check the
blade for excessive wear, cracks, or other
damage. Frequently check the nut (3) that holds
the blade (1). Keep the nut (3) tight. If the blade
hits an object, stop the engine. Disconnect the
wire to the spark plug. See if the blade is bent or
damaged. Check the blade adapter (5) for
damage. Before you operate the unit, replace
damaged parts with original equipment parts.
See the authorized service centre in your area.
Every three years, have an authorized service
person inspect the blade or replace the old
blade with an original equipment part.
How To Remove And Install The Blade
(Figure 19)
1. Remove the mower housing. See the instructions on “How To Remove The Mower Housing”.
2. Use a piece of wood to keep the blade from
rotating.
3. Remove the nut (3) that holds the blade (1).
4. To remove the blade (1) from the air assist
fan (8), remove fasteners (9) and (10).
5. Check the blade (1) and the blade adapter
(5) according to the instructions for “Inspect
Check the air assist fan (8) for dam-
Blade”.
age. Replace badly worn or damaged parts
with original equipment parts. See an authorized service centre in your area.
6. Clean the top and bottom of the mower housing. Clean the air assist fan (8). Remove all
the grass and debris.
7. Assemble the blade (1) and air assist fan
(8) with fasteners (9) and (10). Tighten the
bolt (9) that holds the blade (1) to a torque
of 6,8 N-m (5 foot pounds).
8. Mount the blade (1) and blade adapter (5)
on the mandrel (6).
F-040730L
9. Mount the blade (1) so that the hi-lift edges
(7) are up. If the blade is upside down, the
blade will not cut correctly and can cause an
accident.
10.Fasten the blade (1) with the original
washers and nut (3). Make sure the outside
rim of the Belleville washer (2) is against
the blade (1).
WARNING: Always keep the nut (3)
tight that holds the blade (1). A
loose nut or blade can cause an
accident.
11.Tighten the nut (3) that holds the blade (1) to
a torque of 41,5 N-m (30 foot pounds) .
12.Install the mower housing. See “How To Remove The Mower Housing”.
How To Adjust The Blade Rotation
Control
WARNING: To prevent an injury, the
blade rotation control must operate
correctly.
In normal usage, the blade rotation control will
not require an adjustment. However, if the
cutting performance decreases or the quality of
cut is poor, make the following changes.
1. When you mow, make sure the throttle control in in the FAST position.
2. (Figure 20) Move the blade rotation control
to the DISENGAGE position (1).
3. Stop the engine. Disconnect the wire from
the spark plug.
4. Check the blade(s). Keep a sharp edge on
the blade(s). A blade that is not sharp will
cause the tips of the grass to become brown.
5. (Figure 21) Disconnect the blade drive
spring (2) from the blade control rod (1).
Move the blade drive spring (2) to the
middle hole (4). This will increase the tension
on the mower drive belt.
6. Attach the wire to the spark plug. Mow for a
short distance and again check the quality of
cut. If necessary, move the blade drive
spring (2) to the bottom hole (5)
7. Again check the quality of cut. If the quality of
cut has not improved, replace the mower
drive belt. See “How To Replace The Mower
Drive Belt”. If replacing the belt does not correct the problem, take the unit to an authorized service centre.
8. Move the blade rotation control to the DISENGAGE position. Stop the engine.
9. (Figure 22) Check the operation of the blade
brake. Rotate the mandrel pulley (5) with
your hand. Make sure the brake pad (7) is
pressed tightly against the mandrel pulley
(5).
WARNING: If the brake pad (7) does
not press tightly against the mandrel pulley (5), take the unit to an
authorized service centre.
10.(Figure 20) Move the blade rotation control
to the ENGAGE position (2).
11. (Figure 22) Check the pad for the blade
brake (7). If the pad is excessively worn or
damaged, replace the brake pad assembly.
Correct replacement parts and assistance
are available from an authorized service
centre.
16
GB
12.Attach the wire to the spark plug. Mow for a
short distance and again check the operation
of the blade rotation control.
13.When you move the blade rotation control to
the DISENGAGE position, all movement will
stop within five seconds. If there is movement of the belt or the blade(s) continue to
rotate, engage and disengage the blade rotation control five times to remove any excess
rubber from a new mower drive belt. If you
need assistance, take the unit to an authorized service centre.
14.(Figure 21) If you replace the mower drive
belt, move the blade drive spring (2) to the
top hole (3).
How To Adjust The Shift Lever
(Figure 30)
If the NEUTRAL position on the shift lever does
not match neutral on the gearbox, adjust the
shift lever as follows.
1. Stop the engine.
2. Disconnect the adjuster nut (2) from the
shifter bracket (3).
3. Make sure the shift lever is in the NEUTRAL
position.
4. Push the unit forward. Make sure the gearbox is in neutral.
5. To align the adjuster nut (2) with the hole in
the shifter bracket (3), turn the adjuster nut
(2).
6. Connect the adjuster nut (2) to the shifter
bracket (3).
7. Make sure the NEUTRAL position on the
shift lever matches neutral on the gearbox.
How To Check And Adjust The Clutch
(Figure 23)
If the motion drive belt is loose, the clutch will
slip when: going up a hill, pulling a heavy load,
or the unit will not move forward. Adjust the
clutch as follows.
WARNING: Before you make an inspection, adjustment, or repair to
the unit, disconnect the wire to the
spark plug. Remove the wire from the
spark plug to prevent the engine from
starting by accident.
1. Check the routing of the motion drive belt.
Make sure the belt is installed correctly and
is inside all the belt guides.
2. Remove the cotter pin (1), washer (2), and
brake spring (3) from the adjustable nut
(4).
3. Disconnect the adjustable nut (4) from the
brake lever assembly (5) and the parking
brake latch (6).
4. Align the hole in the brake lever (5) with the
hole in the frame. Hold the brake lever (5) in
place with a 6 mm pin or bolt (7).
5. Pull the clutch rod forward until tight. Turn the
adjustable nut (4) until the nut will fit through
the hole in the brake lever (5).
6. Assemble the adjustable nut (4) to the
parking brake latch (6), brake lever (5) and
brake spring (3). Fasten with the washer (2)
and cotter pin (1).
7. Remove the 6 mm pin or bolt (7).
8. If the belt still slips after the clutch has been
adjusted, then the motion drive belt is worn
or damaged and must be replaced. See
“How To Replace The Motion Drive Belt”.
How To Check And Adjust The Drive
Brake (Figure 24)
Completely push the clutch/brake pedal forward.
Set the parking brake. Move the shift lever to the
neutral (N) position. Push the unit. If the rear
wheels rotate, adjust or replace the brake pads.
Adjust the drive brake (1) as follows.
1. The location of the drive brake (1) is on the
right side of the gearbox (3).
2. Make sure the parking brake is set and the
shift lever is in neutral (N). Turn the hex nut
(2) in a clockwise direction until the rear
wheels do not turn when the unit is pushed
forward.
3. Release the parking brake and push the unit.
If the unit does not roll, turn the hex nut (2)
in a counter-clockwise direction until the unit
rolls.
4. Set the parking brake. Push the unit. If the
rear wheels do not turn, the drive brake (1)
is correctly adjusted. Release the parking
brake.
WARNING: If you cannot correctly
adjust the drive brake, replace the
brake pads. Correct replacement
parts and assistance are available from an
authorized service centre.
How To Remove The Battery (Figure 4)
To charge or clean the battery (1), remove the
battery (1) from the unit as follows.
WARNING: To prevent sparks, dis-
connect the black battery cable (8)
from the negative (-) terminal before you disconnect the red cable (5).
WARNING: The battery contains
sulphuric acid which is harmful to
the skin, eyes and clothing. If the
acid gets on the body or clothing, wash
with water.
1. Disconnect the black cable (8) from the
negative (-) terminal.
2. Disconnect the red cable (5) from the posi-
tive (+) terminal (4).
3. Lift the battery tray (3) and the battery (1)
out of the unit.
How To Charge The Battery (Figure 4)
WARNING: When you charge the
battery, do not smoke. Keep the
battery away from any sparks. The
fumes from the battery acid can cause an
explosion.
1. Before you charge the battery (1), remove
the battery (1).
2. To charge the battery (1), use a 12 volt bat-
tery charger. Charge at a rate of 6 amperes
for 1 hour.
3. Install the battery (1).
WARNING: To prevent sparks,
fasten the red cable to the positive
(+) terminal before you connect the
black cable.
4. Fasten the red cable (5) to the positive (+)
terminal (4) with the fasteners as shown.
5. Fasten the black cable (8) to the negative
(-) terminal with the fasteners as shown.
F-040730L
How To Level The Mower Housing
(Figure 25 and Figure 26)
If the mower housing is level, the blade will cut
easier and the lawn will look better.
WARNING: Before you make an inspection, adjustment, or repair to
the unit, disconnect the wire to the
spark plug. Remove the spark plug wire to
prevent the engine from starting by accident
1. Make sure the unit is on a hard flat surface.
2. Check the air pressure in the tyres. If the air
pressure is incorrect, the mower housing will
not cut level. Make sure the tyres are inflated
to: Front Tyres 0,97 BAR (14 PSI), Rear
Tyres 0,69 BAR (10 PSI).
3. (Figure 25) Move the lift lever (1) to the
lowest position (2).
WARNING: The lift lever (3) is
spring loaded. Make sure the lift
lever (1) is locked in the lowest
position (2).
4. (Figure 26) Loosen the left and right adjuster knobs (1). Push down on each side of
the mower housing. Make sure both sides of
the mower housing are setting on a flat surface. Also, make sure the lift links (2) are
loose and can easily move up or down.
5. Push down on the adjuster knobs (1) and
the lift links (2). Tighten the left and right
adjuster knobs (1). Make sure the adjuster
knobs (1) are tight. If necessary, use a
wrench to tighten the adjuster knobs (1).
6. (Figure 25) Raise the lift lever (1).
7. Mow for a short distance. If the height of cut
is not level, repeat the above steps.
Where To Lubricate (Figure 27)
Models with grease fittings:
Lubricate with grease gun.
Apply grease with a brush to
the areas shown.
Lubricate the areas shown
with engine oil.
NOTE: Apply grease to the steering gear assembly.
CAUTION: If the unit is operated in dry areas
that have sand, use a dry graphite spray to
lubricate the unit.
Check The Tyres
Check the air pressure in the tyres. Tyres with
too much air pressure will cause the unit to ride
rough. Also, the wrong air pressure will keep the
mower housing from cutting level. The correct
air pressure is: Front Tyres 0,97 BAR (14 PSI),
Rear Tyres 0,69 BAR (10 PSI).
How To Replace The Motion Drive Belt
1. Remove the mower housing. See the instructions on “How To Remove The Mower Housing”.
2. Completely push the pedal forward and engage the parking brake.
3. (Figure 28) Remove the idler pulley (1).
17
GB
4. (Figure 29) To access the belt guides (1),
remove the battery and battery tray. See
“How To Remove The Battery”.
5. Loosen the belt guides (1) at the drive
pulley (2).
6. (Figure 28) Remove the motion drive belt
(3) from the drive pulley (4).
7. (Figure 30) Remove the adjuster nut (2)
from the shifter bracket (3). Pull the motion
drive belt over the shifter bracket (3).
8. (Figure 31) To remove the motion drive belt
(1) from the stack pulley (2), pull the front
end of the belt under the stack pulley (2)
and then back between the stack pulley and
the steering plate (3).
9. (Figure 32) Remove the access panel (1).
10.Remove the two screws (4) that attach the
steering shaft assembly (2). Raise the
steering wheel and steering shaft assembly
(2). Pull the motion drive belt (3) under the
steering shaft assembly (2).
11.Remove the motion drive belt. A correct replacement part or assistance is available
from an Authorized Service Centre in your
area.
12.To install the motion drive belt, reverse the
above steps.
13.(Figure 33) Check the routing of the motion
drive belt (1). Make sure the motion drive
belt is installed correctly on the idler pulley
(2). Make sure the steering shaft assembly
(3) is inside the motion drive belt (1).
How To Replace The Mower Drive Belt
(Figure 22)
1. Remove the mower housing. See the instructions on “How To Remove The Mower Housing”.
2. Pull the belt retainer (1) away from the idler
pulley (2) and remove the mower drive belt
(3).
3. Pull the belt guide (4) and the brake as-
sembly (7) away from the mandrel pulley
(5) and remove the mower drive belt (3). A
correct replacement part or assistance is
available from an Authorized Service Centre
in your area.
4. To install the mower drive belt, reverse the
above steps.
5. Before you mow, check the blade rotation
control. See the instructions on “How to Adjust The Blade Rotation Control”.
How To Remove The Mower Housing
(Figure 34)
1. Move the blade rotation control (1) to the
DISENGAGE position.
2. Move the lift lever (2) to the lowest position.
WARNING: The lift lever (2) is
spring loaded. Make sure the lift
lever (2) is locked in the lowest
position.
3. Remove the hair pins and the washers from
the adjuster arms (3). See illustrations “C”
and “D”.
4. Remove the hair pins and washers from the
suspension links (4). See illustrations “A”
and “B”.
5. Disconnect the extension spring (5) from
the blade control rod (6). See illustration
“E”.
6. Disconnect the front hanger (9) from the
axle support. See illustration “F”.
7. Remove the mower drive belt (7) from the
stack pulley (8). See illustration “G”.
8. (Figure 16) Disconnect the rubber strap (1)
from the connector tube (3). Slide the con-
nector tube (3) off the extension tube (8).
9. Pull the mower housing away from the right
side of the unit.
10.To install the mower housing, reverse the
above steps.
How To Replace The Fuse
If the fuse is blown, the engine will not start.
Remove the fuse and replace with a 15 amp.
automotive fuse.
Storage (over 30 days)
At the end of each year, prepare the unit for
storage as follows.
1. Drain the fuel from the carburettor and the
fuel tank. Change the engine oil. See the engine manufacturer’s instructions.
2. Clean the unit.
3. Charge the battery. See “How To Charge The
Battery”.
How To Order Replacement Parts
The replacement parts are shown either on the
back pages of this Instruction Book or in a
separate Parts List Book.
Use only manufacturer’s authorized or approved
replacement parts. The letter placed on the end
of the part number denotes the type of finish for
the part, C for chrome, Z for zinc, a PA for
purchased assembly. It is important that you
include this when ordering a part. Do not use
attachments or accessories not specifically
GB
recommended for this unit. In order to obtain
proper replacement parts you must supply the
model number of your mower (see nameplate).
Replacement parts are available from your local
Hayter authorised dealer.
If you are unable to obtain parts or service in the
manner outlined above, then contact:
HAYTER LIMITED, Service Department,
Spellbrook, Bishop’s Stortford,
Hertfordshire. CM23 4BU.
UK ONLY: Details of your local Hayter
authorised dealer are contained in Yellow Pages
or contact: Freephone 0800 616298.
When ordering the following information is
required:
(1) The Model Number
(2) Serial Number
(3) Part Number
(4) Quantity
F-040730L
18
TROUBLE SHOOTING CHART
PROBLEM: The engine will not start.
1. Follow the steps, “How To Start The Engine”
in this book.
2. Electric-Start Models: Clean the battery terminals. Tighten the cables.
3. Check for a loose wire. Tighten the limit
switches. (See the wiring diagram.)
4. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.
5. Remove the spark plug(s). Move the throttle
to the SLOW position. Turn the ignition key to
the ON position. Try to start the engine several times. Install the spark plug.
6. Replace the spark plug.
7. Adjust the carburettor.
PROBLEM: The engine will not turn
over.
1. Follow the steps, “How To Start The Engine”
in this book.
2. Electric-Start Models: Charge the battery.
3. Replace the fuse.
4. Check the wiring harness for damage or a
loose connection. Repair the damaged wire.
5. Electric-Start Models: replace the solenoid.
Recoil-Start Models: replace the module.
PROBLEM: The engine is difficult to
start.
1. Adjust the carburettor.
2. Replace the spark plug.
3. Replace the fuel filter.
PROBLEM: The engine does not run
smooth or has a loss of power.
1. Check the oil.
2. Clean the air filter.
3. Clean the air screen.
4. Replace the spark plug.
5. The engine is working too hard. Use a lower
gear.
6. Adjust the carburettor.
7. Replace the fuel filter.
PROBLEM: The engine does not run
smooth at fast speed.
1. Replace the spark plug.
2. Adjust the throttle control.
3. Clean the air filter.
4. Replace the fuel filter.
PROBLEM: The engine stops when the
blades are engaged.
1. Check the wiring harness for damage or a
loose connection. Repair the damaged wire.
2. Grass bag must be installed (applies only to
model with rear discharge grass bag).
PROBLEM: On slopes, the engine
stops.
1. Mow up and down slopes. Never mow
across a slope.
PROBLEM: The engine will not idle.
1. Replace the spark plug.
2. Clean the air filter.
3. Adjust the carburettor.
4. Adjust the throttle control.
5. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.
PROBLEM: A hot engine causes a decrease in power.
1. Clean the air screen.
2. Check the oil.
3. Adjust the carburettor.
4. Replace the fuel filter.
PROBLEM: Excessive vibration.
1. Replace the blade.
2. Check for loose engine bolts.
3. Decrease the air pressure in the tyres.
4. Adjust the carburettor.
5. Check for a damaged belt or damaged
pulley. Replace the damaged parts.
PROBLEM: The grass does not discharge correctly.
1. Stop the engine. Clean the mower housing.
2. Raise the height of cut.
3. Replace or sharpen the blade(s).
4. Move the shift lever to a slower speed.
5. Move the throttle control to the FAST position.
6. Replace the spring for the blade idler.
GB
7. Clean the extension tube and the connector
tube (applies only to model with rear discharge grass bag).
PROBLEM: The mower housing does
not cut level.
1. Check the air pressure in the tyres.
2. Adjust the level of the mower housing.
3. Check the front axle. If the front axle does
not freely pivot, loosen the axle bolt(s).
PROBLEM: The mower blades will not
rotate.
1. Check the mower drive belt. Make sure the
belt is installed correctly.
2. Replace the mower drive belt.
PROBLEM: The unit will not move when
the clutch is engaged.
1. Check the motion drive belt. Make sure the
belt is installed correctly.
2. Adjust the clutch.
3. Replace the motion drive belt.
PROBLEM: The unit moves slower or
stops when the clutch is engaged.
1. Adjust the clutch.
2. Replace the motion drive belt.
PROBLEM: When the clutch/brake
pedal is released, belt noise can be
heard.
1. Temporary belt noise does not change the
operation of the unit. If belt noise is continuous, check the routing of the belt. Make sure
the belt is inside all belt guides.
2. If the noise is continuous, adjust the clutch.
PROBLEM: The rear wheels spin over
uneven terrain.
1. Check the front axle. If the front axle does
not freely pivot, loosen the axle bolt(s).
PROBLEM: The transaxle is difficult to
shift between gears with the engine running and the clutch depressed.
1. Check the clutch adjustment to make sure
the belt stops when the clutch pedal is depressed with the transaxle in (N) neutral.
2. Check the belt guides around the transaxle
drive pulley. Make sure the belt guides do not
touch the pulley.
F-040730L
19
REPAIR PARTSCODE131B
CHASSIS & HOOD
19
17
18
13
15
14
16
12
11
70
10
20
8
7
9
2
24
55
31
21
50
23
6
5
57
58
2
3
4
58
30
32
25
29
54
1
27
28
16
47
46
16
43
16
16
48
45
44
36
35
34
59
33
31
42
49
16
16
37
38
31
41
16
53
26
51
39
40
F-040730L
20
REPAIR PARTSCODE131B
CHASSIS & HOOD
Key
No. Part No. Description
1 MU1001558 Seat
2 MU028x23 Cap, Push 0n
3 MU094057 Spring
4 MU26x229 Screw
5 MU1001054 Bolt, Wing
6 MU017x47 Z Washer
7 MU009x56 Bolt, Shoulder
8 MU094154E701 Support, Seat
9 MU094156 Z Rod, Pivot
10 MU1001648E701 Bracket, Pivot
11 MU001x45 Bolt
12 MU015x89 Nut
13 MU009x55 Bolt, Shoulder
14 MU094155 Z Washer
Key
No. Part No. Description
32 MU26x238 Screw
33 MU1001491 Bearing, Steering
34 MU1001584E701 Dash
35 MU26x201 Screw
36 MU093007E701 Panel, Access
37 MU095318E701 Support, Dash
38 MU1001270E701 Bracket, Rear Hanger
39 MU094085E701 Support, Left Grille
40 MU094007E701 Axle, Hanger
41 MU094084E701 Support, Right Grille
42 MU009x58 Bolt, Shoulder
43 MU1001268E701 Frame, Right
44 MU1001269E701 Frame, Left
45 MU690424 Container, Battery
15 MU164x31 Spring
16 MU26x249 Screw
17 MU26x263 Screw
18 MU164x30 Spring
19 MU1001558E549 Deck, Seat
20 MU15x123 Nut
21 MU094151E701 Plate, Index
23 MU1001582 Mat, Left
24 MU1001578 Mat, Right
25 MU1001538E549 Hood
26 MU1001531E549 Grille
27 MU1001546 Lens, Left
28 MU1001544E549 Housing, Left Headlamp
29 MU1001545 Lens, Right
30 MU1001543E549 Housing, Right Headlamp
46 MU1001002E701 Plate, Hitch
47 MU690434E701 Panel, Rear
48 MU690482E701 Support, Battery
49 MU26x277 Screw
50 MU015x81 Nut
51 MU15x124 Nut
53 MU1001540 Insert, Grille
54 MU26x259 Screw
55 MU0193x1 Fastener, Panel
57 MU1001652 Trim, Hood (3.75”)
58 MU1001653 Trim, Hood (6.5”)
59 MU1001755 Grommet, Parking Brake
70 MU1001542 Holder, Cup
-- MU1001865 Bag, Parts
-- MUF-040730L Instruction Book & Parts List
31 MU26x270 Screw
F-040730L
21
19

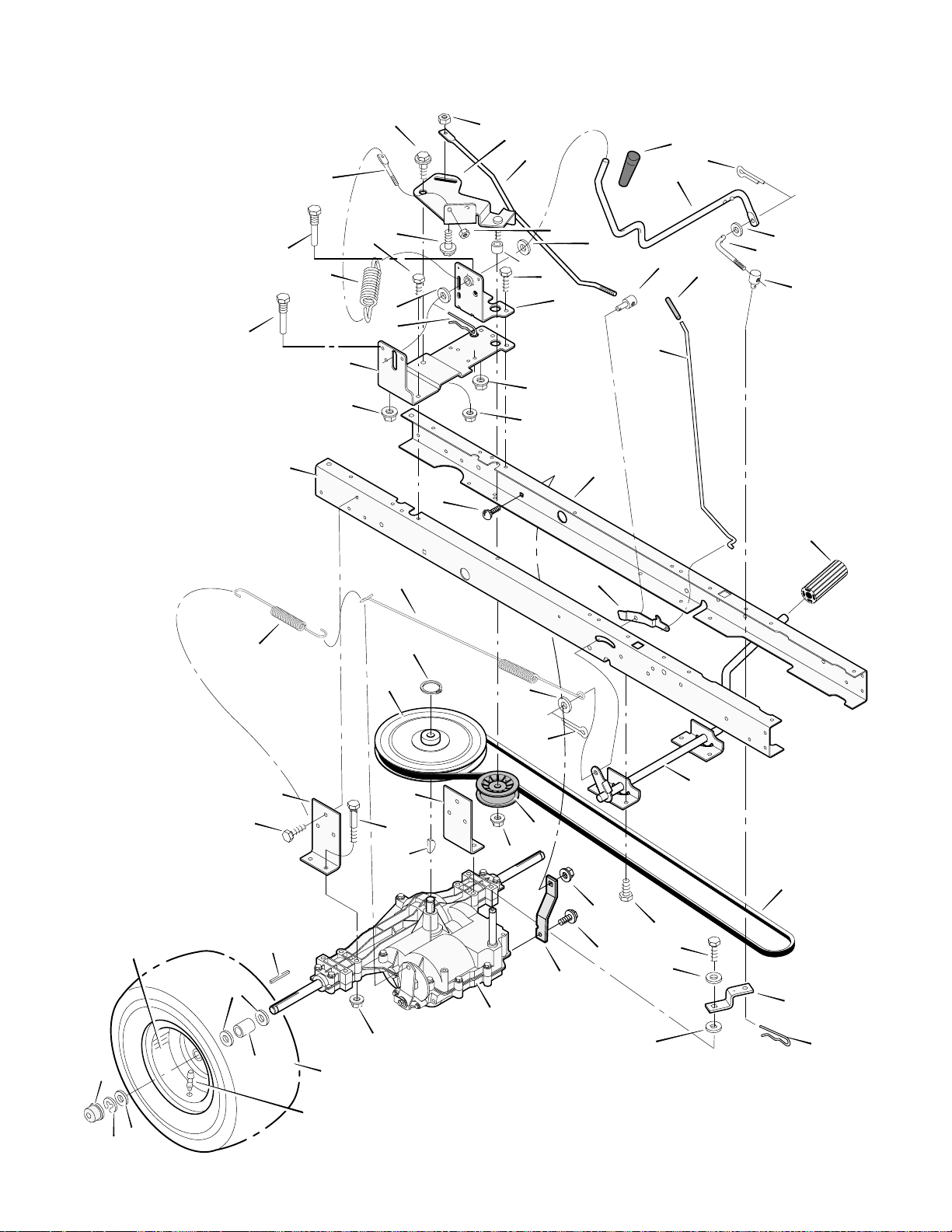

REPAIR PARTSCODE131B
MOTION DRIVE
1
2
3
4
7
8
9
54
57
54
23
21
22
20
17
6
55
5
24
56
43
34
18
5
6
60
16
5
25
26
14
15
13
10
11
12
27
53
52
F-040730L
50
51
46
17
47
40
45
48
49
37
44
38
40
39
22
36
29
61
8
41
42
37
58
59
28
30
17
35
33
31
32
REPAIR PARTSCODE131B
MOTION DRIVE
Key
No. Part No. Description
1 MU009x39 Bolt, Shoulder
2 MU015x89 Nut, Hex
3 MU690173 Z Arm, Idler
4 MU094041 Z Rod, Clutch
5 MU015x79 Nut
6 MU17x102 Washer
7 MU092697 Grip
8 MU030x20 Pin, Cotter
9 MU094043 Z Lever, Shift
10 MU017x47 Z Washer
11 MU094044 Z Link, Shift
12 MU021920 Nut, Adjuster
13 MU091079 Grip
14 MU1001245 Z Rod, Parking Brake
15 MU094815 Nut, Adjuster
Key
No. Part No. Description
32 MU0031x6 Pin, Hair
33 MU017x38 Washer
34 MU690369 Spacer
35 MU06x105 Bolt
36 ---- Transaxle **
37 MU015x88 Nut
38 MU020697 Key, Woodruff
39 MU01x155 Bolt
40 MU094008E701 Bracket, Transaxle
41 MU690409 Pulley
42 MU094433E700 Bracket, Transaxle Support
43 MU0011x7 E-Ring
44 MU095094 Pulley, Drive
45 MU021553 Key, Square
46 MU17x160 Washer
16 MU1001303 Z Bracket, Shift Pivot
17 MU26x249 Screw
18 MU015x84 Nut
19 MU094042 Z Mount, Stud Spring
20 MU009x54 Bolt, Shoulder
21 MU165x116 Spring, Extension
22 MU1001302E701 Bracket, Right Shifter
23 MU1001268E700 Frame, Right
24 MU002x53 Bolt, Carriage
25 MU1001269E700 Frame, Left
26 MU094045 Z Latch, Parking Brake
27 MU021544 Pedal
28 MU94038E700 Lever, Brake/Clutch
29 MU015x98 Nut
30 MU037x87 Belt, Motion Drive
31 MU094031 Z Yoke, Shift
47 MU690554 Z Spacer, Transaxle
48 MU024373 Stem, Valve
49 Tire *
-- MU407049 Tube
50 MU690376-601 Wheel & Tire Assembly
51 MU17x195 Washer
52 MU0011x3 Ring Retainer
53 MU094618 Hub Cap
54 MU093349 Guide, Belt
55 MU0031x4 Pin, Hair
56 MU165x116 Spring, Extension
57 MU165x92 Spring, Extension
58 MU26x216 Screw
59 MU17x148 Washer
60 MU26x267 Screw
61 MU17x169 Washer
* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.
** For information on Replacement Parts see the Central Parts Distributor in your area.
F-040730L
23
REPAIR PARTSCODE131B
STEERING
3
1
2
41
42
39
4
5
6
7
8
9
40
30
13
6
12
15
30
30
14
30
19
17
18
30
37
20
31
19
38
F-040730L
30
36
34
35
33
25
31
11
10
32
25
24
16
29
25
28
24
27
23
22
26
20
21
22
23
24
25
REPAIR PARTSCODE131B
STEERING
Key
No. Part No. Description
1 MU095185 Wheel, Steering
2 MU690625 Post, Steering
3 MU711326 Insert, Steering Wheel
4 MU094124 Bearing
5 MU15x111 Nut, Flange
6 MU009x57 Bolt, Shoulder
7 MU690183 Gear, Pinion
8 MU011x25 Ring, Snap
9 MU094121 Gear, Sector
10 MU094123 Bearing
11 MU001x84 Bolt
Key
No. Part No. Description
23 MU17x104 Washer
24 MU017x53 Z Washer
25 MU015x84 Nut, Flange
26 MU690210E701 Axle Assembly
27 MU095329E701 Drag Link, Left
28 MU1001298E701 Spindle Assembly, Right
29 MU095328E701 Drag Link, Right
30 MU26x249 Screw
31 MU091334 Bearing, Wheel
32 MU024373 Stem, Valve
33 Tire *
12 MU1001121E701 Plate, Steering
13 MU094006E700 Plate, Engine
14 MU015x88 Nut, Flange
15 MU15x118 Nut, Flange
16 MU1001270E701 Bracket, Hanger
17 MU094007E701 Axle, Hanger
18 MU01x146 Bolt
19 MU030x49 Pin, Cotter
20 MU690150 Bearing
21 MU1001299E701 Spindle Assembly, Left
22 MU01x111 Bolt
-- MU407046 Tube
34 MU690377-601 Wheel and Tire Assembly
35 MU17x195 Washer
36 MU17x113 Washer
37 MU017x83 Washer
38 MU094618 Hub Cap
39 MU26x267 Screw
40 MU092059 Bellows
41 MU0025x3 Bolt
42 MU17x146 Washer
* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.
F-040730L
25
REPAIR PARTSCODE131B
MOWER HOUSING SUSPENSION
16
9
15
23
19
24
33
32
14
11
12
10
13
12
25
31
21
11
26
29
22
24
48
25
28
20
24
25
1
2
15
4
5
3
6
7
8
36
37
17
18
24
34
27
32
46
50
31
49
47
24
39
25
38
30
24
20
25
39
42
40
15
44
45
15
F-040730L
51
26
41
43
24
REPAIR PARTSCODE131B
MOWER HOUSING SUSPENSION
Key
No. Part No. Description
1 MU092698 Grip
2 MU094157 Z Handle, PTO
3 MU094022 Z Pad, Switch
4 MU0025x3 Bolt
5 MU092697 Grip
6 MU166x40 Spring
7 MU17x103 Washer
8 MU690533 Handle, Lift
9 MU094017 Z Lever, PTO
10 MU009x39 Bolt, Shoulder
11 MU030x20 Pin, Cotter
12 MU017x57 Washer
Key
No. Part No. Description
26 MU001x74 Bolt, Hex
27 MU690386E700 Arm Assembly, Right Lift
28 MU094180E700 Arm, Right Lift
29 MU094030E700 Plate, Lift Arm
30 MU094067 Pin
31 MU094055E701 Bracket, Rear Suspension
32 MU094065 Bushing, Lift Tube
33 MU009x53 Bolt, Shoulder
34 MU094015E700 Bracket, Pivot
36 MU17x191 Washer
37 MU015x84 Nut, Flange
38 MU165x117 Spring
13 MU094004 Z Link, PTO
14 MU015x84 Nut, Flange
15 MU26x249 Screw
16 MU166x39 Spring
17 MU094018E701 Bracket, PTO
18 MU165x116 Spring
19 MU690394E701 Crank, PTO
20 MU094053E701 Link, Lift
21 MU094028 Z Link, Lift Handle
22 MU15x118 Nut, Flange
23 MU17x57 Washer
24 MU0031x4 Pin, Hair
25 MU017x91 Washer
39 MU015x68 Nut, Flange
40 MU094005E700 Bracket, PTO
41 MU094026E700 Hanger, Right Deck
42 MU094027E700 Hanger, Left Deck
43 MU094158 Z Rod, Hanger
44 MU690381E700 Hanger, Front
45 MU015x89 Nut, Flange
46 MU030x49 Pin, Cotter
47 MU690382 Pin, Threaded Shoulder
48 MU26x49 Screw
49 MU01x106 Bolt, Hex
50 MU017x38 Washer
51 MU690370E701 Plate, Weight (4 Required)
F-040730L
27
REPAIR PARTSCODE131B
MOWER HOUSING
11
12
10
2
35
13
1
55
3
2
4
10
11
12
13
32
2
31
21
16
15
14
18
36
37
24
27
26
21
37
16
27
17
19
20
2
38
5
6
7
8
9
7
23
2
22
22
22
2
14
15
17
18
25
19
2
20
30
28
22
27
29
33
F-040730L
34 34
53
52
51
46
50
49
54
47
46
27
48
28
46
54
22
43
40
44
39
18
39
40
41
41
42
45
46
47
REPAIR PARTSCODE131B
MOWER HOUSING
Key
No. Part No. Description
1 MU690432 Pulley
2 MU015x84 Nut, Flange
3 MU15x140 Nut
4 MU037x74 Belt, Blade
5 MU690387 Pulley, Idler
6 MU094129 Mandrel
7 MU0025x7 Screw
8 MU092424 Guide, Belt
9 MU094130 Spacer
10 MU094055E701 Bracket, Rear Suspension
11 MU009x52 Bolt, Shoulder
12 MU094068 Knob
13 MU017x45 Washer
Key
No. Part No. Description
29 MU690399E700 Baffle
30 MU015x89 Nut, Flange
31 MU054695 Strap, Rubber
32 MU01x139 Screw
33 MU690367 Chute
34 MU015x79 Nut
35 MU165x118 Spring, PTO
36 MU165x140 Spring, Extension
37 MU015x84 Nut, Flange
38 MU690380E700 Bracket, Front Deck
39 MU094067 Pin, Threaded Shoulder
40 MU017x91 Washer
41 MU0031x4 Pin, Hair
14 MU009x51 Bolt, Shoulder
15 MU690379E700 Plate, Suspension
16 MU094137 Pad, Friction
17 MU166x43 Spring
18 MU015x79 Nut, Flange
19 MU690378E700 Bracket, Rear Deck
20 MU095194 Pin, Hanger
21 MU094053 Link, Lift
22 MU15x116 Nut
23 MU690427E700 Bracket, Idler Arm
24 MU690647 Assembly, Idler Arm & Pad
25 MU26x249 Screw
26 MU009x39 Bolt, Shoulder
27 MU002x64 Bolt, Carriage
42 MU690381E700 Hanger, Front
43 MU1401275 Housing, Jackshaft
44 MU690359 Fan, Assist
45 MU1001237E701 Housing, Fan
46 MU017x37 Washer
47 MU001x71 Bolt
48 MU001x106 Bolt
49 MU15x100 Nut
50 MU17x165 Washer
51 MU17x166 Washer, Belleville
52 MU690398E701 Blade
53 MU092466 Adapter, Blade
54 MU01x121 Bolt
55 MU015x98 Nut, Flange
28 MU690530E700 Housing, Blade
F-040730L
1-54 MU776110 Blade Housing, Complete
29

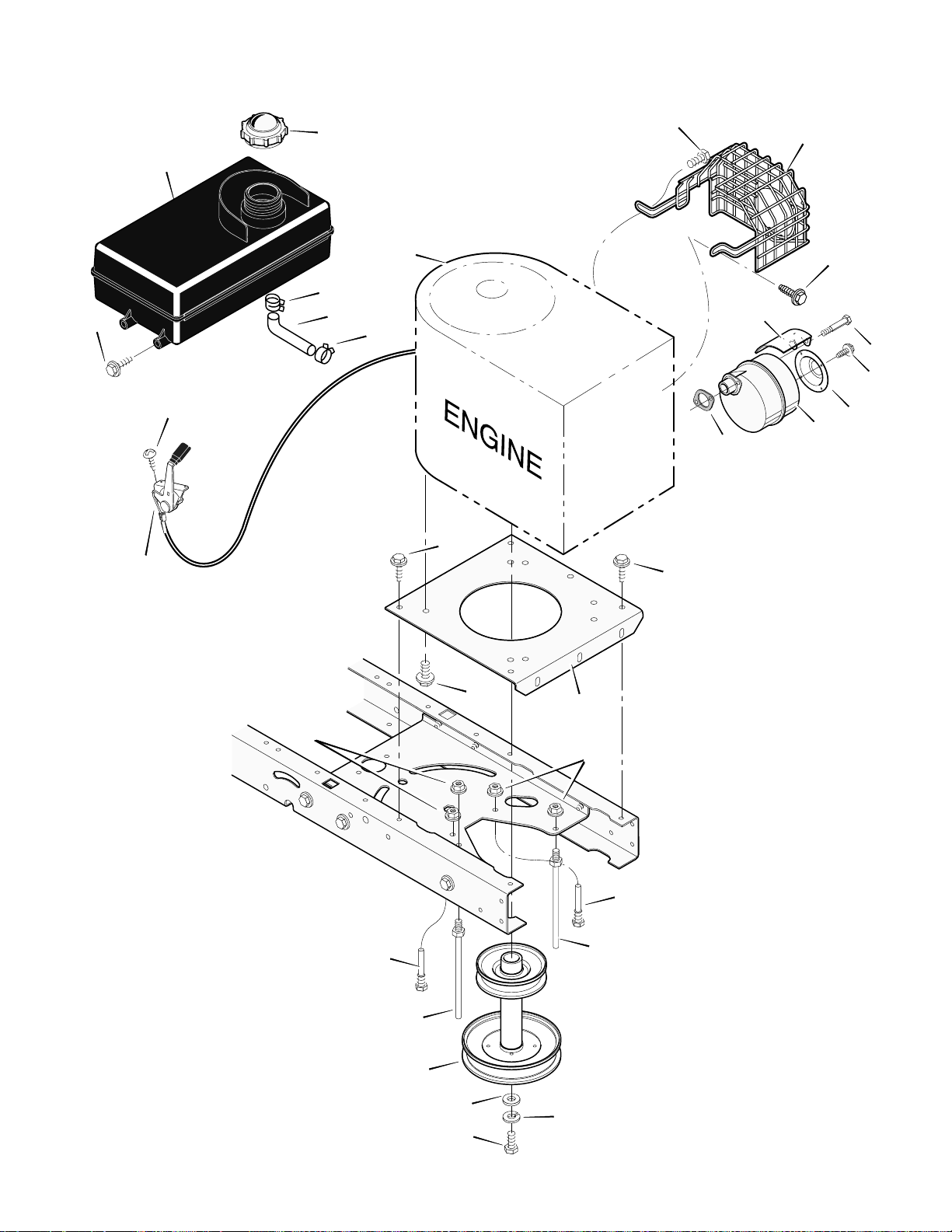

REPAIR PARTSCODE131B
ENGINE MOUNT
26
1
2
9
3
4
5
6
15
8
27
15
16
24
27
28
20
19
18
17
22
21
23
11
14
10
7
22
21
23
12
13
F-040730L
30
Key
No. Part No. Description
1 MU092317 Fuel Cap
2 MU690280 Fuel Tank
3 MU095197 Hose Clamp (Incl’d w/Key 2)
4 MU7601033 Fuel Line (Incl’d w/Key 2)
(Must cut to Length)
5 MU095197 Hose Clamp
6 MU26x201 Screw
7 MU094006E700 Plate, Engine
8 MU092371 Throttle Control
9 * Engine *
10 MU0025x7 Bolt, Engine Mount
REPAIR PARTSCODE131B
ENGINE MOUNT
11 MU690439 Z Stack Pulley Assembly
12 MU019x35 Lockwasher
13 MU01x140 Bolt, Hex
14 MU17x170 Washer
15 MU26x249 Screw
16 MU091309 Gasket
17 MU091271 Muffler
18 MU1001350 Deflector, Muffler
19 MU26x208 Screw
20 MU01x134 Bolt, Hex
21 MU093349 Guide, Belt
22 MU015x79 Z Nut, Flange
23 MU094066 Guide, Belt
24 MU1001595 Z Shield, Heat
26 MU26x253 Screw
F-040730L
27 MU26x263 Screw
28 MU091277 Shield, Heat
* For information on Replacement Parts for this engine
contact the manufacturer.
31
REPAIR PARTSCODE131B
ELECTRICAL SYSTEM
1
92377
2
6
94613
5
11
4
1001575
24x31
LIGHT HARNESS: 250X92
REAR HARNESS: 250X130
MAIN HARNESS: 250X126
3
10
9
094136
F-040730L
7
24x32
8
21075
94159
13
12
1001845
32
ELECTRICAL SYSTEM
Key
No. Part No. Description
1 MU250x92 Harness, Light Wire
MU092372 Socket, Light
MU090084 Bulb, Light
2 MU250x126 Harness, Chassis Wire
3 MU092377 Switch, Ignition
MU020729 Key, Ignition
MU091489 Nut, Hex
MU091488 Cap, Ignition
4 MU1001575 Switch, Limit
REPAIR PARTSCODE131B
5 MU302031 Fuse
MU407078 Holder, Fuse
6 MU094613 Solenoid
MU26x229 Screw, Mounting
MU15x116 Locknut
7 MU024x32 Cable, Battery Ground
MU26x213 Screw, Ground Cable
8 MU021075 Battery
MU002x82 Bolt, Carriage
MU014x79 Wingnut
MU690604 Boot, Battery -Positive
9 MU250x130 Harness, Seat Switch Wire
10 MU094159 Switch, Seat Sensor
11 MU024x31 Cable
F-040730L
12 MU690106 Switch, Bag Sensor
33
REPAIR PARTSCODE131B
GRASS BAGGER
6
2
9
3
3
4
2
3
4
3
2
5
11
15
11
1
6
2
10
5
11
11
13
14 19
6
8
7
10
18
20
12
11
16
17
30
29
11
28
23
20
19
11
11
22
24
15
F-040730L
26
27
34
REPAIR PARTSCODE131B
GRASS BAGGER
Key
No. Part No. Description
1 MU690404 Tube, Top
2 MU01x121 Bolt
3 MU15x116 Nut
4 MU690433 Strut, Bag
5 MU015x79 Nut, Flange
6 MU0193x2 Fastener, Panel
7 MU690491 Seal, Bag (Right End)
8 MU690492 Seal, Bag (Center)
9 MU690493 Seal, Bag (Left End)
Key
No. Part No. Description
15 MU015x89 Nut, Flange
16 MU17x185 Washer
17 MU690402 Latch, Spring
18 MU690362E701 Pan, Rear
19 MU002x53 Bolt, Carriage
20 MU690355E700 Bracket, Bagger Mounting
22 MU1001000E701 Plate, Hitch
23 MU1001001E701 Bracket, Lower Mounting
24 MU1001002E701 Plate, Hitch
10 MU690356E700 Hinge
11 MU26x249 Screw
12 MU690403 Assembly, Bag Frame
13 MU690400E700 Bracket, Switch
14 MU002x82 Bolt, Carriage
26 MU054563 Pin, Latch
27 MU002x39 Bolt, Carriage
28 MU690368 Tube, Connecting
29 MU690429 Grommet, Extension Tube
30 MU690438 Bag, Grass
F-040730L
35
F-040730L
36
EG-Konformitätserklärung
D
entsprechend der Richtlinie 98/37/EG
entsprechend der Richtlinie 89/336/EWG
entsprechend der Richtlinie 2000/14/EG
GB
EC Certificate of Conformity
conforming to Directive 98/37/EC
conforming to Directive 89/336/EEC
conforming to Directive 2000/14/EC
F Déclaration de conformité pour la CEE
conforme à la directive 98/37/CE
conforme à la directive 89/336/CEE
conforme à la directive 2000/14/CE
I Certificato di conformita’ comunitario
conforme alla Direttiva 98/37/CE
conforme alla Direttiva 89/336/CEE
conforme alla Direttiva 2000/14/CE
E Declaración de Conformidad
según la directiva 98/37/CE
según la directiva 89/336/CEE
según la directiva 2000/14/CE
NL
EG-Conformiteitsverklaring
overeen komstig de Richtlijn 98/37/EG
overeen komstig de Richtlijn 89/336/EEG
overeen komstig de Richtlijn 2000/14/EG
Declaração de conformidade
P
conforme com a Diretiva 98/37/CE
conforme com a Diretiva 89/336/CEE
conforme com a Diretiva 2000/14/CE
EU-konformitetsintyg
S
överensstämmande med direktiv 98/37/EG
överensstämmande med direktiv 89/336/EEG
överensstämmande med direktiv 2000/14/EG
EU-konformitetserklæring
N
overholder direktiv 98/37/EF
overholder direktiv 89/336/EØS
overholder direktiv 2000/14/EF
DK EU-overensstemmelseserklæring
overholder direktiv 98/37/EF
overholder direktiv 89/336/EØF
overholder direktiv 2000/14/EF
SF EY: n Vaatimustenmukaisuusilmoitus
naudattaa direktiiviä 98/37/EY
naudattaa direktiiviä 89/336/ETY
naudattaa direktiiviä 2000/14/EY
F-040730L
37
rev. 2 M16006.25.02
Wir / We / Nous / Noi / Nosotros / Wij / Nós / Vi / Vi / Vi / Me
MURRAY, INC.
219 FRANKLIN ROAD, BRENTWOOD, TN USA 37027
erklären in alleiniger Verantwortung, daß das Produkt
declare in sole responsibility, that the product
déclarons sous notre seule responsabilité que le produit
dichiariamo sotto la nostra piena responsabilità che il prodotto
declaramos bajo responsabilidad propia que el producto
verklaren enig in verantwoording, dat het produkt
declaramos com responsabilidade própria que o produto
intygar med ensamansvar att nedanstående produkt
(Fabrikat, Typ) (Make, model) (Marque, modèle) (Marca, tipo)
(Marca, modelo) (Fabricant, type) (Marca, modelo) (Fabrikat, typ)
(Fabrikat, type) (Mærke, type) (Merkki, malli)
312002x11A
erklærer som eneansvarlig at produktet
erklærer som eneansvarlig, at produktet
ilmoitamme yksin vastaavamme, että tuote
auf das sich diese Erklärung bezieht, den Anforderungen der Richtlinie 98/37/EG, der Richtlinie 2000/14/EG
(Konformitätsbewertungsverfahren gemäß Anhang VIII) und der Richtlinie 89/336/EWG und aktuellen Ergänzungen entspricht
to which this certificate applies, conforms to the requirements of Directive 98/37/EC
, Directive 2000/14/EC (conformity assessment
procedure according to Annex VIII), and Directive 89/336/EEC and current amendments
faisant l’objet de la déclaration est conforme aux prescriptions fondamentales stipulées dans la Directive 98/37/CE, la directive
2000/14/CE (procédure d’évaluation de conformité selon l’annexe VIII), la directive 89/336/CEE etleurs modifications courantes
cui la presente dichiarazione si riferisce, è conforme ai requisiti della Direttiva 98/37/CE, della Direttiva 2000/14/CE (procedura di
valutazione della conformità secondo l’Allegato VIII), e della Direttiva 89/336/CEE e correnti emendamenti
al cual se refiere la presente declaración corresponde a las exigencias de la directiva 98/37/CE, de la directiva 2000/14/CE (los
procedimientos de evaluación de conformidad según el Anexo VIII) y de la directiva 89/336/CEE y enmiendas vigentes
waarop deze verklaring betrekking heeft, overeenkomt met eisen van de richtlijn 98/37/EG, de richtlijn 2000/14/EG
(conformiteitsbeoordelingsprocedure volgens bijlage VIII), de richtlijn 89/336/EEG en huidige wijzigingen
ao que se refere esta declaração corresponde às exigências da Directiva 98/37/CE, Directiva 2000/14/CE (em conformidade com o
processo de avaliação, de acordo com o Anexo VIII) e Directiva 89/336/CEE e actuais alterações
för vilket detta intyg gäller, uppfyller kraven enligt direktiv 98/37/EG, direktiv 2000/14/EG (procedur för bedömning av överensstämmelse
enligt tillägg VIII), 89/336/EEG samt allmäna tillägg
som denne erklæring vedrører, oppfyller kravene i direktiv 98/37/EF, direktiv 2000/14/EF (konformitetsvurderingsprosedyre i henhold til
anneks VIII) og direktiv 89/336/EØS og aktuelle vedlegg
som denne erklæring vedrører, overholder kravene i direktiv 98/37/EF, direktiv 2000/14/EF (konformitetsvurderingsprocedure iflg. Annex
VIII) og direktiv 89/336/EØF og ændringer
johon tämä ilmoitus liittyy, vastaa direktiivin 98/37/EY, direktiivin 2000/14/EY (Liitteen VIII mukaisten yhdenmukaisuuden
arviointitoimien), direktiivin 89/336/ETY ja nykyisten muutosten vaatimuksia
Zursachgerechten Umsetzung der EG-Richtlinien wurde(n) folgende Norm(en) und/oder technische Spezifikation(en) herangezogen:
EN 836/A2:2001, EN 836:1997, BS EN 1033:1996 und/oder BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
To effect correct application of the EEC Directives, the following standards and/or technical specifications were consulted: EN
836/A2:2001, EN 836:1997, BS EN 1033:1996 and/or BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
Pour mettre en pratique les Directives de la CEE, il a été tenu compte de la/des norme(s) et/ou de la/des spécification(s) technique(s)
suivante(s): EN 836/A2:2001, EN 836:1997, BS EN 1033:1996 et/ou BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
Per un’appropriato riscontro della normativa CEE, è (sono) stata(e) consultata(e) la(e) seguente(i) norma(e) e/o specifica(che)
tecnica(che): EN 836/A2:2001, EN 836:1997, BS EN 1033:1996 e/o BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
Con el fin de realizar de forma adecuada las exigencias en las normativas de la CEE (fué(ron) consultada(s) la(s) siguiente(s)
normativa(s) y especificación(es) técnica(s): EN 836/A2:2001, EN 836:1997, BS EN 1033:1996 y/o BS EN 1032:1997, EN ISO
3744;1995, ISO 11094;1991
Om de EG-richtlijnen in juiste vorm om te zetten, is/zijn van volgende norm(en) en/of technische specificatie(s) gebruik gemaakt: EN
836/A2:2001, EN 836:1997, BS EN 1033:1996 en/of BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
Com o fim de realizar de forma apropriada as exigências nas normas da C.E.E. consultou-se a(s) seguinte(s) norma(s) e/ou
especificação(ões) técnica(s): EN 836/A2:2001, EN 836:1997, BS EN 1033:1996 e/ou BS EN 1032:1997, EN ISO 3744;1995, ISO
11094;1991
Följande norm(er) och/eller teknisk(a) specifikation(er) har legat till grund för ett fackmässigt införande av de i EU-normerna: EN
836/A2:2001, EN 836:1997, BS EN 1033:1996 och/eller BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
Følgende normer og/eller tekniske spesifikasjoner er lagt til grunn for gjennomførelse av EU-retningslinjenes: EN 836/A2:2001, EN
836:1997, BS EN 1033:1996 og/eller BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
Til gennemførelse af de EF-direktivet er følgende standard(er) og/eller tekniske specifikation(er) anvendt: EN 836/A2:2001, EN
836:1997, BS EN 1033:1996 og/eller BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
ETY-direktiivien oikean soveltamisen varmistamiseksi on käytetty seuraavia standardeja ja/tai teknisiä erittelyjä: EN 836/A2:2001, EN
836:1997, BS EN 1033:1996 ja/tai BS EN 1032:1997, EN ISO 3744;1995, ISO 11094;1991
F-040730L
38
rev. 2 M16006.25.02
Bauart
Category
Categorie
Categoria
Categoría
Categorie
Categoria
Kategori
Kategori
Kategori
Kategoria
RASENTRAKTOR
LAWNMOWER
TONDEUSE A GAZON
TORSAERBA
CORTADORA DE CESPED
GRASMAAIMACHINE
CORTADOR DE GRAMA
GRÄSKLIPPARE
GRESSKLIPPER
GRÆSSLÅMASKINE
RUOHONLEIKKURI
Fabrikmarke / Make / Marque / Marca / Marca / Merk / Marca /Fabriksmärke / Merke /
MURRAY
Mærke / Merkki
Typ / Type / Type / Tipo / Tipo / Model / Tipo / Typ / Type / Type / Tyyppi 12,5 HP / 30
Garantierter Schalleistungspegel
Guaranteed sound power level
Niveau de puissance acoustique garanti
Livello di potenza acustica garantito
Nivel garantizado de potencia acústica
100 dB (A)
Gewaarborgd niveau van geluidssterkte
Nível de ruído motriz garantido
Garanterad ljudstyrksnivå
Garantert lydnivå
Lydniveau garanti
Taattu äänenvoiman taso
Gemessener Schalleistungspegel
Measured sound power level
Niveau de puissance acoustique mesuré
Livello di potenza acustica misurato
Nivel medido de potencia acústica
98 dB (A)
Gemeten niveau van geluidssterkte
Nível de potencia acústica medido
Uppmätt ljudstyrksnivå
Målt lydnivå
Målt lydniveau
Mitattu äänentehotaso
Art der Schneidevorrichtung
Type of cutting device
Genre du dispositif de coupe
Tipo di dispositivo di taglio
Tipo de dispositivo de corte
Soort snijmiddel
Tipo de dispositivo cortante
Typ av skäranordning
Type klipperedskap
Bladtype
Leikkurityyppi
Schnittbreite / Width of cut / Largeur de coupe / Ampiezza di
taglio / Ancho de corte / Snijbreedte / Extensão do corte / Skärbredd /
Snittbredde / Skærebrede / Leikkuujäljen leveys
F-040730L
39
rev. 2 M16006.25.02
SICHELMESSER
ROTATING BLADE
LAME ROTATIVE
LAMA ROTANTE
CUCHILLA GIRATORIA
ROTEREND BLAD
LÂMINA ROTATIVA
ROTERANDE BLAD
ROTERENDE BLAD
ROTERENDE BLADE
PYÖRIVÄ TERÄ
76 cm
Name und Adresse der in der Europäischen Gemeinschaft etablierten benannten Stelle
für Richtlinie 2000/14/EG
Name and address of the notified body established in the European Community for
Directive 2000/14/EC
Nom et adresse de l’organisme notifié établi dans la Communauté européenne pour la
directive 2000/14/CE
Nome e indirizzo dell’organismo notificato stabilito nella Comunità Europea per Direttiva
2000/14/CE
Nombre y dirección del organismo notificado establecido en la Comunidad Europea
para la Directiva 2000/14/CE
Naam en adres van de aangemelde instantie gevestigd in de Europese Gemeenschap
voor richtlijn 2000/14/EG
Nome e morada do organismo notificado na Comunidade Europeia para Directiva
2000/14/CE
Namn och adress på godkännande organ inom EU för föreskrift 2000/14/EG
Navn og adresse til godkjennende organ innen EU for direktivet 2000/14/EF
Navn og adresse på det bemyndigede organ, som er etableret i De Europæiske
Fællesskaber for direktiv 2000/14/EF
Euroopan yhteisön alueella olevan ilmoitetun laitoksen nimi ja osoite direktiivin
2000/14/EY mukaisesti
SNCH
11, Route de Luxembourg
L - 5230 Sandweiler
Brentwood, TN USA Director, International Sales
2002.12.05
YYYY MM DD
(Ort und Datum der Ausstellung) (Name, Funktion und Unterschrift des Befugten)
(Place and date of issue) (Name and job function of authorized person)
(Lieu et date) (Nom, fonction et signature de la personne autorisée)
(Luogo e data del rilascio) (Nome, qualifica e firma dell’incaricato)
(Lugar y fecha de expedición) (Nombre, función y firma del encargado)
(Plaats en datum van de verklaring) (Naam, functie en handtekening van bevoegd persoon)
(Lugar e data de emissåo) (Nome, cargo e assinatura do responsavel)
(Utfärdat ort/datum) (Namn, befattning och underskrift av behörig medarbetare)
(Sted og datum) (Bemyndigtes navn, funksjon og underskrift)
(Sted og dato) (Bemyndigedes navn, funktion og underskrift)
(Ilmoitus annettu paikka ja päiväys) (Valtuutetun henkilön nimi ja tehtävä)
F-040730L
40
rev. 2 M16006.25.02
Gardening Tools
Cylinder Lawn
Fertiliser
Petrol Hedge
Ride on Lawn
Fertilizer
Knapsack
Direct - Leaders in
Garden Machinery
Blower Vacs Blower Vacs Brushcutters Brush cutters Chainsaws
Chain saws Chain saws Cultivators
Echo Chainsaws Echo Chainsaws Echo Strimmers Electric Chainsaws Spreaders
Garden Blowers Garden Blowers Garden RollersyGarden Shredders Garden Tractors
Garden Vacuums Garden Vacuums Mowers Hedge Cutters Hedgecutters
Husqvarna
Hover Mowers Hover Mowers
Lawn Mowers Lawn Mowers Lawn Scarifiers Lawn Tractors
Leaf Vacuums Leaf Vacuums Petrol Chainsaws Cutters Mowers
Ride on Mowers Ride on Mowers Rotary Mowers Rotavators Ryobi Strimmers
Scarifiers Scarifiers Strimmers
Westwood
Tractors
Petrol Lawn
Mowers
Husqvarna Petrol
Chainsaws
Kawasaki
Hedgecutters
Echo Petrol
Chainsaws
Leaf Hoovers Leaf Hoovers
Petrol Hedge
Trimmers
Rollers Rollers
Garden Sprayer Garden Sprayer Garden Rotavators Garden Cultivators
Outdoor
Shredders
Westwood
Tractors
Petrol Lawn
Mowers
Husqvarna Petrol
Chainsaws
Kawasaki
Hedgecutters
Echo Petrol
Chainsaws
Petrol Hedge
Trimmers
Outdoor
Shredders
Chainsaws
Petrol Strimmers
Petrol Garden
Mowers
Echo Chain Saws Petrol Chain Saws
Garden Hedge
Cutters
Electric
Hedgecutters
Bosch Hedge
Cutters
Garden Hedge
Trimmers
Spreaders
Garden Shredders
UK
Mowers
Kawasaki Brush
Cutters
Westwood Lawn
Tractors
Kawasaki Petrol
Strimmers
Rotary Lawn
Mowers
Electric Hedge
Cutters
Rally Ride On
Mower
Bosch Hedge
Trimmers
Garden Roller Lawn Roller
Fertilizer Sprayers Fertiliser Sprayers
Petrol Shredders Lawn Mowers UK
Cylinder Mowers
Kawasaki
Strimmers
Leaf Blowers
Westwood Ride
on Mowers
Echo Petrol
Strimmers
Hayter Garden
Mowers
Kawasaki Hedge
Cutters
Allen Hover
Mowers
Rally Garden
Tractors
Hedge Trimmers
Electric Garden
Shredders
Petrol Rotary
Lawn Mowers
Garden Strimmers Garden Strimmers Garden Chainsaws Backpack Sprayers
Pesticide
Sprayers
Snow Sledges Snow Sledges Trampolines Go Karts Gritters
Petrol Brush
Cutters
Lawn Sweepers Lawn Sweepers Leaf Collectors Petrol Brush Cutters
Garden Vacs Garden Vacs
Backpack Blowers Backpack Blowers Blower Vac Range
Petrol Rotary
Lawn Mowers
Pesticide Sprayers Midgeater Plus
Petrol Brush
Cutters
Petrol Cyliner
Lawn Mowers
Ryobi Brush
Cutters
Gardena Hedge
Cutters
Atco Lawn Mowers
Home Brush
Cutters
Petrol Garden
Strimmers
Husqvarna Garden
Tractors
Discounted
Brushcutters
Sit on Lawn
Mowers
Sprayers
Home
Brushcutters
Hayter Ranger 48
Autodrive
Petrol Rotary
Lawn Mowers
Kawasaki
Brushcutters
Echo Petrol
Chainsaws
Three Great Lawn
H
Rid
H
Rid
Mowers
Kawasaki
Brushcutters
usqvarna
Tractors
er
Three Great Lawn
Mowers
Kawasaki
Brushcutters
usqvarna
Tractors
er
Discounted Lawn
Mowers
Discounted
Brushcutters
Sledges
Brush Cutter
Selection
Grit Spreaders Salt Spreaders
Atco Lawn
Mowers
Loading...
