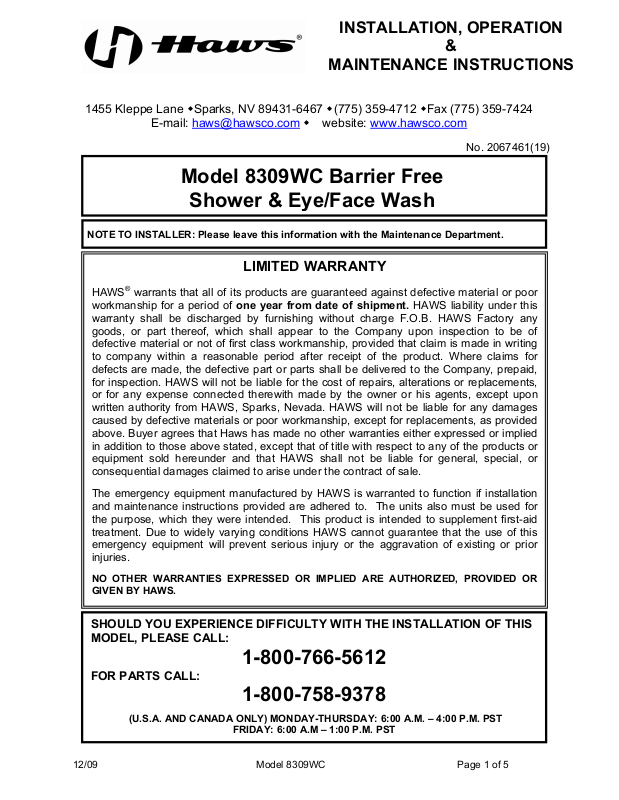

INSTALLATION, OPERATION
MAINTENANCE
1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail: haws@hawsco.com website: www.hawsco.com
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
HAWS® warrants that all of its products are guaranteed against defective material or poor
workmanship for a period of one year from date of shipment. HAWS liability under this
warranty shall be discharged by furnishing without charge F.O.B. HAWS Factory any
goods, or part thereof, which shall appear to the Company upon inspection to be of
defective material or not of first class workmanship, provided that claim is made in writing
to company within a reasonable period after receipt of the product. Where claims for
defects are made, the defective part or parts shall be delivered to the Company, prepaid,
for inspection. HAWS will not be liable for the cost of repairs, alterations or replacements,
or for any expense connected therewith made by the owner or his agents, except upon
written authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages
caused by defective materials or poor workmanship, except for replacements, as provided
above. Buyer agrees that Haws has made no other warranties either expressed or implied
in addition to those above stated, except that of title with respect to any of the products or
equipment sold hereunder and that HAWS shall not be liable for general, special, or
consequential damages claimed to arise under the contract of sale.
The emergency equipment manufactured by HAWS is warranted to function if installation
and maintenance instructions provided are adhered to. The units also must be used for
the purpose, which they were intended. This product is intended to supplement first-aid
treatment. Due to widely varying conditions HAWS cannot guarantee that the use of this
emergency equipment will prevent serious injury or the aggravation of existing or prior
injuries.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED, PROVIDED OR
GIVEN BY HAWS.
Model 8309WC Barrier Free
Shower & E
LIMITED WARRANTY
e/Face Wash
&
INSTRUCTIONS
No. 2067461(19)
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL, PLEASE CALL:
1-800-766-5612
FOR PARTS CALL:
1-800-758-9378
(U.S.A. AND CANADA ONLY) MONDAY-THURSDAY: 6:00 A.M. – 4:00 P.M. PST
FRIDAY: 6:00 A.M – 1:00 P.M. PST
12/09 Model 8309WC Page 1 of 5
LOCATION OF UNIT: The Model 8309WC Barrier Free Emergency Shower should
be installed in close proximity to potential accident areas. It should be clearly
identified, free
from obstructions and easy to access.
SUPPLY LINE: The minimum recommended line size is 1-1/4” IPS with 30-90 psi
(2-6 ATM) flowing pressure. Where sediment or mineral content is a problem, an inlet
recommended.
PLUMBING CONNECTIONS: Inlet supply is 1-1/4” IPS. Waste outlet is 1-1/4” IPS.
INSTALLATION PROCEDURE
Refer to Installation drawing for parts list to insure all required parts are included. Use
pipe joint sealant PST #565 (clarification. Check Loctite) on all connections.
STEP 1: Prepare the emergency shower foundation by using the floor flange
assembly as a template. Locate the three holes for the 3/8-16 UNC x 6"
anchor bolts (not supplied). They should extend 1" above the floor level.
STEP 2: Once the concrete foundation is ready (dry), assemble the floor flange
assembly to the anchor bolts; then securely fasten with 3/8-16 UNC Hex
Nuts and 3/8" washers (not supplied). Seal and tighten floor flange and tee
making certain the waste tee is facing the proper location and the foot
control holes are facing side to side.
STEP 3: Assemble nipple (1-1/4” x 19”) to the floor flange assembly and tighten
with a pipe wrench.
STEP 4: Assemble the eyewash loop assembly to the 19” nipple from step three.
Connect the pipe wrench to the galvanized nipple between the two tees to
avoid damage.
STEP 5: Assemble in the following order:
Attach nipple (1-1/4” x 28-3/4”) and tee (1-1/4”) onto the loop assembly.
Attach nipple (1-1/4” x 25”) onto the tee.
Attach tee (1-1/4” x 1-/14” x 1”) onto nipple.
Attach valve assembly onto tee.
Assemble the street elbow (1”) onto nipple (1” x 21”).
Attach nipple onto valve.
STEP 6: Assemble showerhead onto street elbow (1”).
STEP 7: Assemble the sign onto the unit. Use the strap, screws, washers and nuts
provided, to mount the sign onto the upright. The sign should be
positioned for maximum visibility.
STEP 8: Insert the galvanized plug into the optional supply line tee that is not used.
Before connecting the supply water line to the emergency shower, FLUSH
THE LINE THOROUGHLY.
12/09 Model 8309WC Page 2 of 5
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1. No flow. 1. Check the main shut-off valve.
2. Insufficient water flow, shower
and eyewash.
3. Insufficient water flow on
eyewash, however, shower is
2. Verify minimum 30 psi (2 ATM) flowing
supply line pressure.
3a. Verify minimum 30 psi (2 ATM) flowing
supply line pressure.
sufficient.
b. Probable clogging of flow control due to
inadequate line flushing. Unscrew
eye/face wash head and remove the
four screws to disassemble the head.
Clean flow control and reassemble
head. See SP65 Installation Drawing
for details.
c. Remove cap located on L – Strainer
using a 3/8” allen wrench to access and
clean filter screen.
4. Eyewash or face wash streams
do not meet desired eye level or
are not balanced.
4a. Possible blocked flow control see
above solution. (Possible non-leveled
eyewash assembly.)
5. Insufficient water flow at the
showerhead, however, eyewash
is sufficient.
5a.
Probable clogging of flow control inside
shower head. Unscrew shower head
off of elbow and clean rubber flow
control.
6. Water does not drain properly. 6a. Check your drain system for debris.
Check the main waste line of your
building to see if it does handle the
capacity required for the entire
drainage system.
7. Water leak between joints or
fittings.
7a. Tighten loose connections. If leak
persists, the application of hot water
will sometimes reseat improperly
applied joint compound. After 30
minutes wait and retest, a persistent
leak will necessitate reassembly and
additional sealant.
For more information on Haws Products, please see our website: www.hawsco.com
© 2009 Haws
HAWS
®
®
Corporation – All Rights Reserved
and other trademarks used in these materials are the exclusive property of Haws Corporation.
12/09 Model 8309WC Page 3 of 5
