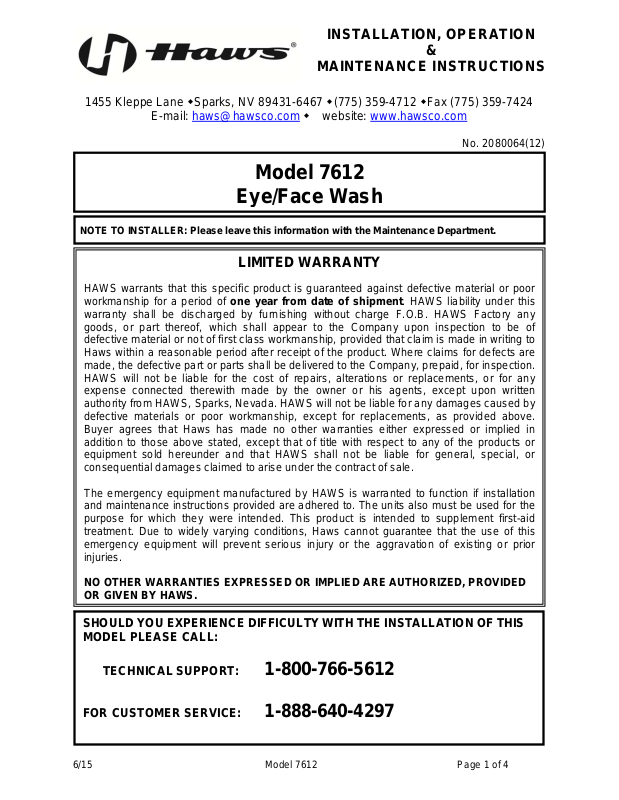

Page 1
y
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail: haws@hawsco.com website: www.hawsco.com
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
HAWS warrants that this specific product is guaranteed against defective material or poor
workmanship for a period of one year from date of shipment. HAWS liability under this
warranty shall be discharged by furnishing without charge F.O.B. HAWS Factory any
goods, or part thereof, which shall appear to the Company upon inspection to be of
defective material or not of first class workmanship, provided that claim is made in writing to
Haws within a reasonable period after receipt of the product. Where claims for defects are
made, the defective part or parts shall be delivered to the Company, prepaid, for inspection.
HAWS will not be liable for the cost of repairs, alterations or replacements, or for any
expense connected therewith made by the owner or his agents, except upon written
authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages caused by
defective materials or poor workmanship, except for replacements, as provided above.
Buyer agrees that Haws has made no other warranties either expressed or implied in
addition to those above stated, except that of title with respect to any of the products or
equipment sold hereunder and that HAWS shall not be liable for general, special, or
consequential damages claimed to arise under the contract of sale.
The emergency equipment manufactured by HAWS is warranted to function if installation
and maintenance instructions provided are adhered to. The units also must be used for the
purpose for which they were intended. This product is intended to supplement first-aid
treatment. Due to widely varying conditions, Haws cannot guarantee that the use of this
emergency equipment will prevent serious injury or the aggravation of existing or prior
injuries.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED, PROVIDED
OR GIVEN BY HAWS.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297
Model 7612
E
e/Face Wash
LIMITED WARRANTY
No. 2080064(12)
6/15 Model 7612 Page 1 of 4
Page 2
LOCATION OF UNIT: The Model 7612 Eye/face wash should be installed in close
proximity to potential accident areas. It should be clearly identified free from
obstructions and easy to access.
SUPPLY LINE: The minimum recommended line size is 1/2" IPS with 30-90 psi (2-6
ATM) pressure. Where sediment or mineral content is a problem, an inlet filter is
recommended.
PLUMBING CONNECTIONS: Inlet supply is 1/2". Waste outlet is 1-1/4” NPT.
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1. No flow. 1. Check the main shut-off valve.
2. Insufficient water flow. 2. a. Verify minimum 30 psi flowing supply
line pressure.
b. Probable clogging of flow control due
to inadequate line flushing. Unscrew
eye/face wash head and remove the
four screws to disassemble head.
Clean flow control and reassemble
head.
3. Eye/face wash streams do not
meet desired eye level.
3. a. Possible blocked flow control, see
above solution.
b. Possible non-leveled eye/face wash
assembly.
4. Water does not drain properly. 4. Check the main wasteline of your
building to see if it does handle the
capacity required for the entire
drainage system.
For more information about Haws products, see our website: www.hawsco.com
© 2015 Haws
HAWS
6/15 Model 7612 Page 2 of 4
®
®
Corporation – All Rights Reserved
and other trademarks used in these materials are the exclusive property of Haws Corporation.
Page 3
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
PARTS BREAKDOWN
SP65SS EYE /FACE WASH ASSY.
SP175 EYEWASH SIGN
SP170 TEST TAG
TEST THIS UNIT EACH WEEK
SP226PCP VALVE ASSY.
BYECN NO.
REVISED PE R
ECN:
5005
DATE
DRAWN
CLF
WHE N ORDERING PARTS PLEASE SPECI FY MODEL NUMBE R.
C
2015
Haws Corpor ation - All Rights Reserved
HAWS and other trademarks used in these materials ar e the exclusive pr operty of Haws Cor poration.
R
APPROVED
3/02/93
DATE
FV
CHKD
06/25/15
HM
RVH
MODEL(S)
SCALE:
1:1
7612
DRAWING TYPE: SIZE: A
PARTS BREAKDOWN
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL : HA W S @H AW SCO.CO M
WEBSITE: WWW.HAWSCO.COM
PAGE
PART NUMBER
0002080064
REVISION
12
SHEET OF
11
3 of 4
Page 4
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
C
Haws Corporation - All Rights Reserved.
2015
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
15"
381mm
10-1/4"
260mm
SWIVEL
9"
229mm
6"
152mm
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
2-1/4"
57mm
1-1/8"
R
29mm
MAX THICK
1/2" O.D. SUPPLY
SINK
(NOT SUPPLIED)
1-1/8" [29mm]
MIN. CLEARANCE
8-1/2"
TO SINK EDGE
216mm
OFF
APPROVED:
DRAWN:
C. HAYES
FV
REVISE D PER
ECN:
DATE:
05/07/91
5005
DATE:
06/25/15
BY:ECN NO.
CHK'D.:
RVH
HM
SCALE:
MODEL(S)
6" [152mm]
MIN. CLEARANCE
SEAL BASE WITH
SIL ICONE CAUL K
1:1
DRAWING TYPE: SIZE: A
7612
INSTALLATION
0002080064.D
REVISION
PART NUMBER
SHEET OF
11
12
ON
4-1/2"
MIN. CLEARANCE RADIUS
114mm
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.H AWSCO. CO M
SPARKS, NEVADA 89431
NOTES:
1455 KLEPPE LANE
1. THE ANSI Z358.1-2009 STANDARD SPECIFIES EYEWASH NOZZLE
FOR FACEWASH STREAMS
HEIGHTS TO BE 83.8cm (33 IN.) TO 114.3cm (45 IN.) ABOVE THE
FLOOR. CENTERLINE OF EYEWASH HEADS MUST BE 15.2cm (6 IN.)
MIN. AWAY FROM WALL OR NEAREST OBSTRUCTION.
2. INSTALL SO THAT EYEWASH HEAD IS OVER SINK WHEN ACTIVATED.
3. DIMENSIONS MAY VARY BY ±1/2" [12.7mm]
10" [254mm]
CLEARANCE RADIUS
Ø 7/8"
22mm
MOUNTING HOLE
DETAIL
PAGE
4 of 4
