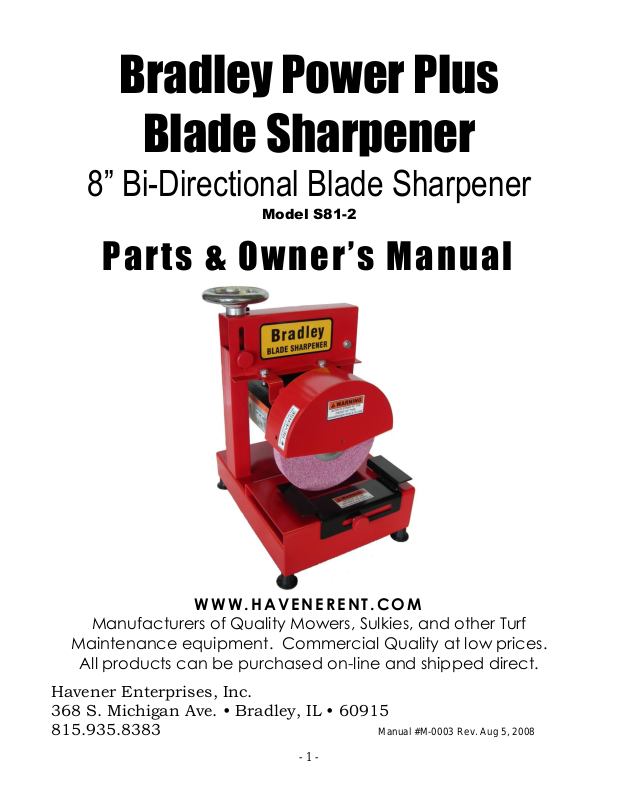

Bradley Power Plus
Blade Sharpener
8” Bi-Directional Blade Sharpener
Model S81-2
Parts & Owner’s Manual
W W W .H A V E N E R E N T . C O M
Manufacturers of Quality Mowers, Sulkies, and other Turf
Maintenance equipment. Commercial Quality at low prices.
All products can be purchased on-line and shipped direct.
Havener Enterprises, Inc.
368 S. Michigan Ave. • Bradley, IL • 60915
815.935.8383 Manual #M-0003 Rev. Aug 5, 2008
- 1 -
TABLE OF CONTENTS
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unpacking, Inspection, and First Start-up . . . . . . . 4
Operation of Blade Sharpener . . . . . . . . . . . . . 4
Maintaining Your Blade Sharpener . . . . . . . . . . . . . 5
Illustrated Parts List . . . . . . . . . . . . . . . . . . . . . . . . . 5 & 6
Warranty Statement . . . . . . . . . . . . . . . . . . . . . . . . . 7
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ABOUT THIS MANUAL
Congratulations on the purchase of your new Bradley Power Plus Blade Sharpener. We are
confident that this Blade Sharpener will provide you with years of excellent performance,
durability, and trouble free service when operated and maintained as directed in this manual.
This owner’s manual is considered a permanent part of the Bradley Power Plus Blade
Sharpener. It must be available to all of the operators and/or person(s) servicing the Blade
Sharpener. Should the unit be resold, this manual must remain with the unit.
All information, illustrations, and specifications contained in this manual were in effect at the
time of publication. The Manufacturer reserves the right to change, modify, and/or discontinue
specifications and/or design without notice. Please contact your authorized dealer before
operating and/or servicing the equipment if there is a change that has been made to your Blade
Sharpener that is not shown or reflected in this manual.
Should you ever have any questions regarding the operation, maintenance, or safety of your
Blade Sharpener, please contact your authorized dealer who has been trained on the operation
and servicing of this unit.
A space has been provided below to record information about your new Blade Sharpener.
Please the take time to record such information for future reference, especially when you
contact an authorized dealer with questions.
If you did not sign and receive your copy of your warranty registration, contact your Even Cut
dealer to do so immediately! Before any warranty service can be authorized this product must
be registered with Havener Enterprises, Inc.
Date Purchased: __________________________
Model Number: S81-2
Purchased From: __________________________
- 2 -
SAFETY INFORMATION
Read This Manual Carefully And Thoroughly Before Operating
The Blade Sharpener!
Training
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. It may also indicate an unsafe practice.
CALIFORNIA PROPOSITION 65
Crystalline Silica from bricks, cement, and other masonry products
may be harmful to your health as determined by California Proposition 65. When using sharpener wheel
devices, it is recommended that you wear the correct NIOSH approved respirator.
GENERAL SAFETY RULES
Failure to follow these rules may result in serious injury.
1. Read and understand the owner’s manual.
2. Never allow anyone to operate the Blade Sharpener that has not read and fully understood the
owner’s manual. Operators must give their full attention while using the Blade Sharpener.
3. Wear protective clothing. Do not wear clothing or jewelry that will entangle in the rotating wheel.
4. Wear safety glasses with side shields to reduce the risk of injury from thrown objects or dust
particles.
5. Wear a NIOSH approved respirator for the type of sharpener wheel you are using.
6. Use the appropriate hearing protection if required. Refer to OSHA standards.
7. Check for damaged parts before using the machine. Do not use the machine if any parts are
damaged.
8. Be certain that the wheel guard is in place.
9. Feed the work piece against the direction of the rotating sharpener disk.
10. Always use this Blade Sharpener in a well ventilated area.
11. Remove dust particles from your skin after each use.
12. Use only wheels suitable for 3600 rpm of rotation speed. Wheels must not be greater than 8” dia.
13. Use only wheels that have a 5/8” bore. Do not modify sharpener wheel bores or the mounting
shaft diameter to accommodate other sharpener wheel bores.
14. Inspect the sharpener wheel before each use. Do not use cracked or damaged sharpener
wheels.
15. Do not stand in the direct line of the wheel for the first minute after turning on.
16. Do not use the side of the sharpener wheel at any time.
17. Be certain that the motor switch is in the “off” position before plugging in the Blade Sharpener.
18. Outside of the USA, check with local and national codes for the required safe use and electrical
requirements.
Do not operate this machine in the rain or in damp locations. Do not
remove the grounding plug or bypass the grounding plug with an electrical adaptor.
- 3 -
UNPACKING, INSPECTION, and FIRST START-UP
After unpacking the S81 Blade Sharpener, inspect it for any damage or loose components. Nuts, bolts
and screws may be tightened with the correct tools. Inspect to see that the Sharpener Wheel is free to
rotate without contacting the frame or cover. Be certain that the Sharpener Wheel is not chipped or
cracked. Be certain that the electrical cord has not been damaged such as cut insulation or exposed
wires. A damaged electrical cord must be replaced. Do not stand in front of the Sharpener Wheel when
turning the machine on for the first time.

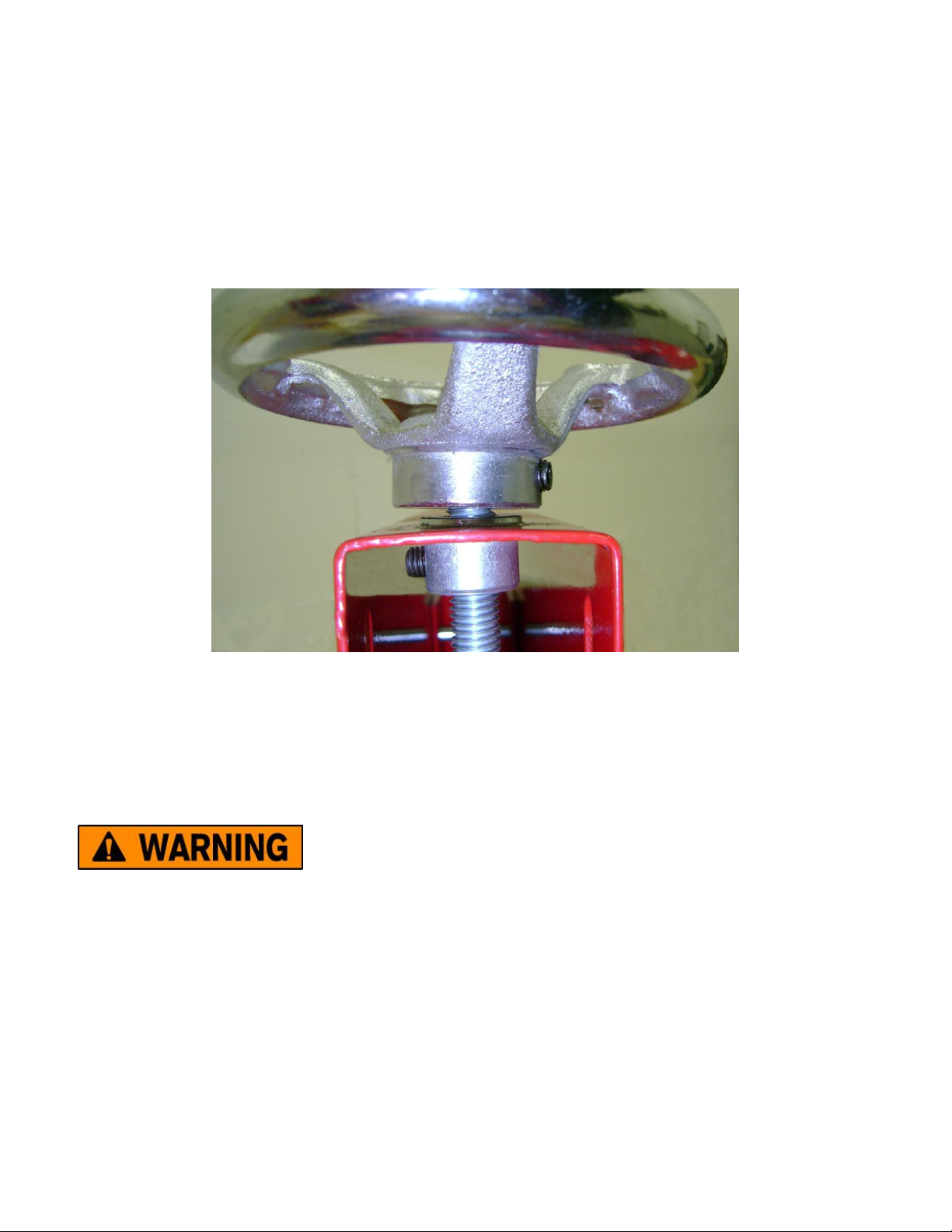

HANDLE INSTALLATION
Install the Wheel Height Adjustment Handle by first placing the flat washer over the threaded rod, and
then screw the Handle onto the threaded rod until the threaded rod is flush with the top of the Handle
knob. There should be a small gap as shown in the above photo. Tighten the two set screws with the
enclosed Allen wrench.
OPERATION OF BLADE SHARPENER
Never operate the Blade Sharpener unless the Wheel Guard is
properly in place. Operating without the guard in place can cause serious injury.
1] Turn on the Blade Sharpener, selecting the direction of rotation based on the cutting surface you
will be using.
2] Allow the Sharpening Wheel to rotate for one minute before using it, to be certain that the wheel
has not been severely damaged.
3] Be certain to hold the work piece firmly such that any sudden or unexpected movements will not
cause personal injury.
4] Feed the work piece into the direction of the rotating wheel.
5] Work piece may become hot after it has touched the Sharpening Wheel.
!!
- 4 -
MAINTAINING YOUR BLADE SHARPENER
To minimize the chance of injury always perform maintenance and
adjustments with the on/off switch in the “off” position and the motor unplugged.
Routine Maintenance:
1] Keep your Blade Sharpener clean of dust and contamination.
2] The Sharpening Wheel should be inspected for un-even wear that would cause an out-of-balance
condition while operating.
3] The Sharpening Wheel should be inspected for chips and cracks that could cause debris to
become dislodged.
1! 1

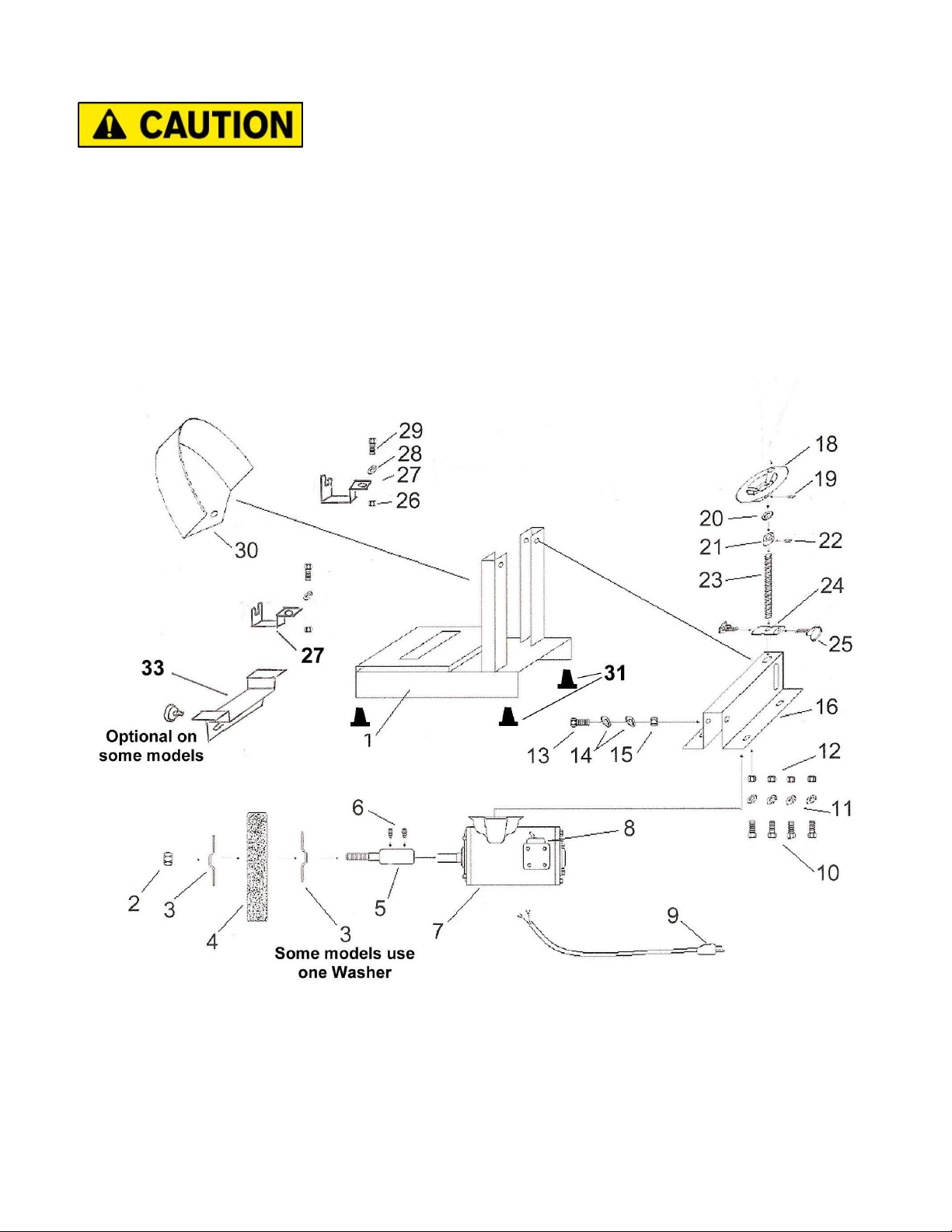

ILLUSTRATED PARTS LIST
- 5 -
1
6001
Frame 1 2
6002
Nut, Hex - Toplock 5/8-16
1
3
6003
Washer, Spring - 5/8" I.D.
2 4 6004
Wheel, Grinding - 5/8" bore x 8" O.D.
1 5 6005
Adapter, Wheel - 5/8 Bore
1 6 6006
Screw, Set. Cup Pt. - M8 x 10mm Long
2
7
6007
Motor - AC
1 8 6008
Switch - 3 position
1
9
6009
Frame 1 10
6010
Screw, Hex - M8 x 25mm Long
2
11
6011
Washer, Flat - M8 x 17mm O.D.
4
12
6012
Nut, Hex - Nylock M8
4
13
6013
Screw, Hex - M8 x 75mm Long
1
14
6011
Washer, Flat - M8 x 17mm O.D.
2
15
6012
Nut, Hex - Nylock M8
1
16
6016
Stand, Motor Support
1
17
18
6018
Wheel, Hand - M10 Thread
1
19
6006
Screw, Set. Cup Pt. - M8 x 10mm Long
3
20
6020
Washer, Flat - M10 x 24mm O.D.
1
21
6021
Collar - M10 Thread
1
22
6006
Screw, Set. Cup Pt. - M8 x 10mm Long
1
23
6023
Rod, Threaded - M10 x 125mm Long
1
24
6024
Adapter, Threaded
1
25
6025
Knob, Knurled - 1" O.D. w/M8 Thread
2
26
6031
Nut, Hex Jam - M6
2
27
6027
Bracket - Left & Right set
1 set
28
6011
Washer, Flat - M8 x 17mm O.D.
2
29
6029
Screw, Hex - M6 x 12mm Long
2
30
6030
Cover, Wheel
1
31
6032
Feet, Rubber
4
32 not shown
6033
Blade Balancer (optional on some
models)
1
33
6034
Blade Support (optional on some
models)
1 ass'y
34 not shown
6035
Label: "Always Stand In Front"
1
35 not shown
6036
Label: "Maintain Gap" (for item 6034)
1
36 not shown
6037
Labels - Direction (one forward, one
Rev)
1 set
37 not shown
6038
Label: "Bradley"
1
38 not shown
6039
Label: "Warning - For your Safety"
1
Parts List Bradley Blade Sharpener Model: S81-2
- 6 -
WARRANTY STATEMENT
LIMITED WARRANTY: Havener Enterprises, Inc. warrants that the above product is free from original
defect, in workmanship and material (excluding the stone) for 12 months from date of purchase.
Warranty is void if product has been damaged through causes not arising out of defects in material or in
workmanship. Bent parts of product, coating and paint are specifically excluded from this warranty.
Havener Enterprises, Inc disclaims any consequential damages, arising from the breach of any warranty.
(Some states do not allow the exclusion of consequential damages, so the above disclaimer may not
apply to you.) During the above mentioned warranty period, the product will either be repaired or
replaced with a new or reconditioned model of an equal equity (at Havener Enterprises, Inc’s option)
when the product is returned (prepaid and insured) with a copy of the original retail invoice, to Havener
Enterprises, Inc., 368 S Michigan Ave, Bradley, IL 60915. Phone: 815.935.8383
Havener Enterprises, Inc. • 368 S Michigan Ave • Bradley, IL • 60915 • www.havenerent.com
- 7 -
