TOAST-RITE
®
& TOAST KING
®
Electric Conveyor Toasters
TRH & TK Series
Installation &
Operating Manual
I&W #07.05.002.00
Este manual contiene importante información sobre seguridad concerniente al mantenimiento, uso y operación de este producto. Cualquier falla en el seguimiento de las instrucciones contenidas en este manual puede resultar en un serio daño. Si usted no puede entender el contenido de este manual por favor pregunte a su supervisor. No opere este equipo al menos que haya leído y comprendido el contenido de este manual.
Page 2
i
INTRODUCTION
The Hatco Toast-Rite and Toast King Electric Conveyor Toasters are specially designed to speed the toasting operation. Products for toasting pass through a heating chamber for rapid and thorough toasting of products. Dryness, moisture, sugar content and thickness of bread product affect the ability to achieve the perfect toasted product. Conveyor speed, not temperature, determines the toasting color.
Hatco toasters are quality built to meet the demands of foodservice operations and provide years of trouble-free performance. The metal-sheathed tubular heating ele­ments are guaranteed against breakage and burnout for two years. (If failure of one element should occur, your Hatco toaster will continue to operate – the production may be slightly lower.)
This manual provides the installation, safety and operat­ing instructions for the Toast-Rite and Toast King
Electric Conveyor Toasters. We recommend all installa­tion, operating and safety instructions appearing in this manual be read prior to installation or operation of your Hatco Electric Conveyor Toaster. Safety instructions that appear in this manual after a warning symbol and the words WARNING or CAUTION printed in bold face are very important. WARNING means there is the possibility of serious personal injury or death to yourself or others. CAUTION means there is the possibility of minor or moderate injury. CAU- TION without the symbol signifies the possibility of equipment or property damage only.
Your Hatco Electric Conveyor Toaster is a product of extensive research and field testing. The materials used were selected for maximum durability, attractive appear­ance and optimum performance. Every unit is thorough­ly inspected and tested prior to shipment.
CONTENTS
Important Owner Information..................................i
Introduction.................................................................i
Important Safety Instructions ..................................1
Model Descriptions ....................................................2
All Models............................................................2
Toast-Rite (TRH) Models ....................................2
Toast King (TK) Models ......................................2
Specifications..............................................................3
Electrical Rating Chart–Toast-Rite Models .........3
Electrical Rating Chart–Toast King Models ........4
Plug Configurations .............................................5
Dimensions–Toast-Rite Models ...........................6
Dimensions–Toast King Models ..........................6
Installation..................................................................7
General .................................................................7
Location................................................................7
Operation....................................................................8
All Models............................................................8
Maintenance ...............................................................9
General .................................................................9
Cleaning ...............................................................9
Lubrication ...........................................................9
Accessories................................................................10
Adjustable Legs..................................................10
Security Package ................................................10
Baskets for Jumbo Buns.....................................10
Electrical Receptacles ........................................10
Hatco Limited Warranty.........................................11
Authorized Parts Distributors.................Back Cover
Record the model number, serial number (located on the front of the unit), voltage and purchase date of your Electric Conveyor Toaster in the spaces below. Please have this information available when calling Hatco for service assistance.
Model No.
Serial No.
Voltage
Date of Purchase
IMPORTANT OWNER INFORMATION
Business Hours: 8:00 a.m. to 5:00 p.m.
Central Standard Time
(Summer Hours: June to September -
8:00 a.m. to 5:00 p.m. C.D.T.
Monday through Thursday
8:00 a.m. to 3:30 p.m. C.D.T. Friday)
Telephone: (800) 558-0607; (414) 671-6350
Parts & Service Fax: (800) 690-2966
(414) 671-3976 (International)
Form No. TR/TKM-0400
!
!
!
Page 3
1
IMPORTANT SAFETY INSTRUCTIONS
Read the following important safety instructions to avoid personal injury and/or damage to the equip­ment.
WARNINGS
1. To avoid any injury, turn the power switch off, unplug the unit from the power source and allow to cool before performing any maintenance.
2. Plug toaster into an electrical outlet of the correct voltage, size and plug configuration. If the plug and receptacle do not match, con­tact a qualified electrician to determine the proper voltage and size, and install the prop­er electrical outlet.
CAUTIONS
1. Locate the unit at the proper counter height, in an area that is convenient for use. The location should be level to prevent the unit or its contents from accidentally falling, and strong enough to support the weight of the unit.
2. Do not place anything on top of the toaster; doing so could damage toaster or subject personnel to possible injury.
3. When setting up the unit for operation, make sure power to the unit is off and the toaster is at room temperature. Failure to do so could result in personal injury.
4. Some exterior surfaces on the unit will get hot. Use caution when touching these areas to avoid injury.
5. Be sure baskets are cool before removal. If not cool, baskets could cause burns.
6. Do not lay unit on the side with the control panel or damage to unit could occur.
CAUTIONS
1. Do not locate the toaster in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit. Do not place toaster in an area that restricts air flow
around the motor compartment. Do not place toaster in direct discharge path of air conditioning vent or makeup air vent.
2. For safe and proper operation, the unit must be located at a reasonable distance from combustible walls and materials. If safe dis­tances are not maintained, discoloration or combustion could occur. Do not locate toast­er under shelving or closer than 12" (31 cm) from the ceiling.
3. Allow a clearance of 1" (3 cm) along the sides and 12" (31 cm) along the front dis­charge to ensure proper operation and safety.
4. The toasting of coated products such as gar­lic bread, cheese sandwiches and sweet rolls is NOT recommended. Residue will reduce toaster performance and could possibly ignite inside the toaster.
5. Maximum Product Thickness: 1¼" (3 cm). Toasting of thicker products is NOT recom­mended. Products thicker than 1¼" (3 cm) will cause the conveyor system to jam which could possibly ignite product inside the toaster.
6. Abrasive cleaners could scratch the finish of your toaster.
7. Misalignment of the baskets will cause the conveyor to jam. If hold down bars are sepa­rated from the baskets, be sure the bars are not reversed when re-installed. Hold down bar stops should be at the left with bar flat on basket. Incorrectly positioned bars will cause the conveyor to stop.
8. Failure to lubricate the rear motor bearing as recommended will reduce the operating life of the motor and possibly void the warranty.
!
Form No. TR/TKM-0400
!
!
!
!
!
!
!
!
!
Page 4
R
E
T
H
G
I
L
R
E
K
A A
D
R
MODEL DESCRIPTION
ALL MODELS
All Toast-Rite and Toast King Electric Conveyor Toasters are fast, dependable and versatile, toasting up to 500 or 1550 slices of bread product per hour. Every unit includes a toast collector pan, heated toast storage area, power saving thermostat, speed control, manual advance, and factory attached 4' (122 cm) cord and plug.
TOAST-RITE MODELS
TRH-50
The TRH-50 model toasts up to 8 bread or bun slices per minute (500 per hour) and features toasting baskets two-slices wide.
TRH-60
The TRH-60 model toasts up to 10 bread or bun slices per minute (600 per hour) and features toasting baskets two-slices wide.
TRH-100B
The TRH-100B model is a buns only toaster that toasts up to 16 bun slices per minute (1000 per hour) and features toasting baskets two-slices wide.
TOAST KING MODELS
TK-72
The TK-72 model toasts up to 12 bread or bun slices per minute (720 per hour) and features toasting baskets two­slices wide.
TK-90B
The TK-90B model is a buns only toaster that toasts up to 15 bun slices per minute (900 per hour) and features toasting baskets two-slices wide.
TK-100
The TK-100 model toasts up to 16 bread or bun slices per minute (1000 per hour) and features toasting baskets three-slices wide.
TK-135B
The TK-135B model is a buns only toaster that toasts up to 22 bun slices per minute (1350 per hour) and fea­tures toasting baskets three-slices wide.
TK-155B
The TK-155B model is a 3-part bun toaster that toasts up to 25 3-part bun slices per minute (1550 per hour) and features toasting baskets three-slices wide.
Figure 1. Toast-Rite Model TRH-60
A
Figure 2. Toast King Model TK-72
2
Form No. TR/TKM-0400
U
L
D
R
A
E
T
R
H
K
E
G
I
R
L
Page 5
SPECIFICATIONS
ELECTRICAL RATING CHART – TOAST- RITE SERIES
3
Form No. TR/TKM-0400
Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TRH-50 120 60 2738 22.8 NEMA 5-30P 64 lbs. (29 kg)
208 60 2738 13.2 NEMA 6-20P 64 lbs. (29 kg)
240 60 2738 11.4 NEMA 6-20P 64 lbs. (29 kg)
220 60 2738 12.5 CEE 7/7 Schuko 64 lbs. (29 kg)
220 50 2738 12.5 CEE 7/7 Schuko 64 lbs. (29 kg)
220/380 3Ø 50 2700 4.6 None 64 lbs. (29 kg)
220-230 CE 50 2738-2993 12.5-13.0 CEE 7/7 Schuko 64 lbs. (29 kg)
230-240 CE 50 2514-2738 10.9-11.4 BS 1363 64 lbs. (29 kg)
240 50 2738 11.4 BS 1363 64 lbs. (29 kg)
TRH-60 208 60 3838 18.5 NEMA 6-20P* 64 lbs. (29 kg)
240 60 3838 16.0 NEMA 6-20P 64 lbs. (29 kg)
200 50 3548 17.7 NEMA 6-20P 64 lbs. (29 kg)
220 60 3838 17.5 No Cap 64 lbs. (29 kg)
220 50 3838 17.5 CEE 7/7 Schuko 64 lbs. (29 kg)
220-230 CE 50 3838-4195 17.7-18.2 No Cap 64 lbs. (29 kg)
230-240 CE 50 3524-3838 15.3-16.0 No Cap 64 lbs. (29 kg)
240 50 3838 16.0 BS 1363 64 lbs. (29 kg)
TRH-65E (CE) 220-230 50 4338-4741 19.7-20.6 No Cap 64 lbs. (29 kg)
230-240 50 3984-4338 17.3-18.1 No Cap 64 lbs. (29 kg)
TRH-100B 120 60 2600 21.7 NEMA 5-30P 64 lbs. (29 kg)
208 60 2600 12.5 NEMA 6-20P 64 lbs. (29 kg)
240 60 2600 10.8 NEMA 6-20P 64 lbs. (29 kg)
220 60 2638 12.0 CEE 7/7 Schuko 64 lbs. (29 kg)
220 50 2638 12.0 CEE 7/7 Schuko 64 lbs. (29 kg)
240 50 2638 11.0 BS 1363 64 lbs. (29 kg)
* NEMA 6-30P for Canada.
The electrical information in the shaded areas pertain to Export models only.
Page 6
4
Form No. TR/TKM-0400
SPECIFICATIONS
ELECTRICAL RATING CHART – TOAST KING SERIES
* NEMA 6-30P for Canada. The electrical information in the shaded areas pertain to Export models only.
Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TK-72 208 60 4038 19.4 NEMA 6-20P* 76 lbs. (35 kg)
240 60 4038 16.8 NEMA 6-20P* 76 lbs. (35 kg)
200 50 3733 18.7 NEMA 6-20P 76 lbs. (35 kg)
220-230 CE 50 4038-4414 18.4-19.2 No Cap 76 lbs. (35 kg)
220 50 4038 18.4 No Cap 76 lbs. (35 kg)
220 60 4038 18.4 No Cap 76 lbs. (35 kg)
230-240 CE 50 3708-4038 16.1-16.8 No Cap 76 lbs. (35 kg)
240 50 4038 16.8 No Cap 76 lbs. (35 kg)
TK-75 220-230 CE 50 5238-5725 23.8-24.9 No Cap 76 lbs. (35 kg)
230-240 CE 50 4811-5238 21.0-21.8 No Cap 76 lbs. (35 kg)
TK-90B 208 60 3238 15.6 NEMA 6-20P 76 lbs. (35 kg)
240 60 3238 13.5 NEMA-6-20P 76 lbs. (35 kg)
220 60 3238 14.7 CEE 7/7 Schuko 76 lbs. (35 kg)
220 50 3238 14.7 CEE 7/7 Schuko 76 lbs. (35 kg)
240 50 3238 13.5 No Cap 76 lbs. (35 kg)
TK-100 208 60 5038 24.0 NEMA 6-30P 88 lbs. (40 kg)
240 60 5038 21.0 NEMA 6-30P 88 lbs. (40 kg)
200 50 4657 23.3 NEMA 6-30P 88 lbs. (40 kg)
220 60 5038 22.9 No Cap 88 lbs. (40 kg)
220 50 5038 22.9 No Cap 88 lbs. (40 kg)
220-230 CE 50 5038-5507 22.9-23.9 No Cap 88 lbs. (40 kg)
230-240 CE 50 4626-5038 20.1-21.0 No Cap 88 lbs. (40 kg)
240 50 5038 21.0 No Cap 88 lbs. (40 kg)
TK-105 200 50 7438 33.8 No Cap 88 lbs. (40 kg)
220-230 CE 50 7438-8129 33.8-35.3 No Cord 88 lbs. (40 kg)
230-240 CE 50 6830-7438 30.0-31.0 No Cord 88 lbs. (40 kg)
TK-135B 208 60 4300 20.7 NEMA 6-30P 88 lbs. (40 kg)
240 60 4300 17.9 NEMA 6-30P 88 lbs. (40 kg)
220 60 4338 19.7 No Cap 88 lbs. (40 kg)
220 50 4338 19.7 No Cap 88 lbs. (40 kg)
240 50 4338 18.1 No Cap 88 lbs. (40 kg)
TK-155B 208 60 5038 24.0 NEMA 6-30P 88 lbs. (40 kg)
240 60 5038 20.8 NEMA 6-30P 88 lbs. (40 kg)
220 60 5018 22.8 No Cap 88 lbs. (40 kg)
220 50 5018 22.8 No Cap 88 lbs. (40 kg)
240 50 5018 20.9 No Cap 88 lbs. (40 kg)
Page 7
SPECIFICATIONS
5
Form No. TR/TKM-0400
Plug toaster into an electrical outlet of the correct voltage, size and plug configuration. If the plug and receptacle do not match, contact a qualified electri­cian to determine the proper voltage and size and install the proper electrical outlet.

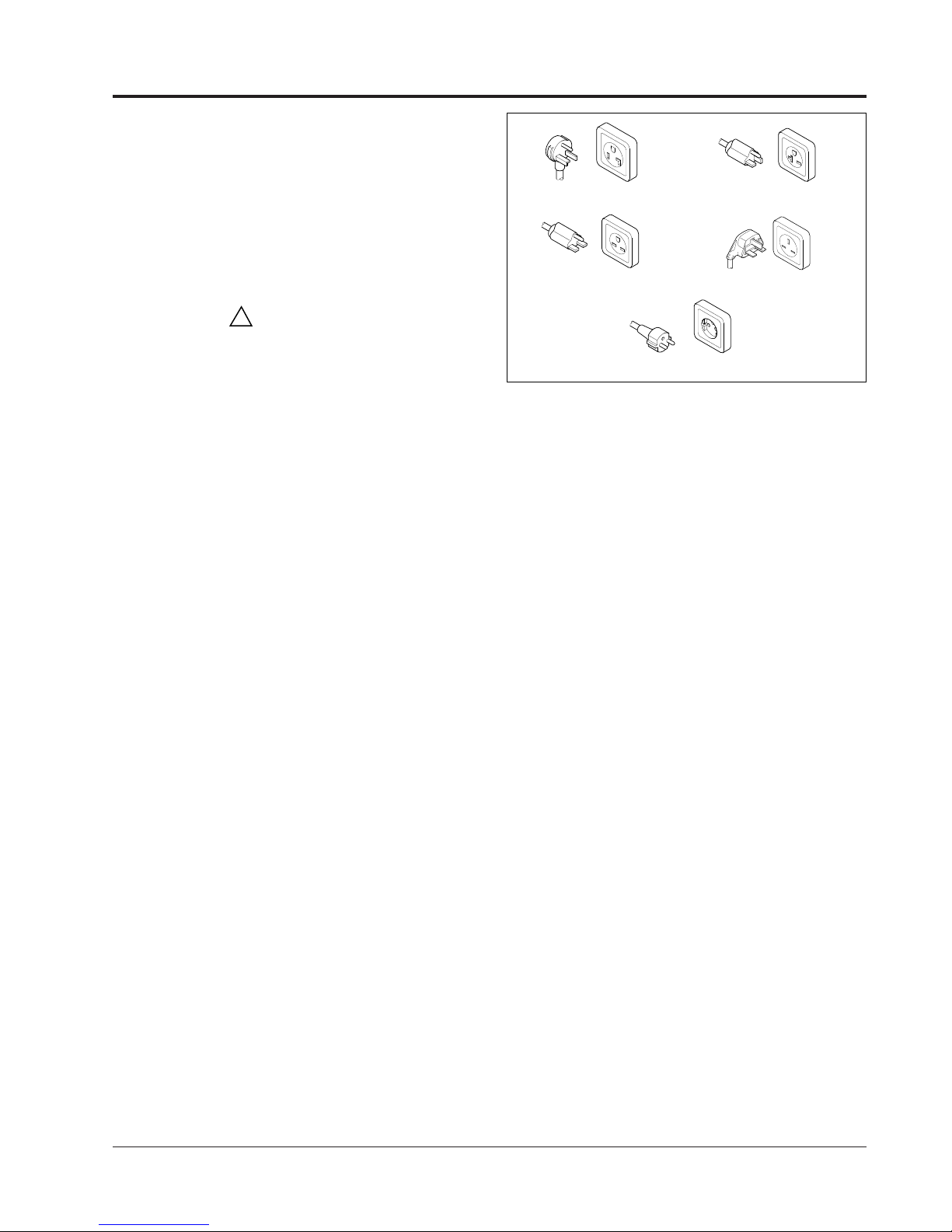

Figure 3. Plug Configurations
PLUG CONFIGURATIONS
Units are supplied from the factory with an electrical cord and plug installed on the back of the unit. See ELECTRICAL RATING CHART and Figure 3. The cir­cuit must be sized depending on the model amp rating.
NOTE: See the specification plate located on the front of the unit at the control panel for proper electrical requirements.
WARNING
!
NEMA 5-30P
NEMA 6-20P
NEMA 6-30P
BS 1363
CEE 7/7 Schuko
If local codes require Greenfield or conduit hook-up, consult a licensed electrical contractor to perform supply wire connection. Access to the unit wiring is through the rear lower access panel.
To connect supply wires to the toaster:
1. Remove the screws securing the side panels and remove them.
2. Remove the screws securing the rear lower access panel, and remove the panel.
3. Insert the Greenfield or conduit through the opening in the rear access panel and attach to the power sup­ply bracket. Connect the wires.
4. Attach ground wire to power supply bracket at threaded hole marked “G”.
5. Reinstall access panel and side panels.
Page 8

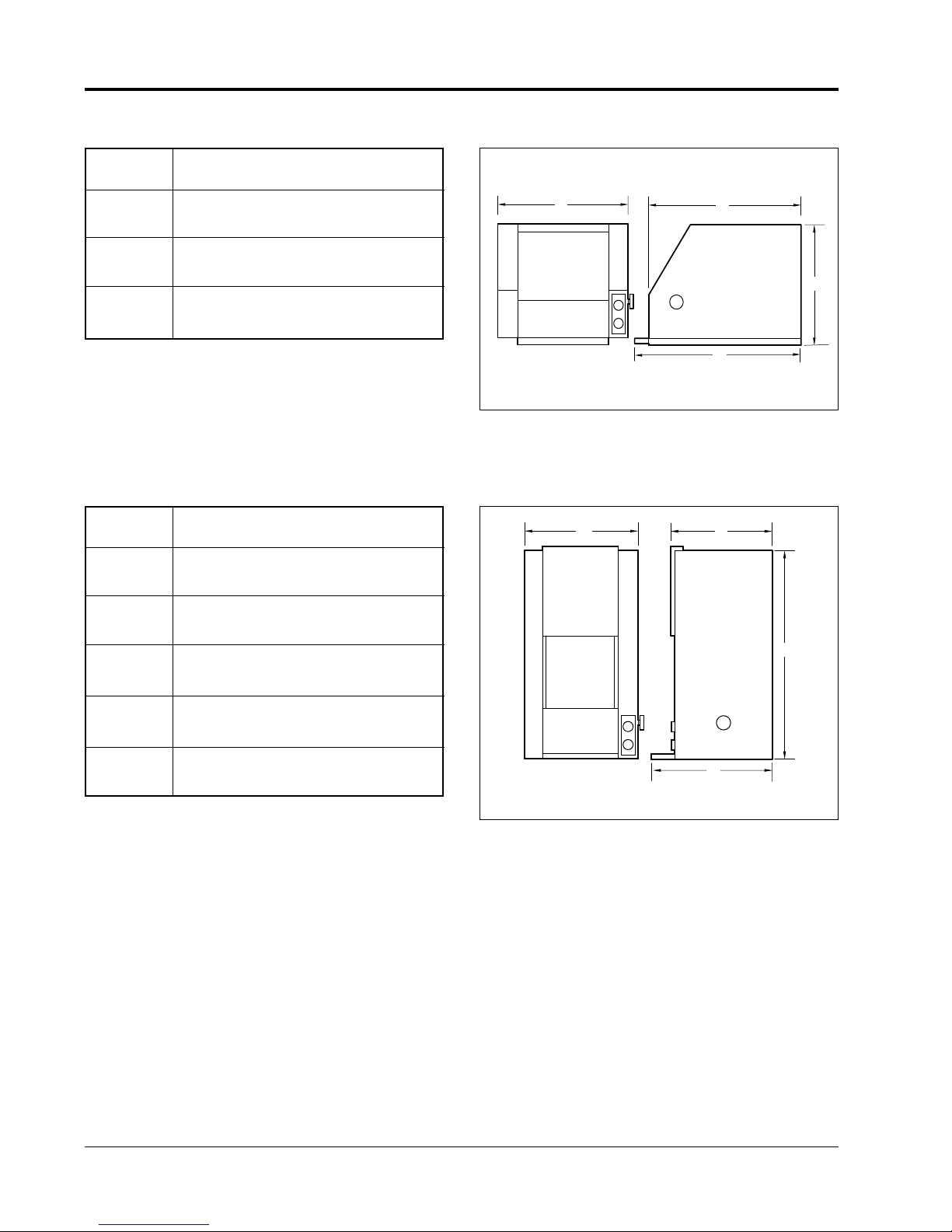

Figure 4. Dimensions - Toast-Rite Models
A
B
D
6
Form No. TR/TKM-0400
Figure 5. Dimensions - Toast King Models
Model Width Depth Depth Height
(A) (B) (C) (D)
TK-72 17-1/2" 14-1/8" 17-5/8" 33"
(45 cm) (36 cm) (45 cm) (84 cm)
TK-90B 17-1/2" 14-1/8" 17-5/8" 33"
(45 cm) (36 cm) (45 cm) (84 cm)
TK-100 22" 14-1/8" 17-5/8" 33"
(56 cm) (36 cm) (45 cm) (84 cm)
TK-135B 22" 14-1/8" 17-5/8" 33"
(56 cm) (36 cm) (45 cm) (84 cm)
TK-155B 22" 14-1/8" 17-5/8" 33"
(56 cm) (36 cm) (45 cm) (84 cm)
DIMENSIONS – TOAST KING MODELS
A B
C
D
Model Width Depth Depth Height
(A) (B) (C) (D)
TRH-50 17-1/2" 22-1/2" 27-1/2" 16-1/4"
(45 cm) (57 cm) (70 cm) (41cm)
TRH-60 17-1/2" 22-1/2" 27-1/2" 16-1/4"
(45 cm) (57 cm) (70 cm) (41 cm)
TRH-100B 17-1/2" 22-1/2" 27-1/2" 16-1/4"
(45 cm) (57 cm) (70 cm) (41 cm)
DIMENSIONS – TOAST-RITE MODELS
C
Front View
Front View
Side View
Side View
SPECIFICATIONS
Page 9
CAUTION
Locate the unit at the proper counter height, in an area that is convenient for use. The location should be level to prevent the unit or its contents from acci­dentally falling, and strong enough to support the weight of the unit.
Do not place anything on top of the toaster; doing so could damage toaster or subject personnel to possible injury.
When setting up the unit for operation, make sure power to the unit is off and the toaster is at room temperature. Failure to do so could result in personal injury.
GENERAL
1. Remove unit from box.
2. Remove information packet. To prevent delay in
obtaining warranty coverage, fill out and mail in warranty card.
3. Remove tape and packaging materials.
NOTE: Remove the tube of lubricating oil taped to the toast collector pan. Retain for future lubrication of the gear motor.

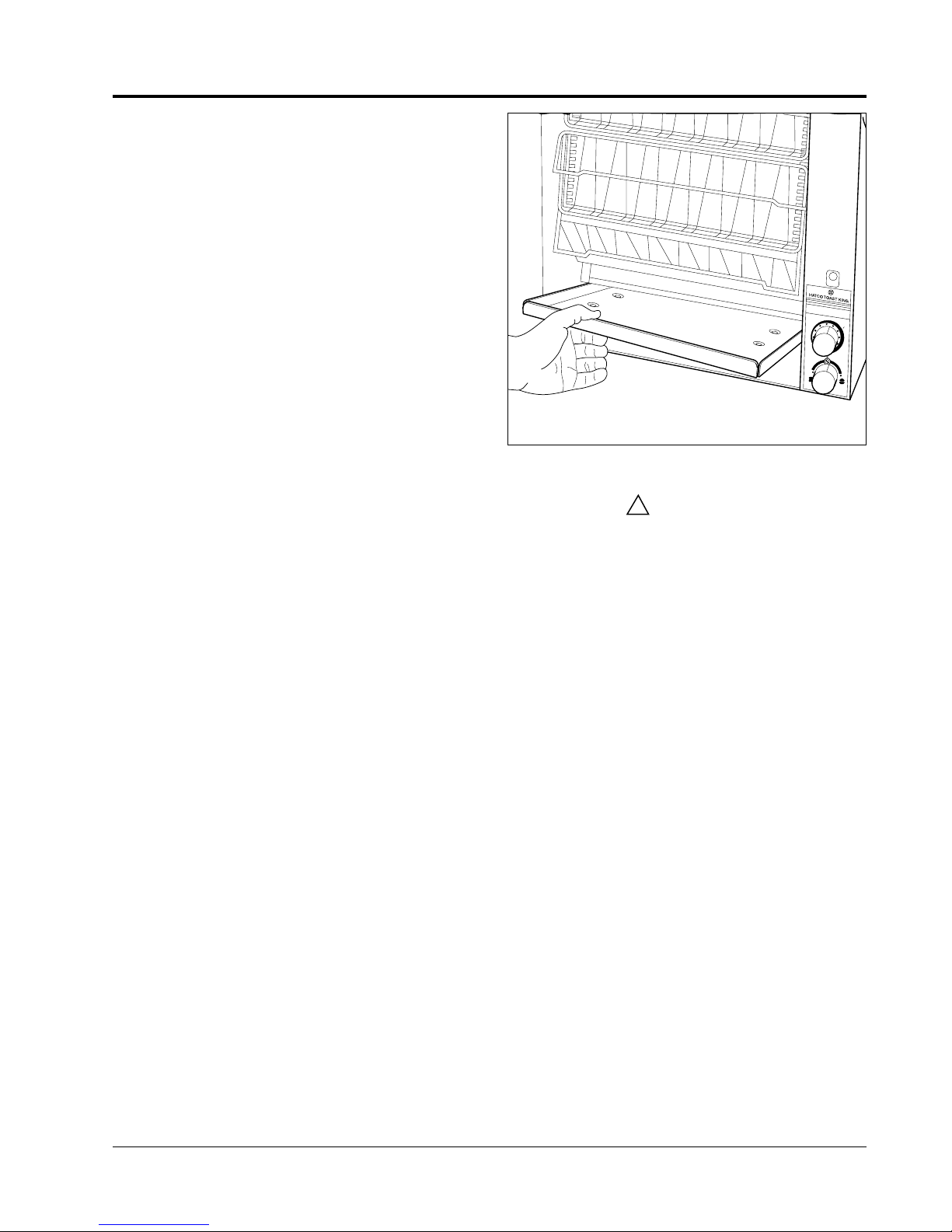

4. Install toast collector pan to unit. See Figure 6.
LOCATION
CAUTION
Do not locate the toaster in an area subject to exces­sive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit. Do not place toaster in an area that restricts air flow around the motor compartment. Do not place toaster in direct discharge path of air conditioning vent or makeup air vent.
For safe and proper operation, the unit must be located a reasonable distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur. Do not locate toaster under shelving or closer than 12" (31 cm) from the ceiling.
Allow a minimum of 1" (3 cm) clearance along the sides. Allow a clearance of 12" (31 cm) along the front discharge to ensure proper operation and safety.
INSTALLATION
7
Form No. TR/TKM-0400
L
U
R
E
T
H
G
I
L
R
E
K
A A
D
R
Figure 6. Install Toast Collector Pan
!
Page 10
8
Form No. TR/TKM-0400
ALL MODELS
1. Plug cabinet into an electrical outlet of the correct voltage, size and plug configuration. See Specifications for details.
2. Turn the Selector Switch, located on the front panel, to “Toast” or “Buns”. See Figure 7.
NOTE: When toasting buns, place cut side down and set Selector Switch to the “Buns” position. When toast­ing bagels, place cut side up and set Selector Switch to the “Toast” position.
3. Turn the Speed Control to the lightest/fastest posi­tion while the unit heats up.
NOTE: Allow approximately 15 minutes for a warm-up period.
4. After warm-up period, set the Speed Control to medium position and toast two slices of bread prod­uct. Adjust the Speed Control to the desired amount of browning.
NOTE: To toast moist products such as English muffins, rye bread or whole wheat, slow the conveyor by turning the Speed Control knob to a slower/darker setting (clockwise).
CAUTION
The toasting of coated products such as garlic bread, cheese sandwiches and sweet rolls is NOT recom­mended. Residue will reduce toaster performance and could possibly ignite inside the toaster.
Maximum Product Thickness: 1¼" (3 cm). Toasting of thicker products is NOT recommended. Products thicker than 1¼" (3 cm) will cause the conveyor sys­tem to jam which could possibly ignite product inside the toaster.
OPERATION
Figure 7. Control Panel
Speed Control
Thermostat Adjustment Screw
Selector Switch
Manual Advance
The manual advance knob is located on the right side panel of the toaster. This knob permits manual rotation of the baskets and allows rapid discharge of toast. During the cleaning operation, the manual advance knob permits rotation of the baskets for removal without ener­gizing the toaster.
Thermostat Adjustment
The thermostat adjustment screw is located on the con­trol panel. This thermostat controls the toasting chamber temperature. The thermostat is preset at the factory, but may be adjusted as follows:
Using a small screwdriver, turn the adjustment screw (Figure 7) clockwise to increase temperature or counter­clockwise to decrease the temperature.
NOTE: Do not turn screw more than 1/8 turn at a time. Allow at least 5 minutes for temperature to stabilize.
U
L
R
E
T
H
G
I
L
D
A
R
K
E
R
Page 11
GENERAL
Hatco Electric Conveyor Toasters are designed for max­imum durability and performance, with minimum maintenance.
WARNING
To avoid any injury, turn the power switch off, unplug the unit from the power source and allow to cool before performing any maintenance.
CLEANING
Exterior
To preserve the bright finish of the unit, it is recom­mended that the exterior surfaces be wiped daily with a damp cloth. Stubborn stains may be removed with a good stainless steel cleaner or a non-abrasive cleaner. Hard to reach areas should be cleaned with a small brush and mild soap.
CAUTION
Abrasive cleaners could scratch the finish of your toaster.
Toast Collector Pan
Remove from unit and wash with soap and water, then rinse.
Baskets
1. Use the manual advance knob on the right side of the unit to advance the baskets without energizing the unit.
CATION
Be sure baskets are cool before removal. If not cool, baskets could cause burns.
2. Remove the baskets by pushing the spring-loaded chain away from the basket while pulling the basket to the left and out. See Figure 8.
NOTE: Do not detach hold down bars when cleaning baskets.
3. Wipe clean with a soft, damp cloth or soak the bas­kets in a mild solution of soap and water.
4. Re-install baskets by aligning pin on chain with holes in toaster basket. Right side pin must be exact­ly opposite the pin on the left-hand chain.
5. To attach balance of baskets, advance the conveyor and repeat procedure. Each basket is hung immedi­ately below the preceding basket, otherwise, all bas­kets cannot be installed.
!
CAUTION
Misalignment of the baskets will cause the conveyor to jam.
If hold down bars are separated from the baskets, be sure the bars are not reversed when re-installed. Hold down bar stops should be at the left with bar flat on basket. Incorrectly positioned bars will cause
the conveyor to stop.
LUBRICATION
The motor bearing requires periodic lubrication at rec­ommended intervals.
CAUTION
Failure to lubricate the rear motor bearing as recom­mended will reduce the operating life of the motor and possibly void the warranty.
1. Disconnect toaster from the power supply.
2. Remove the screws securing the rear lower access panel, and carefully lift panel up to expose motor compartment.

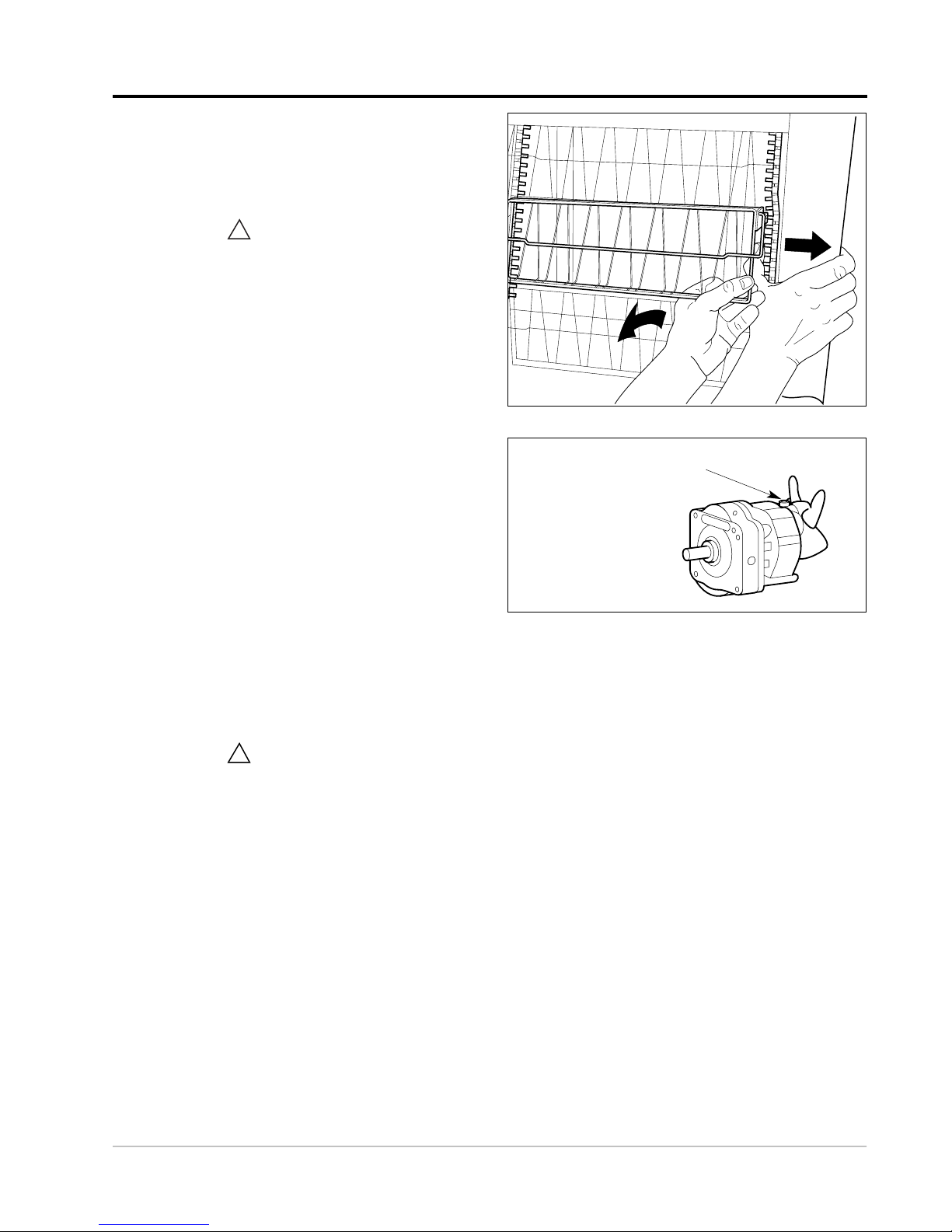

Figure 9. Lubricating Gear Motor Bearing
Figure 8. Removing/Installing Baskets
!
Oil here using Part No. 05.01.018.00
MAINTENANCE
9
Form No. TR/TKM-0400
Page 12
10
Form No. TR/TKM-0400
ACCESSORIES
MAINTENANCE
4" (10 cm) ADJUSTABLE LEGS
1. Carefully place unit on its side.
CAUTION Do not lay unit on the side with the control panel or damage to unit could occur.
2. Thread the 4" (10 cm) adjustable legs into the exist­ing leg holes on the bottom of the unit. See Figure 10.
3. After all legs are secure, return the unit to the upright position.
4. If unit is not level, use a 5/8" (16 mm) open-end wrench to adjust the foot of each leg until unit is level.
BASKETS FOR JUMBO BUNS (TK-100, TK-135B & TK-155B MODELS ONLY)
Baskets will accommodate jumbo buns up to 5-1/2" (14 cm) in diameter.
ELECTRICAL RECEPTACLES
Various electrical receptacles are available for different applications. See the applicable Electrical Rating Chart for details.
Leg Adjustment
Adjust leg using a 5/8" (16 mm) open-end wrench and turning bottom of leg accordingly.
Leg Installation
Figure 10. Adjustable Legs
!
3. Lubricate the bearing by applying 10-12 drops of Mobil SHC 624 lubricant (Hatco part no.
05.01.018.00) to the bearing. See Figure 9.
4. Re-install the rear access panel.
Motor Bearing Lubrication Schedule
24 hours operation . . . . . . . . . . . . . . . .Every 6 weeks
18 hour operation . . . . . . . . . . . . . . . . .Every 8 weeks
12 hour operation . . . . . . . . . . . . . . . .Every 12 weeks
Periodic operation . . . . . . . . . . . . . . . .Every 6 months
Page 13
LIMITED WARRANTY
11
Form No. TR/TKM-0400
1. PRODUCT WARRANTY
Hatco warrants the products that it manufactures (the “Products”) to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco’s written instructions. Buyer must establish the product’s purchase date by returning Hatco’s Warranty Registration Card or by other means satis­factory to Hatco in its sole discretion.
Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the condi­tions listed below:
a) One (1) Year Parts and Labor PLUS One (1)
Additional Year Parts-Only Warranty:
Toaster Elements (metal sheathed) Drawer Warmer Elements (metal sheathed) Drawer Warmer Drawer Rollers and Slides Food Warmer Elements (metal sheathed) Display Warmer Elements (metal sheathed
air heating)
Holding Cabinet Elements (metal sheathed
air heating)
Cook and Hold Oven Elements (metal sheathed)
b) One (1) Year Parts and Labor PLUS Four (4)
Additional Years Parts-Only Warranty on pro-rated terms that Hatco will explain at Buyer’s Request:
Powermite Gas Booster Heater Tanks Mini Compact Tanks (stainless steel) 3CS and FR Tanks
c) One (1) Year Parts and Labor PLUS Four (4)
Additional Years Parts-Only Warranty PLUS Five (5) Year Parts-Only Warranty on pro­rated terms that Hatco will explain at Buyer’s Request:
Booster Heater Tanks (Castone)
d) One (1) Year Parts-Only Warranty for
components not installed by Hatco:
Accessory Components (including but not limited to valves, gauges and remote switches)
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without lim­iting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandes­cent light bulbs, fluorescent lamps, lamp warmer heat bulbs, glass components or Product failure in booster tank and fin tube heat exchanger caused by liming, sediment buildup, chemical attack or freezing in tanks, Product misuse, tampering or misapplication, improper installation, application of improper volt­age, or recalibration of thermostats or high limit switches.
2. LIMITATION OF REMEDIES AND DAMAGES
Hatco’s liability and Buyer’s exclusive remedy hereunder will be limited solely, at Hatco’s option, to repair or replacement by a Hatco-authorized service agency (other than where Buyer is located outside of the United States or Canada, in which case Hatco’s liability and Buyer’s exclusive remedy here­under will be limited solely to replacement of part under warranty) with respect to any claim made with­in the applicable warranty period referred to above. Without limiting the generality of the foregoing, all portable Products (as defined in N.S.F. 4-4.28.4) shall be delivered by Buyer, at its sole expense, to the nearest Hatco-authorized service agency for replace­ment or repair. Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.
Page 14
NOTES
12
Form No. TR/TKM-0400
Page 15
NOTES
13
Form No. TR/TKM-0400
Page 16
Printed in U.S.A. Printed April 2000
P/N 07.04.290.00 Form No. TR/TKM-0400
HATCO AUTHORIZED PARTS DISTRIBUTORS
HATCO CORPORATION
P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.
(800) 558-0607 (414) 671-6350
Parts & Service Fax (800) 690-2966 Int’l. Fax (414) 671-3976
Web Site: www.hatcocorp.com
ALABAMA
Jones McLeod Appl. Svc. Birmingham 205-251-0159
ARIZONA
Auth. Comm. Food Equip. Phoenix 602-234-2443
Byassee Equipment Co. Phoenix 602-252-0402
CALIFORNIA
Industrial Electric Huntington Beach 714-379-7100
Chapman Appl. Service San Diego 619-298-7106
P & D Appliance S. San Francisco 650-635-1900
COLORADO
All City Service Denver 303-454-9500
Hawkins Commercial Appliance Englewood 303-781-5548
DELA
WARE
Food Equipment Service Wilmington 302-996-9363
FLORIDA
Whaley Foodservice Repair Jacksonville 904-725-7800
Nass Service Co., Inc. Orlando 407-425-2681
B.G.S.I. Pompano Beach 954-971-0456
Comm. Appliance Service Tampa 813-663-0313
GEORGIA
Southeastern Rest. Svc. Norcross 770-446-6177
HA
WAII
Burney’s Comm. Service, Inc. Honolulu 808-848-1466
Food Equip Parts & Service Honolulu 808-847-4871
ILLINOIS
Benjamin & Sons Chicago 773-327-7128
Eichenauer Elec. Service Decatur 217-429-4229
Midwest Elec. Appl. Service Elmhurst 630-279-8000
Cone’s Repair Service Moline 309-797-5323
INDIANA
Comm. Parts & Service, Inc. Indianapolis 317-545-9655
IOW
A
Electric Motor Service Co. Davenport 319-323-1823
KENTUCKY
Comm. Parts & Service, Inc. Louisville 502-367-1788
Chandlers Parts & Service Baton Rouge 225-272-6620
LOUISIANA
(Continued)
Bana Comm. Parts, Inc. Shreveport 318-631-6550
MAR
YLAND
Electric Motor Service Baltimore 410-467-8080
GCS Service, Inc. Silver Spring 301-585-7550
MASSACHUSETTS
Ace Service Co., Inc. Needham 781-449-4220
MICHIGAN
Commercial Kitchen Service Bay City 517-893-4561
Bildons Appliance Service Detroit 248-478-3320
Midwest Food Equip. Service Grandville 616-261-2000
MINNESOT
A
Metro Appliance Service Minneapolis 612-546-4221
MISSOURI
GCS Service, Inc. Kansas City 816-920-5999
Commercial Kitchen Services St. Louis 314-890-0700
Kaemmerlen Parts & Service St. Louis 314-535-2222
NEBRASKA
Anderson Electric Omaha 402-341-1414
NEV
ADA
Burney’s Commercial Las Vegas 702-736-0006
NEW JERSEY
Jay Hill Repair Fairfield 973-575-9145
Service Plus Flanders 973-691-6300
NEW
YORK
Acme American Repairs, Inc. Brooklyn 718-456-6544
Alpro Service Co. Brooklyn 718-386-2515
Appliance Installation Buffalo 716-884-7425
Northern Parts Dist. Plattsburgh 518-563-3200
J. B. Brady, Inc. Syracuse 315-422-9271
NORTH CAROLINA
Authorized Appliance Charlotte 704-377-4501
OHIO
Akron/Canton Comm. Svc. Inc. Akron 330-753-6635
Certified Service Center Cincinnati 513-772-6600
Columbus Restaurant Service Columbus 614-476-3225
Electrical Appl. Repair Service Independence 216-459-8700
OHIO (Continued)
E. A. Wichman Co. Toledo 419-385-9121
OKLAHOMA
Hagar Rest. Service, Inc. Oklahoma City 405-235-2184
Krueger, Inc. Oklahoma City 405-528-8883
OREGON
Bressie Electric Co. Portland 503-231-7171
Ron’s Service, Inc. Portland 503-624-0890
PENNSYLV
ANIA
Authorized Factory Service Coraopolis 412-262-2330
FAST Comm. Appl. Service Philadelphia 215-922-6245
GCS Service, Inc. Pittsburgh 412-787-1970
K & D Service Co. Harrisburg 717-236-9039
Elmer Schultz Services Philadelphia 215-627-5401
Electric Repair Co. Reading 610-376-5444
RHODE ISLAND
Marshall Electric Co. Providence 401-331-1163
SOUTH CAROLINA
Whaley Foodservice Repair W. Columbia 803-791-4420
TENNESSEE
Camp Electric Memphis 901-527-7543
TEXAS
City Kitchen Service Co. Austin 512-719-4445
Stove Parts Supply Fort Worth 817-831-0381
Armstrong Repair Service Houston 713-666-7100
Commercial Kitchen Repair Co. San Antonio 210-735-2811
San Antonio Rest. Equip. San Antonio 210-824-3271
UT
AH
Peterson’s Commercial Parts & Svc. Salt Lake City 801-487-3653
VIRGINIA
Daubers Norfolk 757-855-4097
Daubers Springfield 703-866-3600
W
ASHINGTON
Restaurant Appl. Service Seattle 206-524-8200
WISCONSIN
A.S.C., Inc. Madison 608-246-3160
A.S.C., Inc. Milwaukee 414-543-6460
Loading...
