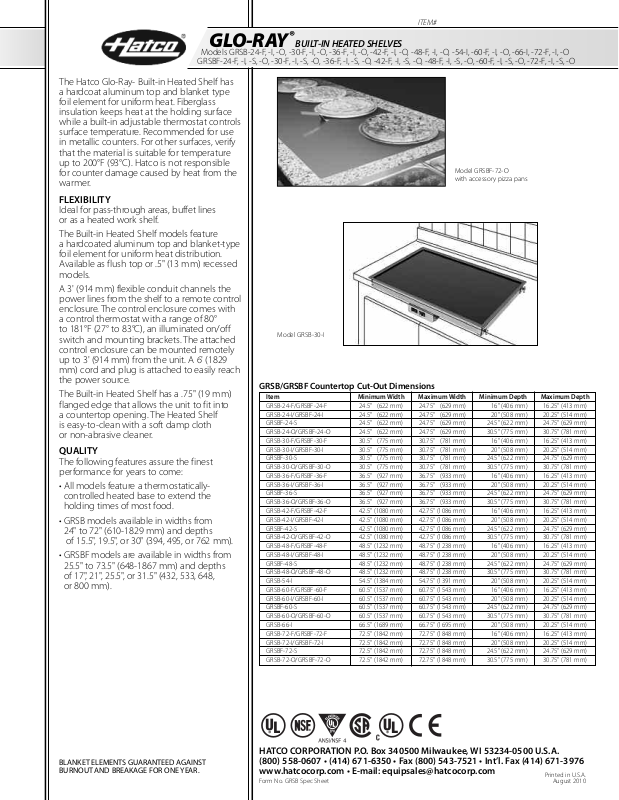

Hatco GRSB-24-S User Manual

GLO-RAY

Models GRSB-24-F, -I, -O, -30-F, -I, -O, -36-F, -I, -O, -42-F, -I, -O, -48-F, -I, -O, -54-I, -60-F, -I, -O, -66-I, -72-F, -I, -O

GRSBF-24-F, -I, -S, -O, -30-F, -I, -S, -O, -36-F, -I, -S, -O, -42-F, -I, -S, -O, -48-F, -I, -S, -O, -60-F, -I, -S, -O, -72-F, -I, -S, -O

The Hatco Glo-Ray- Built-in Heated Shelf has
a hardcoat aluminum top and blanket type
foil element for uniform heat. Fiberglass
insulation keeps heat at the holding surface
while a built-in adjustable thermostat controls
surface temperature. Recommended for use
in metallic counters. For other surfaces, verify
that the material is suitable for temperature
up to 200°F (93°C). Hatco is not responsible
for counter damage caused by heat from the
warmer.

FLEXIBILITY

Ideal for pass-through areas, buffet lines
or as a heated work shelf.

The Built-in Heated Shelf models feature
a hardcoated aluminum top and blanket-type
foil element for uniform heat distribution.
Available as flush top or .5" (13 mm) recessed
models.

A 3' (914 mm) flexible conduit channels the
power lines from the shelf to a remote control
enclosure. The control enclosure comes with
a control thermostat with a range of 80°
to 181°F (27° to 83°C), an illuminated on/off
switch and mounting brackets. The attached
control enclosure can be mounted remotely
up to 3' (914 mm) from the unit. A 6' (1829
mm) cord and plug is attached to easily reach
the power source.

The Built-in Heated Shelf has a .75" (19 mm)
flanged edge that allows the unit to fit into
a countertop opening. The Heated Shelf
is easy-to-clean with a soft damp cloth
or non-abrasive cleaner.

QUALITY

The following features assure the finest
performance for years to come:

• All models feature a thermostatically­controlled heated base to extend the
holding times of most food.

• GRSB models available in widths from
24" to 72" (610-1829 mm) and depths

of 15.5", 19.5", or 30" (394, 495, or 762 mm).

• GRSBF models are available in widths from

25.5" to 73.5" (648-1867 mm) and depths
of 17", 21", 25.5", or 31.5" (432, 533, 648,
or 800 mm).

ITEM#

®

BUILT-IN HEATED SHELVES

odel GRSBF-72-O

M

ith accessory pizza pans

w

Model GRSB-30-I

GRSB/GRSBF Countertop Cut-Out Dimensions

Item Minimum Width Maximum Width Minimum Depth Maximum Depth

GRSB-24-F/GRSBF-24-F 24.5" (622 mm) 24.75" (629 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-24-I/GRSBF-24-I 24.5" (622 mm) 24.75" (629 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-24-S 24.5" (622 mm) 24.75" (629 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-24-O/GRSBF-24-O 24.5" (622 mm) 24.75" (629 mm) 30.5" (775 mm) 30.75" (781 mm)
GRSB-30-F/GRSBF-30-F 30.5" (775 mm) 30.75" (781 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-30-I/GRSBF-30-I 30.5" (775 mm) 30.75" (781 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-30-S 30.5" (775 mm) 30.75" (781 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-30-O/GRSBF-30-O 30.5" (775 mm) 30.75" (781 mm) 30.5" (775 mm) 30.75" (781 mm)
GRSB-36-F/GRSBF-36-F 36.5" (927 mm) 36.75" (933 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-36-I/GRSBF-36-I 36.5" (927 mm) 36.75" (933 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-36-S 36.5" (927 mm) 36.75" (933 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-36-O/GRSBF-36-O 36.5" (927 mm) 36.75" (933 mm) 30.5" (775 mm) 30.75" (781 mm)
GRSB-42-F/GRSBF-42-F 42.5" (1080 mm) 42.75" (1086 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-42-I/GRSBF-42-I 42.5" (1080 mm) 42.75" (1086 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-42-S 42.5" (1080 mm) 42.75" (1086 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-42-O/GRSBF-42-O 42.5" (1080 mm) 42.75" (1086 mm) 30.5" (775 mm) 30.75" (781 mm)
GRSB-48-F/GRSBF-48-F 48.5" (1232 mm) 48.75" (1238 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-48-I/GRSBF-48-I 48.5" (1232 mm) 48.75" (1238 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-48-S 48.5" (1232 mm) 48.75" (1238 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-48-O/GRSBF-48-O 48.5" (1232 mm) 48.75" (1238 mm) 30.5" (775 mm) 30.75" (781 mm)
GRSB-54-I 54.5" (1384 mm) 54.75" (1391 mm) 20" (508 mm) 20.25" (514 mm)
GRSB-60-F/GRSBF-60-F 60.5" (1537 mm) 60.75" (1543 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-60-I/GRSBF-60-I 60.5" (1537 mm) 60.75" (1543 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-60-S 60.5" (1537 mm) 60.75" (1543 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-60-O/GRSBF-60-O 60.5" (1537 mm) 60.75" (1543 mm) 30.5" (775 mm) 30.75" (781 mm)
GRSB-66-I 66.5" (1689 mm) 66.75" (1695 mm) 20" (508 mm) 20.25" (514 mm)
GRSB-72-F/GRSBF-72-F 72.5" (1842 mm) 72.75" (1848 mm) 16" (406 mm) 16.25" (413 mm)
GRSB-72-I/GRSBF-72-I 72.5" (1842 mm) 72.75" (1848 mm) 20" (508 mm) 20.25" (514 mm)
GRSBF-72-S 72.5" (1842 mm) 72.75" (1848 mm) 24.5" (622 mm) 24.75" (629 mm)
GRSB-72-O/GRSBF-72-O 72.5" (1842 mm) 72.75" (1848 mm) 30.5" (775 mm) 30.75" (781 mm)

BLANKET ELEMENTS GUARANTEED AGAINST
BURNOUT AND BREAKAGE FOR ONE YEAR.

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
[phone] • [phone] • Fax [phone] • Int’l. Fax [phone]
www.hatcocorp.com • E-mail: [e-mail]

Form No. GRSB Spec Sheet

Printed in U.S.A.

August 2010

2.25"

(57 mm)

2.03"

(52 mm)

7.06" (179 mm)

17", 21", 25.5", or31.5"

(432, 533, 648, or800 mm)

FRONT VIEW

SIDE VIEW

25.5" to 73.5" (648to 1867 mm)

ITEM#

2.88"

(73 mm)

.5"

(13 mm)

(GRSB only)

2.03"

(52 mm)

7.06" (179 mm)

0 to 1.25"

(

0 to 32 mm)

2

4" to 72" (610 to 1829mm)

25.5" to 73.5" (648to 1867 mm)

15.5", 19.5", or 30"

(394, 495, or 762 mm)

1

7", 21", or 32.5"

(432, 533, or 800 mm)

FRONT VIEW

SIDE VIEW

®

GLO-RAY

odels GRSB-24-F, -I, -O, -30-F, -I, -O, -36-F, -I, -O, -42-F, -I, -O, -48-F, -I, -O, -54-I, -60-F, -I, -O, -66-I, -72-F, -I, -O

M

GRSBF-24-F, -I, -S, -O, -30-F, -I, -S, -O, -36-F, -I, -S, -O, -42-F, -I, -S, -O, -48-F, -I, -S, -O, -60-F, -I, -S, -O, -72-F, -I, -S, -O

BUILT-IN HEATED SHELVES

RSB Models Shown with Standard Control Box.

G

SPECIFICATIONS

Built-in Heated Shelf with Inset Top

Model Watts Interior Width Shipping Weight

GRSB-24-F 420 24" ( 610 mm) 20 lbs. ( 9 kg)
GRSB-24-I 550 24" ( 610 mm) 22 lbs. (10 kg)
GRSB-24-O 790 24" ( 610 mm) 26 lbs. (12 kg)
GRSB-30-F 505 30" ( 762 mm) 23 lbs. (10 kg)
GRSB-30-I 665 30" ( 762 mm) 25 lbs. (11 kg)
GRSB-30-O 950 30" ( 762 mm) 28 lbs. (13 kg)
GRSB-36-F 590 36" ( 914 mm) 26 lbs. (12 kg)
GRSB-36-I 780 36" ( 914 mm) 29 lbs. (13 kg)
GRSB-36-O 1110 36" ( 914 mm) 32 lbs. (15 kg)
GRSB-42-F 685 42" (1067 mm) 29 lbs. (13 kg)
GRSB-42-I 885 42" (1067 mm) 32 lbs. (15 kg)
GRSB-42-O 1270 42" (1067 mm) 35 lbs. (16 kg)
GRSB-48-F 770 48" (1219 mm) 33 lbs. (15 kg)
GRSB-48-I 1000 48" (1219 mm) 36 lbs. (16 kg)
GRSB-48-O 1430 48" (1219 mm) 39 lbs. (18 kg)
GRSB-54-I 1110 54" (1372 mm) 43 lbs. (20 kg)
GRSB-60-F 950 60" (1524 mm) 45 lbs. (20 kg)
GRSB-60-I 1220 60" (1524 mm) 50 lbs. (23 kg)
GRSB-60-O 1750 60" (1524 mm) 54 lbs. (24 kg)
GRSB-66-I 1330 66" (1676 mm) 54 lbs. (25 kg)
GRSB-72-F 1130 72" (1829 mm) 52 lbs. (24 kg)
GRSB-72-I 1440 72" (1829 mm) 58 lbs. (26 kg)
GRSB-72-O 2070 72" (1829 mm) 64 lbs. (29 kg)

Built-in Heated Shelf with Flush Top

Model Watts Heated Width Shipping Weight

GRSBF-24-F 420 25.5" ( 648 mm) 20 lbs. ( 9 kg)
GRSBF-24-I 550 25.5" ( 648 mm) 22 lbs. (10 kg)
GRSBF-24-S 700 25.5" ( 648 mm) 24 lbs. (11 kg)
GRSBF-24-O 790 25.5" ( 648 mm) 26 lbs. (12 kg)
GRSBF-30-F 505 31.5" ( 800 mm) 23 lbs. (10 kg)
GRSBF-30-I 665 31.5" ( 800 mm) 25 lbs. (11 kg)
GRSBF-30-S 825 31.5" ( 800 mm) 26 lbs. (12 kg)
GRSBF-30-O 950 31.5" ( 800 mm) 28 lbs. (13 kg)
GRSBF-36-F 590 37.5" ( 953 mm) 26 lbs. (12 kg)
GRSBF-36-I 780 37.5" ( 953 mm) 28 lbs. (13 kg)
GRSBF-36-S 950 37.5" ( 953 mm) 31 lbs. (15 kg)
GRSBF-36-O 1110 37.5" ( 953 mm) 32 lbs. (15 kg)
GRSBF-42-F 685 43.5" (1105 mm) 29 lbs. (13 kg)
GRSBF-42-I 885 43.5" (1105 mm) 32 lbs. (15 kg)
GRSBF-42-S 1100 43.5" (1105 mm) 34 lbs. (15 kg)
GRSBF-42-O 1270 43.5" (1105 mm) 35 lbs. (16 kg)
GRSBF-48-F 770 49.5" (1257 mm) 33 lbs. (15 kg)
GRSBF-48-I 1000 49.5" (1257 mm) 36 lbs. (16 kg)
GRSBF-48-S 1225 49.5" (1257 mm) 38 lbs. (17 kg)
GRSBF-48-O 1430 49.5" (1257 mm) 39 lbs. (18 kg)

RSBF Models Shown with Standard Control Box.

G

DIMENSIONS

RSB: (Interior Width + 1

G

nterior Width+38 x 432, 533, or 800 x 73 mm).

I

(

Cutout: (

Interior Width + .5

(

Interior Width +

GRSBF: (25.5

(

648 to 1867

Cutout: (

(

Width - 19

" to 73.5") W x 17", 21", 25.5", or 31.5"D x 2.25"H

x 432, 533, 648, or 800 x 57 mm).

Width - .75

to 25 mm x 406, 508, 622, or 775 mm

) W x 17", 21", or 31

.5

"

D x 2.88"H

.5

"

" to .75") Wx16", 20", or 30.5"D

13 to 19 mm x 406, 508, or 775 mm

" to 1") Wx16", 20", 24.5", or 30.5"D

).

).

VOLTAGE

All models ending in -F and -I and models 24" through 48"

(610-1219 mm) wide ending in -S and -O: 120 volts,
single phase only, NEMA 5-15P.

Models 60" through 72" (1524-1829 mm) wide ending in -S

and -O: 120 volts, single phase only, NEMA 5-20P.

GRSB-72-O and GRSBF-72-O: 208 or 240 volts,

single phase only, NEMA 6-15P.

Export voltages available.

CORD LOCATION

End of Remote Enclosure.

PLUG CONFIGURATIONS

NEMA 5-15P

NEMA 6-15PNEMA 5-20P

UNIT DEPTH CODES:

CEE 7/7 Schuko

BS-1363

F = 17" (432 mm)
I = 21" (533 mm)

.5

" (648 mm)

S = 25

.5

" (800 mm)

O = 31

Built-in Heated Shelf with Flush Top

Model Watts Heated Width Shipping Weight

GRSBF-60-F 950 61.5" (1562 mm) 45 lbs. (20 kg)
GRSBF-60-I 1220 61.5" (1562 mm) 50 lbs. (23 kg)
GRSBF-60-S 1500 61.5" (1562 mm) 53 lbs. (24 kg)
GRSBF-60-O 1750 61.5" (1562 mm) 54 lbs. (25 kg)
GRSBF-72-F 1130 73.5" (1867 mm) 52 lbs. (24 kg)
GRSBF-72-I 1440 73.5" (1867 mm) 58 lbs. (26 kg)
GRSBF-72-S 1750 73.5" (1867 mm) 62 lbs. (28 kg)
GRSBF-72-O 2070 73.5" (1867 mm) 64 lbs. (29 kg)

OPTIONS (NOT FOR RETROFIT)

 Flush Mount Control Box Bezel in Designer Colors: Warm Red, Black, Gray

Granite, White Granite, Navy Blue, Hunter Green, Antique Copper.

 Flush Mount Electronic Control Box with Lighted Power Switch
 Flush Mount Control Box with Lighted Power Switch
 Stainless Steel Top Surface (GRSBF models only)

PRODUCT SPECS

Built-in Heated Shelf

The Heated Shelf shall be a Glo-Ray® Model ... as manufactured by the
Hatco Corporation, Milwaukee,WI 53234 U.S.A.

With 24/7 parts and service assistance (U.S. and Canada only),

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [e-mail]

Form No. GRSB Spec Sheet August 2010

the Shelf shall be rated at ... watts, ... volts and be ... inches (millimeters)
in overall width. It shall consist of a thermostatically-controlled heated
base and a cord with plug attached.
