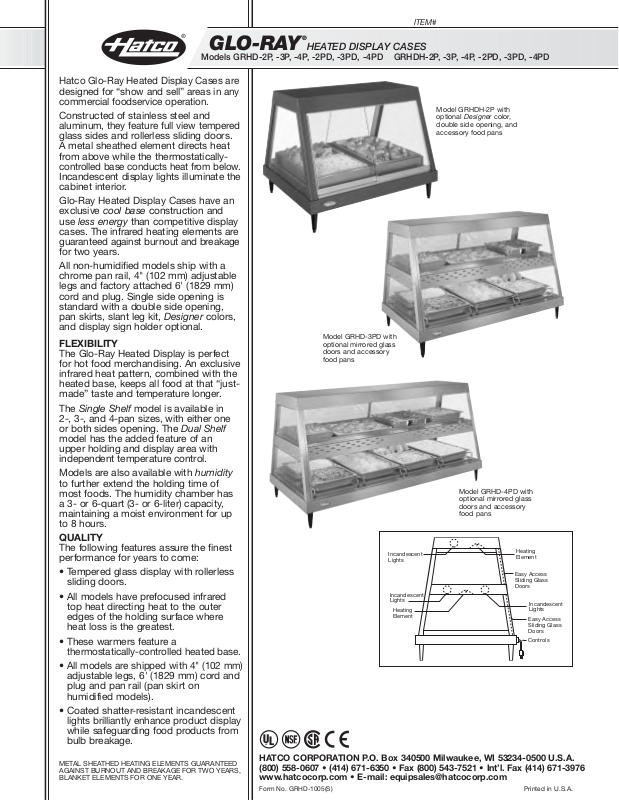

GLO-RAY

®

HEATED DISPLAY CASES

Models GRHD-2P, -3P, -4P, -2PD, -3PD, -4PD GRHDH-2P, -3P, -4P, -2PD, -3PD, -4PD

Hatco Glo-Ray Heated Display Cases are
designed for “show and sell” areas in any
commercial foodservice operation.

Constructed of stainless steel and
aluminum, they feature full view tempered
glass sides and rollerless sliding doors.
A metal sheathed element directs heat
from above while the thermostatically­controlled base conducts heat from below.
Incandescent display lights illuminate the
cabinet interior.

Glo-Ray Heated Display Cases have an
exclusive cool base construction and
use less energy than competitive display
cases. The infrared heating elements are
guaranteed against burnout and breakage
for two years.

All non-humidified models ship with a
chrome pan rail, 4" (102 mm) adjustable
legs and factory attached 6' (1829 mm)
cord and plug. Single side opening is
standard with a double side opening,
pan skirts, slant leg kit, Designer colors,
and display sign holder optional.

FLEXIBILITY

The Glo-Ray Heated Display is perfect
for hot food merchandising. An exclusive
infrared heat pattern, combined with the
heated base, keeps all food at that “just­made” taste and temperature longer.

The Single Shelf model is available in
2-, 3-, and 4-pan sizes, with either one
or both sides opening. The Dual Shelf
model has the added feature of an
upper holding and display area with
independent temperature control.

Models are also available with humidity
to further extend the holding time of
most foods. The humidity chamber has
a 3- or 6-quart (3- or 6-liter) capacity,
maintaining a moist environment for up
to 8 hours.

QUALITY

The following features assure the finest
performance for years to come:

• Tempered glass display with rollerless
sliding doors.

• All models have prefocused infrared
top heat directing heat to the outer
edges of the holding surface where
heat loss is the greatest.

• These warmers feature a
thermostatically-controlled heated base.

•

All models are shipped with 4" (102 mm)
adjustable legs, 6' (1829 mm) cord and
plug and pan rail (pan skirt on
humidified models).

• Coated shatter-resistant incandescent
lights brilliantly enhance product display
while safeguarding food products from
bulb breakage.

METAL SHEATHED HEATING ELEMENTS GUARANTEED
AGAINST BURNOUT AND BREAKAGE FOR TWO YEARS,
BLANKET ELEMENTS FOR ONE YEAR.

Model GRHDH-2P with
optional Designer color,
double side opening, and
accessory food pans

Model GRHD-3PD with
optional mirrored glass
doors and accessory
food pans

Model GRHD-4PD with
optional mirrored glass
doors and accessory
food pans

Easy Access
Sliding Glass
Doors

Controls

Incandescent
Lights

Heating
Element

Heating
Element

Incandescent
Lights

Incandescent
Lights

Easy Access
Sliding Glass
Doors

51

Form No. GRHD-1005(S)

Models GRHD & GRHDH – Single Shelf

ITEM#

FRONT VIEW

GRHD Models 321⁄2", 451⁄2", or 581⁄2"

(826, 1156, or 1486 mm)

GRHDH Models 33

3

⁄8", 463⁄8", or 593⁄8"

(848, 1178, or 1508 mm)

25"

(635 mm)

151⁄2"

(394 mm)

26" (660 mm)

SIDE VIEW

21" (533 mm)

Models GRHD & GRHDH – Dual Shelf

FRONT VIEW

SIDE VIEW

GRHD Models 321⁄2", 451⁄2", or 581⁄2"

(826, 1156, or 1486 mm)

GRHDH Models 33

3

⁄8", 463⁄8", or 593⁄8"

(848, 1178, or 1508 mm)

30"

(762 mm)

83⁄4"

(222 mm)

83⁄4"

(222 mm)

26" (660 mm)

21" (533 mm)

161⁄2"

(419 mm)

GLO-RAY

®

HEATED DISPLAY CASES

Models GRHD-2P, -3P, -4P, -2PD, -3PD, -4PD GRHDH-2P, -3P, -4P, -2PD, -3PD, -4PD

OPTIONS (NOT FOR RETROFIT)

❑ Designer Colors: Warm Red, Black, Gray Granite,

White Granite, Navy Blue, Hunter Green

❑ Double Side Opening
❑ Pan Skirts (Standard on GRHDH models)
❑ Flip-up Doors in lieu of Sliding Doors
❑ 7

1

/2" (191 mm) Breath Protectors in lieu of Sliding Doors

❑ Mirrored Glass Doors on Server’s Side
❑ Halogen Bulbs in lieu of Standard Display Lights

PRODUCT SPECS

Heated Display Case

The infrared Heated Display Case shall be a Glo-Ray®Model ....

as manufactured by the Hatco Corporation, Milwaukee, WI
53234 U.S.A.

The Display Case shall be rated at ....watts, ....volts and be

....inches (millimeters) in overall width. It shall consist of a

thermostatically-controlled heated base, full view tempered glass
sides, and incandescent display lights.

The infrared heating element shall be tubular metal sheathed and
the warmer shall have a 6' (1829 mm) cord with plug attached.

Accessories shall include slant leg kit, display sign holder,
stainless steel food pans, and wire trivets.

ACCESSORIES

❑ Slant Leg Kit (Non-humidified models)
❑ Display Sign Holder (Sign not included)
❑ Stainless Steel Food Pans
❑ Wire Trivets

DIMENSIONS

GRHD Single Shelf Models:

32

1

/2", 451/2", or 581/2"W x 26"D x 25"H w/legs

(826, 1156, or 1486 x 660 x 635 mm).

GRHDH Single Shelf Models:

33

3

/8", 463/8", or 593/8"W x 26"D x 25"H w/legs

(848, 1178, or 1508 x 660 x 635 mm).

GRHD Dual Shelf Models:

32

1

/2", 451/2", or 581/2"W x 26"D x 30"H w/legs

(826, 1156, or 1486 x 660 x 762 mm).

GRHDH Dual Shelf Models:

33

3

/8", 463/8", or 593/8"W x 26"D x 30"H w/legs

(848, 1178, or 1508 x 660 x 762 mm).

Sandwich Chute Width: 5

3

/4" (146 mm).

Water Chamber Capacity: 2-pan and 3-pan models – 3 quarts

(3 liters). 4-pan models – 6 quarts (6 liters).

VOLTAGE

GRHD-2P, -3P, GRHDH-2P, -3P, GRHD-2PD, GRHDH-2PD: 120

volts, single phase (uses NEMA 5-15P, models GRHDH-3P and
GRHDH-2PD use NEMA 5-20P for Canada).

GRHD-4P, GRHDH-4P, GRHD-3PD, GRHDH-3PD: 120 volts,

single phase (uses NEMA 5-20P, model GRHDH-4P not
available for Canada).

GRHD-4PD and GRHDH-4PD: 120 volts, single phase (uses

NEMA 5-30P, not available for Canada).

GRHDH-4P, GRHD-4PD, GRHDH-4PD: Available in 120/208

volts or 120/240 volts, single phase, 4-wire (uses NEMA 14-20P).

Export voltages available.

CORD LOCATION

Control side at right base corner.

PLUG CONFIGURATIONS

SPECIFICATIONS

Single Shelf

Model

†

•

Watts Width Shipping Weight

GRHDH-2PD 1560 333/8" ( 848 mm) 172 lbs. ( 78 kg)
GRHDH-3PD 2005 463/8" (1178 mm) 207 lbs. ( 94 kg)
GRHDH-4PD

★

3160 593/8" (1508 mm) 240 lbs. (109 kg)

Model

†

•

Watts Width Shipping Weight

GRHDH-2P 1190 333/8" ( 848 mm) 120 lbs. (54 kg)
GRHDH-3P 1600 463/8" (1178 mm) 150 lbs. (68 kg)
GRHDH-4P

★

2285 593/8" (1508 mm) 215 lbs. (98 kg)

Model

†

•

Watts Width Shipping Weight

GRHD-2P 940 321⁄2" ( 826 mm) 120 lbs. (54 kg)
GRHD-3P 1350 451⁄2" (1156 mm) 150 lbs. (68 kg)
GRHD-4P 1785 58

1

⁄2" (1486 mm) 215 lbs. (98 kg)

Model

†

•

Watts Width Shipping Weight

GRHD-2PD 1310 321⁄2" ( 826 mm) 168 lbs. ( 76 kg)
GRHD-3PD 1755 451⁄2" (1156 mm) 200 lbs. ( 91 kg)
GRHD-4PD

★

2660 581⁄2" (1486 mm) 230 lbs. (104 kg)

Dual Shelf

Single Shelf with Humidity

Dual Shelf with Humidity

‡

†

Model number indicates food pans unit will hold with same number of half­size pans for those units with a top shelf, i.e., 2P (two pans). “D” indicates
dual shelf model.

•

NSF requires units over 36" (914 mm) in width or weighing more than
80 lbs. (36 kg) to be either sealed, or raised on the installation surface with
the 4" (102 mm) legs included.

★

30 amp circuit required on 120 volt models.

‡

Humidity on bottom shelf only.
