Page 1
6800/7000 Series
Frames and Power Supplies
Installation and Operation Manual
Edition B
175-000023-00
Page 2
Page 3
6800/7000 Series
Frames and Power
Supplies
Installation and Operation Manual
Edition B
June 2002
Page 4
Page 5
Purpose
Audience
Writing Conventions
Preface
This manual details the features, installation procedures, operational
procedures, and specifications of the 6800/7000 Series - Frames and
Power Supplies.
This manual is written for technicians and operators responsible for
installation, setup, and/or operation of 6800/7000 Series - Frames and
Power Supplies.
To enhance your understanding, the authors of this manual have
adhered to the following text conventions:
Bold Indicates dialog box, property sheet, field, button, checkbox,
listbox, combo box, menu, submenu, window, list, and
selection names.
Italics Indicates email addresses, names of books and publications,
and first instances of new terms and specialized words that
need emphasis.
CAPS Indicates a specific key on the keyboard, such as ENTER,
TAB, CTRL, ALT, DELETE.
Code
> Indicates direction of navigation through a hierarchy of
hyperlink
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual iii
Indicates variables or command-line entries, i.e., a DOS entry,
something you type into a field, etc.
menus and windows.
Indicates a jump to another location in the document or
elsewhere (such as a website).
Page 6
Revision History
Edition Date Revision History
A May 1998 Original release.
B June 2002 Updated Information.
iv 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 7
Summary of the 6800/7000 Series
Product Manuals
Audio/Video/Mux and Demultiplexing Manual
Chapter 1 ADC-6801 CAV to SDI Converter Module
Chapter 2 ADC-6880 Analog to AES/EBU Digital Convertor
Chapter 3 ADM/ASM-680x Embedded Audio Monitoring Module
Chapter 4 DAC-6801 Digital to Analog Component Converter
Chapter 5 DAC-6880 AES/EBU Digital Audio to Analog Audio
Converter
Chapter 6 DEC-6801/DES-6801 Decoder/Decoder with Frame
Synchronizer Module
Chapter 7 DEC-6801/DES-6801M and ENC-ENS/ENX-6801A
Encoder Modules
Chapter 8 MXA-6800-AES and MXA-6801-A2/A4 Audio Multiplexer
Module
Chapter 9 VFS-6801 Serial Component Frame Synchronizer Module
Chapter 10 VTS-6801 Video Timing Switcher
Appendix A Embedding Modes Graphic Description
Test Series Manual
Chapter 1 VTG-6801-1 and VTG-6801-1A 4:2:0 and 4:2:2 Serial
Digital Test Generator Module
Chapter 2 VTG-6801-2 Serial Digital Test Generator Module
Chapter 3 DAR-6880 AES/EBU Digital Audio Reference and Tone
Generator
Chapter 4 SAI-6800 4:2:2 Safe Area Generator/Inserter Module
Chapter 5 VTG-6800 MIX BOX Frame and Control Assembly
Chapter 6 EDH-6800MB Detection and Handling MIX BOX
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual v
Page 8
Routers and Distribution Manual
Chapter 1 AES-6880 AES/EBU Digital Audio Distribution Amplifier
Module - General
Chapter 2 DNH-6800 DigiNet Hub Module
Chapter 3 EDH-6800-2EDH Detection/Insertion Serial Distribution
Amplifier Module
Chapter 4 USM-6800 PAL/NTSC Monitoring Encoder Module
Chapter 5 VCM-6801 Serial Component Monitoring Distribution
Amplifier Module
Chapter 6 VDA-6830 Video Distribution Amplifier Module
Chapter 7 VEA-6830 Video Equalizing Amplifier Module
Chapter 8 VEA-6840 Video Equalizing Amplifier Module
Chapter 9 VPD-6830 Programmable Video DA Series
Chapter 10 VSD-6801 Serial Digital Distribution Amplifier Module
Chapter 11 VSE-6801 Serial Equalizing Amplifier Module
Chapter 12 VSE-6802 Serial Equalizing Distribution Amplifier
Chapter 13 VSM-6802 Digital Composite Video Signal
Chapter 14 VSM-6804 Digital Composite Video Signal Monitor
Module
Chapter 15 VSR-4041 Serial Video Router Module
LogoMotion Manual
Chapter 1 Logo Utilities for 6800 Series
Chapter 2 LGI-6801 Serial Digital Logo Generator/Inserter Module
Chapter 3 VES-6801 Flash EPROM Side Module
Chapter 4 DSK-6801/3 Downstream Serial Keyer
Chapter 5 DSK-CP1/2 Downstream Serial Keyer Control Panel
vi 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 9
Frames and Power Supply Manual
Chapter 1 Mounting Frames
Chapter 2 FR-6801/FR-6801-1 Frames
Chapter 3 FR-6804/FR-6804-1 Frames
Chapter 4 CF-6801 Cooling Frame
Chapter 5 FR-7001 and FR-7000MB MIX BOX
Chapter 6 6801PS Power Supply Module
Chapter 7 6804(-1) Power Supply Module
Chapter 8 7000 Power Supply Module
Chapter 9 6801PS-48 Power Supply Module
Chapter 10 6804PS-1-48 Power Supply Module
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual vii
Page 10
Unpacking/Shipping Information
This product has been carefully inspected, tested and calibrated before
shipment to ensure years of stable and troublefree service. Please check
the equipment for any visible damage which may have occurred during
transit.
Please confirm that all items listed on the packing list have been
received. If any item on the packing list is missing, please contact your
Leitch dealer. If any item is damaged please contact the carrier. Ensure
that all packaging material is removed from the product and its
associated components before installing the unit.
It is suggested that you keep at least one set of original Leitch packaging,
in the event that a product needs to be returned for service. If the
original packaging is not available, you can purchase replacement
packaging from Leitch at a modest cost or supply your own packaging as
long as it meets the following criteria:
• Packaging must be able to withstand the product weight.
• Product must be held rigid within the packaging.
• There must be at least two inches of space between the product and
the container.
• The corners of the product must be protected.
Products that are being returned to Leitch for servicing should be
shipped pre-paid in the original packaging material if possible. If the
product is still within the warranty period, the product will be returned
by pre-paid shipment after servicing.
Installation Information
If this product is rack mountable, it should be mounted in an
appropriate rack using the rack mounting positions and rear support
guides provided. It is recommended that each frame be connected to a
separate electrical circuit for protection against circuit overloading. If
this product relies on forced air cooling, it is recommended that all
obstructions to the air flow be removed prior to installing the frame in
the rack.
If this product has a provision for external earth grounding, it is
recommended that the frame be grounded to earth via the protective
earth ground on the rear panel.
viii 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 11
Important Safety Instructions
Review the following safety precautions to avoid injury and prevent
damage to this product or any products connected to it. Read these
instructions. Keep these instructions. Heed all warnings. Follow all
instructions.
Servicing
Only qualified personnel should perform service procedures. Refer all
servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Safety Terms and Symbols
Terms and Symbols in This Manual
WARNING:
Statements identifying conditions or practices that can result in
personal injury or loss of life: High voltage is present. Uninsulated
dangerous voltage within the product’s enclosure may be sufficient
to constitute a risk of electric shock to persons.
CAUTION:
Statements identifying conditions or practices that can result in
damage to the equipment or other property: Important operating
and maintenance (servicing) instructions in the literature
accompanying the product.
Terms and Symbols on the Product
DANGER:
High voltage and indicates a personal injury hazard immediately
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual ix
accessible as one reads the marking.
WARNING:
Indicates a personal injury hazard not immediately accessible as
one reads the marking.
CAUTION:
Indicates a hazard to property including the product or to take
attention and refer to the manual.
Page 12
Injury Precautions
Protective ground (earth) terminal.
Fuse:
Replace with same type and rating of fuse.
Observe precautions for handling electrostatic-sensitive devices.
WARNING!
To reduce the risk of electric shock, do not expose this apparatus to
rain or moisture.
CAUTION
RISK OF ELECTRIC SHO CK
DO NOT OPEN
WARNING!
Potentially lethal voltages are present within this product’s frame
during normal operation. The AC power cord must be
disconnected from the frame before the top panel is removed. (In
frames with multiple power supplies, remove ALL power cords.)
Power should not be applied to the frame while the top is open,
unless properly trained personnel are servicing the unit.
[PL Poland] Przod zdjeciem pokrywy wyciagnac wtyczke z gniazda
sieciowego.
[French] AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS
OUVRIR. INSTALLER SUR SUPPORT DE MONTAGE
SEULEMENT.
x 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 13
AVIS - Risque de choc electrique. Ne pas
ouvrir.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xi
Page 14
Use Proper Power Cord
To avoid fire hazard, use only the power cord specified for this
product.
Ground the Product
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
When the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
[United Kingdom] WARNING: THIS APPLIANCE MUST BE
EARTHED.
[Sweden] APPARATEN SKALL ANSLUTAS TILL JORDAT
UTTAG NÄR DEN ANSLUTS TILL ETT NÄTVERK.
Do Not Operate Without Covers
To avoid electrical shock or fire hazard, do not operate this product
with covers or panels removed.
Use Proper Fuse
To avoid fire hazard, use only the fuse type and rating specified for
this product.
Do Not Operate in Wet/Damp Conditions
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture
Do Not Operate in an Explosive Atmosphere
To avoid injury or fire hazard, do not operate this product in an
explosive atmosphere.
Avoid Exposed Circuitry
To avoid injury, remove jewelry such as rings, watches, and other
metallic objects. Do not touch exposed connections and
components when power is present.
xii 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 15
Product Damage Precautions
Use Proper Power Source
Do not operate this product from a power source that supplies
more than the specified voltage.
Use Proper Voltage Setting
Before applying power, ensure that the line selector is in the proper
position for the power source being used.
Provide Proper Ventilation
To prevent product overheating, provide proper ventilation.
Do Not Block Any Ventilation Openings
Do not block any of the ventilation openings. Install in accordance
with the manufacturer’s instructions.
Only Use Attachments/Accessories Specified by the Manufacturer
Do Not Operate With Suspected Failures
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
For Products with Multiple Power Cords:
CAUTION: This unit can have more than one power supply cord.
To de-energize the internal circuitry, disconnect all power cords
before servicing.
[Norwegian] ADVARSEL: Utstyret kan ha mere ennn en
tilførselsledning. For å gjore interne deler spennigsløse må alle
tilførselsledningene trekkes ut.
[Sweden] VARNING: Denna apparat har mer än en nätanslutning.
Samtliga nätkablar måste bortkopplas för att göra de interna
kretsarna spänningsfria.
Do Not Use This Apparatus Near Water
Do not expose this apparatus to dripping or splashing water.
Ensure that no objects filled with liquid, such as vases or cups, are
placed on the apparatus.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xiii
Page 16
Clean Only With a Dry Cloth
Keep Product Away from Heat Sources
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Install Near Socket Outlet
The equipment shall be installed near the socket outlet, and a
disconnect device shall be easily accessible.
Protect the Power Cord
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
Attention:
Observe precautions for handling electrostatic-sensitive devices.See
“Preventing Electrostatic Discharge” below for details.
Fuse Replacement:
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH THE SAME TYPE OF FUSE.
[French]ATTENTION: REMPLACER UNIQUEMENT PAR UN
FUSIBLE DE MEME TYPE..
xiv 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 17
Battery Use Warnings
CAUTION:
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
PLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISCARD USED BATTERIES ACCORDING
TO THE MANUFACTURER’S INSTRUCTIONS.
[FI Finland] VAROITUS: Paristo voi rajahtaa, jos se on
virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan
suosittelemaan tyyppun. Havita kaytetty paristo valmistajan
ohjeiden mukaisesti.
[SE Sweden] VARNING: Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en eller en ekvivalent typ som
rekommenderas av tillverkaren. Kassera anvant batteri enligt
fabrikantens instruktion.
[D Denmark]
Advarsel! Lithiumbatteri. Eksplosionsfare ved
fejlagtig handtering. Udskift ning ma kun ske med
batteri af samme fabrikat oq type. Lever det
brugte batteri tilbage till leverandoren.
[KO Korean]
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xv
Page 18
Preventing Electrostatic Discharge
CAUTION: Electrostatic discharge (ESD) can damage components
in the product. To prevent ESD, observe these precautions when
directed to do so:
• Use a Ground Strap. Wear a grounded antistatic wrist strap to
discharge the static voltage from your body while installing or
removing sensitive components.
• Use a Safe Work Area. Do not use any devices capable of
generating or holding a static charge in the work area where you
install or remove sensitive components. Avoid handling sensitive
components in areas that have a floor or benchtop surface capable
of generating a static charge.
• Handle Components Carefully. Do not slide sensitive
components over any surface. Do not touch exposed connector
pins. Handle sensitive components as little as possible.
• Transport and Store Carefully. Transport and store sensitive
components in a static-protected bag or container.
xvi 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 19
Certifications and Compliances
This product has been tested and found to comply with the following
CE, FCC, UL, ICES and CSA standards:
EMC Standards
EN55014 Limits and methods of measurement of radio disturbance
characteristics of electric motor-operated and thermal
appliances for household and similar purposes, electric
tools and similar electric apparatus.
EN55022 Limits and methods of measurement of radio disturbance
characteristics of information technology equipment Class
A.
EN55103-1 Electromagnetic compatibility—Product family standard
for audio, video, audio-visual and entertainment lighting
control apparatus for professional use, Part 1: Emission,
Environment E4.
EN55103-2 Electromagnetic compatibility—Product family standard
for audio, video, audio-visual and entertainment lighting
control apparatus for professional use, Part 2: Emission,
Environment E4.
EN61000-4-2 Electrostatic discharge requirements “ESD” 2kV CD,4kV
AD.
EN61000-4-3 Radiated radio-frequency electromagnetic field immunity
test 1V/m {1kHz 80% AM, 80-1000MHz}.
EN61000-4-4 Electrical Fast transient requirements “Burst”, 0.5kV Sig. &
Ctrl. Lines 0.5kV a.c. & d.c. Power line, 0.5kV functional
earth.
EN61000-4-5 Surge Immunity test 0.5kV a.c. Power line.
EN61000-4-6 Immunity to conducted disturbances induced by radio
frequency fields 1V rms 0.15-80MHz Sig. & Ctrl. Lines, 3V
rms 0.15-80MHz d.c. Power line, 1V rms 0.15-80MHz a.c.
Power line, 1V rms 0.15-80MHz functional earth.
EN61000-4-11 Voltage dips, short interruptions and voltage variations-
immunity tests.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xvii
Page 20
Safety Standards
per the provision of the Electromagnetic Compatibility Directive 89/
336/EEC of 3 May 1989 as amended by 92/31EEC of 28 April 1992 and
93/68/EEC, Article 5 of 22 July 1993.
These devices are for professional use only and comply with Part 15 of
FCC rules. Operation is subject to the following two conditions:
1. These devices may cause interference to Radio and TV receivers in
residential areas
2. These devices will accept any interference received, including
interference that may cause undesired operations.
These devices do not exceed the class A limits for radio noise emissions
from digital apparatus as set out in the interference standard entitled
“Digital apparatus”, ICES-003 of the Canadian Department of
Communications.
Changes or modifications not expressly approved by Leitch, the party
responsible for compliance to the FCC Part 15 Rule, could void the user’s
authority to operate this equipment legally in the US.
EN60065 Safety requirements for mains operated electronic and
related apparatus for household and similar general use
[IEC 60065: 1985, 5th Edition + A1: 1987 + A2: 1989 + A3:
1992, (modified)], per the provision of the Low-Voltage
Directive 73/23/EEC of February 19, 1973, as amended by
93/68/EEC.
UL 1419 Safety requirements for Professional Audio and Video
equipment.
CSA C22.2 No.
1-94
xviii 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Safety Requirements for Audio, Video, and similar
electronic equipment.
Page 21
For 6804-1-48 & 6801PS-48
EN 60950-1992 Safety of information technology equipment, including
electrical business equipment (Amendments A1: 1993,
A2: 1993, A3: 1995, A4: 1997), per the provision of the
Low-Voltage Directive 73/23/EEC of February 19, 1973 as
amended by 93/68/EEC.
UL 1950 Safety of information technology equipment, including
electrical business equipment.
CSA C22.2 No.
950-95
Safety of information technology equipment, including
electrical business equipment.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xix
Page 22
xx 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 23
Contents
Chapter 1: Introducing the 6800/7000
Series of Frames ..................................................................................... 1
Overview .....................................................................................................1
Frame Description ...................................................................................... 2
Power and Frame Capacity ................................................................. 3
Installation Requirements .......................................................................... 5
Frame Loading Limitations ................................................................. 6
Power Supply Load Limitations .......................................................... 6
Module Loading Specifications ..........................................................6
Maximum Frame Loading .......................................................................... 7
Allowable Frame Configurations ........................................................8
Chapter 2: FR-6801/FR-6801-1 Frames................................... 9
Overview .....................................................................................................9
Installation Requirements ...................................................................9
LEDs ....................................................................................................9
Chapter 3: FR-6804/FR-6804-1 Frames................................. 11
Overview ...................................................................................................11
Installation Requirements ................................................................. 13
FR-6804(-1)/CF-6801 Installation ........................................................... 14
Failure Conditions .................................................................................... 16
Chapter 4: CF-6801 Cooling Frame......................................... 17
Overview ...................................................................................................17
Installation Requirements ................................................................. 17
FR-6804(-1)/CF-6801 Installation ........................................................... 19
LEDs ..........................................................................................................21
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xxi
Page 24
Failure Conditions .................................................................................... 22
Buck Converter ......................................................................................... 23
Over-Current (OC) and Under-Current (UC) Sensing .................. 23
Specifications CF-6801 ............................................................................. 24
Electrical ............................................................................................ 24
Mechanical ........................................................................................ 24
Operational ....................................................................................... 24
Chapter 5: FR-7001 and FR-7000MB MIX BOX ................ 25
Overview ................................................................................................... 25
Installation Requirements ........................................................................ 26
LEDs .................................................................................................. 26
Installation ......................................................................................... 26
Chapter 6: 6801PS Power Supply Module ......................... 27
Overview ................................................................................................... 27
Chapter 7: 6804PS-1 Power Supply Module..................... 29
Overview ................................................................................................... 29
Design Features ........................................................................................ 30
GPI Fault Reporting ................................................................................. 31
Specifications ............................................................................................ 32
Electrical ............................................................................................ 32
Mechanical ........................................................................................ 32
Operational ....................................................................................... 32
Emergency Shutdown .............................................................................. 33
Chapter 8: 7000PS Power Supply Module ......................... 35
Overview ................................................................................................... 35
Output Voltage Selection ......................................................................... 36
Power Supply ..................................................................................... 37
Chapter 9: 6801PS-48 Power Supply Module.................. 39
Overview ................................................................................................... 39
Design Features ........................................................................................ 39
Installing the 6801PS-48 ........................................................................... 40
Precautions ........................................................................................ 40
Branch Circuit Schematic ......................................................................... 41
xxii 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 25
Description ........................................................................................ 41
Suggested Protection Devices ........................................................... 41
Maintenance ............................................................................................. 42
Fuses .................................................................................................. 42
Power Supply Connections ............................................................... 42
Chapter 10: 6804PS-1-48 Power Supply Module.......... 43
Overview ...................................................................................................43
Description/Features ......................................................................... 43
Installation ................................................................................................ 44
Precautions ........................................................................................ 44
Branch Circuit Schematic ......................................................................... 45
Description ........................................................................................ 45
Suggested Protection Devices ........................................................... 45
Maintenance ............................................................................................. 46
Fuses .................................................................................................. 46
Power Supply Connections ............................................................... 46
Specifications ............................................................................................ 47
Input and Output Voltages ...............................................................47
Power Dissipation (with Cooling Frame) ......................................... 47
Power Dissipation ............................................................................ 47
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual xxiii
Page 26
xxiv 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 27
Overview
Chapter 1
Introducing the 6800/7000
Series of Frames
The 6800/7000 series family of frames offers a modular flexible solution
to any mix of serial digital products, including a wide range of serial
DAs, logo and test generators, AES processing and distribution units,
ADCs, and DACs, as well as encoding and decoding modules. Input/
output functions are provided with BNC connectors, as well as a series of
application-specific connection adapter modules. All frame types have
fully passive, controlled impedance backplanes. The equipment is
designed to meet demanding industry requirements and high standards
of quality.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 1
Page 28
Chapter 1: Introducing the 6800/7000 Series of Frames Frame Description
Frame Description
The 680x series of frames offers a modular flexible solution to a wide
range of serial video processing and distribution functions. The
following table shows a complete list and description of the 6800/7000
frames:
Frame Description
FR-6801/FR-6801-1 A single rack unit housing four modules, and
including the 6804PS(-1) power supply unit.
FR-6804/FR-6804-1 A two-rack unit, providing up to eight outputs per
module, with a maximum of ten modules. The
FR-6804(-1) comes equipped with one power
supply unit, the 6804PS(-1), and is pre-wired for
an optional second 6804PS(-1) unit or
6804PS-1-48. If power consumption is greater
than 40 W, the CF-6801 Cooling Frame is
required.
CF-6801 Cooling Frame A one-rack unit (1RU) installed above the
FR-6804(-1) frame.
FR-7001 A single-rack unit housing up to four processing
modules and their appropriate interface modules
(back-boxes), and one 6801PS power supply.
FR-7000MB MIX BOX A mounting frame designed for stand alone
operation. Each unit houses a single module and a
7000PS Power Supply. Any module requiring
more than 7.5 W of total power can NOT be
installed in a FR-7000MB MIX BOX frame.
FR-6801-1-48 A 1RU vented frame housing four modules, and
one 6801PS-48 power supply unit.
FR-6804-1-48 A 2RU vented, two-rack unit, providing up to
eight outputs per module, with a maximum of ten
modules. The FR-6804-1-48 comes equipped with
one power supply unit or the 6804PS-1-48, and is
pre-wired for an optional second 6804PS(-1) or
the 6804PS-1-48. If power consumption is greater
than 40 W, the CF-6801 Cooling Frame is
required.
2 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 29
Frame Description Chapter 1: Introducing the 6800/7000 Series of Frames
Power and Frame Capacity
The FR-6804-1 mounting frame is identical to the FR-6804 except that it
has a GPI (General Purpose Interface) function as shown below:
• The FR-6804-1 provides a GPI (General Purpose Interface)
contact closure, indicating power supply failure.
• If the 6804PS(-1) is used in the FR-6804, or the 6804PS is used in
the FR-6804-1, the power supply failure indication does not
function.
FR-6804(-1)
Modules +ve (W) -ve (W)
Total
(W)
FR-6804(-1)
with one
6804PS-1
FR-6804(-1)
with two
6804PS-1
with two
68 04 PS -1
CF-6801
connected
ADC-6801 6.10 0.56 6.66 6 5 10 5 3 3 1
ADC-6880 1.86 1.20 3.06 10 10 10 10 4 4 1
ADM-6800 3.80 0.56 4.37 9 8 10 8 4 4 1
ADM-6804 0.50 3.93 4.43 9 7 10 8 4 4 1
AES-6880 0.70 0.24 0.94 10 10 10 10 4 4 1
ASM-6800 4.07 0.52 4.59 8 7 10 7 4 4 1
CF-6801 5W 5W 10W N/A N/A N/A N/A N/A N/A N/A
DAC-6880 2.85 0.28 3.13 10 10 10 10 4 4 1
DAR-6880 2.00 0.60 2.60 10 10 10 10 4 4 1
DEC-6801 4.15 0.33 4.48 8 7 10 6 4 4 1
DES-6801 6.46 0.49 6.95 5 5 10 4 2 - 1
DNH-6800 1.50 0.27 1.77 10 10 10 10 4 4 1
DSK-6801 11.04 0.41 11.45 3 3 6 3 - - -
EDH-6800-2 4.23 0.03 4.26 9 8 10 8 4 4 1
ENC-6801 5.90 1.40 7.30 5 4 10 6 2 2 1
FR-6804(-1)
with two
6801PS-1
and no
CF-6801
connected
FR-7001
FR-6801(-1)
FR-7000MB
ENS-6801 7.30 1.60 8.90 4 3 8 4 2 2 -
ENX-6801 5.2 1.4 6.6 6 10 6 5 4 4 1
LGI-6801 5.10 0.03 5.13 7 6 10 8 3 3 1
MXA-6801-A2-68 6.5 1.5 8 8 8 10 3 1 2 0
MXA-6801-A4-70 6.5 1.5 8 0 0 0 0 0 2 0
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 3
Page 30
Chapter 1: Introducing the 6800/7000 Series of Frames Frame Description
FR-6804(-1)
Modules +ve (W) -ve (W)
Total
(W)
FR-6804(-1)
with one
6804PS-1
FR-6804(-1)
with two
6804PS-1
with two
68 04 PS -1
CF-6801
connected
MXA-6800-AES 6.95 0.08 7.03 6 6 10 4 4 4 1
SAI-6800 3.87 0.00 3.87 10 9 10 9 4 4 1
USM-6800 2.79 2.53 5.31 7 6 10 6 3 3 1
VCM-6801 1.98 2.73 4.71 8 7 10 7 4 4 1
VDA-6830 0.40 0.35 0.75 10 10 10 10 4 4 1
VEA-6830 0.51 0.45 0.96 10 10 10 10 4 4 1
VES-6801 2.94 0.00 2.94 10 10 10 10 4 4 1
VFS-6801 6.37 0.17 6.54 6 5 10 5 3 3 1
VSD-6801 0.00 1.86 1.86 10 10 10 10 4 4 1
VSE-6801/6802 0.00 3.20 3.20 10 10 10 10 4 4 1
VSM-6802 2.12 2.73 4.85 8 7 10 7 4 4 1
VSM-6804 2.71 1.55 4.25 9 8 10 10 4 4 1
VSR-4041 4.47 0.00 4.47 8 7 10 8 4 4 1
VTG-6801-1 6.07 0.18 6.25 6 5 10 5 3 3 1
FR-6804(-1)
with two
6801PS-1
and no
CF-6801
connected
FR-6801(-1)
FR-7001
FR-7000MB
VTS-6801 5.2 1.3 6.5 6 6 10 5 4 4 1
Up to three MXA-6801-A4
modules can be used in the
FR-6804-1 without a cooling
frame if only two audio output
channels are required. Up to
seven MXA-6801-A4 modules
can be used in the FR-6804-1 with
a cooling frame if only two audio
output channels are required.
4 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 31
Installation Requirements Chapter 1: Introducing the 6800/7000 Series of Frames
Installation Requirements
The installation requirements for the 6800/7000 series of frames are
shown in the table below:
Depth
Frame Rack Space
from
Surface
FR-6801/FR-6801-1 A 1RU unit that requires 1.75 in.
(44 mm) of standard 19 in. (483 mm)
rack space.
FR-6804/FR-6804-1 A 2RU unit that requires 3.5 in.
(88 mm) of standard 19 in. (483 mm)
rack space.
CF-6801
Cooling Frame
FR-7001 A 1RU unit that requires 1.75 in.
FR-7000MB
MIX BOX
A 1RU that requires 1RU of 1.75 in.
(44 mm) of rack space. This cooling
frame is mounted directly above the
FR-6804(1).
(44 mm) of standard 19 in. (483 mm)
rack space.
A1RU, 1/3 RU wide single module
mounting frame. A MMT-03
Mounting Tray holds up to three
MIX BOX units for rack mounting.
11 in.
(280 mm)
11 in.
(280 mm)
11 in.
(280 mm)
11 in.
(280 mm)
11 in.
(280 mm)
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 5
Page 32
Chapter 1: Introducing the 6800/7000 Series of Frames Installation Requirements
Frame Loading Limitations
Leitch 6800/7000 series frames are designed to operate in an ambient
temperature range of 0° to 50°C (32° to 122°F). No special provisions are
necessary other than power loading limitations that should be
considered upon installation.
There are two separate issues to consider with respect to a serial digital
product and its related loading limitations: power supply load
limitations and maximum frame loading limitations.
Power Supply Load Limitations
These are the maximum suggested loading specifications of the power
supply over the operating temperature range 32°F - 122°F
(0.5°C - 50°C). The 6800 series of power supplies come with 120 VAC,
240 VAC, and 48 VDC with inputs -6.5 V and +6.5 V output. Do not
parallel dissimilar supplies.
Power Supply Model # +6.5 Rail Power Limit -6.5 Rail Power Limit
6801PS 22 W 22 W
6804PS(-1) 78 W 29 W
7000PS 3.75 W 3.75 W
6801PS-48 22 W 22 W
6804PS-1-48 78 W 29 W
Module Loading Specifications
See page 3 for information on power requirements for 6800/7000 series
serial products.
6 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 33
Maximum Frame Loading Chapter 1: Introducing the 6800/7000 Series of Frames
Maximum Frame Loading
There is a limit on the amount of total module power consumption
(excluding the power supply) allowable within a given frame. These
limits are based on the ability of the unit to dissipate heat over a specified
If the total loading exceeds
either the power supply
limitations or the maximum
frame loading limited, then that
frame configuration is not
recommended.
operating temperature range.
Frame
Power
Supply
Qty. +ve (W) -ve (W)
FR-7000MB 7000PS 1 3.75 W 3.75 W 7.5 W 4 W
Total
(W)
Frame Heat
Dissipation
The 6801PS (Power Supply)
should not be used in the
FR-6804 frames.
FR-6801 or
6801PS 1 22 W 22 W 44 W 20 W
FR-7001
FR-6801-1 6804PS-1 1 78 W 29 W 107 W 20 W
FR-6801-1-48 6801PS-48 1 22 W 22 W 44 W 20 W
FR-6802 6801PS 1 22 W 22 W 44 W 35 W
6801PS 2 22 W 22 W 44 W 30 W
FR-6804-(1)
6804PS-1 1 78 W 29 W 107 W 75 W
with CF-6801
connected
FR-6804(-1)
6804PS-1 2 78 W 29 W 107 W 75 W
6804PS-1 1 78 W 29 W 107 W 40 W
without
CF-6801
6804PS-1 2 78 W 29 W 107 W 40 W
connected
FR-6804-1-48
6804PS-1-48 1 78 W 29 W 107 W 75 W
with CF-6801
connected
FR-6804-1-48
6804PS-1-48 2 78 W 29 W 107 W 75 W
6804PS-1-48 1 78 W 29 W 107 W 40 W
without
CF-6801
6804PS-1-48 2 78 W 29 W 107 W 40 W
connected
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 7
Page 34
Chapter 1: Introducing the 6800/7000 Series of Frames Maximum Frame Loading
Allowable Frame Configurations
Follow these steps to ensure that a particular frame configuration is
within allowable power limits.
1. Using the figures listed in your frame requirements, calculate the
total per rail loading requirements for the positive rail and the
negative rail. The sum will be the total module loading requirement.
2. Compare the total loading requirements calculated with the
maximum frame loading specification of the frame in question.
3. Compare the total per rail loading requirements with the maximum
These comparisons must be
made for the +ve and -ve rails
independently.
specified per rail loading of the power supply in question.
8 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 35
FR-6801/FR-6801-1 Frames
Overview
The FR-6801(-1) mounting frame is a 1RU rack unit that holds up to
four 6800 series modules. The FR-6801(-1) comes equipped with one
power supply unit, the 6804PS(-1). This power supply provides a
maximum total power of 20 W, and has a convenient flip-down front
panel for easy access.
Installation Requirements
The FR-6801(-1) frame is a 1RU unit requiring 1.75 in. (44 mm) of
standard 19 in. (483 mm) rack space. The depth from the mounting
surface is 11 in. (280 mm).
LEDs
Chapter 2
A green LED indicates that power is supplied to the unit.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 9
Page 36
Chapter 2: FR-6801/FR-6801-1 Frames Overview
10 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 37
Overview
To reduce the risk of electrical
shock, plug each power supply
cord into branch circuits
employing separate serve
grounds.
The FR-6804 does not provide
this feature with use of either of
the power supplies. It should be
noted that the FR-6802 is not top
or bottom vented.
Chapter 3
FR-6804/FR-6804-1 Frames
The FR-6804(-1) frame is a 2RU unit. It provides a maximum of ten
modules with up to eight outputs per module. The FR-6804(-1) comes
equipped with one power supply unit, the 6804PS(-1), and is pre-wired
for an optional second 6804PS(-1) unit for redundant (standby backup)
power. Also, an external DC power connector is provided if external
power redundancy is needed.
The FR-6804-1 and FR-6804 frames are identical to the FR-6802, except
that the FR-6804-1 provides a General Purpose Interface (GPI) contact
closure for indication of power supply failure when used with a 6804PS1 power supply. If the 6804PS-1 is used in the FR-6804, or the 6804PS is
used in the FR-6804-1, the power supply failure indication will not
function.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 11
Page 38
Chapter 3: FR-6804/FR-6804-1 Frames Overview
The GPI is made up of two parts:
• A fault sensing circuit within each power supply that monitors the
primary circuit and the two output voltages.
• A relay that provides isolation between Leitch equipment and the
GPI output connector at the rear of the frame.
There are three connections provided for GPI reporting:
•Normally closed (NC)
• Normally open (NO)
•Ground
To comply with SMPTE standards, the product uses the NC output and
ground. The relay has two states for GPI reporting:
• OPEN: An open output signifies that the GPI relay is activated and the
power supplies in the frame are present and operating correctly.
• CLOSED: A closed output signifies that the GPI relay has been
de-activated indicating an internal fault in either of the power
supplies or a loss of power to one or both of the supplies.
12 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 39
Overview Chapter 3: FR-6804/FR-6804-1 Frames
Installation Requirements
The FR-6804(-1) frame is a 2RU unit requiring 3.5 in. (88 mm) of
standard 19 in. (483 mm) rack space. The depth from the mounting
surface is 11 in. (280 mm).
The FR-6804(-1) frame should be installed in the same rack, just below
See
CF-6801 Overview
the CF-6801 cooling frame.
The CF-6801 is a 1RU fan tray with a high-airflow fan array providing
redundant, low-noise cooling for up to two 2RU frames of equipment
(4RU), or up to twenty 6800/7000 series modules. This fan array
provides 40 cubic feet per minute (cfm) of airflow, evacuating from the
frames below it and exhausting into the rear of the rack. Interface
modules (back-boxes) are inserted from the rear of the frame. These
interface modules are specifically related to the processing module
located in the front of the frame.
Chapter 4 for further information
.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 13
Page 40
Chapter 3: FR-6804/FR-6804-1 Frames FR-6804(-1)/CF-6801 Installation
FR-6804(-1)/CF-6801 Installation
1. Mount the FR-6804(-1) in a standard 19-inch rack with a 1RU
opening above it.
2. Mount the CF-6801 directly above the FR-6804(-1).
3. Attach the DC supply cable to the DC 3-pin connector at the back of
the FR-6804(-1), following the labeled positions for positive,
negative, and ground. See Figure 3-1.
LEITCH
CF-6801
SHIELD
CLEAR
BLK
GND
V+
V-
GPI 1
GPI 2
MADE IN
CANADA
DC Supply Cable
(M8761 Belden
or equivalent)
R
FR-6804
90-250VAC
270VA
50/60Hz
SHIELD
CLEAR
BLK
GND
V+2
V-2
GND
NC
NO
CAUTION: THIS EQUIPMENT HA S MORE THAN
ONE POWER SUPPLY CORD. TO REDUCE THE
RISK OF ELECTRICAL S HOCK, DISCONNECT TWO
POWER SUPPLY CORDS BEFORE SERVICING.
MADE IN CANADA

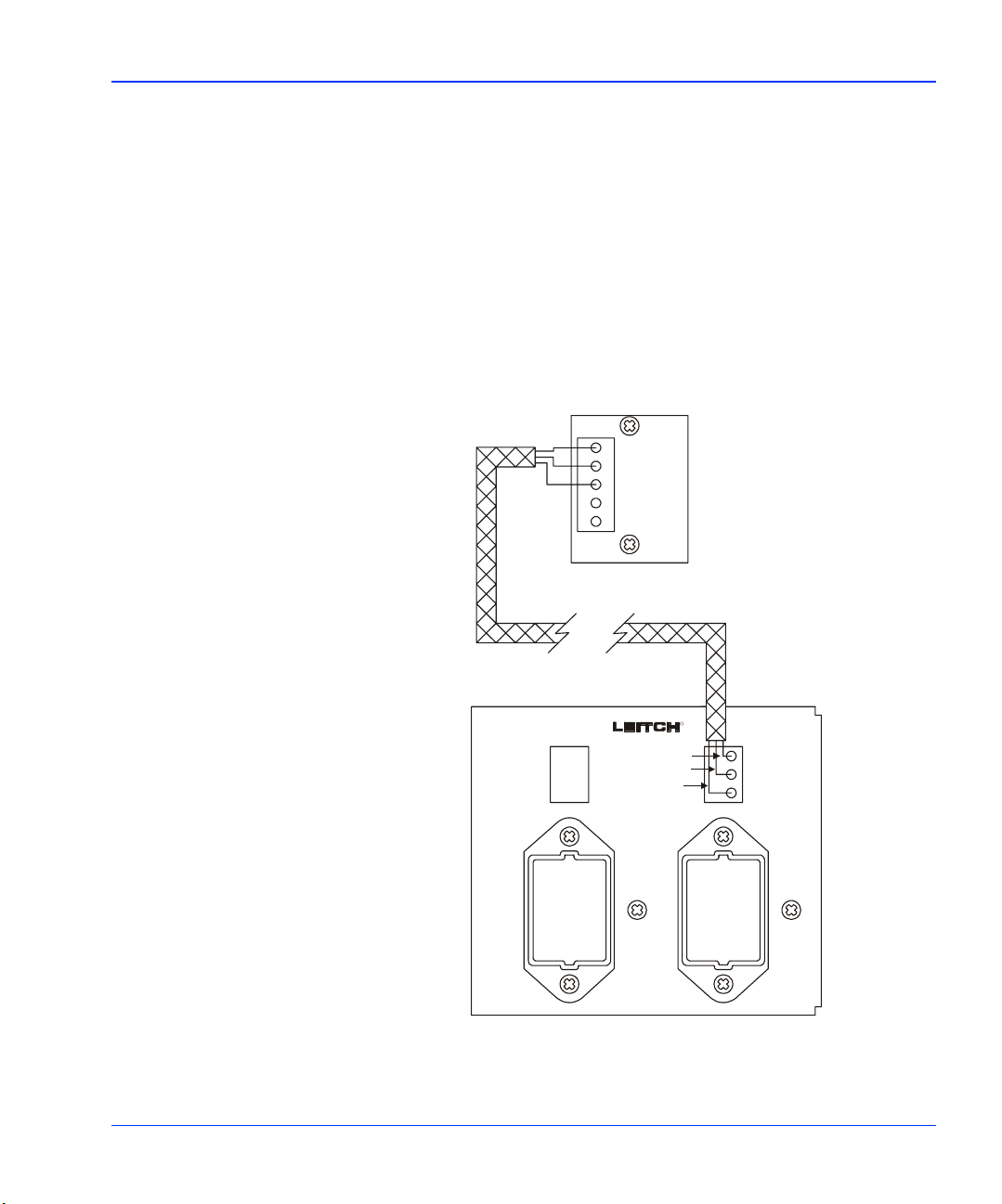

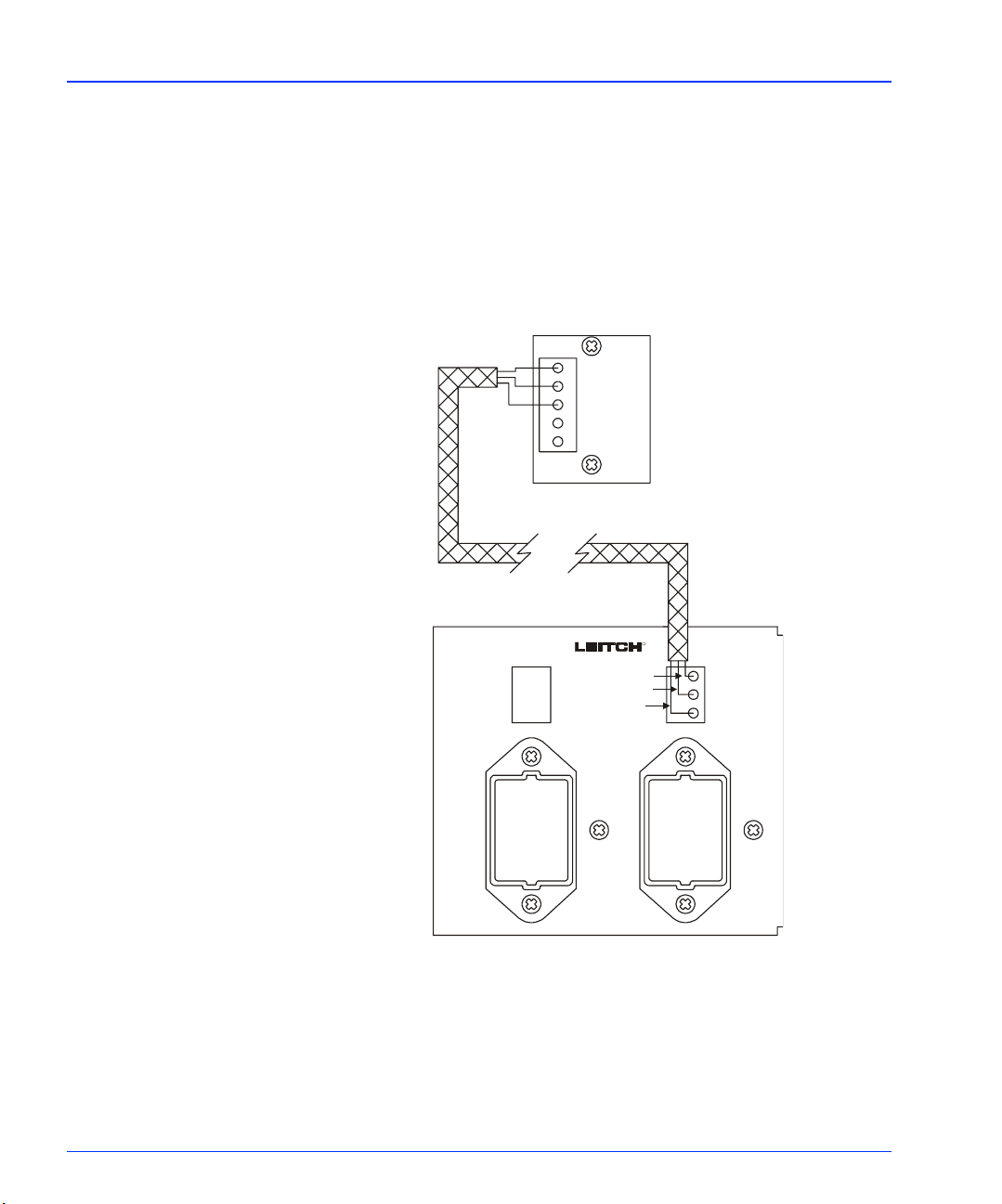

Figure 3-1. FR-6804(-1) and CF-6801 Connections
14 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 41
FR-6804(-1)/CF-6801 Installation Chapter 3: FR-6804/FR-6804-1 Frames
4. Attach the other end of the DC supply cable to the DC 5-pin
connector at the back of the CF-6801 cooling frame, observing
correct polarity.
5. Position the FR-6804(-1) and the CF-6801 frames at the front and the
back so that the vents are aligned.
6. Plug the main power cable into the left power receptacle in the back
of the FR-6804(-1).
7. Plug the other end of the main power cable into the studio power
supply outlet.
To verify correct installation, follow this procedure:
1. Check that leftmost green Power LED on the FR-6804(-1) front panel
is lit.
2. Check that most left green Power LED on the CF-6801 front panel is
lit.
3. Check that the CF-6804 begins to emit a soft humming noise as the
fans engage.
4. Check that air is being drawn in through the front panel of the
FR-6804(-1).
See Chapter 4, “CF-6801 Cooling Frame” for further information on
installing the FR-6804(-1) with the CF-6801 Cooling Frame.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 15
Page 42
Chapter 3: FR-6804/FR-6804-1 Frames Failure Conditions
Failure Conditions
If neither LED is illuminated, remove power to the fan tray unit
immediately. Extended duration of this short circuit condition will cause
damage to both the fan tray circuitry and the external power supply.
To turn off the power to the fan tray, follow these instructions:
1. Pull the black locking pins on each end of the FR-6804(1) front panel
until they snap out of position. These pins remain attached to the
panel.
2. Slide the front panel out, and then tilt down.
3. The 6804PS power supply is located on the right side of the frame.
Turn the On-Off switch to the Off position.
4. Close the FR-6804(-1) front panel, and then snap the locking pins
back into position. Power to the CF-6801 is now removed.
5. Check that air is being drawn in through the front panel
of the FR-6804(-1).
16 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 43
CF-6801 Cooling Frame
Overview
The CF-6801 is a one rack unit (1RU) frame fan tray with a high-airflow
fan array. It provides redundant, low-noise cooling for up to two 2RU
frames of equipment (4RU), or up to twenty 6800/7000 series modules.
This fan array provides 40 cubic feet per minute (cfm) of airflow,
evacuating from the frames below it, and exhausting into the rear of the
rack.
Installation Requirements
The CF-6801 cooling frame is installed above the FR-6804(-1) frame in
two possible configurations (see Figure 4-1). The vents on the bottom of
the cooling frame match those on the top and bottom of the FR-6804(-1)
The CF-6801 supplies forced
air cooling for the power
supply and the f rame. If power
consumption is greater than
40 W, this Cooling Frame is
required.
frame. Cool, ambient air is drawn in through the dust filter at the front of
the FR-6804(-1), passed through its modules, and then drawn up
through the frame slots and into the CF-6801 cooling frame. The hot air
is exhausted from the back through the use of a ten-fan array.
The CF-6801 cooling frame is mounted directly above the FR-6804(-1).
The CF-6801 frame requires 1.75 in. (44 mm) of rack space with a depth
from the mounting surface of 11 in. (280 mm).
Chapter 4
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 17
Page 44
Chapter 4: CF-6801 Cooling Frame Overview
The drawing below describes the output of the CF-6801 cooling frame.
Note that 1RU of open rack space is required when the CF-6801 is used
to cool two FR-6804 frames.
85 W max.
75 W max.
85 W max.
75 W max.
85 W max.
75 W max.
CF-6801
FR-680 4(-1 )
FR-680 4(-1 )
CF-6801
FR-680 4(-1 )
FR-680 4(-1 )
CF-6801
FR-680 4(-1 )
FR-680 4(-1 )
DC Power
Connection
DC Power
Connection
DC Power
Connection
75 W max.
75 W max.
75 W max.
Other
Manufacturer’s
Equipment
Other
Manufacturer’s
Equipment
DC Power
Connection
DC Power
Connection
DC Power
Connection

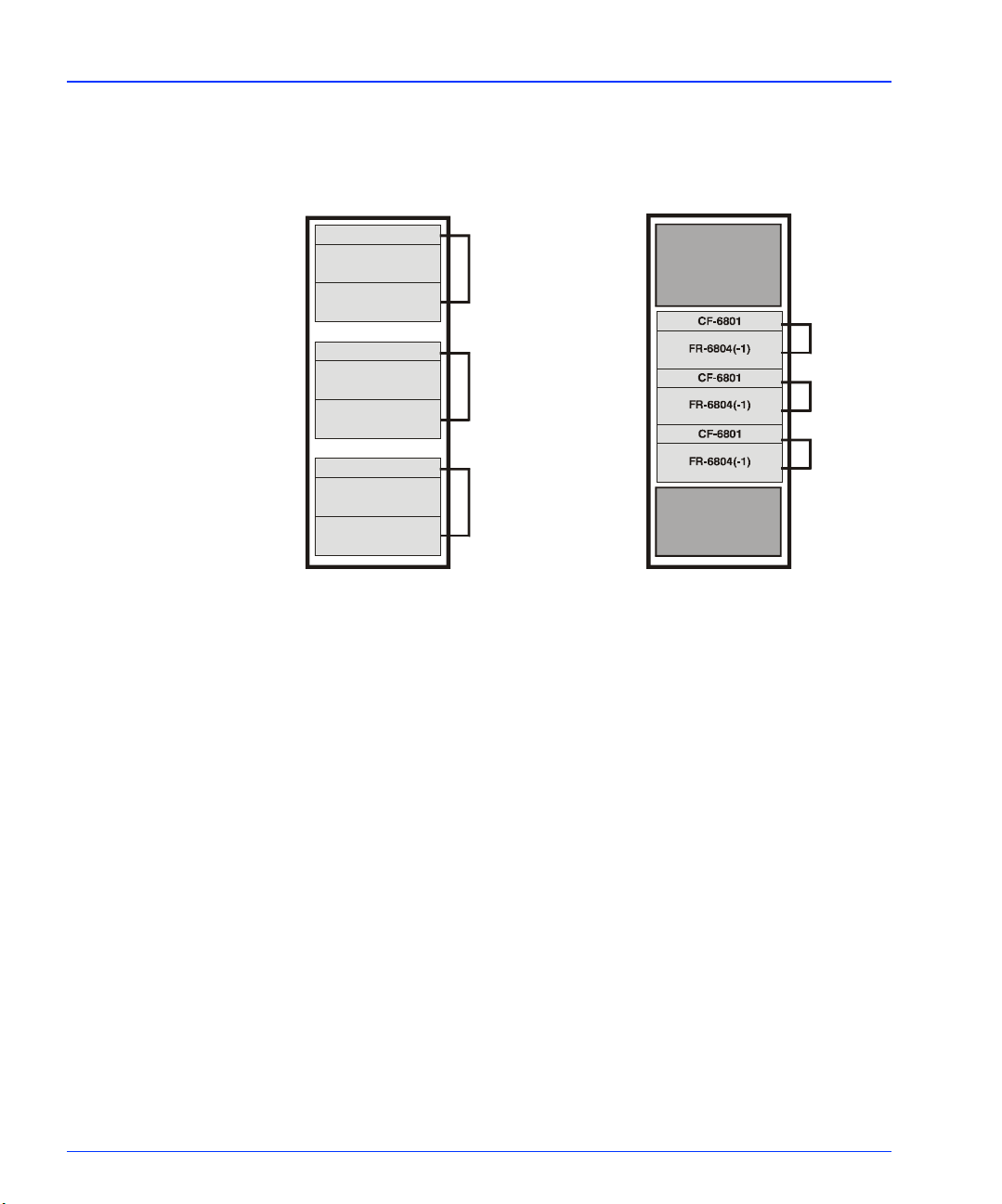

Figure 4-1. Use of CF-6801 with FR-6804(-1)
Since each fan operates independently, the failure of one or two of the
fans does not impair the array’s cooling abilities or effectiveness. In order
to ensure maximum reliability under varying conditions of ambient
temperatures, Leitch Technology recommends employing the CF-6801
Cooling Frame in one of the configurations shown in Figure 4-1.
The cooling frame is DC-powered through the FR-6804(-1) using 22
AWG shielded twisted pair (or equivalent) cable. No AC power is
required for its operation. The CF-6801 cooling frame is designed to
ensure the best performance and longest service life from the
FR-6804(1) frame.
18 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 45
FR-6804(-1)/CF-6801 Installation Chapter 4: CF-6801 Cooling Frame
FR-6804(-1)/CF-6801 Installation
To properly install the CF-6801 with the FR-6804(-1), follow this
procedure:
1. Mount the CF-6801 directly above the FR-6804(-1).
2. Attach the DC supply cable to the DC 3-pin connector at the back of
the FR-6804(-1), following the labeled positions for positive,
negative, and ground.
3. Attach the other end of the DC supply cable to the DC 5-pin
connector at the
correct polarity.
back of the CF-6801 cooling frame, observing
See
Figure 4-3.
LEITCH
CF-6801
SHIELD
CLEAR
BLK
GND
V+
V-
GPI 1
GPI 2
MADE IN
CANADA
DC Supply Cable
(M8761 Belden
or equival ent)
R
FR-6804
90-250VAC
270VA
50/60Hz
SHIELD
CLEAR
BLK
GND
V+2
V-2
GND
NC
NO
CAUTION: THIS EQUIPMENT H AS MORE THAN
ONE POWER SUPPLY CORD. TO REDUCE THE
RISK OF ELECTRIC AL SHOCK, DISCONNECT TWO
POWER SUPPLY CORDS BEFORE SERVICING.
MADE IN CANADA
Figure 4-2. FR-6804(-1) and CF-6801 Connections
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 19
Page 46
Chapter 4: CF-6801 Cooling Frame FR-6804(-1)/CF-6801 Installation
4. Arrange the FR-6804(-1) and the CF-6801 frames at the front and
the back so that the vents are aligned.
5. Plug the main power cable into the left power receptacle in the back
of the FR-6804(-1).
6. Plug the other end of the main power cable into the studio power
supply outlet.
After completing the installation procedure, verify that the CF-6801 is
correctly installed:
1. Check that the green Power LED on the FR-6804(-1) front panel is
lit.
2. Check that the leftmost green Power LED on the CF-6801 front
panel is lit.
3. Check that the CF-6804 begins emitting a soft humming noise as the
fans engage.
4. Check that air is being drawn in through the front panel of the
FR-6804(-1) and CF-6801 connections.
20 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 47
LEDs Chapter 4: CF-6801 Cooling Frame
LEDs
A green LED indicates that power is supplied to the unit, while a red
LED indicates a failure sensed by a contact closure.
There are five criteria for failure in the CF-6801, indicated by the LEDs
and listed in the table below.
LED Condition Function
Over-Current Sensing (red) If one or more of the fans short out, this LED
See “Failure Conditions”, on page 22.
illuminates and the GPI closes.
Under-Current Sensing
(red)
Over-Temperature Sensing
(red)
Under-Voltage Sensing
(green)
Over-Voltage Protection
(OVP) and Sensing (red)
If one or more of the fans open-circuit, this
LED illuminates.
If the temperature in the fan tray unit exceeds
°F (520°C), the red error LED turns on
125
and the relay closes to make contact for the
GPI output. The red LED continues to be lit
until the temperature has cooled down below
°F (48°C), when the relay resets itself
118.6
and the GPI output.
The green LED indicates that the buck
converter is regulating correctly, (that is 9.5 V
to 10 V are established across the fans). If the
voltage across the fans falls below 8.8 V, the
green LED turns off, the red LED turns on,
and the relay closes the contact for the GPI
output to indicate bad voltage regulation. The
green LED should always be lit to indicate
correct voltage across the fans.
This feature protects the power distribution
circuitry from over-voltage conditions,
starting at 15 V, up to a maximum of 19 V. If
such a condition occurs, the power to the
converter is removed, the red LED turns on,
and the relay closes the contact for the GPI
output.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 21
Page 48
Chapter 4: CF-6801 Cooling Frame Failure Conditions
Failure Conditions
Remove power to the fan tray unit immediately if both the red and green
LEDs are
Extended duration of this condition will cause damage to both the fan tray
circuitry and the external power supply.
Follow the instructions to turn off the power to the fan tray:
1. Pull the black locking pins on each end of the FR-6804(-1) front
2. Slide the front panel out and tilt down.
3. The 6804PS power supply is located on the right side of the frame.
4. Close the FR-6804(-1) front panel and snap the locking pins back
5. Check that air is being drawn in through the front panel of the FR-
T
he CF-6801 consists of a buck converter and linear devices that are used
for monitoring parameters. The system is equipped with over-voltage,
under-voltage, over-current, under-current, and over-temperature sensing
protection.
extinguished as this indicates a short circuit failure condition.
panel until they snap out of position. These pins remain attached to
the panel.
Turn the ON/OFF switch to the OFF position.
into position. Power to the CF-6801 is now removed.
6804(-1).
(See
the LED condition description table on page 21
.)
22 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 49
Buck Converter Chapter 4: CF-6801 Cooling Frame
Buck Converter
The buck converter specifications are as follows:
V in (max.) 15 V
V out 9.5 V (3%)
Efficiency 96.4%
Frequency 100 KHz
Imax 1.1 A
The buck converter is protected against voltages in excess of 15 V by the
Zener diode D13 and by resistor R43. This structure clamps the voltage
across U3 in the case of an over-voltage. This protection is added as a
redundant fail safe measure in the event that the Over-Voltage Protection
(OVP) circuitry provided in the 6804PS fails to activate. U3 will not
regulate properly until the over-voltage condition ceases.
Over-Current (OC) and Under-Current (UC) Sensing
A 0.05 W sensing resistor across a window comparator gives a voltage
reading that indicates the current through the fans:
•Vsense = Rsense x Ifans
Vsense is then multiplied by the OP
resistors R16 and R18), to become:
• Vcompare = 174 x Vsense
This voltage is compared to the set limits which are approximately 5.1 V
and 7.5 V. It is an indication of an OC condition (there a short-circuit on
the distribution board) if Vcompare goes above the 7.5 V limit and an
indication of a UC condition (one or more of the fans is not working) if
Vcompare is below 5.1 V. Either of these conditions (OC or UC) will
cause the red error LED to illuminate and the relay will close (to make
contact for the GPI output). The expected average value of current draw
for the 10 fans is about 0.73 A. The sensing circuitry allows for about
20% tolerance on either side before triggering.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 23
AMP gain factor of about 174 (set by
Page 50
Chapter 4: CF-6801 Cooling Frame Specifications
Specifications
Electrical
Item Specification
Mechanical
Operational
Power Supply and
+ 6.5 V Rails
Connector 3-wire screw terminal
DC Cable 22 AWG, shielded, twisted pair or equivalent
Item Specification
Height 1.75 in. (44 mm)
Width 19 in. (483 mm)
Depth 11 in. (280 mm)
Weight (nominal) 4.95 lbs (2.245 kg)
Item Specification
13 VDC (from -6.5 V and +6.5 V rails)
Module Cooling
Capacity
2RU Cooling
Capacity
Airflow Created 40 cfm
Specifications and designs are subject to change without notice.
24 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
20 (10 in each FR-6804(-1) frame)
2 (2 x FR-6804 (-1) frames
Page 51
FR-7001 and FR-7000MB MIX BOX
Overview
See the 6800/7000 Tes t S er ie s
Instllation and Operation
Manual
on other MIX BOX products.
for more information
Chapter 5
The FR-7001 frame is a single rack unit (1RU). It includes one 6801PS
Power Supply and can house up to four processing modules and their
appropriate interface modules (back-boxes). The FR-7000MB MIX BOX
frame is designed for standalone operation. Each unit houses a single
module and a 7000PS Power Supply. The FR-7000MB has a detachable
power supply cord and each MIX BOX
cord.
Four rubber feet are included if the unit is not rack mounted. If rack
mounting is desired, the MMT-03 MIX BOX Rack Mounting Tray
(1RU) will accept up to three MIX box units. The MBP-01 Blank Front
Panel may be ordered to fill the blank slots if less than three units are
used.
The front of the FR-7000MB MIX BOX has a fold-down front panel for
quick and easy access to the power supply and module inside. Each
module also has an individual back module that attaches to the MIX
BOX back panel.
Any module requiring more than 7.5 W of total power can NOT be
installed in a FR-7000MB MIX BOX frame. The EDH-6800 and the
VTG-6801-1(A) modules are also available in module-specific MIX
BOXES with dedicated control panels. If you require either of these MIX
BOXES they should be ordered using the following part numbers:
• EDH-6800-2MB
• VTG-6801-1MB
• VTG-6801-1A-MB
requires its own power supply
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 25
Page 52
Chapter 5: FR-7001 and FR-7000MB MIX BOX Installation Requirements
Installation Requirements
The FR-7001 frame is a 1RU unit that requires 1.75 in. (44 mm) of
standard 19 in. (483 mm) rack space. The depth from the mounting
surface is 11 in. (280 mm).
The FR-7000MB MIX BOX is a 1RU high, 1/3 RU wide single-module
frame. A MMT-03 Mounting Tray holds up to three MIX BOXES for
rack mounting.
LEDs
The CF-6801 and the FR-7000MB are the only mounting frames in this
series that have front panel LEDs. In other frames, LEDs are provided on
the front of the power supply module. The LED on the front panel of the
FR-7000MB MIX BOX indicates that there is power supplied to the unit.
Installation
Before installing your MIX BOX, inspect the equipment for any visible
damage which may have occurred during transit.
To verify the safe arrival of the embedded power supply follow this
procedure:
1. Pull the black locking pins on each end of the FR-6804(-1) front
panel until they snap out of position. These pins remain attached to
the panel.
2. Slide the front panel out and tilt down.
3. The 6804PS power supply is located on the right side of the frame.
Turn the ON/OFF switch to the OFF position.
4. Close the FR-6804(-1) front panel and snap the locking pins back
into position. Power to the CF-6801 is now removed.
5. Check that air is being drawn in through the front panel of the
FR-6804(-1).
26 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 53
Overview
Chapter 6
6801PS Power Supply Module
The model 6801PS power supply is a two-stage switching power supply
that provides the following outputs:
• +6.5 V @ 3.4 A
• - 6.5 V @ 3.4 A
Maximized efficiency and minimized individual component
temperature rise has been achieved with a two stage design consisting of
an input Buck converter feeding a high efficiency Push-Pull output stage.
Overall efficiency exceeds 80% and individual component temperature
rise is minimized by operating both converts at
current, as well as using Schottky rectifier diodes on the output stage.
The power supply is designed to work over the two standard input
voltage ranges 85-264 VAC Universal. The output voltage is adjustable by
±10%.
=22.1 W
=22.1 W
high
voltage and low
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 27
Page 54
Chapter 6: 6801PS Power Supply Module Overview
28 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 55
6804PS-1 Power Supply Module
Overview
Chapter 7
The high efficiency 6804PS(-1) power supply is a self-contained,
plug-in, auto-sensing module that accepts line voltages from 90 to
265 VAC. An external DC power connector allows several frames to be
connected in parallel to back up the supply of power without redundant
supplies. The FR-6804(-1) has space dedicated to an optional second
6804PS(-1) unit when redundant (standby backup) power is required.
The 6804PS(-1) has an internal fuse and an external power switch.
Power supply functioning can be assessed through LED indicators on
the 6804PS(-1) front panel. Illumination of the green LED indicates the
power is on. Illumination of the red LED indicates an over-temperature
condition.
The 6804PS is easily removed and replaced through the front of the
frame after one 6 x 32 screw is removed from the back of the unit. This
power supply doubles the power capability of the frame, from 35 or
40 W to 85 V, provided that it is used with the CF-6801 fan tray which
supplies the forced air cooling for the power supply and the frame during
operation.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 29
Page 56
Chapter 7: 6804PS-1 Power Supply Module Design Features
Design Features
The 6804PS(-1) is a two-stage, switching power supply that provides the
following outputs:
• +6.5 V @ 12 A
• - 6.5 V @ 4.5 A
To maximize efficiency and to minimize individual component
temperature rise, the 6804PS(-1) has a two-stage design comprising an
input Buck converter feeding a high-efficiency push-pull output stage.
Overall efficiency exceeds 75% and individual component temperature
rise is minimized by operating both converts at high voltage and low
current, as well as using synchronous rectifiers and Schottky rectifier
diodes on the output stage. The power supply works from 90 to 265 VAC.
30 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 57
GPI Fault Reporting Chapter 7: 6804PS-1 Power Supply Module
GPI Fault Reporting
The GPI (General Purpose Input) is made up of two parts:
• A fault sensing circuit inside each power supply that monitors the
primary circuit and the two output voltages.
• A relay that provides isolation between Leitch equipment and the
GPI output connector at the rear of the frame.
There are three connections provided for GPI reporting:
•Normally closed (NC)
• Normally open (NO)
•Ground
The NC output and ground must be used in order to comply with
SMPTE standards.
The relay has two states for GPI reporting:
• OPEN: An Open output signifies that the GPI relay is activated and
the power supplies in the frame are present and operating correctly.
• CLOSED: A Closed output signifies that the GPI relay has been
deactivated, indicating an internal fault in either of the power
supplies or a loss of power to one or both of the supplies.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 31
Page 58
Chapter 7: 6804PS-1 Power Supply Module Specifications
Specifications
The following lists the electrical specifications for the GPI.
Electrical
Item Specification
Power Input 90 - 265 VAC
Connector 3-wire screw terminal
Voltage Output ± 6.5 VDC
Mechanical
Item Specification
Height 3.15 in. (80 mm)
Width 1.58 in. (40 mm)
Depth 11.23 in. (285 mm)
Operational
Weight (nominal) 1.25 lbs (0.57 kg)
Item Specification
Module Cooling
Capacity
Input Module 1
Output Module 8
Specifications and designs are subject to change without notice.
10
32 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 59
Emergency Shutdown Chapter 7: 6804PS-1 Power Supply Module
Emergency Shutdown
To shut off power in an emergency, follow these instructions:
1. Turn or push the ON/OFF switch to the OFF position.
2. Check that neither the green or the red LED is lit (this may take
a few seconds).
3. Remove the power supply from the frame.
Power to the frame now is now shut off.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 33
Page 60
Chapter 7: 6804PS-1 Power Supply Module Emergency Shutdown
34 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 61
Overview
Chapter 8
7000PS Power Supply Module
The 7000PS is a universal input power supply capable of operating over
the line input range of 90 to 265 VAC. The power supply produces two
identical outputs of opposite polarity with a total output power of 10 W.
The design features the ability to customize the main transformer output
with selection of proper jumpers to obtain the following adjustable
outputs:
•± 6 V
•± 8 V
•± 13V
•± 21 V
Control feedback is taken from the primary side only, giving line
regulation of ± 1% and load regulation of approximately 5% from 20%
load to full load.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 35
Page 62
Chapter 8: 7000PS Power Supply Module Output Voltage Selection
Output Voltage Selection
Ouput voltage is controlled by selection of jumpers J1-J4 for positive
voltage, and jumpers J5-J8 for negative output.
Installing jumpers J2 and J4 connects the nominal 7 V ending to the
output rectifier filter circuitry. This allows the power supply to be
adjusted to 6 or 8 V output.
Installing jumpers J1 and J3 connects the 13 volt winding to the output
circuitry and gives a 13 V output.
Installing jumpers J1 and J4 connects the 7 V winding in series with the
13 V winding to the output rectifier and filter circuitry. Two windings in
series gives an output which can be adjusted to 21V.
Installation of jumper J5-J8 give the corresponding negative output
voltages.
36 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 63
Output Voltage Selection Chapter 8: 7000PS Power Supply Module
Power Supply
The following table lists the power supply settings:
Frame Voltage
FR-1302MB ±8
FR-7000MB ±6
FR-680MB ±13
FR-880MB ±21
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 37
Page 64
Chapter 8: 7000PS Power Supply Module Output Voltage Selection
38 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 65
6801PS-48 Power Supply Module
Overview
The serial distribution amplifiers VSD-6801 and VSE-6801 and the
analog video distribution amplifiers VDA-6830 and VEA-6830 can now
be used in -48 VDC power systems.The 6801PS-48 provides -48 VDC
input and
Design Features
The 6801PS-48 is a two-stage, switching power supply used in the 6800
series frames that proves the following outputs:
•- 48 VDC input
•40 W total power
This power supply can be used with distribution type modules like the
VSD-6801, VSE-6801, VDA-6830 and VEA-6830. Leitch does not
recommend using this power supply for other module types.
Chapter 9
±-6.5V outputs for the 6800 series of mounting frames.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 39
Page 66
Chapter 9: 6801PS-48 Power Supply Module Installing the 6801PS-48
Installing the 6801PS-48
Precautions
To reduce the risk of electric shock or energy hazards, heed the following
cautions:
• Connect the 6801PS-48 to a reliably grounded SELV source or a
centralized DC source.
• The branch circuit overcurrent protection must be rated a
maximum 10 A circuit breaker in series with a maximum 5 A
listed fuse. (
• Use 14 AWG solid copper conductors only.
• A readily accessible disconnect device that is suitably approved
and rated, shall be incorporated into the field wiring. (See
suggested breaker switch type on page 41.)
• To be installed in a restricted access area in accordance with the
NEC or the authority having jurisdiction.
To reduce the risk of electric shock, heed these cautions:
See suggested protection devices on page 41.)
• Perform installation and exchange only if you are a trained
technician who is familiar with these instructions and aware of
the shock hazards of working with live equipment.
• Install the 6801PS-48 power supply in accordance with the
schematic diagram shown on page 41.
• Power can only be disconnected completely from the 6800/7000
series frame through a studio installed breaker or fuse.
40 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 67
Branch Circuit Schematic Chapter 9: 6801PS-48 Power Supply Module

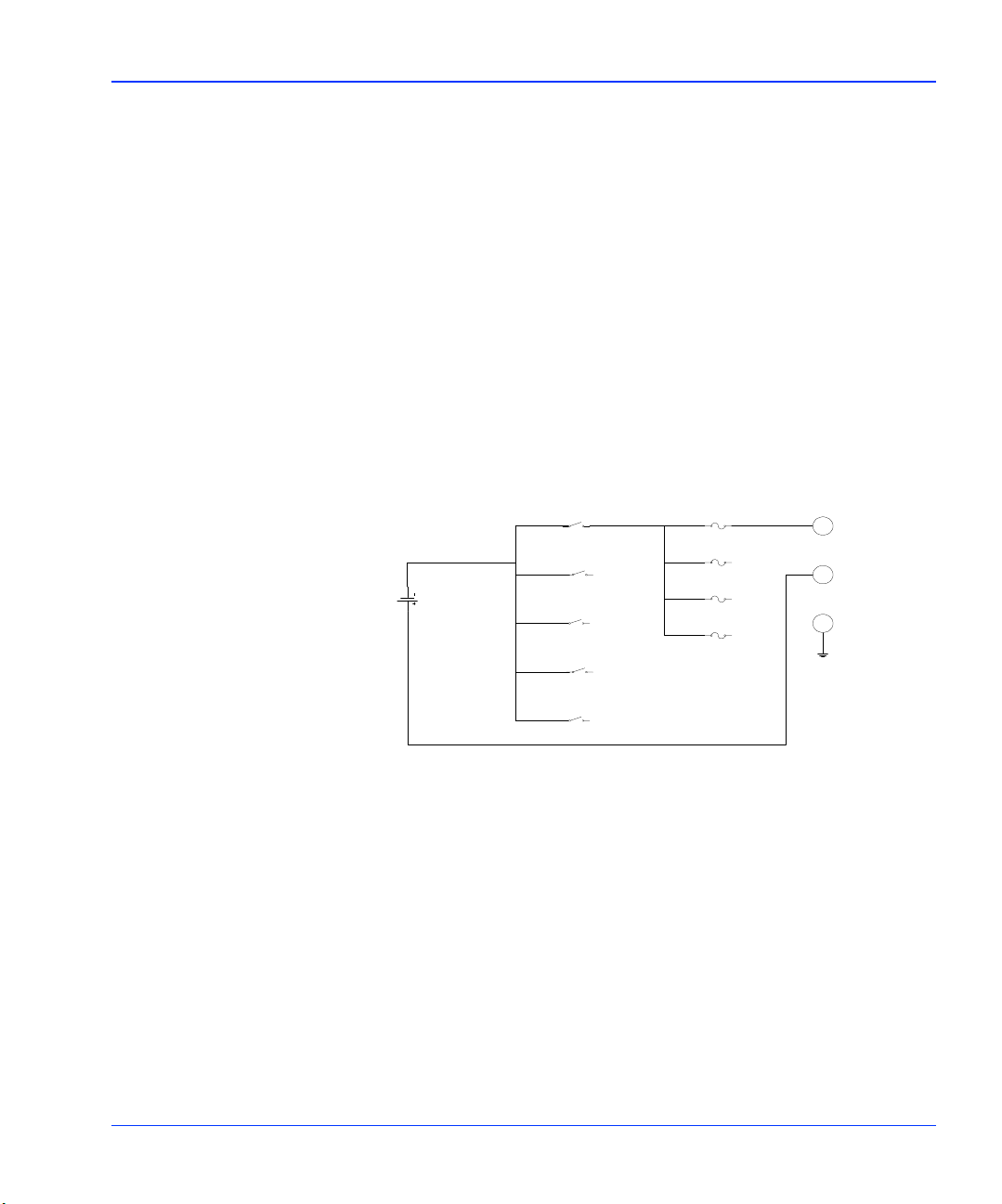

Branch Circuit Schematic
Description
The 6801PS-48 Power Supply differs from other Leitch power supplies in
that it depends on the studio’s installed circuit breaker/fuse to
disconnect power to the frame.
Breaker Switches 10 A
Type Eaton Heinemann series AM/S
Part # AM1S-B2-A-A-02J-H-A-52-NO-10-10
-48 VDC Supply

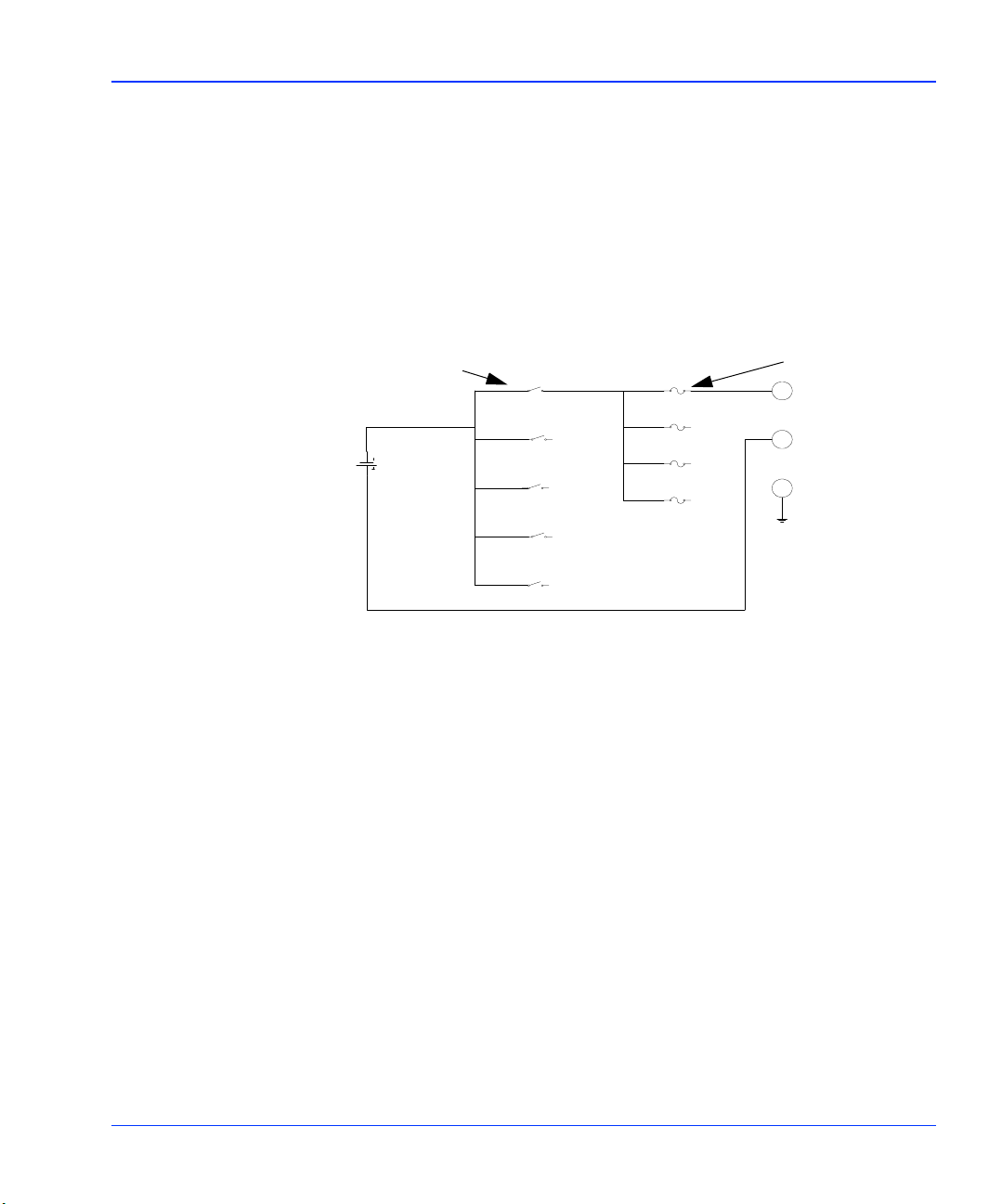

Figure 9-3. Typic al Br anch Circ uit Dr awi ng
Suggested Protection Devices
Suggested breaker switch type: Eaton Heinemann, series AM/S, part #
AM1S-B2-A-A-02J-H-A-52-NO-10-10 or equivalent.
Suggested branch circuit fuse type: Buss part # GMT-5 or equivalent.
5 A Fuse Panel
Type Buss GMT-5
1
-
+
2
3
To 6801PS-48
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 41
Page 68
Chapter 9: 6801PS-48 Power Supply Module Maintenance
Maintenance
Fuses
The replacement fuse (F1) for the 6801PS-48 is a Wickman 19194-2.5 A,
250 V fuse.
For continued protection against fire, replace only with the same type
and rating fuse.
Power Supply Connections

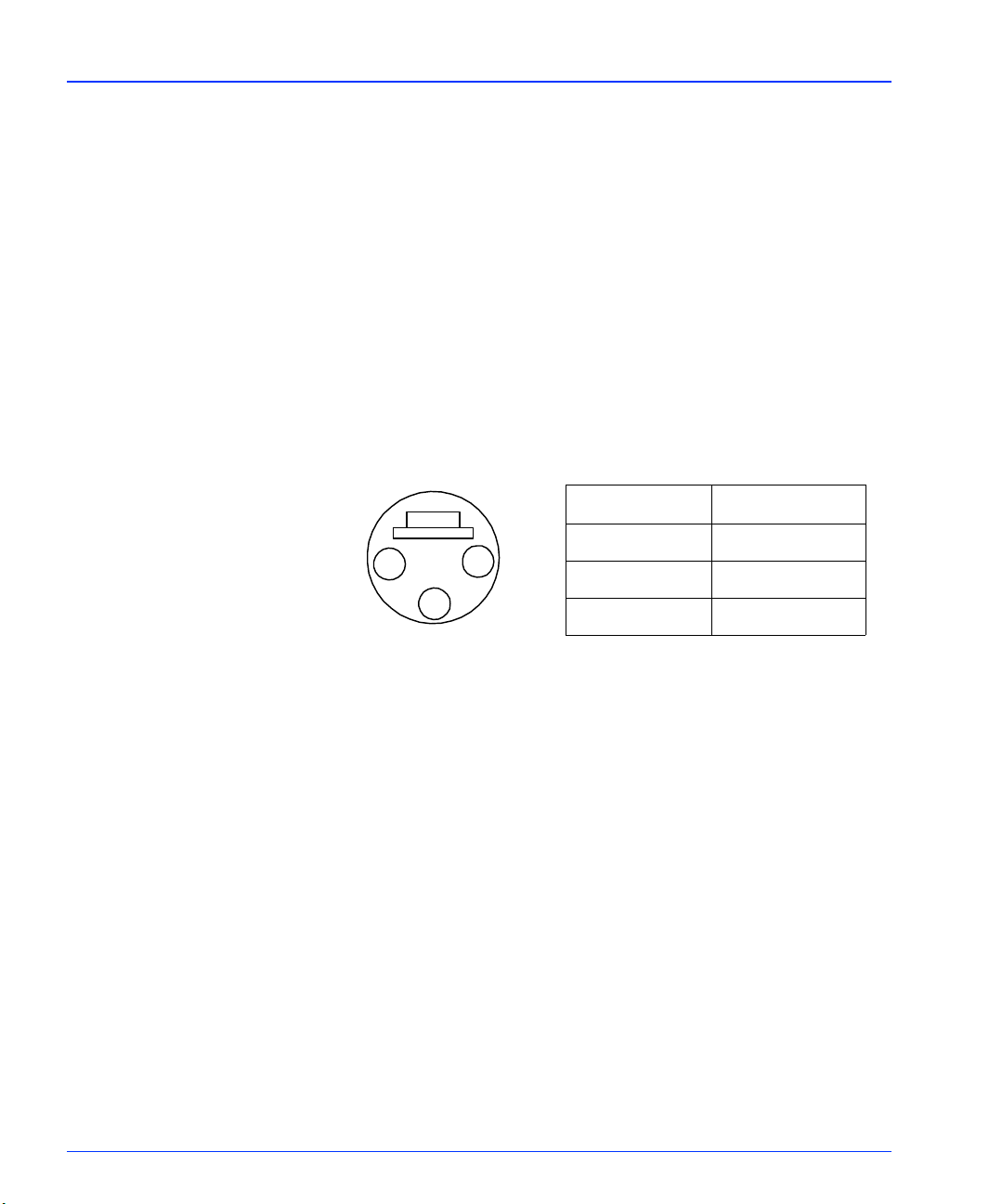

Use the XLR connector at the back of the power supply or frame (if the
6801PS-48 is installed in a frame) to make the following pin connections
for the 6801PS-48.
Pin Number Connection
1
2
3

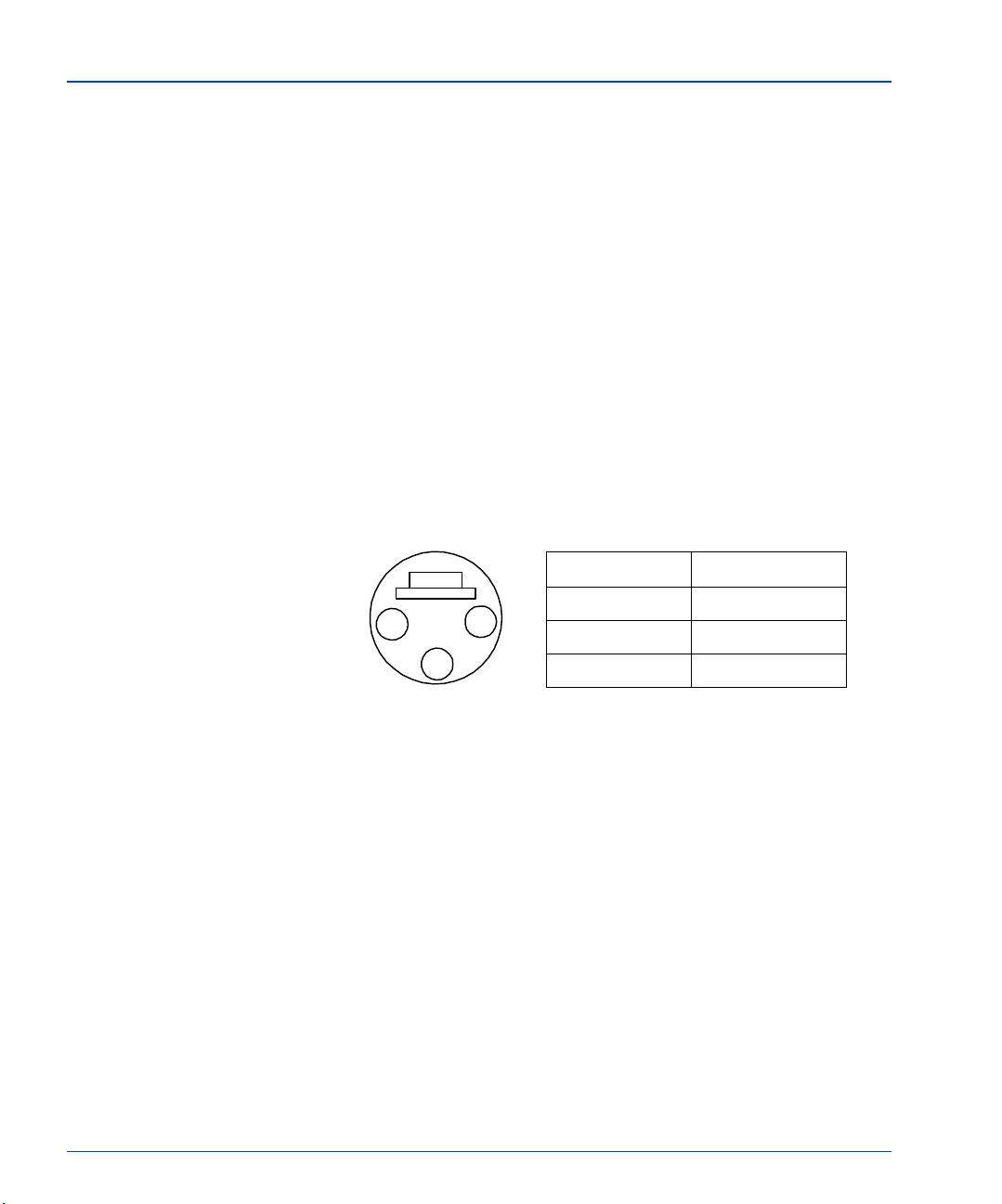

Figure 9-4. XLR Connector
1-48 V
20 V
3 chassis
42 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 69
6804PS-1-48 Power Supply Module
Overview
The 6804PS-1-48 Power Supply provides increased power output
compared to the 6801PS-48 unit.
The serial distribution amplifiers VSD-6801, VSE-6801 and analog
distribution amplifiers VDA-6820 and VEA-6830 can now be used in
-48VDC power systems requiring the FR-6804 (2RU) frame.
Description/Features
• Provides a DC powered PSU for use with FR-6804 frame
• Allows a second PSU (redundant PSU) to be installed in a single
• Can be used with the 6804PS-1 (AC powered PSU) with the same
Chapter 10
FR-6804 frame
6804-1 frame
• Can be used with distribution type modules (VSD-6801, VSE-6801,
VDA-6830, VEA-6830) and all other modules
• Provides GPI Output for power supply failure
• Can be used with all 6800 series mounting frames
• Provides power redundancy capability between two 6804PS-1-48
power supplies in the same frame and between a 6804PS-1-48 and
6804PS-1 in the same frame
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 43
Page 70
Chapter 10: 6804PS-1-48 Power Supply Module Installation
Installation
Precautions
To reduce the risk of electric shock or energy hazards, heed the following
cautions:
• Connect the 6804PS-1-48 to a reliably grounded SELV source or
a centralized DC source.
• The branch circuit over-current protection must be rated a
maximum 10 A circuit breaker in series with a maximum 5 A
listed fuse. (See suggested protection devices page 45.)
• Use 14 AWG solid copper conductors only.
• A readily accessible disconnect device that is suitably approved
and rated, shall be incorporated into the field wiring. (See
suggested breaker switch type on page 45.)
• To be installed in a restricted access area in accordance with the
NEC or the authority having jurisdiction.
To reduce the risk of electric shock, heed the following cautions:
• Perform installation and exchange only if you are a trained
technician who is familiar with these instructions and aware of
the shock hazards of working with live equipment.
• Install the 6804PS-1-48 power supply in accordance with the
schematic diagram shown onpage 45.
• Power can only be disconnected completely from the 6800/7000
series frame through a studio installed breaker or fuse.
• Connect this equipment to a 48 VDC source that is electrically
isolated from the AC source. The 48 VDC source must be
reliably connected to earth.
44 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 71
Branch Circuit Schematic Chapter 10: 6804PS-1-48 Power Supply Module
Branch Circuit Schematic
Description
The 6804PS-1-48 Power Supply differs from other Leitch power supplies
in that it depends on the studio’s installed circuit breaker/fuse to
disconnect power to the frame.
Suggested Protection Devices
Suggested breaker switch type: Eaton Heinemann, series AM/S,
part # AM1S-B2-A-A-02J-H-A-52-NO-10-10 or equivalent.
Suggested branch circuit fuse type: Buss part # GMT-5 or equivalent.
-48 VDC Supply
Breaker Switches 10 A
Type Eaton Heinemann series AM/S
Part # AM1S-B2-A-A-02J-H-A-52-NO-10-10
Figure 10-1.
Typi cal B r anc h Circ uit D raw ing
5 A Fuse Panel
Type Buss GMT-5
1
-
+
2
3
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 45
Page 72
Chapter 10: 6804PS-1-48 Power Supply Module Maintenance
Maintenance
Fuses
The replacement fuse (F1) for the 6804PS-1-48 is a Wickmann
19415 000 00 5A 5 x 20 mm fast acting fuse
For continued protection against fire, replace only with the same type
and rating fuse.
Power Supply Connections
Use the XLR connector at the back of the power supply or frame (if the
6804PS-1-48 is installed in a frame) to make the following pin
connections for the 6804PS-1-48:
Pin Number Connection
12
3
Figure 10-2.
1 -48 V
20 V
3chassis
XLR Connector
46 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 73
Specifications Chapter 10: 6804PS-1-48 Power Supply Module
Specifications
Input and Output Voltages
Item Specification
Input ± 48VDC
± 35 VDC to ± 65VDC
Output ± 6.5 VDC output
Nominal 40-62 VDC
4 A max.
Power Dissipation (with Cooling Frame)
Item Specification
Total Power 85 W
Positive Rail Support Up to 78 W max.
Negative Rail Support Up to 29 W max.
Power Dissipation
Item Specification
Total Power 75 W
Positive Rail Support Up to 78 W max.
Negative Rail Support Up to 24 W max.
6800/7000 Series - Frames and Power Supplies Installation and Operation Manual 47
Page 74
Chapter 10: 6804PS-1-48 Power Supply Module Specifications
48 6800/7000 Series - Frames and Power Supplies Installation and Operation Manual
Page 75
Page 76
Broadcast Communications Division
4393 Digital Way | Mason, OH USA 45040 | Tel: 1 (513) 459 3400
www.broadcast.harris.com
©2006 Harris Corporation
Harris and Leitch are registered trademarks of Harris Corporation. Trademarks and tradenames are the property of their respective companies.
A brand of Harris Corporation
