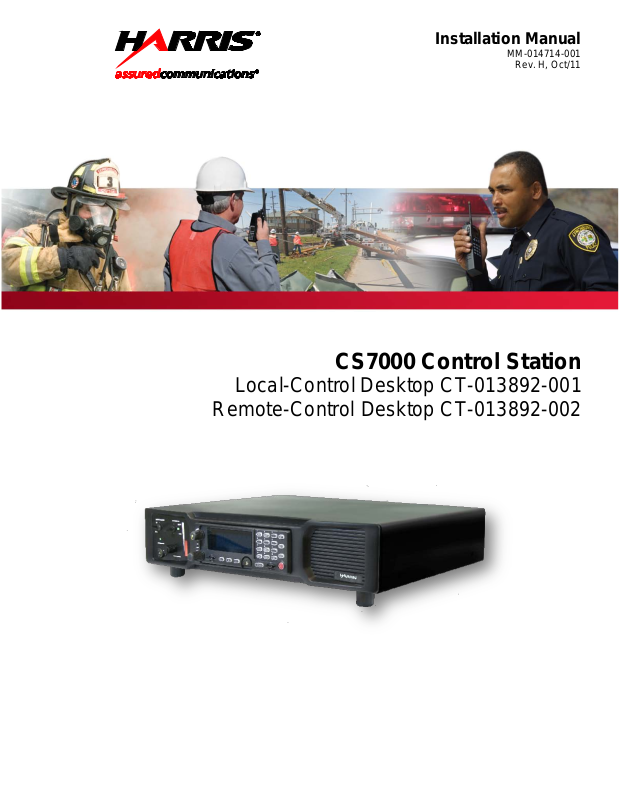

Installation Manual
MM-014714-001
Rev. H, Oct/11
CS7000 Control Station
Local-Control Desktop CT-013892-001
Remote-Control Desktop CT-013892-002
MM-014714-001, Rev. H
|
|
MANUAL REVISION HISTORY |
|
|
|
|
|
REV. |
DATE |
REASON FOR CHANGE |
|
E |
Mar/10 |
Revised remote control configuration section, added preventive maintenance section, |
|
and added information on CS7000 Fan Upgrade Kit KT-018569-002. |
|||
|
|
||
|
|
|
|
F |
Sep/10 |
Revised related documentation section, antenna information, and configuration section. |
|
|
|
|
|
G |
Feb/11 |
Revised information on connecting Tone Remote Controllers (TRCs), corrected accessory |
|
part numbers, and added Appendix B. |
|||
|
|
||
H |
Oct/11 |
Updated to include Unity XG-100M information. |
|
|
|
|
|
|
|
|
Harris Corporation, Public Safety and Professional Communications (PSPC) Business, continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following:
Harris Corporation |
fax your comments to: 1-434-455-6851 |
PSPC Business |
or |
Technical Publications |
e-mail us at: PSPC_TechPubs@harris.com |
221 Jefferson Ridge Parkway
Lynchburg, VA 24501
ACKNOWLEDGEMENT
This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI.
CREDITS
Harris, assuredcommunications, VIDA, EDACS, NetworkFirst, and OpenSky are registered trademarks of Harris Corporation.
All brand and product names are trademarks, registered trademarks, or service marks of their respective holders. AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc.
NOTICE!
The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99 in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations.
Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501.
Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty.
This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life.
This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation.
Copyright © 2008 — 2011, Harris Corporation
2
|
|
|
|
MM-014714-001, Rev. H |
|
|
|
|
|
Section |
|
TABLE OF CONTENTS |
Page |
|
|
|
|||
1 REGULATORY AND SAFETY INFORMATION ................................................................................. |
10 |
|||
|
1.1 |
MAXIMUM PERMISSIBLE EXPOSURE LIMITS............................................................................ |
10 |
|
|
|
1.1.1 |
Determining MPE Radius ........................................................................................................ |
10 |
|
|
1.1.2 |
Safety Training Information..................................................................................................... |
10 |
|
1.2 |
SAFETY SYMBOL CONVENTIONS................................................................................................. |
11 |
|
|
1.3 |
IMPORTANT SAFETY INSTRUCTIONS.......................................................................................... |
12 |
|
2 |
SPECIFICATIONS..................................................................................................................................... |
13 |
||
3 |
INTRODUCTION....................................................................................................................................... |
16 |
||
|
3.1 |
VOICE OPERATION........................................................................................................................... |
17 |
|
|
3.2 |
OPTIONAL REMOTE CONTROL (WITH INTERCOM) .................................................................. |
17 |
|
|
|
3.2.1 |
Intercom Operation .................................................................................................................. |
17 |
|
3.3 |
RELATED DOCUMENTATION ........................................................................................................ |
17 |
|
|
3.4 |
CUSTOMER RESOURCE INFORMATION ...................................................................................... |
19 |
|
|
|
3.4.1 |
Technical Support .................................................................................................................... |
19 |
|
|
3.4.2 |
Tech-Link................................................................................................................................. |
19 |
|
|
3.4.3 |
Customer Care.......................................................................................................................... |
19 |
4 UNPACKING AND CHECKING EQUIPMENT.................................................................................... |
20 |
|||
|
4.1 |
MATERIALS ....................................................................................................................................... |
20 |
|
|
4.2 |
MATERIAL INSPECTION.................................................................................................................. |
20 |
|
5 |
INSTALLATION ........................................................................................................................................ |
22 |
||
|
5.1 |
REQUIRED TOOLS AND EQUIPMENT ........................................................................................... |
22 |
|
|
|
5.1.1 Tools and Shop Supplies Required to Install the CS7000........................................................ |
22 |
|
|
|
5.1.2 Equipment Required for CS7000 Configuration...................................................................... |
22 |
|
|
5.2 |
PLANNING THE CS7000 INSTALLATION...................................................................................... |
23 |
|
|
5.3 |
CS7000 INSTALLATION ................................................................................................................... |
23 |
|
|
|
5.3.1 |
Desktop Installations................................................................................................................ |
23 |
|
|
5.3.2 |
AC Power Connection ............................................................................................................. |
24 |
|
|
5.3.3 |
AC Fuse Replacement.............................................................................................................. |
24 |
|
5.4 |
ANTENNA INSTALLATION ............................................................................................................. |
25 |
|
|
|
5.4.1 |
RF Safety Information ............................................................................................................. |
25 |
|
|
5.4.2 |
General Information................................................................................................................. |
25 |
|
|
5.4.3 |
Building Installation Considerations........................................................................................ |
26 |
|
|
5.4.4 |
Base Station Antennas ............................................................................................................. |
26 |
|
|
5.4.5 |
Transmission Lines .................................................................................................................. |
26 |
|
|
5.4.6 |
Tower Installations................................................................................................................... |
27 |
|
5.5 |
GROUNDING AND LIGHTNING PROTECTION ............................................................................ |
27 |
|
|
5.6 |
BACKUP POWER SOURCES............................................................................................................. |
28 |
|
|
|
5.6.1 |
Uninterruptible Power Supplies ............................................................................................... |
28 |
|
|
5.6.2 |
Gas/Propane Generators........................................................................................................... |
28 |
|
|
5.6.3 |
Hydrogen Power Systems ........................................................................................................ |
28 |
|
5.7 |
CONNECTING VOIP DESKTOP REMOTE CONTROLLERS.......................................................... |
28 |
|
|
|
5.7.1 Local Ethernet Connectivity (no Hub or Switch)..................................................................... |
29 |
|
|
|
5.7.2 Ethernet Connectivity using a Hub or Switch .......................................................................... |
29 |
|
|
|
5.7.3 Remote Control via LAN/WAN Ethernet Connectivity .......................................................... |
30 |
|
|
|
5.7.4 Ethernet via Wireless Connectivity.......................................................................................... |
30 |
|
|
5.8 |
CONNECTING TONE REMOTE CONTROLLERS .......................................................................... |
31 |
|
|
|
5.8.1 |
Tone Signaling ......................................................................................................................... |
31 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
MM-014714-001, Rev. H
TABLE OF CONTENTS
Section |
|
|
Page |
|
|
|
5.8.2 |
Connecting One Tone Remote Controller ................................................................................ |
33 |
|
|
5.8.3 |
Connecting More than One Tone Remote Controllers ............................................................. |
33 |
|
|
5.8.4 |
LINE Input Connector.............................................................................................................. |
34 |
|
5.9 |
CONNECTING CAN–LINKED REMOTE CONTROLLERS ............................................................ |
36 |
|
|
|
5.9.1 |
General Information ................................................................................................................. |
36 |
|
|
5.9.2 |
CAN-Based Desktop Controller Connections.......................................................................... |
38 |
|
|
5.9.3 |
Connecting a CAN Bus Extender (Fiber Optic Cable Installations) ........................................ |
41 |
|
5.10 |
CONNECTING DEVICES TO THE EXTERNAL I/O PORT.............................................................. |
41 |
|
|
|
5.10.1 |
Local Control Board Jumper Settings ...................................................................................... |
42 |
|
|
5.10.2 |
Remote Control (Plus) Board Jumper Settings......................................................................... |
43 |
|
|
5.10.3 |
External I/O Connector (P3) Pin-Out ....................................................................................... |
45 |
6 |
POWER-UP PROCEDURE ....................................................................................................................... |
47 |
||
7 |
LOCAL CONTROL CONFIGURATION ................................................................................................ |
48 |
||
|
7.1 |
PROGRAMMING THE RADIO FOR EXTERNAL I/O OPERATION............................................... |
48 |
|
8 |
REMOTE CONTROL CONFIGURATION ............................................................................................ |
50 |
||
|
8.1 |
GENERAL INFORMATION ............................................................................................................... |
50 |
|
|
8.2 |
TOOLS REQUIRED............................................................................................................................. |
50 |
|
|
8.3 |
ESTABLISHING A COMMUNICATION LINK ................................................................................ |
50 |
|
|
|
8.3.1 |
Configuring the Computer’s Network Parameters ................................................................... |
50 |
|
|
8.3.2 |
Establishing a Communication Link between the Computer and the Control Station ............. |
52 |
|
|
8.3.3 |
Control Station’s Factory Default Network Parameter Settings............................................... |
53 |
|
|
8.3.4 |
Resetting the Control Station’s Network Parameters to Factory Defaults................................ |
54 |
|
8.4 |
VOIP REMOTE CONTROLLER IP ADDRESS REQUIREMENTS .................................................. |
54 |
|
|
8.5 |
RADIO PERSONALITY PROGRAMMING REQUIREMENTS ....................................................... |
54 |
|
|
|
8.5.1 |
External I/O Settings ................................................................................................................ |
55 |
|
|
8.5.2 |
System / Group Key (SG Key) Settings ................................................................................... |
56 |
|
|
8.5.3 |
Supervisory Screen Settings..................................................................................................... |
57 |
|
|
8.5.4 |
Keypad Option Settings............................................................................................................ |
58 |
|
|
8.5.5 |
General Options Screen (TX Indicator SC5 File)..................................................................... |
58 |
|
|
8.5.6 |
Radio Software Requirements.................................................................................................. |
58 |
|
8.6 |
LOGGING INTO THE STATION’S CONFIGURATION PROGRAM .............................................. |
59 |
|
|
8.7 |
CONFIGURATION PROGRAM’S TOP-LEVEL WEB PAGE........................................................... |
59 |
|
|
|
8.7.1 |
Saving Changes and Resetting the Station via the Configuration Program.............................. |
61 |
|
8.8 |
NETWORK CONFIGURATION WEB PAGE .................................................................................... |
62 |
|
|
|
8.8.1 |
Unit Identification Section ....................................................................................................... |
62 |
|
|
8.8.2 |
Network Identification Section................................................................................................. |
62 |
|
|
8.8.3 |
Change Password Button.......................................................................................................... |
62 |
|
8.9 |
RADIO CONFIGURATION WEB PAGE............................................................................................ |
63 |
|
|
|
8.9.1 |
Hardware Tab........................................................................................................................... |
63 |
|
|
8.9.2 |
Radio Control Tab.................................................................................................................... |
65 |
|
|
8.9.3 |
Software (Version) Tab ............................................................................................................ |
66 |
|
8.10 |
CS7000 INPUT/OUTPUT CONFIGURATION WEB PAGE .............................................................. |
67 |
|
|
|
8.10.1 |
General Information ................................................................................................................. |
67 |
|
|
8.10.2 |
Inputs Tab................................................................................................................................. |
69 |
|
|
8.10.3 |
Outputs Tab.............................................................................................................................. |
72 |
|
|
8.10.4 |
Input Levels Tab....................................................................................................................... |
73 |
|
|
8.10.5 |
Output Levels Tab.................................................................................................................... |
74 |
|
|
8.10.6 |
Auxiliary I/O Example ............................................................................................................. |
74 |
|
8.11 |
ACTION CONFIGURATION WEB PAGE ......................................................................................... |
75 |
4
MM-014714-001, Rev. H
TABLE OF CONTENTS
Section |
|
|
Page |
|
8.11.1 |
Remote Controller Button and CH-721 Control Head Button Differences.............................. |
75 |
|
8.11.2 |
On/Off Actions Tab ................................................................................................................. |
76 |
|
8.11.3 |
Momentary Actions Tab .......................................................................................................... |
77 |
|
8.11.4 |
Using the ECP Radio’s Macro Key Functions to Extend Remote Control (Plus) Board |
|
|
|
Action Functionality ................................................................................................................ |
77 |
8.12 |
REMOTE CONFIGURATION WEB PAGE: BASIC TRC SETTINGS............................................. |
78 |
|
|
8.12.1 |
Tone/VoIP Tab......................................................................................................................... |
78 |
|
8.12.2 |
Tone Options Tab..................................................................................................................... |
80 |
|
8.12.3 |
Tone Levels Tab....................................................................................................................... |
82 |
8.13 |
REMOTE CONFIGURATION WEB PAGE: TRC FUNCTION TONE CONFIGURATIONS ......... |
84 |
|
|
8.13.1 |
Available Function Tone Frequencies...................................................................................... |
84 |
|
8.13.2 |
Set Tone Function Tab............................................................................................................. |
85 |
|
8.13.3 |
Enabled Tone Functions Tab ................................................................................................... |
87 |
8.14 |
REMOTE CONFIGURATION WEB PAGE: VOIP REMOTE CONTROL SETTINGS .................... |
88 |
|
|
8.14.1 |
Tone/VoIP Tab......................................................................................................................... |
88 |
|
8.14.2 |
VoIP Options Tab .................................................................................................................... |
89 |
|
8.14.3 |
VoIP Audio Tab....................................................................................................................... |
90 |
|
8.14.4 |
Unicast Network Identification ................................................................................................ |
91 |
|
8.14.5 |
DSP Tab................................................................................................................................... |
92 |
8.15 |
VOIP CHANNELS WEB PAGE.......................................................................................................... |
94 |
|
|
8.15.1 |
SG Key Configuration ............................................................................................................. |
94 |
8.16 |
PROFILE WEB PAGES: VOIP REMOTE CONTROLLER................................................................ |
95 |
|
|
8.16.1 |
Buttons Tab.............................................................................................................................. |
95 |
|
8.16.2 |
Beeps Tab................................................................................................................................. |
99 |
|
8.16.3 |
Miscellaneous Tab ................................................................................................................. |
100 |
8.17 |
AUDIO MATRIX CONFIGURATION WEB PAGE......................................................................... |
101 |
|
|
8.17.1 |
Audio Matrix Tab................................................................................................................... |
101 |
|
8.17.2 |
Input Gains Tab...................................................................................................................... |
105 |
|
8.17.3 |
Output Gains Tab................................................................................................................... |
106 |
|
8.17.4 |
Speaker Tab ........................................................................................................................... |
107 |
8.18 |
BACKUP AND RESTORE WEB PAGE ........................................................................................... |
108 |
|
|
8.18.1 |
Backup/Restore Options......................................................................................................... |
108 |
|
8.18.2 |
Reset To Defaults................................................................................................................... |
108 |
8.19 |
STATUS WEB PAGE ........................................................................................................................ |
110 |
|
|
8.19.1 |
CS7000 Information/Status.................................................................................................... |
110 |
8.20 |
CS7000 CONTROL STATION WORKAROUNDS.......................................................................... |
111 |
|
|
8.20.1 |
VoIP Remote Controller(s) Display “Disabled” at CS7000 Control Station Power-Up........ |
111 |
|
8.20.2 |
Remote Controller’s Hookswitch Default Functionality is Reversed with V0.35 |
|
|
|
Software ................................................................................................................................. |
112 |
9 OPERATIONAL TESTING .................................................................................................................... |
115 |
||
9.1 |
SETUP AND EQUIPMENT TESTING ............................................................................................. |
115 |
|
|
9.1.1 |
Required Test Equipment....................................................................................................... |
115 |
9.2 |
MAXIMUM EFFECTIVE RADIATED POWER.............................................................................. |
116 |
|
|
9.2.1 |
Determining Maximum Transmitter Power that Meets ERP Requirement............................ |
116 |
9.3 |
VERIFYING TX RF FORWARD AND REFLECTED POWER....................................................... |
117 |
|
9.4 |
VERIFYING TX RF FREQUENCY .................................................................................................. |
119 |
|
9.5 |
VERIFYING TX MODULATION..................................................................................................... |
119 |
|
|
9.5.1 |
Digital Modulation Modes (EDACS, P25, and OpenSky)..................................................... |
119 |
|
9.5.2 |
Analog Modulation Modes .................................................................................................... |
120 |
5
MM-014714-001, Rev. H
TABLE OF CONTENTS
Section |
|
|
Page |
|
10 |
COMPLETING THE INSTALLATION ................................................................................................ |
121 |
||
|
10.1 |
FINAL OVER-THE-AIR TESTING .................................................................................................. |
121 |
|
|
|
10.1.1 |
Adjusting the Desktop Microphone Audio Output Level....................................................... |
121 |
|
10.2 |
SWITCHING BETWEEN OPERATIONAL MODES (USING M5300 OR M7300 TRANSCEIVER) ..... |
122 |
|
|
|
10.2.1 |
Programming the Preset C Control Head Button to Switch Between ECP Mode and |
|
|
|
|
OTP Mode.............................................................................................................................. |
122 |
|
|
10.2.2 |
User’s Methods of Switching Between ECP Mode and OTP Mode ...................................... |
124 |
11 |
PREVENTIVE MAINTENANCE ........................................................................................................... |
125 |
||
|
11.1 |
INSPECTING AND CLEANING THE REAR PANEL FAN FILTER .............................................. |
125 |
|
APPENDIX A |
INSTALLATION CHECKLIST........................................................................................ |
A-1 |
||
|
A.1 |
INSTALLATION CHECKLIST FOR CS7000 CONTROL STATION ........................................... |
A-3 |
|
APPENDIX B |
MODEL 24-66 TONE REMOTE CONTROLLER USING STRAIGHT THROUGH |
|
||
|
|
|
TELCO CABLE ................................................................................................................... |
B-1 |
|
B.1 |
CONFIGURING MODEL 24-66 TONE REMOTE CONTROLLER TO USE PRE-MADE |
|
|
|
OFF-THE-SHELF TELEPHONE LINE CABLES DURNG LOCAL 4-WIRE OPERATION.................. |
B-3 |
||
|
|
B.1.1 |
Model 24-66 Tone Remote Controller Transformer Usage................................................... |
B-3 |
|
|
B.1.2 |
Model 24-66 Tone Remote Controller Jumper Designations................................................ |
B-3 |
|
|
B.1.3 |
Suggested Solution................................................................................................................ |
B-3 |
|
|
B.1.4 |
Two-Pin Shorting Bar Implementation ................................................................................. |
B-4 |
|
|
B.1.5 |
Two-Wire Operation ............................................................................................................. |
B-4 |
WARRANTY REGISTRATION AND WARRANTY
LIST OF FIGURES |
|
|
Page |
Figure 3-1: CT-013892-001 Local Control Station with Scan Head (Front View) ............................................ |
16 |
Figure 3-2: CT-013892-002 Local/Remote Control Station with System Head (Front View) ........................... |
16 |
Figure 5-1: CS7000, Front View of Remote Control, Desktop Configuration ................................................... |
23 |
Figure 5-2: CS7000 Rear Panel (shown with Remote Control (Plus) Board installed) ...................................... |
24 |
Figure 5-3: CS7000 Fuse Replacement (Rear Panel Views) .............................................................................. |
25 |
Figure 5-4: CS7000 Installed Locally using Ethernet Connectivity (no Hub or Switch) ................................... |
29 |
Figure 5-5: CS7000 Installed Locally using Ethernet Hub or Switch ................................................................ |
30 |
Figure 5-6: CS7000 Installed Remotely Using VoIP Using LAN/WAN Connectivity...................................... |
30 |
Figure 5-7: CS7000 Installed Locally using Wireless Ethernet Connectivity .................................................... |
31 |
Figure 5-8: Tone Remote Control Signaling ...................................................................................................... |
32 |
Figure 5-9: Line Input Configured as an Endpoint and Interfaced to One TRC................................................. |
33 |
Figure 5-10: Configured as an Endpoint and Interfaced to Multiple Paralleled TRCs....................................... |
34 |
Figure 5-11: Control Station in the Middle of a Chain and Interfaced to Multiple Paralleled TRCs ................. |
34 |
Figure 5-12: Line Functionality of Connectors on CS7000 Desktop Stations and 24-66 Remotes.................... |
35 |
Figure 5-13: 4-Wire Phone Line Crossover Cable ............................................................................................. |
35 |
Figure 5-12: Connecting a CAN-Based Desktop Controller .............................................................................. |
37 |
Figure 5-13: Connecting Two or More CAN-Based Desktop Controllers ......................................................... |
37 |
Figure 5-14: Connecting a CAN Y-Cable at the Control Station ....................................................................... |
38 |
6
MM-014714-001, Rev. H |
|
LIST OF FIGURES |
|
|
Page |
Figure 5-15: Connecting In-Wall/Plenum CAN Cable Connections................................................................... |
39 |
Figure 5-16: Dimensions for Stripping 2-Wire (with Shield) CAN Cables ........................................................ |
40 |
Figure 5-17: 3-Position Terminal Strip Connections........................................................................................... |
41 |
Figure 5-18: Local Control Board – Jumpers and Connectors ............................................................................ |
42 |
Figure 5-19: Remote Control (Plus) Board – Jumpers, Connectors/Jacks and Switches .................................... |
44 |
Figure 7-1: Setting Up the Mobile Radio for Control Station Operation using RPM Software.......................... |
49 |
Figure 8-1: Computer Network Configuration for Static IP Address (Examples)............................................... |
51 |
Figure 8-2: Establishing Communication between the Computer and the CS7000 Control Station ................... |
53 |
Figure 8-3: RPM’s External I/O Dialog Box....................................................................................................... |
56 |
Figure 8-4: RPM’s System/Group Keys Dialog Box .......................................................................................... |
57 |
Figure 8-5: RPM’s Supervisory Options Dialog Box.......................................................................................... |
57 |
Figure 8-6: RPM’s Keypad Options Dialog Box ................................................................................................ |
58 |
Figure 8-7: RPM’s General Options Dialog Box ................................................................................................ |
58 |
Figure 8-8: Configuration Program’s Top-Level Web Page ............................................................................... |
60 |
Figure 8-9: Buttons for Saving Changes and Resetting the Station..................................................................... |
61 |
Figure 8-10: Network Configuration Web Page (Example)................................................................................ |
62 |
Figure 8-11: Radio Configuration Web Page—Hardware Tab (Example).......................................................... |
63 |
Figure 8-12: Radio Configuration Web Page—Radio Control Tab (Example)................................................... |
65 |
Figure 8-13: Radio Configuration Web Page—Software Tab (Example)........................................................... |
66 |
Figure 8-14: CS7000 Input/Output Configuration Web Page—Inputs Tab (Example) ...................................... |
69 |
Figure 8-15: CS7000 Input/Output Configuration Web Page—Outputs Tab (Example).................................... |
72 |
Figure 8-16: CS7000 Input/Output Configuration Web Page—Inputs Levels Tab (Example)........................... |
73 |
Figure 8-17: CS7000 Input/Output Configuration Web Page—Outputs Levels Tab (Example) ........................ |
74 |
Figure 8-18: Action Configuration Web Page—On/Off Actions Tab (Example) ............................................... |
76 |
Figure 8-19: Action Configuration Web Page— Momentary Actions Tab (Example) ....................................... |
77 |
Figure 8-20: RPM’s Macro Keys Dialog Box (Example) ................................................................................... |
78 |
Figure 8-21: Remote Configuration Web Page—Tone/VoIP Tab (Example)..................................................... |
78 |
Figure 8-22: Remote Configuration Web Page—Tone Options Tab (Example)................................................. |
80 |
Figure 8-23: Remote Configuration Web Page—Tone Levels Tab (Example)................................................... |
82 |
Figure 8-24: Remote Configuration Web Page—Set Tone Function Tab (Example) ......................................... |
85 |
Figure 8-25: Remote Configuration Web Page—Enabled Tone Functions Tab (Example) ............................... |
87 |
Figure 8-26: Remote Configuration Web Page—Tone/VoIP Tab (Example)..................................................... |
88 |
Figure 8-27: Remote Configuration Web Page—VoIP Options Tab (Example) ................................................ |
89 |
Figure 8-28: Remote Configuration Web Page—VoIP Audio Tab (Example) ................................................... |
90 |
Figure 8-29: Remote Configuration Web Page—DSP Tab (Example) ............................................................... |
92 |
Figure 8-30: VoIP Channels Web Page—SG Key Configuration (Example) ..................................................... |
94 |
Figure 8-31: Profile Web Page—Buttons Tab (Example)................................................................................... |
95 |
Figure 8-32: Profile Web Page—Beeps Tab (Example) ..................................................................................... |
99 |
Figure 8-33: Profile Web Page—Miscellaneous Tab (Example) ...................................................................... |
100 |
Figure 8-34: Audio Matrix Configuration Web Page—Audio Matrix Tab (Example) ..................................... |
101 |
Figure 8-35: Audio Matrix Configuration Web Page—Audio Matrix Tab with Available Path I/O Lists |
|
(Example) .................................................................................................................................... |
103 |
Figure 8-36: Audio Matrix Configuration Web Page—Audio Matrix Tab: Interfacing to a Microwave |
|
Mux (Example)............................................................................................................................ |
104 |
Figure 8-37: Audio Matrix Configuration Web Page—Input Gains Tab (Example) ........................................ |
105 |
Figure 8-38: Audio Matrix Configuration Web Page—Output Gains Tab (Example)...................................... |
106 |
Figure 8-39: Audio Matrix Configuration Web Page—Speaker Tab (Example) .............................................. |
107 |
Figure 8-40: Backup and Restore Web Page—Backup/Restore Options.......................................................... |
108 |
Figure 8-41: Backup and Restore Web Page—Reset To Defaults (Before Reset)............................................ |
109 |
Figure 8-42: Backup and Restore Web Page—Reset To Defaults (During Reset) ........................................... |
109 |
Figure 8-43: Status Web Page (Example) ......................................................................................................... |
110 |
|
7 |
MM-014714-001, Rev. H |
|
|
|
LIST OF FIGURES |
|
|
|
Page |
Figure 8-44: V0.35 |
Reset to Default Settings and Recommended Settings—Enable Tone Functions Tab |
...... 113 |
Figure 8-45: V0.35 |
Reset to Default Settings and Recommended Settings—Buttons Tab (Example) ............ |
114 |
Figure B-1: Model 24-66 Tone Remote Controller Jumper Modification....................................................... |
B-4 |
8
MM-014714-001, Rev. H |
|
LIST OF TABLES |
|
|
Page |
Table 3-1: Reference Documents ........................................................................................................................ |
17 |
Table 4-1: CS7000 Control Station Part Numbers .............................................................................................. |
20 |
Table 4-2: CS7000 Control Station Accessories ................................................................................................. |
21 |
Table 5-1: Minimum Bend Radius Values for RF Transmission Lines .............................................................. |
27 |
Table 5-2: Example* Tone Functionality for Tone Remote Control Signaling .................................................. |
33 |
Table 5-3: CS7000 Desktop Station LINE Connector Pinout (RJ-11 Modular Jack Labeled “LINE”) ............. |
35 |
Table 5-4: Local Control Board Jumper Settings................................................................................................. |
42 |
Table 5-5: Remote Control (Plus) Board Jumper Settings ................................................................................... |
43 |
Table 5-6: Local Control Station—External I/O Connector (P3) Pin-Out .......................................................... |
45 |
Table 5-7: Remote Control Station—External I/O Connector (P3) Pin-Out....................................................... |
46 |
Table 8-1: Required Minimum Mobile Radio Application Software.................................................................. |
59 |
Table 8-2: Configuration Program’s Configuration Web Pages ......................................................................... |
60 |
Table 8-3: Remote Control (Plus) Board’s Digital Inputs from Radio................................................................ |
67 |
Table 8-4: Remote Control (Plus) Board’s Digital Outputs to Radio.................................................................. |
67 |
Table 8-5: Remote Control (Plus) Board’s Inputs from Station’s External I/O Connector................................. |
67 |
Table 8-6: Remote Control (Plus) Board’s Outputs to Station’s External I/O Connector................................... |
68 |
Table 9-1: Required Test Equipment................................................................................................................. |
115 |
Table B-1: Model 24-66 Tone Remote Controller Jumper Designations.......................................................... |
B-3 |
9
MM-014714-001, Rev. H
DO NOT TRANSMIT with this Control Station and antenna when persons are within the Maximum Permissible Exposure (MPE) radius of the antenna. The MPE radius is the minimum distance from the antenna axis that ALL persons should maintain in order to avoid RF exposure higher than the allowable MPE level set by the FCC.
|
|
|
FAILURE TO OBSERVE THESE LIMITS MAY ALLOW ALL PERSONS |
|
|
|
|
WITHIN THE MPE RADIUS TO EXPERIENCE RF RADIATION |
|
|
|
|
ABSORPTION, WHICH EXCEEDS THE FCC MAXIMUM PERMISSIBLE |
|
|
|
|
EXPOSURE (MPE) LIMIT. IT IS THE RESPONSIBILITY OF THE CONTROL |
|
|
|
|
STATION OPERATOR TO ENSURE THAT THE MAXIMUM PERMISSIBLE |
|
WARNING |
|
EXPOSURE LIMITS ARE OBSERVED AT ALL TIMES DURING CONTROL |
|
|
|
STATION TRANSMISSION. THE CONTROL STATION OPERATOR IS TO |
|
||
|
|
|
|
|
|
|
|
ENSURE THAT NO BYSTANDERS ARE WITHIN THE RADIUS LIMITS. |
|
|
|
|
|
|
Maximum Permissible Exposure (MPE) radius is unique for each site. It is determined during site licensing time based on the complete installation environment (i.e., co-location, antenna type, transmit power level, etc.). Determination of the MPE distance is the responsibility of the installation licensee. Calculation of the MPE radius is required as part of the site licensing procedure with the FCC.
|
|
|
THIS CONTROL STATION GENERATES RF ELECTROMAGNETIC |
|
|
|
|
ENERGY DURING TRANSMIT MODE. THIS CONTROL STATION IS |
|
|
|
|
DESIGNED FOR AND CLASSIFIED AS “OCCUPATIONAL USE ONLY” |
|
|
|
|
MEANING IT MUST BE USED ONLY IN THE COURSE OF EMPLOYMENT |
|
|
|
|
BY INDIVIDUALS AWARE OF THE HAZARDS AND THE WAYS TO |
|
|
|
|
MINIMIZE SUCH HAZARDS. THIS CONTROL STATION IS NOT |
|
|
|
|
INTENDED FOR USE BY THE “GENERAL POPULATION” IN AN |
|
|
|
|
UNCONTROLLED ENVIRONMENT. IT IS THE RESPONSIBILITY OF THE |
|
WARNING |
|
CONTROL STATION OPERATOR TO ENSURE THAT THE MAXIMUM |
|
|
|
PERMISSIBLE EXPOSURE LIMITS DETERMINED IN THE PREVIOUS |
|
||
|
|
|
|
|
|
|
|
SECTION ARE OBSERVED AT ALL TIMES DURING TRANSMISSION. THE |
|
|
|
|
CONTROL STATION OPERATOR IS TO ENSURE THAT NO BYSTANDERS |
|
|
|
|
COME WITHIN THE RADIUS OF THE MAXIMUM PERMISSIBLE |
|
|
|
|
EXPOSURE LIMITS. |
|
|
|
|
|
|
When licensed by the FCC, this Control Station complies with the FCC RF exposure limits when persons are beyond the MPE radius of the antenna. In addition, the CS7000 Control Station installation complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:
FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
10
MM-014714-001, Rev. H
American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave.
CAUTION
CAUTION
To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, do not operate the control station in a manner that would create an MPE distance in excess of that allowable by the FCC.
This equipment generates or uses Radio frequency energy. Any changes or modifications to this equipment not expressly approved by Harris Corporation may cause harmful interference and could void the user’s authority to operate the equipment.
The following conventions are used throughout this manual to alert the user to general safety precautions that must be observed during all phases of operation, service, and repair of this product. Failure to comply with these precautions or with specific warnings elsewhere violates safety standards of design, manufacture, and intended use of the product. Harris Corporation assumes no liability for the customer’s failure to comply with these standards.
|
The WARNING symbol calls attention to a procedure, practice, or the like, which, |
|
if not correctly performed or adhered to, could result in personal injury. Do not |
|
proceed beyond a WARNING symbol until the conditions identified are fully |
WARNING |
understood or met. |
|
|
|
|
|
|
The CAUTION symbol calls attention to an operating procedure, practice, or the like, which, if not performed correctly or adhered to, could result in damage to the
equipment or severely degrade equipment performance.
CAUTION
The NOTE symbol calls attention to supplemental information, which may improve system performance or clarify a process or procedure.
NOTE
The ESD symbol calls attention to procedures, practices, or the like, which could expose equipment to the effects of Electro-Static Discharge. Proper precautions must be taken to prevent ESD when handling circuit boards or modules.
The electrical hazard symbol is a WARNING indicating there may be an electrical shock hazard present.
11
MM-014714-001, Rev. H
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
•Warning: The lightning bolt signifies an alert to the user of the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of significant magnitude to constitute a risk of electric shock to persons.
•Warning: The exclamation point alerts the user to the presence of important operation and maintenance (service) instructions in the literature accompanying the product.
•Outdoor Use Warning: To reduce the risk of Fire or Electric Shock, Do Not Expose This Apparatus to Rain or Moisture.
•Wet Location Warning: Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
|
|
The CS7000 contains no user-serviceable parts. Only authorized service personnel |
|
|
should open the unit. Obey all warning labels. If you do not follow these |
WARNING |
|
instructions you may risk electric shock, and/or damage to the equipment. |
|
12
|
|
MM-014714-001, Rev. H |
2 |
SPECIFICATIONS1 |
|
|
HOUSING CONFIGURATION |
|
|
CT-013892-001: |
Control Station, Local-Control, Desktop |
|
CT-013892-002: |
Control Station, Remote-Control, DesktopFRONT PANEL |
|
|
CONTROLS AND FEATURES |
|
Local Control Desktop Station: |
DC Power LED, Speaker |
|
Remote Control Desktop Station: |
DC Power LED, Speaker, Station Microphone Jack, Station |
|
|
Volume Control, VU Meter, Intercom Switch, Remote |
|
|
SwitchREAR PANEL CONNECTORS AND FEATURES |
|
Local and Remote Models (Standard on All Models): |
|
|
AC Power Input: |
IEC-302, Unified Power Connector/Fuse/ON-OFF Switch |
|
Main Antenna: |
Type-N, Female, 50 Ohm |
|
Optional Antenna: |
BNC, Female, 50 Ohm (for XG-100M Low Band operation) |
|
External I/O (P3): |
DB-25F, I/O, Small Signal – Direct Function |
|
Serial A (P2): |
USB, 2.0 Type B, 12 Mbps, Radio Programming Port |
|
Serial B (P6): |
DB-9F, RS-232C (DCE), Serial Interface, Full Duplex, |
|
|
Hardware Flow Control, ASYNC and SLIP at 19.2kbps |
|
Remote Models (Standard on Remote Models): |
|
|
CAN Link (J15): |
2-Wire Differential, 120 ohms, V2.0B 500kbps |
|
LINE Input (J18): |
RJ-11 Tone Remote, 600 ohm |
|
|
Line-Input: -30 to 0 dBm (-20 to +11 dBm Securitone level) |
|
|
Line-Output: 0 dBm |
|
Computer (J1): |
RJ-45, 10/100BaseT, Ethernet, to Local PC |
|
LAN (J6): |
RJ-45, 10/100BaseT, Network, to VoIP Remote Controllers |
|
DIMENSIONS (H x W x D) |
|
|
Desktop: |
3.5 x 17 x 13.1 inches (8.9 x 43.2 x 33.3 cm) |
|
|
(excludes 1 inch (2.54 cm) rubber feet) |
|
Rack Mount: |
3.5 x 17 x 13.1 inches (8.9 x 43.2 x 33.3 cm) |
|
WEIGHT |
|
|
Without Transceiver: |
18 lbs (8.2 kg) |
|
With Transceiver: |
24 lbs (11 kg) |
1 Specifications listed herein are intended primarily for the use of the service technician. See the appropriate Specifications Sheet for complete specifications.
13
MM-014714-001, Rev. H
AC INPUT |
|
Maximum: |
120 VAC (240VAC), 4.0 Amps (2 Amps), 400 Watts, 50/60 Hz |
Transmit (typical): |
120 VAC (240VAC), 2.5 Amps (1.25 Amps), 300 Watts, 50/60 Hz |
Receive (typical): |
120 VAC (240VAC), 1.2 Amps (0.6 Amps), 100 Watts, 50/60 Hz |
ENVIRONMENTAL |
|
Operating Temperature: |
CT-013892-001: |
|
-30 to +40ºC @ 50 % duty cycle |
|
-30 to +60ºC @ 20 % duty cycle |
|
CT-013892-002: |
|
-0 to +40ºC @ 50 % duty cycle |
|
-0 to +60ºC @ 20 % duty cycle |
Storage Temperature: |
-40 to +70ºC |
STANDARDS |
MIL-STD-810F and EN 61000-4-2 |
Test Methods: |
|
Low Pressure: |
500.4/I&II |
High Temperature: |
501.4/I&II |
Low Temperature: |
502.4/I&II |
Temperature Shock: |
503.4/I |
Basic Transportation Vibration: |
514.5/I Category 4 |
Functional/Basic Shock: |
516.5/I |
Humidity: |
507.4 |
ESD (2001): |
EN 61000-4-2 |
DUTY CYCLE |
|
Receiver: |
100% (per EIA-603) |
Transmitter: |
20 % (per EIA-603), from -30 to +60ºC (model CT-013892-001) |
|
20 % (per EIA-603), from 0 to +60ºC (model CT-013892-002) |
SPEAKER |
|
Impedance: |
12 ohms |
Rated Power: |
3 W RMS |
Distortion: |
5% at rated power from 300-3000 Hz |
Buzzes/Rattles: |
None |
Acoustic Output: |
95 dB SPL @ 3 W @ 12 inches @ 1 KHz |
Acoustic Response: |
± 5 dB from 300-3000 Hz |
14
|
MM-014714-001, Rev. H |
REMOTE CONTROL MODES (Model: CT-013892-002) |
|
Tone Remote Control: |
2 or 4-wire tone remote control interface with maximum number |
|
of Tone Remote Controllers (TRCs) limited only by line |
|
conditions (loss, loading, noise, etc.); Modes: EDACS, P25, |
|
OpenSky, and Conventional |
Voice over IP: |
VoIP audio with PTT control interface supports up to five (5) |
|
VoIP Remote Controllers; Modes: EDACS, P25, OpenSky, and |
|
Conventional |
Controller Area Network: |
CAN interface supports up to five (5) CAN-based Remote |
|
Controllers; Modes: OpenSky and Conventional |
NOTE
As of the publication of this manual, the CS7000 Remote Control Station may be configured for Tone Remote Control or VoIP Remote Control, but not both at the same time. Contact the Technical Assistance Center for additional information.
TRANSCEIVER |
Specifications determined by the mobile radio’s specifications. |
|
Refer to the applicable M5300/M7300 mobile radio maintenance |
|
manual. |
REGULATORY |
FCC Part-15 Class B Compliant |
|
FCC Part 90 Compliant (refer to mobile radio manual) |
|
Industry Canada RSS-119 (refer to mobile radio manual) |
|
EN60950 Compliant |
|
CSA22.2 Compliant |
15
MM-014714-001, Rev. H
The CS7000 Control Station provides the latest in digital radio technology using a Harris’ M5300, M7300, or Unity XG-100M mobile radio installed into the Control Station. The station may be equipped to support one or more of the following operating modes:
•OpenSky® digital operation (M5300 or M7300).
•Enhanced Digital Access Communications System (EDACS®) or ProVoice™ trunked modes (M5300 or M7300).
•APCO Project 25 Phase I compliant Common Air Interface (P25 CAI) trunked radio networking.
•Conventional analog mode.
The CS7000 Control Station is typically used for voice and data dispatch communications via optional remotely-connected Desktop Controllers. Remote Desktop Controllers may be connected via any of the following remote control formats:
•Controller Area Network (CAN) link connection.
•Tone controlled line input.
•LAN-based Voice over Internet Protocol (VoIP) connection.
CAN links are generally limited to 250 feet end-to-end line length, but may utilize an optional fiber-optic-based CAN Bus Extender for increased separation between the CS7000 Control Station and a CAN-based Desktop Controller(s). Tone Remote Controllers connect via 2-wire or 4-wire line audio connections. VoIP requires connectivity to a Wide Area Network (WAN) or Local Area Network (LAN).
Figure 3-1: CT-013892-001 Local Control Station with Scan Head (Front View)
Figure 3-2: CT-013892-002 Local/Remote Control Station with System Head (Front View)
16
MM-014714-001, Rev. H
The voice path operates like a traditional FM analog dispatch radio, with a microphone to transmit (Push-To-Talk) and a speaker to receive. In OpenSky Trunked Protocol (OTP) and P25 modes, all transmissions are in digital mode. Speech heard by the microphone is converted and transmitted over-the- air as a digitized signal, and re-converted back to analog and heard over the speaker by the receiving unit. Systems operating in EDACS mode may employ analog or digital voice modes.
The CS7000 Control Station may be equipped with the Remote Control Option. As illustrated in Figure 3-2, the Remote Control Option consists of a enhanced faceplate with intercom controls, and a Remote Control (Plus) Board which provides the ability to remotely control the station features such as PTT (transmit), group and/or channel control, and intercom.
Control Stations equipped with the optional Remote Control (Plus) Board is also equipped with an intercom function. The intercom function allows voice communications between the Control Station’s operator and operators at Desktop Controllers connected via the CAN link, VoIP link, or Tone Remote Controllers connected to the line connector. Even when intercom is activated, incoming network radio calls are still routed to the speaker in the Desktop Controllers in receive mode (not keyed). In other words, radio calls are not muted when the Desktop Controller’s intercom function is active, unless the remote is keyed and making an intercom transmission.
The following documents contain additional information relative to the CS7000 Control Station. These documents may be helpful during the installation and maintenance of this equipment.
Table 3-1: Reference Documents
|
DOCUMENTATION |
MANUAL NUMBER |
|
CS7000 Control Station Operator’s Manual |
MM-014713-001 |
||
|
|
||
USB Communications Port Driver Software Installation Manual |
MM-015245-001 |
||
|
|
|
|
M5300 |
Transceiver Operator’s Manual |
MM-012125-001 |
|
|
|
|
|
M5300 |
Transceiver Quick Guide when using OpenSky Systems |
MM-012997-001 |
|
|
|
|
|
M5300 |
Transceiver Quick Guide when using P25, EDACS, or Conventional |
MM-013232-001 |
|
Systems |
|||
|
|||
|
|
|
|
M7300 |
Transceiver Operator’s Manual |
MM-014716-001 |
|
|
|
|
|
M7300 |
Transceiver Quick Guide when using OpenSky Systems |
MM-014368-001 |
|
|
|
|
|
M7300 |
Transceiver Quick Guide when using P25, EDACS, or Conventional |
MM-014369-001 |
|
Systems |
|||
|
|||
|
|
||
Unity XG-100M Transceiver Operator’s Manual |
14221-1200-2000 |
||
|
|
||
Unity XG-100M Transceiver Quick Guide |
14221-1200-1000 |
||
|
|
||
M5300/P5300 Software Release Notes for Software Media Kits SK- |
MS-014467-001 |
||
012724-001 and SK-012720-001 (OTP Releases R13A through R15W) |
|
17
MM-014714-001, Rev. H
Table 3-1: Reference Documents (Continued)
DOCUMENTATION |
MANUAL NUMBER |
|
M5300/M7300 Software Release Notes for Software Media Kits |
MS-018835-001 |
|
SK-012724-016 and SK-015406-016 (OTP Release R16D = 16.4) |
|
|
M5300 Software Release Notes for Software Media Kit SK-012724-016 |
MS-018988-001 |
|
(M5300 OTP Release R16F = 16.6) |
|
|
|
|
|
M7300 Software Release Notes for Software Media Kit SK-015406-009 |
MS-018245-001 |
|
(M7300 OTP Rear Panel Software Releases R15A through R15C) |
||
|
||
|
|
|
M7300 Software Release Notes for Software Media Kit SK-015406-016 |
MS-018990-001 |
|
(M7300 OTP Release R16F = 16.6) |
||
|
||
M5300/M7300 MCU Software Release Notes for Software Media Kit |
MS-018458-001 |
|
SK-018180-001 |
||
|
||
|
|
|
Unity XG-100M Mobile Radio Software Release Notes for Software Media |
14221-1200-8050 |
|
SK-018940-001 |
||
|
||
Unity DES Encryption Module Software Release Notes for Software Media |
14221-1100-8050 |
|
SK-019406-002 |
||
|
||
OpenSky Mobile-End System (MES) AT Command Manual |
MM-016649-001 |
|
|
|
|
M5300 EDACS/ProVoice, Conventional, and P25 Software Release Notes for |
|
|
Software Media Kits SK-010365-001, SK-011983-001, SK-012721-001, |
MS-010366-001 |
|
SK-012725-001, and SK-018180-001 |
|
|
CH-721 Control Head Software Release Notes for Software Distribution Kit |
MS-013563-001 |
|
ST-011241-001 |
||
|
||
VHF M7300 Maintenance Manual |
MM-017065-001 |
|
|
|
|
800 MHz M5300 and 700/800 MHz M7300 Maintenance Manual |
MM-014718-001 |
|
|
|
|
900 MHz M5300 Maintenance Manual |
MM-012126-001 |
|
|
|
|
Unity XG-100M Maintenance Manual |
14221-1200-5000 |
|
|
|
|
CH-721 Maintenance Manual |
MM-008918-001 |
|
|
|
|
Site Grounding and Lightning Protection Guidelines |
AE/LZT 123 4618/1 |
|
|
|
|
Tower Requirements and General Specifications |
LBI-39185 |
|
|
|
|
Antenna Specifications |
LBI-38983 |
|
|
|
|
CAN Bus Extender User’s Manual |
MM-009088-001 |
|
|
|
|
CS7000 Fan Upgrade Kit KT-018569-002 Installation Manual |
MM-018569-002 |
|
|
|
18
MM-014714-001, Rev. H
The Technical Assistance Center (TAC) is available to help with overall system operation, maintenance, upgrades and product support. TAC is the point of contact when answers are needed to technical questions.
Product specialists, with detailed knowledge of product operation, maintenance and repair provide technical support via a toll-free (in North America) telephone number. Support is also available through mail, fax and e-mail.
For more information about technical assistance services, contact your sales representative, or contact the Technical Assistance Center at the following:
North America: |
1-800-528-7711 |
International: |
1-434-385-2400 |
Fax: |
1-434-455-6712 |
E-mail: |
PSPC_tac@harris.com |
For more information about this and other Harris PSPC products, check out our online Tech-Link service at:
https://premier.pspc.harris.com/
Tech-Link is a one stop link to Technical Documentation (downloadable PDFs), Software Revisions, Feature Encryption, pictorials of parts and accessories, and other information pertaining to our products. It’s information that will enhance your service efforts, 24 hours a day, 7 days a week.
If any part of the system equipment is damaged on arrival, contact the shipper to conduct an inspection and prepare a damage report. Save the shipping container and all packing materials until the inspection and the damage report are completed. In addition, contact the Customer Care center to make arrangements for replacement equipment. Do not return any part of the shipment until you receive detailed instructions from a Harris representative.
Contact the Customer Care center at http://www.pspc.harris.com/CustomerService or:
North America: |
|
Phone Number: |
1-800-368-3277 |
Fax Number: |
1-321-409-4393 |
E-mail: |
PSPC_CustomerFocus@harris.com |
International: |
|
Phone Number: |
1-434-455-6403 |
Fax Number: |
1-321-409-4394 |
E-mail: |
PSPC_InternationalCustomerFocus@harris.com |
19
MM-014714-001, Rev. H
The CS7000 Control Station includes an AC Power Cord for connecting to standard AC power (120 VAC, 60 Hz). No installation kit is available, as every installation is custom. Remote control models of the CS7000 may be used in conjunction with a Desktop Controller, and may include other accessories that can be installed. Table 4-1 lists equipment top-level part numbers, and Table 4-2 lists available accessories.
NOTE
The CS7000 must not be powered up unless an antenna is installed and connected. An antenna and its cabling must be purchased separately. Antennas and coaxial cables are typically customized to the installation site. Have site surveys performed to identify an appropriate antenna and antenna feed line requirements.
|
After removal from the carton, examine the components and installation items for |
|
broken, damaged, loose or missing parts. If any are noted, contact the Customer Care |
|
center immediately to discuss and arrange for the return of the equipment to Harris for |
|
replacement. Refer to Section 3.4.3 on page 19 for Customer Care center contact |
CAUTION |
information. Any unauthorized attempts to repair or modify this equipment will void |
|
the warranty and could create a safety hazard. |
Upon removing items from the carton and verifying all equipment is accounted for, proceed with the installation.
Table 4-1: CS7000 Control Station Part Numbers
DESCRIPTION |
PART NUMBER |
|
|
|
|
CS7000 Control Station, Desktop Configuration, Local Control |
CT-013892-001 |
|
|
|
|
CS7000 Control Station, Desktop Configuration, Remote Control |
CT-013892-002 |
|
|
|
|
|
|
20
|
|
MM-014714-001, Rev. H |
|
Table 4-2: CS7000 Control Station Accessories |
|
|
|
|
|
DESCRIPTION |
PART NUMBER |
|
|
|
|
Desktop Microphone |
MC-014121-001 |
|
|
|
|
Desktop Microphone |
MC-014121-002 |
|
|
|
|
Antenna, 800 MHz Yagi with 10 dBd (12 dBi) Gain |
AN-025137-008 |
|
|
|
|
Cable, Coax: Antenna Jumper Kit |
MAMROS0095 |
|
|
|
|
Lightning Protection Device, DC Blocked, (Sim. to. PolyPhaser: |
DSXL-MA-BF |
|
DSXL-MA-BF), 700 to 2700 MHz, N-male (ant.) to N-female (eq.) |
|
|
|
|
|
|
|
|
CAN Terminator |
CD-014027-001 |
|
|
|
|
Cable, CAN; 0.6 feet, Black, Right-Angle-to-Straight Connectors |
CA-009562-0R6 |
|
|
|
|
Cable, CAN; 6 feet, Black, Right-Angle-to-Straight Connectors |
CA-009562-006 |
|
|
|
|
Cable, CAN; 30 feet, Black, Right-Angle-to-Straight Connectors |
CA-009562-030 |
|
|
|
|
Cable, CAN; 90 feet, Black, Right-Angle-to-Straight Connectors |
CA-009562-090 |
|
|
|
|
Cable, CAN; 250 feet, Black, Right-Angle-to-Straight Connectors |
CA-009562-250 |
|
|
|
|
CAN Y-cable, Black, Right-Angle-to-Two Straight Connectors |
CA-011344 |
|
|
|
|
Kit, CAN Bus Extender (Includes CAN Bus Extender MD-008577 and |
MAA7-NSU5C |
|
AC Wall Power Supply) [2 required per optical CAN link] |
|
|
|
|
|
|
|
|
USB Communications Port Driver Software |
SK-015121-001 |
|
|
|
|
Radio Personality Manager (SK-104768-001: Programming Software |
TQS3385 Rev. B |
|
for P25, EDACS, OpenSky) |
(minimum) |
|
|
|
|
Radio Personality Manager (SK-012177-001: Programming Software |
TQS3389 Rev. A |
|
for Analog Conventional and P25 Conventional) |
(minimum) |
|
|
|
|
Tone Remote Controller: IDA Model 24-66 with Desk Mic (Used with |
ID-431-24-66M |
|
CS7000 Control Station CT-013892-002) |
|
|
|
|
|
|
|
|
Tone Remote Controller: IDA Model 24-66 with Handset (Used with |
ID-431-24-66H |
|
CS7000 Control Station CT-013892-002) |
|
|
|
|
|
|
|
|
VoIP Remote Controller: IDA Model ID-431-24-66M-VOIP, w/Handset |
CU-017947 |
|
(Used with CS7000 Control Station CT-013892-002) |
|
|
|
|
|
|
|
|
VoIP Remote Controller: IDA Model ID-431-24-66H-VOIP, w/ Desk Mic |
CU-017948 |
|
(Used with CS7000 Control Station CT-013892-002) |
|
|
|
|
|
|
|
|
Wall Mount Bracket for IDA 24-66 series remotes |
431-RBC-001 |
|
|
|
|
Rack Mount Kit for CS7000 |
HD-014666-001 |
|
|
|
|
Headset/Footswitch option for IDA 24-66 series remotes w/Desk Mic |
431-RBC-007 |
|
|
|
|
CS7000 Fan Upgrade Kit |
KT-018569-002 |
|
|
|
|
|
|
21
MM-014714-001, Rev. H
|
Harris recommends the buyer use only an authorized representative to install and |
|
|
service this product. The warranties provided to the buyer under the terms of sale shall |
|
|
be null and void if this product is installed or serviced improperly, and Harris shall |
|
CAUTION |
have no further obligation to the buyer for any damage caused to the product or to any |
|
person or personal property. |
||
|
Prior to installation, ensure that the CS7000 has been configured for customer usage such as channels and personality.
NOTE
The following is a list of tools required to complete a standard installation:
• Phillips screwdriver, size #2 (for cabinet screws).
• 5/32” Hex key (for radio mounting screws).
• 3/8” Nut driver (for rear panel-mounted ground screw).
•Various fasteners; as required.
Special tools needed to construct and/or install optional cables and accessories are listed in the installation and configuration sections for the option or accessory.
The following is a list of additional equipment needed to configure the CS7000:
•Personal Computer (PC) with an available USB communication port and running Microsoft® Windows® XP or Windows Server 2003. OpenSky programming requires a terminal application software program such as Windows HyperTerminal, and P25, EDACS, and Conventional requires the programming software listed in Table 4-2 on page 21.
•Standard USB 2.0B computer cable, USB-A to USB-B connectors.
•See Table 9-1 on page 115 for a list of test equipment required to perform antenna tests procedures.
•TQS3385 Rev. B (min): Radio Personality Manager (Programming Software for P25, EDACS, OpenSky).
•TQS3389 Rev. A (min): Radio Personality Manager (Programming Software for Analog Conventional and P25 Conventional).
•TQS3416 Rev. B (min): Key Manager (Key Administrator application Key Loader application.
•SK-015121-001: USB Communications Port Driver Software.
22
MM-014714-001, Rev. H
Plan the mounting locations of all components (CS7000, antenna, and cables) and determine the routes for all wiring and cables. Consider also the connection of desktop remotes for planning purposes. Follow all manufacturer requirements and guidelines for the location of components.
|
For installations with CAN-based Desktop Controllers which require connection |
|
|
through the CAN (Controller Area Network) digital interface, pay particular attention |
|
|
to the routing of CAN cable in the facility. It may be necessary to use plenum-rated |
|
NOTE |
cable for in-building installations. Refer to Section 0 that begins on page 35 and/or |
|
consult with TAC to identify the proper cabling. |
||
|
||
|
All cables should be installed with a service loop at each end. During the installation, |
|
|
do NOT bend any cable at a severe angle near a connector. When the installation is |
|
|
complete, verify no cable is under any tension. Failure to do so may lead to damaged |
|
CAUTION |
cables, causing intermittent operation, or complete equipment failure. |
Optimal performance is based upon proper mounting techniques. An improperly installed unit may experience degradation in the quality of communication with the
OpenSky network.
CAUTION
Determine the customer’s preferences, if any, including location of components. Comply with these preferences insofar as they are consistent with safety, manufacturer specifications, and generally accepted professional practices.
CS7000 Control Station CT-013892-001 and CT-013892-002 can be placed upon a desktop, tabletop, or another flat horizontal surface with an adequate size and weight rating. Unit dimensions are 3.5 x 17 x 13.1 inches. (8.9 x 43.2 x 33.3 cm), excluding the 1-inch (2.54 cm) rubber feet, and the weight is approximately 24 pounds (11 kg.) with the mobile radio installed.
Figure 5-1: CS7000, Front View of Remote Control, Desktop Configuration
23
MM-014714-001, Rev. H
Figure 5-2: CS7000 Rear Panel (shown with Remote Control (Plus) Board installed)
CAUTION
WARNING
Never place any other equipment directly on top of the CS7000. The case is not designed to handle the weight of other equipment.
The CS7000 must be kept away from sources of heat. Adequate ventilation must be provided to the air inlet at the rear of the unit where the fan is located and to the ventilation holes on the rear-sides of the unit.
The CS7000 only supports an AC power connection. Follow these general guidelines:
•Ensure familiarity with AC power input connection, including maintenance of the fuse; and,
•Make certain that cable routing will not damage or interfere with any existing wiring at the installation location.
In order to accommodate both U.S. and other standards, the CS7000 can be used at voltages in the range of 110 – 120 VAC (50/60 Hz) and 220 – 240 VAC (50/60 Hz). The power cord for U.S. applications (110 – 120 VAC) is included with the CS7000 when it ships from the factory. For other applications, the appropriate power cord must be purchased separately. The receptacle at the back of the CS7000 is an IEC-320 C14-type connector for accepting a cord with an IEC-320 C13-type plug.
In the event that a fuse blows in the CS7000, disconnect AC power from the unit by unplugging the cord from the AC power source or by unplugging the cord from the IEC-320-type AC power connector on the CS7000’s rear panel, and follow this replacement procedure:
1.As shown in Figure 5-3, slip the tip of a small flat-blade screwdriver into the pry slot at the top of the AC Power Module and open the fuse assembly door.
2.Remove the fuse holder and replace the blown fuse with a new 4-amp, 250-volt fuse.
3.Re-insert and reseat the fuse assembly until the panel snaps back into place.
4.Reconnect AC power to the unit.
24
MM-014714-001, Rev. H
Figure 5-3: CS7000 Fuse Replacement (Rear Panel Views)
Antenna installations vary greatly depending on the type of antenna mounting structure, height, and the surrounding environment. Professional antenna installation services are highly recommended when installing and maintaining communications antenna systems. This manual makes no attempt to provide step-by-step instructions for installing the antenna and supporting structure. Rather, general recommendations and considerations are provided. Further, where installation instructions provided by antenna and other related antenna equipment manufacturers differ from this manual, the manufacturer’s instructions are to be followed at all times. When in doubt, always contact the equipment manufacturer or the Technical Assistance Center for further assistance. Follow all national and local building code requirements when installing antenna systems.
The antenna must be installed by a qualified antenna professional. Improper installation of the antenna may lead to poor radio performance, and harmful
exposure to RF electromagnetic energy.
WARNING
The CS7000 antenna installation must comply with the FCC RF exposure limits as discussed in Section 1.1. Installation of the antenna for the CS7000 is to be performed so that no person is within the distance of maximum permissible exposure limits specified in the FCC regulations. The CS7000 must be disabled before antenna maintenance is performed.
Several manuals are available that provide useful information during the installation process. General antenna installation specifications may be found in the Antenna Systems Manual, publication number LBI-38983. Tower Requirements and General Specifications may be found in the Specifications, Guidelines and Practices Manual, publication number LBI-39185. In addition, site grounding must conform to the requirements found in the Site Grounding and Lightning Protection Guidelines Manual, publication number AE/LZT 123 4618/1.
Failure to follow these instructions will void the product warranty and may expose the end user and others to excessive radio frequency hazards. Antennas should be installed outdoors.
25
MM-014714-001, Rev. H
The length of antenna cable should be kept as short as possible to minimize cable loss. Therefore, the CS7000 should be installed within the building in a location as close to the location of the outside antenna’s cable entry as reasonably possible. Remote control options (remote desktop controllers) should be utilized when the most suitable station installation location is impractical for the intended user(s) access. Consult with RF equipment installation professionals for more information.
If routed through walls, plenums, or other channeling aids, the cable must be protected from excessive handling, bending, or rubbing.
NOTE
The CS7000’s antenna can be roof-top mounted or mounted on the side of a building. The rooftop-mount yagi antenna listed in Table 4-2 on page 21 is recommended for an 800 MHz control station. Sidemounting onto a building with other types of directional antennas is also acceptable as long as proper line-of-sight alignment can be achieved.
For best performance, the antenna should be placed as far away as practical from any other antennas or structures, and high enough to clear the line-of-sight of major obstructions.
Ensure that feed lines, lightning protection devices, coaxial jumpers, and any other inline RF devices meet frequency and RF power requirements for the specific
installation.
CAUTION
Many different RF coaxial cable types can be used for the antenna connection as long as the utilized cable meets the following minimum requirements. Cable loss, length of cable, antenna type used, etc., are issues to consider when selecting the type of cable needed. Minimum cable specifications are:
•50 ohm nominal impedance;
•Minimal RF Loss at frequency range;
•1.5:1 VSWR (typical);
•3 dB/100 feet cable loss (maximum); and,
•Weatherproof construction.
Always hand-tighten RF connectors. Do not tighten RF connectors with tools unless recommended by the connector manufacturer. The use of a torque wrench is
acceptable when the manufacturer of the connector has specified a torque value.
CAUTION
When Heliax, Superflex, or another similar transmission line is used, always adhere to the minimum bending requirements provided by the manufacturer (refer to Table 5-1).
26
|
|
|
|
|
MM-014714-001, Rev. H |
|
|
Table 5-1: Minimum Bend Radius Values for RF Transmission Lines |
|||
|
|
|
|
|
|
|
CABLE SIZE |
|
TYPE |
PART NUMBER |
MINIMUM-BEND RADIUS |
|
Andrews Corp. |
|
|
||
|
1/4 inch |
|
Superflex |
FSJ1-50A |
1 in (25 mm) |
|
|
|
|
|
|
|
1/2 inch |
|
Superflex |
FSJ4-50B |
1.25 in (32 mm) |
|
|
|
|
|
|
|
1/2 inch |
|
Heliax |
LDF4-50A |
5.0 in (125 mm) |
|
|
|
|
|
|
|
7/8 inch |
|
Heliax |
LDF5-50A |
10 in (250 mm) |
|
|
|
|
|
|
|
1-1/4 inch |
|
Heliax |
LDF6-50 |
15 in (380 mm) |
|
|
|
|
|
|
|
1-5/8 inch |
|
Heliax |
LDF7-50A |
20 in (510 mm) |
|
|
|
|
|
|
|
1/4 inch |
|
Superflexible |
SCF14-50J |
1 in (25 mm) |
|
|
|
|
|
|
|
RFS Cablewave Corp. |
|
|
||
|
1/2 inch |
|
Superflexible |
SCF12-50J |
1.25 in (32 mm) |
|
|
|
|
|
|
|
1/2 inch |
|
Hardline |
LCF12-50J |
5.0 in (125 mm) |
|
|
|
|
|
|
|
7/8 inch |
|
Hardline |
LCF78-50J |
10 in (250 mm) |
|
|
|
|
|
|
|
1-1/4 inch |
|
Hardline |
LCF114-50J |
15 in (380 mm) |
|
|
|
|
|
|
|
1-5/8 inch |
|
Hardline |
LCF158-50J |
20 in (510 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
While most Control Station antenna installations are building and roof mounted, occasionally Control Stations are installed at sites with towers. Always observe all safety instructions and ensure a safe and proper antenna installation by following all tower manufacturers’ recommendations. In addition to local building codes, the most current revision of industry standard TIA/EIA-222: Structural Standards for Steel Antenna Towers and Antenna Supporting Structures must be adhered to during tower and antenna installations.
Proper grounding is necessary, not only for correct functionality and maximum performance, but also for minimizing damage that may occur from lightning strikes and personnel safety.
Assuming the facility where the CS7000 Control Station is installed is protected properly from lightning strikes on the AC power line, the station is still susceptible to damage from lightning through the RF antenna port, LAN, and phone line inputs. The CS7000 Control Station does not include an integrated lightning protection device at the antenna port, so it is recommended to install an external lightning protection device. Lightning protection devices are only effective if the connections are made as their design intended. Follow the manufacturer’s mounting instructions to ensure a properly grounded unit.
A #10 grounding stud is located at the rear of the CS7000 Control Station. For safety purposes, connect it to a suitable earth ground using 14-AWG (or larger) wire. For additional information, refer to the applicable instructions in the Site Grounding and Lightning Protection Guidelines Manual, publication number AE/LZT 123 4618/1.
27
MM-014714-001, Rev. H
Due to the great advancements in the industry’s backup power resources, the CS7000 Control Station does not provide connections for backup AC or DC power resources. Rather, it is recommended to utilize commonly available resources discussed in the following sub-sections.
It is recommended when a backup AC power source is required for a CS7000 Control Station installation to use an Uninterruptible Power Supply (UPS) system. These systems can vary greatly in price, size, and run time. Well engineered UPS systems monitor the commercial AC power mains for harmful changes in the power being supplied. Some UPS systems run in “hot standby” mode providing even greater protection to the equipment connected to the UPS.
Generators may be used when the AC power mains are expected to be down for extended periods of time. However, generators can occasionally produce unwanted fluctuations and power surges that can potentially damage the power supply in electronic devices. If generators are used, it is strongly recommended to also use a UPS inline between the generator and CS7000 Control Station as an added layer of protection from potentially damaging changes in generator power.
Many alternative power products are available in today’s marketplace. Hydrogen power systems are quickly becoming the main and backup power source of choice for some customers. Hydrogen power systems are inherent to high reliability with few moving parts, require lower capital costs than combustion engine generators, and typically have lower life cycle costs than combustion engine generators. They are environmentally friendly, produce no toxins, can be installed indoors or outdoors, typically have a smaller footprint and weight than combustion engine generators, and run silently. Hydrogen fuel and replacement tanks are commonly available in most all locations.
The IDA model 24-66 VoIP Remote Base Controller is supported for VoIP operations with the CS7000 Control Station. The CS7000 Control Station’s Remote Control (Plus) Board provides VoIP and control capability to the station. When equipped with the Remote Control (Plus) Board, the rear panel of the station is equipped with a standard RJ-45 Ethernet Local Area Network (LAN) jack. This jack provides standard Internet Protocol (IP) based connectivity, and may connect to an Ethernet LAN via hub or switch equipment. Up to twenty-one (21) VoIP Remote Controllers can be connected to a CS7000 Control Station.
Establishing Ethernet connectivity between the CS7000 Control Station and a VoIP Remote Base Controller may be accomplished by one of the following methods:
•Local Ethernet cabling.
•Public accessed Internet Service Providers (ISP).
•Privately managed (non-public) ISP.
•Wireless routers.
•Any combination of the above.
28
MM-014714-001, Rev. H
Each method listed above will present unique setup and configuration requirements too numerous to cover in this manual. Remember, the CS7000 Control Station and the IDA model 24-66 Remote Base Controller operate via standard Ethernet technology. When choosing the connectivity method, compatibility issues such as network security, VPN access, firewalls, and port forwarding must be predetermined. While these issues affect the operation of VoIP systems, they are not usually base station or remote issues, they are network related issues.
However, Harris will make every effort to provide technical assistance. Our system engineering team and our Technical Assistance Center (listed in Section 3.4) are great system integration resources. Additionally, the ISP, or the manufacturer of the hub, switch, or router equipment affecting the operation may be able to provide assistance. Other information about the IDA 24-66 VoIP Remote Base Controller not mentioned in this manual may be obtained from http://www.idaco.com/.
NOTE
As of the publication of this manual, the CS7000 Remote Control Station may be configured for Tone Remote Control or VoIP Remote Control, but not both at the same time. Contact the Technical Assistance Center for additional information.
For installations where the CS7000 Control Station and the VoIP remote(s) are co-located at the same location, one (1) IDA 24-66 VoIP Remote Base Controller may be connected directly to the CS7000 Control Station via an Ethernet cable. See Figure 5-4. Additional VoIP Remote Controllers may be connected in a daisy chain fashion to the first remote by using the 2nd Ethernet port built into each IDA 24-66 VoIP Remote Base Controller. This configuration is desirable when all equipment is located together in a relatively small area, such as an office or small business location. This configuration minimizes the need for routers, hubs, and other potentially costly hardware, and offers increased security (when needed) since the Ethernet wiring is localized.
Figure 5-4: CS7000 Installed Locally using Ethernet Connectivity (no Hub or Switch)
For installations where the CS7000 Control Station and the VoIP remote(s) are co-located at the same location, and LAN Ethernet connectivity is already established within the building, it is possible for the CS7000 Control Station and the remote(s) to utilize the existing network (refer toFigure 5-5). This configuration may also be beneficial in larger buildings to overcome Ethernet line length limitations.
When considering any Ethernet connectivity method other than local Ethernet cabling as discussed in Section 5.7.1, it is recommended to discuss setup, configuration, and hardware requirements with all service and hardware providers to establish any incompatibility issues (refer to Section 5.7).
29
MM-014714-001, Rev. H
Figure 5-5: CS7000 Installed Locally using Ethernet Hub or Switch
For installations where the CS7000 Control Station and the VoIP remote(s) are located at different locations, Wide Area network (WAN) Ethernet connectivity must be utilized. WAN connectivity may be in the form of a publically accessible ISP (the internet), or a privately managed ISP (refer to Figure 5-6).
In this configuration, one remote may be directly connected to the WAN’s Ethernet connection, and more remotes may be daisy chained to the first remote similar to the method shown in Figure 5-4. Or, a multiconnection Ethernet device, such as a hub, switch, or router may be used to connect multiple remotes to the station (refer to Figure 5-6). This configuration is beneficial by providing connectivity to more than one location, and multiple remotes, over great distances.
When considering any Ethernet connectivity method other than local Ethernet cabling as discussed in Section 5.7.1, it is recommended to discuss setup, configuration, and hardware requirements with all service and hardware providers to establish any incompatibility issues (refer to Section 5.7).
Figure 5-6: CS7000 Installed Remotely Using VoIP Using LAN/WAN Connectivity
When practical, it is possible to utilize 802.11, 802.16, or other similar wireless services for connectivity between any combination of CS7000 Control Station or IDA 24-66 Remote Base Controllers (refer to Figure 5-7). These devices are not provided with the CS7000 Control Station, or with the IDA 24-66 VoIP Remote Base Controller.
Wireless routers provide easier installation in buildings where adding Ethernet cabling is costly and difficult. Since no physical connection exists when using wireless, off-the-shelf consumer wireless hardware is usually an inexpensive way of providing an extra layer of lightning/surge protection to more expensive communications equipment like the CS7000 Control Station or VoIP Remote Base Controllers.
30
