The MirrorLinkTM function allows smartphone content to be operated via the system.

To use the MirrorLink Android device to the USB port.

Depending on differences between models or software version etc., some models might be incompatible with this system.

When using the application, read the precautions indicated

in “BEFORE USING THE APPLICATION”. (→P.92)

This function is not available if the smartphone is not compliant with MirrorLink™ of Car Connectivity Consortium™.

OVERVIEW

The MirrorLink™ operation screen can be reached by the following methods:

● Connecting a MirrorLink™ device. (→P.39)

● Select

screen. (→P.28)

application, connect your

(MirrorLink) on the “Apps (Apps)”

XControl panel

No. Function

Turn to adjust volume. Press and hold to turn the audio system on/off.

Press to display the “Apps (Apps)” screen.

MirrorLink™ (TYPE A/B ONLY)

NOTE

XControl screen

*: The displayed screen will differ depending on the connected smartphone.

No. Function

Displays software buttons that function as the buttons on the smartphone.

lThis function cannot be used while USB audio is in use. lIt may not be possible to use certain applications while driving.

ABOUT THE SUPPORTED DEVICES

● Your smartphone must support the MirrorLinkTM version 1.2, 1.1, 1.0 function.

● Available operations will differ depending on your smartphone. Refer to your smartphone owner’s manual, or consult the manufacturer.

APPS

ahaTM by HARMAN

Aha

ahaTM by HARMAN

aha is a cloud-based application that connects to the system and gives you access to your favorite web content safely and easily. There are over 40,000 stations spanning internet radio, personalized music, audiobooks, Facebook, Twitter, restaurant and hotel searches, weather and more. For more about aha, go to the aha site (http://www.aharadio.com).

When connecting iPhone or Android devices with the aha application installed, you can control, view, and hear aha content through the system.

To use the aha application, connect your iPhone to the USB port, or connect your Android device via Bluetooth.

When using the application, read the precautions indicated

in “BEFORE USING THE APPLICATION”. (→P.92)

With navigation function: You may be also display POI information from the aha application on the map screen and route to these POIs.

OVERVIEW

The ahaTM by HARMAN operation screen can be reached by the following methods:

● Run the aha application on your smartphone.

● Connect the iPhone to the USB port, or connect the Android device by utilizing the Bluetooth connection.

• For details about connecting an iPhone: →P.39

For details about registering or connecting an

Android device: →P.54

● For Android devices: Select

(Apps)” screen. (→P.28)

(Aha) on the “Apps

ahaTM by HARMAN

XControl panel

No. Function

Turn to adjust volume. Press and hold to turn the audio system on/off.

Press to display the “Apps (Apps)” screen. Turn to display the next/previous content item.

Press to select an audio mode. Press to display the next/previous content item.

XControl screen

No. Function

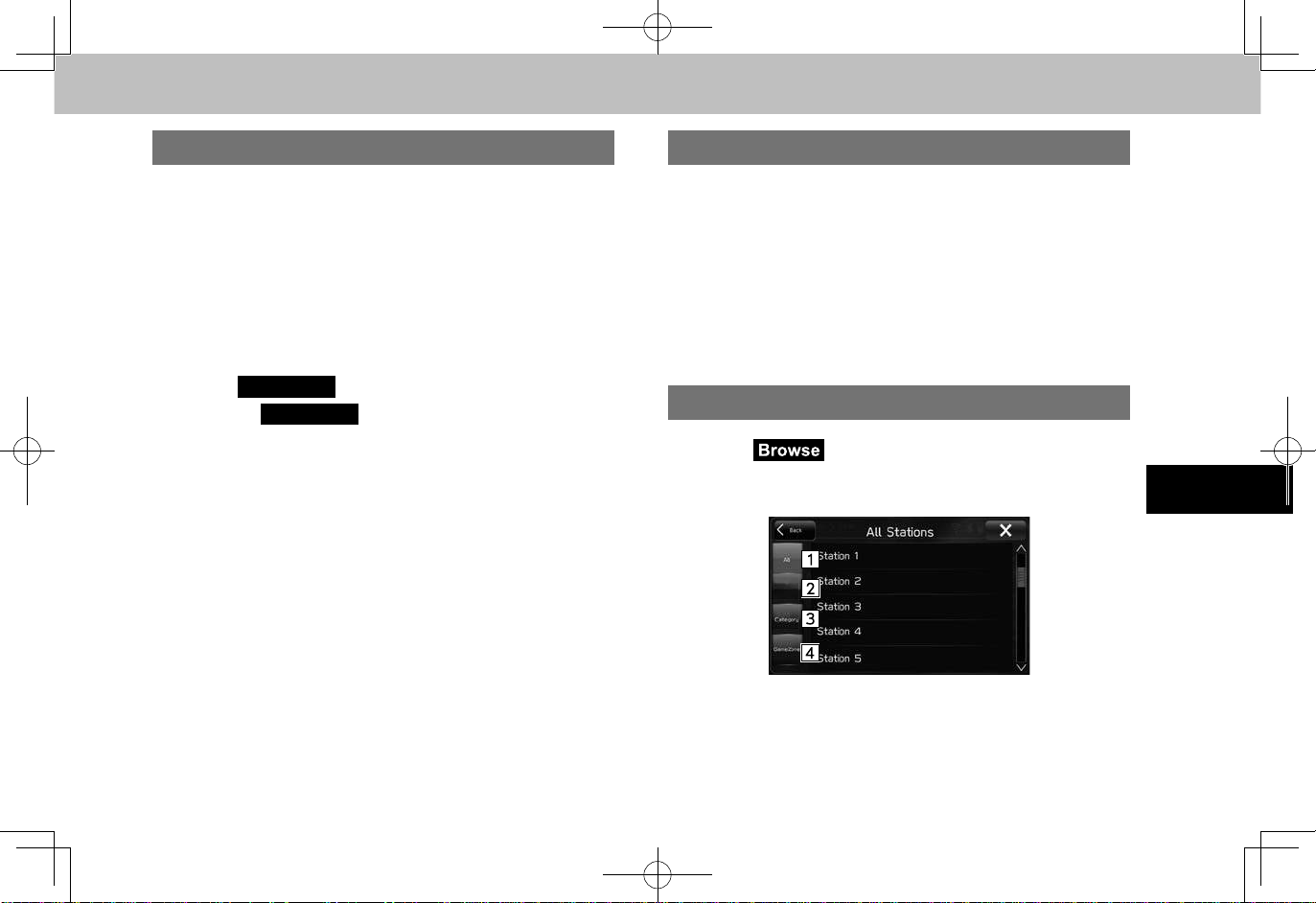

Displays station name. Displays cover art. Select to display the browse screen. Select to display the station list screen.

APPS

ahaTM by HARMAN

No. Function

NOTE

Top screen operation buttons.

• Content items can be changed, and if content items contain information, calls can be placed and content items can be set* for destinations, etc.

Select to upload “Dislike” information to the application server. To cancel “Dislike” information that is being uploaded to the server, select this button again.

Select to upload “Like” information to the application server. To cancel “Like” information that is being uploaded to the server, select this button again.

Select to display a list of preset stations. Select to display a list of featured stations.

Select to display a list of stations using the location information.

*: Type A only

lWhen you switch to other modes with the aha application

activated and then turn the system Off/On with the smartphone device still connected, the aha mode will start instead of the last mode used. If you do not want to start the aha mode automatically, turn off the aha application on the smartphone.

lTop 35 entries in the preset station list on the smartphone are

displayed. When there are more than 35 entries in the preset station list, change the order of the entries in the list on the smartphone. You can change the priority of your preset stations within the aha application (after disconnected from this system) to modify the station list shown on the screen. Please see your smartphone aha application “Edit Presets” to modify this list.

lIf there are multiple audio les stored on your iPhone, it may

take some time until playback starts.

lPlayback may be intermittent when you switch to streaming

Bluetooth audio from aha on your smartphone device.

lThe following operations are not available on this system.

Perform these operations on the smartphone.

• Add/Reorder/Delete stations

• Log in to Facebook/Twitter (When not logged in, login will

be required by the station. It is necessary to do so when the device is disconnected from the system.)

lFor the aha function, the following touch screen gestures are not

available.

• Double touch with one nger

• Double touch with two ngers

lThe audio system will turn off when the aha application is closed

on the iPhone and/or Android device.

100

ahaTM by HARMAN

ABOUT THE SUPPORTED DEVICES FOR aha

NOTE

This system supports the following devices.

● iPhone: iOS 5.0 or later

● Android: Android2.2 or later

lNote that the warranty does not apply if an unsupported iPhone

is connected.

lThe available functions may vary depending on the type of

Android device.

APPS

101

Pandora

NOTE

Pandora

Pandora is free personalized radio that offers effortless and endless music enjoyment and discovery.

To use the Pandora application, connect your iPhone to the USB port, or connect your Android device via Bluetooth.

Depending on differences between models or software version etc., some models might be incompatible with this system.

This function is not available if the Pandora application has not been installed on the smartphone.

When using the application, read the precautions indicated

in “BEFORE USING THE APPLICATION”. (→P.92)

lPandora is available in the United States, Australia, and New

Zealand.

OVERVIEW

The Pandora operation screen can be reached by the following methods:

● Connect the iPhone to the USB port, or connect the Android device by utilizing the Bluetooth connection.

• For details about connecting an iPhone: →P.39

For details about registering or connecting an

Android device: →P.54

● Select

screen. (→P.28)

(Pandora) on the “Apps (Apps)”

102

Pandora

XControl panel

No. Function

Turn to adjust volume. Press and hold to turn the audio system on/off.

Press to display the “Apps (Apps)” screen.

Press to select an audio mode.

Press to skip to the next track. Select and hold to rate the track currently playing as

“Like” or “Dislike”.

APPS

103

Pandora

XControl screen

No. Function

Displays cover art. Select to display the station list screen.

Select to create a station from artist or track.

Select to bookmark the track currently playing.

No. Function

Shows progress.

Select to pause/play. Select to rate the track currently playing as “Like” or

“Dislike”.

ABOUT THE SUPPORTED DEVICES

This system supports the following devices.

● iPhone: iOS 5.0 or later

● Android: Differs with mobile device used

Select to skip to the next track.

104

Apple Carplay

CarPlay can be used to view iPhone maps, play music, and place calls by connecting your iPhone to the system. Supported applications can also be run.

● For details on the services or the operations, check the Apple Carplay site (https://ssl.apple.com/ios/carplay/).

To use the Apple Carplay application, connect your iPhone to the USB port, or via Wi-Fi

*: Type A/B only

When using the application, read the precautions indicated

in “BEFORE USING THE APPLICATION”. (→P.92)

OVERVIEW

The Apple Carplay operation screen can be reached by the following methods:

● Connect your iPhone to the USB port, or connect via

Wi-Fi

*: Type A/B only

• For details about connecting your iPhone to the

USB port: →P.39

For details about connecting your iPhone via Wi-

: →P.65

● Select

(Apps)” screen. (→P.28)

(Apple Carplay) on the “Apps

APPS

105

Apple Carplay

XControl panel

No. Function

Turn to adjust volume. Press and hold to turn the audio system on/off.

Press to display the “Apps (Apps)” screen.

XControl screen

*: The displayed screen will differ depending on the connected iPhone.

No. Function

Displays the application buttons. Select to start the application.

Select to display the home screen of Apple Carplay.

ABOUT THE SUPPORTED DEVICES

This system supports the following devices.

● iPhone:

106

Android Auto

Android Auto can be used to view Android maps, play music, and place calls by connecting your Android terminal to the system. Supported applications can also be run.

● For details on the services or the operations, check the Android Auto site (https://www.android.com/auto/) and (https://support.google.com/androidauto/).

To use the Android Auto application, connect your Android device to the USB port, or via Wi-Fi

*: Type A/B only

When using the application, read the precautions indicated

in “BEFORE USING THE APPLICATION”. (→P.92)

OVERVIEW

The Android Auto operation screen can be reached by the following methods:

● Connect your Android device to the USB port, or connect via Wi-Fi

*: Type A/B only

• For details about connecting your Android device to

the USB port: →P.39

For details about connecting your Android device via Wi-Fi

● Select

(Apps)” screen. (→P.28)

: →P.65

(Android Auto) on the “Apps

APPS

107

Android Auto

XControl panel

No. Function

Turn to adjust volume. Press and hold to turn the audio system on/off.

Press to display the “Apps (Apps)” screen.

XControl screen

No. Function

Displays the application/information buttons. Select to start the application, or select to display information.

ABOUT THE SUPPORTED DEVICES

This system supports the following devices.

● Android:

108

TravelLink (TYPE A/B ONLY)

TravelLink

Sports

NOTE

TravelLink (TYPE A/B ONLY)

TravelLink*

*: SiriusXM U.S. satellite and data services are available only in the 48

contiguous USA and DC. SiriusXM satellite service is also available in Canada; see www.siriusxm.ca.

Data service information, which is comprised of sports information, weather information, stock information and fuel information, can be received via the SiriusXM

To receive the data service information in the vehicle, a subscription to the SiriusXM

Satellite Radio Service is

necessary. (→P.125)

Content set to use the SiriusXM

Satellite Radio Service is

reset when personal information is initialized.

DISPLAYING SPORTS INFORMATION

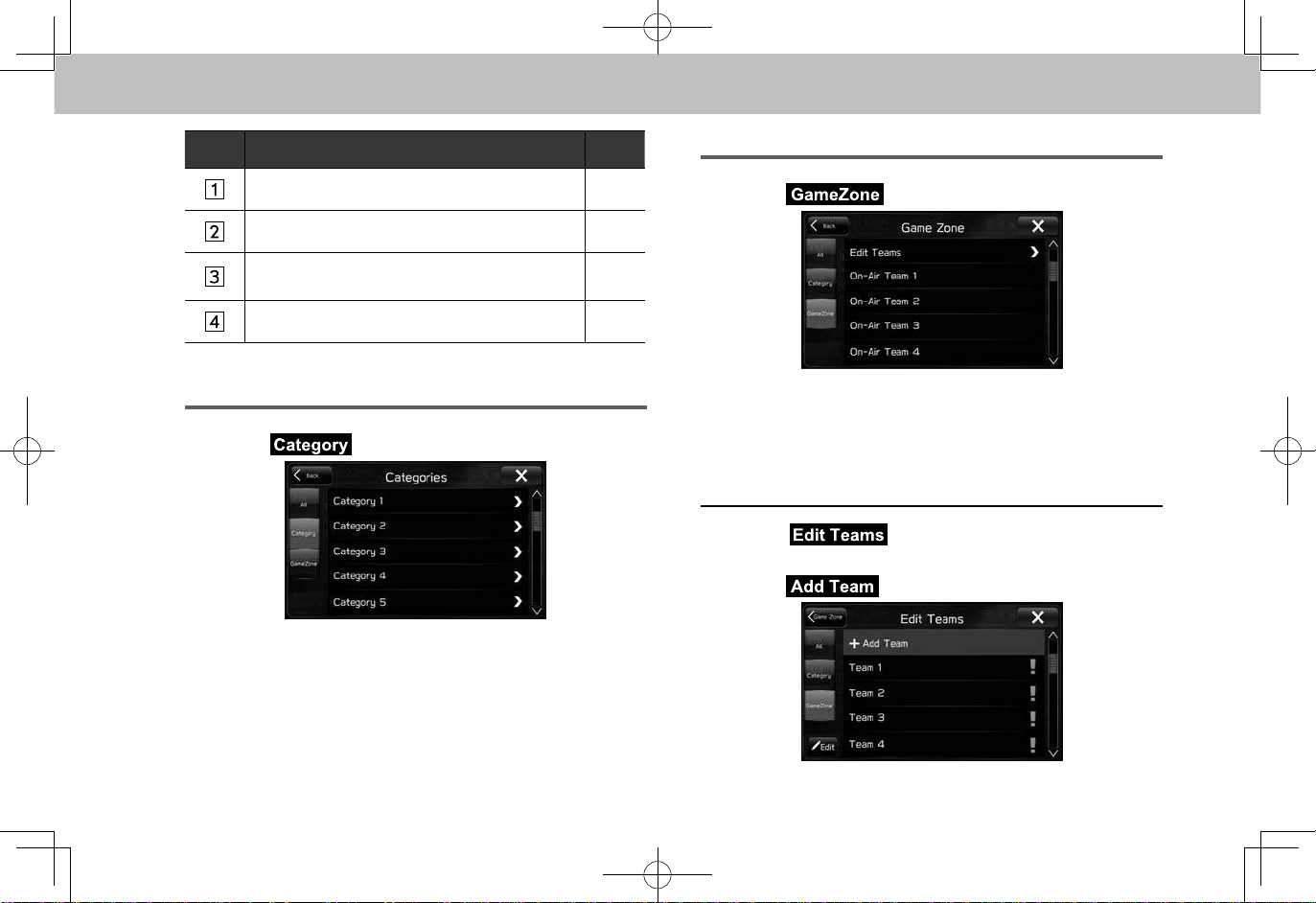

By registering your favorite team, sports information such as games and results, the status of games still in progress, and future game schedules can be displayed.

1. Select

screen. (→P.28)

2. Select

(TravelLink) on the “Apps (Apps)”

(Sports).

Radio.

3. Check that sports information is displayed.

No. Function

Select to change the displayed information. Sports information are displayed. Select to set which sports information is displayed. Select to edit or register your favorite team.

lUp to XX favorite teams can be registered.

APPS

109

TravelLink (TYPE A/B ONLY)

TravelLink

Weather

TravelLink

Stocks

DISPLAYING WEATHER INFORMATION

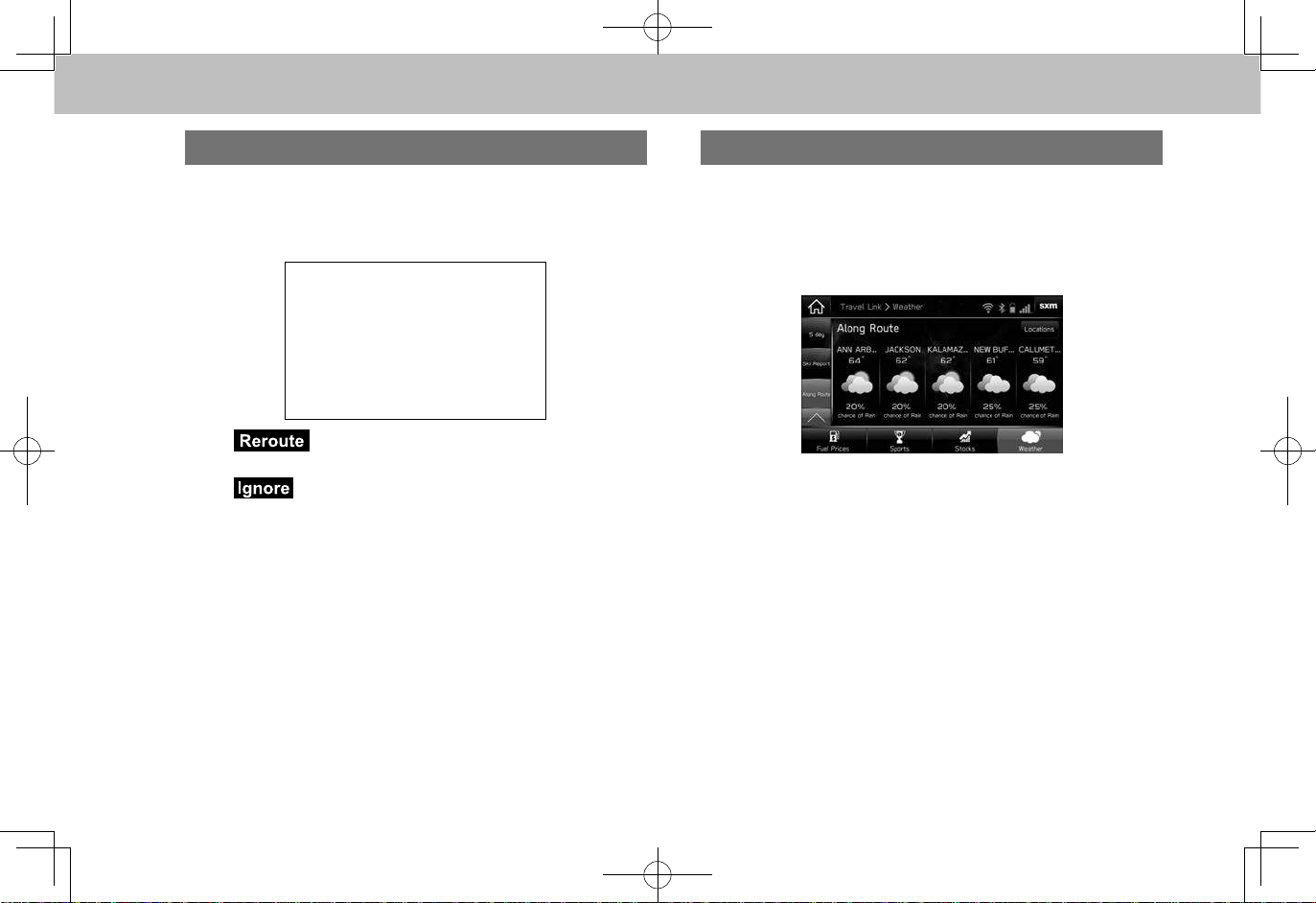

Weather forecasts, forecast temperature or highest/lowest temperature, and the chances of precipitation, etc. can be displayed in weather information.

1. Select

screen (→P.28).

2. Select

(TravelLink) on the “Apps (Apps)”

(Weather).

3. Check that weather information is displayed.

No. Function

Select to switch the timing of the displayed forecast. Select to display ski area facility information such as the

current air temperature, wind and snow conditions, and the amount of snowfall.

Select to display the weather forecast along the route. Weather information are displayed.

Select to set the forecast region.

*: Type A only

DISPLAYING STOCKS INFORMATION

Company names, stock prices, and price uctuations can

be displayed in stock information. Fluctuations greater than

zero are displayed with green arrows, and uctuations less

than zero are displayed with red arrows.

1. Select

screen (→P.28).

2. Select

(TravelLink) on the “Apps (Apps)”

(Stocks).

110

TravelLink (TYPE A/B ONLY)

NOTE

TravelLink

Fuel Prices

3. Check that stock information is displayed.

No. Function

Stocks information are displayed. Select to add or edit stocks.

lUp to XX stocks can be registered.

DISPLAYING FUEL INFORMATION (NOT AVAILABLE IN CANADA)

Gas station information can be displayed, and gas stations can be set* in fuel information. When Bluetooth is enabled on your cellular phone, calls can be placed if the displayed information screen contains phone number information.

*: Type A only

1. Select

(TravelLink) on the “Apps (Apps)”

screen (→P.28).

2. Select

(Fuel Prices).

3. Check that fuel information is displayed.

XType A only

XType B only

Change Location

No. Function

Select to sort gas station by price. Select to sort gas station by distance from the current

position.

APPS

111

TravelLink (TYPE A/B ONLY)

NOTE

No. Function

Select to sort gas station by brand. Gas station information are displayed. Select to set the fuel type.

Select to change the location in which fuel information is displayed.

*1: Type A only *2: Type B only

lUp to 25 gas stations can be displayed. lThe distance from the current position are displayed only when

the system is equipped with the navigation function. If the route has been set, gas stations along the route are displayed, and if no route has been set, gas stations within a 30 mile radius from the current location are displayed.

112

AUDIO

113

BASIC OPERATION

CAUTION

BASIC OPERATION

SOME BASICS

This section describes some of the basic features of the audio system. Some information may not pertain to your system.

Your audio system works when the ignition switch is turned to the “ACC” or “ON” position.

lTo prevent the battery from being discharged, do not leave the

audio system on longer than necessary when the engine is not running.

TURNING THE SYSTEM ON AND OFF

“ ” knob: Press and hold to turn the audio system

on and off. The system turns on in the last mode used. Turn this knob to adjust the volume.

, : Press to display screen buttons for the

audio system.

114

BASIC OPERATION

SELECTING AN AUDIO SOURCE

1. Press or .

2. Select the desired audio source.

X“Radio (Radio)” screen

X“Media (Media)” screen

● Each time or is pressed, the audio source can also be changed.

AUDIO

115

BASIC OPERATION

Settings

Sound

NOTE

SOUND SETTINGS

The following sound quality can be adjusted. TONE: How good an audio program sounds is largely determined

by the mix of the treble, mid and bass levels. In fact, different kinds of music and vocal programs usually sound better with different mixes of treble, mid and bass.

BALANCE: A good balance of the left and right stereo channels and of

the front and rear sound levels is also important. Keep in mind that when listening to a stereo recording or

broadcast, changing the right/left balance will increase the volume of 1 group of sounds while decreasing the volume of another.

1. Press .

2. Select

3. Select

(Settings).

(Sound).

4. Select (EQ and Sound

Position).

5. Set the desired item.

No. Function

Select the icon to adjust sound balance. Select the sliders to adjust high-pitched tones. Select the sliders to adjust mid-pitched tones. Select the sliders to adjust low-pitched tones. Select to reset all setup items.

lThe “EQ and Sound (EQ and Sound)” screen can also be

displayed by pressing and holding the “TUNE/SCROLL” knob.

116

VOICE RECOGNITION SYSTEM

1. Press this switch to operate the voice recognition

system.

● The voice recognition system and its list of

commands can be operated. (→P.193)

BASIC OPERATION

AUDIO

117

RADIO OPERATION

AM/FM RADIO

OVERVIEW

The FM/AM radio operation screen can be reached by selecting

screen. (→P.115)

XControl panel

No. Function

(FM) or

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

(AM) on the “Radio (Radio)”

No. Function

Turn to step up/down frequencies. Press to seek up/down available stations/channels.

Press and hold for continuous seek.

XControl screen

No. Function

Select to change radio modes.

118

RADIO OPERATION

NOTE

No. Function

Select to scan for receivable stations/channels. Select to display the cache radio operation buttons.

(→P.122)

Select to turn HD Radio mode on/off. Select to change multicast channels available.

(→P.121)

Select to scroll the list of preset buttons. The preset station list can also be scrolled by swiping the list.

Select to tune to preset stations/channels.

*: Type A/B only

lThe radio automatically changes to stereo reception when a

stereo broadcast is received.

lType A/B only: The radio automatically blends to an HD Radio

signal in AM or FM where available.

PRESETTING A STATION

Radio mode has a mix preset function, which can store up to 18 stations from any of the AM, FM or SiriusXM Satellite* Radio bands.

*: Type A/B only

1. Tune in the desired station.

2. Select and hold one of the desired preset station button.

AUDIO

● To change the preset station to a different one, follow the same procedure.

119

RADIO OPERATION

AVAILABLE HD Radio™ TECHNOLOGY (TYPE A/B ONLY)

HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp.

HD Radio™ Technology is the digital evolution of analog AM/FM radio. Your radio product has a special receiver which allows it to receive digital broadcasts (where available) in addition to the analog broadcasts it already receives. Digital broadcasts have better sound quality than analog broadcasts as digital broadcasts provide free, crystal clear audio with no static or distortion. For more information, and a guide to available radio stations and programming, refer to www.hdradio.com.

120

MULTICAST

NOTE

HD)

RADIO OPERATION

On the FM radio frequency most digital stations have “multiple” or supplemental programs on one FM station.

1. Select .

● Each time is selected, the channel can be changed.

● Turning the “TUNE/SCROLL” knob can also select the desired multicast channel.

● Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

● FM stations can provide additional digital-only audio programming on HD2/HD3 Channels.

lHD Radio™ stations can be preset. lAn orange

The indeed (an analog and) a digital station. Once the digital signal is

acquired, the logo will change to a bright orange color.

lThe song title and artist name will appear on the screen when

available by the radio station. The radio station can send album pictures when available.

lAs a user works through the analog radio stations, (where

applicable) the radio receiver will automatically tune from an analog signal to a digital signal within 5 seconds.

will be displayed on the screen when in digital.

will rst appear in a gray color indicating the station is

AUDIO

121

RADIO OPERATION

NOTE

CACHING RADIO PROGRAMS

● Program Service Data: Presents song name, artist, station IDs, and other relevant data streams.

● Visual information related to content being played on your HD Radio receiver, such as Album Art, historical photographs, still art from live broadcasts, among other related content.

● iTunes® Tagging provides you the opportunity to discover a wide range of content and the means to “tag” that content for later review and purchase from the iTunes®

Store. Also refer to the Apple Automotive specications for

implementing iTunes® Tagging.

A radio program can be cached and played back in a timeshifted manner.

AUTOMATIC PLAYBACK OF THE CACHE

If the radio broadcast is interrupted by another audio output, such as an incoming phone call, the system will automatically cache the interrupted portion and perform time-shift playback when the interruption ends. To manually

operate the cache operation: (→P.123)

lThe system can store up to 20 minutes. Cached data will be

erased when the radio mode or station is changed or when the audio system is turned off.

lIf noise or silence occurs during the caching process, cache-

writing will continue, with the noise or silence recorded as is. In this case, the cached broadcast will contain the noise or silence when played back.

122

RADIO OPERATION

NOTE

PLAYING BACK THE CACHE MANUALLY

The broadcast cached in the program cache can be played back manually.

1. Select (Replay). (→P.118)

2. Select the desired cache radio operation button.

No. Information/Function

Shows the current playback location relative to the cached broadcast recording time with a bar scale. The playback location can be changed by dragging the sliders.

No. Information/Function

Returns to the live radio broadcast. Select: Skips forward 2 minutes.

Select and hold: Fast forwards continuously. Pauses or plays the radio broadcast. Select: Skips backward 2 minutes.

Select and hold: Fast rewinds continuously. Exits cached playback.

AUDIO

lThe time displayed on the bar scale may differ from the

actualtime.

● Type A/B only: Allows HD Radio receivers to store content (songs/programs and data) in a buffer. Playback shall start at any point in the buffer and shall continue until the end of the buffer or until the user has selected to stop playback. Live Pause has the ability to store both analog and digital content in the buffer.

123

RADIO OPERATION

SiriusXM® Satellite Radio (TYPE A/B ONLY)

OVERVIEW

The SiriusXM® operation screen can be reached by selecting

(→P.115)

XControl panel

No. Function

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

(sxm) on the “Radio (Radio)” screen.

No. Function

Press to seek up/down available channels. Press and hold for continuous seek.

XControl screen

No. Function

Select to change radio modes.

Select to search channels. (→P.131)

124

Turn to step up/down channels.

RADIO OPERATION

Tune Scan

NOTE

No. Function

Select to search subscribed channels by category. When Tune Start is set to on,

Scan) will be displayed. (→P.131)

Select to display the cache radio operation buttons.

(→P.129)

Select to search channels by entering the channel number.

Select to scroll the list of preset buttons. The preset station list can also be scrolled by swiping the list.

Select to tune to preset stations/channels.

lIf the ignition switch is turned “OFF” and then set to the “ACC”

or “ON” position when listening to an XL channel, broadcasting from the XL channel will not begin. If so, the SXM001 channel will be broadcast.

lXL channels may include frequent explicit language or mature

programming.

(Tune

HOW TO SUBSCRIBE TO SiriusXM® Satellite Radio

To listen to a satellite radio broadcast in the vehicle, a subscription to the SiriusXM necessary.

A SiriusXM

Satellite Radio is a tuner designed exclusively to receive broadcasts provided under a separate subscription. SiriusXM U.S. satellite and data services are available only in the 48 contiguous USA and DC. SiriusXM satellite service is also available in Canada; see www.siriusxm.ca.

Satellite Radio service is

AUDIO

125

RADIO OPERATION

WARNING

HOW TO SUBSCRIBE

It is necessary to enter into a separate service agreement with SiriusXM

Satellite Radio Services in order to receive satellite broadcast programming in the vehicle. Additional activation and service subscription fees apply that are not included in the purchase price of the vehicle and digital satellite tuner.

● For complete information on subscription rates and terms, or to subscribe to SiriusXM

Satellite Radio:

XU.S.A.

Refer to www.siriusxm.com or call 1-877-447-0011.

XCanada

Refer to www.siriusxm.ca or call 1-877-209-0079.

lSiriusXM® Satellite Radio Services — Legal Disclaimers and

Warnings

• Fees and Taxes — Subscription fee, taxes, one time activation fee, and other fees may apply. Subscription fee is consumer only. All fees and programming subject to change.

Subscriptions subject to Customer Agreement available at www.siriusxm.com. (U.S.A.) or www.siriusxm.ca (Canada) SiriusXM U.S. satellite and data services are available only in the 48 contiguous USA and DC. SiriusXM Satellite Radio Service is also available in Canada; see www.siriusxm.ca.

Explicit Language Notice — Channels with frequent explicit language are indicated with an “XL” preceding the channel name. Channel blocking is available for SiriusXM Radio receivers by notifying SiriusXM at;

U.S.A. Customers: Visit www.siriusxm.com or calling 1-877-447-0011 Canadian Customers: Visit www.siriusxm.ca or calling 1-877-209-0079

Satellite

126

RADIO OPERATION

CAUTION

NOTE

lIt is prohibited to copy, decompile, disassemble, reverse

engineer, hack, manipulate, or otherwise make available any technology or software incorporated in receivers compatible with the SiriusXM® Satellite Radio Services or that support the SiriusXM website, the Online Service or any of its content. Furthermore, the AMBE® voice compression software included in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc.

lNote: this applies to SiriusXM

Satellite Radio receivers only

and not SiriusXM Ready devices.

lSiriusXM® Satellite Radio Services--Descriptions

• Only SiriusXM

Satellite Radio brings you more of what you love, all in one place. Get over 175 channels, including commercial-free music, plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. More information about SiriusXM® Satellite Radio is available online at www.siriusxm.com (U.S.A.) or www.siriusxm.ca (Canada).

lSiriusXM® Satellite Radio Services — Subscription Instructions

• For SiriusXM Services requiring a subscription (such as

SiriusXM data services), the following paragraph shall be included. Required SiriusXM

Satellite Radio Services, and some Infotainment &

Satellite Radio Services and some Infotainment & data services monthly subscriptions sold separately after trial period. Subscription fee is consumer only. All fees and programming subject to change. Subscriptions are subject to the Customer Agreement available at www.siriusxm.com. SiriusXM U.S. satellite and data services are available only in the 48 contiguous USA and DC. SiriusXM satellite service is also available in Canada; see www.siriusxm.ca. © 2013 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc. All other marks, channel names and logos are the property of their respective owners. For more information, program schedules, and to subscribe or extend subscription after complimentary trial period; more information is available at: USA Customers: Visit www.siriusxm.com or call 1-877-447-0011

AUDIO

127

RADIO OPERATION

NOTE

lSiriusXM® Satellite Radio Service is solely responsible for the

quality, availability and content of the satellite radio services provided, which are subject to the terms and conditions of the SiriusXM Satellite Radio customer service agreement.

lCustomers should have their radio ID ready; the radio ID can

be found by tuning to “Ch 000” on the radio. For details, see “DISPLAYING THE RADIO ID” below.

lAll fees and programming are the responsibility of SiriusXM

Satellite Radio Services and are subject to change.

DISPLAYING THE RADIO ID

PRESETTING A CHANNEL

1. Tune in the desired channel.

2. Select and hold one of the desired preset station button.

Each SiriusXM tuner is identied with a unique radio ID.

The radio ID is required when activating SiriusXM Satellite Services or when reporting a problem.

The radio ID can be checked on the SiriusXM subscription

screen. (→P.66)

● If “Ch 000” is selected using the “TUNE/SCROLL” knob, the ID code, which is 8 alphanumeric characters, will be displayed. If another channel is selected, the ID code will no longer be displayed. The channel (000) alternates between displaying the radio

ID and the specic radio code.

128

● To change the preset station to a different one, follow the same procedure.

RADIO OPERATION

NOTE

CACHING RADIO PROGRAMS

A radio program can be cached and played back in a timeshifted manner.

The program that is currently being listened to, and channel programs registered as Smart Favorites can be cached.

lIf noise or silence occurs during the caching process, cache-

writing will continue, with the noise or silence recorded as is. In this case, the cached broadcast will contain the noise or silence when played back. If reception is poor or radio waves are disrupted, the caching process will not be performed properly, and several seconds of silence will be recorded.

lIt may not be possible to cache depending on the

broadcasting channel and program (advertising or billboard, etc.) being broadcasted.

PLAYING BACK THE CACHE

The broadcast cached in the program cache can be played back.

1. Select (Replay). (→P.124)

2. Select the desired cache radio operation button.

AUDIO

No. Information/Function

Shows the current playback location relative to the cached broadcast recording time with a bar scale. The playback location can be changed by dragging the sliders.

Returns to the live radio broadcast. Select: Access the desired program. Skips forward

through program. Select and hold: Fast forwards continuously. The fast forward speed increased the longer the button is held down.

129

RADIO OPERATION

NOTE

Smart Favs Setup

NOTE

No. Information/Function

Pauses or plays the radio broadcast. Select: Access the desired program. Skips back through

program. Select and hold: Fast rewinds continuously. The fast rewind speed increased the longer the button is held down.

Exits cached playback.

lThe time displayed on the bar scale may differ from the actual

time.

REGISTERING A SMART FAVORITE CHANNEL

The TuneStart and TuneScan functions can be used by registering preset channels as Smart Favorites. Up to 5 channels can be registered in Smart Favorites.

1. Select

(Smart Favs Setup) on the

option screen.

2. Select check boxes for preset channels to be

registered, and then select

(OK).

TuneStartTM FUNCTION

TuneStart begins playing the current program from the beginning when tuning to a channel registered in Smart Favorites, allowing you to enjoy the complete program.

TuneStart is applicable to channels registered in Smart

Favorites. (→P.130)

It is necessary to turn on TuneStart to use this function.

(→P.66)

lLive radio is broadcast immediately after switching from another

mode to SiriusXM mode even if the TuneStart setting is turned ON. The TuneStart function starts if switching to a channel registered in Smart Favorites within SiriusXM mode.

lThe TuneStart function is not applicable to programs for which

even a little has been listened to from the start.

130

RADIO OPERATION

Tune Scan

NOTE

TuneScanTM FUNCTION

TuneScan is a function used to listen to the rst 10 seconds

of all recorded programs one after another. TuneScan is applicable to channels registered in Smart

Favorites, and programs that are currently being listened to.

(→P.130)

It is necessary to turn on TuneStart to use this function.

(→P.66)

1. Select

● Select desired program is reached to continue playing that program.

lThe TuneScan function is not applicable to the following

program.

•

Program that has been listened to for 30 seconds or longer

• If the start of the program has not been cached

• If the cached program is shorter than 45 seconds (However,

this excludes programs that are currently being broadcast.) And in addition to the above conditions, the TuneScan function may not work depending on the channel or program.

(Tune Scan).

(Tune Scan) again when the

SEARCHING BY FEATURED FAVORITES

Featured Favorites are a collection of channels that are created by the SiriusXM programming team that are updated several times throughout the year.

The desired Featured Favorite channel can be selected

from the list screen. (→P.131)

It is necessary to turn on Featured Favorites to listen to a

Featured Favorite channel. (→P.66)

SELECTING A CHANNEL FROM THE LIST

1. Select (Browse).

2. Select the desired list, and then select the desired

channel.

AUDIO

131

RADIO OPERATION

No. Function Page

Select to display the all channels list. -

Select to display the preset channels list. Select to display channel categories and

Featured Favorite channel list. Select to display the sports channels list. 132

132

SELECTING FROM CATEGORIES AND FEATURED FAVORITE CHANNEL LIST

1. Select (Category).

● Received Featured Favorite channels is listed on the top of the list.

2. Select the desired channel.

SELECTING FROM THE SPORTS CHANNELS LIST

1. Select (GameZone).

● The teams which is being broadcast at present or the registered team are displayed on the list.

● The order of the item can be changed. (→P.133)

2. Select the desired team.

nADDING TEAMS

1. Select (Edit Teams) on the “Game Zone

(Game Zone)” screen. (→P.132)

2. Select (Add Team).

132

RADIO OPERATION

Edit

Save

3. Select the desired sports.

4. Select the desired team.

nEDITING THE LIST

1. Select (Edit Teams) on the “Game Zone

(Game Zone)” screen. (→P.132)

2. Select

(Edit).

3. Select the desired item to be set.

● : Select to delete the item.

● : Drag an item to the desired position.

nSETTING POP UP ALERTS

Pop up alerts can be set to display on the screen.

1. Select (Edit Teams) on the “Game Zone

(Game Zone)” screen. (→P.132)

2. Select next to the desired item.

3. Select the desired item, and then select

(Save).

AUDIO

133

MEDIA OPERATION

CD (TYPE A/B ONLY)

OVERVIEW

The CD operation screen can be reached by the following methods:

● Insert a disc. (→P.38)

● Select

XControl panel

on the “Media (Media)” screen. (→P.115)

No. Function

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

Press to eject a disc. Disc slot

Turn to select a track. Press and hold to display the sound setting screen.

(→P.116)

Press to select a track. Press and hold to fast forward/rewind.

Press to switch between media sources.

134

MEDIA OPERATION

XControl screen

No. Function

Select to switch between other media sources. Displays cover art.

No. Function

XAudio CD

Select to display a track list.

XMP3/WMA/AAC disc

Select to display the play mode selection screen.

• “Artists (Artists)”/“Albums (Albums)”/“Songs (Songs)”/“Playlists (Playlists)”/“Genres (Genres)”/“Composers (Composers)”/“Folders (Folders)”are on the play mode selection screen.

• If audio les contain information such as the artist

name and album name, select (Search OO) in each play mode to search by play mode name.

Shows progress. The playback location can be changed by dragging the sliders.

Select to enable/disable repeat playback of the track currently playing.

Select to select a track. Select and hold to fast forward/rewind.

Select to pause/play. Select to enable/disable random playback for the tracks

currently playing on the CD.

AUDIO

135

MEDIA OPERATION

NOTE

lIf a disc contains CD-DA les and MP3/WMA/AAC les, only the

CD-DA les can be played back.

lIf a CD-TEXT disc is inserted, the title of the disc and track will

be displayed. Up to 32 characters can be displayed.

lIf the disc contains no CD-TEXT, only the track number would be

displayed on the screen.

USB MEMORY

Audio les on the USB memory can be played back.

OVERVIEW

The USB Audio playback screen can be reached by the following methods:

● Connect a USB memory. (→P.39)

● Select

on the “Media (Media)” screen. (→P.115)

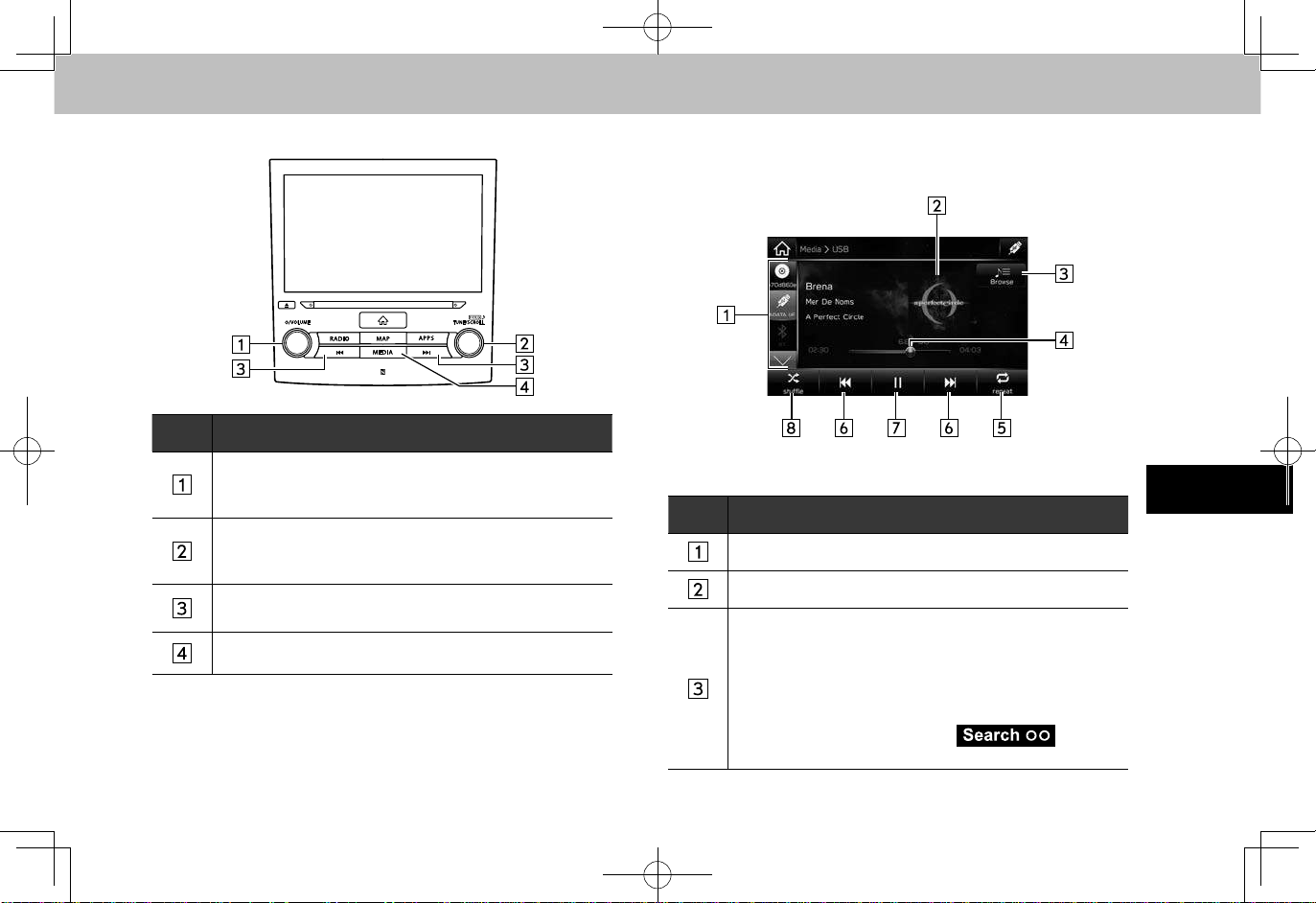

136

MEDIA OPERATION

XControl panel

No. Function

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

Turn to select a track. Press and hold to display the sound setting screen.

(→P.116)

Press to select a track. Press and hold to fast forward/rewind.

Press to switch between media sources.

XControl screen

No. Function

Select to switch between other media sources. Displays cover art.

Select to display the play mode selection screen.

•

If audio les contain information such as the artist

name and album name, select (Search OO) in each play mode to search by play mode name.

AUDIO

137

MEDIA OPERATION

WARNING

CAUTION

NOTE

No. Function

Shows progress. The playback location can be changed by dragging the sliders.

Select to enable/disable repeat playback of the track currently playing.

Select to select a track. Select and hold to fast forward/rewind.

Select to pause/play. Select to enable/disable random playback for the tracks

currently playing from the USB memory.

lDo not operate the player’s controls or connect the USB

memory while driving.

lDo not leave your portable player in the car. In particular, high

temperatures inside the vehicle may damage the portable player.

lDo not push down on or apply unnecessary pressure to the

portable player while it is connected as this may damage the portable player or its terminal.

lDo not insert foreign objects into the port as this may damage

the portable player or its terminal.

lIf tag information exists, the le names will be changed to track

names.

138

MEDIA OPERATION

iPod

When an iPod is connected, you can play iPod music les.

On this unit, you can perform operations such as selecting

a le from a list or changing to the random playback mode.

OVERVIEW

The iPod operation screen can be reached by the following methods:

● Connect an iPod. (→P.39)

● Select

on the “Media (Media)” screen. (→P.115)

XControl panel

AUDIO

No. Function

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

Turn to select a track. Press and hold to display the sound setting screen.

(→P.116)

Press to select a track. Press and hold to fast forward/rewind.

Press to switch between media sources.

139

MEDIA OPERATION

WARNING

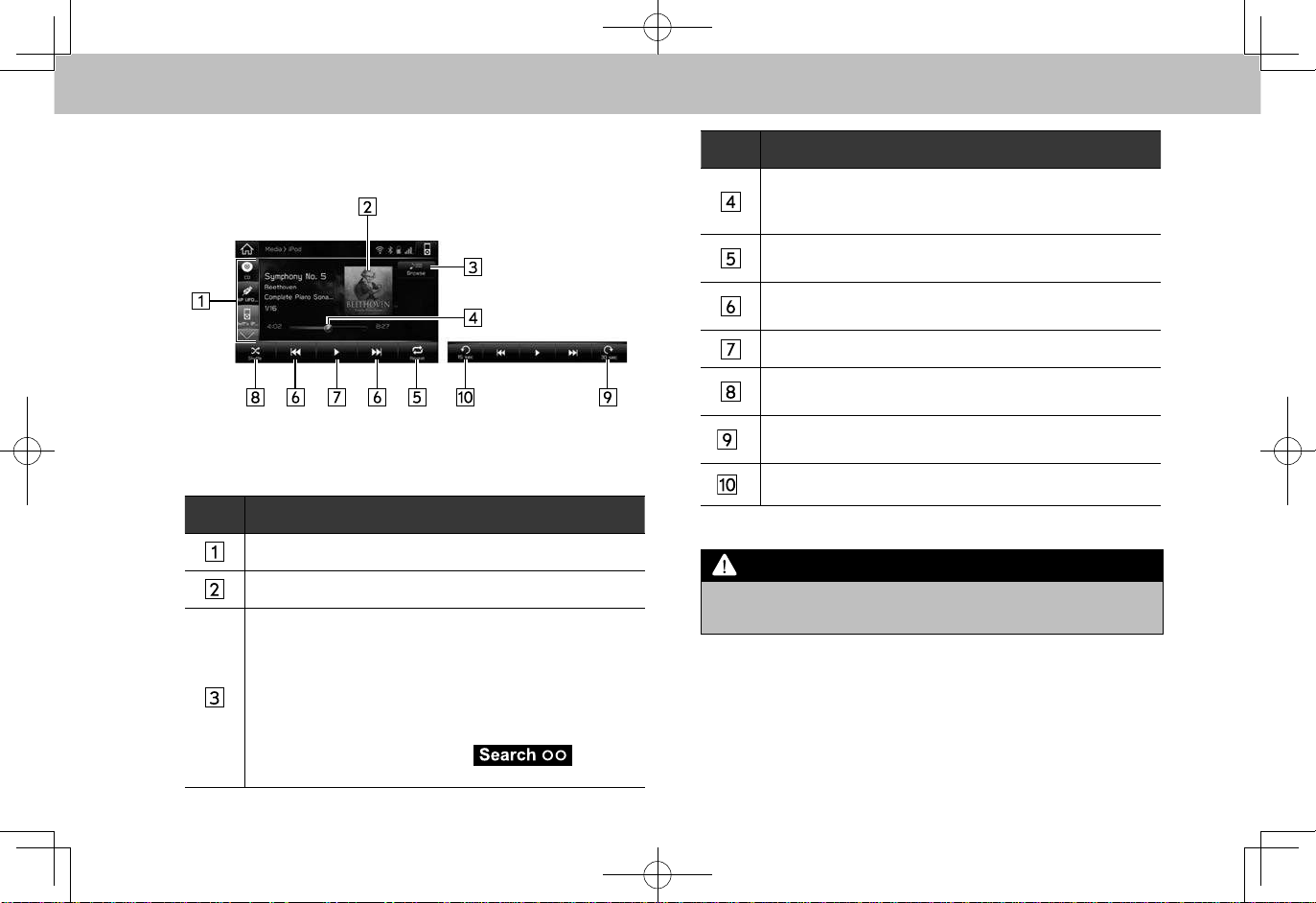

XControl screen

No. Function

Select to switch between other media sources. Displays cover art.

Select to display the play mode selection screen.

• “Artists (Artists)”/“Albums (Albums)”/“Songs (Songs)”/“Playlists (Playlists)”/“Genres (Genres)”/“Composers (Composers)”/“Folders (Folders)”/“Audiobooks (Audiobooks)”/“Podcasts (Podcasts)”are on the play mode selection screen.

•

If audio les contain information such as the artist

name and album name, select (Search OO) in each play mode to search by play mode name.

140

No. Function

Shows progress. The playback location can be changed by dragging the sliders.

Select to enable/disable repeat playback of the track currently playing.

Select to select a track. Select and hold to fast forward/rewind.

Select to pause/play. Select to enable/disable random playback for the tracks

currently playing on the iPod. Select to fast forward the current content item for 15

seconds. Select to rewind the current content item for 15 seconds.

*: Display when playing Audiobooks or Podcasts

lDo not operate the player ’s controls or connect the iPod while

driving.

CAUTION

NOTE

Bluetooth AUDIO

MEDIA OPERATION

lDo not leave your portable player in the car. In particular, high

temperatures inside the vehicle may damage the portable player.

lDo not push down on or apply unnecessary pressure to the

portable player while it is connected as this may damage the portable player or its terminal.

lDo not insert foreign objects into the port as this may damage

the portable player or its terminal.

lWhen an iPod is connected using a genuine iPod cable, the iPod

starts charging its battery.

lIf playing iPod music, perform operation at the system. Certain

functions may not be available if played directly from the iPod. Furthermore, depending on the connected iPod, certain functions may not be available.

lDepending on the iPod and the songs in the iPod, iPod cover

art may be displayed. It may take time to display iPod cover art, and the iPod may not be operated while the cover art display is in process.

lWhen an iPod is connected and the audio source is changed to

iPod mode, the iPod will resume playing from the same point it was last used.

lTracks selected by operating a connected iPod may not be

recognized or displayed properly.

The Bluetooth audio system enables users to enjoy listening to music that is played on a portable player on the vehicle speakers via wireless communication.

This audio system supports Bluetooth, a wireless data system capable of playing portable audio music without cables. If your device does not support Bluetooth, the Bluetooth audio system will not function.

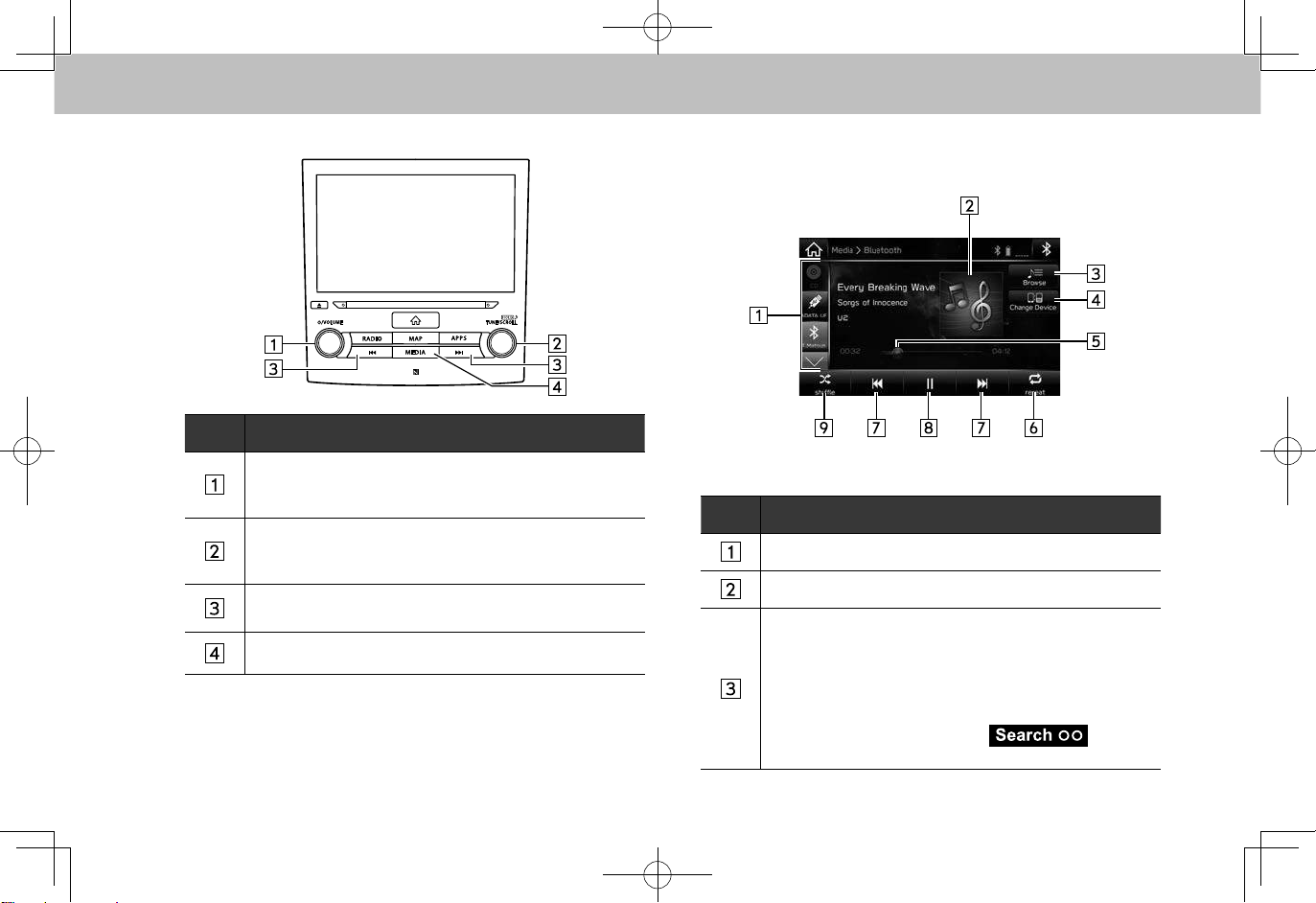

OVERVIEW

The Bluetooth audio operation screen can be reached by selecting

Depending on the type of portable player connected, some functions may not be available and/or the screen may look differently than shown in this manual.

on the “Media (Media)” screen. (→P.115)

AUDIO

141

MEDIA OPERATION

XControl panel

No. Function

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

Turn to select a track. Press and hold to display the sound setting screen.

(→P.116)

Press to select a track. Press and hold to fast forward/rewind.

Press to switch between media sources.

XControl screen

No. Function

Select to switch between other media sources. Displays cover art.

Select to display the play mode selection screen.

•

If audio les contain information such as the artist

name and album name, select (Search OO) in each play mode to search by play mode name.

142

No. Function

WARNING

CAUTION

Select to display the “Change Device (Change Device)”

screen. (→P.144)

Shows progress. The playback location can be changed by dragging the sliders.

Select to enable/disable repeat playback of the track currently playing.

Select to select a track. Select and hold to fast forward/rewind.

Select to pause/play. Select to enable/disable random playback for the tracks

currently playing on the Bluetooth audio device.

MEDIA OPERATION

lDo not operate the player’s controls or connect to the

Bluetooth audio system while driving.

lYour audio unit is tted with Bluetooth antennas. People with

implantable cardiac pacemakers, cardiac resynchronization

therapy-pacemakers or implantable cardioverter debrillators

should maintain a reasonable distance between themselves and the Bluetooth antennas. The radio waves may affect the operation of such devices.

lBefore using Bluetooth devices, users of any electrical

medical device other than implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable

cardioverter debrillators should consult the manufacturer

of the device for information about its operation under the

inuence of radio waves. Radio waves could have unexpected

effects on the operation of such medical devices.

lDo not leave your portable player in the vehicle. In particular,

high temperatures inside the vehicle may damage the portable player.

AUDIO

143

MEDIA OPERATION

NOTE

lDepending on the Bluetooth device that is connected to the

system, the music may start playing when selecting while it is paused. Conversely, the music may pause when selecting

while it is playing.

lIn the following conditions, the system may not function:

• The Bluetooth device is turned off.

• The Bluetooth device is not connected.

• The Bluetooth device has a low battery.

lIt may take time to connect the phone when Bluetooth audio is

being played.

lFor operating the portable player, see the instruction manual that

comes with it.

lIf the Bluetooth device is disconnected due to poor reception

from the Bluetooth network when the ignition switch is turned to the “ACC” or “ON” position, the system will automatically reconnect to the portable player.

lIf the Bluetooth device is disconnected on purpose, such as it

was turned off, this does not happen. Reconnect the portable player manually.

lBluetooth device information is registered when the Bluetooth

device is connected to the Bluetooth audio system. When selling or disposing of the vehicle, remove the Bluetooth audio

information from the system. (→P.62)

CONNECTING A Bluetooth DEVICE

To use the Bluetooth audio system, it is necessary to register a Bluetooth device with the system.

XRegistering an additional device

1. Select (Change Device) on the

Bluetooth audio control screen.

2. For more information: →P.57

XSelecting a registered device

1. Select (Change Device) on the

Bluetooth audio control screen.

2. Select the Bluetooth device to be connected.

144

MEDIA OPERATION

AUX

OVERVIEW

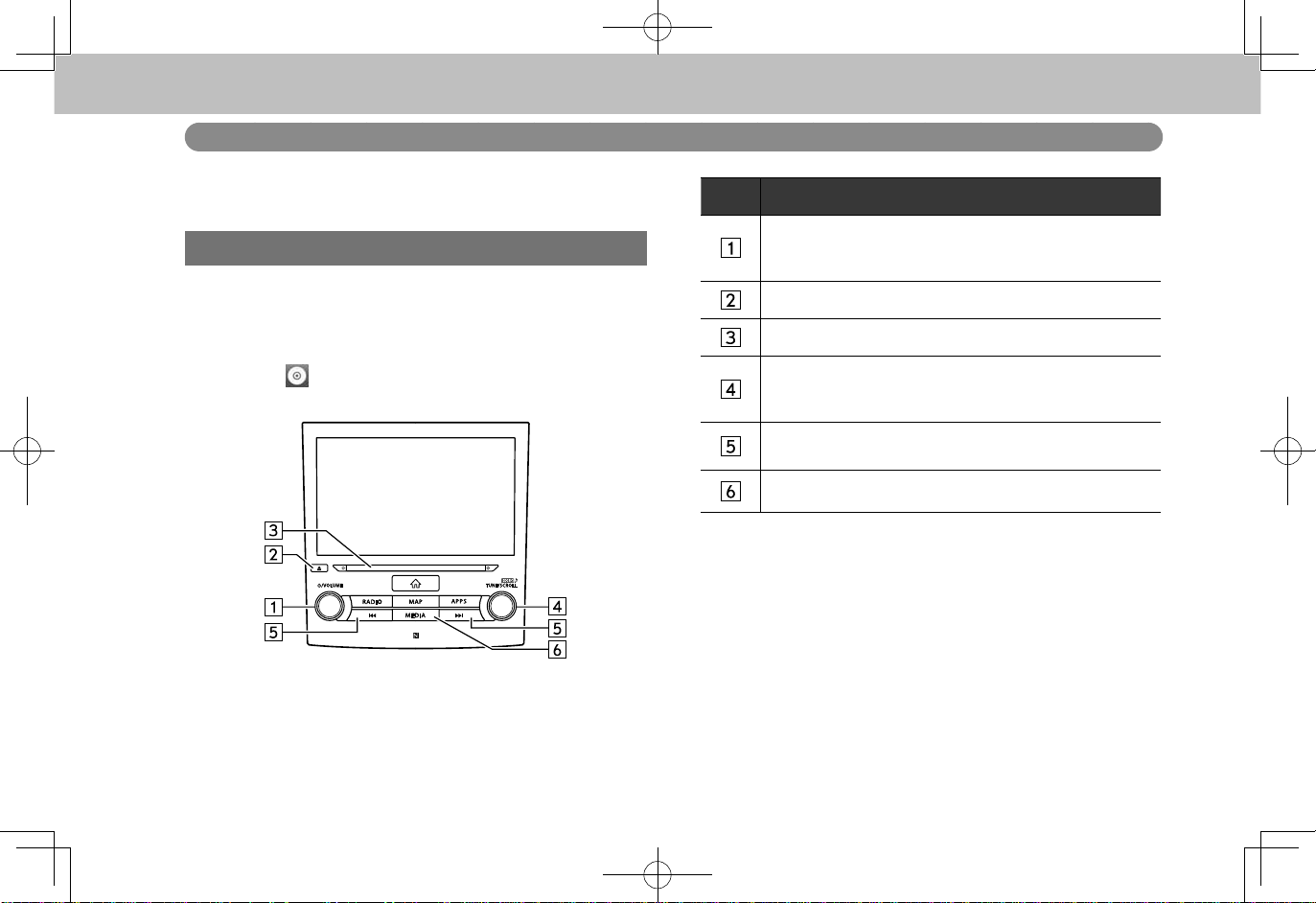

The AUX operation screen can be reached by the following methods:

● Connect a portable audio device. (→P.39)

● Select

XControl panel

No. Function

on the “Media (Media)” screen. (→P.115)

Turn to adjust volume. Press to mute the audio system. Press and hold to turn the audio system on/off.

Press and hold to display the sound setting screen.

(→P.116)

No. Function

Press to switch between media sources.

XControl screen

AUDIO

No. Function

Select to switch between other media sources.

145

MEDIA OPERATION

WARNING

CAUTION

lDo not operate the player ’s controls or connect the portable

audio device while driving.

lDo not leave portable audio device in the vehicle. The

temperature inside the vehicle may become high, resulting in damage to the player.

lDo not push down on or apply unnecessary pressure to

the portable audio device while it is connected as this may damage the portable audio device or its terminal.

lDo not insert foreign objects into the port as this may damage

the portable audio device or its terminal.

146

AUDIO REMOTE CONTROLS

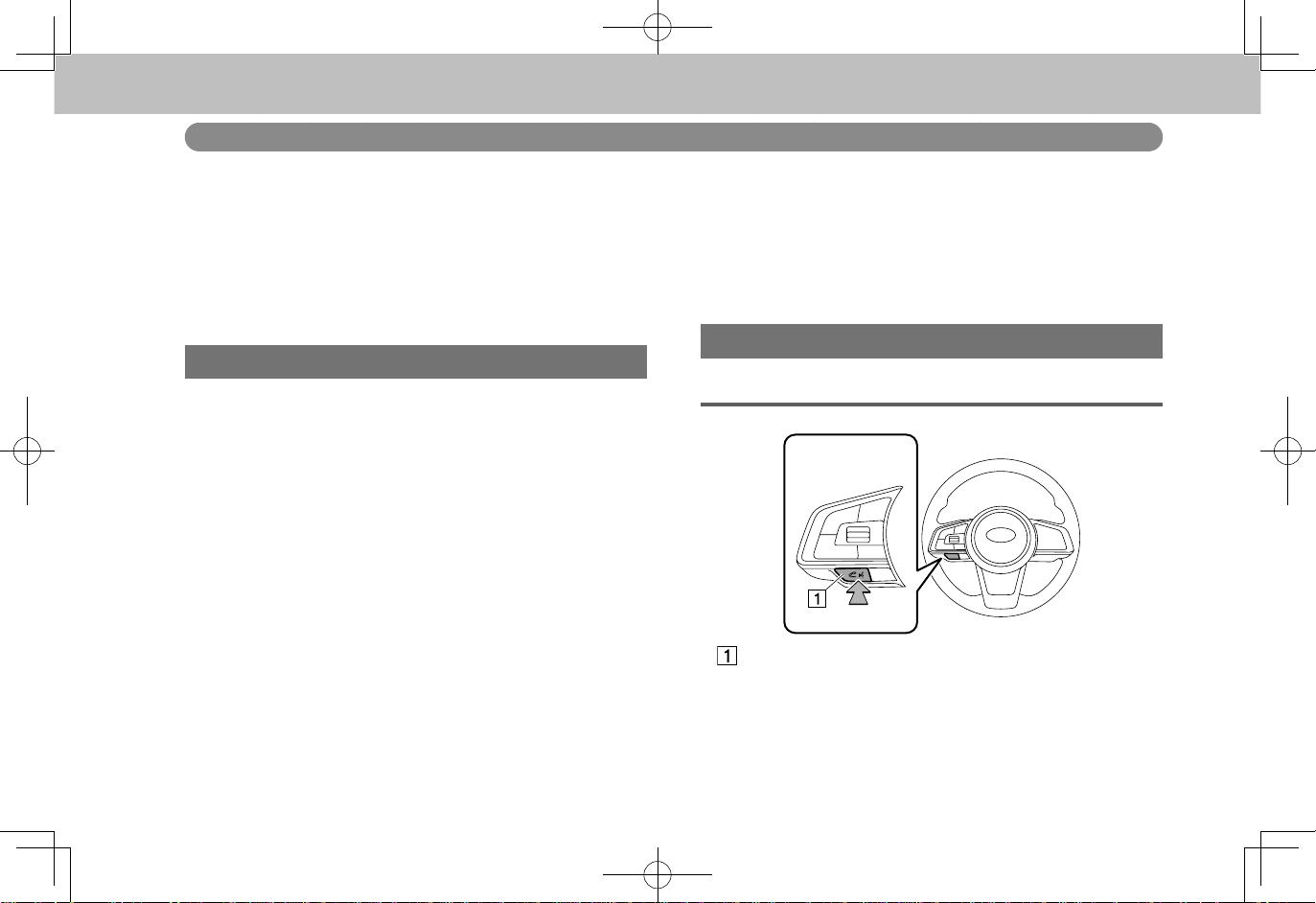

STEERING SWITCHES

Some parts of the audio system can be adjusted using the switches on the steering wheel.

No. Switch

“VOL +/VOL -” switch

“ / ” switch “Source” switch

X“VOL +/VOL -” switch

Mode Operation Function

Volume

Press Volume up/down Press and hold Volume up/down continuously

X“ / ” switch

Mode Operation Function

AM/FM Radio, SiriusXM

aha

Audio CD* MP3/WMA/ AAC disc*1, USB, iPod, Bluetooth audio

®*1

Press Preset channel up/down Press and hold Seek up/down continuously Press Content up/down

Rewind the current content

Press and hold

Press Select a track

Press and hold Fast forward/rewind

item for 15 seconds/ Fast forward the current content item for 30 seconds

AUDIO

147

AUDIO REMOTE CONTROLS

NOTE

Mode Operation Function

Pandora*

Press

Track up (“

”only)

Press and hold Thumbs up/down

*1: Type A/B only *2: Pandora is available in the United States, Australia, and New Zealand.

X“Source” switch

Mode Operation Function

All Press Change audio modes

lIn the aha, Pandora*1 and SUBARU STARLINK*2 mode, some

operation may be done on the screen depend on the selected APPS.

*1: Pandora is available in the United States, Australia, and New Zealand.

: Type A/B only

148

TIPS FOR OPERATING THE AUDIO SYSTEM

CAUTION

NOTE

TIPS FOR OPERATING THE AUDIO SYSTEM

OPERATING INFORMATION

lTo avoid damage to the audio system:

• Be careful not to spill beverages over the audio system.

• Type A/B only: Do not put anything other than an

appropriate disc into the disc slot.

lThe use of a cellular phone inside or near the vehicle may cause

a noise from the speakers of the audio system which you are listening to. However, this does not indicate a malfunction.

RADIO

Usually, a problem with radio reception does not mean there is a problem with the radio — it is just the normal result of conditions outside the vehicle.

For example, nearby buildings and terrain can interfere with FM reception. Power lines or phone wires can interfere with AM signals. And of course, radio signals have a limited range. The farther the vehicle is from a station, the weaker its signal will be. In addition, reception conditions change constantly as the vehicle moves.

Here, some common reception problems that probably do not indicate a problem with the radio are described.

AUDIO

149

TIPS FOR OPERATING THE AUDIO SYSTEM

Fading and drifting stations: Generally, the effective range of FM is about 25 miles (40 km). Once outside this range, you may notice fading and drifting, which increase with the distance from the radio transmitter. They are often accompanied by distortion.

Multi-path: FM signals are reective, making it possible for

2 signals to reach the vehicle’s antenna at the same time. If this happens, the signals will cancel each other out, causing

a momentary utter or loss of reception.

Static and uttering: These occur when signals are blocked

by buildings, trees or other large objects. Increasing the

bass level may reduce static and uttering.

Station swapping: If the FM signal being listened to is interrupted or weakened, and there is another strong station nearby on the FM band, the radio may tune in the second station until the original signal can be picked up again.

Fading: AM broadcasts are reected by the upper atmosphere — especially at night. These reected signals

can interfere with those received directly from the radio station, causing the radio station to sound alternately strong and weak.

Station interference: When a reected signal and a signal

received directly from a radio station are very nearly the same frequency, they can interfere with each other, making

it difcult to hear the broadcast.

Static: AM is easily affected by external sources of electrical noise, such as high tension power lines, lightening or electrical motors. This results in static.

SiriusXM® (TYPE A/B ONLY)

● Cargo loaded on the roof luggage carrier, especially metal objects, may adversely affect the reception of SiriusXM® Satellite Radio.

● Alternation or modications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

150

TIPS FOR OPERATING THE AUDIO SYSTEM

WARNING

CD PLAYER AND DISC (TYPE A/B ONLY)

● Extremely high temperatures can keep the CD player from working. On hot days, use the air conditioning system to cool the inside of the vehicle before using the player.

● Bumpy roads or other vibrations may make the CD player skip.

● If moisture gets into the CD player, the discs may not be able to be played. Remove the discs from the player and wait until it dries.

lCD players use an invisible laser beam which could cause

hazardous radiation exposure if directed outside the unit. Be sure to operate the player correctly.

Audio CDs

● Use only discs marked as shown above. The following products may not be playable on your player:

• SACD

• dts CD

• Copy-protected CD

• Video CD

XSpecial shaped discs

AUDIO

XTransparent/translucent discs

151

TIPS FOR OPERATING THE AUDIO SYSTEM

CAUTION

XLow quality discs

XLabeled discs

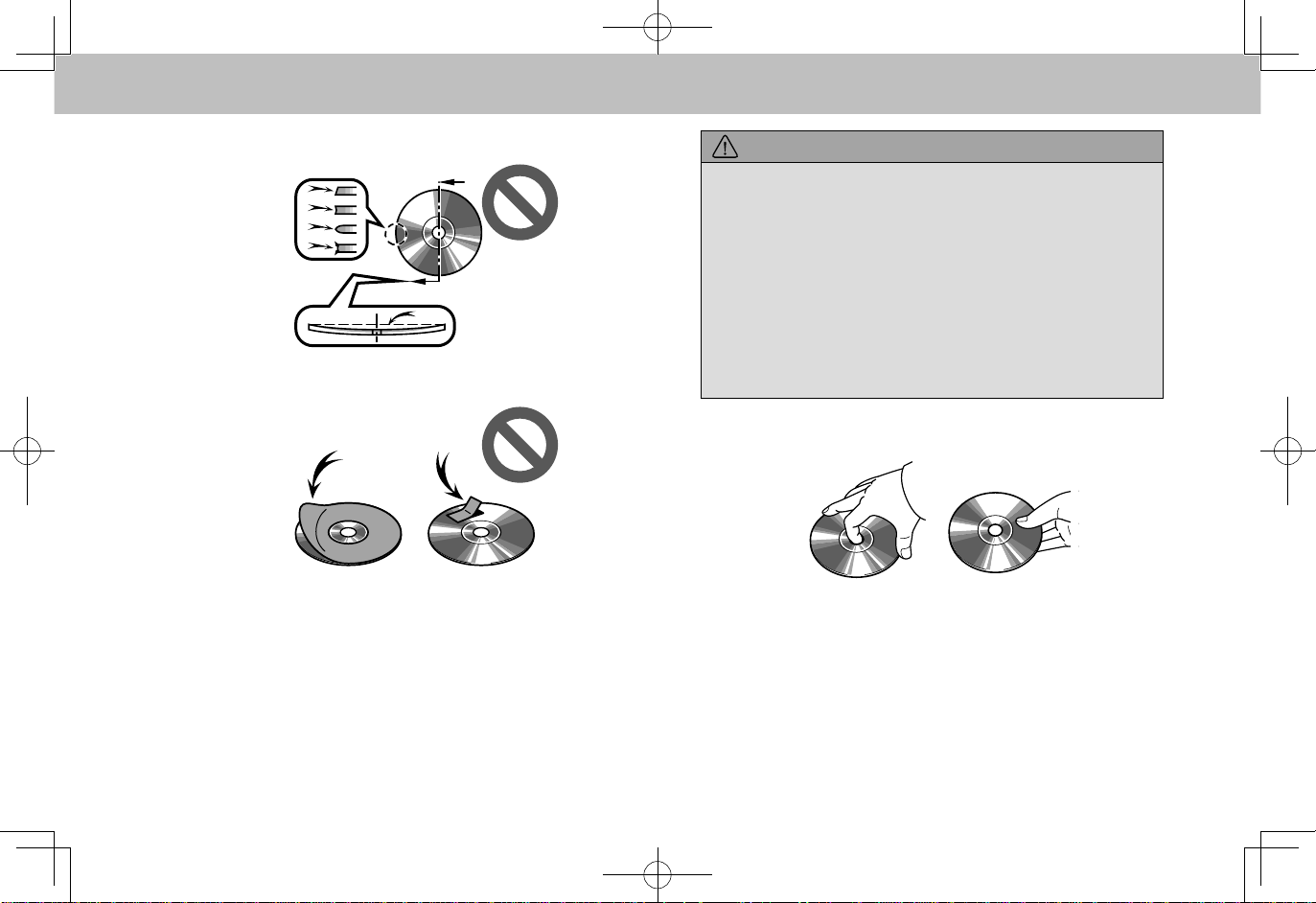

lDo not use special shaped, transparent/translucent,

low quality or labeled discs such as those shown in the illustrations. The use of such discs may damage the player, or it may be impossible to eject the disc.

lThis system is not designed for use of Dual Discs. Do not use

Dual Discs because they may cause damage to the player.

lDo not use discs with a protection ring. The use of such discs

may damage the player, or it may be impossible to eject the disc.

lDo not use printable discs. The use of such discs may

damage the player, or it may be impossible to eject the disc.

152

Correct

Wrong

● Handle discs carefully, especially when inserting them. Hold them on the edge and do not bend them.

Avoid getting ngerprints on them, particularly on the

shiny side.

TIPS FOR OPERATING THE AUDIO SYSTEM

● Dirt, scratches, warping, pin holes or other disc damage could cause the player to skip or to repeat a section of a track. (To see a pin hole, hold the disc up to the light.)

● Remove discs from the players when not in use. Store them in their plastic cases away from moisture, heat and direct sunlight.

To clean a disc: Wipe it with a soft, lint-free cloth that has been dampened with water. Wipe in a straight line from the center to the edge of the disc (not in circles). Dry it with another soft, lint-free cloth. Do not use a conventional record cleaner or anti-static device.

CD-R/RW DISCS

● CD-R/CD-RW discs that have not been subject to

the “nalizing process” (a process that allows discs

to be played on a conventional CD player) cannot be played.

● It may not be possible to play CD-R/CD-RW discs recorded on a music CD recorder or a personal computer because of disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc. on the lens of the unit.

● It may not be possible to play discs recorded on a personal computer depending on the application settings and the environment. Record with the correct format. (For details, contact the appropriate application manufacturers of the applications.)

● CD-R/CD-RW discs may be damaged by direct exposure to sunlight, high temperatures or other storage conditions. The unit may be unable to play some damaged discs.

● If you insert a CD-RW disc into the player, playback will begin more slowly than with a conventional CD or CD-R disc.

● Recordings on CD-R/CD-RW cannot be played using the DDCD (Double Density CD) system.

AUDIO

153

TIPS FOR OPERATING THE AUDIO SYSTEM

USB MEMORY

● USB communication formats: USB 2.0 HS (480 Mbps) and FS (12 Mbps)

● File formats: FAT 16/32

● Correspondence class: Mass storage class

iPod

The following iPod®, iPod nano®, iPod classic®, iPod touch® and iPhone® devices can be used with this system. Made for

● iPod touch (5th generation)

● iPod touch (4th generation)

● iPod touch (3rd generation)*

● iPod touch (2nd generation)*

● iPod touch (1st generation)*

● iPod classic

● iPod with video*

● iPod nano (7th generation)

● iPod nano (6th generation)

● iPod nano (5th generation)

● iPod nano (4th generation)

● iPod nano (3rd generation)

● iPod nano (2nd generation)*

● iPod nano (1st generation)*

● iPhone 5

● iPhone 4S

● iPhone 4*

● iPhone 3GS*

● iPhone 3G*

● iPhone*

*: The voice recognition system not supported

● Depending on differences between models or software versions etc., some models might be incompatible with this system.

● iPod video is not supported.

● For USA customers, please visit www.subaru.com for details. Outside of the USA customers, contact your local dealer to arrange a demonstration in order to

conrm whether or not the phone can be paired with

the vehicle.

154

TIPS FOR OPERATING THE AUDIO SYSTEM

FILE INFORMATION

COMPATIBLE COMPRESSED FILES

Item USB DISC*

Compatible le format

Folders in the device

Files in the device Maximum 9999 Maximum 255 Files per folder Maximum 255 —

*: Type A/B only

Maximum 3000 Maximum 192

CORRESPONDING SAMPLING FREQUENCY

File type Frequency (kHz)

MP3 les: MPEG 1 LAYER 3

MP3 les: MPEG 2 LSF LAYER 3

WMA les: Ver. 7, 8, 9 (9.1/9.2)

AAC les: MPEG4/AAC-LC

MP3/WMA/AAC

32/44.1/48

16/22.05/24

32/44.1/48

11.025/16/22.05/24/ 32/44.1/48

CORRESPONDING BIT RATES

File type Bit rate (kbps)

MP3 les: MPEG 1 LAYER 3

MP3 les: MPEG 2 LSF LAYER 3

WMA les: Ver. 7, 8

WMA les: Ver. 9 (9.1/9.2)

AAC les: MPEG4/AAC-LC

● The player is compatible with VBR (Variable Bit Rate).

● MP3 (MPEG Audio Layer 3), WMA (Windows Media Audio) and AAC (Advanced Audio Coding) are audio compression standards.

● This system can play MP3/WMA/AAC les on CD-R*, CD-RW discs*, USB memory, and Bluetooth device.

*: Type A/B only

● This system can play disc recordings compatible with ISO 9660 level 1 and level 2 and with the Romeo and

Joliet le system.

● When naming an MP3/WMA/AAC le, add an

appropriate le extension (.mp3/.wma/.m4a).

32 - 320

8 - 160

CBR 48 - 192

CBR 48 - 320

16 - 320

AUDIO

155

TIPS FOR OPERATING THE AUDIO SYSTEM

001.mp3 002.wma . . .006.m4a

● This system plays back les with .mp3/.wma/.m4a

le extensions as MP3/WMA/AAC les respectively.

To prevent noise and playback errors, use the

appropriate le extension.

● This system can play only the rst session when using multi-session compatible CDs.

● MP3 les are compatible with the ID3 Tag Ver. 1.0, Ver. 1.1, Ver. 2.2 and Ver. 2.3 formats. This system cannot display disc title, track title and artist name in other formats.

● WMA/AAC les can contain a WMA/AAC tag that is used in the same way as an ID3 tag. WMA/AAC tags carry information such as track title and artist name.

● This system can play back AAC les encoded by iTunes.

● The sound quality of MP3/WMA les generally improves with higher bit rates. In order to achieve a reasonable level of sound quality, discs recorded with a bit rate of at least 128 kbps are recommended.

● The MP3/WMA player does not play back MP3/

WMA les from discs recorded using packet write

data transfer (UDF format). Discs should be recorded using “pre-mastering” software rather than packetwrite software.

● m3U playlists are not compatible with the audio device.

● MP3i (MP3 interactive) and MP3PRO formats are not compatible with the audio device.

● When playing back les recorded as VBR (Variable

Bit Rate) les, the play time will not be correctly

displayed if the fast forward or rewind operations are used.

● It is not possible to check folders that do not include

MP3/WMA/AAC les.

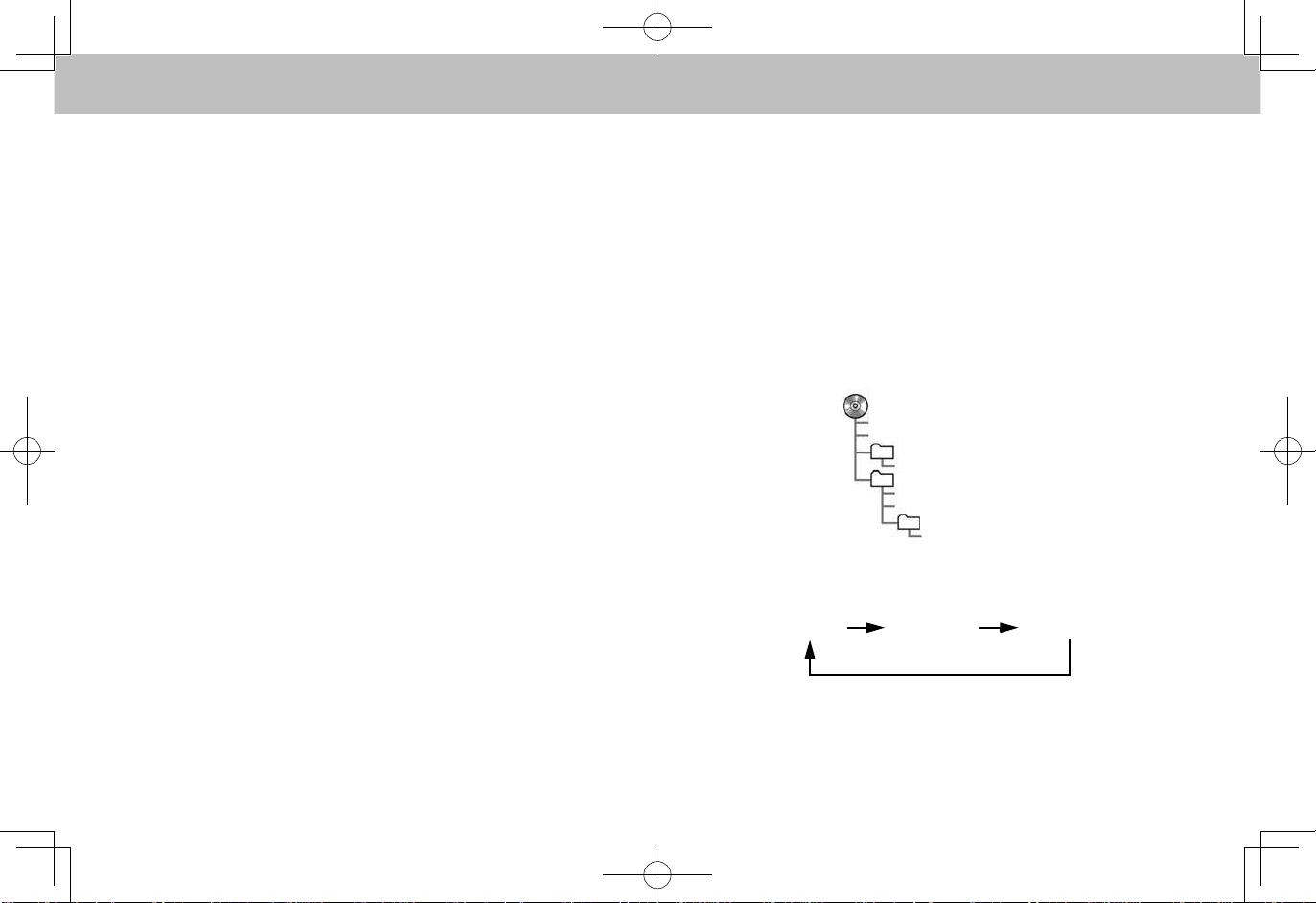

● MP3/WMA/AAC les in folders up to 8 levels deep can be played. However, the start of playback may be delayed when using discs containing numerous levels of folders. For this reason, we recommend creating discs with no more than 2 levels of folders.

001.mp3

002.wma Folder 1

003.mp3 Folder 2

004.mp3

005.wma

Folder 3

006.m4a

● The play order of the compact disc with the structure shown above is as follows:

● The order changes depending on the personal computer and MP3/WMA/AAC encoding software you use.

156

TIPS FOR OPERATING THE AUDIO SYSTEM

TERMS

PACKET WRITE

● This is a general term that describes the process of writing data on-demand to CD-R, etc., in the same

way that data is written to oppy or hard discs.

ID3 TAG

● This is a method of embedding track-related

information in an MP3 le. This embedded information

can include the track number, track title, the artist’s name, the album title, the music genre, the year of production, comments, cover art and other data. The contents can be freely edited using software with ID3 tag editing functions. Although tags are restricted to a certain number of characters, the artist name, track title, and album title can be viewed when the track is played back.

WMA TAG

● WMA les can contain a WMA tag that is used in the same way as an ID3 tag. WMA tags carry information such as track title and artist name.

ISO 9660 FORMAT

● This is the international standard for the formatting of

CD-ROM folders and les. For the ISO 9660 format,

there are 2 levels of regulations.

● Level 1: The le name is in 8.3 format (8 character le

names, with a 3 character le extension. File names

must be composed of one-byte capital letters and numbers. The “_” symbol may also be included.)

● Level 2: The le name can have up to 31 characters

(including the separation mark “.” and le extension).

Each folder must contain fewer than 8 hierarchies.

m3u

● Playlists created using “WINAMP” software have a

playlist le extension (.m3u).

MP3

● MP3 is an audio compression standard determined by a working group (MPEG) of the ISO (International Standard Organization). MP3 compresses audio data to about 1/10 the size of that on conventional discs.

AUDIO

157

TIPS FOR OPERATING THE AUDIO SYSTEM

WMA

● WMA (Windows Media Audio) is an audio compression format developed by Microsoft®. It

compresses les into a size smaller than that of MP3 les. The decoding formats for WMA les are Ver. 7,

8 and 9.

● This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.

AAC

● AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG2 and MPEG4.

158

NAVIGATION SYSTEM

(TYPE A ONLY)

159

BASIC OPERATION

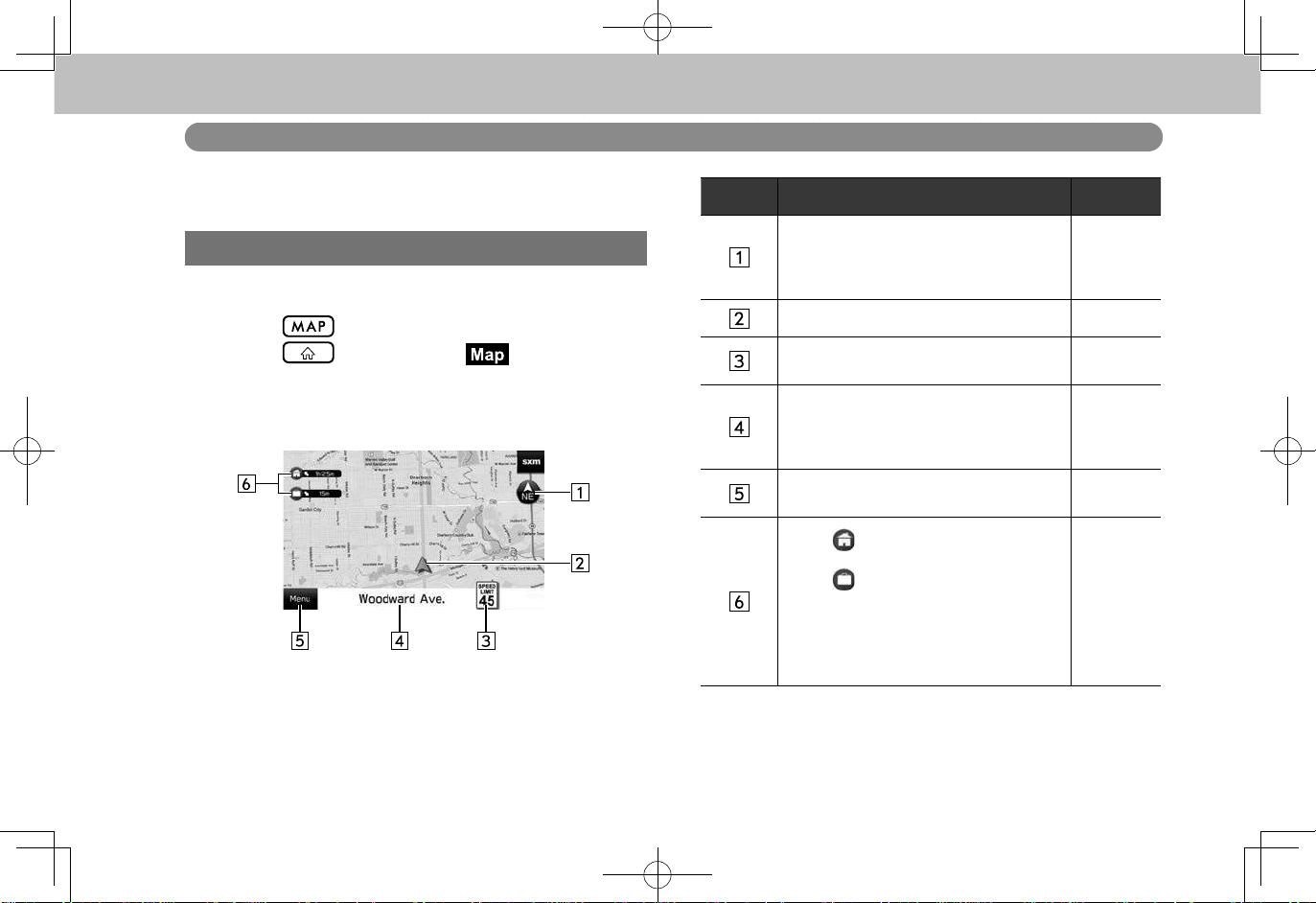

MAP SCREEN

MAP SCREEN OVERVIEW

The map screen can be reached by the following methods:

● Press

● Press , and then select (Map).

No. Information/Function Page

Select to change the map display mode between 2D north-up, 2D heading-up or 3D. In 3D map, only a heading-up view is available.

Displays the current vehicle position. Displays the speed limit of the road

currently being travelled on. Displays the current street name.

Select to display the current location and geo-coordinates, and register the point as home, work or favorite.

Select to display the destination search menu.

Select to set home as the destination.

Select to set work as the destination. The estimated travel time and direction

to the home/work is displayed beside the icon. The travel time should update every 10 minutes unless the vehicle is 100 miles or more from the destination.

163

166

170, 171, 172, 173

169

160

BASIC OPERATION

MAP SCREEN BUTTONS OVERVIEW

The map screen buttons can be reached by selecting any point on the map.

No. Function Page

Select to set the display of the trafc

information on/off. Select to mute/unmute the voice

guidance.

164

No. Function Page

Select to search for gas stations. When driving on the highway during route guidance, select to search for gas stations, restaurants or rest areas near the next three highway exits.

Select to change the map scale. 162

173

NAVIGATION SYSTEM

161

BASIC OPERATION

NOTE

MAP SCREEN OPERATION

CURRENT POSITION DISPLAY

1. Press .

2. Check that the current position map is displayed.

● After the map operation, displayed. Select

previous screen.

lWhile driving, the current position mark is xed on the screen

and the map moves.

lThe current position is automatically set as the vehicle receives

signals from the GPS (Global Positioning System). If the current position is not correct, it is automatically corrected after the vehicle receives signals from the GPS.

lAfter the battery disconnection, or on a new vehicle, the current

position may not be correct. As soon as the system receives signals from the GPS, the correct current position is displayed.

(Resume) may be

(Resume) to return to the

MAP SCALE

1. Select any point on the map.

2. Select or to change the scale of the map screen.

● The current position map can also be displayed by pressing , and then selecting (Map).

162

● Select and hold or to continue changing the scale of the map screen.

NOTE

lThe scale of the map screen can also be changed by selecting

double touch or pinch operation. (→P.40)

ORIENTATION OF THE MAP

The orientation of the map can be changed between 2D north-up, 2D heading-up and 3D.

1. Select , or .

● Each time the symbol is selected, the orientation of the map is changes.

X2D north-up

● Regardless of the direction of vehicle travel, north is always up.

● The letter(s) indicate the vehicle’s heading direction (e.g. N for north).

X2D heading-up

● The direction of vehicle travel is always up.

X3D heading-up

● The direction of vehicle travel is always up.

BASIC OPERATION

NAVIGATION SYSTEM

163

BASIC OPERATION

NOTE

MAP SCREEN INFORMATION

POI ICONS

Points of Interest such as gas stations and restaurants can be displayed on the map screen. Their location can also be set as a destination.

lThe display of POI icons can be set on/off. (→P.183)

TRAFFIC INFORMATION

Road sections affected by trafc conditions are displayed in

a different color on the map, and a small icon representing

the type of trafc condition is displayed above the road.

● The display of the trafc information can be set on/off.

(→P.161)

164

BASIC OPERATION

OTHER INFORMATION

A pop up window will be displayed according to the driving situation, etc.

XLow fuel warning

When the fuel level is low, a warning message will pop up on the screen.

● (Search): Select to search for gas stations.

(→P.173)

●

(Ignore): Select to delete the message.

XPeriodic rest notication

When you have been driving for a long time, a warning message will pop up on the screen.

● (Search): Select to search for rest areas.

●

XSevere weather warning

●

(Ignore): Select to delete the message.

(OK): Select to delete the message.

NAVIGATION SYSTEM

165

BASIC OPERATION

Save

NOTE

MEMORY POINTS

REGISTERING MEMORY POINTS

The desired point can be registered as home, work or favorite.

The registered points can be set as a destination.

REGISTERING THE CURRENT POINT

1. Select the current street name.

2. Select

(Save).

3. Select the desired item to be registered to.

4. Select

● The point is registered in the favorite places list.

(→P.173)

● The icons are displayed on the map.

lHome and work can also be registered from the route options

screen (→P.176) or the navigation settings screen (→P.183).

lFavorite can also be registered from the route calculation

screen. (→P.174)

(OK).

166

BASIC OPERATION

Edit

REGISTERING FROM THE MAP

1. Select and hold the desired point on the map or POI

icon.

2. Select .

● is changed to (yellow), and the point is registered in the favorite places list.

● Each time the symbol is selected, the symbol changes between and (yellow).

EDITING MEMORY POINTS

1. Select

(Menu).

2. Select (Find POI) or (Recent).

3. Select (Favorite).

4. Select

● : Select to edit the address. (→P.168)

● : Select to delete the item. (→P.168)

(Edit).

NAVIGATION SYSTEM

167

BASIC OPERATION

Save

NOTE

Delete

Cancel

NOTE

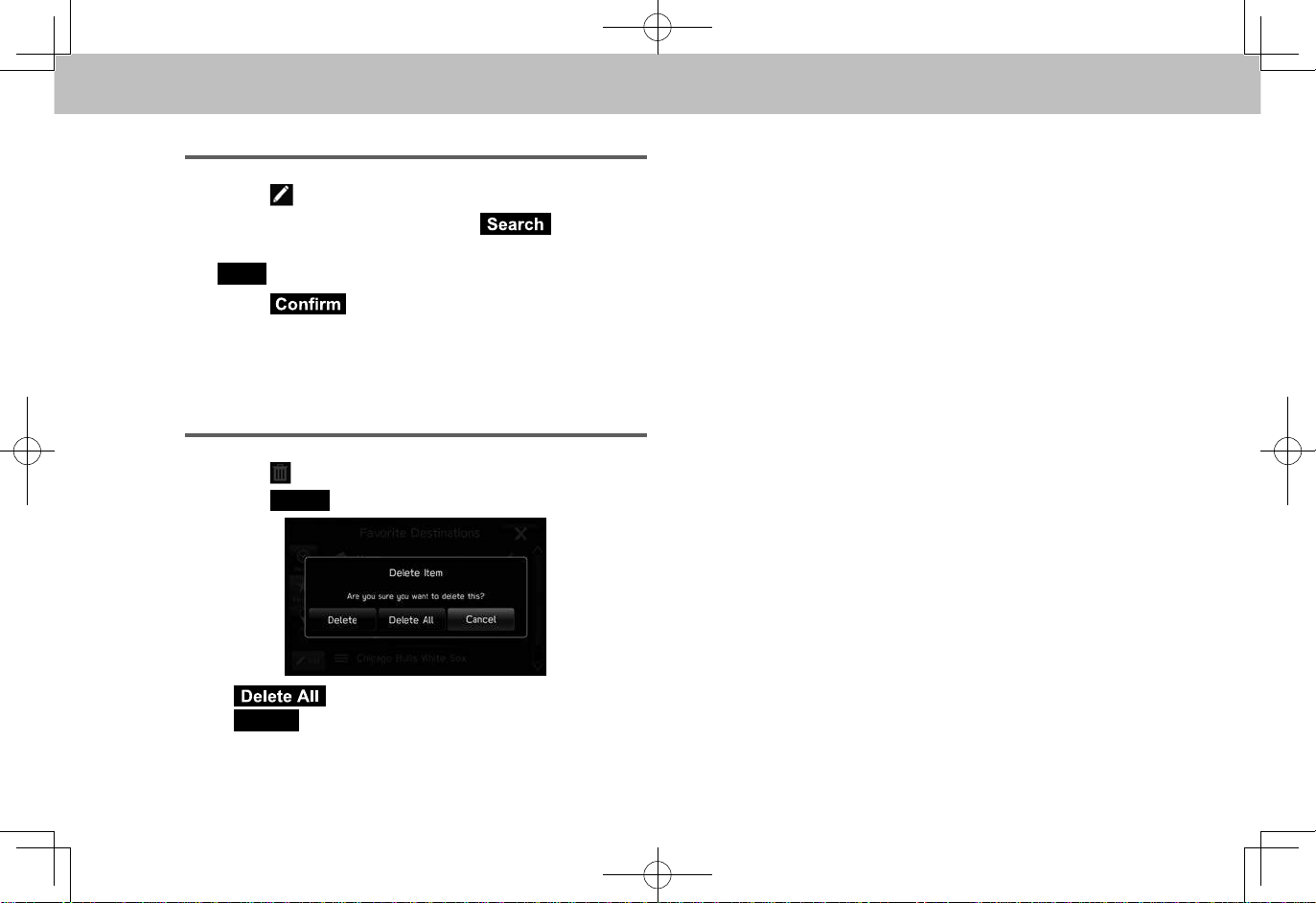

EDITING HOME OR WORK

1. Select next to “Home (Home)” or “Work (Work)”.

2. Enter an address, and then select (Search).

3. Select the desired item from the list, and then select

(Save).

4. Select (Conrm).

lHome and work can also be edited from the route options screen

(→P.176) and the navigation settings screen (→P.183).

DELETING FAVORITE

1. Select next to the desired item to be deleted.

2. Select

(Delete).

lFavorite can also be deleted from the route calculation screen.

(→P.174)

● (Delete All): Select to delete all items.

●

168

(Cancel): Select to cancel deleting.

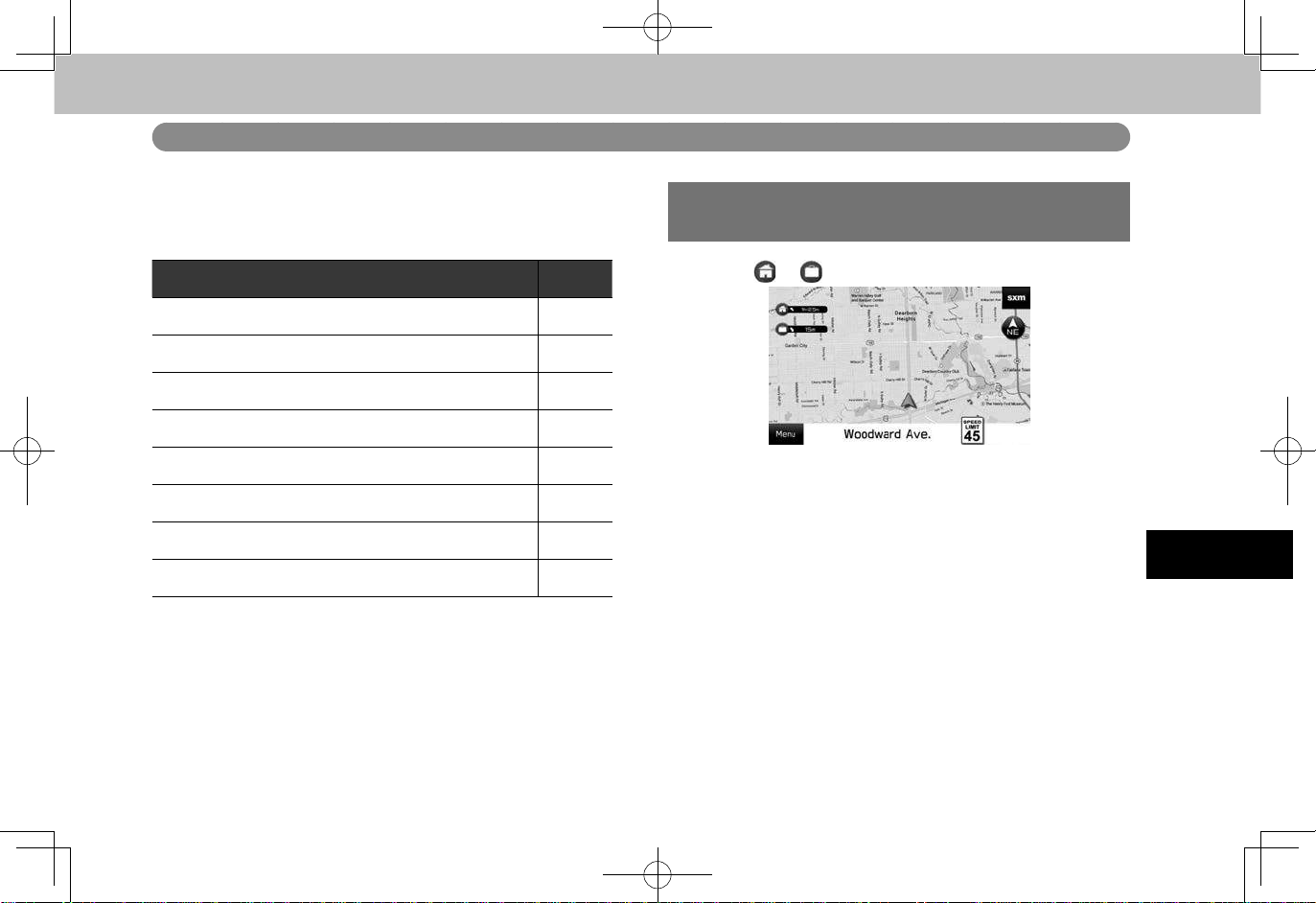

DESTINATION SEARCH

NOTE

DESTINATION SEARCH

SEARCH OPERATION

There are several ways to search for a destination.

Function Page

Setting home or work as the destination. 169 Searching on the map. 170 Searching by entering a search word. 170 Searching by POIs. 171 Searching from previously set destinations. 172 Searching from the favorite places list. 173 Searching for gas stations. 173 Searching by phonebook. 81

SETTING HOME OR WORK AS THE DESTINATION

1. Select or .

NAVIGATION SYSTEM

● The estimated travel time and direction to the destination is displayed beside the icon.

2. Check that the route calculation screen is displayed.

(→P.174)

lTo use this function, it is necessary to register the entry.

(→P.166)

lHome and work can also be set as the destination from the

favorite places list. (→P.173)

169

DESTINATION SEARCH

SEARCHING ON THE MAP

1. Select and hold the desired point on the map or select

POI icon.

2. Select (GO).

● : Select to search for a destination around the point.

3. Check that the route calculation screen is displayed.

(→P.174)

SEARCHING BY ENTERING A SEARCH WORD

The destination can be set by entering a search word, for example an address or a facility name, etc.

1. Select

(Menu).

2. Select (Search).

3. Enter the word, and then select (Search).

170

DESTINATION SEARCH

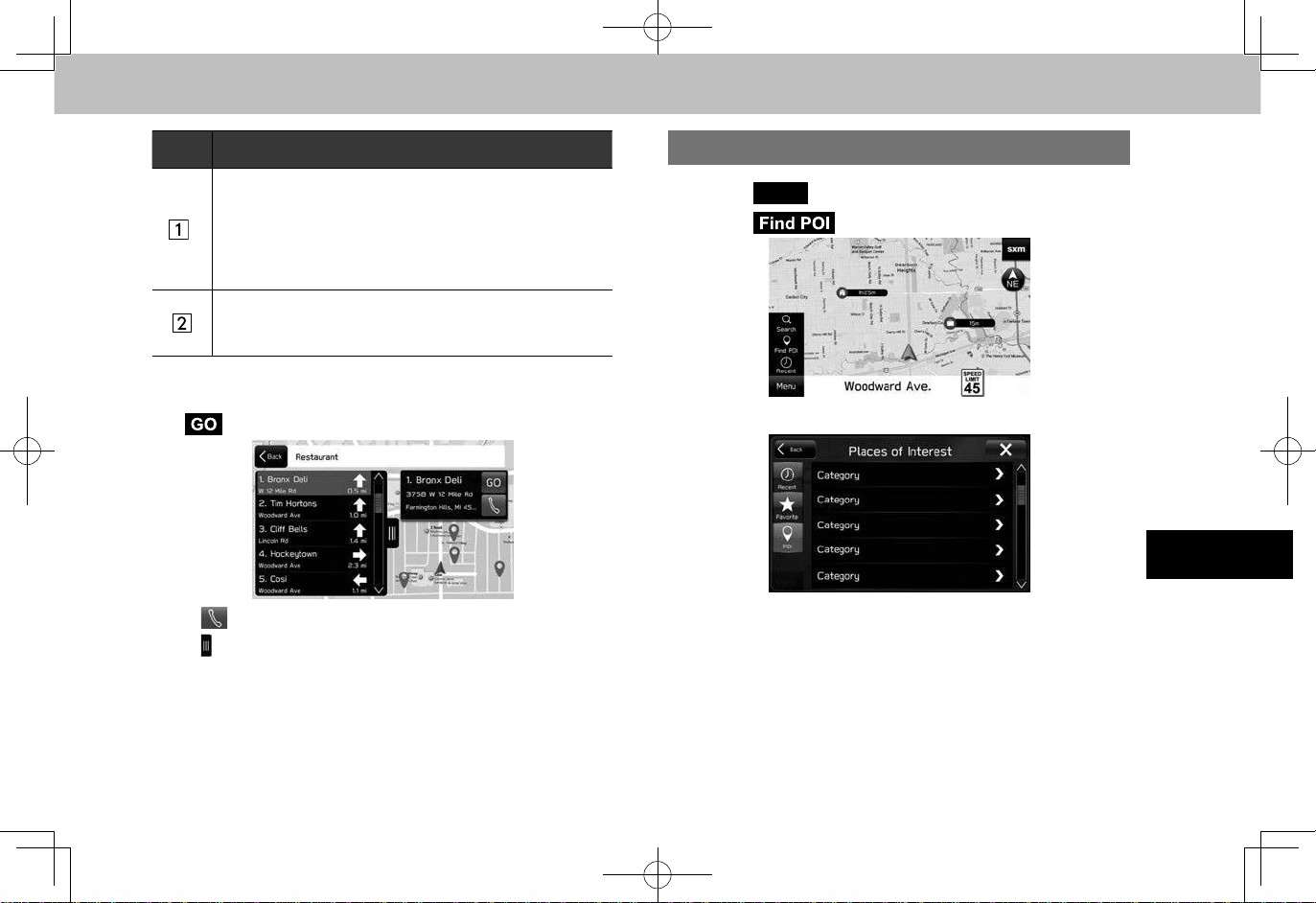

No. Function

Select to set the radius lter. Once the radius lter has

been set, only item within the radius will be searched.

Each time the button is selected, the radius lter

changes between “Along Route (Along Route)”, “Near Destination (Near Destination)” and “Near Me (Near Me)”.

Some candidate destinations are displayed based the input characters. The search result screen is displayed when an item is selected.

*: During route guidance

4. Select the desired item from the list, and then select

(GO).

● : Select to call the registered phone number.

● : Select to open/close the list.

5. Check that the route calculation screen is displayed.

(→P.174)

SEARCHING BY POIs

1. Select

(Menu).

2. Select (Find POI).

3. Select the desired category.

NAVIGATION SYSTEM

171

DESTINATION SEARCH

Edit

4. Select the desired item from the list, and then select

(GO).

● : Select to call the registered phone number.

● : Select to open/close the list.

5. Check that the route calculation screen is displayed.

(→P.174)

SEARCHING FROM PREVIOUSLY SET DESTINATIONS

1. Select

(Menu).

2. Select (Recent).

3. Select the desired item.

4. Check that the route calculation screen is displayed.

(→P.174)

DELETING THE ITEM IN THE LIST

1. Select

Places)” screen.

(Edit) on the “Recent Places (Recent

2. Select next to the desired item to be deleted.

172

DESTINATION SEARCH

Delete

Cancel

NOTE

3. Select

● (Delete All): Select to delete all items.

●

(Delete).

(Cancel): Select to cancel deleting.

SEARCHING FROM THE FAVORITE PLACES LIST

1. Select

(Menu).

2. Select (Find POI) or (Recent).

4. Select the desired item.

5. Check that the route calculation screen is displayed.

(→P.174)

lTo use this function, it is necessary to register the entry.

(→P.166)

SEARCHING FOR GAS STATIONS

1. Select any point on the map.

2. Select .

NAVIGATION SYSTEM

3. Select (Favorite).

173

DESTINATION SEARCH

● When driving on the highway during route guidance, gas stations, restaurants or rest areas near the next three highway exits can be selected.

3. Select the desired item from the list, and then select

(GO).

● : Select to call the registered phone number.

4. Check that the route calculation screen is displayed.

(→P.174)

ROUTE CALCULATION

ROUTE CALCULATION SCREEN

After searching for the destination, the route calculation screen will be displayed.

No. Information/Function

Select to display the route options screen. (→P.176)

174

Displays the route overview.

No. Information/Function

WARNING

NOTE

Select the one of the three recommended routes.

• Blue: The fastest route

• Yellow: The shortest route

• Red: An ecological route

If TravelLink is available, the weather icon name, name of the weather station closest to the destination, and the High/Low temperature for that location will be displayed. By selecting any of the weather elements, they will be applied to the “Current (Current)” TravelLink weather screen with the appropriate (Destination) weather station selected.

For details on TravelLink: →P.109

Select to start route guidance. Select to register the point in the favorite places list.

(→P.173)

lBe sure to obey trafc regulations and keep road conditions

in mind while driving. If a trafc sign on the road has been

changed, the route guidance may not indicate such changed information.

DESTINATION SEARCH

lThe route for returning may not be the same as that for going. lThe route guidance to the destination may not be the shortest

route or a route without trafc congestion.

lRoute guidance may not be available if there is no road data for

the specied location.

lIf a destination that is not located on a road is set, the vehicle will

be guided to the point on a road nearest to the destination. The road nearest to the selected point is set as the destination.

NAVIGATION SYSTEM

175

DESTINATION SEARCH

NOTE

ROUTE OPTIONS SCREEN

1. Select on the route calculation screen.

2. Select the desired item to be set.

No. Function

Select to set the avoidance criteria for the current route.

Select to set speed limit information on/off.

No. Function

Select to set the screen mode. “Auto (Auto)”: Select to change the screen to day or night mode depending on the position of the headlight switch. “Day (Day)”: Select to always display the map in day mode. “Night (Night)”: Select to always display the map in night mode.

Select to register or edit the home address.

• When home has not been registered, (Add Home) is displayed.

• For details on registering or editing the address:

→P.168

Select to register or edit the work address.

• When work has not been registered, (Add Work) is displayed.

• For details on registering or editing the address:

→P.168

lSetting the route in the above method affects the current route

only. Route option defaults can be changed from the navigation

settings screen. (→P.183)

Select to set the display of the junction view on/off.

176

ROUTE GUIDANCE

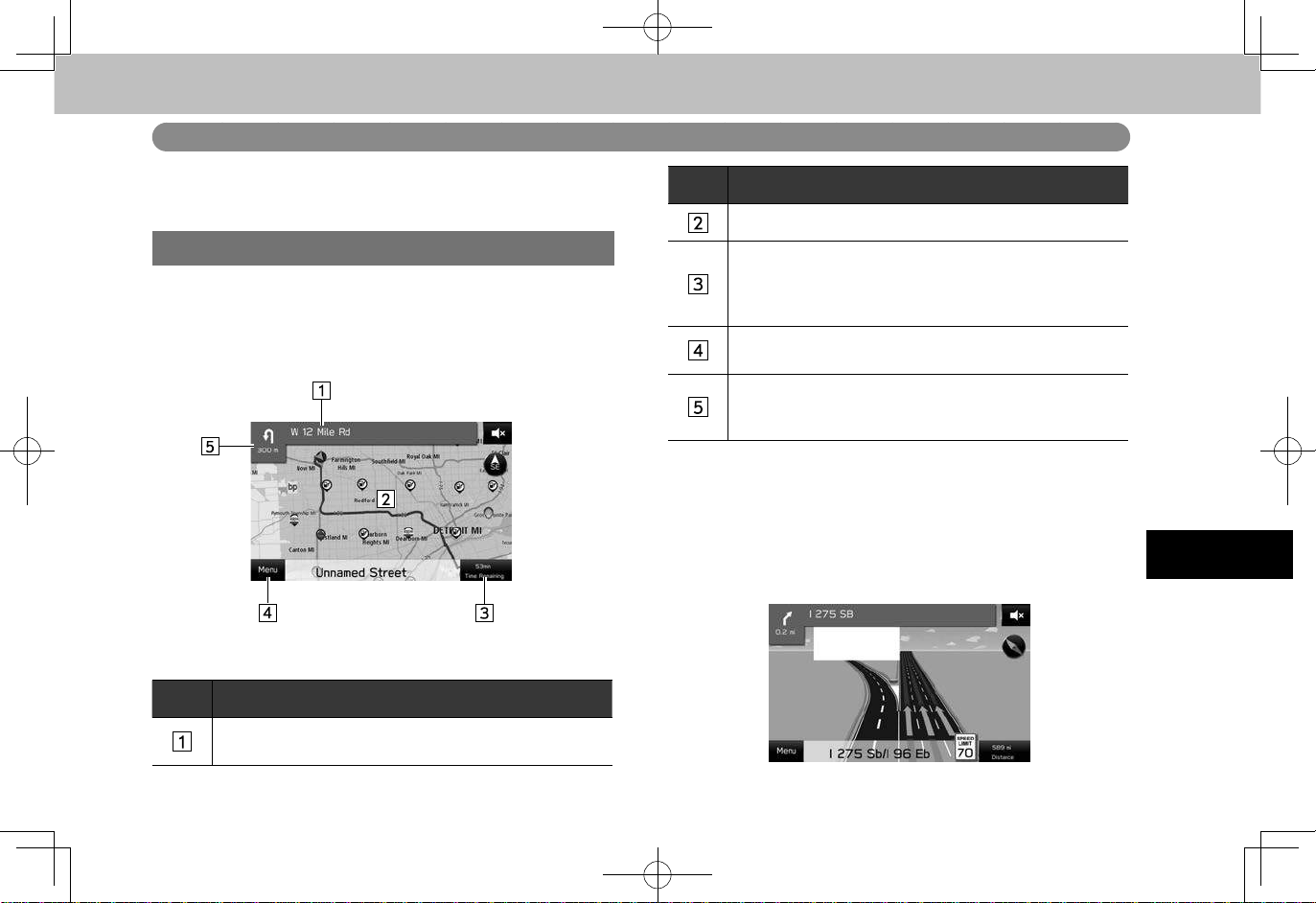

ROUTE GUIDANCE SCREEN

During the route guidance, various types of guidance screens can be displayed depending on conditions.

No. Information/Function

Displays the next street name.

Select to display the turn/itinerary list. (→P.180, 181)

No. Information/Function

Displays guidance route. Displays the distance, the estimated travel time to

the destination, or the estimated arrival time at the destination. Select information box, and then select the desired information.

Select to search for a destination or stop the route

guidance (→P.181).

Displays distance to the next turn with the arrow indicating the turn direction. Select to repeat the last navigation announcement.

XJunction screen

When approaching an expressway exit or a complicated intersection, the map switches to a 3D display if the necessary information can be displayed. An arrow indicates the lane in which you should drive. Signs are also displayed if the information is available.

NAVIGATION SYSTEM

177

ROUTE GUIDANCE

NOTE

XLane recommendation screen

When approaching a turning point, the lane recommendation will be displayed automatically.

When approaching a turning point, “Next (Next)” will be displayed automatically.

lIf the vehicle goes off the guidance route, the route is searched

again.

lFor some areas, the roads have not been completely digitized in

our database. For this reason, the route guidance may select a road that should not be traveled on.

STANDARD MAP ICON

The following table shows the most frequently displayed route events.

Icon Explanation

Turn left Turn right U-turn left

U-turn right

Keep left at the fork in the road. Keep right at the fork in the road. Turn left & sharp curve. Turn right & sharp curve. Stay in the left lane. Stay in the right lane. Go straight ahead at the intersection. Turn left at the T junction. Turn right at the T junction.

178

ROUTE GUIDANCE

WARNING

NOTE

Icon Explanation

Go left at the roundabout. Third exit (next change in direction).

Join the roundabout (the route change after the next change).

Join the expressway. Leave the expressway. Board the ferry. Disembark from the ferry. You are half way to your destination. You have arrived at your destination.

TYPICAL VOICE GUIDANCE PROMPTS

As the vehicle approaches an intersection, or point, where maneuvering the vehicle is necessary, the system’s voice guidance will provide various messages.

lBe sure to obey the trafc regulations and keep the road

condition in mind especially when you are driving on IPD roads. The route guidance may not have the updated information such as the direction of a one way street.

lTo adjust the voice guidance volume: →P.68 lVoice guidance may be made early or late. lIf the system cannot determine the current position correctly,

you may not hear voice guidance or may not see the magnied

intersection on the screen.

NAVIGATION SYSTEM

179

ROUTE GUIDANCE

Edit

Cancel

NOTE

ROUTE RELATED FUNCTIONS

CHECKING THE ROUTE

1. Select the next street name. (→P.177)

2. Select (Turn List).

3. Select the item to check the route.

EDITING ROUTE

1. Select

2. Select next to the desired item to be deleted.

(Edit) on the “Turn List (Turn List)” screen.

ADDING DESTINATIONS

1. Search for an additional destination in the same way as

a destination search.(→P.169)

2. Select (GO) on the route calculation screen.

(→P.174)

3. Select (Add Waypoint).

● (Replace Route): Select to replace the existing destination with a new one.

● destinations.

● The route will be recalculated automatically.

lThe last entered destination is added as the rst destination. The

order of destination can be changed. (→P.181)

(Cancel): Select to cancel adding

● The route will be recalculated automatically.

180

ROUTE GUIDANCE

Edit

Cancel

CHECKING THE ITINERARY

1. Select the next street name. (→P.177)

2. Select (Itinerary).

3. Select the item to check the itinerary.

REORDERING DESTINATIONS

1. Select

(Edit) on the “Itinerary (Itinerary)” screen.

2. Select next to the desired destination, and then drag

it to the desired position.

DELETING DESTINATIONS

1. Select

(Edit) on the “Itinerary (Itinerary)” screen.

2. Select next to the desired item to be deleted.

3. Select

appears.

● The route will be recalculated automatically.

STOPPING ROUTE GUIDANCE

1. Select

2. Select

(OK) when the conrmation screen

(Menu).

(Cancel).

NAVIGATION SYSTEM

● The route will be recalculated automatically.

181

ROUTE GUIDANCE

REROUTING THE ROUTE

When trafc information of the guidance route has been

received, a pop-up window will be displayed to ask if you wish to reroute.

● (Reroute): Select to calculate the new route.

●

(Ignore): Select to delete the message.

WEATHER INFORMATION

“At Destination (At Destination)” and “Along Route (Along Route)” weather information can be checked during route guidance using the TravelLink function.

For details on TravelLink: →P.109

182

SETUP

Settings

SETUP

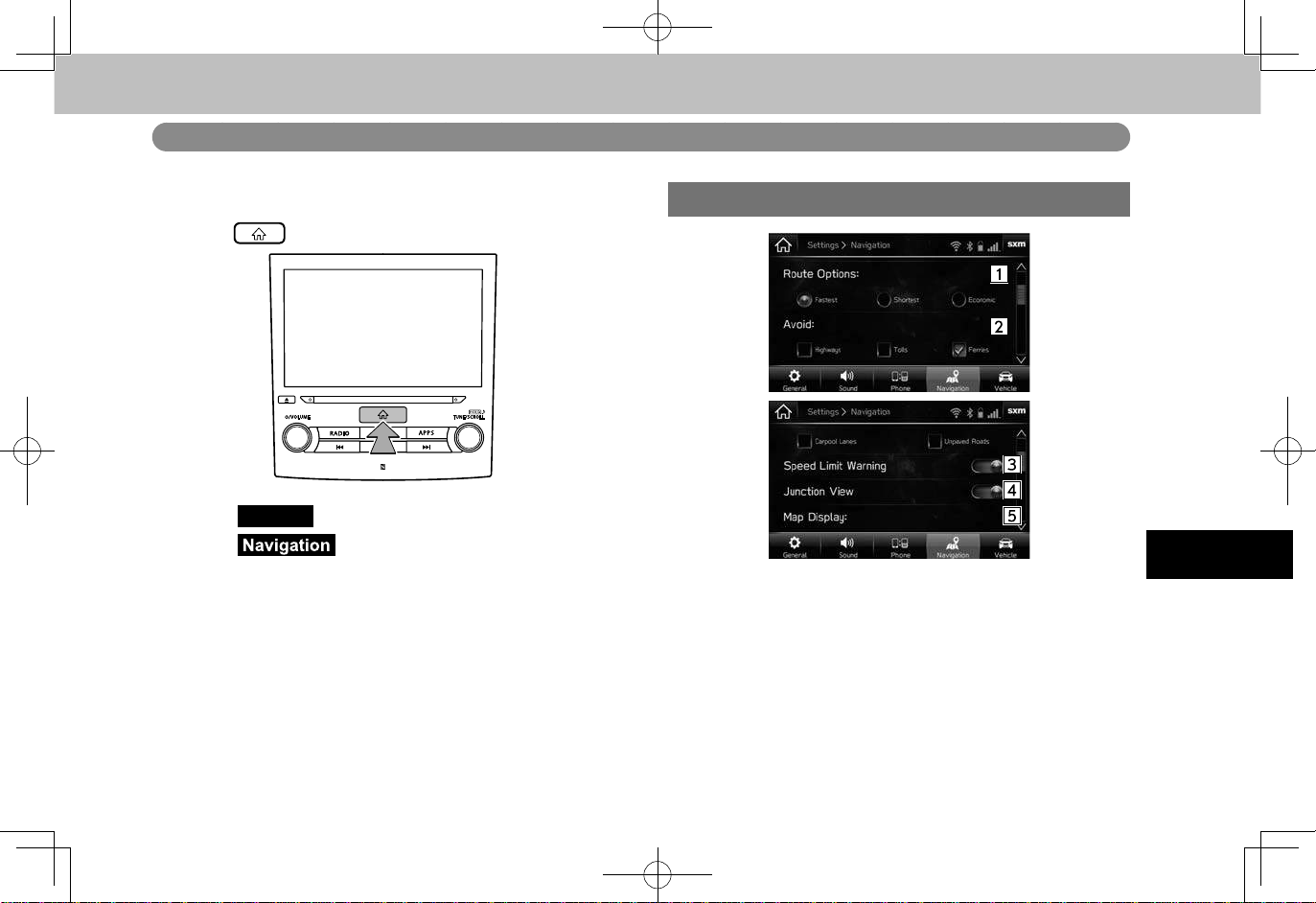

NAVIGATION SETTINGS

1. Press .

2. Select

3. Select (Navigation).

4. Select the desired item to be set.

(Settings).

NAVIGATION SETTINGS SCREEN

NAVIGATION SYSTEM

183

SETUP

No. Function

Select to set the route type. Select to set the avoidance criteria for the route

calculation. Select to set speed limit information on/off.

Select to set the display of the junction view on/off. Select to set the screen mode.

“Auto (Auto)”: Select to change the screen to day or night mode depending on the position of the headlight switch. “Day (Day)”: Select to always display the map in day mode. “Night (Night)”: Select to always display the map in night mode.

No. Function

Select to register or edit the home address.

• When home has not been registered, (Add Home) is displayed.

• For details on registering or editing the address:

→P.168

Select to register or edit the work address.

• When work has not been registered, (Add Work) is displayed.

• For details on registering or editing the address:

→P.168

Select to set the display of POI icons on/off.

184

TIPS FOR THE NAVIGATION SYSTEM

GPS (GLOBAL POSITIONING SYSTEM)

REGARDING ERRORS IN CURRENT POSITION DISPLAY

The system displays the vehicle current position based on GPS information and data from various sensors and road maps. However, when the radiowave signals from GPS satellites are weak or when signals are received from only two satellites or less, errors may occur in the position. Modifying or adjusting the system will not prevent these errors.

LIMITATIONS OF THE NAVIGATION SYSTEM

This navigation system calculates the current position using satellite signals, various vehicle signals, map data, etc. However, an accurate position may not be shown depending

on satellite conditions, road conguration, vehicle condition

or other circumstances.

The Global Positioning System (GPS) developed and operated by the U.S. Department of Defense provides an accurate current position, normally using 4 or more satellites, and in some case 3 satellites. The GPS system has a certain level of inaccuracy. While the navigation system compensates for this most of the time, occasional positioning errors of up to 300 ft. (100 m) can and should be expected. Generally, position errors will be corrected within a few seconds.

The GPS signal may be physically obstructed, leading to inaccurate vehicle position on the map screen. Tunnels, tall buildings, trucks, or even the placement of objects on the instrument panel may obstruct the GPS signals.

The GPS satellites may not send signals due to repairs or improvements being made to them.

Even when the navigation system is receiving clear GPS signals, the vehicle position may not be shown accurately or inappropriate route guidance may occur in some cases.

NAVIGATION SYSTEM

185

TIPS FOR THE NAVIGATION SYSTEM

CAUTION

lThe installation of window tinting may obstruct the GPS

signals. Most window tinting contains some metallic content that will interfere with GPS signal reception of the antenna in the instrument panel. We advise against the use of window tinting on vehicles equipped with navigation systems.

● Accurate current position may not be shown in the following cases:

• When driving on a small angled Y-shaped road.

• When driving on a winding road.

• When driving on a slippery road such as in sand,

gravel, snow, etc.

• When driving on a long straight road.

• When freeway and surface streets run in parallel.

• After moving by ferry or vehicle carrier.

• When a long route is searched during high speed

driving.

• After repeating a change of direction by going

forward and backward, or turning on a turntable in a parking lot.

• When leaving a covered parking lot or parking

garage.

• When a roof carrier is installed.

When driving with tire chains installed.

•

When the tires are worn.

• After replacing a tire or tires.

• When using tires that are smaller or larger than the

factory specications.

• When the tire pressure in any of the 4 tires is not

correct.

● Inappropriate route guidance may occur in the following cases:

• When turning at an intersection off the designated

route guidance.

• If you set more than 1 destination but skip any of

them, auto reroute will display a route returning to the destination on the previous route.

• When turning at an intersection for which there is

no route guidance.

• When passing through an intersection for which

there is no route guidance.

• During auto reroute, the route guidance may not be

available for the next turn to the right or left.

• During high speed driving, it may take a long time

for auto reroute to operate. In auto reroute, a detour route may be shown.

• After auto reroute, the route may not be changed.

• If an unnecessary U-turn is shown or announced.

186

TIPS FOR THE NAVIGATION SYSTEM

NOTE

• If a location has multiple names and the system announces 1 or more of them.

• When a route cannot be searched.

• If the route to your destination includes gravel,

unpaved roads or alleys, the route guidance may not be shown.

• Your destination point might be shown on the opposite side of the street.

• When a portion of the route has regulations prohibiting the entry of the vehicle that vary by time or season or other reasons.

• The road and map data stored in the navigation system may not be complete or may not be the latest version.

lThis navigation system uses tire turning data and is designed to

work with factory-specied tires for the vehicle. Installing tires

that are larger or smaller than the originally equipped diameter may cause inaccurate display of the current position. The tire pressure also affects the diameter of the tires, so make sure that the tire pressure of all 4 tires is correct.

MAP DATA

REGARDING ROADS AND PLACE NAME DATA

When maps are created, land surveys are conducted and information on road improvements and reopening is collected to provide the most accurate information

possible. However, modications to roads, place names and

facilities may be carried out at any time. Consequently, we cannot guarantee that map data contains no errors in road

positions, conguration and names, or in facility names.

NAVIGATION SYSTEM

187

TIPS FOR THE NAVIGATION SYSTEM

NAVIGATION DATABASE UPDATES

Navigation database can be updated using a USB memory. For details, contact your SUBARU dealer or visit

www.subaru.com.

XFree map update

1. Connect a USB memory containing the new navigation

database les.

2. Select (Install Now) to update.

3. Select

● If an error message appears, follow the guidance on the screen to try again.

XPaid map update

(OK).

1. Connect a USB memory device containing the new

navigation database les.

2. Select (Enter PIN).

3. Enter your PIN code, and then select (Install).

4. Select

● If an error message appears, follow the guidance on the screen to try again.

(OK).

188

Siri/VOICE

RECOGNITION

SYSTEM

189

Siri

NOTE

Siri

Siri is a function that allows your iPhone and iPod touch to be used without any manual operation by connecting your device to the unit.

To use Siri, connect your device via Bluetooth.

BEFORE USING Siri

This section describes the preparation required to use Siri.

● Register your iPhone or iPod touch in the unit.

(→P.54)

● Connect your iPhone or iPod touch to the unit.

(→P.57)

● Enable Siri in your iPhone or iPod touch settings. (See Apple website for details.)

● An iPhone and iPod touch data plan: If the data plan for your iPhone and iPod touch does not provide for unlimited data usage, additional charges from your carrier may apply for accessing app-based connected content via 3G, 4G, Wi-Fi, or 4G LTE wireless networks.

● Connection to the internet via 3G, 4G, Wi-Fi, or 4G LTE networks.

lAvailable operations will differ based on your iPhone and iPod

touch.

lBe careful not to exceed the data usage limits for your iPhone

and iPod touch. Doing so will result in additional data usage charges from your phone carrier.

USING Siri

STEERING SWITCH

Talk switch

● Press and hold the talk switch to start Siri.

● To cancel Siri, press and hold the talk switch.

190

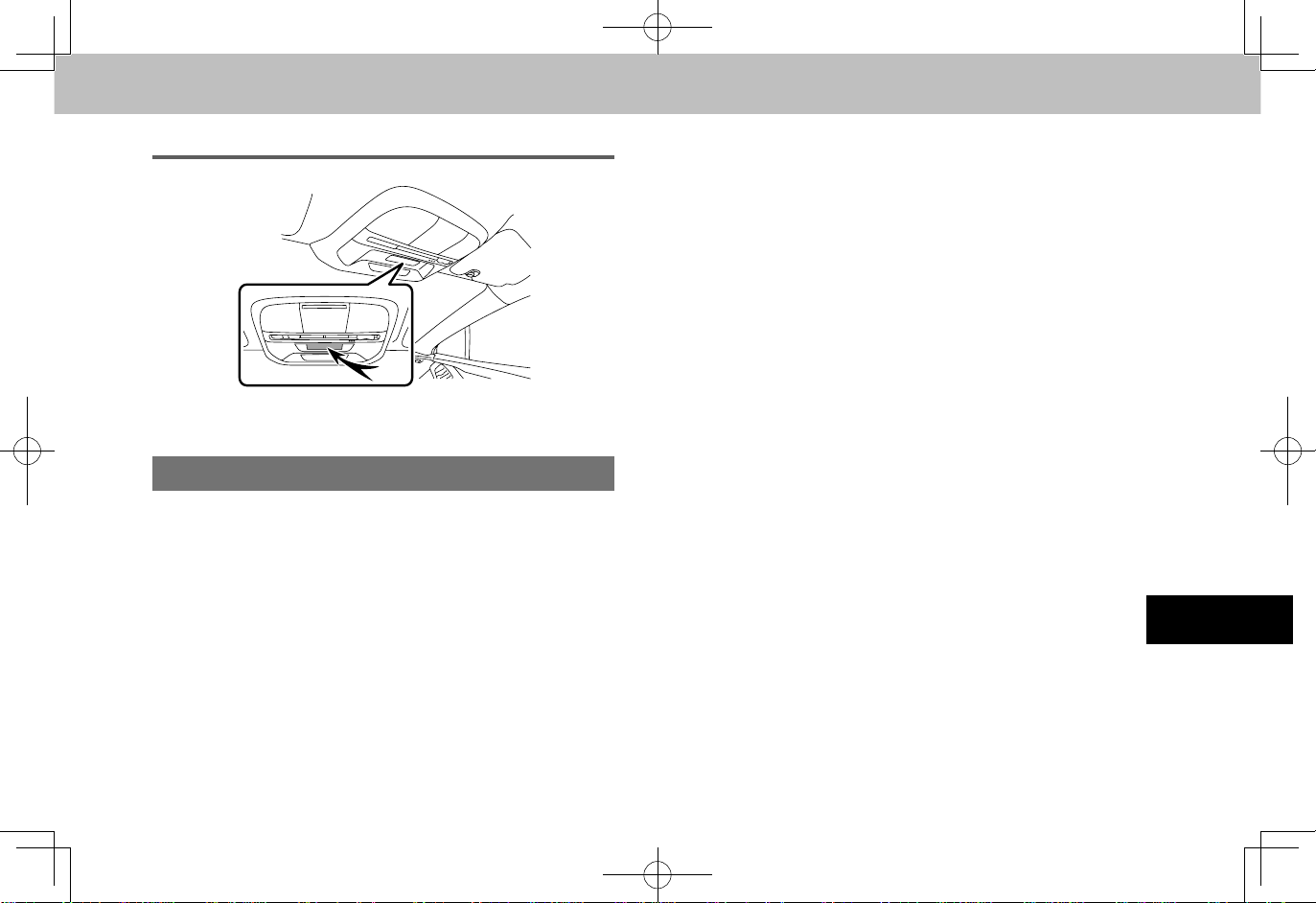

MICROPHONE

NOTE

● It is unnecessary to speak directly into the microphone when using Siri.

Siri OPERATION

1. Press and hold the talk switch.

2. Speak when you hear the beep sound.

● If required to say more, the system will notify you with the beep sound. Continue speaking.

● If the system fails to recognize what is being said, or to request a different operation, press the talk switch.

● To cancel Siri, press and hold the talk switch.

Siri

lSiri cannot be started while placing or receiving hands-free

calls with your iPhone and iPod touch (including while holding incoming calls), or while having a hands-free conversation.

lSiri cannot be used while using the system’s voice recognition

function. Start Siri after exiting the voice recognition function.

lThe system screen will display the calling screen when a hands-

free call is placed.

lUnit operation while using Siri will differ depending on your

iPhone or iPod touch.

lSiri may not recognize what is being said if:

• Spoken too quickly.

• Spoken at a low or high volume.

• Driving with a window open.

• Passengers are talking while using Siri.

• The air conditioning speed is set high.

• When air from the ventilator blows directly toward the

microphone.

lIn the following conditions, the system may not recognize what is

being said properly, and use of Siri may not be possible.

• What is being said is incorrect or unclear. Note that certain

words, accents or speech patterns may be difcult for your

iPhone or iPod touch to recognize.

• There is excessive background noise, such as wind noise.

lFunctionality offered by Siri is dependent on the iOS version,

and as such, specications may be subject to change without

prior notice.

Siri/VOICE RECOGNITION SYSTEM

191

Siri

ABOUT THE SUPPORTED DEVICES FOR Siri

This system supports the following devices.

nSupported iOS versions

● iOS6 or later (6, 7)

nSupported models

● iPhone 5

● iPhone 4s

● iPod touch (5th generation)

192

VOICE RECOGNITION SYSTEM OPERATION

NOTE

VOICE RECOGNITION SYSTEM OPERATION

VOICE RECOGNITION SYSTEM

The voice recognition system enables the navigation, audio, hands-free systems, etc. to be operated using voice commands.

Refer to the command list for samples of voice commands.

(→P.197)

USING THE VOICE RECOGNITION SYSTEM

STEERING SWITCH

Talk switch

● Press the talk switch to start the voice recognition system.

● To cancel voice recognition, press and hold the talk switch or the source switch.

MICROPHONE

● It is unnecessary to speak directly into the microphone when giving a command.

lWait for the conrmation beep before speaking a command. lVoice commands may not be recognized if:

• Spoken too quickly.

• Spoken at a low or high volume.

• Driving with a window open.

• Passengers are talking while voice commands are spoken.

• The air conditioning speed is set high.

•

When air from the ventilator blows directly toward the

microphone.

Siri/VOICE RECOGNITION SYSTEM

193

VOICE RECOGNITION SYSTEM OPERATION

NOTE

Help

NOTE

lIn the following conditions, the system may not recognize the

command properly and using voice commands may not be possible:

• The command is incorrect or unclear. Note that certain words,

accents or speech patterns may be difcult for the system to

recognize.

• There is excessive background noise, such as wind noise.

2. Say the command.

VOICE RECOGNITION SYSTEM OPERATION

1. Press the talk switch.

● After the voice recognition top screen has been displayed, speech guidance will commence.

lA caution display appears after pressing the talk switch while

an external device is connected and the stored data is being read. Be sure to start the operation after the caution display disappears.

lWhen the voice recognition mode is in audio mode, voice

guidance for the voice recognition system can be skipped by pressing the talk switch.

194

● Selecting

(Help) or saying “Help” prompts voice guidance to offer examples of commands and operation methods.

● To cancel voice recognition, select , or press and hold the talk switch.

lIf the system does not respond or the conrmation screen does

not disappear, press the talk switch and try again.

lVoice recognition prompts can be set. Some voice guidance

can be canceled by setting voice prompts to off. Use this setting when it is desirable to say a command immediately after pressing the talk switch and hearing a beep.

• Voice recognition prompts: →P.62

• Voice recognition prompts volume: →P.68

lTurn the “

the steering wheel to adjust the speech guidance volume.

lThe system’s voice recognition function cannot be used while

using Siri. Start the voice recognition function after exiting Siri.

” knob, or use the volume control switch on

VOICE RECOGNITION SYSTEM OPERATION

NOTE

VOICE COMMAND EXAMPLE: SEARCH FOR A SONG

1. Press the talk switch.

2. Say “Play song <name>”.

● A conrmation screen will be displayed showing the recognition result, and the system starts playing music.

● If multiple matching items are found, a selection screen will be displayed. Say “<number>” or select the number. The system then starts playing music.

lType A/B only: The Gracenote database is only compatible with

USB or iPod mode.

lUSB memory or iPod must be connected to enable track

searching and playback. (→P.39)

lWhen USB memory or iPod is connected, recognition data is

created so tracks can be searched using voice commands.

lRecognition data is updated under the following conditions:

• When USB memory or iPod data has changed.

• When the voice recognition language is changed. (→P.62)

lWhile the recognition data is being created or being updated, a

track search cannot be performed using a voice command.

VOICE COMMAND EXAMPLE: CALL NAME

1. Press the talk switch.

2. Say “Call <contacts> <phone types>”.

● If multiple matching items are found, a selection screen will be displayed. Say “<number>” or select the number.

lIn the same manner as it is displayed on the screen, “Call

<contacts> <phone types> (Call <contacts> <phone types>)”, after saying “Call a contact” say the name, or the name and type of phone, of a contact. For example: “Call a contact”, “John Smith” or “Call a

contact”, “Mary Davis”, “Mobile”

lThere are 3 types of phones: Home, Work and Mobile. lShort or abbreviated names in the contacts list may not be

recognized. Change names in the contacts list to full names.

lSometimes a voice recognition result conrmation screen will be

displayed. After conrming the result, say “Yes” or “No”.

lWhen the system recognizes multiple names from the contacts

list, a name candidate list will be displayed on the screen. If the

desired name is not displayed on the top of the screen, say or

select the number of the name from the candidate list (number 1,

number 2, etc.) to select a name from the candidate list.

lWhen a contact has multiple phone numbers registered in the

contacts list, a candidate list will be displayed. If the desired

phone number is not displayed on the top of the screen, say

or select the number of the desired phone number from the

candidate list (number 1, number 2, etc.) to select a phone

number from the candidate list.

Siri/VOICE RECOGNITION SYSTEM

195

Harman BE2820 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
