Harman BDS577, BDS277 User Manual

BDS 275/BDS 277/BDS 575/BDS 577
Audio/video receiver
Quick-Start Guide
FPO BDS X75
BDS
Introduction and Connections
Thank you for choosing a Harman Kardon® product!
This quick-start guide contains all the information you need to connect and set up your new BDS Blu-ray Disc™ receiver.
To conserve our natural resources, your BDS receiver does not include a printed owner’s manual. An owner’s manual containing complete information about operating all of your new Blu-ray Disc receiver’s features is available at our Web site. Go to www. harmankardon.com and download the BDS Blu-ray Disc Receiver Owners Manual.
Your BDS receiver is designed to be compatible with region management information that is encoded on most Blu-ray Disc recordings and DVD recordings. Your receiver will only play discs that contain region coding for the area where your receiver was shipped and intended for sale:
Area Where Sold Blu-ray Disc
Region Code
USA, Canada
Europe, Middle East
Korea, S.E. Asia
Mexico, Latin America
Australia, New Zeland
Russia, India
DVD Region Code
Connections
Connect the Satellite Speakers
CAUTION: Before making any connections to the BDS receiver, ensure that the receiver’s AC cord is unplugged from the receiver and the AC outlet. Making speaker connections with the receiver plugged in and turned on could damage your speakers.
Speakers and receivers have corresponding (+) and (–) connection terminals.
BDS 275/BDS 277
white left channel (+)
red right channel (+)
black (–) on both channels
BDS 575/BDS 577
white front left (+)
red front right (+)
blue surround left (+)
gray surround right (+)
green center (+)
black (–) on all channels
Most speakers use red to denote the (+) terminal and black for the (–) terminal.
Be sure to connect each speaker identically: (+) on the speaker to (+) on the receiver and (–) on the speaker to (–) on the receiver. Miswiring one or more speakers results in thin sound, weak bass and a poor stereo image.
Front Right
Speaker
Center
Speaker*
Front Left
Speaker
China
For example, BDS receivers shipped to and sold in the USA will only play Blu-ray Discs that contain region code A and DVD discs that contain region code 1.
2
BDS Receiver
(BDS 575 shown)
Surround Right
Speaker*
* Used only with BDS 575/BDS 577 receiver
IMPORTANT: Make sure the (+) and (–) bare wires do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage the receiver.
Surround Left
Speaker*
BDS
Connections
Connect the Subwoofer
IMPORTANT: Do not plug the subwoofer’s AC power cord into an AC outlet at this time.
Powered
Subwoofer
Mono RCA
Audio Cable
(not supplied)
Connect the Radio Antenna
Connect to Your Home Network
Cat. 5/5E
Connecting Your HDMI® Source Devices
HDMI-Equipped
Source Device
To HDMI Output
To
Internet
Network
Modem
English
FM Antenna
Connect a TV or Video Display
TV
®
HDMI
Cable
(supplied)
NOTE: If your TV supports the HDMI Audio Return Channel and you have HDMI devices (such as an Internet connection) already connected directly to your TV, you can feed their sound to the BDS receiver via the HDMI Monitor Out connector’s Audio Return Channel, and they will not require additional connections to the receiver.
HDMI Cable (not supplied)
3
BDS
Connections

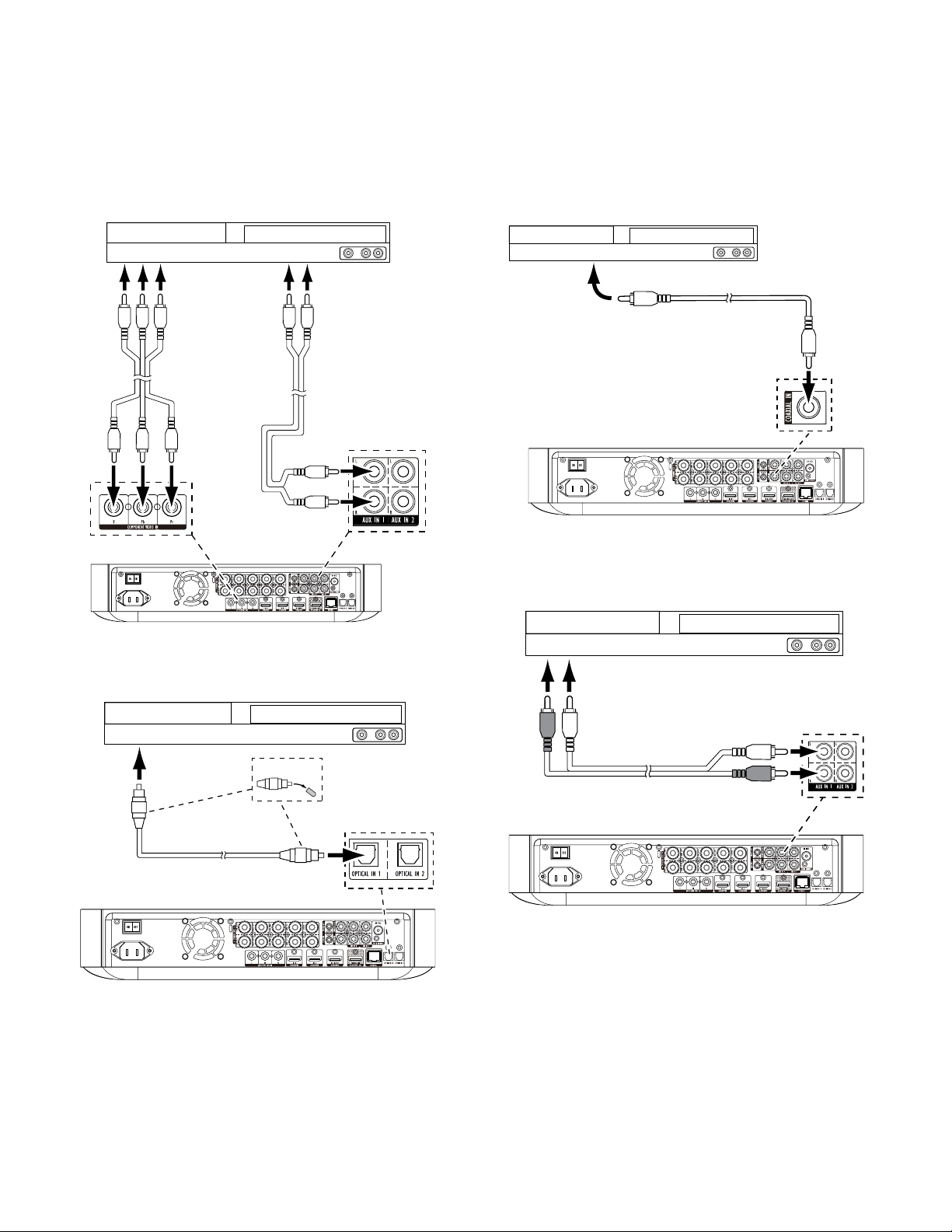

Connecting Your Component Video Source Device
Component Video-Equipped
Source Device*
To Component Video Outputs
Component Video Cable (not supplied)
Stereo Audio Cable (not supplied)
To Analog Audio Outputs
Connecting Your Coaxial Digital Audio Source Device
Coaxial Digital-Equipped
Source Device
To Coaxial Digital Audio Output
Coaxial Digital Audio
Cable (not supplied)
Connecting Your Analog Audio Source Devices
Analog
Source Device
Connecting Your Optical Digital Audio Source Devices
Optical Digital-Equipped
Source Device
To Optical Digital Audio Output
Optical Digital Audio Cable (not supplied)
Remove Caps
To Stereo Analog Audio Output
Stereo Audio
Cable (not supplied)
4
BDS
Connections and Receiver Setup
Connect the AC Power
Receiver
Set Up the Receiver
Install the Batteries in the Remote Control
110V – 240V,
50Hz/60Hz
Turn On the Receiver
Set the receiver’s Main Power switch in the “On” position.
Receiver
Main Power
Switch
To set up your BDS receiver you will use the remote to navigate through the on-screen menus and to make selections from them.
POWERTV
EJECT
DISC
RADIO
POP-UP
TOP MENU
HDMI 1 HDMI 2 HDMI 3
AUX
CH CH
APPLE
COMP
USB
DISPLAY
VOL
VOL
SURROUND
English
1. 2. 3.
Home
Button
Button
OK
PROGRAM
OK
BOOKMARK THUMBNAIL
ZOOM
Back Button
Cursor Controls
• Use the Cursor Up/Down buttons to navigate through the menu list. When an item is highlighted, a blue border will appear around it.
• To select a highlighted item, press the OK button. The screen will change depending on your selection.
• To return to the previous screen, press the Back button.
5
BDS
Setup Wizard and Configuring the Receiver
Setup Wizard
When you turn your BDS receiver on for the first time, the on-screen menu will display the Setup Wizard.
Setup Wizard
Welcome to the Harman Kardon BDS Setup Wizard.
Some simple information is needed to ensure you get the best experience from your product.
You can adjust these settings later in addition to making changes to more advanced settings by selecting ‘Settings’ from the Home Menu.
Before you can use your BDS system you need to set the language and make a few basic settings so that the BDS receiver’s video output will work properly with your TV.
Press the OK button, and the Wizard’s language screen will appear.
Setup Wizard
Please select which language you would like the BDS menus to appear in.
Previous
After setting the language you want the on-screen menus to appear in, press the OK button, and the Wizard’s TV resolution screen will appear.
Setup Wizard
Page 1/5
OK
Page 2/5
OK
Page 3/5
Next
Next
Configure the Receiver for Your Speakers
Before you use your BDS receiver you need to configure it to work with your particular speaker system. The BDS receiver’s EZSet/EQ™ system uses the supplied EzSet/EQ microphone to perform this important step automatically. Before beginning, be sure you have correctly connected your speakers to the BDS receiver. IMPORTANT: Press the
remote’s “Disc” input button before performing the EZ Set/EQ procedure. The EZ Set/EQ procedure is only available when the Disc input is selected.
1. Plug the supplied EzSet/EQ microphone into the BDS receiver’s Headphone connector.
Headphone Connector
EzSet/EQ Microphone
2. Place the microphone at ear height in your main listening position.
3. Press the remote control’s Home button. The receiver’s Home Menu screen will appear on the TV.
Home Menu
Picasa
FM Radio
HDMI input
Component input
Playlist
Settings
10 / 10
Type: Settings
OPTIONS
Option
(supplied)
Exit
HOME
Please select the highest resolution that your TV supports. If you are unsure, select ‘Auto’. Upon making a selection the screen will be changed to the chosen resolution. You will be presented with the resolution or ‘Cancel’ to return to the prevouus resolution. If the screen remains blank, please wait 15 seconds without pressing anything and the system will automatically return to the previous resolution.
Previous
Auto
480p/576p
720p
1080i
1080p
OK
Next
After selecting your TV’s highest resolution, press the OK button, and the Wizard’s aspect­ratio screen will appear. NOTE: If you are unsure of your display’s highest resolution, select “Auto” and the BDS receiver will select the optimal resolution for you.
Setup Wizard
Please select the best aspect ratio that fits your TV.
Please see the owner’s manual for additional explanation.
Previous
Page 4/5
16 : 9 Full
16 : 9 Normal
4 : 3 Pan & Scan
4 : 3 Letterbox
Next
OK
After selecting the aspect ratio that best fits your TV, press the OK button to save your settings and then press it again to exit the Setup Wizard.
6
4. Use the Cursor and OK buttons to highlight and select Settings. The General Settings menu will appear.
SYSTEM SETTINGS
System
Language
Playback
Parental Control
Network
Select to adjust general settings
5. Use the right Cursor button to select Audio Settings, then use the down Cursor button to select Speaker Settings. The Speaker Settings screen will appear.
Audio Settings
Tone Controls
Audio Output
Speaker Settings
Select to adjust speaker settings
EzSet/EQ
Manual Configuration
2.0
2.0
BDS
Configuring the Receiver, and Using the Receiver
6. Press the right Cursor button to select EzSet/EQ, then use the cursor buttons to select the configuration of your speaker system.
Audio Settings
Tone Controls
Audio Output
Speaker Settings
The EzSet/EQ automatic setup can calibrate the BDS system and configure the loudspeakers
EzSet/EQ
Manual Configuration
Off
2.0
2.1
3.1
5.1
7. Press the OK button, then press it again to select Continue in the EzSet/EQ (Automatic Setup) box that appears.
Audio Settings
EzSet/EQ (Automatic Setup)
Please plug the microphone into the system and then place it at ear level at your desired listening position. If a Subwoofer is connected, set the level control (on the Sub) to half.
Continue Cancel
The EzSet/EQ automatic setup can calibrate the BDS system and configure the loudspeakers parameters automatically to get the best sound performance.
Off
2.0
2.1
3.1
5.1
8. Remain silent while the test noise plays through the speakers. As the test noise circulates among the speakers the screen will show which speaker is being tested.
Audio Settings
Tone Controls
Audio Output
Speaker Settings
L
LS RS
C
R
SUB
Using the BDS Receiver
Press the remote’s Home button to display the Home Menu screen:
Home Menu
DLNA Search
Bluetooth
Leanback
Pandora
Picasa
FM Radio
01 / 10
The available sources are listed on the left. If a disc has been inserted into the receiver’s built-in disc slot, it will appear on the list as “Blu-ray Disc,” “DVD Video”, “CDDA” or “Data Disc” (audio or data CD-R disc). If you have inserted a USB device into the receiver’s USB port, it will appear on the list as “USB.”
NOTE: Digital and analog audio sources connected to the receiver’s rear-panel optical digital, coaxial digital and analog inputs will not appear on the list but can be selected using the remote’s “Aux” Source Selector button (see below).
To select a source from the list, use the Cursor Up/Down buttons to highlight the desired source, then press the OK button to select it.
You can also select some sources directly by pressing their Source Selector buttons on the remote.
POWERTV
DISC
HDMI 1 HDMI 2 HDMI 3
USB
AUX
RADIO
POP-UP
VOL
CH CH
VOL
TOP MENU
EJECT
DISPLAY
SURROUND
APPLE
COMP
Type: Dina Search
OPTIONS
Option
HOME
Source Selector Buttons
Exit
English
Left (0.0dB, 0.0m/0 ft) Right (0.0dB, 0.0m/0 ft)
9. When the testing process is completed, the “Testing...” message on the screen will change to “All test done!”
10. Press the Back button to exit the EzSet/EQ test procedure.
NOTE: If the test fails, the “Testing...” message on the screen will change to “Test failed, please make sure the speaker is connected correctly and room is silent, then retest.” Press the Back button, make sure all speakers are correctly connected and perform the test again from Step 6. Make sure that the room remains silent during the test.
OK
PROGRAM
BOOKMARK THUMBNAIL
ZOOM
For complete information about using all of your BDS system’s features, you can download the
Owners Manual
BDS 275/BDS 277/BDS 575/BDS 577 Blu-ray Disc™ Receiver
from www.harmankardon.com.
