Page 1
TRI-BALL MOUNT WITH HOOK
Model
96711
SET UP INSTRUCTIONS
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
Page 2
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number in
the back of the manual near the assembly diagram (or month and year of purchase if
product has no number). Keep this manual and the receipt in a safe and dry place for
future reference.
GENERAL SAFETY RULES
WARNING! Read all instructions
Failure to follow all instructions listed below may result in electric shock,
re, and/or serious injury.
SAVE THESE INSTRUCTIONS
1.
2.
4.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
a.
Keep children and bystanders away while installing this product.
b.
Distractions can cause you to lose control.
Personal safety
Stay alert, watch what you are doing and use common sense when using
a.
the Tri-Ball Mount. Do not use it while you are tired or under the inuence of
drugs, alcohol or medication. A moment of inattention while operating tools
can result in serious personal injury.
Use safety equipment. Always wear eye protection during installation.
b.
Tool use and care
Do not force the Tri-Ball Mount. Use the correct size mounting Ball for your
a.
application. The correct product will do the job better and safer at the rate for
which it was designed.
Store idle tools out of the reach of children and do not allow persons
b.
unfamiliar with the tool or these instructions to operate it. Tools are
dangerous in the hands of untrained users.
Maintain the Tri-Ball Mount. Check for misalignment or breakage of parts and
c.
any other condition that may affect the tool’s operation. If damaged, have
it repaired before use. Many accidents are caused by poorly maintained
equipment.
Use the tool in accordance with these instructions and in the manner intended
d.
for the particular type of equipment, taking into account the working conditions
and the work to be performed. Use of the tool for operations different from
those intended could result in a hazardous situation.
Page 2SKU 96711 For technical questions, please call 1-800-444-3353.
Page 3
SPECIFIC SAFETY RULES
1.
2.
3.
4.
5.
Maintain labels and nameplates on the tool. These carry important safety
information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
This product is not a toy. Keep it out of reach of children.
The Hook has no safety latch. If a load bounces or the pull on the connection
is not constant, the load may be disconnected. Only use the Hook to pull even,
stable loads on at, level ground.
Be aware of dynamic loading! Suddenly starting or jerking against load may
briey create excess load causing product failure.
The warnings, precautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
SPECIFICATIONS
Fits 2” Square Receivers
2-5/16” Diameter Ball: 10,000 Pounds
Maximum Gross Trailer
Weight Capacity
Hitch Pin Holes Two 5/8” Diameter Holes
2” Diameter Ball: 5,000 Pounds
1-7/8” Diameter Ball: 3,500 Pounds
Hook: 7,500 Pounds
UNPACKING
When unpacking, check to make sure that the item is intact and undamaged. If any
parts are missing or broken, please call Harbor Freight Tools at the number shown on the
cover of this manual as soon as possible.
SET UP INSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein
before set up or use of this product.
Note: For additional information regarding the parts listed in the following pages, refer
to the Assembly Diagram near the end of this manual.
Page 3SKU 96711 For technical questions, please call 1-800-444-3353.
Page 4
Mounting
1.
The Tri-Ball with Hook Hitch can be attached four different ways, depending on
the intended use. Each different size of Ball is rated to handle a different load
capacity. The Hook is used to pull a rope or chain. Attach the Hitch to the Box-
End Receiver or Box Hitch (not provided) on the vehicle with the Ball or Hook to
be utilized facing upwards (see Figure A).
2.
3.
Caution: Before towing, be sure that the connection between the hitch and the load is
To attach the Tri-Ball Hitch to a Box-End Receiver/Box Hitch, insert the shank of
the Tri-Ball Hitch into the Box-End Receiver/Box Hitch (see Figure A).
Align the side holes located in the shank of the Tri-Ball Hitch and the Box-
End Receiver/Box Hitch. Then, insert the 5/8” grade 5 steel Receiver Pin (not
included) all the way through the holes, as shown in Figure B and C. Next,
attach an “R” pin (not included) to the open end of the receiver pin.
properly secured and locked in place. If the wrong size ball is used for towing,
severe personal injury, property damage, or death may result; consult the manual
for the appropriate ball size and connector to be used.
Page 4SKU 96711 For technical questions, please call 1-800-444-3353.
Page 5
MAINTENANCE AND SERVICING
WARNINGWARNING
injury. Do not use damaged equipment.
Cleaning, maintenance, and lubrication
Damaged equipment can fail, causing serious personal
1.
2.
BEFORE EACH USE, inspect the general condition of the tool. Check for
loose screws, misalignment or binding of moving parts, cracked or broken parts,
damaged welds and any other condition that may affect its safe operation.
AFTER USE, clean external surfaces of the tool with clean, moist cloth.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.

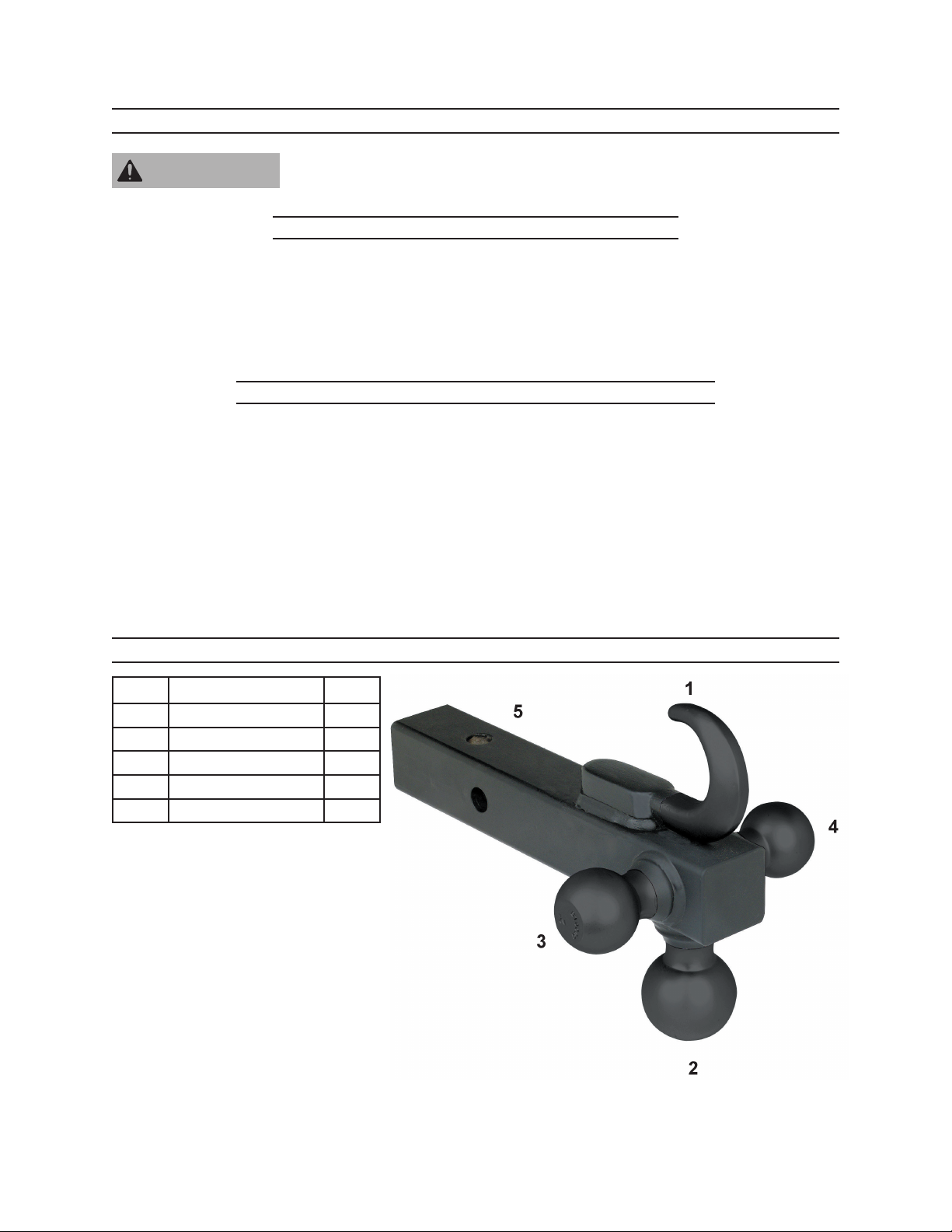

PARTS LIST & ASSEMBLY DIAGRAM
Part Description Qty
1 Hook 1
2 2-5/16” Ball 1
3 2” Ball 1
4 1-7/8” Ball 1
5 Trailer Connection 1
Page 5SKU 96711 For technical questions, please call 1-800-444-3353.
Page 6
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of 90 days from the date
of purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity,
improper installation, normal wear and tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation
of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection veries the defect, we will either
repair or replace the product at our election or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning
the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: There are no replacement parts available for this product.
Page 6SKU 96711 For technical questions, please call 1-800-444-3353.
