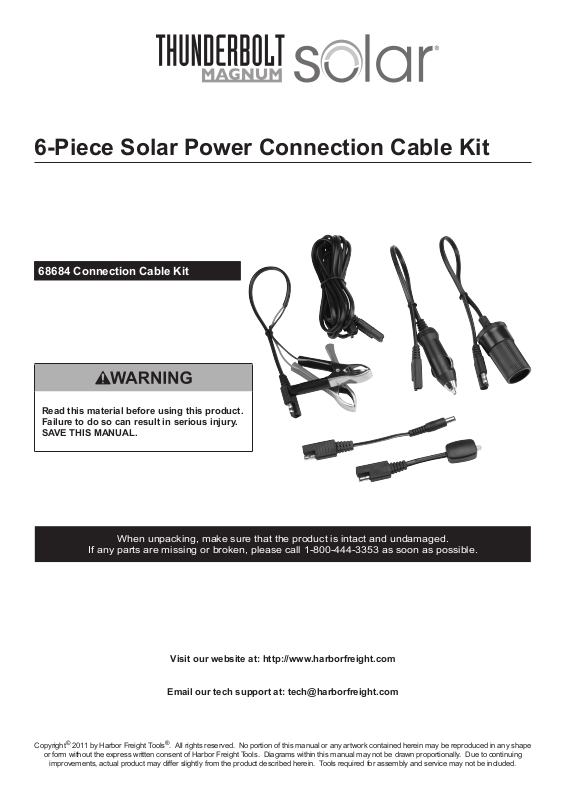

6-Piece Solar Power Connection Cable Kit
68684 Connection Cable Kit
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
Email our tech support at: tech@harborfreight.com
Copyright© 2011 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling, and all other
information provided with this product:
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
DANGER indicates a hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
Safety Precautions
1. Wear ANSI-approved safety goggles and heavyduty work gloves during installation. Do not
wear jewelry or metal watches when working
near solar panels, wiring or batteries.
2. Keep installation area clean and well lit.
3. Install out of reach of children.
4. Keep bystanders out of the area during installation.
5. Do not install when tired or when under
the inuence of drugs or medication.
6. Use in 12 VDC systems only. Do not use to make
connections exceeding 300 volts or 4 amps.
SAVE THESE
INSTRUCTIONS.
Operation
CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices
not related to personal injury.
CAUTION, without the safety alert symbol, is used to
address practices not related to personal injury.
WARNING Read all safety warnings and
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/
or serious injury.
Save all warnings and instructions for
future reference. The warnings, precautions,
and instructions discussed in this instruction
manual cannot cover all possible conditions and
situations that may occur. It must be understood
by the operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the operator.
IMPORTANT! Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the beginning of
this manual including all text under subheadings
therein before set up or use of this product:
Note: For additional information regarding
the parts listed in the following pages, refer to
the Parts List near the end of this manual.
Making Connections
1. When using the Battery Clamp (1), the Red (positive)
clamp should be connected to the positive battery
terminal and the Black (negative) clamp should
be connected to the negative battery terminal.
2. Please note that “+” stands for positive pole and
“-” stands for the negative terminal. WARNING!
Follow indicated polarity for all connections and
verify all connections are secure before use.
3. When disconnecting Battery Clamp, disconnect
the positive connection before disconnecting the
negative connection. WARNING! Do not disconnect
battery before disconnecting solar panel.
4. The Dual Extension Connector (2) can be used in
case the lead wire of your Solar Panel or product is
not long enough. Connect the Extension to the lead
wire and the solar product. NOTE: A longer lead
wire may reduce the amount of electricity coming
from the Solar Panel to the item being charged.
5. The Lighter Plugs (3,4) and 12V Adapter (5)
can be used to connect the solar products
to various charge controller terminals.
6. The Charge Indicator (6) is used to determine if
the solar charger/solar power kit is functioning
Page 2 For technical questions, please call 1-800-444-3353. SKU 68684
