Item 69728 / 69729
Page 2
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Safety ......................................................... 2
Setup .......................................................... 6
Specications ............................................. 6
Operation .................................................... 9
Maintenance .............................................. 15
Parts List and Diagram .............................. 21
Warranty .................................................... 23
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS
WARNING – When using tools, basic precautions should always be followed, including the following:
Set up Precautions
1. Gasoline fuel and fumes are ammable,
and potentially explosive. Use proper fuel
storage and handling procedures. Do not store
fuel or other ammable materials nearby.
2. Have multiple ABC class re
extinguishers nearby.
3. Operation of this equipment may create sparks
that can start res around dry vegetation.
A spark arrestor may be required. The operator
should contact local re agencies for laws or
regulations relating to re prevention requirements.
4. Set up and use only on a at, level,
well-ventilated surface.
5. All connections and conduits from the
Generator to the load must only be installed
by trained and licensed electricians, and
in compliance with all relevant local, state,
and federal electrical codes and standards,
and other regulations where applicable.
6. Connections for standby power to a building
electrical system must be made by a qualied
electrician. The connection must isolate the
generator power from utility power, and must comply
with all applicable laws and electrical codes.
7. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and dust
mask/respirator during set up.
Page 3
Item 69728 / 69729
Page 3
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
8. Use only lubricants and fuel
recommended in this manual.
9. Improper connections to a building electrical
system can allow electrical current from the
generator to backfeed into the utility lines. Such
backfeed may electrocute utility company workers
or others who contact the lines during a power
outage, and the generator may explode, burn, or
cause res when utility power is restored. Consult
the utility company and a qualied electrician if
intending to use the generator for back up power.
10. Do not operate the Generator before grounding.
The Generator must be earth-grounded
in accordance with all relevant electrical
codes and standards before operation.
Operating Precautions
1. CARBON MONOXIDE HAZARD
Using a generator indoors CAN KILL
YOU IN MINUTES.
Generator exhaust contains carbon
monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and far away from windows,
doors, and vents.
2. Never use a generator indoors, including in
garages, basements, crawl spaces and sheds.
Opening doors and windows or using fans will NOT
prevent carbon monoxide build up in the home.
3. When using generators, keep them outdoors
and far away from open doors, windows,
and vents to avoid toxic levels of carbon
monoxide from building up indoors.
4. If you start to feel sick, dizzy, or weak while
using a generator, get to fresh air right away.
The carbon monoxide from generators can
quickly lead to full incapacitation and death.
5. Keep children away from the equipment,
especially while it is operating.
6. Keep all spectators at least six feet
from the Engine during operation.
7. Fire Hazard! Do not ll gas tank while engine
is running. Do not operate if gasoline has been
spilled. Clean spilled gasoline before starting engine.
Do not operate near pilot light or open ame.
8. Do not touch engine during use. Let engine
cool down before service or storage.
9. Never store fuel or other ammable
materials near the engine.
10. If the plugged in product operates abnormally
or unusually slow, immediately stop using the
generator as a power source. Always read and
adhere to the instruction manual of the product
to be powered, to make sure that it can be safely
and efciently powered by a portable generator.
11. Before connecting an appliance or power
cord to the generator: Make sure that it is in
good working order. Faulty appliances or power
cords can create a potential for electrical shock.
12. Do not exceed the maximum power rating of
the generator. Make sure that the total electrical
rating of the all of the tools or appliances plugged
into the generator at the same time does not
exceed that of the generator. Check that the startup
surge will not be beyond the limit of the Generator.
Power levels between rated and maximum
may be used for no more than 30 minutes.
13. Avoid substantially overloading which will
trip the circuit breaker. Exceeding the time
limit for maximum power operation or slightly
overloading the generator may not switch the
circuit breaker or circuit protector OFF, but will
shorten the service life of the generator.
14. Do not attempt to connect or disconnect
load connections while standing in
water, or on wet or soggy ground.
15. Do not touch electrically energized parts of
the Generator and interconnecting cables
or conductors with any part of the body, or
with any non-insulated conductive object.
Set up Precautions (cont.)
Page 4
Item 69728 / 69729
Page 4
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
16. Connect the Generator only to a load or
electrical system (120 volt or 240 volt) that is
compatible with the electrical characteristics
and rated capacities of the Generator.
17. Insulate all connections and disconnected wires.
18. Guard against electric shock. Prevent
body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerators.
19. Only use a suitable means of transport and
lifting devices with sufcient weight bearing
capacity when transporting the generator.
20. Secure the Generator on transport vehicles to
prevent the tool from rolling, slipping, and tilting.
21. Industrial applications must
follow OSHA requirements.
22. Do not leave the Generator unattended when it is
running. Turn off the Generator (and remove safety
keys, if available) before leaving the work area.
23. The Generator engine can produce high
noise levels. Prolonged exposure to noise levels
above 85 dBA is hazardous to hearing. Always
wear ear protection when operating or working
around the gas engine while it is operating.
24. Wear ANSI-approved safety glasses and
hearing protection during use.
25. People with pacemakers should consult their
physician(s) before use. Electromagnetic
elds in close proximity to a heart pacemaker
could cause pacemaker interference or
pacemaker failure. Caution is necessary when
near the engine’s magneto or recoil starter.
26. Use only accessories that are recommended
by Harbor Freight Tools for your model.
Accessories that may be suitable for one
piece of equipment may become hazardous
when used on another piece of equipment.
27. Do not operate in explosive atmospheres,
such as in the presence of ammable
liquids, gases, or dust. Gasoline-powered
engines may ignite the dust or fumes.
28. Keep grounded conductive objects, such as
tools, away from exposed, live electrical parts
and connections to avoid sparking or arcing.
These events could ignite fumes or vapors.
29. Stay alert, watch what you are doing
and use common sense when operating
this piece of equipment. Do not use this
piece of equipment while tired or under the
inuence of drugs, alcohol or medication.
30. Dress properly. Do not wear loose clothing or
jewelry. Keep hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
31. Parts, especially exhaust system components,
get very hot during use. Stay clear of hot parts.
32. Do not cover the generator or its
engine during operation.
33. Keep the generator, its engine, and
surrounding area clean at all times.
34. Use the generator, accessories, etc., in
accordance with these instructions and in
the manner intended for the particular type of
equipment, taking into account the working
conditions and the work to be performed. Use
of the equipment for operations different from those
intended could result in a hazardous situation.
35. Do not operate the generator with known
leaks in the engine’s fuel system.
36. This product contains or, when used,
produces a chemical known to the State of
California to cause cancer and birth defects
or other reproductive harm. (California
Health & Safety Code § 25249.5, et seq.)
37. When spills of fuel or oil occur, they must
be cleaned up immediately. Dispose of uids
and cleaning materials as per any local, state, or
federal codes and regulations. Store oil rags in
a bottom-ventilated, covered, metal container.
38. Keep hands and feet away from moving parts. Do
not reach over or across generator while operating.
39. Before use, check for misalignment or binding
of moving parts, breakage of parts, and any
other condition that may affect the generator’s
operation. If damaged, have the generator
serviced before using. Many accidents are
caused by poorly maintained equipment.
40. Use the correct generator for the
application. Do not modify the generator or
its engine, and do not use the generator for
a purpose for which it is not intended.
Operating Precautions (cont.)
Page 5
Item 69728 / 69729
Page 5
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Service Precautions
1. Before service, maintenance, or cleaning:
a. Unplug all devices from the generator.
b. Turn the engine switch to its “OFF” position.
c. Allow the engine to completely cool.
d. Then, remove the spark plug
cap from the spark plug.
2. Keep all safety guards in place and in
proper working order. Safety guards include
mufer, air cleaner, mechanical guards,
and heat shields, among other guards.
3. Keep all electrical equipment clean and
dry. Replace any wiring where the insulation is
cracked, cut, abraded, or otherwise degraded.
Replace terminals that are worn, discolored, or
corroded. Keep terminals clean and tight.
4. Do not alter or adjust any part of the
equipment or its engine that is sealed by the
manufacturer or distributor. Only a qualied
service technician may adjust parts that may
increase or decrease governed engine speed.
5. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and dust
mask/respirator during service.
6. Maintain labels and nameplates on
the equipment. These carry important
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
7. Have the equipment serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the
equipment is maintained. Do not attempt any service
or maintenance procedures not explained in this
manual or any procedures that you are uncertain
about your ability to perform safely or correctly.
8. Store equipment out of the reach of children.
9. Follow scheduled engine and
equipment maintenance.
Refueling:
1. Do not smoke, or allow sparks, ames,
or other sources of ignition around the
equipment, especially when refuelling.
2. Do not rell the fuel tank while the
engine is running or hot.
3. TO PREVENT FUEL LEAKAGE AND FIRE
HAZARD, Do not overll with fuel. Fill with
fuel according to the Fuel Level information
below the Specication chart for your model.
4. Do not ll fuel tank to the top. Leave a little
room for the fuel to expand as needed.
5. Refuel in a well-ventilated area only.
6. Wipe up any spilled fuel and allow excess
to evaporate before starting engine. To
prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
SAVE THESE
INSTRUCTIONS.
Page 6
Item 69728 / 69729
Page 6
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Functional Description
Specications
Generator
Rated Output
120/240V~, 60Hz
3,200 Watts (4,000 max)
Phase Single
Electrical Receptacle
Two 3-Prong, duplex NEMA #5-15 120V
One 4-Prong, NEMA #L14-30 twistlock 120V/240V
One DC Outlet 12VDC
Engine
Displacement 212cc
Engine Type Horizontal Single Cylinder 4 stroke OHV
Cooling System Forced air cooled
Fuel
Type 87+ octane unleaded gasoline
Capacity 4 Gallons (15L)
Engine Oil
Type SAE
10W-30 above 32° F
5W-30 at 32° F or below
Capacity .6 Quart (.6L)
Run Time @ 50% load 10 hr.
Spark Plug Torch® F6TC or equivalent / 0.7-0.8mm gap
Operational Volume 70 dB
Available accessories Wheel kit (sold separately)
Item 69728 - The emission control system for this Generator’s Engine is warranted for standards set by the U.S.
Environmental Protection Agency and by the California Air Resources Board (also known as CARB). For warranty
information, refer to the last pages of this manual.
Item 69729 - The emission control system for this Generator’s Engine is warranted for standards set by the U.S.
Environmental Protection Agency. For warranty information, refer to the last pages of this manual.
Components and Controls
Fuel Cap
Frame
Starter
Handle
DC Circuit Breaker
Fuel Valve
Power Switch
AC Circuit Breaker
Choke
Low Oil Indicator
AC Receptacles
Air Filter
DC Receptacle
Ground Terminal
Page 7
Item 69728 / 69729
Page 7
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Components and Controls (cont.)
The following are descriptions of the controls
on the power panel. Your generator has
sockets to power your products with circuit
breakers to protect the voltage ow.
1.
I
O
Engine Switch: Used to start and stop the Engine.
2. AC Receptacles: The Generator contains several
AC Receptacles to power tools and equipment.
a.
3-Prong, duplex
120 volt AC Receptacle
(NEMA #5-15)
b.
4-Prong, twistlock
120/240 volt AC Receptacle
(NEMA #L14-30)
WARNING! Connect tools and equipment
only to the AC Receptacle that is compatible with
the electrical characteristics and rated capacities
of the tools and equipment being used.
3.
ON
OFF
Circuit Breakers: The circuit breaker protects the
Generator from overloading. The rating of the breaker
and the load it protects are marked near the breaker.
Should any of the Circuit Breakers trip, the Generator
will stop the electricity output. If this happens, unplug
all loads from the Generator. Allow the Generator to
cool down. Then, press the tripped Circuit Breaker,
restart the Engine, and re-attach loads.
4.
DC Outlet Receptacle: 12 VDC outlet receptacle set
provides a power source for 12 volt DC items.
5.
Grounding Terminal: Prior to each use, set
up the ground wire (not included) connection
to the Grounding Terminal to properly ground
the Generator. See Set up instructions
to properly ground the Generator.
Page 8
Item 69728 / 69729
Page 8
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Initial Tool Set Up/Assembly
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY:
Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that can start res around dry vegetation.
A spark arrestor may be required. The operator should contact local re agencies
for laws or regulations relating to re prevention requirements.
High Altitude Operation Above 3000 feet
WARNING! TO PREVENT SERIOUS INJURY FROM FIRE:
Follow instructions in a well-ventilated area away from ignition sources.
If the engine is hot from use, shut the engine off and wait for it to cool before proceeding. Do not smoke.
NOTICE Warranty void if necessary adjustments are not made for high altitude use.
At high altitudes, the engine’s carburetor, governor, and any other parts that control the fuel-air ratio will need
to be adjusted by a qualied mechanic to allow efcient high-altitude use and to prevent damage to the engine
and any other devices used with this product. The fuel system on this engine may be inuenced by operation
at higher altitudes. Proper operation can be ensured by installing an altitude kit at altitudes higher than 3000 ft.
above sea level. At elevations above 8000 ft, the engine may experience decreased performance, even with
the proper main jet. Operating this engine without the proper altitude kit installed may increase the engine’s
emissions and decrease fuel economy and performance. The kit should be installed by a qualied mechanic.
1. Turn off the engine.
2. Close the fuel valve.
3. Place a bowl under the fuel cup to catch any spilled fuel.
CAUTION! Carburetor bowl may have gas in it which will leak upon removing the bolt.
4. Unthread the bolt holding the fuel cup.
5. Remove the bolt, Bolt Seal, fuel cup, Fuel Cup Seal and Main Jet from the body of the carburetor assembly.
A carburetor screwdriver (not included) is needed to remove and install the Main Jet.
Note: The mixing tube is held in place by the Main Jet and
might fall out when it is removed. If it falls out, replace it in
the same orientation before replacing the Main Jet.
6. Replace the Main Jet with the replacement Main Jet
needed for your altitude range (part 1a or 2a).
Note: The Fuel Cup Seal and Bolt Seal may be damaged during
removal and should be replaced with the new ones from the kit.
7. Replace the Fuel Cup Seal (4a), fuel cup,
Bolt Seal (3a), and bolt. Tighten in place.
CAUTION: Do not cross thread bolt when tightening.
Finger tighten rst and then use a wrench to
make sure the bolt is properly threaded.
8. Wipe up any spilled fuel and allow excess to evaporate
before starting engine. To prevent FIRE, do not start the
engine while the smell of fuel hangs in the air.
High Altitude Kit Parts List - A
Part Description Qty
1a Main Jet 3000-6000 ft. 1
2a Main Jet 6000-8000 ft. 1
3a Bolt Seal 1
4a Fuel Cup Seal 1
Carburetor
Assembly
Main Jet
Fuel Cup Seal
Mixing Tube
(might remain
inside carburetor)
Fuel Cup
Bolt Seal
Bolt
Page 9
Item 69728 / 69729
Page 9
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
Generator Pre-Start Checks
Inspect engine and equipment, looking for damaged, loose, and missing parts before set up and starting.
If any problems are found, do not use equipment until xed properly.
Checking and Filling Engine Oil
CAUTION! Your Warranty is VOID if the engine’s
crankcase is not properly lled with oil before each
use.
Before each use, check the oil level. Do not run the
engine with low or no engine oil.
Running the engine with no or low engine oil
WILL permanently damage the engine.
1. Make sure the engine is stopped and is level.
2. Close the Fuel Valve.
3. Clean the top of the Dipstick and the area around it.
Remove the Dipstick by threading it counterclockwise,
and wipe it off with a clean lint free rag.
4.
Full level
Full level
Reinsert the Dipstick without threading it in and
remove it to check the oil level. The oil level
should be up to the full level as shown above.
5. If the oil level is at or below the low mark add the
appropriate type of oil until the oil level is at the
proper level. SAE 10W-30 oil is recommended
for general use. (The SAE Viscosity Grade chart
on page 16 in the Service section shows other
viscosities to use in different average temperatures.)
6. Thread the dipstick back in clockwise.
CAUTION! Do not run the engine with too little oil.
The engine will be permanently damaged.
Grounding
The Generator must be properly grounded before use. Have the unit grounded
by a qualied electrician if you are not qualied to do so.
To ground the Generator, connect a #6 AWG grounding wire (not included) from the
Grounding Terminal on the Control Panel to a grounding rod (not included) that has been
driven at least 24 inches deep into the earth. The grounding rod must be an earth-driven
copper or brass rod (electrode) which can adequately ground the Generator.
CAUTION: This generator is not intended to power sensitive electronic equipment without the addition of an
appropriate line conditioner and surge protector (both not included). Sensitive electronic equipment includes,
but is not limited to, audio/video equipment, some television sets, computers, and printers. Sensitive
electronic equipment should be operated on approved inverter type generators or pure sine wave generators.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Note: Wheel Kit, item # 68531 (sold separately) can be used with this generator.
Page 10
Item 69728 / 69729
Page 10
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Checking and Filling Fuel
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Fill the fuel tank in a well-ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before adding fuel.
Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. If needed, ll the Fuel Tank to about 1 inch
under the ll neck of the Fuel Tank with 87
octane or higher unleaded gasoline.
Note: Do not use gasoline containing more than
10% ethanol (E10). Do not use E85 ethanol.
Note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. It can
cause particles to enter the carburetor, effecting
engine performance and/or causing damage.
4. Then, replace the Fuel Cap.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
Using the Generator
Before Starting the Generator Engine
Before starting the engine:
a. Follow the Set Up Instructions
to prepare the Generator.
b. Unplug all loads from the Generator.
c. Inspect the Generator and engine.
d. Fill the engine with the proper amount
and type of both fuel and oil.
Basic Generator Use Procedure
See following pages for specic instructions
1. Check that the generator can handle the
wattage needed to power your products.
2. Start the Engine, and allow the Engine and
Generator to run and warm up for ve minutes
after starting with no electrical load.
3. Plug in products.
4. When nished using the Generator,
disconnect all electrical loads.
Note: Do not allow generator to run
out of fuel with loads attached.
5. Turn off the Engine.
6. Allow the Generator and its Engine to
completely cool. Then store the unit in a
clean, dry, safe location out of reach of
children and other unauthorized people.
IMPORTANT: After starting the engine, allow it to run at no load for ve minutes
with no load after each start-up so that the engine can stabilize.
7. Break-in Period:
a. Breaking-in the engine will help to ensure proper equipment and engine operation.
b. The operational break-in period will last about 3 hours of use. During this period:
• Do not apply a heavy load to the equipment.
c. The maintenance break-in period will last about 20 hours of use. After this period:
• Change the engine oil.
Under normal operating conditions subsequent maintenance follows
the schedule explained in the SERVICE section.
Generator Pre-Start Checks (cont.)
Page 11
Item 69728 / 69729
Page 11
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Starting the Engine
1. To start a cold engine, move the Choke to the
CHOKE position.
To restart a warm engine, leave the Choke in the
RUN position.
2. Open the Fuel Valve.
3. Turn the Engine Switch to ON.
4. Grip the Starter Handle of the Engine loosely and pull it
slowly several times to allow the gasoline to ow into the
Engine’s carburetor. Then pull the Starter Handle gently
until resistance is felt. Allow Cable to retract fully and
then pull it quickly. Repeat until the engine starts.
Note: Do not let the Starter Handle snap back against
the engine. Hold it as it recoils so it doesn’t hit
the engine.
5. Allow the Engine to run for several seconds.
Then, if the Choke lever is in the CHOKE position,
move the Choke Lever very slowly to its RUN position.
NOTE: Moving the Choke Lever too fast could stall the engine.
IMPORTANT: Allow the engine to run at no load for ve minutes with no
load after each start-up so that the engine can stabilize.
ON
I
O
Page 12
Item 69728 / 69729
Page 12
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Connecting Electrical Loads
Familiarize yourself with the engine controls, power panel and how to start the engine before using the generator.
Calculate the wattage of the products you will use with the generator and verify that the generator can handle the
total load.
WARNING! Connect only properly wired plugs to the generator.
A plug that is spliced onto a different cord may be hazardous.
Only a qualied electrician should wire a plug onto a cord.
CAUTION Never exceed the rated capacity for this Generator,
as serious damage to the Generator and/or appliances, tools, and
equipment could result from an overload. Starting and running
wattage requirements should always be calculated when matching this
Generator’s wattage capacity to the appliance, tool, or equipment.
Use the DC12V Receptacle to power 12VDC equipment.
WARNING! Do not charge batteries without a proper charge controller. Do not overcharge.
a. Connect the items that require the most wattage rst.
b. Connect “inductive” load appliances, tools, and equipment next.
Inductive loads are small hand tools and some small appliances.
c. Connect any lights next.
d. Voltage sensitive appliances, tools, and equipment should be the last to be connected to the Generator.
Plug voltage sensitive items such as TV’s, DVD players, microwaves, and cordless telephones into a UL®
Listed voltage surge protector (not included). Then, connect the surge protector into the Generator.
IMPORTANT! Failure to connect and operate appliances, tools, and equipment in this sequence can cause
damage to the Generator, appliances, tools, and equipment and will void the Warranty of this Generator.
NOTE: If Engine speed or voltage uctuates with a load below the Generator’s rated watts, move the Engine Choke
Lever to the “HALF-CHOKE” position.
Evenly distributed
over outlets:
IF ANY CIRCUIT BREAKERS TRIP CHECK THE FOLLOWING:
1. Make sure that ALL circuit breakers are reset
before starting the generator again.
2. Adjust the plugs so the loads are
shared across outlet circuits.
To achieve rated output from the generator,
distribute loads over outlets.
t
1,
000
400
)
200
6
00)
600
To
ta
l R
u
n
n
in
g
Watts
(m
u
s
t b
e
le
s
s
th
a
n
3
,2
0
0
)
2,200
s
t
A
d
d
itio
n
a
l S
ta
rt-u
p
Wa
tts
600
u
p
Wa
tts
n
e
e
d
e
d
fo
r a
ll lo
a
d
s
(m
u
s
t b
e
le
s
s
th
a
n
4
,0
0
0
)
2,800
Page 13
Item 69728 / 69729
Page 13
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Before using the Generator, check that the products
you want to plug into the unit are below the rated and
maximum wattage ratings of the Generator. Use the
Wattage Calculation Table below, and the watts listed
on your products, to help calculate multiple
wattage totals.
To use the table:
1. Add up the Running Watts for all items you
would like to use at any given time
2. Make sure that this total is under the
3200 rated wattage of the generator.
3. Find the single highest starting watts for
the selected items and add to the total.
4. Make sure that this total is under the 4000
maximum rated wattage of the generator.
5. Plug in and turn on products from largest wattage
to smallest.
Example
Equipment
Running
Watts
Microwave (1,000 +200) 1,000
Television (400 + 0) 400
Box Fan (200 + 200) 200
Hand Drill (600 + 600) 600
Total Running Watts
(must be less than 3,200)
2,200
Largest Additional Start-up Watts
600
Total Startup Watts needed for all loads
(must be less than 4,000)
2,800
Wattage Calculation Table
Equipment
Running
Watts
Total Running Watts
(must be less than 3,200)
Largest Additional Start-up Watts
Total Startup Watts needed for all loads
(must be less than 4,000)
A generator that is rated more than the minimum
required peak watts will last much longer than a
generator that only supplies the exact watts needed.
To Calculate Wattage
Volts and amps can be multiplied together to get watts (volts x
amps = watts).
To Calculate Additional Start-Up Watts
(If They Are Not Listed)
For equipment with a motor: Use the rated watts
amount as an estimate of additional Start-up Watts.
For most lights or heaters:
there are no additional start-up watts.
Calculating Total Wattage of Devices Used with the Generator
JOB SITE
Device
Running
Watts
Additional
Start-up
Watts
Air Compressor - 1/2 HP 1000 1000
Table Saw - 10" 1700 1300
Belt Sander - 3" 1200 1200
Hand Drill - 1/2" 600 600
Halogen Work Light 1000 0
Recipricating Saw 900 900
HOUSEHOLD
Device
Running
Watts
Additional
Start-up
Watts
Computer w/ Monitor 800 0
Electric Clothes Dryer 5500 500
Electric Range 2100 0
Electric Water Heater 2000 0
Light Bulb - 100 watts 100 0
Microwave - 1000 watts 1000 200
Sump Pump - 1/2 HP 1000 1100
Television 400 0
Washing Machine 1100 1100
Well Pump - 1/2 HP 1000 1000
RECREATION
Device
Running
Watts
Additional
Start-up
Watts
AM/FM Radio 100 0
Electric Grill 1700 0
Inator Pump 50 100
CD/DVD Player 100 0
Box Fan - 20" 200 200
Coffee Maker 600 0
LAWN & GARDEN
Device
Running
Watts
Additional
Start-up
Watts
Hedge Trimmer 400 400
Pressure Washer 1200 1200
Lawn Mower 1200 1200
Edger 1000 1000
HEATING & COOLING
Device
Running
Watts
Additional
Start-up
Watts
Central AC - 10,000 BTU 1500 1500
Furnace Fan - 1/2 HP 900 1400
Space Heater 1800 0
Window AC - 10,000 BTU 1200 600
EMERGENCY
Device
Running
Watts
Additional
Start-up
Watts
Refrigerator/Freezer 700 1500
Radio 100 0
Wattage Estimate Charts
Note: Wattages listed below are estimates for that
type of equipment only. Check nameplate wattages
on all loads before connecting to Generator.
Page 14
Item 69728 / 69729
Page 14
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP

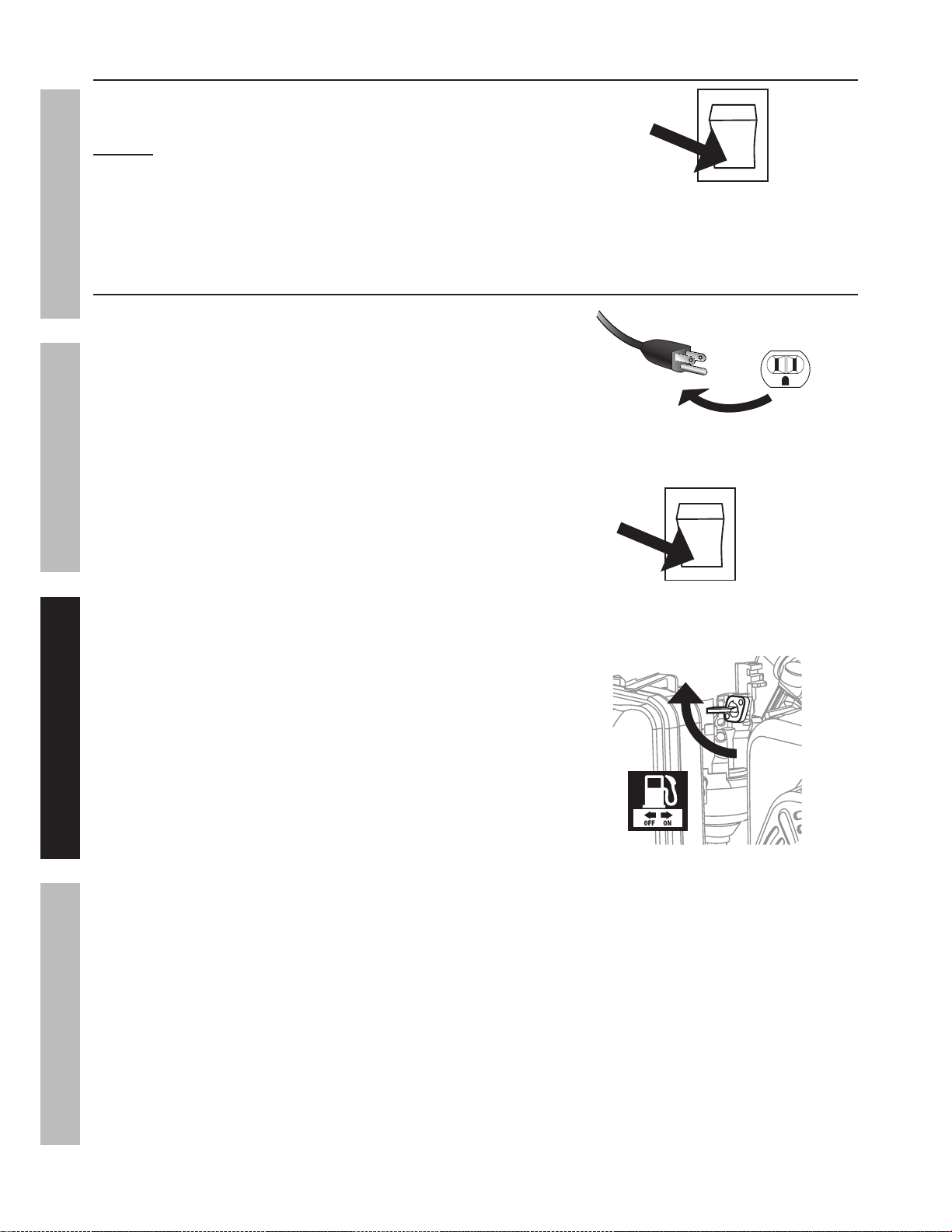

Stopping the Engine in an Emergency
To stop the engine in an emergency,
turn the Engine Switch off.
NOTICE: Generator shut-off under load may damage
the generator and attached equipment.
Stopping the Engine Under Normal Conditions
1. Before turning off the Engine,
turn off all electrical loads,
then unplug them.
2. Turn the Engine Switch off.
3. Close the Fuel Valve.
OFF
I
O
OFF
I
O
Page 15
Item 69728 / 69729
Page 15
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
User-Maintenance Instructions
Procedures not specically explained in this manual must
be performed only by a qualied technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect
the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE:
Do not use damaged equipment. If abnormal noise, vibration, or excess
smoking occurs, have the problem corrected before further use.
Follow all service instructions in this manual. The engine may fail critically if not serviced properly.
Many maintenance procedures, including any not detailed in this manual, will need to be
performed by a qualied technician for safety. If you have any doubts about your ability to safely
service the equipment or engine, have a qualied technician service the equipment instead.
Cleaning, Maintenance, and Lubrication
Note: This maintenance schedule is intended solely as a general guide. If performance decreases or if
equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment
will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.
Note: The following procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the engine and equipment.
Procedure
Before
Each Use
Monthly or
every 20
hr. of use
Every 3 mo. or
50 hr. of use
Every 6 mo. or
100 hr. of use
Yearly or
every 300
hr. of use
Every
2 Years
Brush off outside of engine
Check engine oil level
Check air cleaner
Check deposit cup
Change engine oil
Clean/replace air cleaner
*
Check and clean spark plug
1. Check/adjust idle speed
2. Check/adjust valve clearance
3. Clean fuel tank, strainer
and carburetor
4. Clean carbon build-up from
combustion chamber
** **
Replace fuel line if necessary
**
*Service more frequently when used in dusty areas.
**These items should be serviced by a qualied technician.
Page 16
Item 69728 / 69729
Page 16
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Checking and Filling Fuel
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Fill the fuel tank in a well-ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before adding fuel.
Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. If needed, ll the Fuel Tank with 87
octane or higher unleaded gasoline.
Note: Do not use gasoline containing more than
10% ethanol (E10). Do not use E85 ethanol.
Note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. It can
cause particles to enter the carburetor, effecting
engine performance and/or causing damage.
4. Replace the Fuel Cap.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting engine. To
prevent FIRE, do not start the engine while
the smell of fuel hangs in the air.

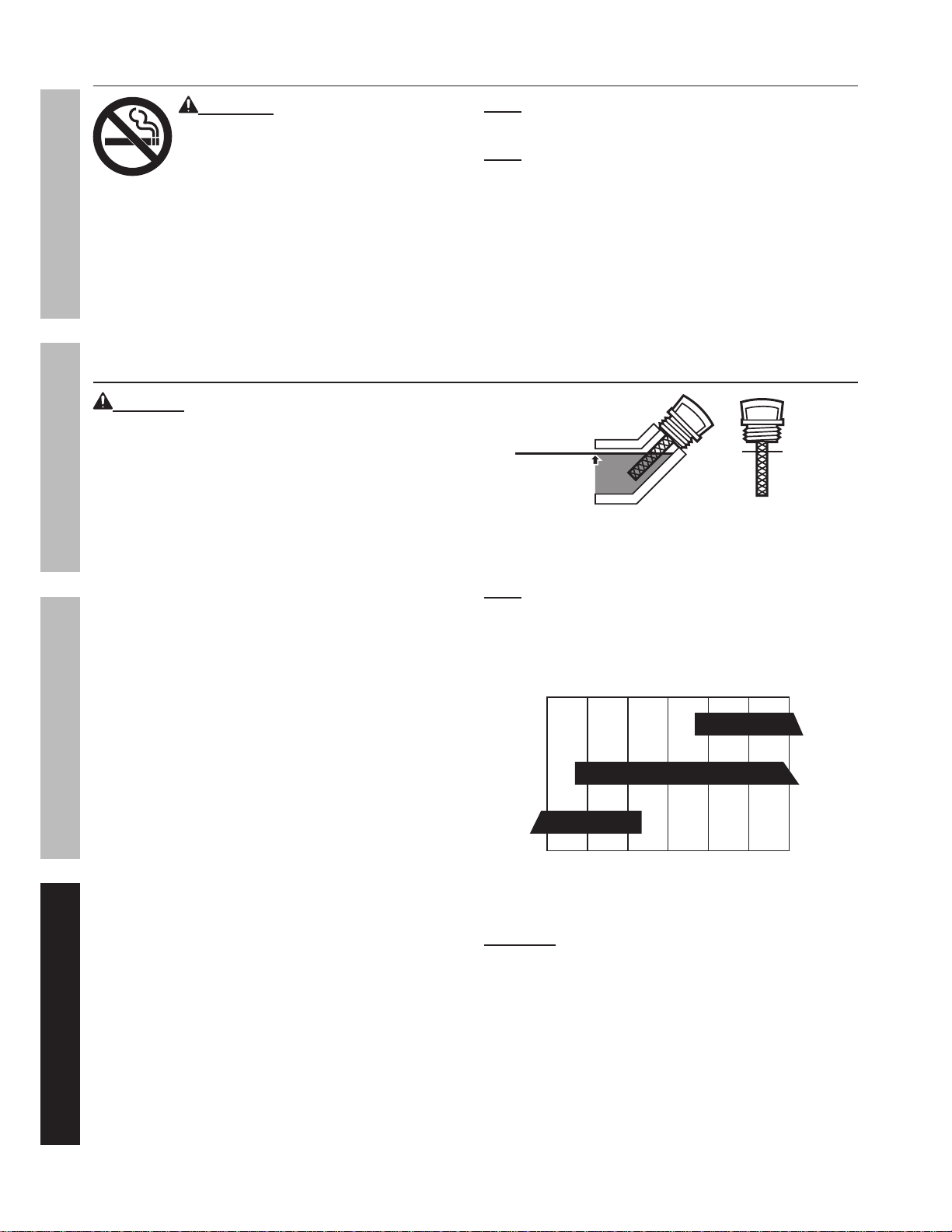

Engine Oil Change
CAUTION! Oil is very hot during operation and can
cause burns. Wait for engine to cool before changing oil.
1. Make sure the engine is stopped and is level.
2. Close the Fuel Valve.
3. Place a drain pan (not included) underneath
the crankcase’s drain plug.
4. Remove the drain plug and, if possible,
tilt the crankcase slightly to help drain
the oil out. Recycle used oil.
5. Replace the drain plug and tighten it.
6. Clean the top of the Dipstick and the area around it.
Remove the Dipstick by threading it counterclockwise,
and wipe it off with a clean lint free rag.
7.
Full level
Full level
Add the appropriate type of oil until the
oil level is at the full level. SAE 10W-30
oil is recommended for general use.
Note: Do not thread the dipstick in
when checking the oil level.
The SAE Viscosity Grade chart shows other
viscosities to use in different average temperatures.
10W-30
30
5W-30
-20 0 20 40 60 80 100°F
SAE Viscosity Grades
Average outdoor temperature
8. Thread the dipstick back in clockwise.
CAUTION! Do not run the engine with too little
oil. The engine will be permanently damaged.
Page 17
Item 69728 / 69729
Page 17
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Air Filter Element Maintenance
1. Remove the air lter cover and the
air lter elements and check for dirt.
Clean or replace as described below.
2. Cleaning:
• For “paper” lter elements:
To prevent injury from dust and debris,
wear ANSI-approved safety goggles,
NIOSH-approved dust mask/respirator, and
heavy-duty work gloves. In a well-ventilated
area away from bystanders, use pressurized
air to blow dust out of the air lter. If this does
not get the lter clean, replace it.
• For foam lter elements:
Wash the element in warm water and
mild detergent several times. Rinse.
Squeeze out excess water and allow it to dry
completely. Soak the lter in lightweight oil
briey, then squeeze out the excess oil.
3. Install the new lter or the cleaned lter.
Secure the Air Cleaner Cover before use.
Spark Plug Maintenance
1. Disconnect spark plug cap from end of plug.
Clean out debris from around spark plug.
2. Using a spark plug
wrench, remove
the spark plug.
3. Inspect the spark
plug:
If the electrode is
oily, clean it using
a clean, dry rag. If
the electrode has
deposits on it, polish
it using emery paper. If the white insulator is cracked
or chipped, the spark plug needs to be replaced.
NOTICE: Using an incorrect spark plug may
damage the engine. See the Specications chart
for your Generator for the type and gap required.
4. When installing a new spark plug, adjust
the plug’s gap to the specication on the
Specications chart. Do not pry against the
electrode, the spark plug can be damaged.
5. Install the new spark plug or the cleaned spark plug
into the engine. Gasket-style: Finger-tighten until the
gasket contacts the cylinder head, then about 1/2-2/3
turn more.
Non-gasket-style: Finger-tighten until the plug
contacts the head, then about 1/16 turn more.
NOTICE: Tighten the spark plug properly.
If loose, the spark plug will cause the engine
to overheat. If overtightened, the threads
in the engine block will be damaged.
6. Apply spark plug boot protector to the end of the
spark plug and reattach the wire securely.
Cylinder
Assembly
Spark Plug
Page 18
Item 69728 / 69729
Page 18
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Storage
When the equipment is to remain idle for longer than
20 days, prepare the engine for storage as follows:
1. CLEANING:
Wait for engine to cool, then clean engine with
dry cloth. NOTICE: Do not clean using water.
The water will gradually enter the engine and cause
rust damage.
Apply a thin coat of rust preventive
oil to all metal parts.
2. FUEL:
WARNING! TO PREVENT SERIOUS
INJURY FROM FIRE:
Drain the fuel tank in a well-ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before draining fuel.
Do not smoke.
a.
Drain Plug
Air Filter Assembly
Cylinder
Assembly
Place a funnel leading to a proper gasoline
container below the carburetor.
b. Remove the drain bolt from the bottom of the
carburetor bowl and allow the fuel to drain.
If present on your model, remove the small
sediment cup next to the bowl and allow
the fuel to drain from there as well.
c. Open the fuel valve. After all fuel has
drained, reinstall the drain bolt and sediment
cup (if equipped). Tighten securely.
3. LUBRICATION:
a. Change engine oil.
b. Clean out area around spark plug. Remove
spark plug and pour one tablespoon of engine
oil into cylinder through spark plug hole.
c. Replace spark plug, but leave spark
plug cap disconnected.
d. Pull Starter Handle to distribute oil in cylinder.
Stop after one or two revolutions when you
feel the piston start the compression stroke
(when you start to feel resistance).
4. BATTERY:
Disconnect battery cables (if equipped).
Recharge batteries monthly while in storage.
5. STORAGE AREA:
Cover and store in a dry, level, well-ventilated
area out of reach of children. Storage area
should also be away from ignition sources, such
as water heaters, clothes dryers, and furnaces.
6. AFTER STORAGE:
Before starting the engine after storage, keep in
mind that untreated gasoline will deteriorate quickly.
Drain the fuel tank and change to fresh fuel
if untreated gasoline has been sitting for
a month, if treated gasoline has been sitting
beyond the fuel stabilizer’s recommended
time period, or if the engine does not start.
Page 19
Item 69728 / 69729
Page 19
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Troubleshooting
Problem Possible Causes Probable Solutions
Engine will not start FUEL RELATED:
1. No fuel in tank or fuel valve closed.
2. Choke not in CHOKE position, cold engine.
3. Gasoline with more than 10% ethanol used.
(E15, E20, E85, etc.)
4. Low quality or deteriorated, old gasoline.
5. Carburetor not primed.
6. Dirty fuel passageways.
7. Carburetor needle stuck.
Fuel can be smelled in the air.
8. Too much fuel in chamber. This can be
caused by the carburetor needle sticking.
9. Clogged Fuel Filter.
FUEL RELATED:
1. Fill fuel tank and open fuel valve.
2. Move Choke to CHOKE position.
3. Clean out ethanol rich gasoline from fuel
system. Replace components damaged
by ethanol. Use fresh 87+ octane
unleaded gasoline only.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
4. Use fresh 87+ octane unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
5. Pull on Starter Handle to prime.
6. Clean out passageways using fuel additive.
Heavy deposits may require further cleaning.
7. Gently tap side of carburetor oat
chamber with screwdriver handle.
8. Turn Choke to RUN position. Remove spark
plug and pull the start handle several times
to air out the chamber. Reinstall spark
plug and set Choke to CHOKE position.
9. Replace Fuel Filter.
IGNITION (SPARK) RELATED:
1. Spark plug cap not connected securely.
2. Spark plug electrode wet or dirty.
3. Incorrect spark plug gap.
4. Spark plug cap broken.
5. Circuit breaker tripped (electric
start models only).
6. Incorrect spark timing or
faulty ignition system.
IGNITION (SPARK) RELATED:
1. Connect spark plug cap properly.
2. Clean spark plug.
3. Correct spark plug gap.
4. Replace spark plug cap.
5. Reset circuit breaker. Check wiring and
starter motor if breaker continues to trip.
6. Have qualied technician diagnose/
repair ignition system.
COMPRESSION RELATED:
1. Cylinder not lubricated. Problem after long
storage periods.
2. Loose or broken spark plug. (Hissing noise
will occur when trying to start.)
3. Loose cylinder head or damaged
head gasket. (Hissing noise will
occur when trying to start.)
4. Engine valves or tappets
mis-adjusted or stuck.
COMPRESSION RELATED:
1. Pour tablespoon of oil into spark
plug hole. Crank engine a few
times and try to start again.
2. Tighten spark plug. If that does not work,
replace spark plug. If problem persists,
may have head gasket problem, see #3.
3. Tighten head. If that does not remedy
problem, replace head gasket.
4. Have qualied technician diagnose/
repair ignition system.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
Page 20
Item 69728 / 69729
Page 20
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
Problem Possible Causes Probable Solutions
Engine misres
1. Spark plug cap loose.
2. Incorrect spark plug gap or
damaged spark plug.
3. Defective spark plug cap.
4. Old or low quality gasoline.
5. Incorrect compression.
1. Check wire connections.
2. Re-gap or replace spark plug.
3. Replace spark plug cap.
4. Use only fresh 87+ octane unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
5. Diagnose and repair compression.
(Use Engine will not start:
COMPRESSION RELATED section.)
Engine stops
suddenly
1. Low oil shutdown.
2. Fuel tank empty or full of impure or low
quality gasoline.
3. Defective fuel tank cap creating
vacuum, preventing proper fuel ow.
4. Faulty magneto.
5. Disconnected or improperly
connected spark plug cap.
1. Fill engine oil to proper level.
Check engine oil before EVERY use.
2. Fill fuel tank with fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
3. Test/replace fuel tank cap.
4. Have qualied technician service magneto.
5. Secure spark plug cap.
Engine stops when
under heavy load
1. Dirty air lter.
2. Engine running cold.
1. Clean or replace element.
2. Allow engine to warm up prior
to operating equipment.
Engine knocks
1. Old or low quality gasoline.
2. Engine overloaded.
3. Incorrect spark timing, deposit buildup,
worn engine, or other mechanical problems.
1. Fill fuel tank with fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
2. Do not exceed equipment’s load rating.
3. Have qualied technician diagnose
and service engine.
Engine backres
1. Impure or low quality gasoline.
2. Engine too cold.
3. Intake valve stuck or overheated engine.
4. Incorrect timing.
1. Fill fuel tank with fresh 87+ octane
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (E15, E20, E85, etc.).
2. Use cold weather fuel and oil
additives to prevent backring.
3. Have qualied technician diagnose
and service engine.
4. Check engine timing.
Product doesn’t
have power
1. Product not plugged in properly.
2. Circuit Breaker tripped.
3. Product needs service.
1. Turn off and unplug the product, then
plug it back in again and turn on.
2. Turn off and unplug product, Reset Circuit
Breaker. Plug in product and turn on.
3. Have product repaired.
Product begins to
operate abnormally
1. Problem with appliance.
2. Rated load capacity exceeded.
1. Immediately unplug appliance. Have
appliance repaired by a qualied
technician, or replace appliance.
2. Lower the number of items plugged into the
generator to stay within the rated capacity,
or use a more powerful generator.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
Troubleshooting (cont.)
Page 21
Item 69728 / 69729
Page 21
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Part Description Qty
1 Gasket, Cylinder Head 1
2 Cover Sub, Cylinder Head 1
3 Gasket, Cylinder Head Cover 1
4 Tube, Breather 1
5 Bolt, Cylinder Head 4
6 Stud 2
7 Stud 2
8 Pin 2
9 Bolt, Cylinder Head 4
10 Plug, Spark 1
11 Head Sub, Cylinder 1
12 Crankcase Sub.. 1
13 Sensor, Engine Oil 1
14 Gear Assy, Governor 1
15 Arm, Governor 1
16 Bolt, Drain Plug 2
17 Washer 2
18 Bearing 1
19 Seal, Oil 1
20 Washer 3
21 Pin 1
22 Bolt 2
23 Cover, Crankcase 1
24 Bearing 1
25 Seal, Oil 1
26 Gasket, Crankcase 1
27 Pin 2
28 Dipstick Sub, Oil 1
29 Bolt 6
30 Crankshaft Assy. 1
31 Ring Set, Oil 1
32 Clip, Piston Pin 2
33 Piston 1
34 Pin, Piston 1
35 Rod, Connecting 1
36 Ring, The First 1
37 Ring, The Second 1
38 Camshaft Assy. 1
39 Valve, Exhaust 1
40 Valve, Intake 1
41 Seat, Valve Spring 1
42 Exhaust Valve Retainer 1
43 Rotator, Valve 1
44 Guide, Seal 1
45 Tappet, Valve 2
46 Lifter, Valve 2
47 Plate Sub, Lifter Stopper 1
48 Bolt, Valve Adjusting 2
49 Rocker, Valve 2
50 Valve Adjusting Nut 2
51 Nut, Valve Lock 2
52 Spring, Valve 2
53 Starter Assy, Recoil 1
Part Description Qty
54 Bolt 3
55 Shroud 1
56 Shroud, Cylinder Body 1
57 Shield,Lower 1
58 Protector, Oil 1
59 Bolt 4
60 Bolt 2
61 Bolt 1
62 Collar 1
63 Bolt 1
64 Carburetor Assy. 1
65 Gasket, Air Cleaner 1
66 Gasket, Carburetor 1
67 Plate, Carburetor Insulator 1
68 Gasket, Carburetor Insulator 1
69 Nut 2
70 Cleaner, Air 1
71 Nut, Flywheel 1
72 Pulley,Starter 1
73 Impeller 1
74 Flywheel Sub. 1
75 Bolt 2
76 Coil, Ignition 1
77 Support Sub, Governor 1
78 Nut 1
79 Bolt, Governor Support 1
80 Spring, Governor 1
81 Rod, Governor 1
82 Spring, Throttle Valve Returning 1
83 Control Assy, Throttle 1
84 Bolt 2
85 Mufer Assy. 1
86 Cover, Mufer Outer 1
87 Bracket,Mufer 1
88 Bolt 1
89 Bolt 2
90 Bolt 5
91 Gasket, Exhaust Outlet 1
92 Bolt 2
93 Nut 2
94 Tank, Fuel 1
95 Sleeve, Fuel Tank Rubber 4
96 Bush 4
97 Washer 4
98 Bolt 4
99 Cover, Fuel Tank 1
100 Fuel Strainer 1
101 Screw 2
102 Leveler Assy, Oil 1
103 Cock Assy, Fuel 1
104 Collar 2
105 Tube, Fuel 1
106 Frame Assy, Engine 1
Part Description Qty
107 Nut 8
108 Cushion, Engine Frame Right 2
109 Cushion, Engine Frame 2
110 Nut 4
111 Seat, Frame Shock Absorption 4
112 Bolt 4
113 Bolt 2
114 Crosspiece Sub. 1
115 Socket Sub, Power Supply 1
116 Socket Sub, Power Supply 2
117 Protector, Overcurrent 1
118 Protector, Overcurrent 2
119 Terminal Sub, Grounding 1
120 Socket Sub, DC 1
121 Switch Sub. 1
122 Case, Panel Rear 1
123 Panel Sub, Control 1
124 Motor Assy. 1
125 Bracket, Motor 1
126 Stator Bolt 4
127 Washer 1
128 Rotor Bolt 1
129 Regulator, Voltage 1
130 Bolt 2
131 Brush Sub, Carbon 1
132 Bolt 1
133 Cover, Motor Tail 1
134 Bolt 2
135 Band 1
136 Bolt 1
The following parts are only on
Item 69728 (EPA/CARB version)
137 Valve, One Way 1
138 Clamp 1
139 Clamp 1
140 Hose, Air Cleaner Rubber 1
141 Hose, Fuel Steam Rubber 1
142 Clamp 1
143 Clamp 1
144 Collector, Fuel Steam 1
145 Bolt 2
The following parts are only on
Item 69729 (EPA version)
137A Valve, One Way 1
138A Gasket, Rubber Flat 2
139A Cover 1
140A Clamp 1
141A Hose, Fuel Steam Rubber 1
142A Clamp 1
143A Clip 1
144A Bolt 2
Parts List and Diagram
Parts List
Record Product's Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and
are not available individually as replacement parts.
Page 22
Item 69728 / 69729
Page 22
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETY OPERATION MAINTENANCESETUP
03
38
27
23
24
25
27
28
29
29
29
29
29
29
124
125
126
126
126
126
127
128
129
130
130
131
132
133
134
134
135
136
21
31
41
51
61
71
61
71
81
91
02
12
22
22
31
32
32
33
34
35
71
72
73
74
75
75
76
39
40
45
45
46
46
10
6
7
1
9
9
9
8
8
9
11
7
6
4
61
55
58
59
63
62
59
59
59
60
60
57
56
47
48
48
49
49
50
50
51
51
42
43
52
44
41
52
36
37
77
80
81
82
83
84
84
78
79
26
123
115
118
118
119
120
121
116
116
117
122
68
67
66
64
65
54
54
54
53
85
91
93
90
90
90
90
90
86
89
89
93
92
92
87
88
104
105
94
104
145
145
139
95
96
97
98
138
137
102
101
101
100
99
95
96
97
98
98
97
96
95
98
97
96
95
142
143
103
140
141
144
107
108
107
107
107
107
107
107
107
111
112
111
111
111
110
110
110
110
112
112
112
106
108
109
109
113
113
114
5
5
5
5
2
3
69
69
70
Assembly Diagram
Note: Parts 137A - 144A are only on
Item 69728 (EPA/Carb version)
140A
141A
142A
144A
139A
138A
137A
143A
Page 23
Item 69728 / 69729
Page 23
For Generator technical questions, please call 1-800-444-3353.
For Engine technical questions, please call 1-800-520-0882.
SAFETYOPERATIONMAINTENANCE SETUP
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If
our inspection veries the defect, we will either repair or replace the product at our election or we may elect
to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights which vary from state to state.
Emission Control System Warranty
For Item 69728 (EPA/CARB version)
California and United States Emission
Control Defects Warranty Statement
The California Air Resources Board (herein CARB), the United
States Environmental Protection Agency (herein EPA), and Harbor Freight
Tools (herein HFT) are pleased to explain the emission control system
warranty on your 2013 and later Small Off-Road Engine (herein engine).
In California, the engine must be designed, built and equipped to meet
the State’s stringent anti-smog standards. Elsewhere within the United
States, new off-road, spark-ignition engines certied for model year 2013
and later, must meet similar standards set forth by the EPA. HFT must
warrant the emission control system on your engine for the periods of time
described below, provided there has been no abuse, neglect or improper
maintenance of your engine.
Your emission control system may include parts such as the carburetor
or fuel-injection system, and the ignition system. Also included may be
hoses, belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, HFT will repair your engine at
no cost to you including diagnosis, parts and labor.
For Item 69729 (EPA version)
United States Emission Control
Defects Warranty Statement
The United States Environmental Protection Agency (herein EPA)
and Harbor Freight Tools (herein HFT) are pleased to explain the emission
control system warranty on your 2013 and later Small Off-Road Engine
(herein engine). Within the United States, new off-road, spark-ignition
engines certied for model year 2013 and later, must be designed, built
and equipped to meet the stringent anti-smog standards set forth by the
EPA. HFT must warrant the emission control system on your engine for
the periods of time described below, provided there has been no abuse,
neglect or improper maintenance of your engine.
Your emission control system may include parts such as the carburetor
or fuel-injection system, and the ignition system. Also included may be
hoses, belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, HFT will repair your engine at
no cost to you including diagnosis, parts and labor.
For both item numbers
Manufacturer’s Warranty Coverage
The 2013 and later engines are warranted for two (2) years. If any
emission-related part on your engine is defective, the part will be repaired
or replaced by HFT.
Harbor Freight Tools Emission Control
Defects Warranty Coverage
Engines are warranted for a period of two (2) years relative to
emission control parts defects, subject to the provisions set forth below.
If any emission related part on your engine is defective, the part will be
repaired or replaced by HFT.
Owner’s Warranty Responsibilities
• As the engine owner, you are responsible for the performance
of the required maintenance listed in your Owner’s Manual. HFT
recommends that you retain all receipts covering maintenance on
your engine, but HFT cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all scheduled
maintenance.
• As the engine owner, you should, however, be aware that HFT may
deny you warranty coverage if your engine or a part has failed due to
abuse, neglect, improper maintenance, or unapproved modications.
• You are responsible for shipping your engine to a HFT warranty station
as soon as a problem exists. Contact the HFT Customer Service
department at the number below to make shipping arrangements.
The warranty repairs should be completed in a reasonable amount
of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and
responsibilities, you should contact the Harbor Freight Tools Customer
Service Department at 1-800-444-3353.
Harbor Freight Tools Emission Control
Defects Warranty Provisions
1. Length of Coverage
HFT warrants to a first retail purchaser and each subsequent
purchaser that the engine is free from defects in materials and
workmanship that cause the failure of warranted parts for a period
of two (2) years after the date of delivery to the rst retail purchaser.
Page 24
2. No Charge Repair or Replacement
Repair or replacement of any warranted part will be performed at
no charge to the owner if the work is performed through a warranty
station authorized by HFT. For emissions warranty service, contact
the HFT Customer Service Department at 1-800-444-3353.
3. Consequential Damages Coverage
Coverage under this warranty shall also extend to the failure of any
engine components caused by the failure of any warranted part while
it is still covered under this warranty.
4. Coverage Exclusions
Warranty claims shall be led in accordance with the provisions of the
HFT warranty policy explained in the box at the top of the previous
page. HFT shall not be liable for any loss of use of the engine, for
any alternative usage, for any damage to goods, loss of time, or
inconvenience. Warranty coverage shall also be excluded for any
part which fails, malfunctions, or is damaged due to failure to follow
the maintenance and operating instructions set forth in the Owner’s
Manual including, but not limited to:
a) Use of parts which are not authorized by HFT
b) Improper installation, adjustment or repair of the engine or of
any warranted part unless performed by an authorized warranty
center
c) Failure to follow recommendations on fuel use contained in the
Owner’s Manual
d) Improper or inadequate maintenance of any warranted parts
e) Repairs performed outside of the authorized warranty service
dealers
f) Alterations by changing, adding to or removing parts from the
engine.
5. Service and Maintenance
Component parts which are not scheduled for replacement as required
maintenance or are scheduled only for regular inspection to the effect
of “repair or replace as necessary” are warranted for the warranty
period. Any warranted part which is scheduled for replacement as
required maintenance is warranted for the period of time up to the
rst scheduled replacement point for that part. Any replacement part,
provided it is equivalent in durability and performance, may be used
in performance of maintenance or repairs. The owner is responsible
for commissioning a qualied technician/mechanic to perform all
required maintenance, as outlined in the Inspection, Cleaning, and
Maintenance section in this manual.
6. Warranted Parts
1) Fuel Metering System
i) Carburetor and its internal parts.
ii) Air/fuel ratio feedback and control system.
iii) Cold start enrichment system.
iv) Fuel Tank.
2) Air Induction System
i) Controlled hot air intake system.
ii) Intake manifold.
iii) Air filter.
3) Ignition System
i) Spark Plugs.
ii) Magneto or electronic ignition system.
iii) Spark advance/retard system.
4) Exhaust Gas Recirculation (EGR) System (if so equipped)
i) EGR valve body, and carburetor spacer.
ii) EGR rate feedback and control system.
5) Air Injection System
i) Air pump or pulse valve.
ii) Valves affecting distribution of flow.
iii) Distribution manifold.
6) Catalyst or Thermal Reactor System (if so equipped)
i) Catalytic converter.
ii) Thermal reactor.
iii) Exhaust manifold.
7) Particulate Controls
Traps, filters, precipitators, and any other device used to capture
particulate emissions.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Loading...
