Harbor Freight Tools 69733 Product manual

Page 1

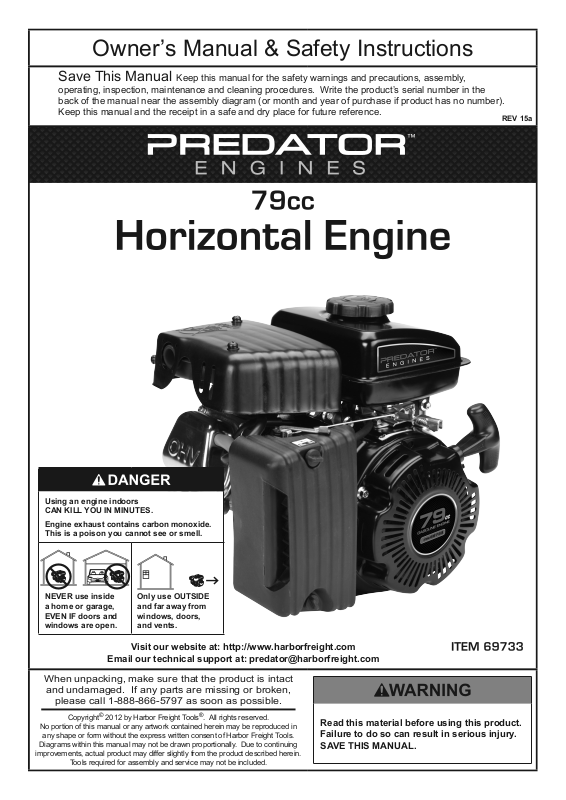

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

REV 15a

Using an engine indoors CAN KILL YOU IN MINUTES.

Engine exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

Visit our website at: http://www.harborfreight.com

Email our technical support at: predator@harborfreight.com

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.

Page 2

Table of Contents

Specifications ............................................. 2

Safety ......................................................... 3

Setup .......................................................... 6

Operation .................................................... 8

Specifications

Displacement 79cc

Dimensions

Dry Weight 22 LBS. / 10 KG Maximum Torque 3.5 FT-LBS @ 2500 RPM Maximum RPM 3600 RPM Compression Ratio 8.5:1

Bore x Stroke

Fuel Type

Engine Oil Capacity 0.37 Quart / 0.35 L Fuel Tank Capacity 0.53 Gallon / 2.0 L Bearing Type Ball

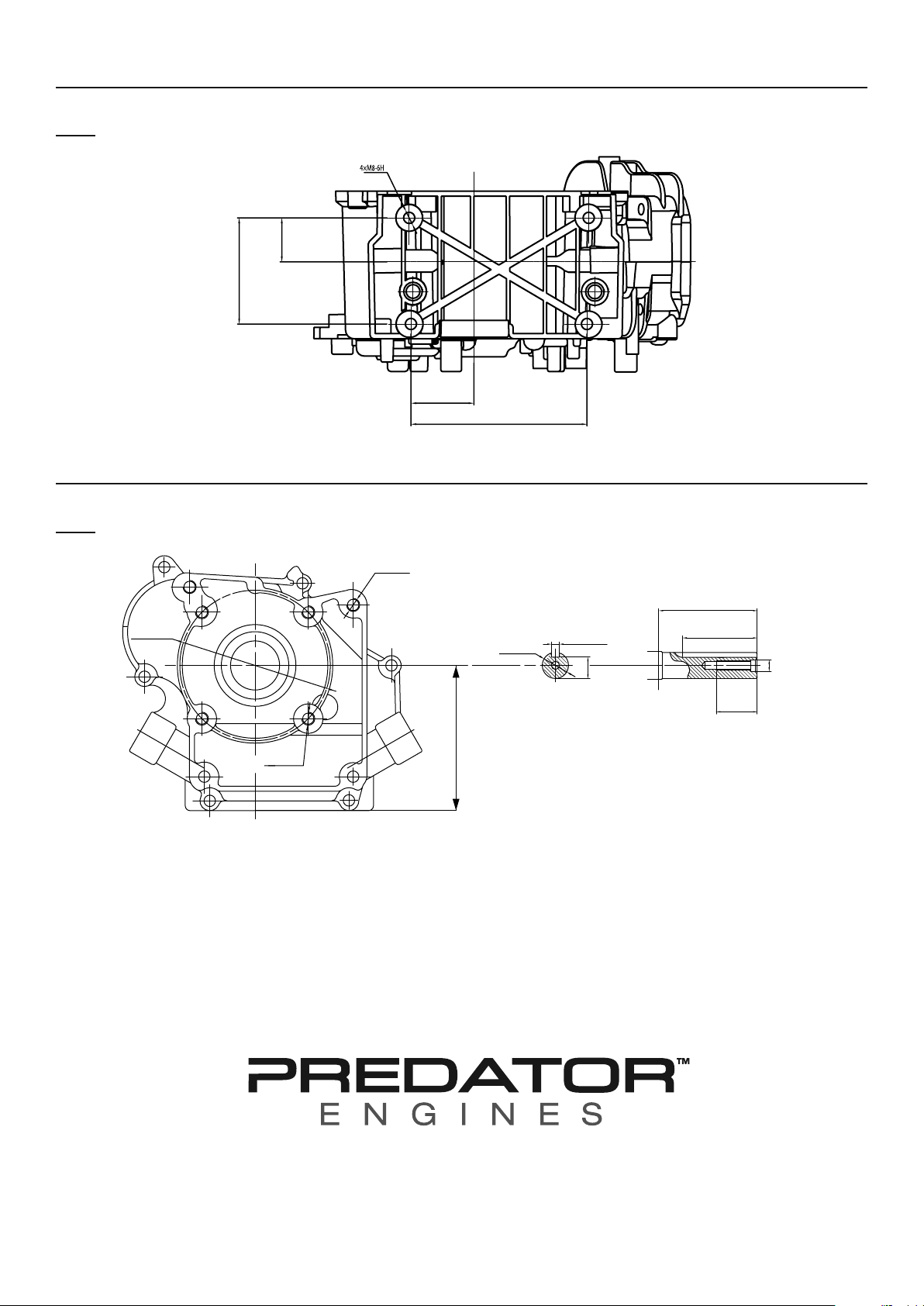

Mounting Base Pattern

PTO Shaft Diameter 5/8 IN. PTO Shaft Length 2.4 IN. / 60.1 mm

PTO Shaft Height

PTO Shaft Keyway 3/16 IN. / 4.76 mm Shaft End Tapped

(Diameter / Thread per inch) Shaft Rotation (From PTO) Counter Clockwise Spark Plug E5TC (Torch™)

Maintenance .............................................. 11

Troubleshooting ......................................... 14

Warranties ................................................. 16

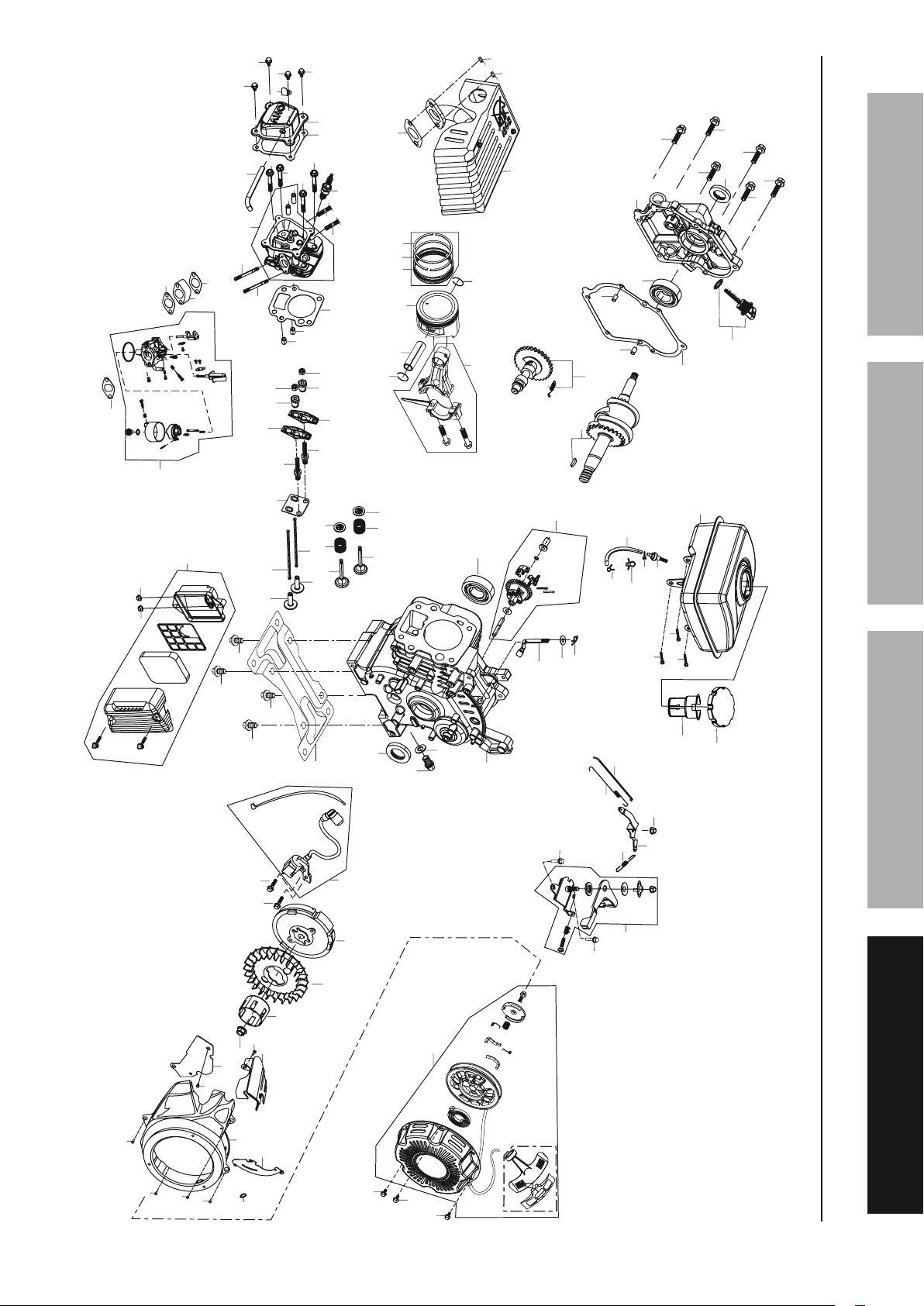

Parts Lists and Diagrams .......................... 18

310L x 290W x 300H mm

12.2L x 11.4W x 11.8H IN.

52 mm x 37 mm

2.0 IN. x 1.5 IN.

87+ octane stabilizer treated

unleaded gasoline

102.0L x 104.0W-61.5W mm

4.0L x 4.9W-2.4W IN.

3.6 IN. (with base 4.0 IN.)

91 mm (with base 102. 5 mm)

5/16 IN. - 24

Page 2 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 3

Symbol Definitions

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that

follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

SAFETYOPERATIONMAINTENANCE SETUP

Symbol Property or Statement

RPM

Revolutions Per Minute

Horsepower

WARNING marking concerning Risk of Eye Injury. Wear ANSI-approved safety goggles with side shields.

Read the manual before set-up and/or use.

WARNING marking concerning Risk of Hearing Loss. Wear hearing protection.

Safety Warnings

WARNING! Read all instructions.

Failure to follow all instructions listed below may result in fire, serious injury and/or DEATH.

The warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

Symbol Property or Statement

WARNING marking concerning Risk of Respiratory Injury. Operate engine OUTSIDE and far away from windows, doors, and vents.

WARNING marking concerning Risk of Fire while handling fuel. Do not smoke while handling fuel.

WARNING marking concerning Risk of Fire. Do not refuel while operating. Keep flammable objects away from engine.

SAVE THESE INSTRUCTIONS

Page 3For technical questions, please call 1-888-866-5797.ITEM 69733

Page 4

Set up Precautions

1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures. Do not store fuel

SAFETY OPERATION MAINTENANCESETUP

or other flammable materials nearby.

2. Have multiple ABC class fire extinguishers nearby.

3. Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.

Operating Precautions

1. CARBON MONOXIDE HAZARD

Using an engine indoors CAN KILL YOU IN MINUTES.

Engine exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

2. Keep children away from the equipment, especially while it is operating.

3. Keep all spectators at least six feet from the Engine during operation.

4. Fire Hazard! Do not fill gas tank while engine is running. Do not operate if gasoline has been spilled. Clean spilled gasoline before starting engine. Do not operate near pilot light or open flame.

5. Do not touch engine during use. Let engine cool down after use.

6. Never store fuel or other flammable materials near the engine.

7. Only use a suitable means of transport and lifting devices with sufficient weight bearing capacity when transporting the Engine.

8. Secure the Engine on transport vehicles to prevent the tool from rolling, slipping, and tilting.

9. Industrial applications must follow OSHA requirements.

4. Set up and use only on a flat, level, well-ventilated surface.

5. Wear ANSI-approved safety goggles, heavy-duty work gloves, and dust mask/respirator during set up.

6. Use only lubricants and fuel recommended in the Specifications chart of this manual.

10. Do not leave the equipment unattended when it is running. Turn off the equipment (and remove safety keys, if available) before leaving the work area.

11. Engine can produce high noise levels. Prolonged exposure to noise levels above 85 dBA is hazardous to hearing. Always wear ear protection when operating or working around the gas engine while it is operating.

12. Wear ANSI-approved safety glasses, hearing protection, and NIOSH-approved dust mask/ respirator under a full face shield along with steel-toed work boots during use.

13. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to a heart pacemaker could cause pacemaker interference or pacemaker failure. Caution is necessary when near the engine’s magneto or recoil starter.

14. Use only accessories that are recommended by Harbor Freight Tools for your model. Accessories that may be suitable for one piece of equipment may become hazardous when used on another piece of equipment.

15. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Gasoline-powered engines may ignite the dust or fumes.

16. Stay alert, watch what you are doing and use common sense when operating this piece of equipment. Do not use this piece of equipment while tired or under the influence of drugs, alcohol or medication.

17. Do not overreach. Keep proper footing and balance at all times. This enables better control of the equipment in unexpected situations.

18. Use this equipment with both hands only. Using equipment with only one hand can easily result in loss of control.

19. Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

Page 4 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 5

Operating Precautions (cont.)

20. Parts, especially exhaust system components, get very hot during use. Stay clear of hot parts.

21. Do not cover the engine or equipment during operation.

22. Keep the equipment, engine, and surrounding area clean at all times.

23. Use the equipment, accessories, etc., in accordance with these instructions and in the manner intended for the particular type of equipment, taking into account the working conditions and the work to be performed. Use of the equipment for operations different from those intended could result in a hazardous situation.

24. Do not operate the equipment with known leaks in the engine’s fuel system.

25. WARNING: This product contains or, when used, produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. (California Health & Safety Code § 25249.5, et seq.)

Service Precautions

26. When spills of fuel or oil occur, they must be cleaned up immediately. Dispose of fluids and cleaning materials as per any local, state, or federal codes and regulations. Store oil rags in a bottom-ventilated, covered, metal container.

27. Keep hands and feet away from moving parts. Do not reach over or across equipment while operating.

28. Before use, check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the equipment’s operation.

If damaged, have the equipment serviced before using. Many accidents are caused

by poorly maintained equipment.

29. Use the correct equipment for the application. Do not modify the equipment and do not use the equipment for a purpose for which it is not intended.

SAFETYOPERATIONMAINTENANCE SETUP

1. Before service, maintenance, or cleaning:

a. Turn the engine switch to its “OFF” position.

b. Allow the engine to completely cool.

c. Then, remove the spark plug

cap from the spark plug.

2. Keep all safety guards in place and in proper working order. Safety guards include muffler, air cleaner, mechanical guards, and heat shields, among other guards.

3. Do not alter or adjust any part of the

equipment or its engine that is sealed by the manufacturer or distributor. Only a qualified service technician may adjust parts that may increase or decrease governed engine speed.

4. Wear ANSI-approved safety goggles, heavy-duty work gloves, and dust mask/respirator during service.

5. Maintain labels and nameplates on the equipment. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

6. Have the equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the equipment is maintained. Do not attempt any service or maintenance procedures not explained in this manual or any procedures that you are uncertain about your ability to perform safely or correctly.

7. Store equipment out of the reach of children.

8. Follow scheduled engine and equipment maintenance.

Refueling:

1. Do not smoke, or allow sparks, flames, or other sources of ignition around the equipment, especially when refuelling.

2. Do not refill the fuel tank while the engine is running or hot.

3. Do not fill fuel tank to the top. Leave a little room for the fuel to expand as needed.

4. Refuel in a well-ventilated area only.

5. Wipe up any spilled fuel and allow excess to evaporate before starting engine.

To prevent FIRE, do not start the engine while the smell of fuel hangs in the air.

SAVE THESE INSTRUCTIONS.

Page 5For technical questions, please call 1-888-866-5797.ITEM 69733

Page 6

Set Up

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

SAFETY OPERATION MAINTENANCESETUP

TO PREVENT SERIOUS INJURY: Operate only with proper spark arrestor installed.

Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.

At high altitudes, the engine’s carburetor, governor (if so equipped), and any other parts that control the fuel-air ratio will need to be adjusted by a qualified mechanic to allow efficient high-altitude use and to prevent damage to the engine and any other devices used with this product.

The emission control system for this Engine is warranted for standards set by the U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual.

WARNING! DO NOT INSTALL THIS ENGINE ON A VEHICLE. NOT FOR HIGHWAY USE. FOLLOW ALL APPLICABLE LAWS FOR INSTALLATION AND USE.

Mounting

1. The engine needs to be mounted using all four mounting holes on its base. These mounting holes are not in an exact rectangle - see diagram on back cover of this manual.

2. This engine includes a Mounting Plate and 4 Mounting Plate Bolts to assist in mounting the engine.

Note: The Mounting Plate only attaches to the engine one way.

3. A mounting plate can also be fabricated, but it needs to attach to all four mounting holes and must be strong enough to withstand the forces created during operation after repeated use.

4. After attaching the Mounting Plate to the engine, use the mounting plate to mount the engine away from the equipment operator and where it will not cause damage by its moving or hot parts.

Mounting

Plate

Mounting Plate Bolt

Page 6 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 7

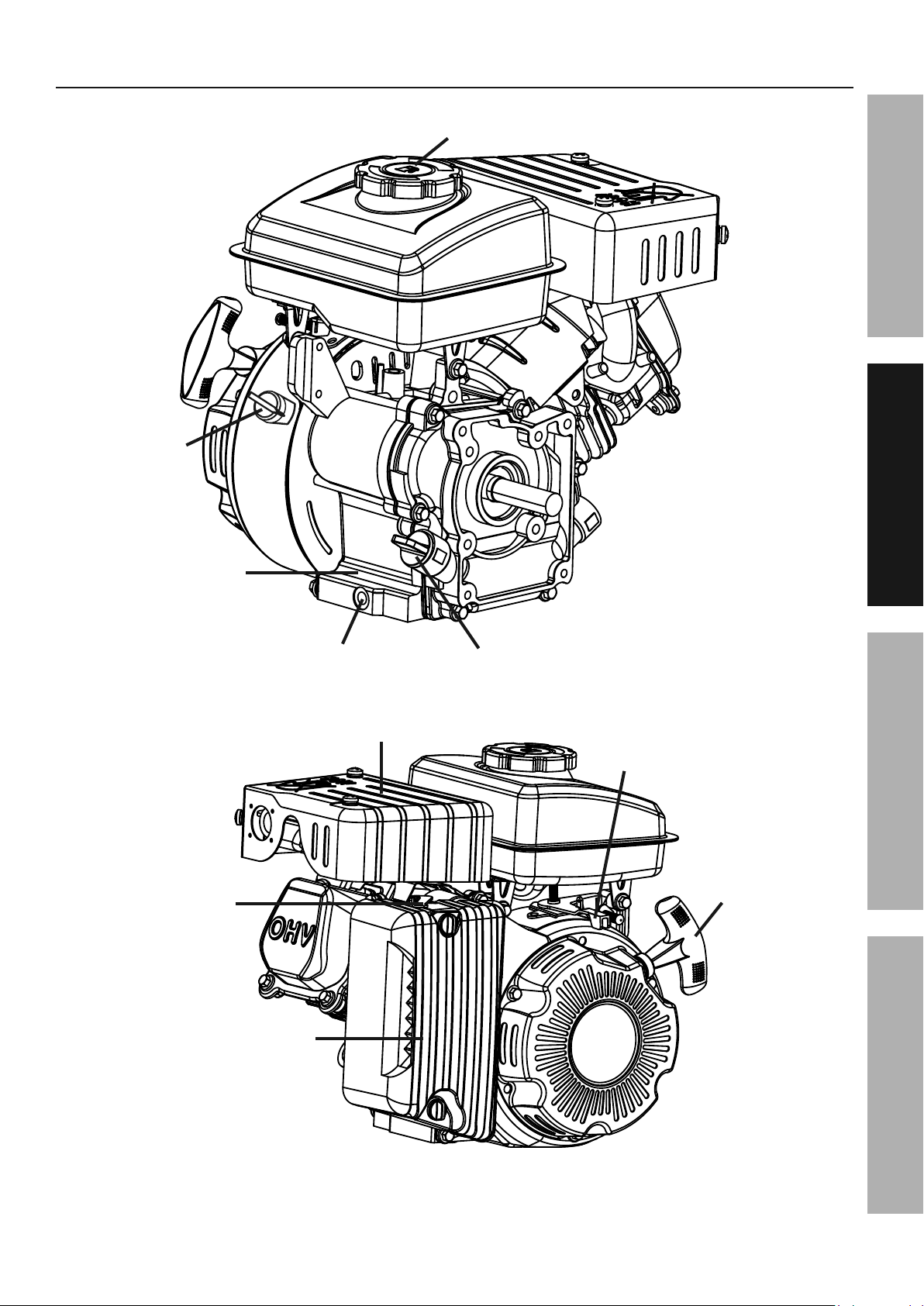

Engine Controls

Engine Switch

Fuel Cap

SAFETYOPERATIONMAINTENANCE SETUP

Serial Number

Location

Choke

Oil Drain Plug

Muffler

Dipstick

Throttle

Starter Handle

Air Filter

Page 7For technical questions, please call 1-888-866-5797.ITEM 69733

Page 8

Operation

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

SAFETY OPERATION MAINTENANCESETUP

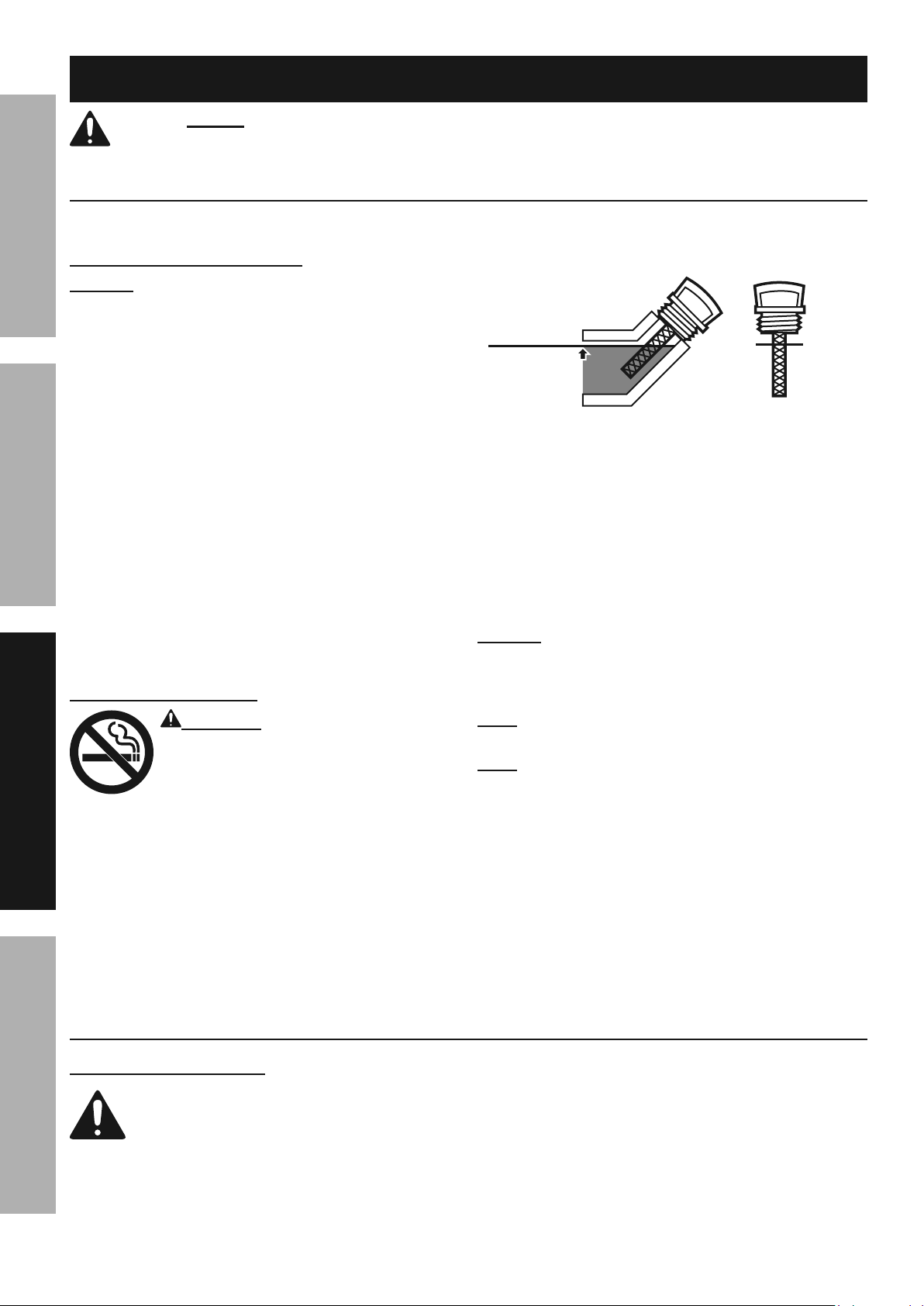

Pre-Start Checks

Inspect engine and equipment looking for damaged, loose, and missing parts before set up and starting. If any problems are found, do not use equipment until fixed properly.

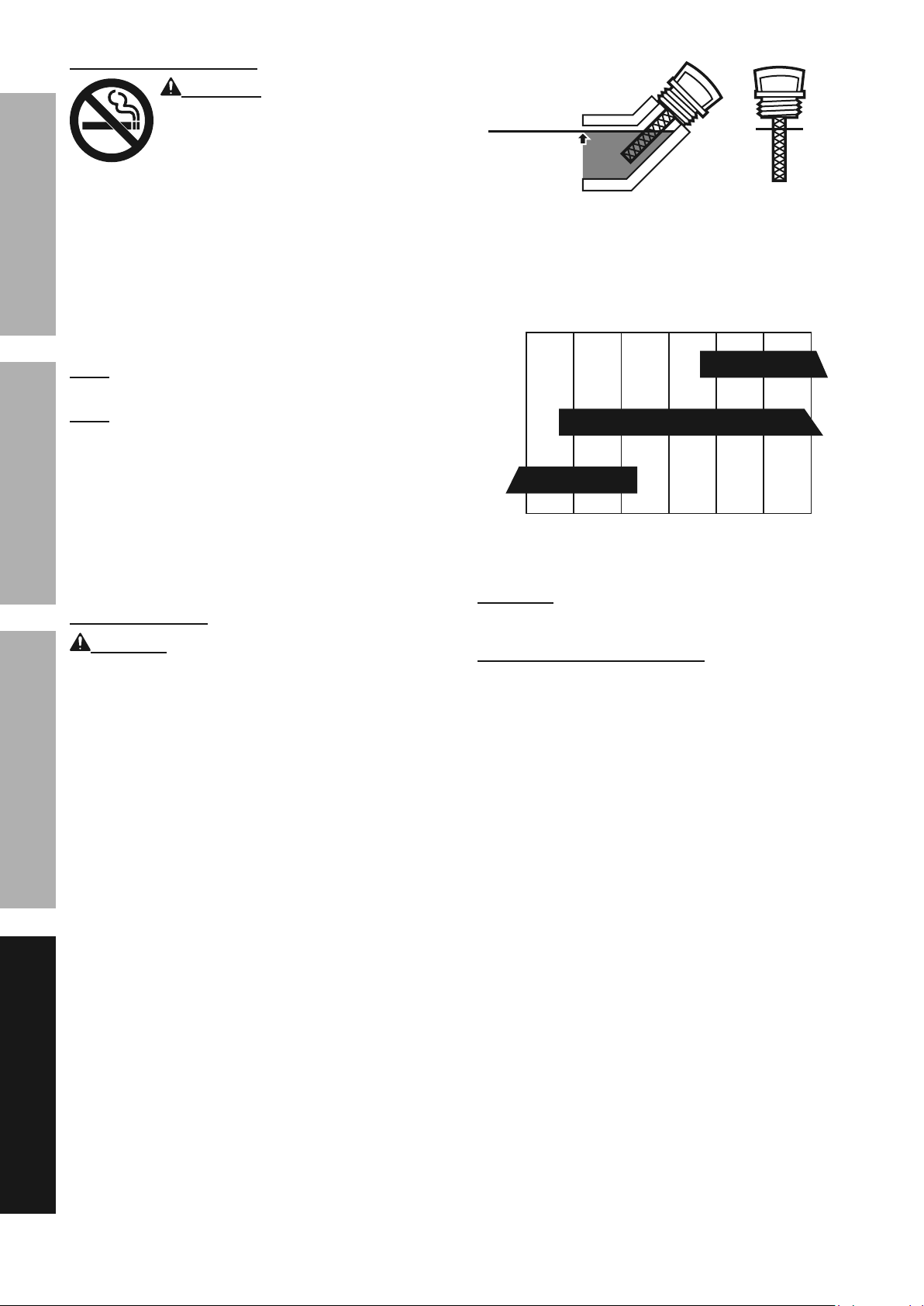

Checking and Filling Engine Oil

NOTICE: Your Warranty is VOID if the engine’s crankcase is not properly filled with oil before each use. Before each use, check the oil level. Do not run the engine with low or no engine oil. Running the engine with no or low engine oil WILL permanently damage the engine.

1. Make sure the engine is stopped and is level.

2. Close the Fuel Valve.

3. Clean the top of the Dipstick and the area around it. Remove the Dipstick by threading it counterclockwise, and wipe it off with a clean lint free rag.

Full level

Reinsert the Dipstick without threading it in and remove it to check the oil level. The oil level should be up to the full level as shown above.

5. If the oil level is at or below the low mark add the appropriate type of oil until the oil level is at the proper level. SAE 10W-30 oil is recommended for general use. (The SAE Viscosity Grade chart on page 12 in the Service section shows other viscosities to use in different average temperatures.)

6. Thread the dipstick back in clockwise.

NOTICE: Do not run the engine with too little oil. The engine will be permanently damaged.

Full level

Checking and Filling Fuel

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before adding fuel.

Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. If needed, fill the Fuel Tank to about 1 inch under the fill neck with 87 octane or higher unleaded gasoline that has been treated with a fuel stabilizer additive. Follow fuel stabilizer manufacturer’s recommendations for use.

Starting the Engine

Before Starting the Engine

Before starting the engine:

a. Follow the Set Up Instructions in the equipment manual to prepare the equipment. b. Inspect the equipment and engine. c. Fill the engine with the proper amount and type of both fuel and oil. d. Read the Equipment Operation section in the equipment manual.

Note: Do not use gasoline containing more than 10% ethanol (E10). Do not use E85 ethanol.

Note: Do not use gasoline that has been stored in a metal fuel container or a dirty fuel container. It can cause particles to enter the carburetor, affecting engine performance and/or causing damage.

4. Then replace the Fuel Cap.

5. Wipe up any spilled fuel and allow excess to evaporate before starting engine. To prevent FIRE, do not start the engine while the smell of fuel hangs in the air.

Page 8 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 9

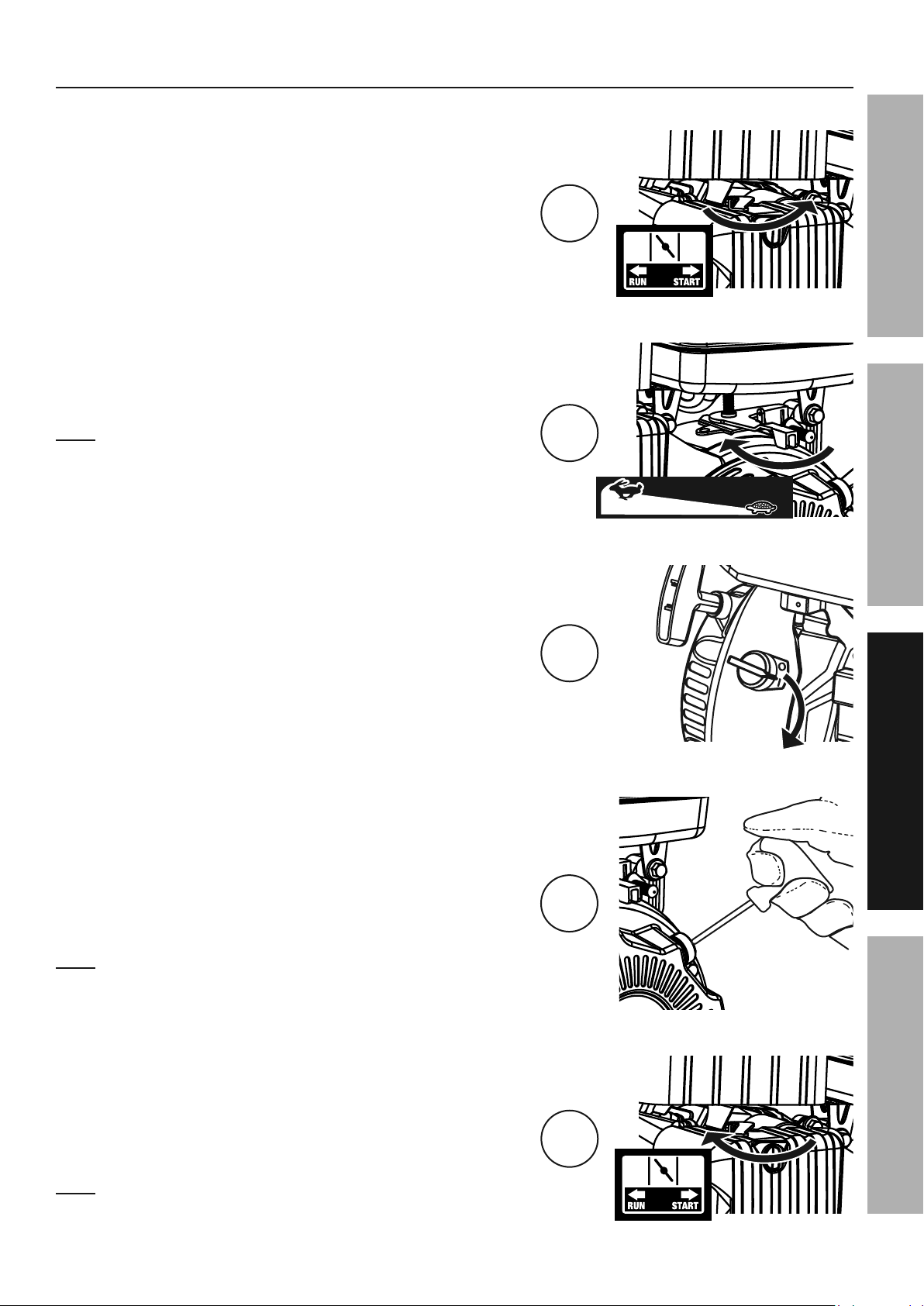

Manual Start

1. To start a cold engine, move the Choke to the START position. To restart a warm engine, leave the Choke in the RUN position.

2. Slide the Throttle or Speed Control Lever to 1/3 away from the SLOW position (the “turtle”).

Note: Some tools have a Speed Control Lever located elsewhere on the tool which functions the same as the Throttle. Use the Speed Control Lever in place of the Throttle when the tool is so equipped.

SAFETYOPERATIONMAINTENANCE SETUP

3. Turn the Engine Switch on.

4. Grip the Starter Handle of the Engine loosely and pull it slowly several times to allow the gasoline to flow into the Engine’s carburetor. Then pull the Starter Handle gently until resistance is felt. Allow Cable to retract fully and then pull it quickly. Repeat until the engine starts.

Note: Do not let the Starter Handle snap back against the engine. Hold it as it recoils so it doesn't hit the engine.

5. Allow the Engine to run for several seconds. Then, if the Choke lever is in the START position, move the Choke Lever very slowly to its RUN position.

Note: Moving the Choke Lever too fast could stall the engine.

Page 9For technical questions, please call 1-888-866-5797.ITEM 69733

Page 10

IMPORTANT: Allow the engine to run at no load for five minutes with no load after each start-up so that the engine can stabilize.

6. Adjust the Throttle as needed.

7. Break-in Period:

SAFETY OPERATION MAINTENANCESETUP

a. Breaking-in the engine will help to ensure proper equipment and engine operation.

b. The operational break-in period will last about 3 hours of use. During this period:

• Do not apply a heavy load to the equipment.

• Do not operate the engine at its maximum speed.

c. The maintenance break-in period will last about 20 hours of use. After this period:

• Change the engine oil.

Under normal operating conditions subsequent maintenance follows the schedule explained in the MAINTENANCE AND SERVICING section.

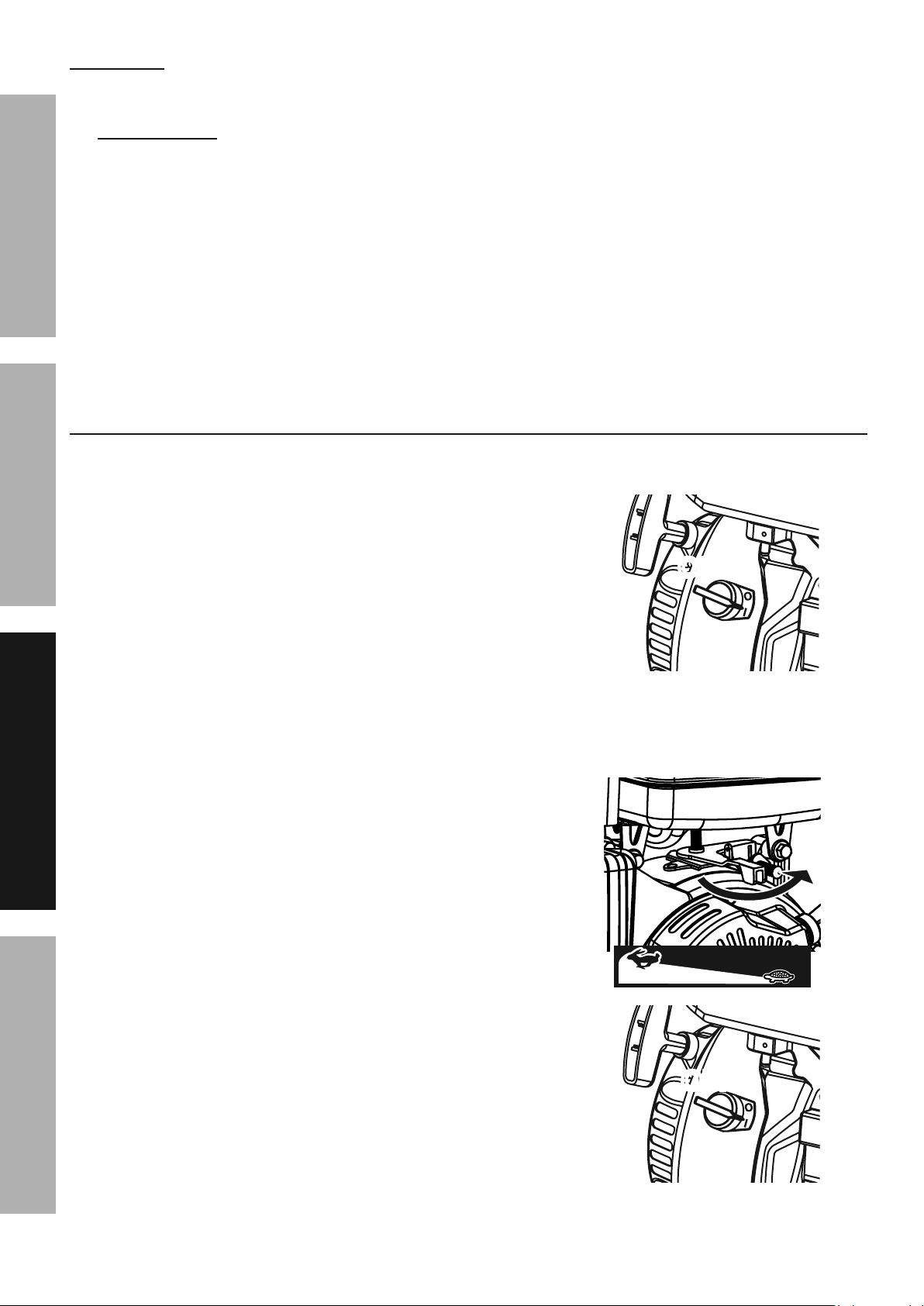

Stopping the Engine

1. To stop the engine in an emergency, turn the Engine Switch off.

2. Under normal conditions, use the following procedure:

a. Slide the Throttle or Speed Control

Lever to SLOW (the “turtle”).

OFF

b. Turn the Engine Switch off.

OFF

Page 10 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 11

Maintenance

WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING: Turn the Power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE: Do not use damaged equipment. If abnormal noise, vibration, or excess smoking occurs, have the problem corrected before further use.

Follow all service instructions in this manual. The engine may fail critically if not serviced properly.

Many maintenance procedures, including any not detailed in this manual, will need to be performed by a qualified technician for safety. If you have any doubts about your ability to safely service the equipment or engine, have a qualified technician service the equipment instead.

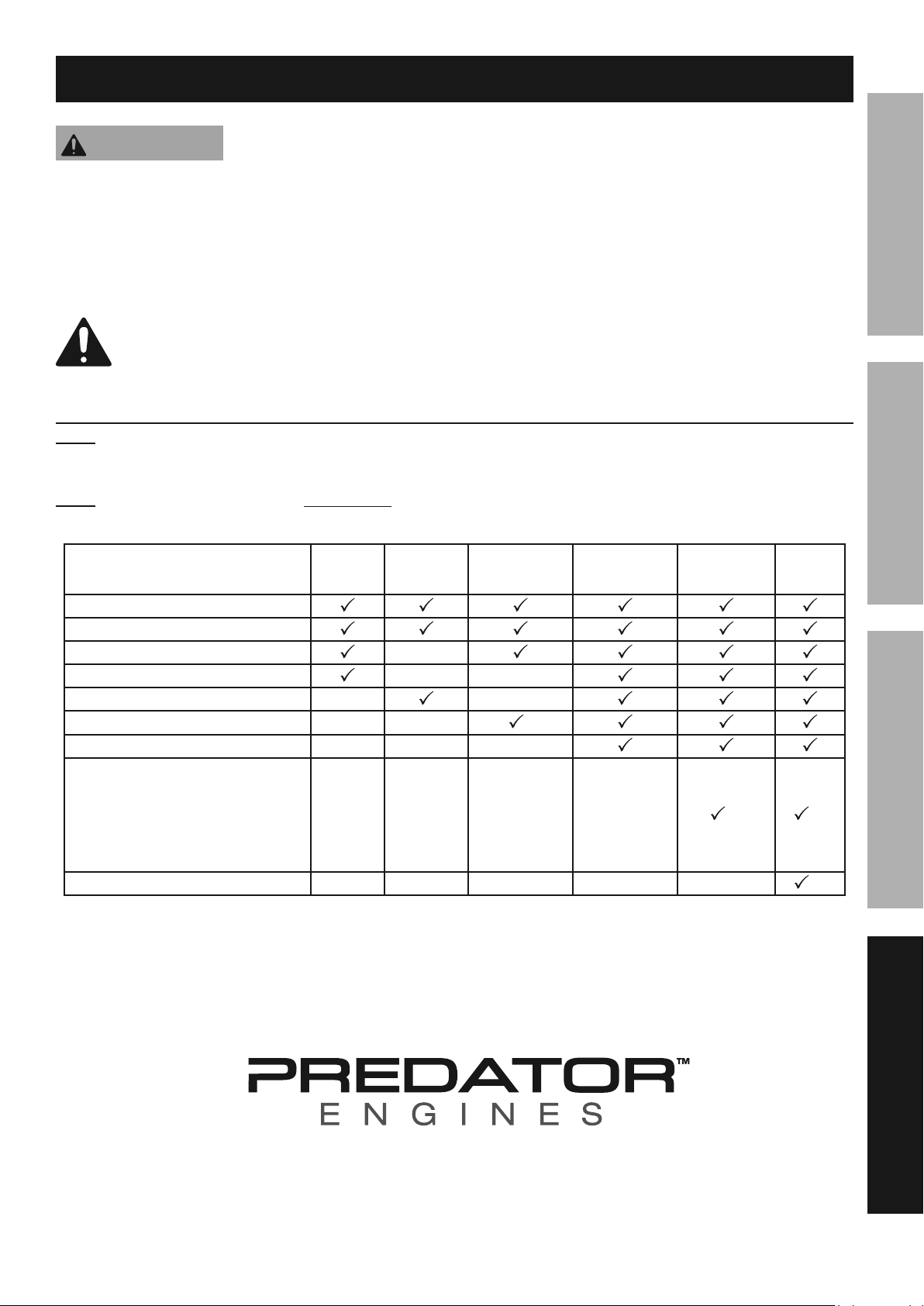

Cleaning, Maintenance, and Lubrication Schedule

Note: This maintenance schedule is intended solely as a general guide. If performance decreases or if

equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.

Note: The following procedures are in addition to the regular checks and maintenance explained as part of the regular operation of the engine and equipment.

SAFETYOPERATIONMAINTENANCE SETUP

Monthly or

every 20

hr. of use

Procedure

Brush off outside of engine

Check engine oil level

Check air cleaner

Check deposit cup

Change engine oil

Clean/replace air cleaner

Check and clean spark plug

1. Check/adjust idle speed

2. Check/adjust valve clearance

3. Clean fuel tank, strainer and carburetor

4. Clean carbon build-up from combustion chamber

Replace fuel line if necessary

Before

Each Use

*Service more frequently when used in dusty areas.

**These items should be serviced by a qualified technician.

Every 3 mo. or

50 hr. of use

Every 6 mo. or

100 hr. of use

Yearly or every 300 hr. of use

** **

Every

2 Years

Page 11For technical questions, please call 1-888-866-5797.ITEM 69733

Page 12

Checking and Filling Fuel

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area away from ignition sources. If the engine is

SAFETY OPERATION MAINTENANCESETUP

Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

Note: Do not use gasoline containing more than 10% ethanol (E10). Do not use E85 ethanol.

Note: Do not use gasoline that has been stored in a metal fuel container or a dirty fuel container. It can cause particles to enter the carburetor, affecting engine performance and/or causing damage.

4. Then replace the Fuel Cap.

5. Wipe up any spilled fuel and allow excess to evaporate before starting engine. To prevent FIRE, do not start the engine while the smell of fuel hangs in the air.

Engine Oil Change

hot from use, shut the engine off and wait for it to cool before adding fuel.

Full level

Add the appropriate type of oil until the oil level is at the full level. SAE 10W-30 oil is recommended for general use. The SAE Viscosity Grade chart shows other viscosities to use in different average temperatures.

Full level

SAE Viscosity Grades

10W-30

5W-30

-20 0 20 40 60 80 100°F

Average outdoor temperature

8. Thread the dipstick back in clockwise.

CAUTION! Do not run the engine with too little oil. The engine will be permanently damaged.

CAUTION! Oil is very hot during operation and can

cause burns. Wait for engine to cool before changing oil.

1. Make sure the engine is stopped and is level.

2. Close the Fuel Valve.

3. Place a drain pan (not included) underneath the crankcase’s drain plug.

4. Remove the drain plug and, if possible, tilt the crankcase slightly to help drain the oil out. Recycle used oil.

5. Replace the drain plug and tighten it.

6. Clean the top of the Dipstick and the area around it. Remove the Dipstick by threading it counterclockwise, and wipe it off with a clean lint free rag.

Air Filter Element Maintenance

1. Remove the air filter cover and the air filter elements and check for dirt. Clean as described below.

2. Cleaning:

• For “paper” filter elements: To prevent injury from dust and debris, wear ANSI-approved safety goggles, NIOSH-approved dust mask/respirator, and heavy-duty work gloves. In a well-ventilated area away from bystanders, use pressurized air to blow dust out of the air filter.

• For foam filter elements: Wash the element in warm water and mild detergent several times. Rinse. Squeeze out excess water and allow it to dry completely. Soak the filter in lightweight oil briefly, then squeeze out the excess oil.

3. Install the cleaned filter. Secure the Air Cleaner Cover before use.

Page 12 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 13

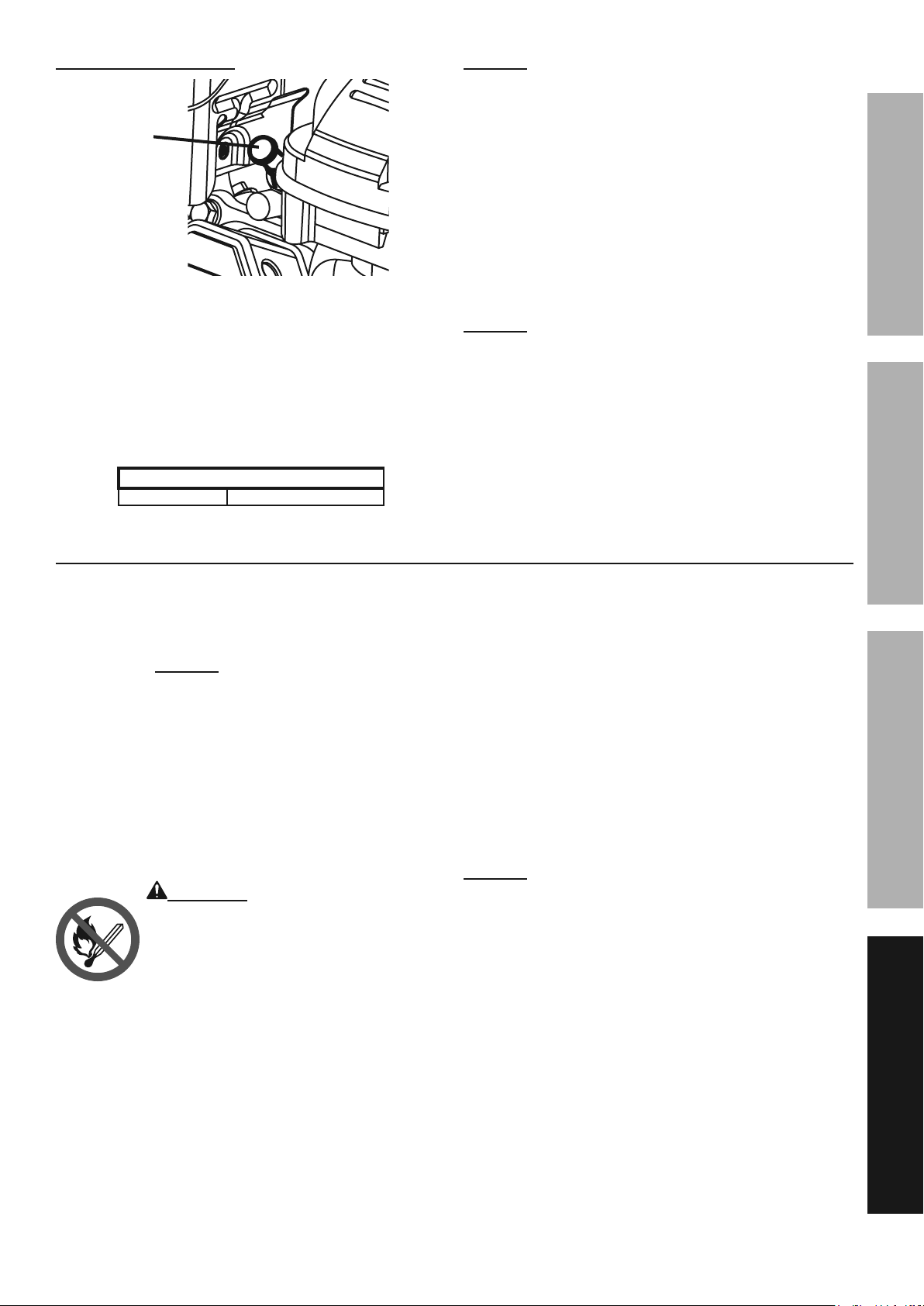

Spark Plug Maintenance

Spark

Plug

Cap

Disconnect spark plug cap from end of plug. Clean out debris from around spark plug.

2. Using a spark plug wrench, remove the spark plug.

3. Inspect the spark plug: If the electrode is oily, clean it using a clean, dry rag. If the electrode has deposits on it, polish it using emery paper. If the white insulator is cracked or chipped, the spark plug needs to be replaced.

Recommended Spark Plugs

TORCH

E5TC

NOTICE: Using an incorrect spark plug may damage the engine.

4. When installing a new spark plug, adjust the plug’s gap to the specification on the Technical Specifications chart. Do not pry against the electrode, the spark plug can be damaged.

5. Install the new spark plug or the cleaned spark plug into the engine. Gasket-style: Finger-tighten until the gasket contacts the cylinder head, then tighten about 1/2-2/3 turn more. Non-gasket-style: Finger-tighten until the plug contacts the head, then tighten about 1/16 turn more.

NOTICE: Tighten the spark plug properly. If loose, the spark plug will cause the engine to overheat. If overtightened, the threads in the engine block will be damaged.

6. Apply dielectric spark plug boot protector (not included) to the end of the spark plug and reattach the wire securely.

SAFETYOPERATIONMAINTENANCE SETUP

Storage

When the equipment is to remain idle for longer than 20 days, prepare the Engine for storage as follows:

1. CLEANING:

Wait for Engine to cool, then clean Engine with dry cloth. NOTICE: Do not clean using water. The water will gradually enter the Engine and cause rust damage. Apply a thin coat of rust preventive oil to all metal parts.

2. FUEL:

To protect the fuel tank during storage, fill the tank with gasoline that has been treated with a fuel stabilizer additive. Follow fuel stabilizer manufacturer’s recommendations for use. Refer to Checking and Filling Fuel on page “Checking and Filling Fuel” on page 8.

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill tank in a well-ventilated area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before adding fuel. Do not smoke.

3. LUBRICATION:

a. Change engine oil.

b. Clean out area around spark plug.

Remove spark plug and pour one tablespoon of engine oil into cylinder through spark plug hole.

c. Replace spark plug, but leave

spark plug cap disconnected.

d. Pull Starter Handle to distribute oil in cylinder.

Stop after one or two revolutions when you feel the piston start the compression stroke (when you start to feel resistance).

4. BATTERY: Disconnect battery cables (if equipped). Recharge batteries monthly while in storage.

5. STORAGE AREA: Cover and store in a dry, level, well-ventilated area out of reach of children. Storage area should also be away from ignition sources, such as water heaters, clothes dryers, and furnaces.

NOTICE: During extended storage periods the Engine must be started every 3 months and allowed

to run for 15 – 20 minutes or the Warranty is VOID.

6. AFTER STORAGE: Before starting the Engine during or after storage, keep in mind that untreated gasoline will deteriorate quickly. Drain the fuel tank and change to fresh fuel if untreated gasoline has been sitting for a month, if treated gasoline has been sitting beyond the fuel stabilizer’s recommended time period, or if the Engine does not start.

Page 13For technical questions, please call 1-888-866-5797.ITEM 69733

Page 14

Troubleshooting

Problem Possible Causes Probable Solutions

Engine will not start FUEL RELATED:

SAFETY OPERATION MAINTENANCESETUP

1. No fuel in tank or fuel valve closed.

2. Choke not in CHOKE position, cold engine.

3. Gasoline with more than 10% ethanol used. (E15, E20, E85, etc.)

4. Low quality or deteriorated, old gasoline.

5. Carburetor not primed.

6. Dirty fuel passageways.

7. Carburetor needle stuck. Fuel can be smelled in the air.

8. Too much fuel in chamber. This can be caused by the carburetor needle sticking.

9. Clogged Fuel Filter.

IGNITION (SPARK) RELATED:

1. Spark plug cap not connected securely.

2. Spark plug electrode wet or dirty.

3. Incorrect spark plug gap.

4. Spark plug cap broken.

5. Circuit breaker tripped (electric start models only).

6. Incorrect spark timing or faulty ignition system.

COMPRESSION RELATED:

1. Cylinder not lubricated. Problem after long storage periods.

2. Loose or broken spark plug. (Hissing noise will occur when trying to start.)

3. Loose cylinder head or damaged head gasket. (Hissing noise will occur when trying to start.)

4. Engine valves or tappets mis-adjusted or stuck.

FUEL RELATED:

1. Fill fuel tank with fresh 87+ octane stabilizer-

treated unleaded gasoline and open fuel valve.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

2. Move Choke to CHOKE position.

3. Clean out ethanol rich gasoline from fuel system. Replace components damaged by ethanol. Use fresh 87+ octane stabilizer-treated unleaded gasoline only.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

4. Use fresh 87+ octane stabilizer-treated unleaded gasoline.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

5. Pull on Starter Handle to prime.

6. Clean out passageways using fuel additive. Heavy deposits may require further cleaning.

7. Gently tap side of carburetor float chamber with screwdriver handle.

8. Turn Choke to RUN position. Remove spark plug and pull the start handle several times to air out the chamber. Reinstall spark plug and set Choke to CHOKE position.

9. Replace Fuel Filter.

IGNITION (SPARK) RELATED:

1. Connect spark plug cap properly.

2. Clean spark plug.

3. Correct spark plug gap.

4. Replace spark plug cap.

5. Reset circuit breaker. Check wiring and starter motor if breaker continues to trip.

6. Have qualified technician diagnose/ repair ignition system.

COMPRESSION RELATED:

1. Pour tablespoon of oil into spark plug hole. Crank engine a few times and try to start again.

2. Tighten spark plug. If that does not work, replace spark plug. If problem persists, may have head gasket problem, see #3.

3. Tighten head. If that does not remedy problem, replace head gasket.

4. Have qualified technician diagnose/ repair ignition system.

Follow all safety precautions whenever diagnosing or servicing the equipment or engine.

Page 14 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 15

Problem Possible Causes Probable Solutions

Engine misfires 1. Spark plug cap loose.

2. Incorrect spark plug gap or damaged spark plug.

3. Defective spark plug cap.

4. Old or low quality gasoline.

5. Incorrect compression.

Engine stops suddenly

Engine stops when under heavy load

Engine knocks 1. Old or low quality gasoline.

Engine backfires 1. Impure or low quality gasoline.

1. Low oil shutdown.

2. Fuel tank empty or full of impure or low quality gasoline.

3. Defective fuel tank cap creating vacuum, preventing proper fuel flow.

4. Faulty magneto.

5. Disconnected or improperly connected spark plug cap.

1. Dirty air filter

2. Engine running cold.

2. Engine overloaded.

3. Incorrect spark timing, deposit buildup, worn engine, or other mechanical problems.

2. Engine too cold.

3. Intake valve stuck or overheated engine.

4. Incorrect timing.

1. Check wire connections.

2. Re-gap or replace spark plug.

3. Replace spark plug cap.

4. Use only fresh 87+ octane stabilizer-treated

unleaded gasoline.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

5. Diagnose and repair compression.

(Use Engine will not start: COMPRESSION RELATED section.)

1. Fill engine oil to proper level. Check engine oil before EVERY use.

2. Fill fuel tank with fresh 87+ octane stabilizertreated unleaded gasoline.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

3. Test/replace fuel tank cap.

4. Have qualified technician service magneto.

5. Secure spark plug cap.

1. Clean or replace element.

2. Allow engine to warm up prior to operating equipment.

1. Fill fuel tank with fresh 87+ octane stabilizertreated unleaded gasoline.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

2. Do not exceed equipment’s load rating.

3. Have qualified technician diagnose and service engine.

1. Fill fuel tank with fresh 87+ octane stabilizertreated unleaded gasoline.

Do not use gasoline with more than 10% ethanol (E15, E20, E85, etc.).

2. Use cold weather fuel and oil additives to prevent backfiring.

3. Have qualified technician diagnose and service engine.

4. Check engine timing.

SAFETYOPERATIONMAINTENANCE SETUP

Follow all safety precautions whenever diagnosing or servicing the equipment or engine.

Page 15For technical questions, please call 1-888-866-5797.ITEM 69733

Page 16

Warranties

SAFETY OPERATION MAINTENANCESETUP

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Emission Control System Warranty

United States Emission Control Defects Warranty Statement

The United States Environmental Protection Agency (herein EPA) and Harbor Freight Tools (herein HFT) are pleased to explain the emission control system warranty on your 2014-2015 Small Off-Road Engine (herein engine). Within the United States, new off-road, spark-ignition engines certified for model year 2014-2015, must meet similar standards set forth by the EPA. HFT must warrant the emission control system on your engine for the periods of time described below, provided there has been no abuse, neglect or improper maintenance of your engine.

Your emission control system may include parts such as the carburetor or fuel-injection system, and the ignition system. Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, HFT will repair your engine at no cost to you including diagnosis, parts and labor.

Manufacturer’s Warranty Coverage

The 2014-2015 engines are warranted for two (2) years. If any emission-related part on your engine is defective, the part will be repaired or replaced by HFT.

Harbor Freight Tools Emission Control Defects Warranty Coverage

Engines are warranted for a period of two (2) years relative to emission control parts defects, subject to the provisions set forth below. If any emission related part on your engine is defective, the part will be repaired or replaced by HFT.

Owner’s Warranty Responsibilities

• As the engine owner, you are responsible for the performance of the required maintenance listed in your Owner’s Manual. HFT recommends that you retain all receipts covering maintenance on your engine, but HFT cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

• As the engine owner, you should, however, be aware that HFT may deny you warranty coverage if your engine or a part has failed due to abuse, neglect, improper maintenance, or unapproved modifications.

• You are responsible for shipping your engine to a HFT warranty station as soon as a problem exists. Contact the HFT Customer Service department at the number below to make shipping arrangements. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty

rights and responsibilities, you should contact the Harbor Freight Tools Customer Service Department at 1-888-866-5797.

Page 16 For technical questions, please call 1-888-866-5797. ITEM 69733

Page 17

Harbor Freight Tools Emission Control Defects Warranty Provisions

1. Length of Coverage

HFT warrants to a first retail purchaser and each subsequent purchaser that the engine is free from defects in materials and workmanship that cause the failure of warranted parts for a period of two (2) years after the date of delivery to the first retail purchaser.

2. No Charge Repair or Replacement

Repair or replacement of any warranted part will be performed at no charge to the owner if the work is performed through a warranty station authorized by HFT. For emissions warranty service, contact the HFT Customer Service Department at 1-888-866-5797.

3. Consequential Damages Coverage

Coverage under this warranty shall also extend to the failure of any engine components caused by the failure of any warranted part while it is still covered under this warranty.

4. Coverage Exclusions

Warranty claims shall be filed in accordance with the provisions of the HFT warranty policy explained in the box at the top of the previous page. HFT shall not be liable for any loss of use of the engine, for any alternative usage, for any damage to goods, loss of time, or inconvenience. Warranty coverage shall also be excluded for any part which fails, malfunctions, or is damaged due to failure to follow the maintenance and operating instructions set forth in the Owner’s Manual including, but not limited to:

a) Use of parts which are not authorized by HFT

b) Improper installation, adjustment or repair of the engine or

of any warranted part unless performed by an authorized warranty center

c) Failure to follow recommendations on fuel use contained in

the Owner’s Manual

d) Improper or inadequate maintenance of any warranted parts

e) Repairs performed outside of the authorized warranty

service dealers

f) Alterations by changing, adding to or removing parts from

the engine.

5. Service and Maintenance

Component parts which are not scheduled for replacement as required maintenance or are scheduled only for regular inspection to the effect of “repair or replace as necessary” are warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance is warranted for the period of time up to the first scheduled replacement point for that part. Any replacement part, provided it is equivalent in durability and performance, may be used in performance of maintenance or repairs. The owner is responsible for commissioning a qualified technician/mechanic to perform all required maintenance, as outlined in the Inspection, Cleaning, and Maintenance section in this manual.

6. Warranted Parts

1) Fuel Metering System

i) Carburetor and its internal parts.

ii) Fuel pump (if so equipped).

iii) Cold start enrichment system.

2) Air Induction System

i) Intake pipe/manifold.

ii) Air cleaner.

3) Ignition System

i) Spark plug.

ii) Magneto ignition system.

4) Catalyst System (if so equipped)

i) Exhaust pipe stud.

ii) Muffler.

iii) Catalytic converter (if so equipped).

5) Miscellaneous Items Used in Above Systems

i) Vacuum, temperature and time sensitive valves and

switches.

ii) Hoses, belts, connectors, and assemblies.

SAFETYOPERATIONMAINTENANCE SETUP

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 17For technical questions, please call 1-888-866-5797.ITEM 69733

Page 18

Parts Lists and Diagrams

Parts List

SAFETY OPERATION MAINTENANCESETUP

Part Description Qty.

1 Head Subassembly, Cylinder 1 2 Gasket, Cylinder Head 1 3 Cover Subassembly, Cylinder Head 1 4 Gasket, Cylinder Head Cover 1 5 Tube, Breather 1 6 Bolt 4 7 Stud 2 8 Stud 2

9 Pin 2 10 Bolt, Cylinder Head 4 11 Plug, Spark 1 12 Block, High Tension Line 1 13 Seal, Oil 1 14 Bolt, Drain Plug 1 15 Washer, Flat 1 16 Crankcase Subassembly. 1 17 Bearing 1 18 Gear Assy, Governor 1 19 Arm, Governor 1 20 Circlip 1 21 Pin 1 22 Seal, Oil 1 23 Cover, Crankcase 1 24 Bearing 1 25 Gasket, Crankcase 1 26 Pin 2 27 Dipstick Subassembly, Oil 1 28 Bolt 6 29 Crankshaft Assy. 1 30 Ring Set, Oil 1 31 Clip, Piston Pin 2 32 Piston 1 33 Pin, Piston 1 34 Rod, Connecting 1 35 Ring, The First 1 36 Ring, The Second 1 37 Camshaft Assy. 1 38 Valve, Exhaust 1 39 Valve, Intake 1 40 Seat, Valve Spring 2 41 Spring, Valve 2 42 Tappet, Valve 2 43 Lifter Subassembly, Valve 2 44 Plate Subassembly, Lifter Stopper 1 45 Bolt, Valve Adjusting 2

Part Description Qty.

46 Rocker, Valve 2 47 Nut, Valve Adjusting 2 48 Nut, Valve Lock 2 49 Starter Assy, Recoil 1 50 Bolt 3 51 Shroud 1 52 Bolt 4 53 Deflector, Crankcase Air 1 54 Bolt 1 55 Shroud, Cylinder Body 1 56 Bolt 1 57 Shield, Shroud 1 58 Plug, End 1 59 Gasket, Carburetor 2 60 Plate, Carburetor Insulator 1 61 Gasket, Air Cleaner 1 62 Carburetor Assy. 1 63 Cleaner, Air 1 64 Nut 2 65 Muffler Assy. 1 66 Gasket, Exhaust Outlet 1 67 Nut 2 68 Tank, Fuel 1 69 Strainer, Fuel 1 70 Cover, Fuel Tank 1 71 Bolt 3 72 Outlet Subassembly, Fuel Tank Oil 1 73 Tube, Fuel 1 74 Collar 2 75 Clip 1 76 Nut, Flywheel 1 77 Pulley,Starter 1 78 Impeller 1 79 Flywheel Subassembly 1 80 Bolt 2 81 Coil, Ignition 1 82 Nut 1 83 Support Subassembly, Governor 1 84 Rod, Governor 1 85 Spring, Throttle Valve Returning 1 86 Spring, Governor 1 87 Bolt 2 88 Control Assy, Throttle 1 89 Mounting Plate 1 90 Mounting Plate Bolt M8 x 16 4

Record Product’s Serial Number Here:

Note: If product has no serial number,

record month and year of purchase instead.

Page 18 For technical questions, please call 1-888-866-5797. ITEM 69733

Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.

Page 19

Assembly Diagram

3 4

36 30

SAFETYOPERATIONMAINTENANCE SETUP

Page 19For technical questions, please call 1-888-866-5797.ITEM 69733

Page 20

Mounting Hole Diagram

Note: Not to scale.

1 in. / 25.5mm

2.42 in. / 61.5mm

Power Take-Off Diagram

1.44 in.

/ 36.5mm

4.02 in. / 102mm

Note: Not to scale.

Ø3.625 in. / 92.1mm

4x5/16-24UNF

2x5/16-24UNF

3.58 in. / 91mm*

Ø0.625 in. / 16mm

0.1875 in. / 4.76mm

0.51 in.

/ 13mm

2.37 in. / 60.1mm

1.79 in. / 45.5mm

5/16-24UNF

≥0.98 in. / 25mm

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797

Harbor Freight Tools 69733 Product manual

Specifications and Main Features

Frequently Asked Questions

User Manual
