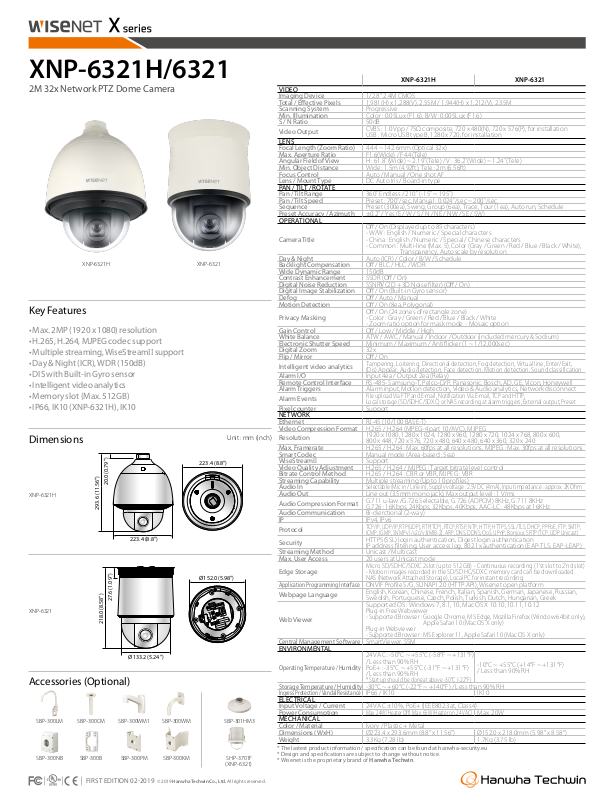

Hanwha Techwin XNP-6321 User Manual
XNP-6321H/6321
20.0 (0.79")
293.6 (11.56")
Ø220.0 (8.66")
Ø220.0 (8.66")
2M 32x Network PTZ Dome Camera
XNP-6321H XNP-6321
Key Features
• Max. 2MP (1920 x 1080) resolution
• H.265, H.264, MJPEG codec support
• Multiple streaming, WiseStream
• Day & Night (ICR), WDR (150dB)
• DIS with Built-in Gyro sensor
• Intelligent video analytics
• Memory slot (Max. 512GB)
• IP66, IK10 (XNP-6321H), IK10
Dimensions
XNP-6321H
XNP-6321
Accessories (Optional)
SBP-300B SBP-300PM SBP-300KM
FIRST EDITION 022019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved.
20.0 (0.79")
293.6 (11.56")
27.6 (1.09")
218.0 (8.58")
II
support
223.4 (8.8")
Ø133.2 (5.24")
SBP-300WMSBP-300WM1SBP-300CMSBP-300LM
223.4 (8.8")
Ø152.0 (5.98")
SBP-301HM3
(XNP-6321)
Unit : mm (inch)
SHP-3701FSBP-300NB
VIDEO
Imaging Device 1/2.8" 2.4M CMOS
Total / Effective Pixels 1,981(H) x 1,288(V), 2.55M / 1,944(H) x 1,212(V), 2.35M
Scanning System Progressive
Min. Illumination Color : 0.05Lux (F1.6), B/W : 0.005Lux (F1.6)
S / N Ratio 50dB
Video Output
LENS
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
Max. Aperture Ratio F1.6(Wide) / F4.4(Tele)
Angular Field of View H : 61.8˚(Wide) ~ 2.19˚(Tele) / V : 36.2˚(Wide) ~ 1.24˚(Tele)
Min. Object Distance Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One shot AF
Lens / Mount Type DC Auto Iris / Board-in type
PAN / TILT / ROTATE
Pan / Tilt Range 360˚ Endless / 210˚ (-15˚ ~ 195˚)
Pan / Tilt Speed Preset : 700˚/sec, Manual : 0.024˚/sec ~ 200˚/sec
Sequence Preset (300ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule
Preset Accuracy / Azimuth ±0.2˚ / Yes (E / W / S / N / NE / NW / SE / SW)
OPERATIONAL
Camera Title
Day & Night Auto (ICR) / Color / B/W / Schedule
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range 150dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR
Digital Image Stabilization Off / On (Built-in Gyro sensor)
Defog Off / Auto / Manual
Motion Detection Off / On (8ea, Polygonal)
Privacy Masking
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (included mercury & Sodium)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Digital Zoom 32x
Flip / Mirror Off / On
Intelligent video analytics
Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485- Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events
Pixel counter Support
NETWORK
Ethernet RJ-45 (10/100 BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution
Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps at all resolutions
Smart Codec Manual mode (Area-based : 5ea)
WiseStream
Video Quality Adjustment H.265 / H.264 / MJPEG : Target bitrate level control
Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
Audio Compression Format
Audio Communication Bi-dierctional (2-way)
IP IPv4, IPv6
Protocol
Security
Streaming Method Unicast / Multicast
Max. User Access 20 users at Unicast mode
Edge Storage
Application Programming Interface
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
Ingress Protection / Vandal Resistance
ELECTRICAL
Input Voltage / Current 24V AC ±10%, PoE+ (IEEE802.3at, Class4)
Power Consumption
MECHANICAL
Color / Material Ivory / Plastic + Metal
Dimensions (WxH) Ø223.4 x 293.6mm (8.8" x 11.56") Ø152.0 x 218.0mm (5.98" x 8.58")
Weight 3.3Kg (7.28 lb) 1.7Kg (3.75 lb)
* The lastest product information / specication can be found at hanwha-security.eu
* Design and specications are subject to change without notice.
* Wisenet is the proprietary brand of Hanwha Techwin.
II
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : Micro USB type B, 1280 x 720, for installation
Off / On (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),
Off / On (24 zones of rectangle zone)
- Color : Gray / Green / Red / Blue / Black / White
- Zoom ratio option for mask mode - Mosaic option
Tampering, Loitering, Directional detection, Fog detection, Virtual line, Enter/Exit,
(Dis) Appear, Audio detection, Face detection, Motion detection, Sound classification
File upload Via FTP and E-mail, Notification Via E-mail, TCP and HTTP,
Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, External output, Preset
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Support
Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
G.711 u-law /G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast)
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
Micro SD/SDHC/SDXC 2slot (up to 512 GB) - Continuous recording (1'st slot to 2'nd slot)
- Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded.
NAS (Network Attached Storage), Local PC for instant recording
ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet open platform
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Plug-in Free Webviewer
- Supported Browser : Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only),
Plug-in Webviewer
- Supported Browser : MS Explorer 11, Apple Safari 10 (Mac OS X only)
SmartViewer, SSM
24V AC : -50°C ~ +55°C (-58°F ~ +131°F)
/ Less than 90% RH
PoE+ : -35°C ~ +55°C (-31°F ~ +131°F)
/ Less than 90% RH
* Start up should be done at above -30°C (-22°F)
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
IP66 / IK10 IK10
Max. 24W (Heater Off), Max. 65W (Heater on, 24V AC)
XNP-6321H XNP-6321
Transparency, Auto scale by resolution
V
(2D + 3D Noise filter) (Off / On)
Apple Safari 10 (Mac OS X only)
-10°C ~ +55°C (+14°F ~ +131°F)
/ Less than 90% RH
Max. 20W
