Hanwha Techwin SNF-8010VM User Manual
NETWORK CAMERA
Network Setup Guide
CONTENTS
CHECKING NETWORK
CONFIGURATION
3
NETWORK CONFIGURATION
11
SETUP SCREEN
37
3 Selecting the network type
11 Configure the network on the PC used for IP
configuration
12 Launching IP Installer
19 Configuring IP installer values

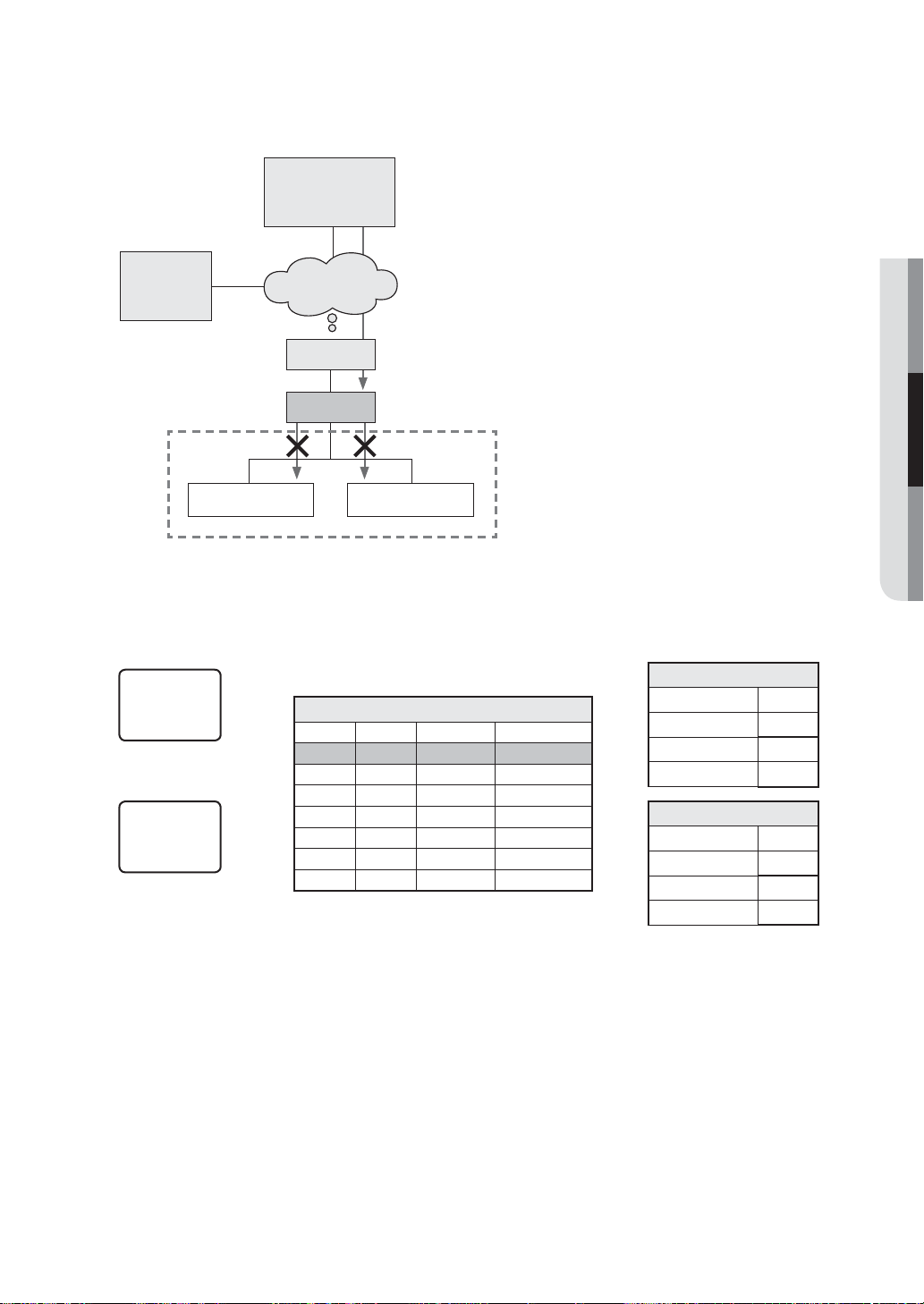

22 How to configure port forwarding

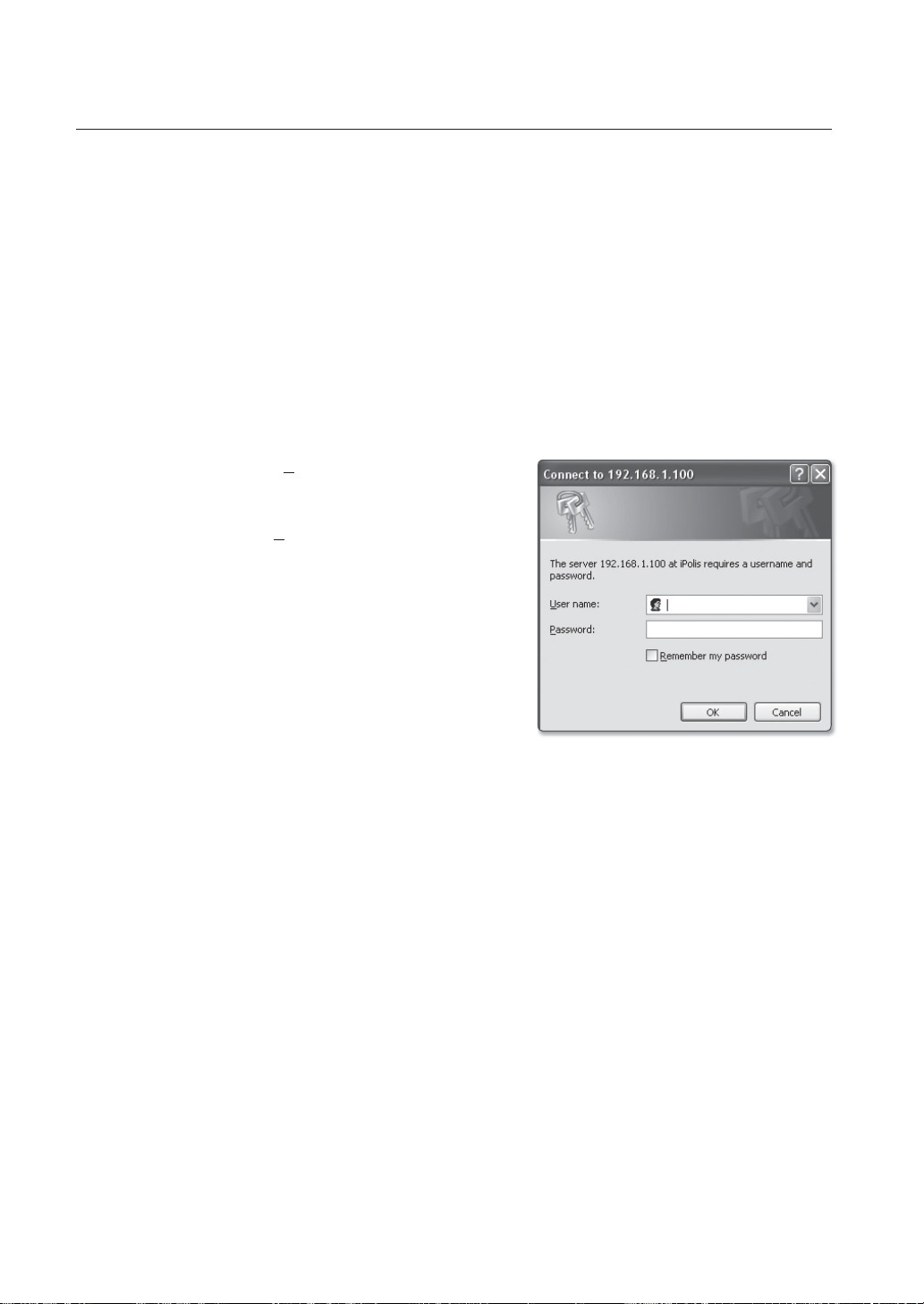

27 Login

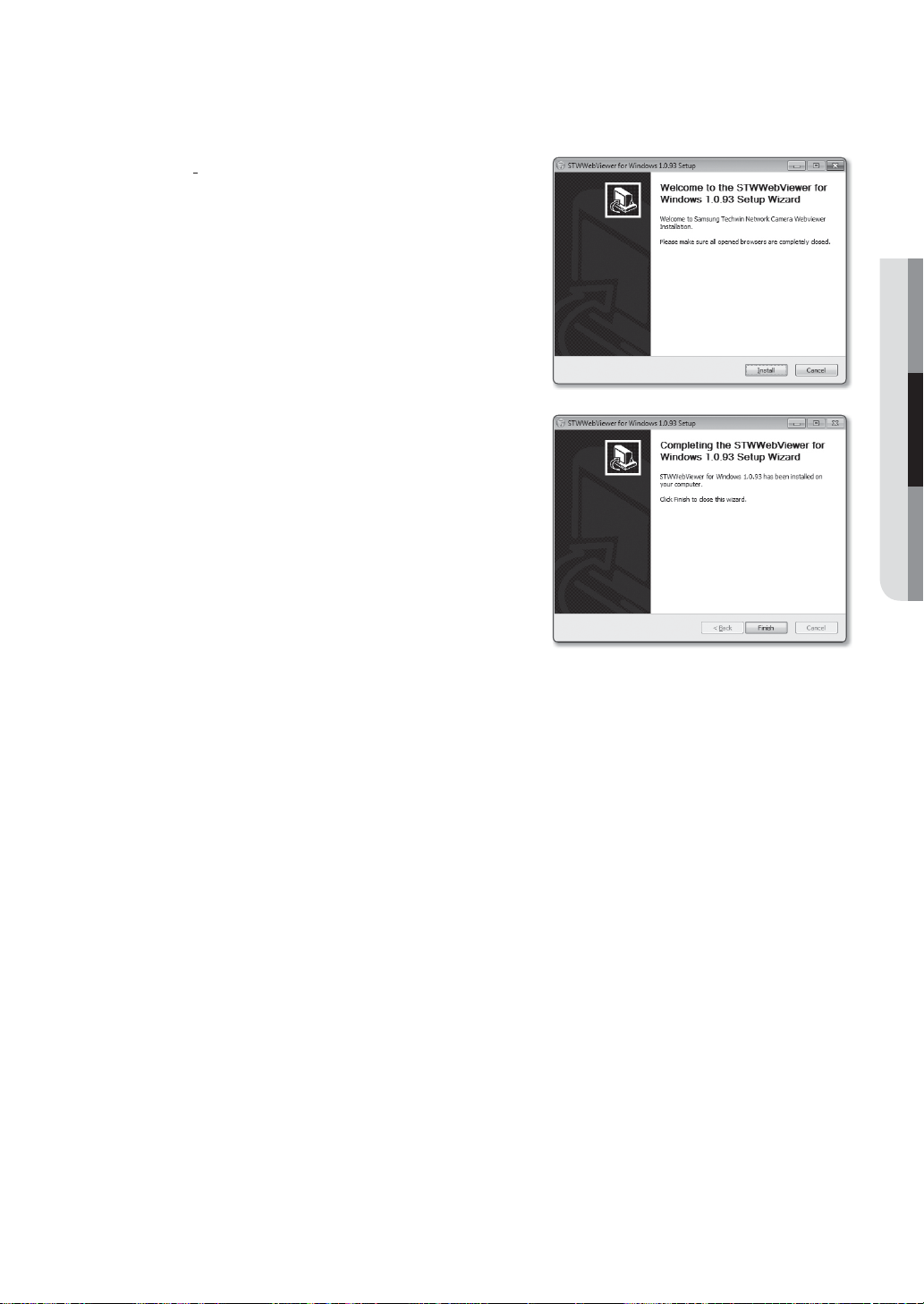

31 Installing the program needed to launch the
webviewer after connecting to network camera

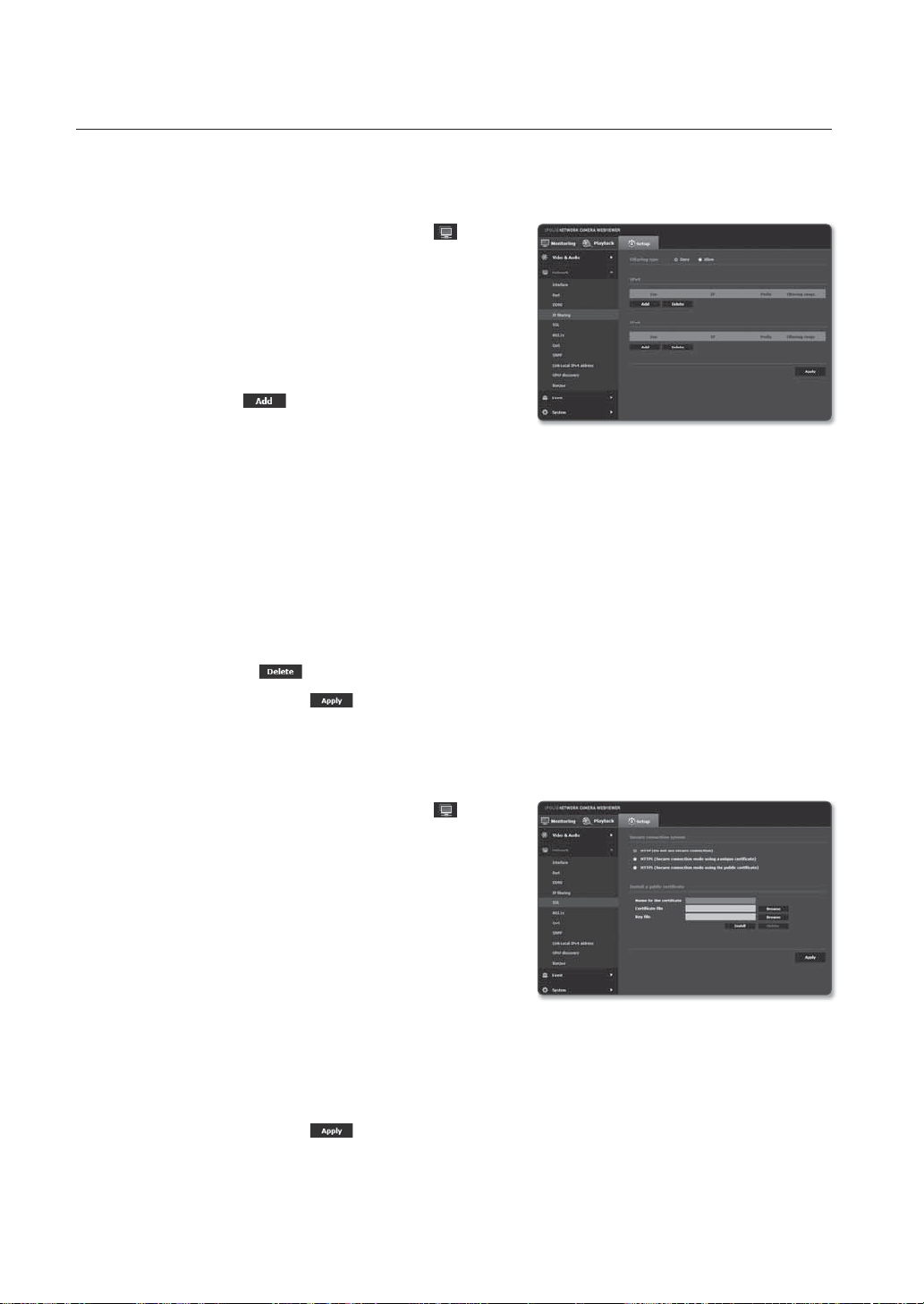

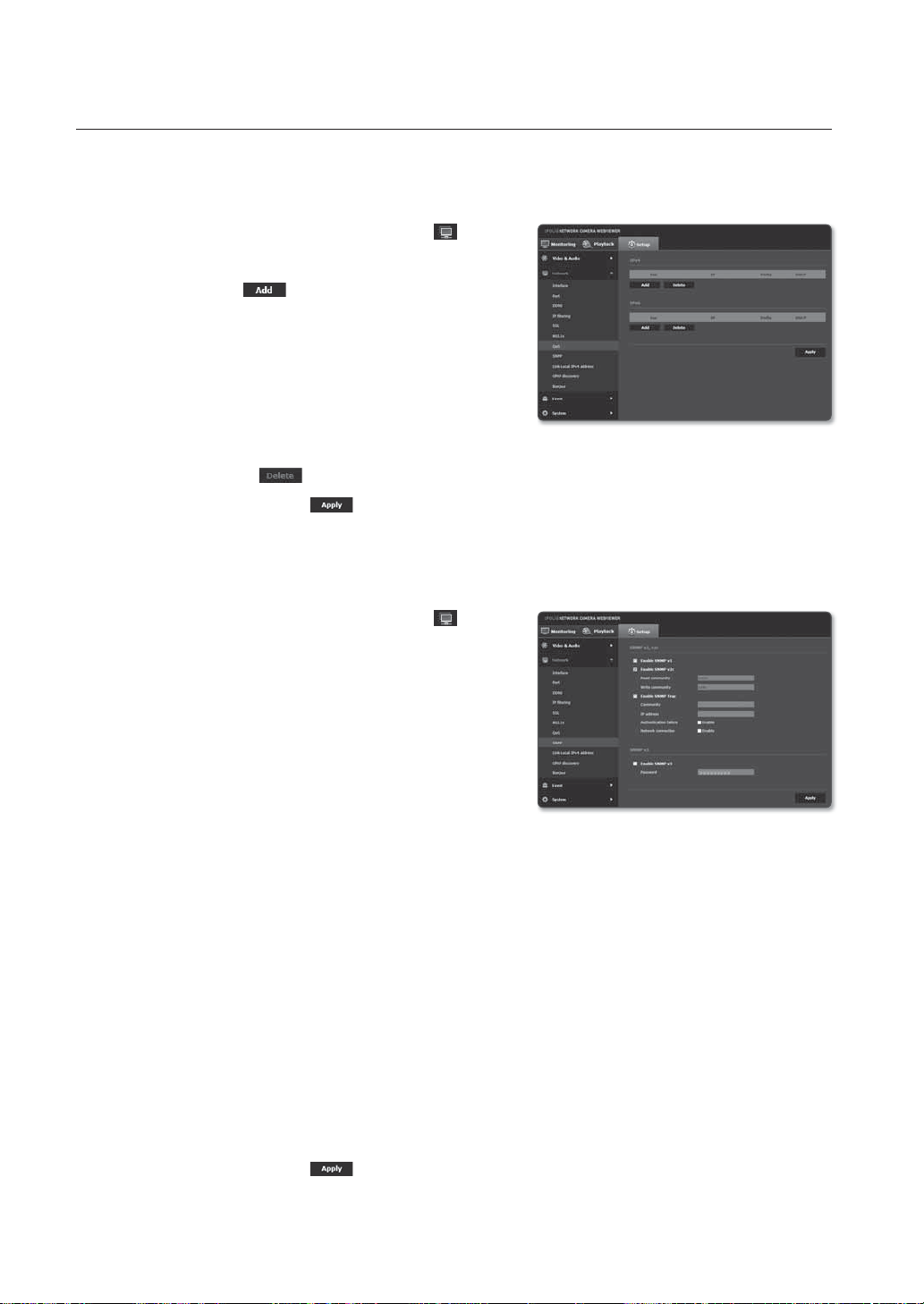

37 web viewer-Network Setup
checking network configuration
Configure the network after checking the following.
1. Check whether to use a DDNS server.
- Check whether to use a DDNS for remote monitoring from outside, or to configure the system in the form of
a local network for monitoring only inside the local network.
2. Check whether to use a static IP or dynamic IP.
3.
Before installation, check the number and locations of network cameras and the location of the monitoring PC.
4. Check the network devices to be connected to a network camera, such as IP router/hub.
5. Check the port forwarding, ports and protocol required for establishing a camera connection path.
SELECTING THE NETWORK TYPE
Select the type of network that you want to configure based on the following information.
If DDNS server is not used:
As shown in the image below, if the monitoring PC and network camera are connected to the same router, they
will have the same IP range.
Install the IP installer on the local monitoring PC and use the PC for IP configuration.
EX1)
WAN
●
CHECKING NETWORK CONFIGURATION
Modem
Router
Local monitoring PC Network camera1 Network camera n
EX2)
WAN
Modem
Router
Local monitoring PC Network camera 1
...
...
Network camera n
Hub
Network camera 1 Network camera n
...
English _3
checking network configuration
EX3)
WAN
Modem
Router
Hub
Local monitoring PC Network camera 1 Network camera n
EX4)
WAN
Modem
Router
Hub
Local monitoring PC
Network camera 1 Network camera n
...
...
Checking network configuration
4_
As shown in the image below, if the monitoring PC and network camera are connected to different routers, the
network camera cannot be configured, even if the IP installer is installed in the local monitoring PC.
In this case, connect the configuration PC or notebook to the router (1) to set up the network camera.
EX5)
WAN
Modem
Router(1)Configuration PC
Network camera nNetwork camera 1
...
Router(2)
Local monitoring PC
Remove the PC or laptop for IP configuration after the configuration.
M
●
CHECKING NETWORK CONFIGURATION
English _5
checking network configuration
If DDNS server is used:
As shown in the image below, if the monitoring PC and network camera are connected to the same router, they
will have the same IP range.
Install the IP Installer on the local PC and use the PC for IP configuration.
EX1)
DDNS
Server
Local monitoring PC Network camera n
EX2)
DDNS
Server
Local monitoring PC Network camera 1 Network camera n Hub
Internet
Modem
Router
Network camera1
Internet
Modem
Router
External remote
monitoring PC
...
External remote
monitoring PC
...
Checking network configuration
6_
Network camera 5 Network camera n
...
EX3)
DDNS
Server
Local monitoring PC Network camera1 Network camera n
Internet
Modem
Router
Hub
...
EX4)
DDNS
Server
Internet
Modem
Router
Hub
External remote
monitoring PC
Network camera1 Network camera n
External remote
monitoring PC
...
●
CHECKING NETWORK CONFIGURATION
Local monitoring PC
English _7
checking network configuration
As shown in the image below, if the monitoring PC and network camera are connected to different routers, the
network camera cannot be configured, even if the IP installer is installed in the local monitoring PC.
Connect another PC or laptop for IP configuration to router (1) and configure the network camera.
EX5)
DDNS
Server
Local monitoring PC
As shown in the image below, if the monitoring PC and the network camera are connected to the DSL/Cable/
PPPoE modem directly without connecting to the local network, connect another PC or laptop and use the PC
to configure a network camera IP.
EX6)
DDNS
Server
Internet
Modem
Router(1)Configuration PC
Router(2)
Internet
DSL/Cable/PPPoE
Modem
External remote
monitoring PC
External remote
monitoring PC
...
Network camera nNetwork camera 1
Configuration PC
Remove the PC or laptop for IP configuration after the configuration.
M
Checking network configuration
8_
Network camera
If the network environment makes it difficult to configure an IP for the
network camera in a typical way:
As shown in the image below, if two or more routers are located at the upper layer of the network camera, it will
generally be impossible to configure the network camera.
In this environment, it is necessary to convert the router (2) into a general hub equipment (by turning off the
DHCP function in the Router Setup menu so that the IP addresses of the router (1) and (2) do not crash with
each other to make the router (2) operates as it were a general hub equipment) or double port forwarding of
the routers (1) and (2).
It is difficult to change and configure the network, so it is recommended to ask the network administrator of the site to
J
replace router (2) with a general hub, and connect the network camera.
EX1)
●
CHECKING NETWORK CONFIGURATION
DDNS
Server
Local monitoring PC Network camera 1 Network camera n
EX2)
DDNS
Server
Internet
Modem
Router(1)
Router(2)
Internet
Modem
Router(1)
External remote
monitoring PC
...
External remote
monitoring PC
Router(2)
Local monitoring PC Network camera 1 Network camera n
...
English _9
checking network configuration
EX3)
WAN
Modem
Router(1)
Router(2)
Local monitoring PC
EX4)
Local monitoring PC Network camera 1 Network camera n
Network camera 1 Network camera n
WAN
Modem
Router(1)
Router(2)
...
...
Checking network configuration
10_
network configuration
How to check the IP range of the router connected to the network camera.
1. Click Start Run Windows in the Windows screen and enter “cmd”.
2. Type “ipconfig” in the command window.
Information about the IP of the PC for IP configuration connected to the router will be displayed.
If the same gateway and subnet mask are used, the IP range is the same because the network camera is
M
connected to the same router.
Router
● NETWORK CONFIGURATION
Network camera 1 Network camera n
IP Installer of PC for
IP configuration
...
CONFIGURE THE NETWORK ON THE PC USED FOR IP
CONFIGURATION
Connect a PC to configure IP
To launch the IP installer program for IP configuration, connect the PC to the same router in order to have the
same IP range as the network camera.
If there is a local PC within the same IP range, launch the IP installer on the local PC to configure the network.
M
If there is no local PC within the same IP range, connect another PC to configure an IP.
IP Installer of PC for
IP configuration
Router(1)
Router(2)
Network camera 1 Network camera n
...
English _11
network configuration
How to configure the network environment of the PC used for IP
configuration
1. Open the network environment configuration menu of the
PC connected to the router.
Path : Control panel Network and Sharing Center
2.
Change adapter settings Local Area Connection
Properties Internet Protocol Version (TCP/IPv4) Properties
3. Select "Obtain an IP address automatically" and "Obtain
DNS server address automatically.”
If the IP range of the PC used for IP configuration is different
M
from that of the network camera, the camera will not be
detected, even if you click [Search].
LAUNCHING IP INSTALLER
What is IP Installer?
The IP Installer, launched on the PC for IP configuration, receives MAC address information transmitted from the
network devices with the IP range of the router, and detects network cameras.
If the IP configuring PC (on which the IP Installer is installed) and the network camera are connected to different
routers and their IP ranges are different, the IP Installer cannot detect network cameras.
EX1) In the following network structure, a MAC address of the network camera is not transmitted to outside
router (2), and a network camera is not detected on the IP Installer of the local PC.
Router(1)
Router(2)
IP Installer of PC for
IP configuration
EX2) The IP configuring PC, on which the IP Installer is installed, must be located in the same IP range of the
router with the network camera in order to detect network cameras.
Router(1)
IP Installer of PC for
IP configuration
Router(2)
Network camera 1 Network camera n
Network camera 1 Network camera n
...
...
network configuration
12_
If DDNS server is not used:
In the following case, launch the IP Installer on the local monitoring PC.
EX1)
WAN
Modem
Router
Local monitoring PC Network camera1 Network camera n
EX2)
WAN
Modem
Router
Local monitoring PC Network camera 1
...
...
Network camera n
● NETWORK CONFIGURATION
Hub
Network camera 1 Network camera n
...
English _13
network configuration
EX3)
WAN
Modem
Router
Hub
Local monitoring PC Network camera 1 Network camera n
EX4)
WAN
Modem
Router
Hub
Local monitoring PC
In the following case, connect another configuring PC to router (1) and launch the IP Installer.
EX5)
Network camera 1 Network camera n
WAN
...
...
network configuration
14_
Modem
Router(1)Configuration PC
Router(2)
Local monitoring PC
...
Network camera nNetwork camera 1
